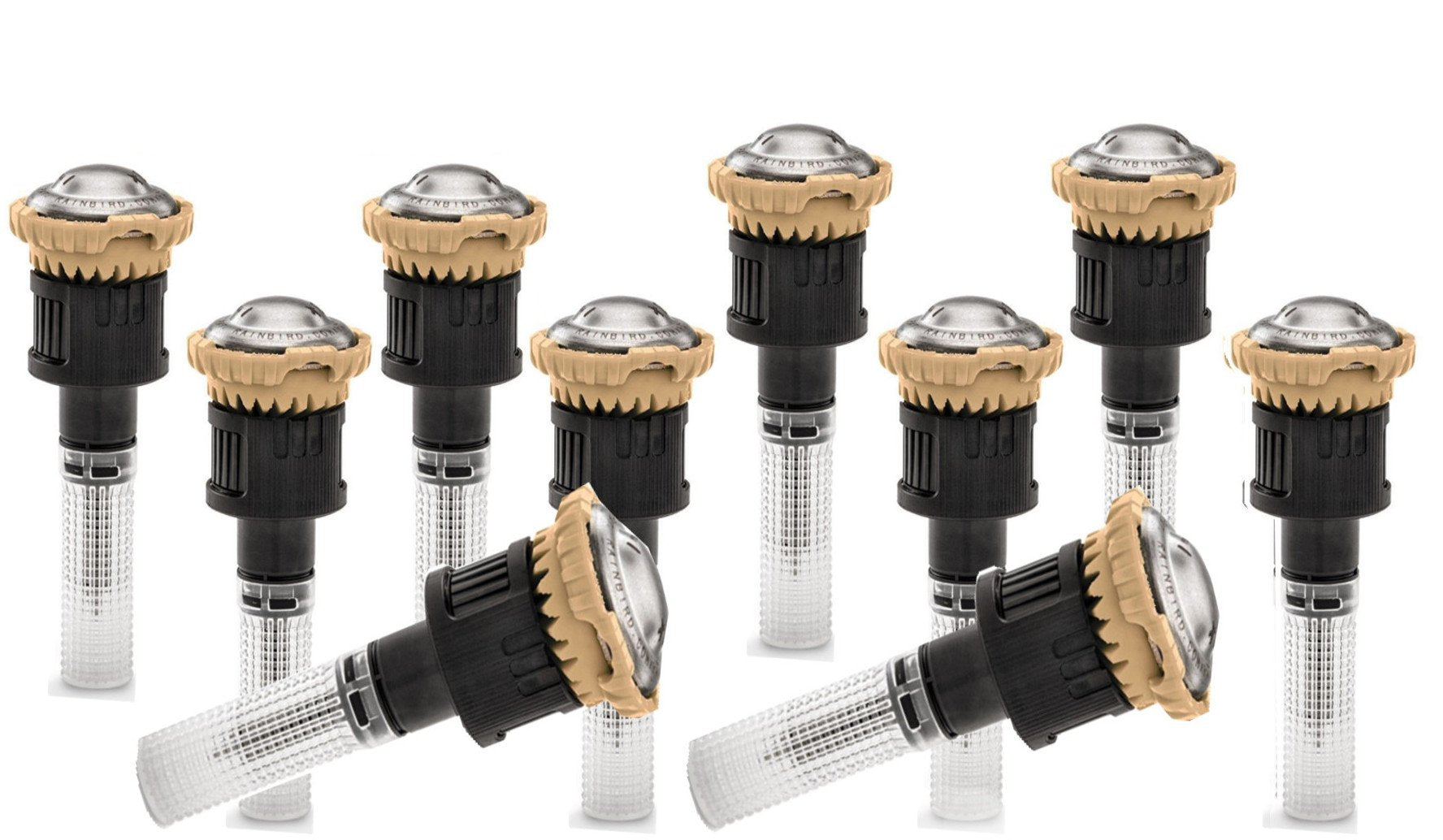

Rain Bird R-VAN 18 Rotary Adjustable Nozzle 10-Pack — 13–18 ft Radius, Low-Precipitation Wind-Resistant

Rain Bird R-VAN 18 adjustable rotary nozzle (10-pack) is a contractor-grade spray nozzle that delivers low-precipitation, wind-resistant rotary streams with easy, tool-free adjustments for 13–18 feet coverage.

Built for efficient landscape irrigation, the R-VAN 18 combines rotary flow technology with a simple adjustable swivel design to cut runoff and maintain uniform coverage. This 10-count contractor pack offers consistent matched precipitation (MPR) performance, large droplet streams that resist misting in wind, and a manual flush feature for dependable operation in dirty or variable-source water conditions.

How does this nozzle save water and prevent runoff?

The R-VAN 18 sprays at a low precipitation rate so water soaks rather than sheets off the surface, substantially reducing runoff and erosion. When swapped in for standard spray nozzles, it can lower flow while improving distribution uniformity.

• Rotary flow produces large droplets that resist evaporation and wind drift.
• MPR design matches precipitation across arcs and radii for even coverage.
• Reported reductions: up to ~60% lower flow versus standard sprays and up to ~30% improved water efficiency in many layouts.

What adjustments can I make in the field?

Both arc and radius are adjustable by hand—no screwdriver or special tools required—so fine-tuning is fast during commissioning or seasonal changes. Adjustments must be made while the nozzle is running to set the arc and distance precisely.

• Radius range centered on 13 to 18 feet for the R-VAN 18 model.
• Arc can be set to custom patterns for partial- or full-circle coverage.
• Color-coded housings simplify model identification on-site.

What operating conditions and compatibility should I expect?

Designed to perform at common contractor pressures, the R-VAN 18 works reliably across a broad pressure band and integrates with most Rain Bird spray bodies, risers, and many adapters. Its design maintains droplet size and pattern even at higher pressures.

• Pressure range: 30–55 psi (2.1–3.8 bar); recommended around 45 psi (3.1 bar).
• Spacing/coverage effective from roughly 13' up toward 22' depending on layout and paired rotors.
• Compatible with Rain Bird spray body models and common sprinkler risers/adapters.

How does it handle debris and windy sites?

The R-VAN includes a manual flush port so installers can clear sediment or grit without removing the nozzle. Its coarse, heavier droplets cut through windy conditions, reducing misting and ensuring water reaches target plants rather than blowing away.

• Manual flush keeps assemblies cleaner and reduces maintenance downtime.
• Large droplet streams minimize fogging and evaporation in breezy locations.
• Coarse flow improves real-world performance on exposed landscapes and slopes.

Who is this for? Contractors, landscape designers, and property managers specifying efficient, predictable spray coverage will value the R-VAN 18 contractor pack. It’s ideal for turf strips, shrub beds, and retrofit jobs where reducing runoff, simplifying on-site adjustments, and ensuring reliable performance under variable pressures or water quality are priorities.
