Rain Bird LG3HE Click-N-Go Impact Sprinkler 3" Pop-Up, 26–41 ft Range, Quick-Connect

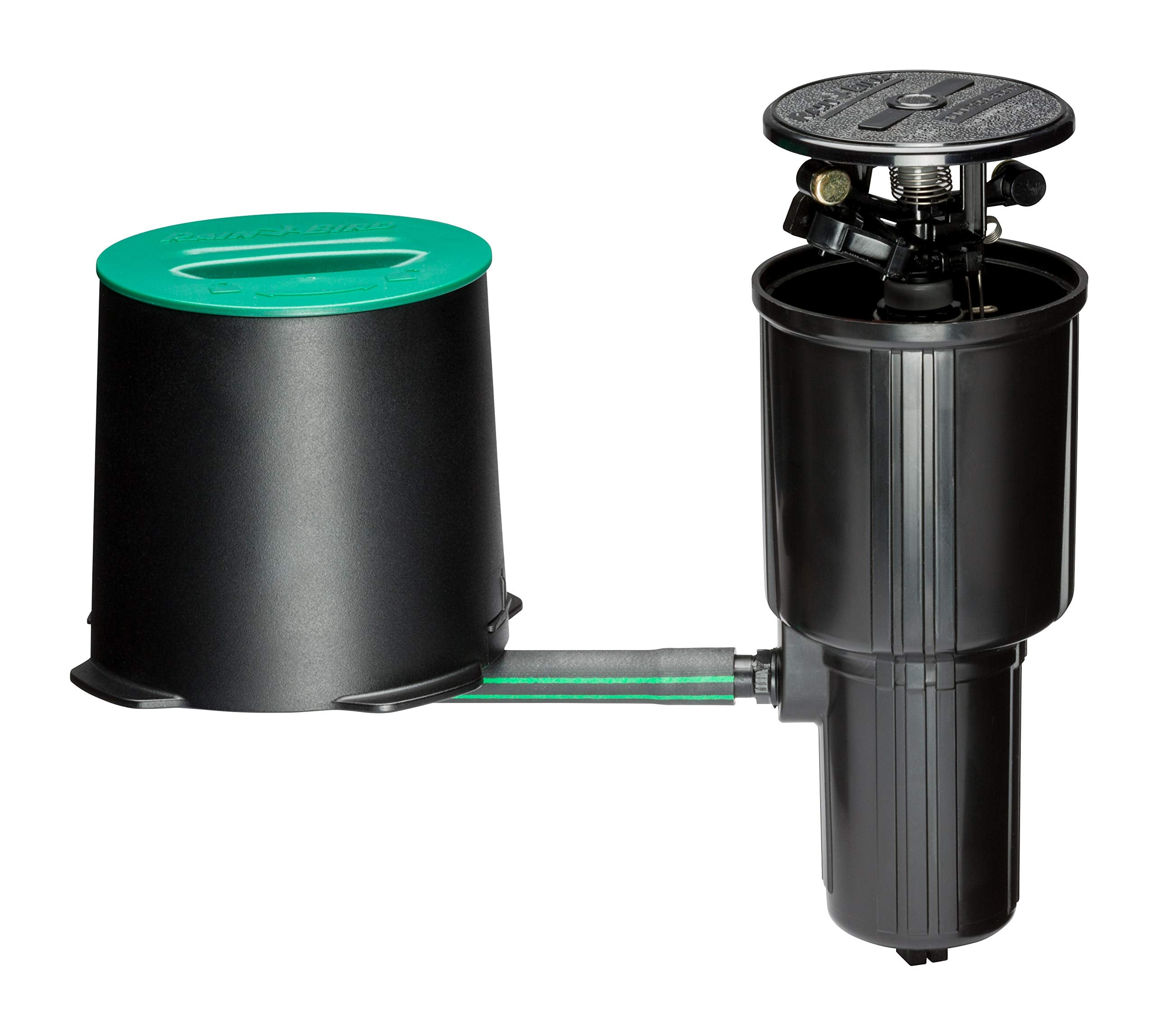

The Rain Bird LG3HE Click-N-Go is a professional-grade in-ground impact sprinkler with a built-in hose quick-connect that pops up to water and retracts flush for mowing.

The LG3HE combines the reliability of commercial impact sprinklers with the convenience of a hose-end quick-connection so you can install a durable pop-up sprinkler without digging trenches or altering your irrigation lines. Designed for residential and light-commercial yards, it clears tall grass with a 3" pop-up, resists grit and mineral-heavy water, and delivers controllable coverage across medium to large areas.

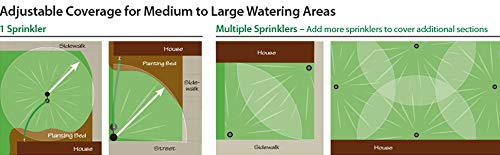

How far and wide will this sprinkler water my lawn?

The LG3HE throws water up to 41 feet and can cover as much as 5,200 square feet when positioned and adjusted correctly. You can set it to rotate a full circle or part circle between 20° and 340°, with infinite pattern adjustment for precise overlap and uniform coverage.

• Throw distance: 26' to 41'
• Maximum coverage: up to 5,200 sq ft
• Pattern options: 360° full circle or 20°–340° part circle
• Fine-tune: infinite pattern adjustment and diffuser screw for radius reduction

Will this unit survive hard water and everyday yard use?

Yes — the LG3HE is built like a professional impact sprinkler to handle well water and mineral-laden water that can clog lesser heads. Robust components such as a brass weighted spray arm, grit-proof bearing, and stainless-steel retract spring deliver long-running reliability and consistent retraction after each cycle.

• Brass double-weighted "Water Saver" spray arm reduces side splash
• Grit-proof bearing for dependable rotation in dirty water
• Stainless-steel retract spring for consistent pop-up and retraction
• Heavy-duty, ribbed case resists wear and impact

How easy is installation and seasonal use with a garden hose?

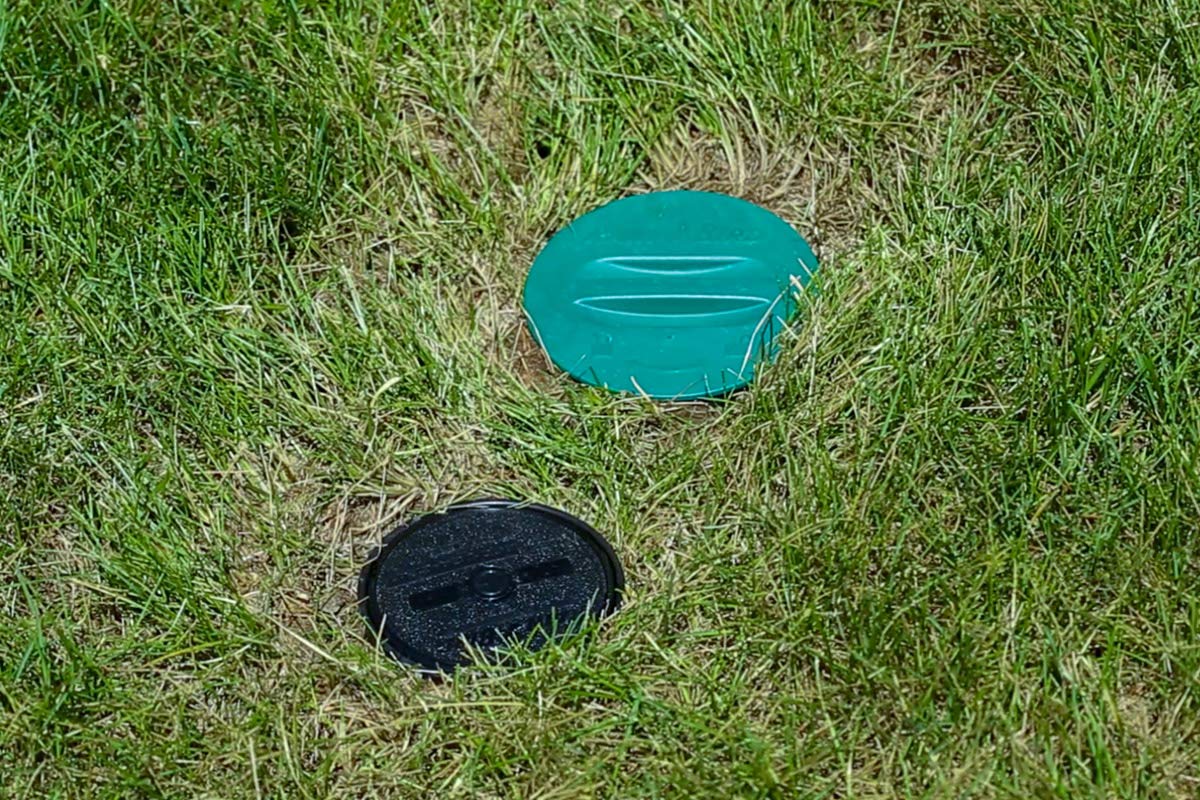

Installation is designed to be simple: the LG3HE drops into a small hole at grade—no trenching needed—and its Click-N-Go quick-connect accepts a standard garden hose. Once attached and adjusted, you can leave it installed for the season; it retracts flush so you can mow over it and then pop up whenever you connect your hose or a compatible timer.

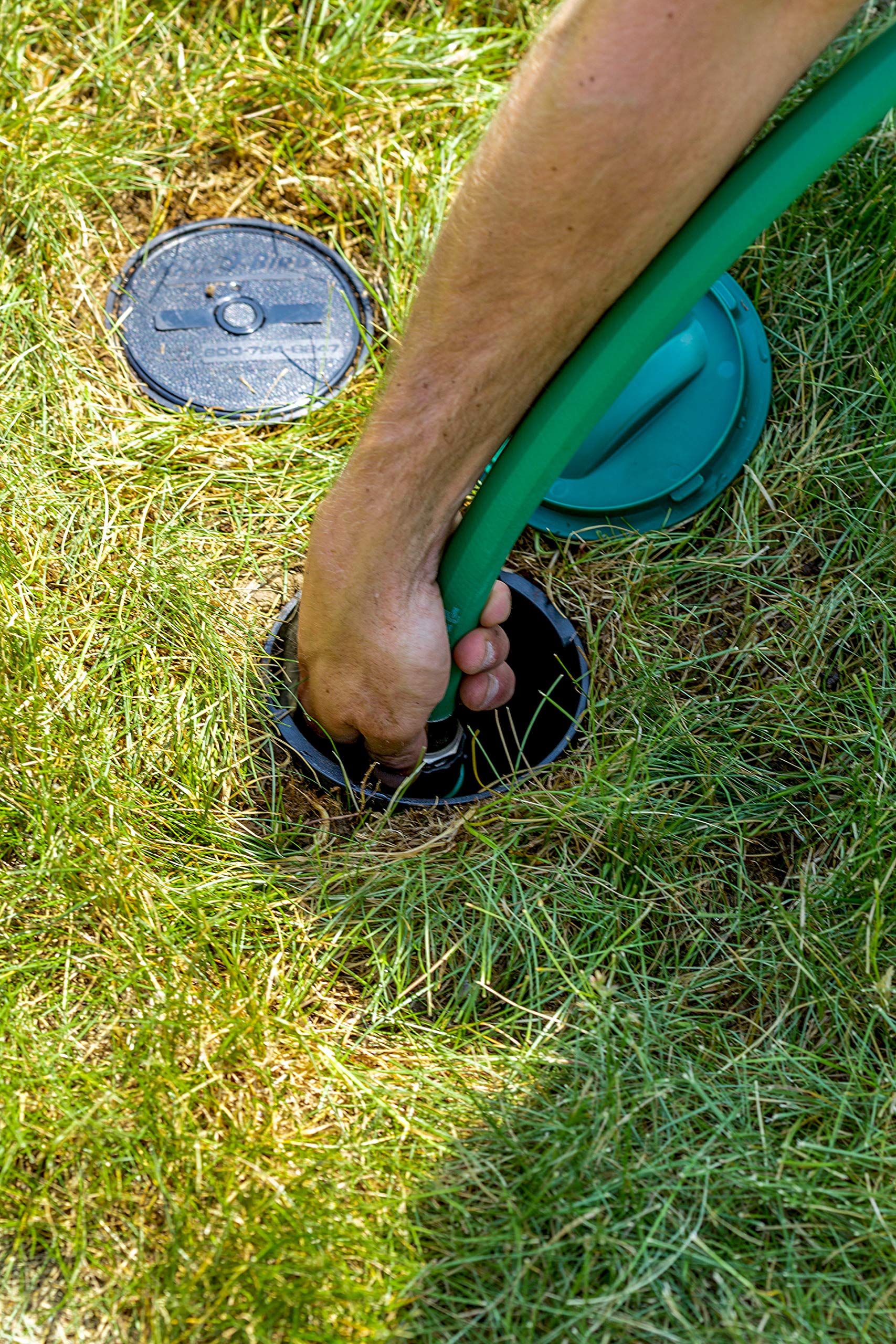

• Quick-connect hose fitting for fast hookup and removal
• Installs in a single small hole, no trenching required

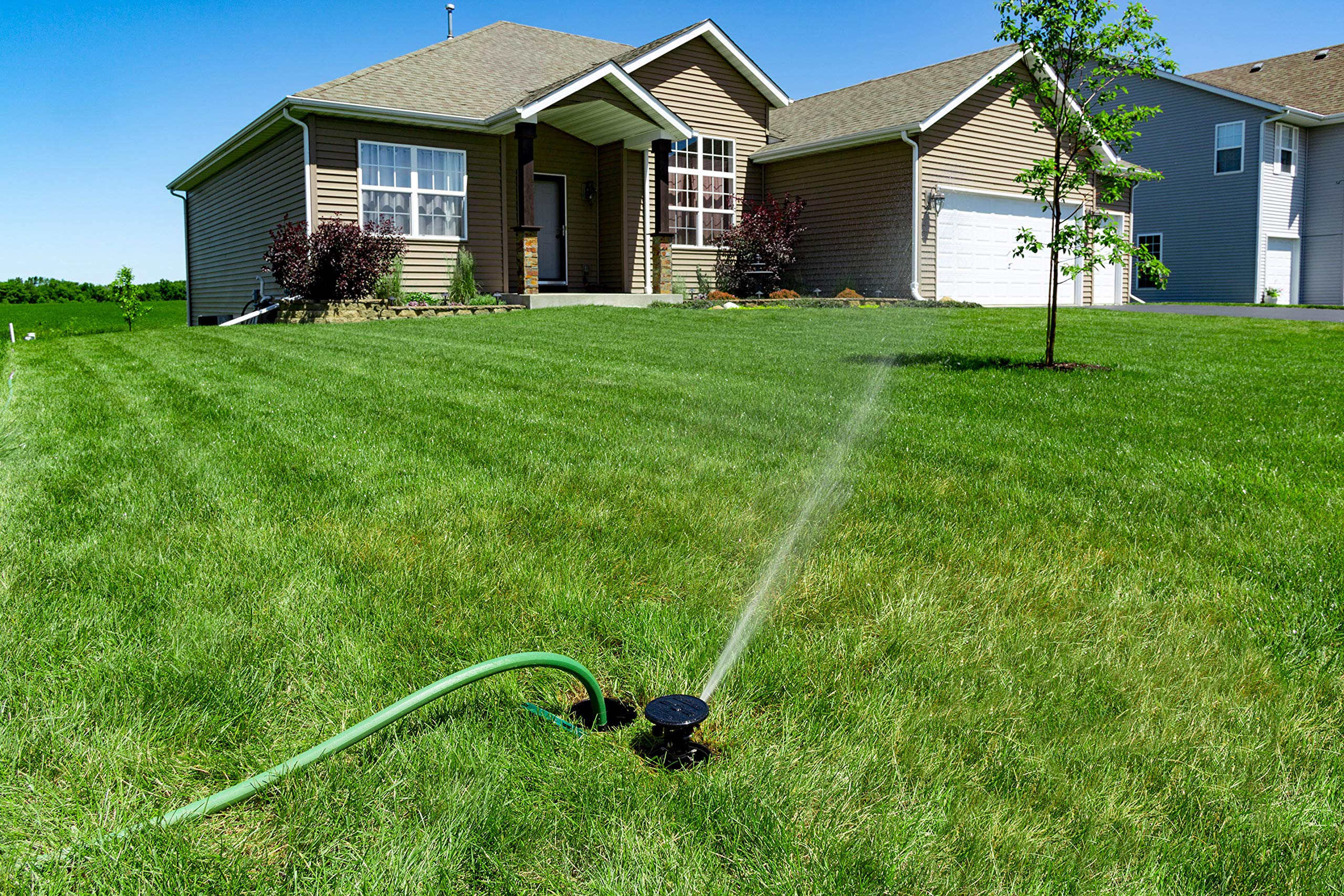

• 3" pop-up height clears tall grass, then retracts for mowing
• Pair with Rain Bird 1ZEHTMR hose end timer to automate watering (sold separately)

What operating conditions and adjustments should I expect?

The LG3HE performs across a broad pressure range and offers simple, on-head adjustments for spray distance and pattern. A diffuser screw breaks the stream into smaller droplets for more uniform coverage and allows radius reduction up to approximately 25% when conserving water or avoiding overspray.

• Operating pressure: 25 to 50 psi
• Flow reference: about 3 gallons per minute (varies with pressure and pattern)
• Diffuser screw for droplet breakup and radius reduction
• Spacing guideline: 26' to 41' between heads for overlap

Who is this for? The Rain Bird LG3HE Click-N-Go is ideal for homeowners and small-property managers who want a durable, low-profile pop-up impact sprinkler that resists hard water, installs without trenching, and accepts a garden hose or hose-end timer for simple seasonal or automated watering. It suits medium to large lawns, garden beds, or perimeter watering where adjustable arc control and robust performance are priorities.
