Rain Bird 5000 Rotor Sprinkler 2-Pack with Nozzle Tree & Screwdriver — Rain Curtain Nozzles, 25–50 ft Adjustable Reach

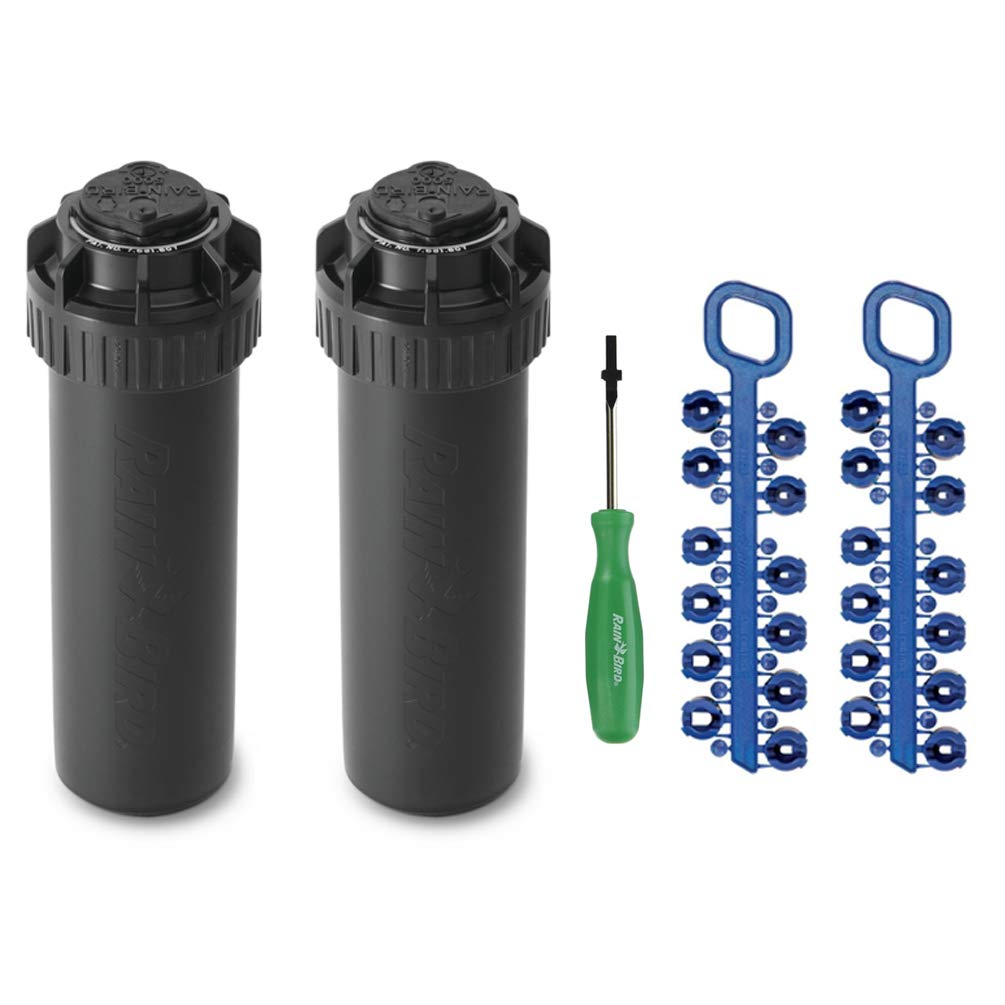

The Rain Bird 5000 Rotor 2-pack is a ready-to-install rotor sprinkler kit that includes eight low-angle and eight standard-angle Rain Curtain nozzles plus the CPRTOOL screwdriver for fast, above-ground adjustments.

This all-in-one rotor bundle gives you professional-grade popup sprinklers tuned for even turf coverage and easy field servicing. Designed to reduce wind drift and close-in dry spots, the Rain Curtain nozzles deliver a consistent droplet pattern while the 5000 rotor allows 40°–360° arc selection and 25–50 foot reach. Everything you need for quick retrofit or new installs is in one box, including the screwdriver tool for top-side arc and distance changes—no digging required.

How does this kit improve lawn coverage compared with standard rotors?

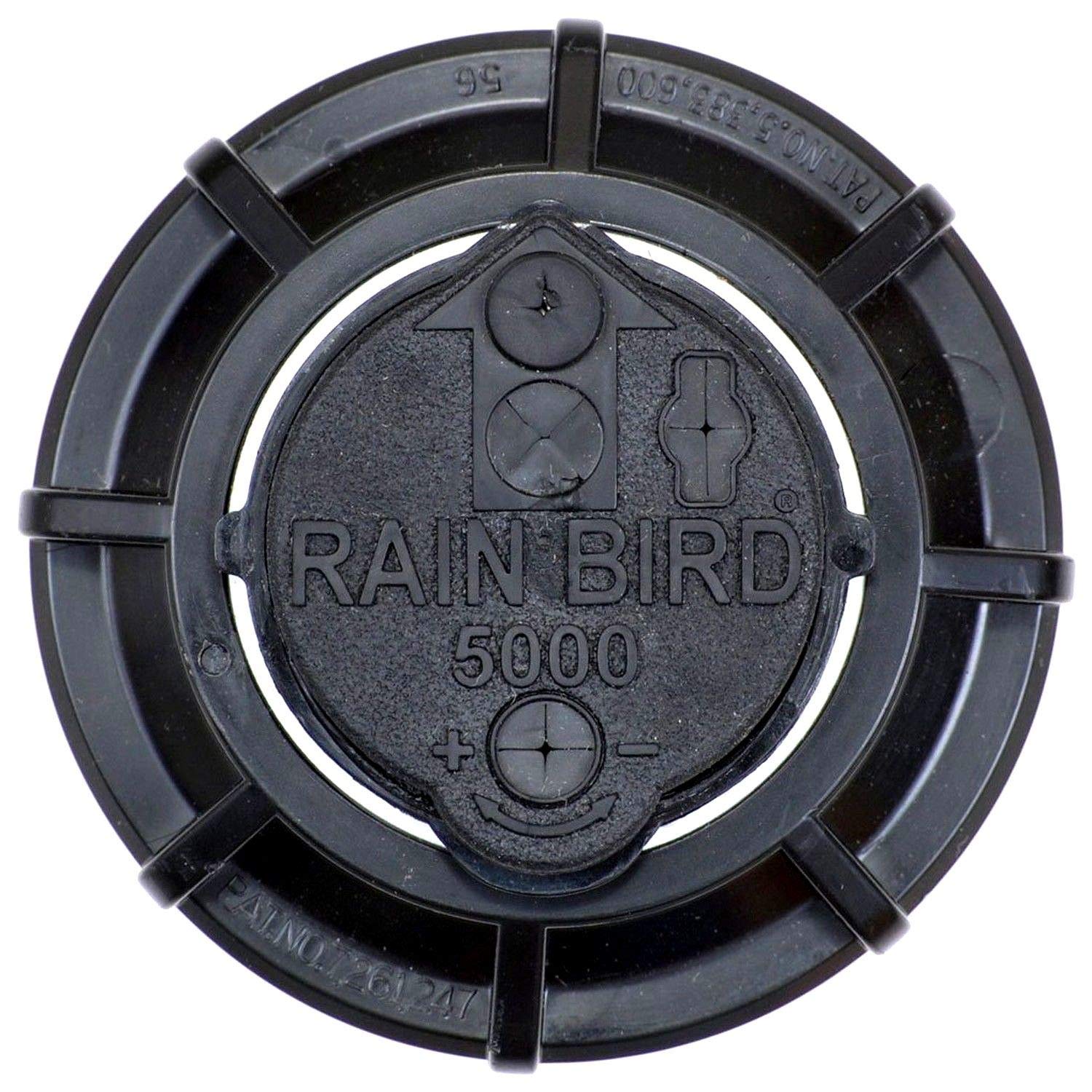

The Rain Curtain nozzles create larger, more uniform droplets that resist wind and fall more predictably across the rotor’s arc, reducing uneven wetting and dry fringes. Micro-ramps at the nozzle’s base add gentle coverage near the head, preventing the common dry ring around pop-ups.

• Larger droplet distribution for less wind drift
• Micro-ramps for close-in turf hydration

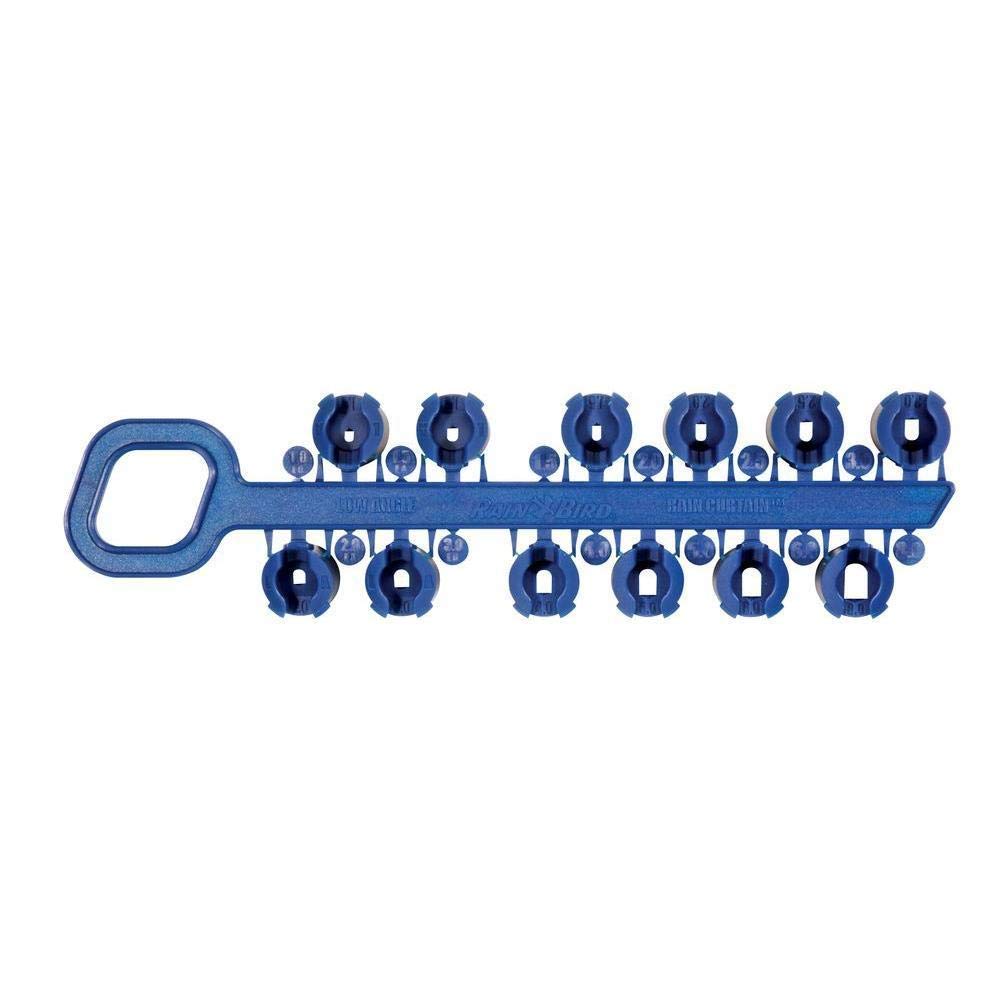

• Selectable low- and standard-angle nozzles for sidewalks or turf edges
• Arc control to avoid overspray onto hardscape

What adjustments can I make without removing the sprinkler?

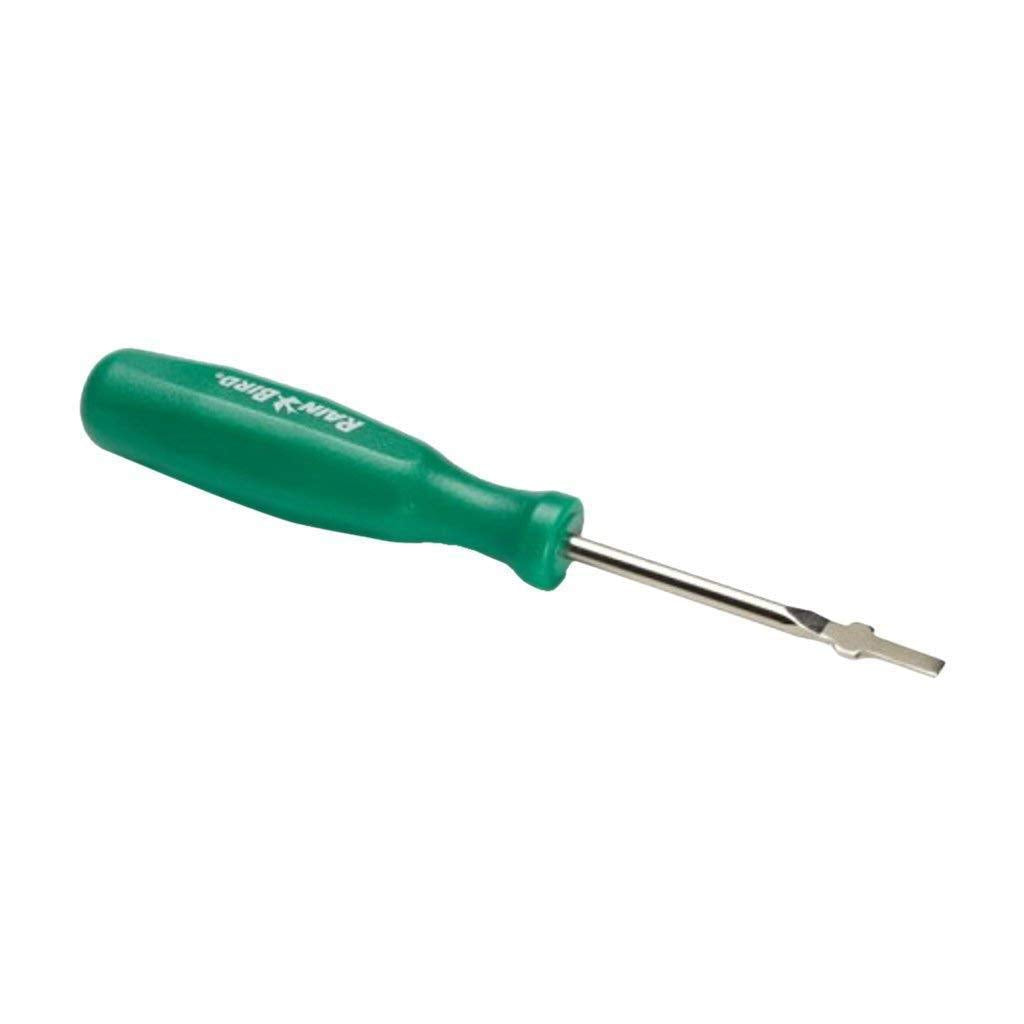

You can set the rotor arc between 40° and 360° and change the distance from 25 to 50 feet from the top of the head using a flat-blade screwdriver. The included CPRTOOL is shaped for quick, secure top adjustments so you can dial in coverage without excavation or disassembly.

• Top-mounted arc screw for fast sector changes
• Distance adjustment accessible from above
• Tool included—no extra parts required
• Saves time on routine field tuning and repairs

How durable and serviceable is the Rain Bird 5000 rotor?

The 5000 rotor uses a closed-case gearbox and reinforced seals to protect internal components from grit, roots, and soil, making it robust for buried installations. Stainless steel spring, a water-lubricated gear drive, and a 3/4-inch NPT female threaded inlet help maintain reliable retraction and flow under typical irrigation pressures.

• Closed-case design keeps sand and debris out
• Sturdy stainless-steel retract spring for reliable pop-up
• Water-lubricated gears reduce wear and maintenance
• Operates efficiently from 25 to 65 PSI

Which nozzle should I choose for sidewalks, sloped turf, or standard lawn areas?

Low-angle nozzles are best when you need to avoid overspray on walkways, driveways, or building exteriors, while standard-angle nozzles provide broader coverage ideal for open lawns. The kit supplies both types so you can match nozzle selection to location-specific needs during installation.

• Low-angle nozzles: minimize overspray onto hard surfaces
• Standard-angle nozzles: maximize throw for open turf areas
• Mix and match nozzles without special adapters
• Swap from the top for quick field changes

Who is this for? Landscapers, irrigation contractors, and do-it-yourself homeowners who want a compact, service-friendly rotor solution will appreciate this Rain Bird kit. It’s geared to retrofit old heads or outfit new zones where reliable coverage, reduced wind loss, and fast top-side adjustments matter—especially on medium to large lawns, parks, and commercial turf installations.
