Rain Bird 5000 Rotor 10-Pack with Rain Curtain Nozzles & Screwdriver — Top-Adjust, 25–50 ft Throw

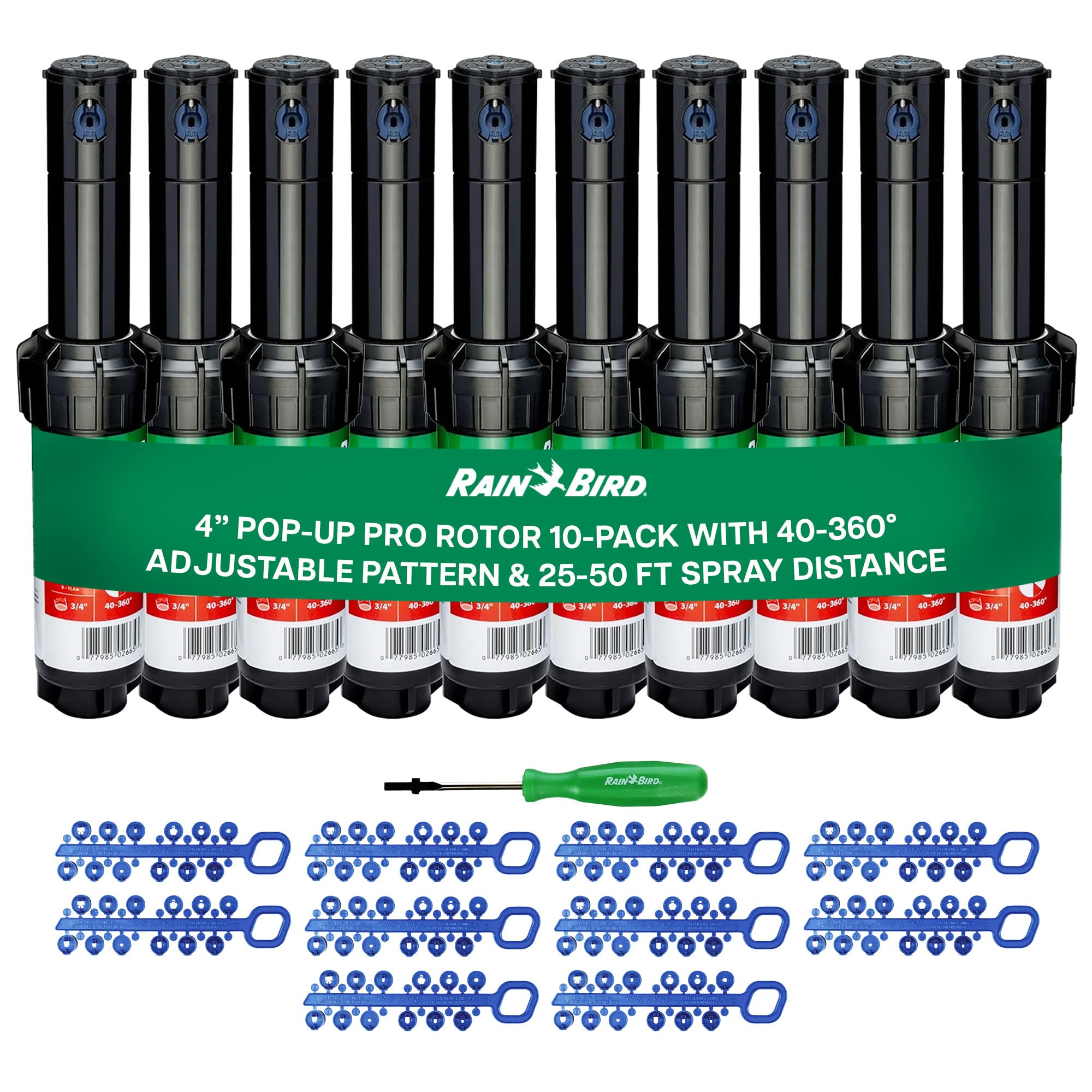

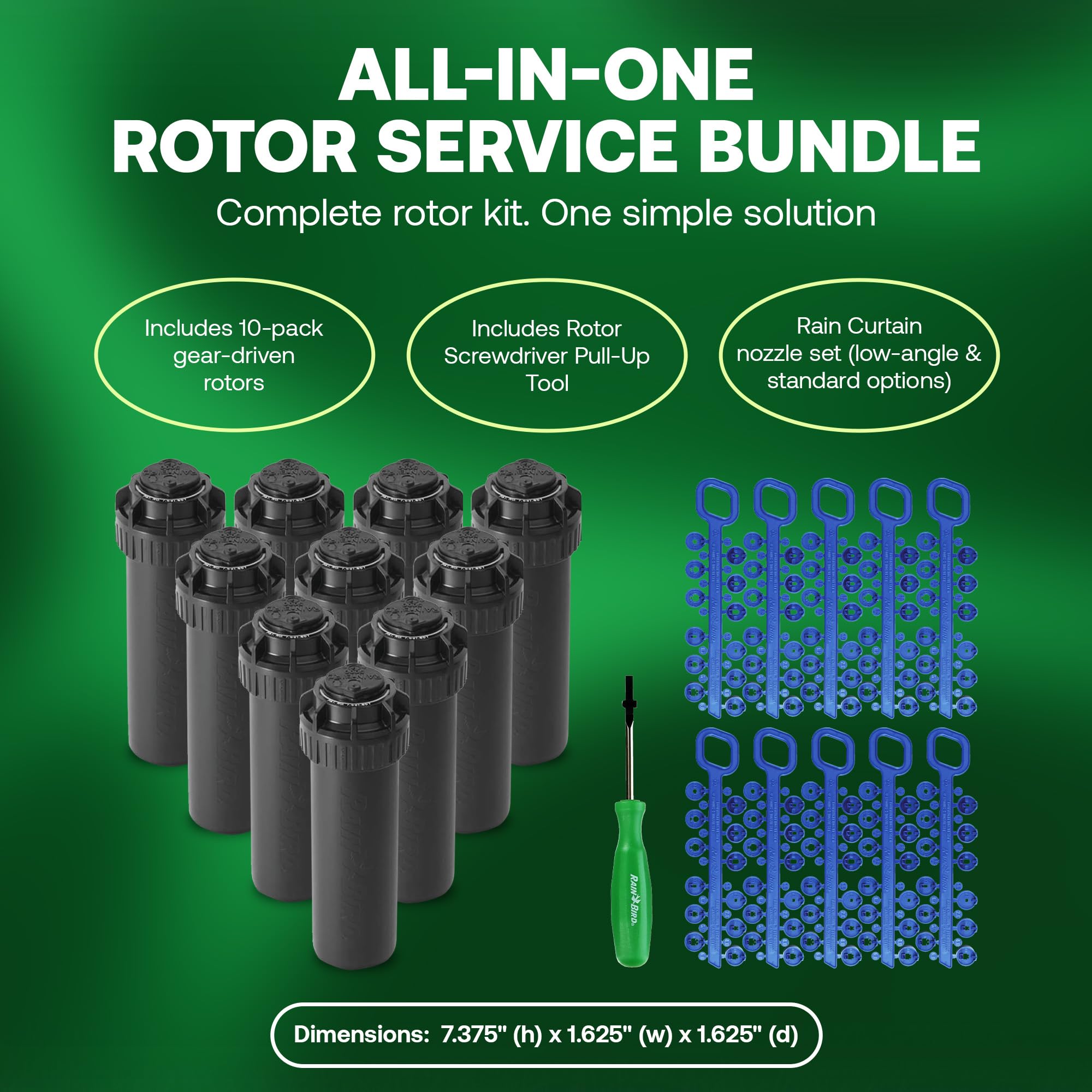

Complete replacement kit: ten Rain Bird 5000 rotors with a mix of Rain Curtain nozzles and a rotor screwdriver tool so you can restore reliable, adjustable pop-up irrigation without digging.

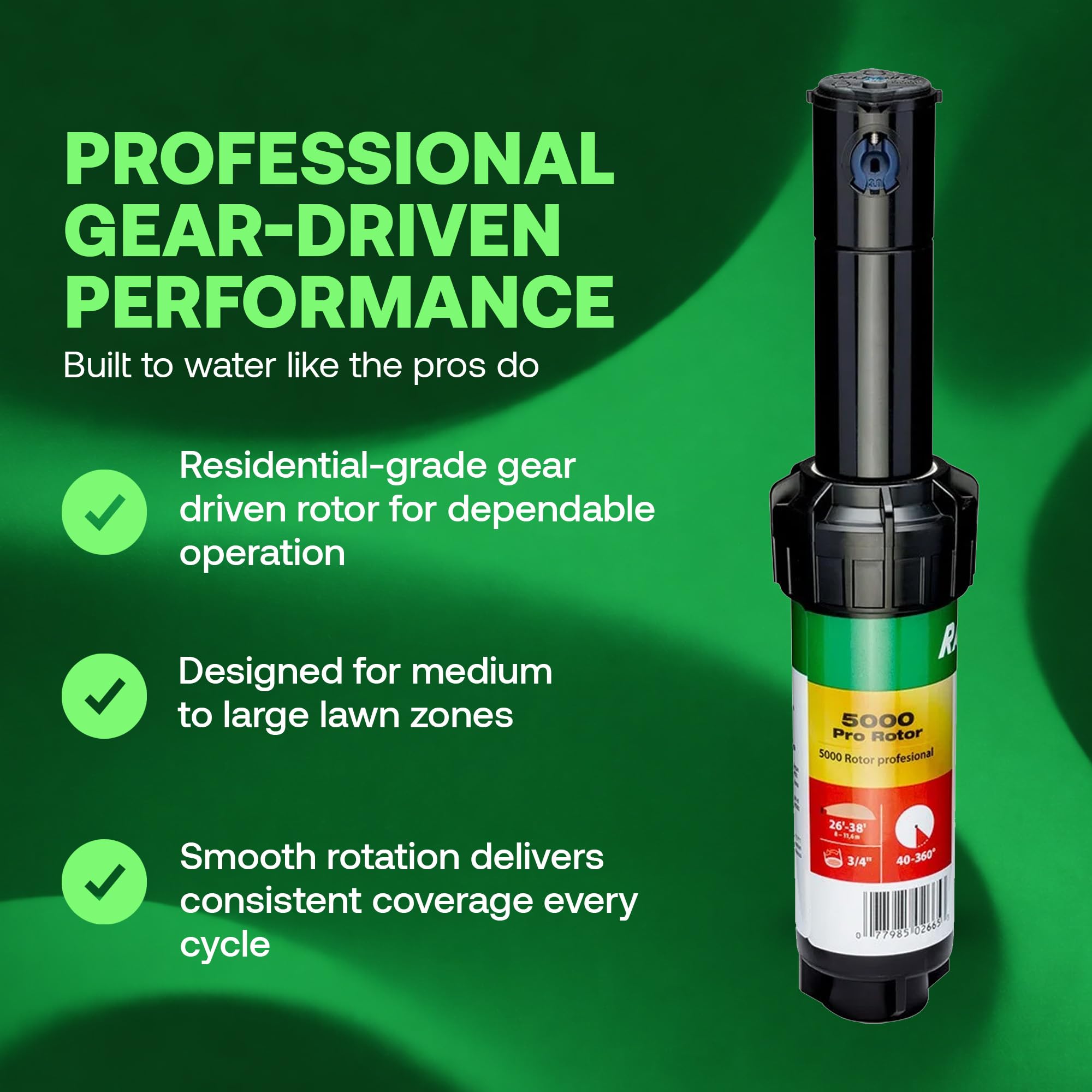

Whether you are repairing a few tired sprinkler heads or retrofitting a small landscape, this all-in-one Rain Bird bundle supplies the most common rotor, nozzle, and adjustment tool you need to get zones working again. The 5000 rotor is a top-adjustable, gear-driven pop-up head engineered for residential and light commercial turf, offering wide arc range and long throw distances. Rain Curtain nozzles are included to improve uniformity with larger droplets and close-in coverage, while the screwdriver tool lets you change arc and radius from the surface—no disassembly required.

How will these rotors improve my lawn's coverage?

The 5000 rotor combines a gear drive and Rain Curtain nozzles to create a smoother pattern with fewer dry spots. The nozzles generate larger, wind-resistant droplets and micro ramps for near-head watering, so turf receives more even moisture across the entire pattern.

• Rain Curtain nozzles reduce misting and carry, improving deposition.
• Micro ramps add close-in coverage to eliminate dry rings around heads.
• Adjustable arc from 40° to 360° for precise pattern shaping.
• 25–50 ft throw supports typical yard layouts and spacing.

How easy is it to adjust or service the rotor heads?

Top-access adjustments let you set arc and spray radius with a flat-blade screwdriver—no need to excavate the body or remove the head. The included CPRTOOL screwdriver is sized for Rain Bird top-adjust features, speeding repairs and seasonal tuning.

• Top-adjust for arc and distance—do it from the lawn surface.
• Tool included: rotor screwdriver for quick, accurate changes.
• Closed-case design reduces debris-related failures and downtime.
• Stainless steel retract spring and water-lubricated gear improve longevity.

What are the technical limits and compatibility details?

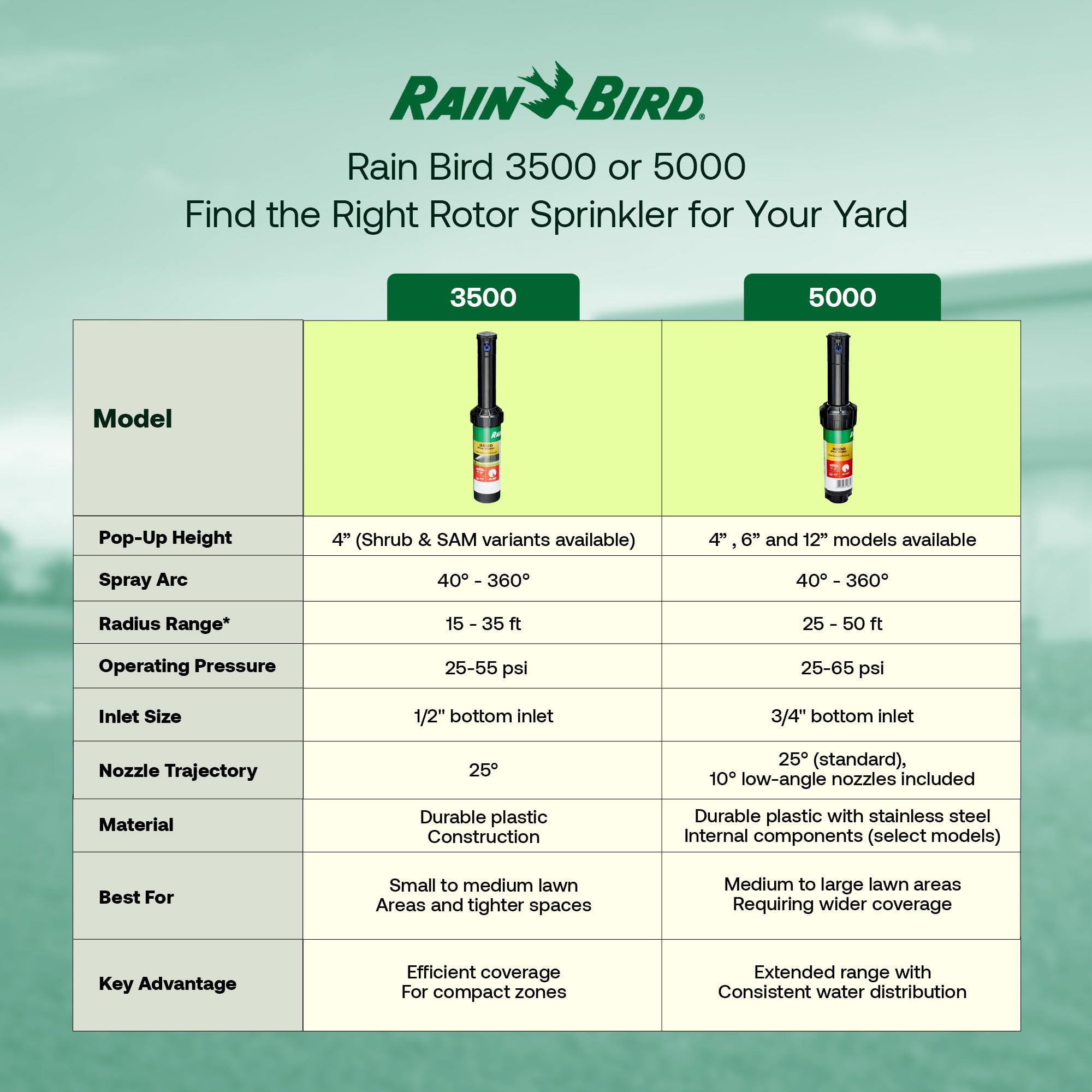

The 5000 rotor fits standard 3/4-inch NPT female-threaded risers and operates between 25 and 65 PSI. It pairs with common residential piping and works with both low- and standard-angle nozzles included in the kit to handle various landscape geometries.

• Inlet: 3/4-inch NPT female threaded.
• Operating pressure: 25–65 PSI for optimal performance.
• Nozzle options: 8 low-angle and 8 standard-angle Rain Curtain nozzles included.
• Throw range: adjustable 25–50 ft depending on pressure and nozzle choice.

How does the kit reduce long-term maintenance?

Built with a closed-case mechanism and reinforced seals, the 5000 rotor resists sand and debris intrusion that can cause gear or seal failure. The water-lubricated gearbox and stainless hardware reduce wear, while the included spare nozzles let you restore proper spray patterns quickly.

• Closed-case protects internal gears from grit and roots.
• Water-lubricated gear drive lowers mechanical wear.
• Stainless steel spring and reinforced seals extend service life.
• Includes spare nozzles for on-the-spot adjustments and replacements.

This Rain Bird 5000 rotor 10-pack plus nozzle tree and screwdriver is ideal for homeowners, landscapers, and maintenance crews who want a single purchase to repair or upgrade multiple sprinkler heads. If you manage small-to-medium lawns, rental properties, or light commercial turf, the kit minimizes trips to the supply store and reduces downtime. Choose this bundle when you need durable rotors, improved watering uniformity, and the convenience of top-adjustment tools delivered in one pack.
