Qigreesol MPPT Solar Charge Controller SA100A 100A 12/24/36/48V — LCD Display & Dual USB

The Qigreesol SA100A is a 100-amp MPPT solar charge controller that intelligently recognizes 12/24/36/48V systems, displays real-time status on an LCD, and protects batteries while delivering high-efficiency charging and dual USB output.

The SA100A is built for medium- to large-sized off-grid and hybrid solar installations where reliable maximum-power-point tracking, flexible battery compatibility, and clear system feedback are important. It combines an advanced MPPT algorithm with smart charging logic and high-current hardware to yield up to 99.5% tracking efficiency while offering safety cutoffs, timing control, and a user-friendly display. This model is an evolution of previous MPPT designs with extra emphasis on visualization, timing precision, and improved thermal spacing for consistent performance under varied conditions.

How does the SA100A improve solar harvest compared with simpler controllers?

The SA100A uses an MPPT algorithm tuned to follow the maximum power point of the array and adaptively adjusts during bulk charging. It monitors PV voltage, battery voltage, and current in real time to optimize conversion and reduce wasted energy.

• Advanced MPPT tracking algorithm with ≥99.5% tracking efficiency.
• Real-time PV voltage visualization to verify panel input.
• High-frequency switching and PWM-style hardware execution for high-current reliability.
• Dynamic PV input behavior that follows battery voltage during bulk stages.

What battery types and system voltages will it support?

The controller automatically recognizes and works with 12V, 24V, 36V, and 48V systems and supports common battery chemistries. That flexibility makes it straightforward to add to existing systems or upgrade to higher-capacity banks without rewiring the array.

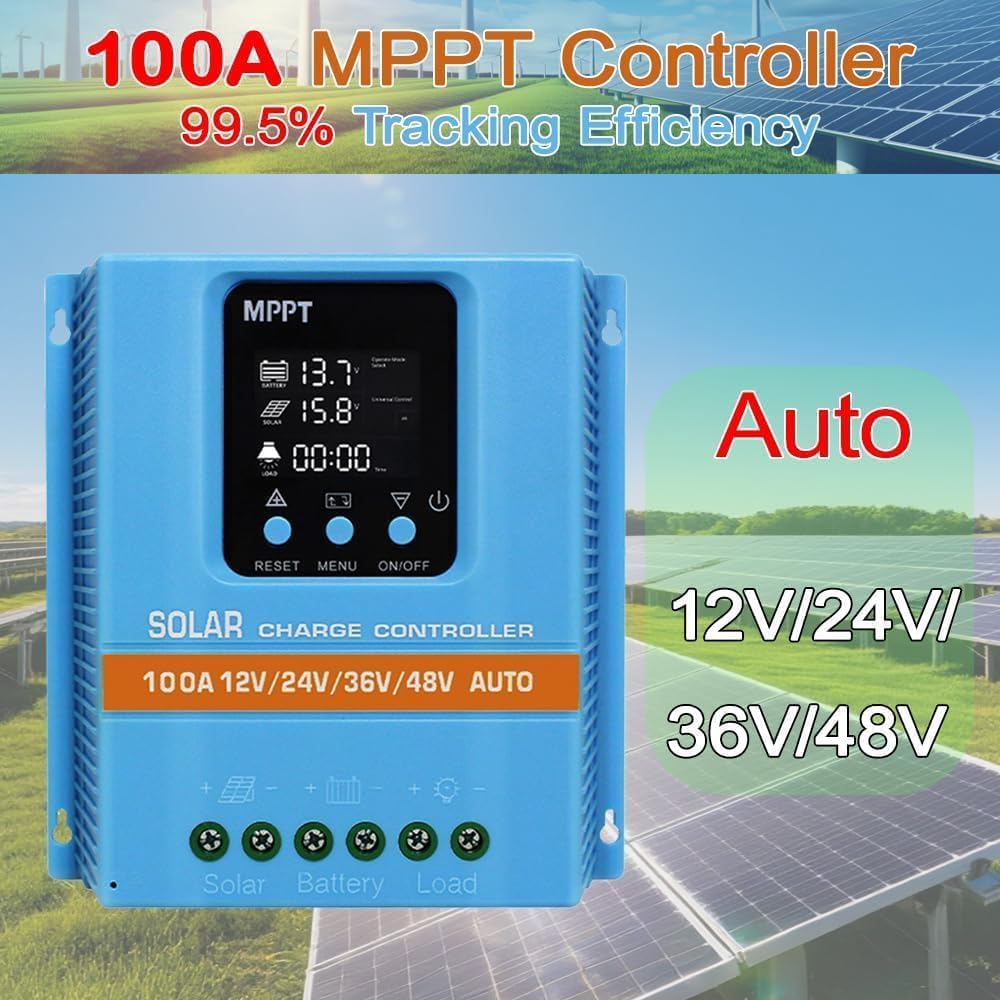

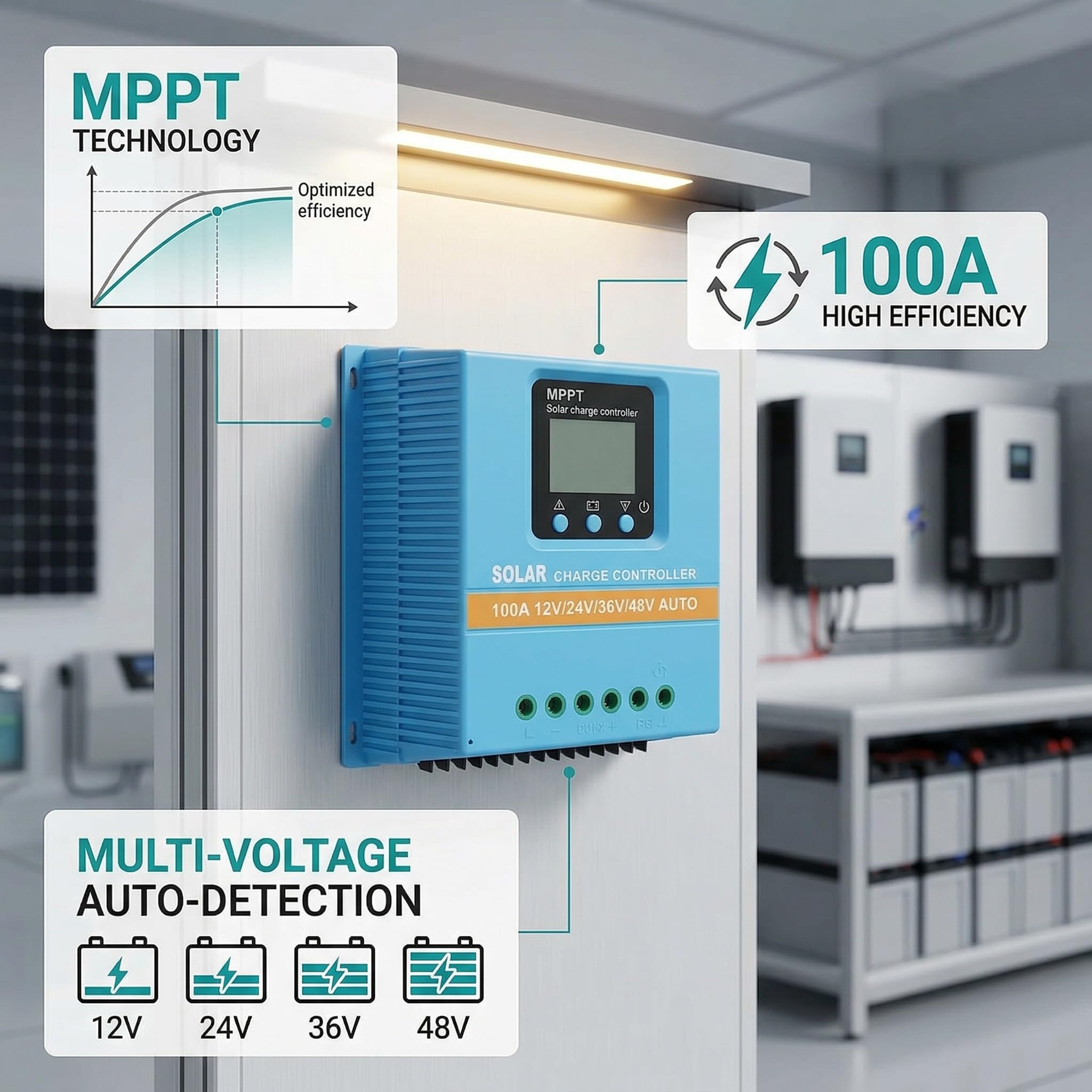

• Automatic voltage detection for 12V/24V/36V/48V configurations.

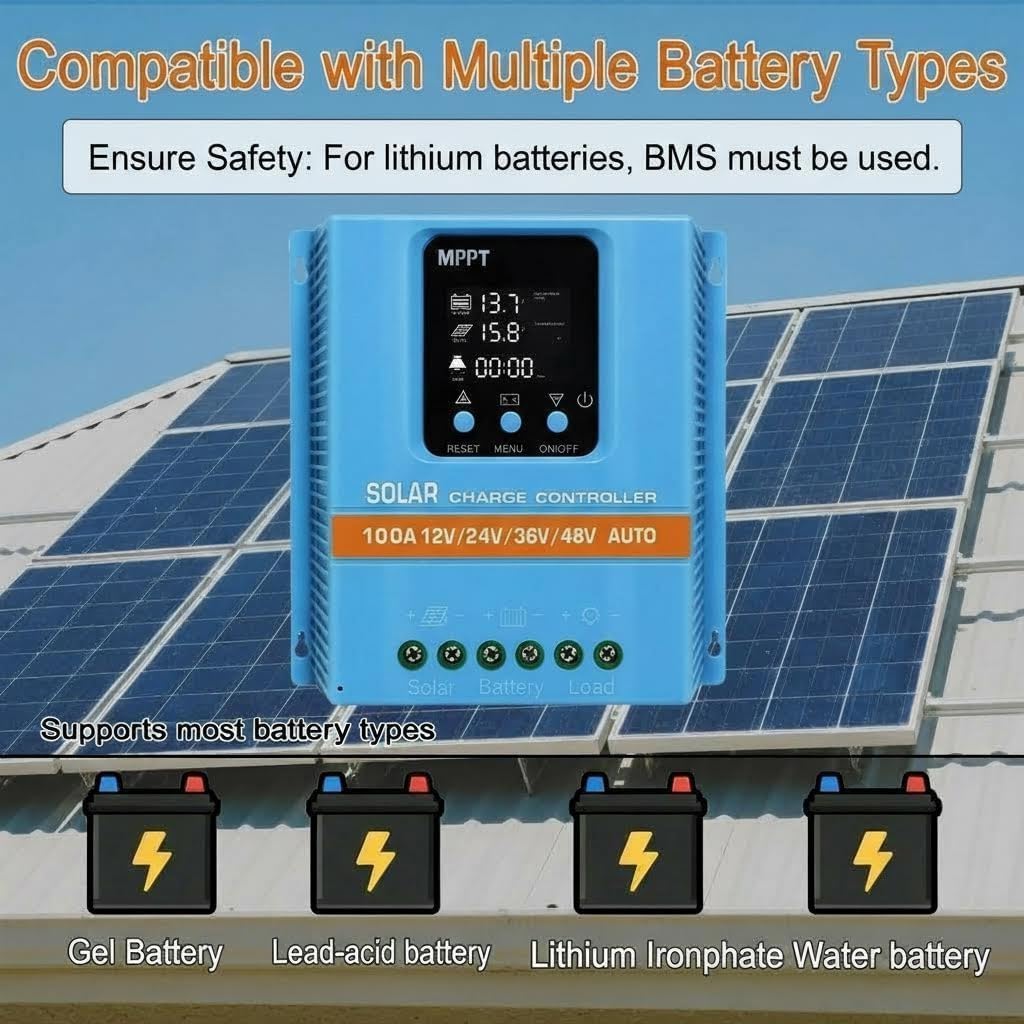

• Compatible with sealed, GEL, flooded lead-acid, and LiFePO4 batteries.
• Suitable for hybrid setups and backup power stations.
• Selectable charging parameters and memory function for custom battery profiles.

What safety and reliability features protect my batteries and loads?

The SA100A integrates multiple protections and visual feedback to reduce risk to connected equipment. It actively monitors temperature, voltage, and currents and will disconnect or throttle outputs when limits are exceeded.

• Three-layer protection: surge cutoff (>32V), short-circuit, and over-temperature shutoff (>65°C/149°F).

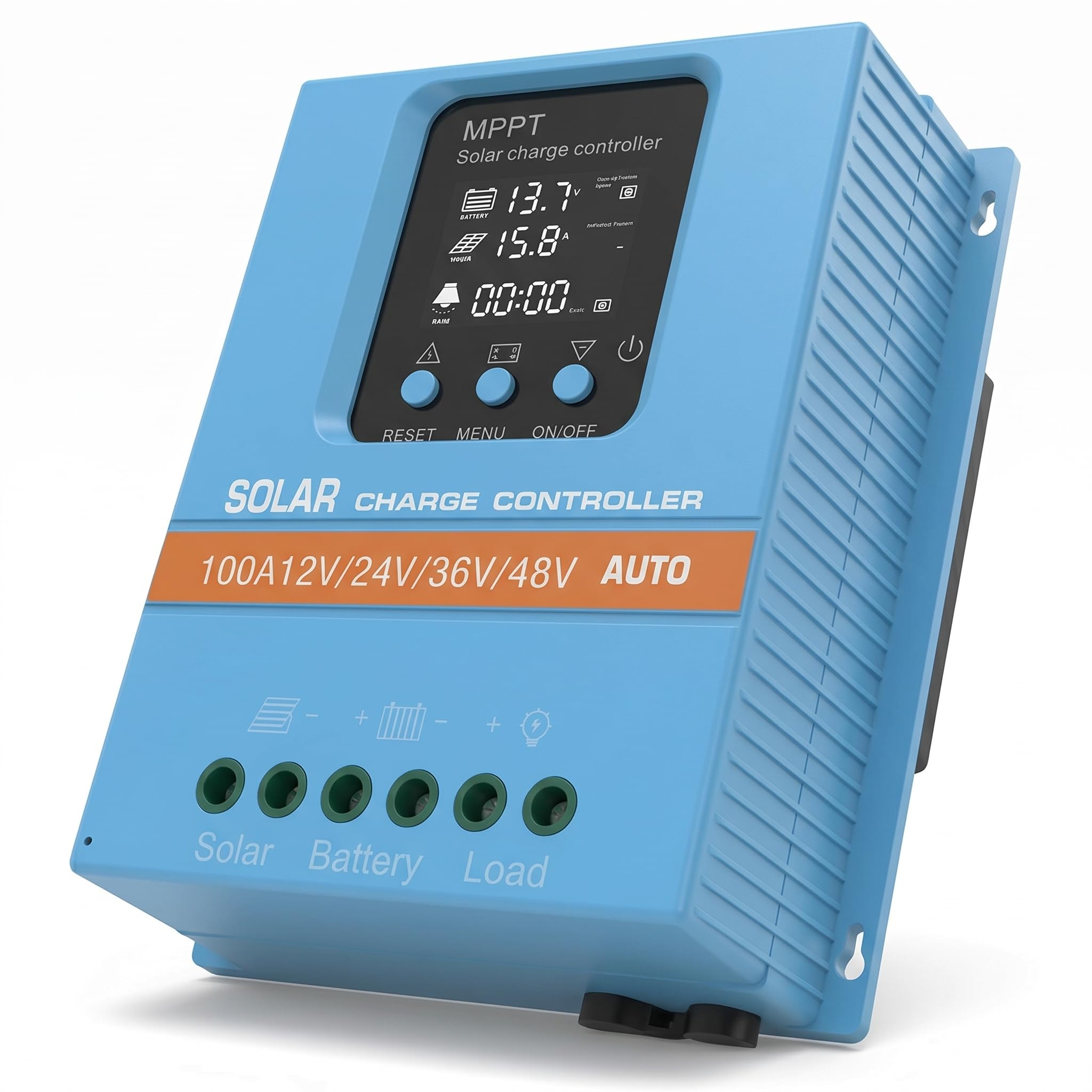

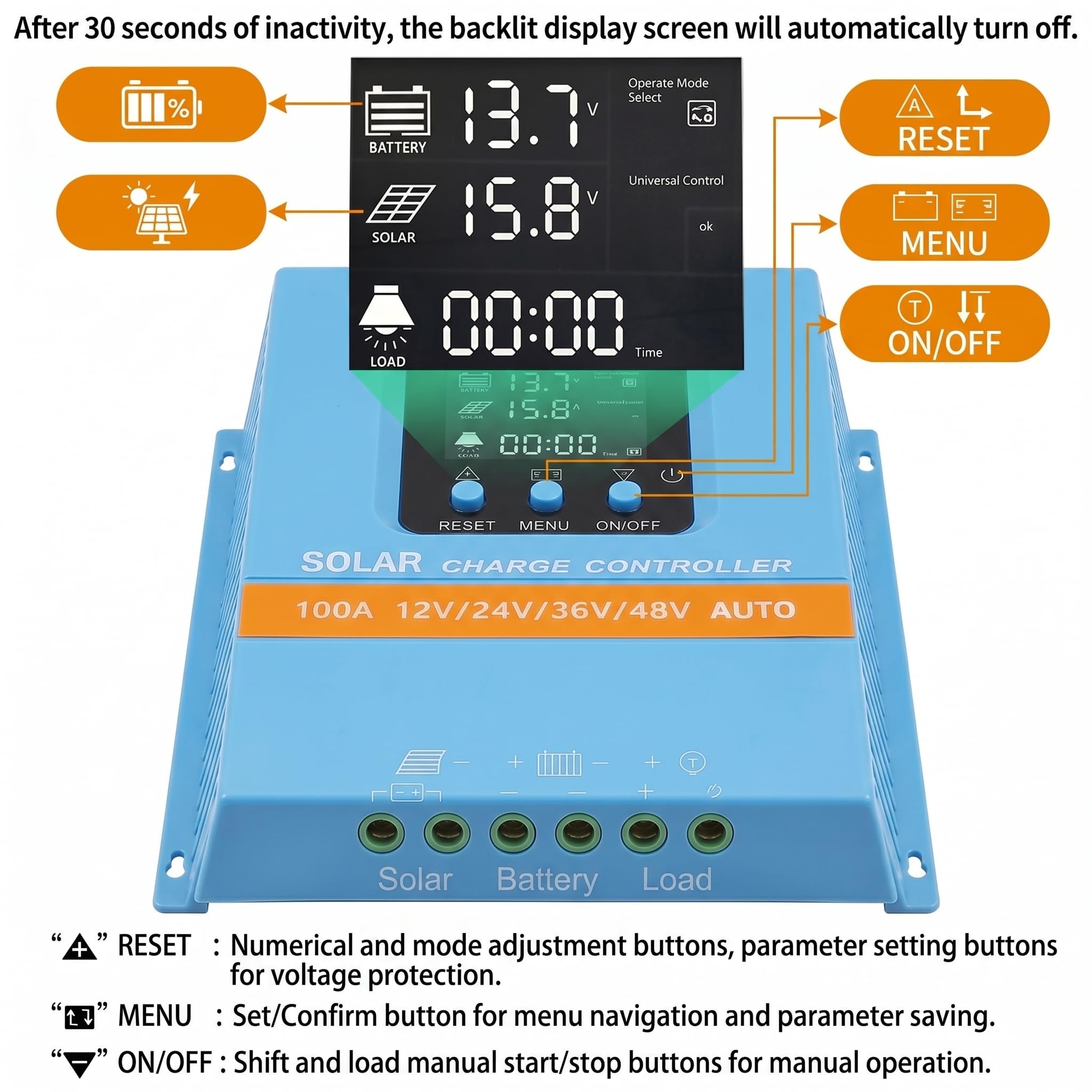

• LCD backlight shows battery voltage, PV current, temperature, and error codes in real time.
• Flame-retardant housing and enlarged wiring ports for safer, cleaner installations.

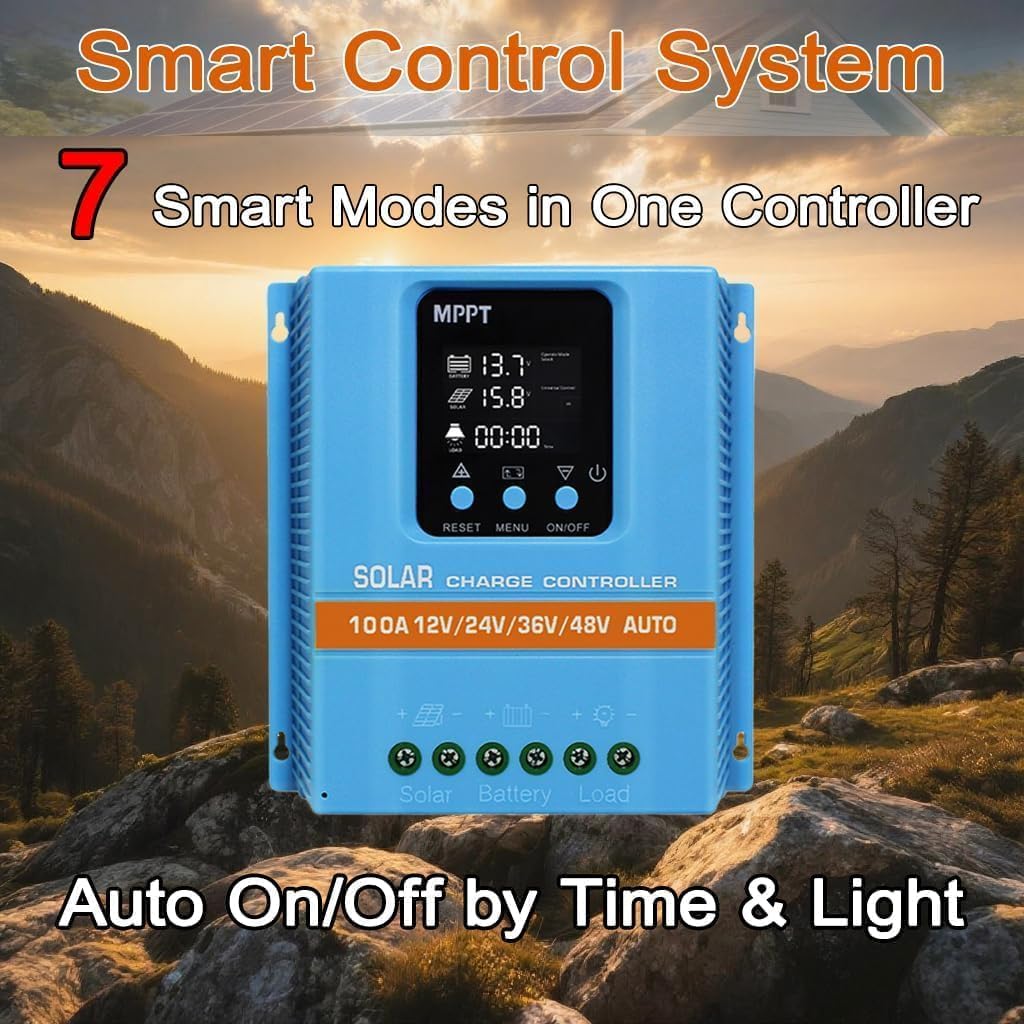

• Precise timing control for load switching with 1–2 second accuracy and memory function.

How easy is installation and daily use?

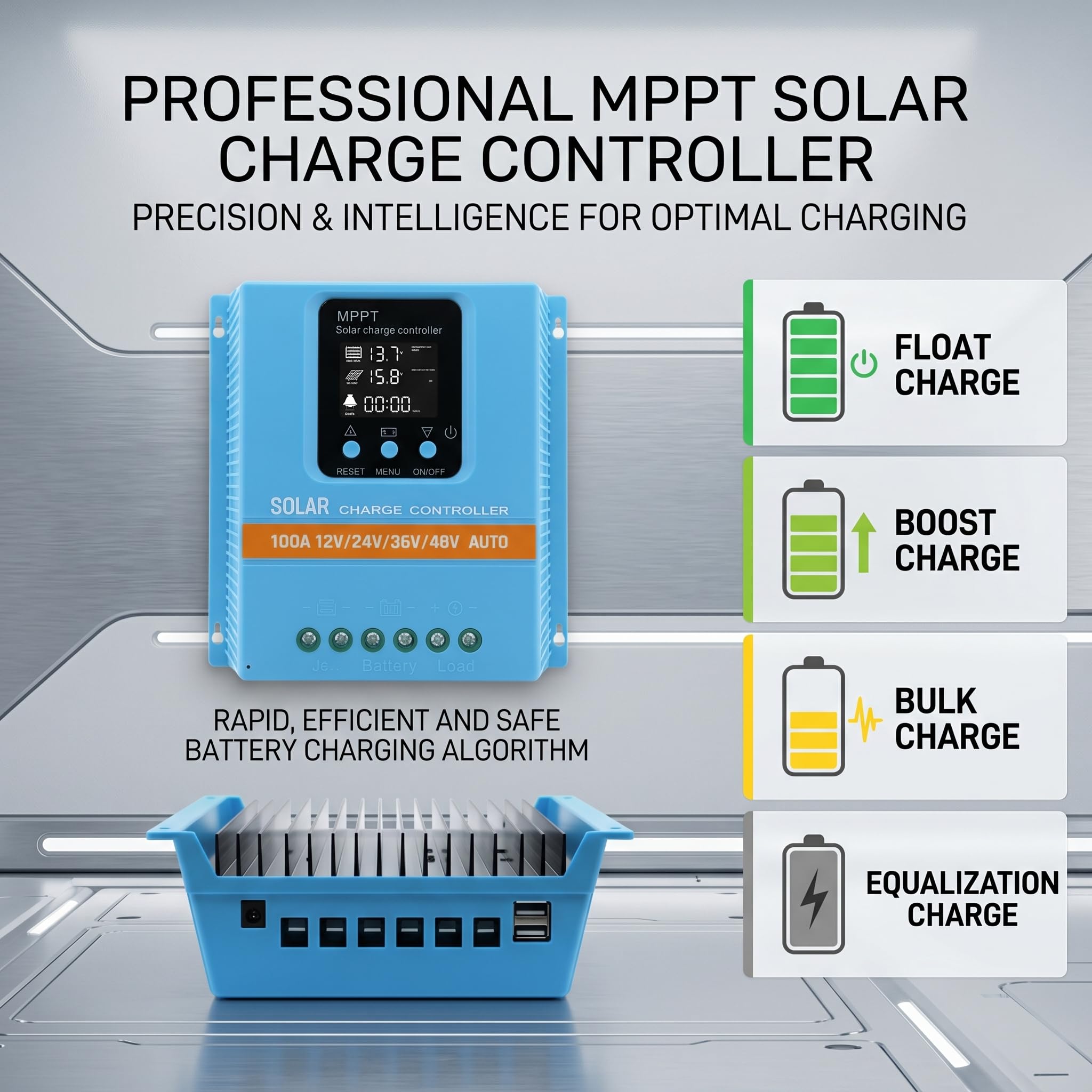

The unit is designed for straightforward wiring, clear on-device readouts, and flexible controls for both field technicians and DIY users. Larger wire terminals and improved heat-sink spacing reduce mechanical stress and improve cooling for long-term operation.

• Large-section wiring port with increased spacing for simpler connections.
• Clear LED/LCD display for quick status checks without extra tools.

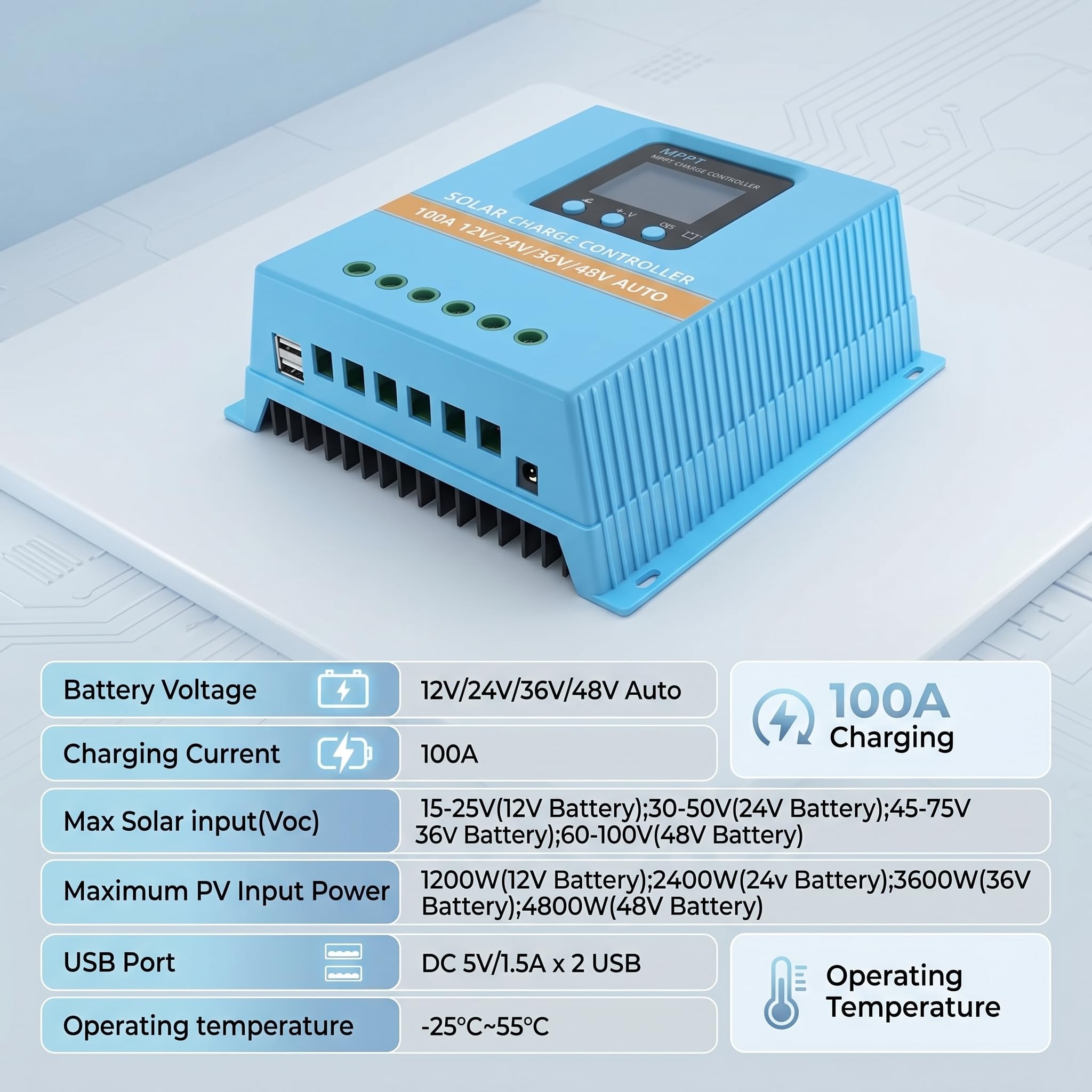

• Dual USB 5V ports for charging small devices directly from the system.
• Preset charging profiles plus adjustable voltage parameters for fine tuning.

Who is this for: The Qigreesol SA100A is aimed at homeowners, installers, and system integrators building off-grid homes, remote power stations, solar street or courtyard lighting, communication bases, or hybrid backup systems. It fits projects that need robust MPPT performance and flexible battery support, including those upgrading existing arrays or adding higher-voltage battery banks without major rewiring.
