Pureline Upper Valve Handle Assembly PL0734 for Hayward Pro Series — Fits SP0714/SPX714, Rotor & Gasket

The Pureline Replacement Upper Valve Handle Assembly (PL0734) restores full multiport control to Hayward Pro Series top-mount sand filters so you can backwash, rinse, recirculate and close the system reliably.

If the handle on your Hayward Pro Series sand filter has become loose, hard to move, or is allowing water to escape through the waste/backwash port, this complete upper valve handle kit replaces the worn parts without buying a new filter. Designed to fit Hayward SP0714BA, SP0714T, SPX714BS, SPX0714BS and many Pro Series top-mount models, Pureline’s kit includes the handle, spring, rotor, spider gasket and other small components needed for a straightforward swap.

How will this assembly fix a jiggly or leaking valve handle?

Wear and torn internal parts let water route to the wrong port or let the handle flop when under pressure. Replacing the upper valve assembly renews the internal spider seal and rotor alignment so the multiport positions engage correctly and the handle moves with predictable resistance.

• Replaces worn rotor and spider gasket to stop leaks through waste/backwash ports.
• Includes spring and handle pin to restore proper tactile response and position retention.
• Prevents unintended recirculation or loss of pressure due to misaligned ports.

Which Hayward filters and model numbers does this Pureline kit fit?

This Pureline replacement is made for Hayward top-mount Pro Series sand filters and their common model family. It matches the bolt pattern and multiport positions used across those units so installation is compatible with several models.

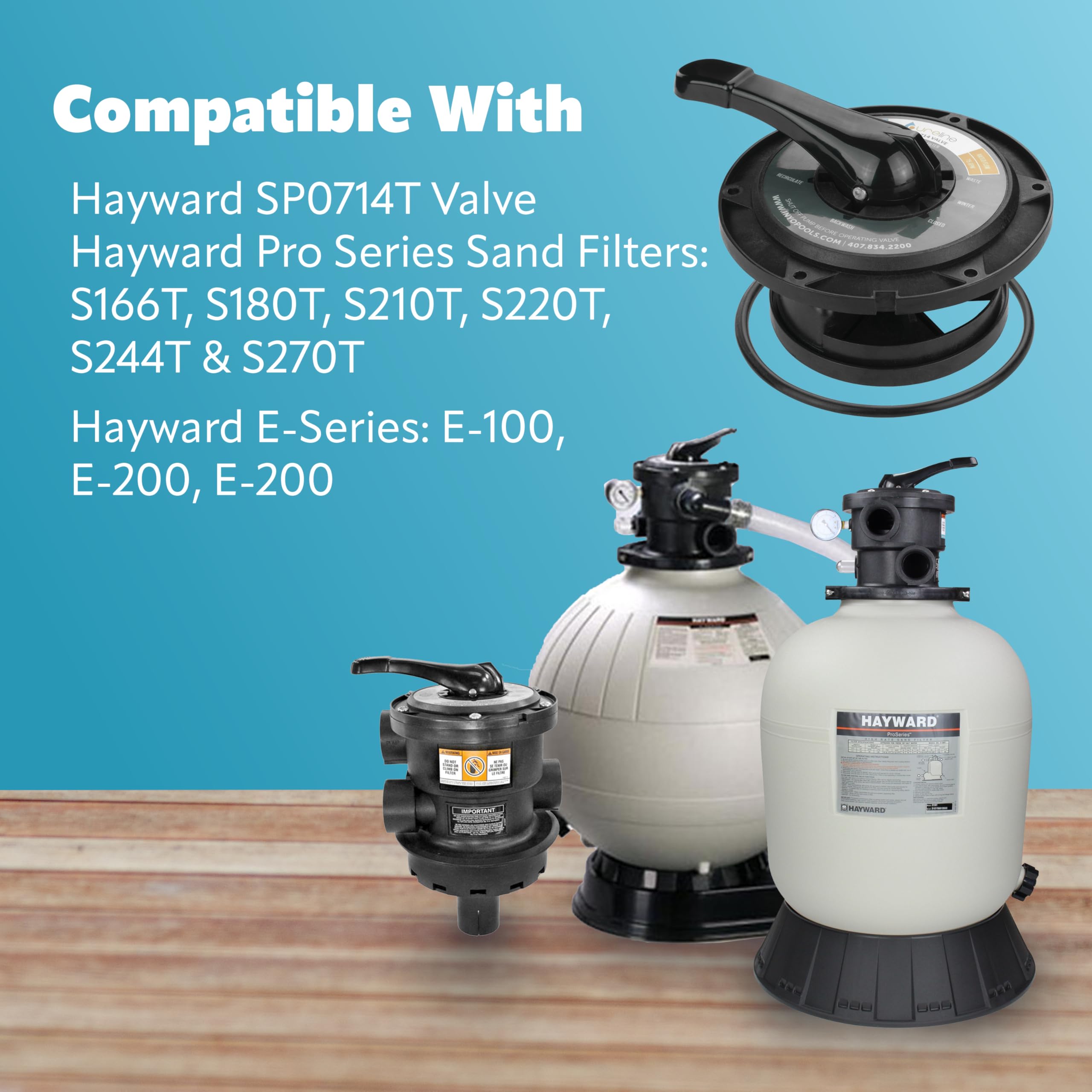

• Compatible models: SP0714BA, SP0714T, SPX714BS, SPX0714BS and related Hayward Pro Series top-mount filters.
• Works with S166T, S180T, S190T, S210T, S220T, S230T, S244T and S270T style housings.
• Ideal when handle movement, backwash leaks, or port misalignment are observed.

What parts come in the Pureline PL0734 replacement kit and how hard is it to install?

The kit arrives as a complete upper valve handle assembly with all the small parts you’d otherwise need to source individually. Installation is a straightforward DIY job for most pool owners and can usually be completed with basic hand tools and a short amount of time.

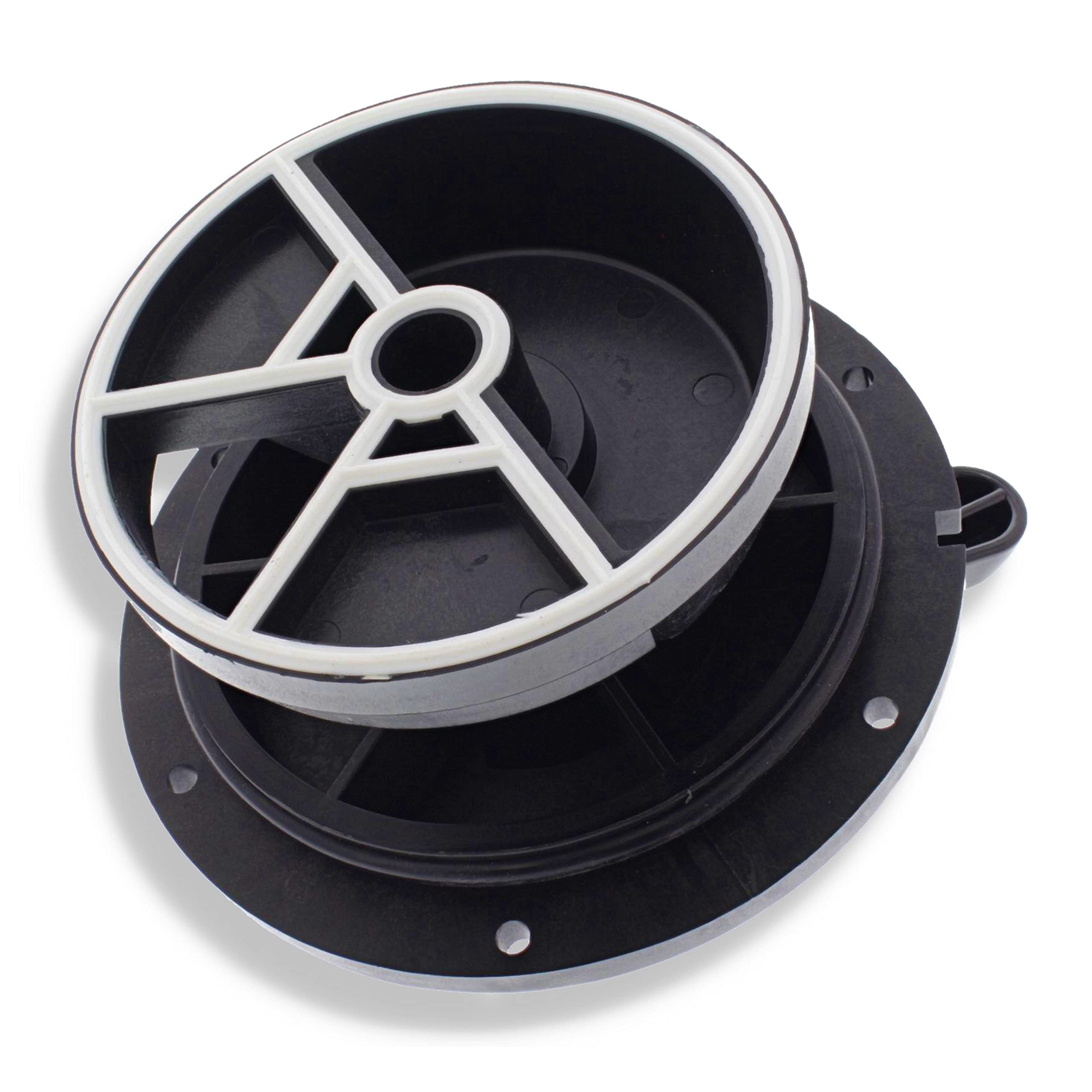

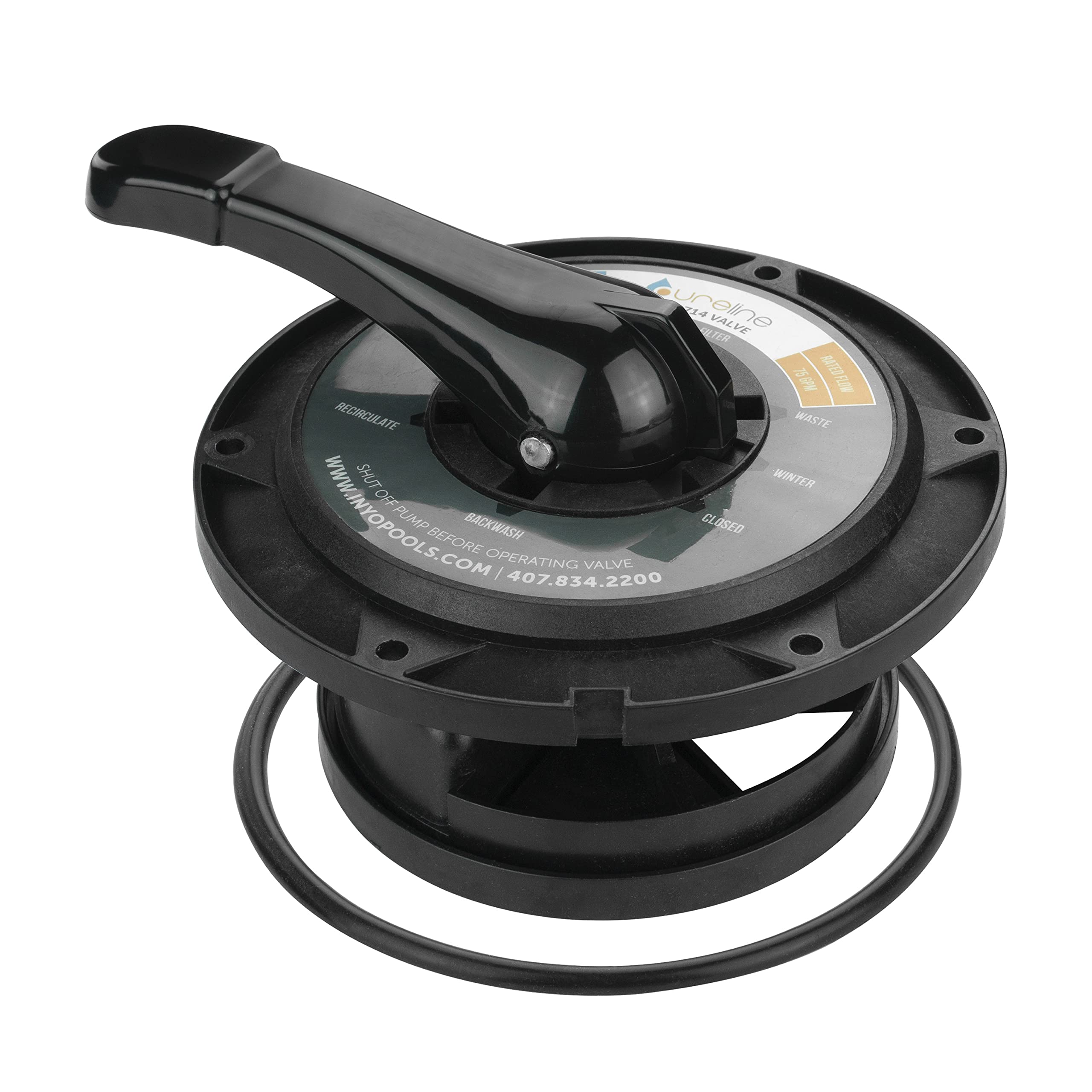

• Includes handle, spring, valve cover, washers, spider gasket, rotor, and handle pin.

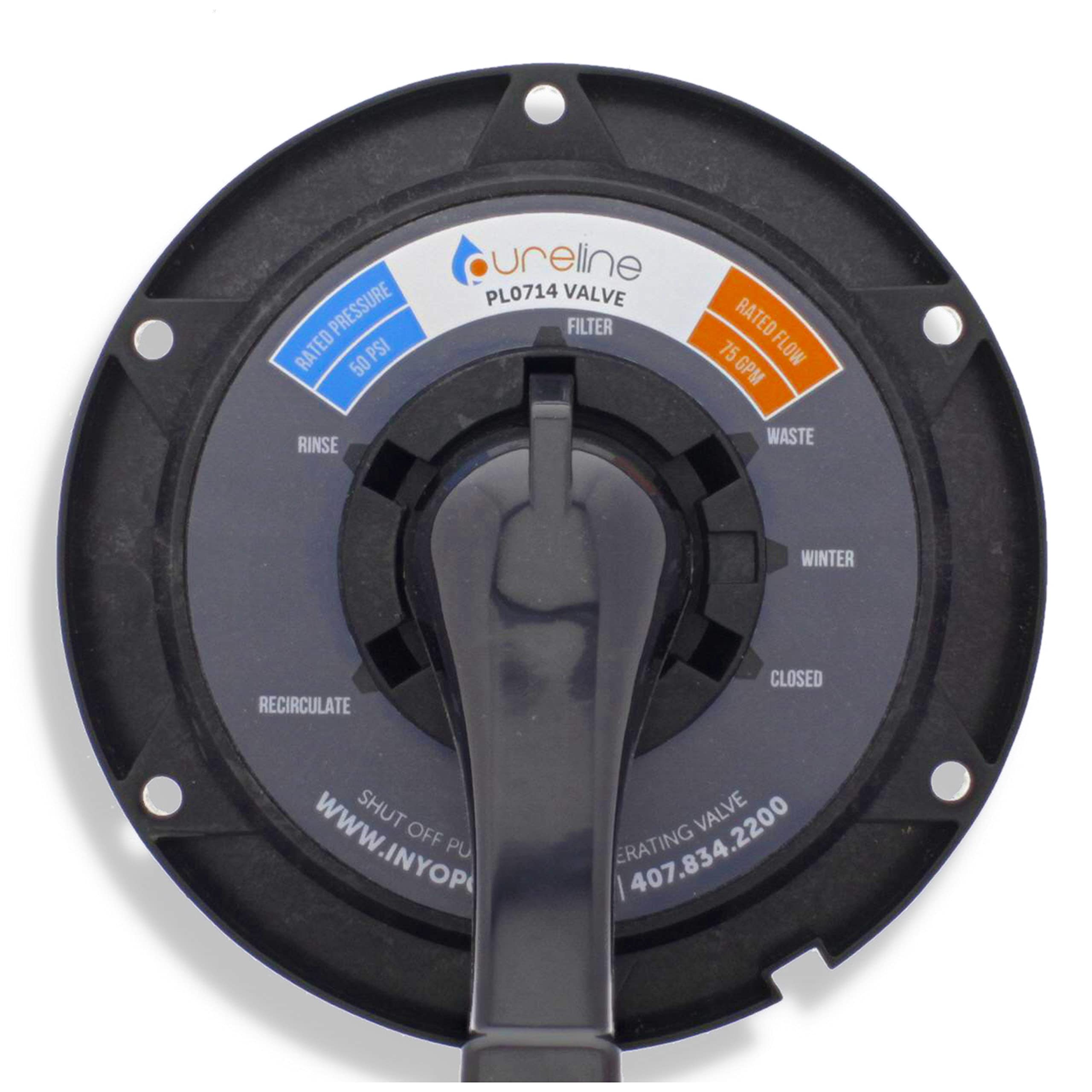

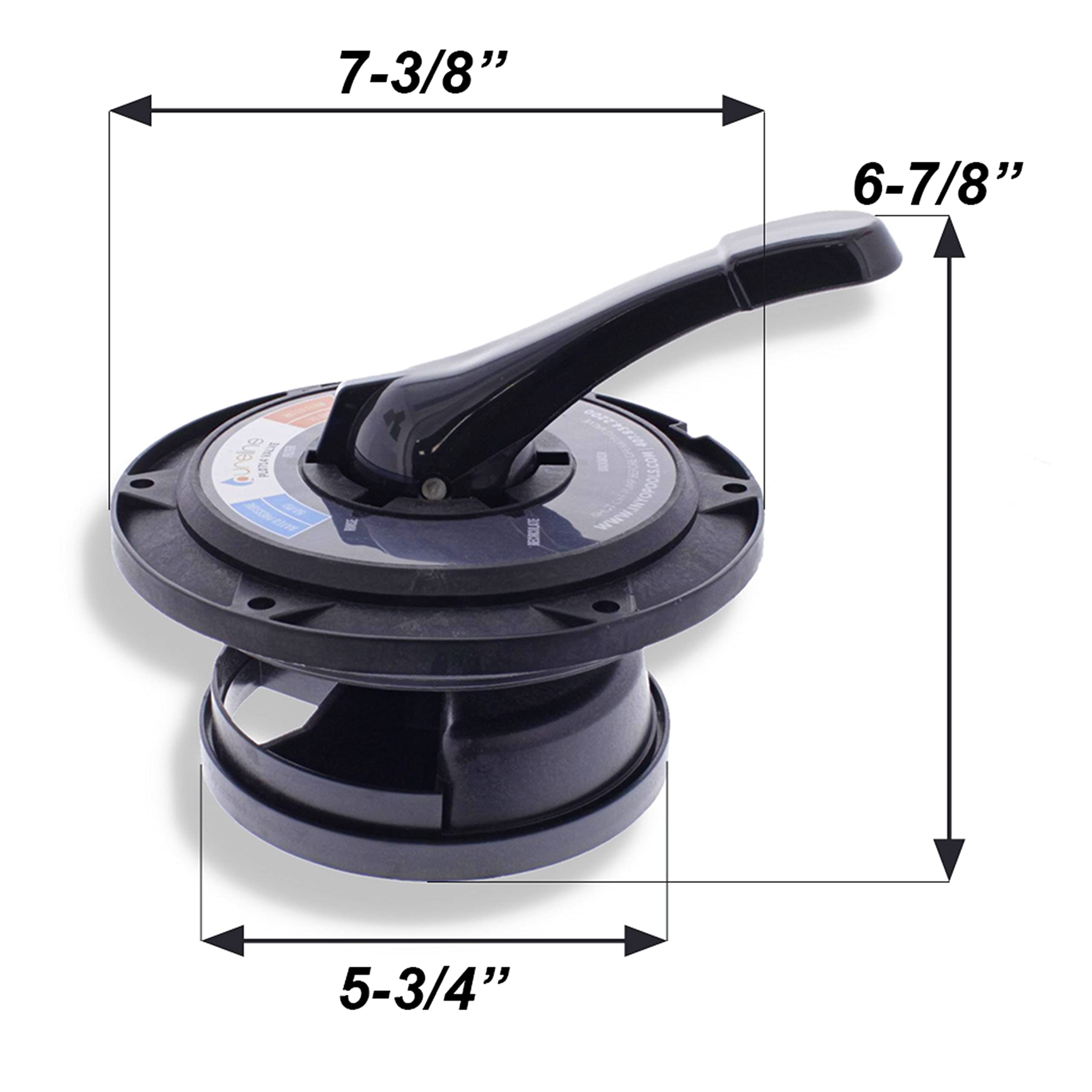

• Overall assembly dimensions approximately 7-3/8" x 6-7/8" and matches multiport positions: filter, waste, backwash, recirculate, rinse, winter and closed.
• Simple swap: remove the old cover and rotor, fit new spider gasket and rotor, reinstall handle and cover. No special adhesives required.

Will replacing this assembly improve my filter’s performance?

Replacing worn upper valve parts restores correct port sealing and alignment, which helps the filter perform as intended by directing flow to the selected function. While the kit won’t change your sand or pump condition, it eliminates common valve-related performance losses like leaks or improper backwash paths.

• Stops cross-flow that causes inefficient filtering or repeated pump cycling.
• Ensures reliable backwash and rinse cycles for cleaner filter media maintenance.
• Protects against water loss through the waste port and unexpected pressure changes.

Who is this for: pool owners and maintenance technicians with Hayward Pro Series top-mount sand filters who want an affordable, do-it-yourself repair to a worn multiport valve. If your handle is loose, hard to press, or allowing water to escape through the backwash/waste port, this Pureline PL0734 kit provides the parts needed for a quick, compatible replacement without replacing the entire filter.
