Pulsafeeder chemical metering pump X030 30 GPD (4.72 LPH) PVC liquid end, 100 PSI, CSPE seals

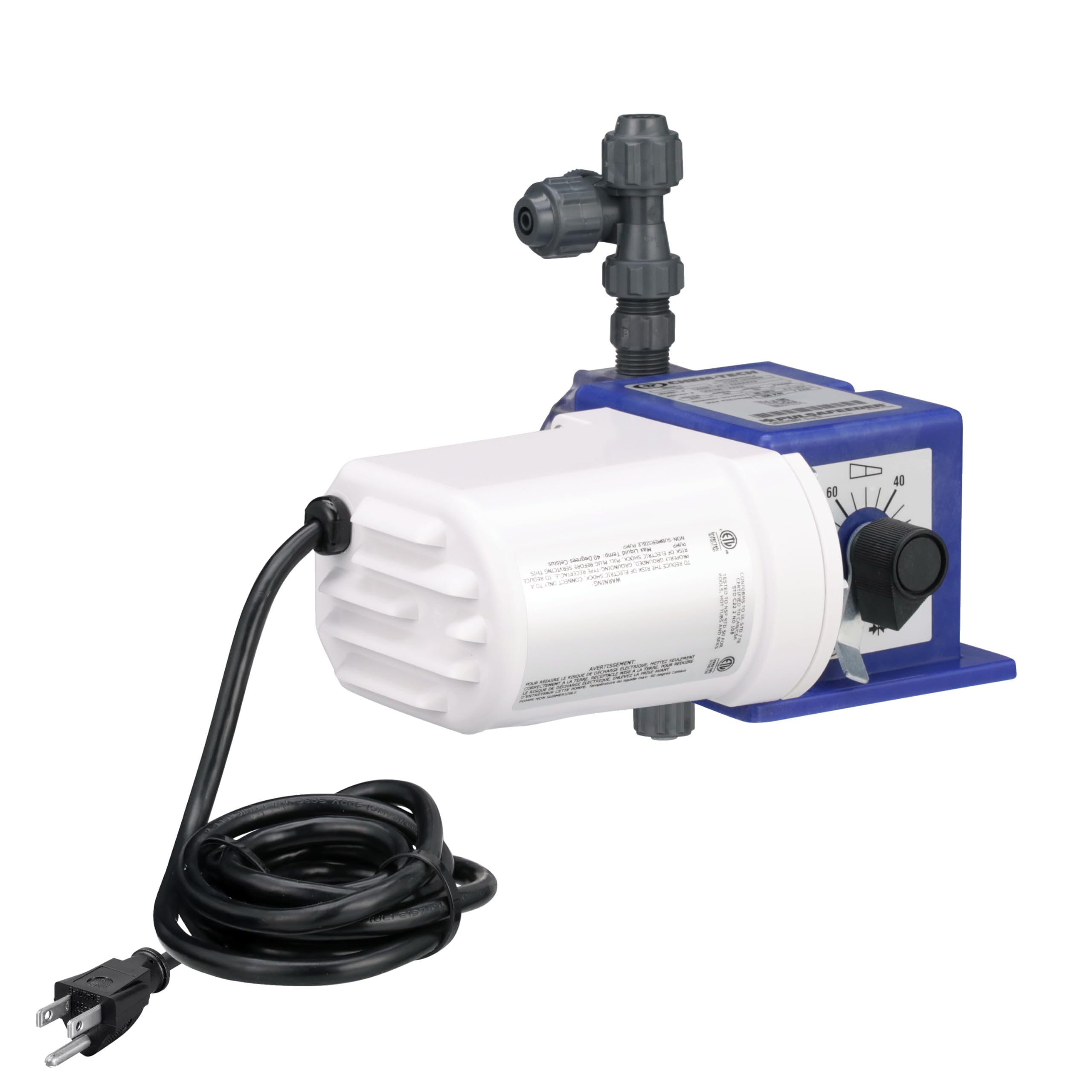

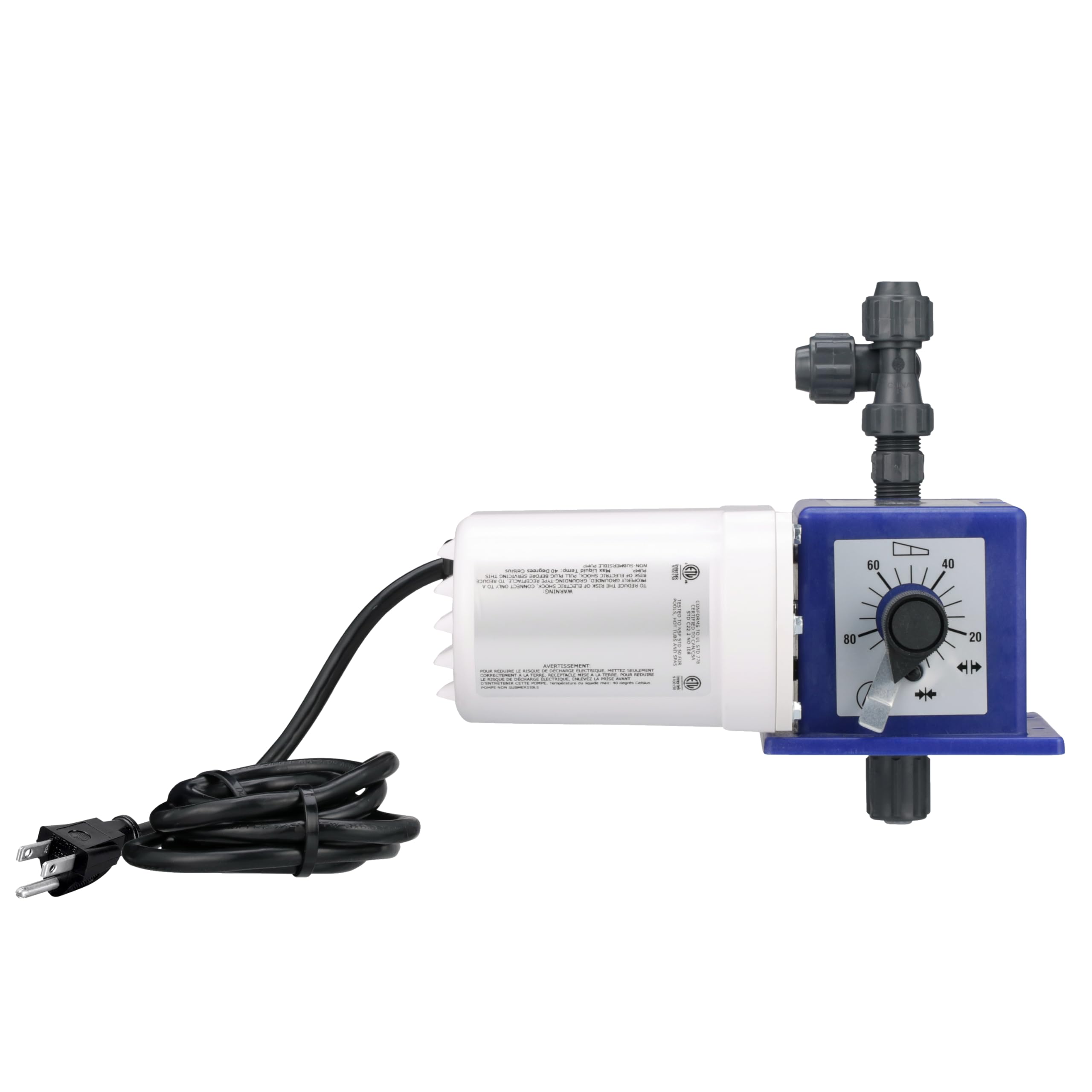

The Pulsafeeder X030-XA-AAACXXX Chem-Tech Series is a compact, chemical-resistant metering pump delivering 30 GPD (4.72 LPH) at up to 100 PSI for accurate, adjustable dosing in corrosive environments.

The X030-XA-AAACXXX pairs a durable PVC liquid end with CSPE seats and O-rings and a ceramic ball to provide consistent chemical dosing where reliability and resistance to aggressive fluids matter. Built for low maintenance, the unit features a sealed gear train, a cool-running motor-driven diaphragm, and visible check valves so operators can quickly confirm proper operation. The package includes a 0.38" PVC suction tube and a 0.38" PE discharge tube for immediate installation.

How precise and adjustable is the feed rate?

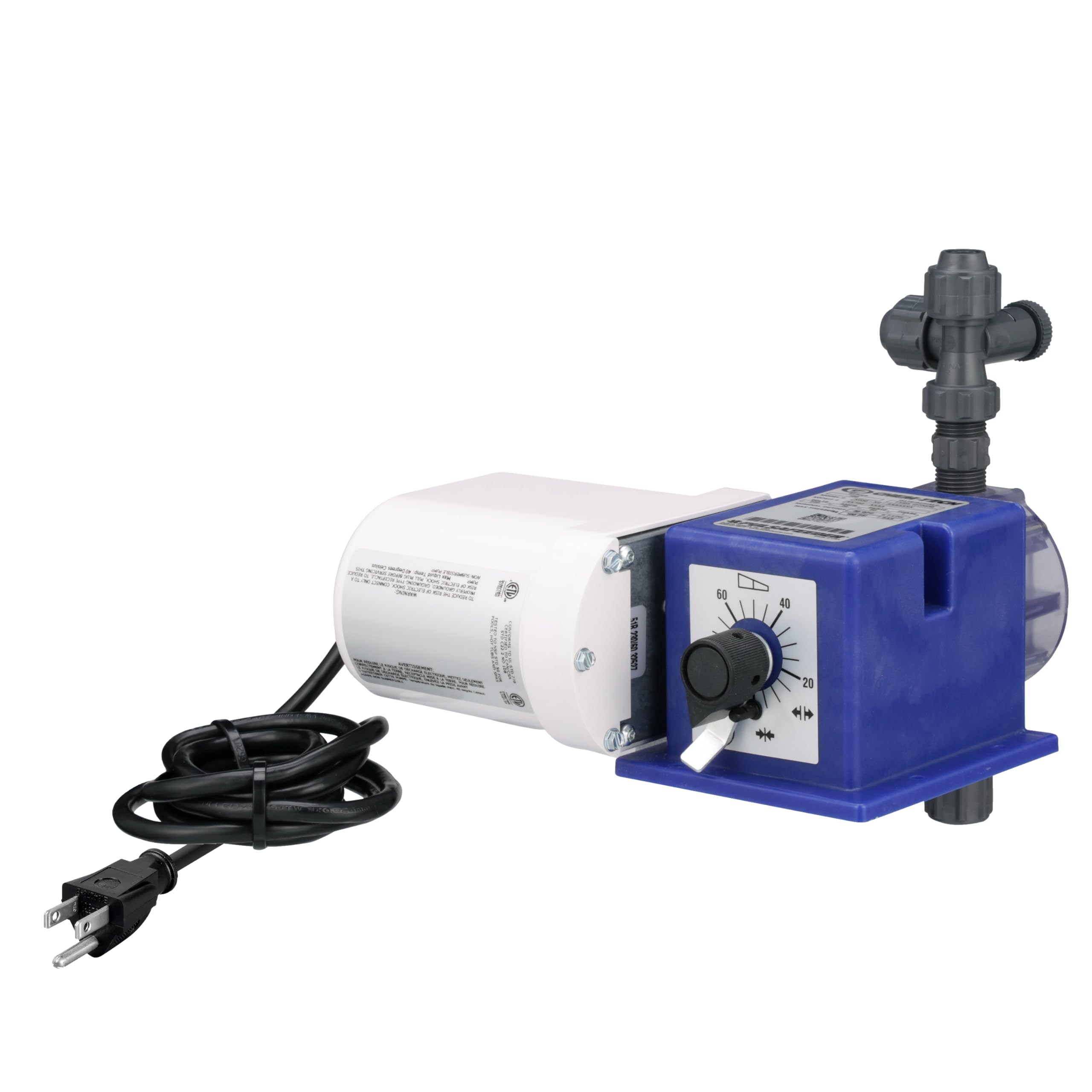

The X030 model gives full-range feed-rate control, letting you dial output to match process requirements. Accuracy comes from the quad ball check system and visible check valves that reduce slip and allow quick inspection.

• Adjustable output across entire operating range for fine dosing
• Quad ball check arrangement for consistent metering
• Visible check valves speed troubleshooting and verification
• Calibration-friendly design for process repeatability

What materials resist chemicals and extend pump life?

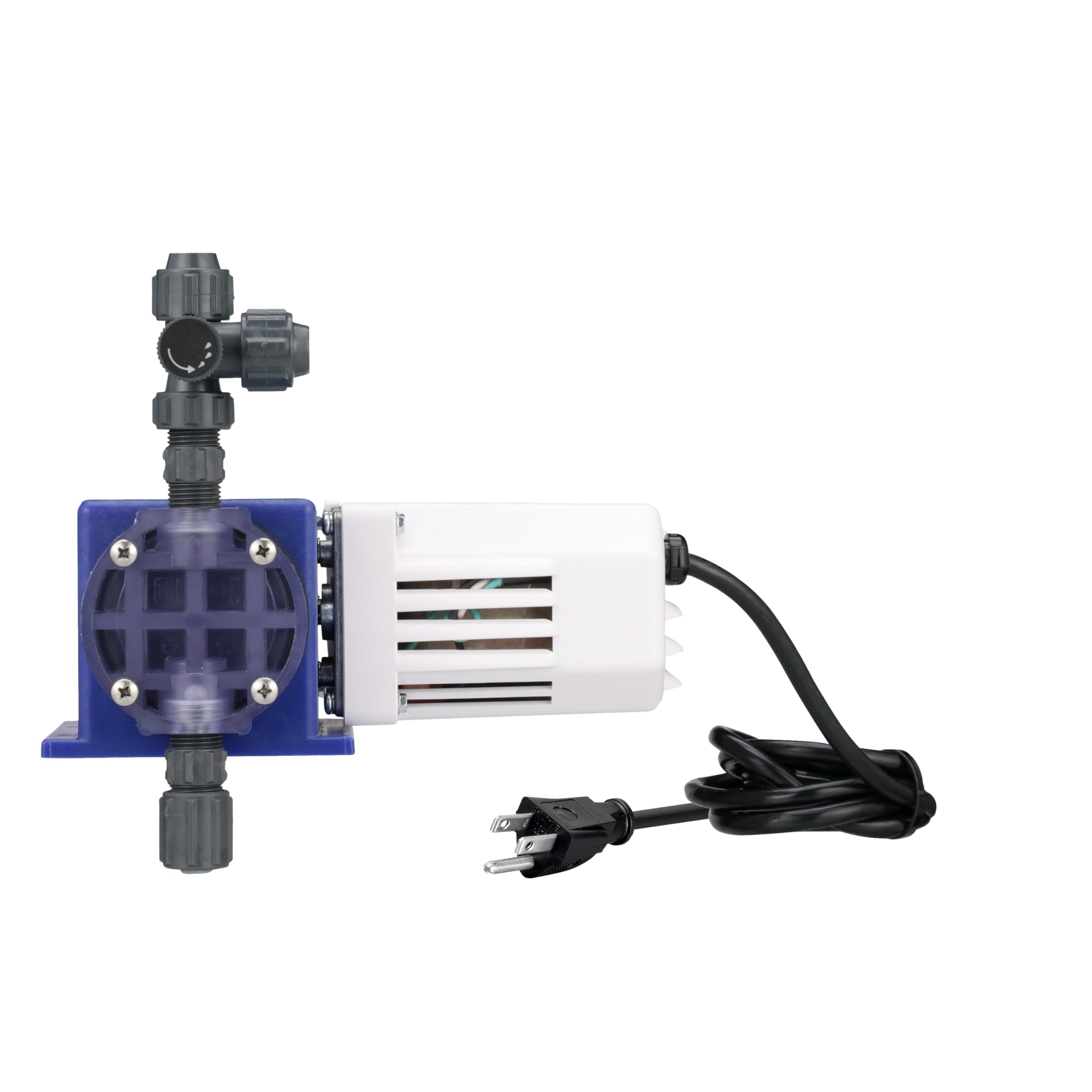

This Chem-Tech pump uses a PVC liquid end with CSPE (chlorosulfonated polyethylene) seats and O-rings plus a ceramic ball for wetted parts. The motor and gear shaft are treated with a special lubricant, and the sealed gear train lowers maintenance needs while protecting internal components.

• PVC head and wetted components suitable for many corrosive chemicals
• CSPE seats and O-rings for improved chemical compatibility
• Ceramic ball for wear resistance and long service life
• Sealed gear train and treated shafts reduce maintenance intervals

How does this pump handle installation and daily operation?

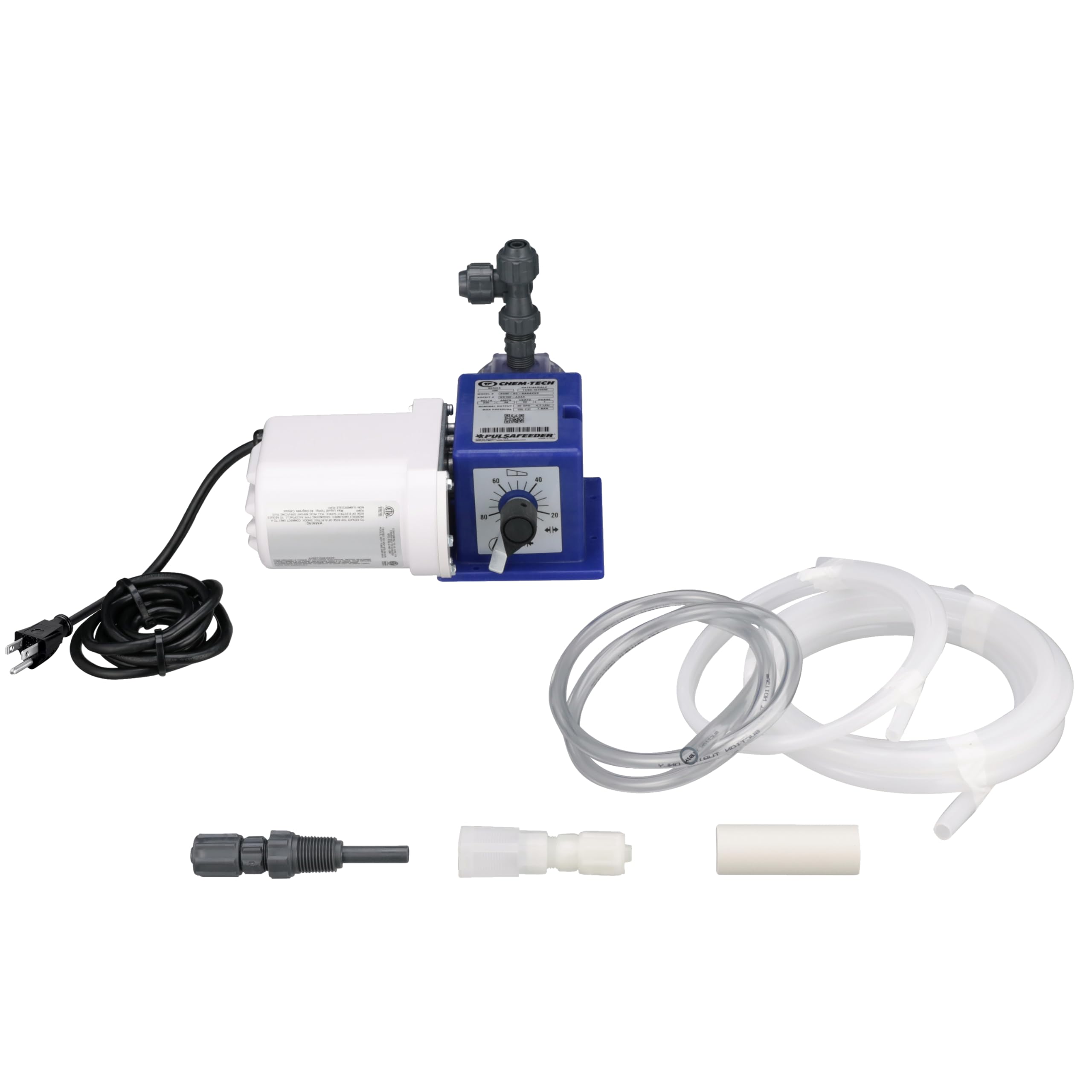

The unit is designed for straightforward setup and visible operation checks. It ships with a 0.38" PVC suction tube and a 0.38" polyethylene discharge tube so you can connect common chemical containers and piping quickly. The cool-running motor and durable diaphragm minimize downtime and thermal stress during continuous use.

• Includes .38" PVC suction and .38" PE discharge tubing for fast hookup
• 115V, 60 Hz motor matches standard power systems in many regions
• Cool-running motor-driven diaphragm for continuous service
• Visible components simplify routine inspection by operators

What performance and electrical specs should I expect?

The pump delivers 30 gallons per day (4.72 liters per hour) at a maximum pressure of 100 PSI (7 bar). It is designed for 115V, 60 Hz power supplies common to industrial and commercial facilities in North America.

• Flow: 30 GPD (4.72 LPH)
• Maximum pressure: 100 PSI (7 bar)
• Power: 115V, 60 Hz — single-phase
• Liquid end: PVC head with CSPE seats/O-rings and ceramic ball

Who is this for: The Pulsafeeder X030-XA-AAACXXX Chem-Tech Series pump is intended for operators and engineers who need a compact, economical metering solution for corrosive chemicals in water treatment, labs, light industrial processes, and OEM skids. It suits facilities that require visible valve checks, easy field installation, and materials selected for chemical resistance without the complexity of larger systems. Choose this model when you need dependable, adjustable dosing up to 100 PSI with low maintenance features and included tubing for rapid deployment.
