PowMr 60A MPPT solar charge controller 12–48V Auto (Max 160V input) — LCD display, active fan, software-updated high-efficiency re

PowMr 60A MPPT solar charge controller is a high-efficiency, software-updated regulator that automatically detects 12/24/36/48V battery banks and manages PV charging up to 160V input with LCD monitoring and active fan cooling.

This MPPT controller combines a DSP-driven maximum power point tracking algorithm with user-programmable settings to suit sealed, vented, gel, NiCd and multiple lithium chemistries. Built for off-grid systems on RVs, boats, cabins and small commercial installations, it focuses on conversion efficiency, system protection and accessible troubleshooting via a backlit LCD.

How does this controller improve solar harvest compared with traditional PWM models?

The PowMr MPPT design constantly adjusts the PV operating point to capture the maximum available power from solar modules. The software update and DSP core increase conversion efficiency to at least 98.1%, meaning more usable energy delivered to the battery bank under partial shade or varying irradiance.

• MPPT algorithm maximizes PV output and PV utilization ≥99%

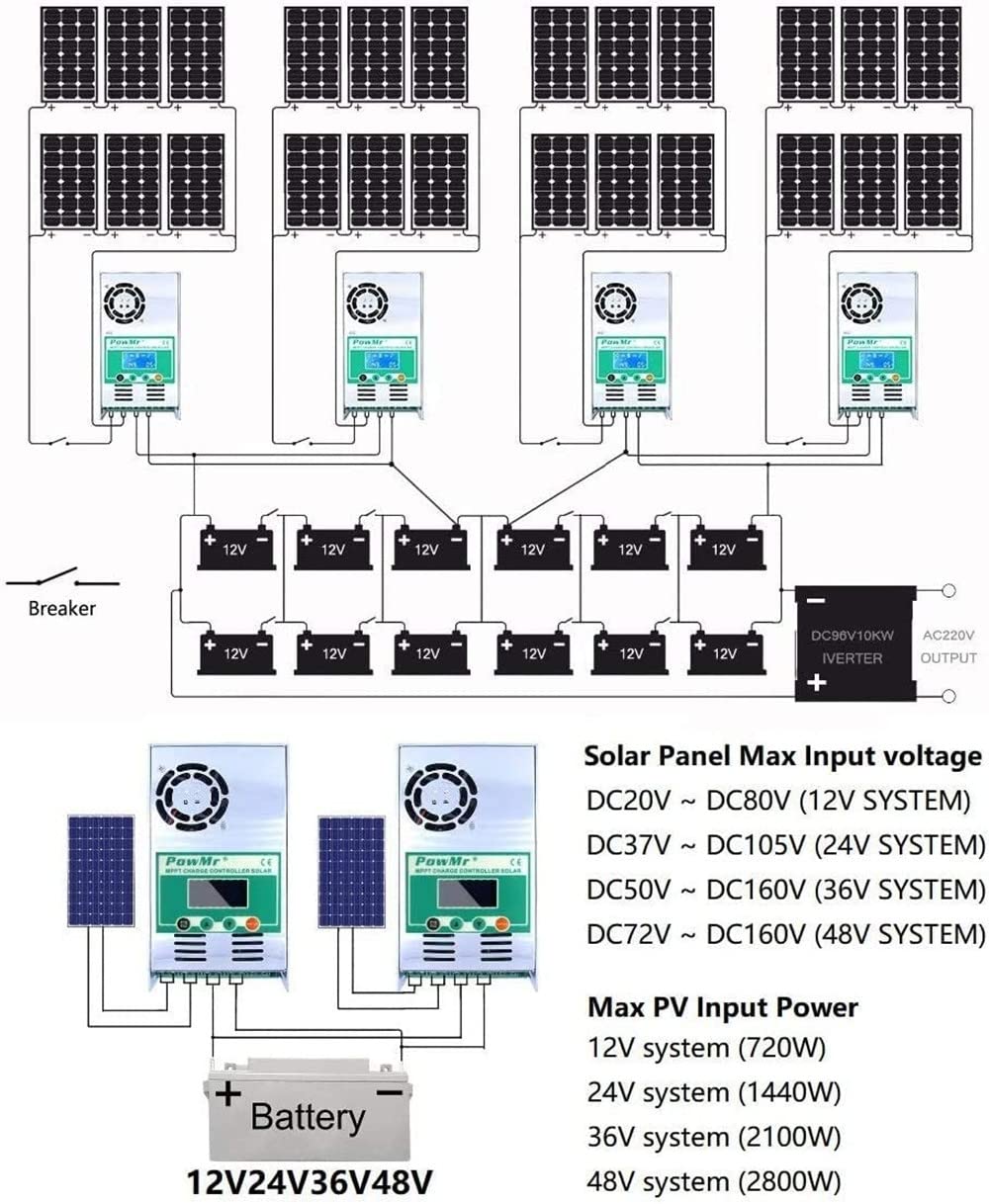

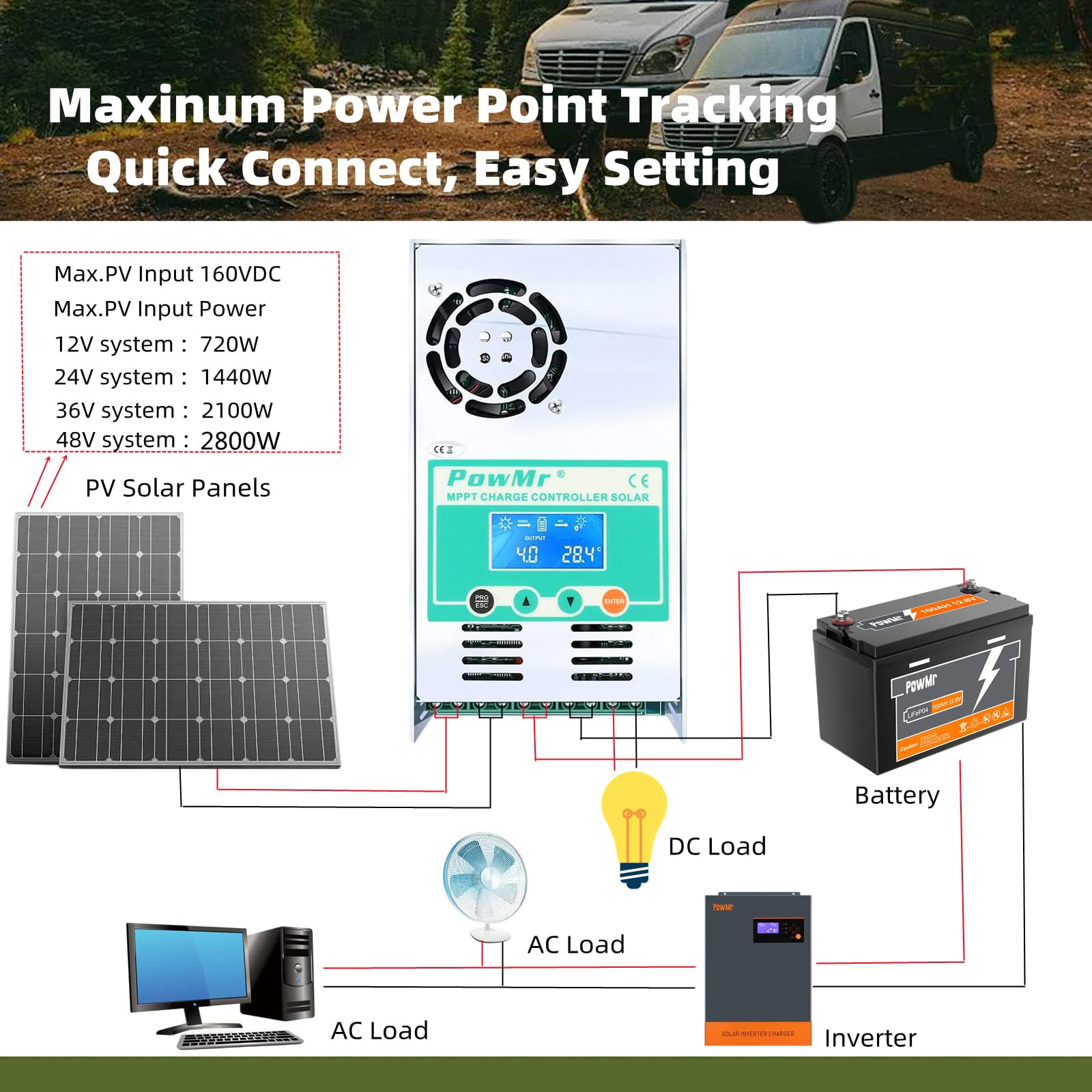

• Supports high PV input voltage (max 160VDC) for larger panel arrays
• Improves charge current especially in low-light or cold conditions

What battery types and voltages can I use with the PowMr 60A controller?

The controller automatically detects battery system voltage among 12V, 24V, 36V and 48V when it powers up. It supports multiple chemistries — sealed, vented, flooded, gel, NiCd and several lithium types — with user-configurable charge parameters for lithium variants to match actual cell voltages.

• Auto-detect for 12/24/36/48V systems; ensure battery >12V at startup
• Selectable profiles for sealed, vented, flooded, gel, NiCd and Li chemistries
• User-programmable absorption, float, LVD and load timer for precise charging

What protections and diagnostics are built into the unit?

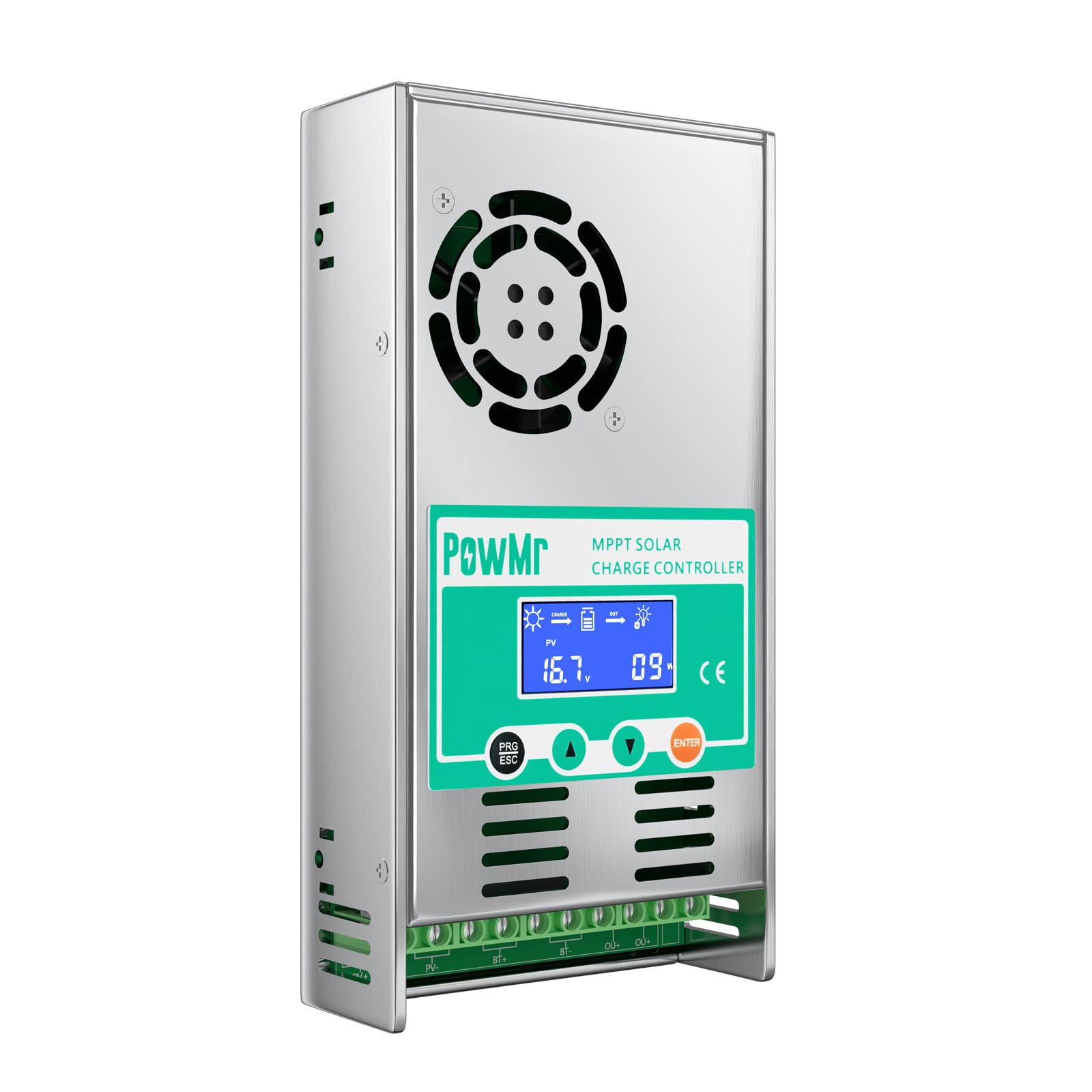

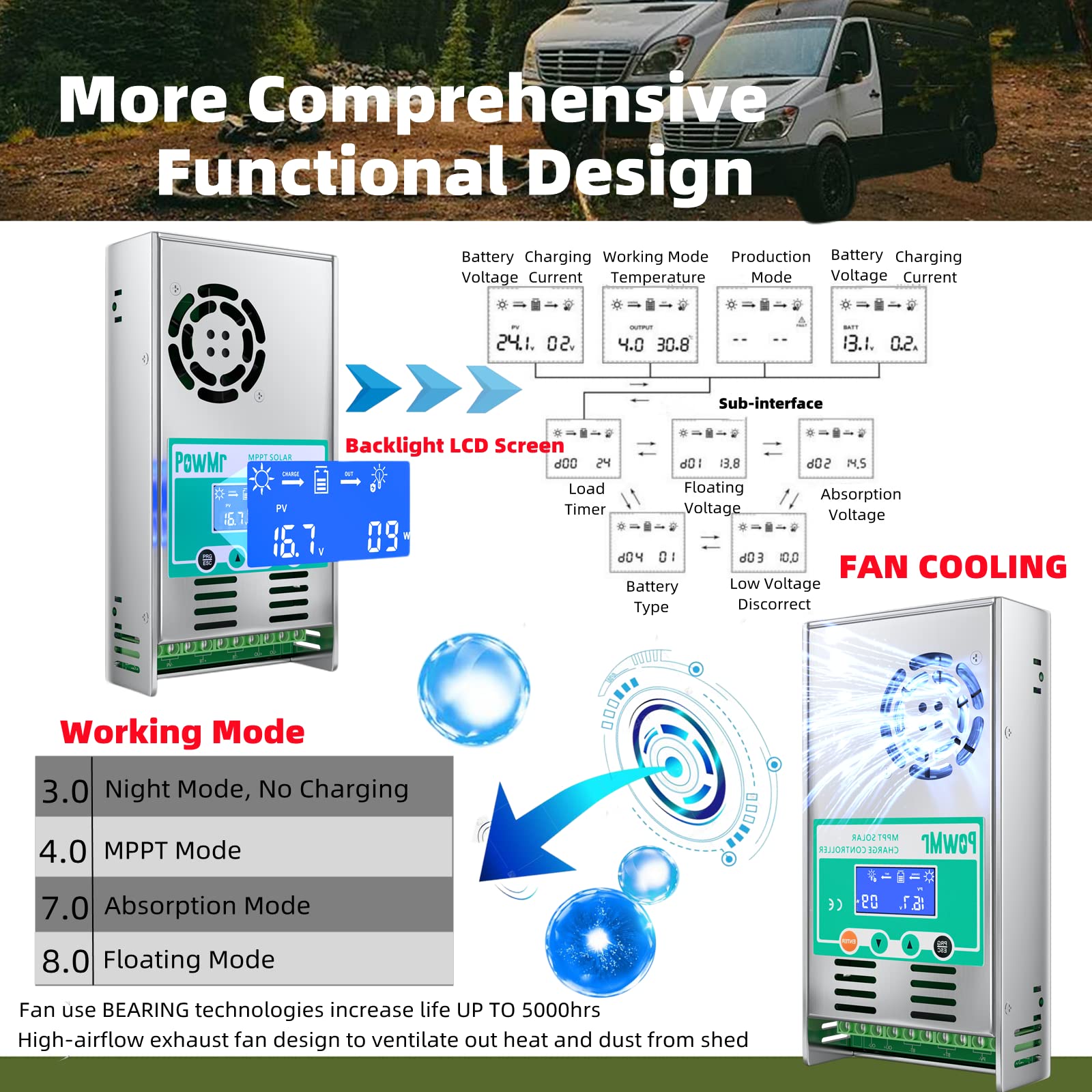

The PowMr controller provides comprehensive system protection and live diagnostics through its backlit LCD and troubleshooting menus. It displays PV voltage, output power, battery voltage, charge current, operational mode and internal temperature, helping you identify faults quickly and adjust parameters on site.

• Real-time energy and status recording shown on LCD

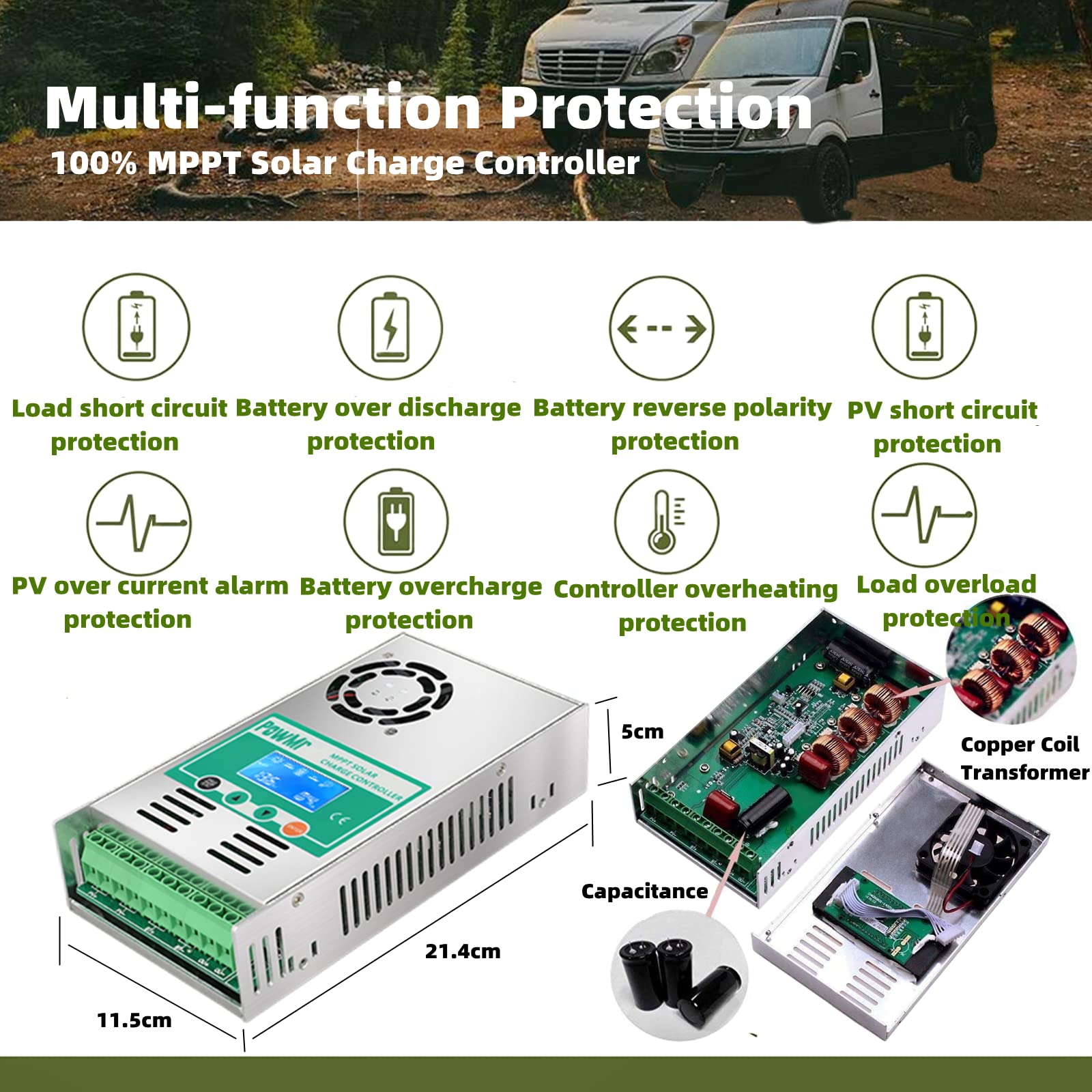

• Over-voltage, over-current, reverse-polarity and thermal protection
• Troubleshooting function to speed up fault identification and corrections

How does the controller manage heat and long-term reliability?

Active cooling uses an intelligent fan that engages over 45°C and stops under 40°C, combined with a porous heat-dissipating enclosure and bearing-type fan for extended life. These measures keep internal temperatures down during high-current charging and help maintain consistent performance.

• Temperature-triggered fan operation for controlled cooling
• Porous chassis design for passive airflow and heat shedding
• Fan bearing technology rated up to about 5,000 hours under normal use

Who this is for: installers and owners who want an efficient, mid-to-high current MPPT controller for off-grid systems — ideal for RVs, boats, yachts, cabins and small commercial or residential solar setups. It's suitable for users who need automatic battery voltage detection for mixed-voltage systems and who value on-device monitoring and programmable charge parameters, especially when using lithium battery types that require custom settings.
