POWLSOJX MPPT Solar Charge Controller 100A — 12V–48V Multi-Voltage, LCD + Dual USB

POWLSOJX MPPT solar charge controller 100A optimizes panel output and charges 12V–48V battery banks faster while giving clear LCD monitoring and dual USB outputs for accessories.

This robust MPPT controller is built to manage multi-voltage solar systems (12V/24V/36V/48V) and handle up to 100A of charging current. It supports lead-acid and lithium chemistries, includes several programmable operating modes, and provides a clear LCD readout so you can monitor panel, battery, and load status at a glance. The unit also adds user conveniences like dual USB ports for charging small devices and configurable discharge controls for automated lighting or timed loads.

How does the POWLSOJX controller improve solar charging efficiency?

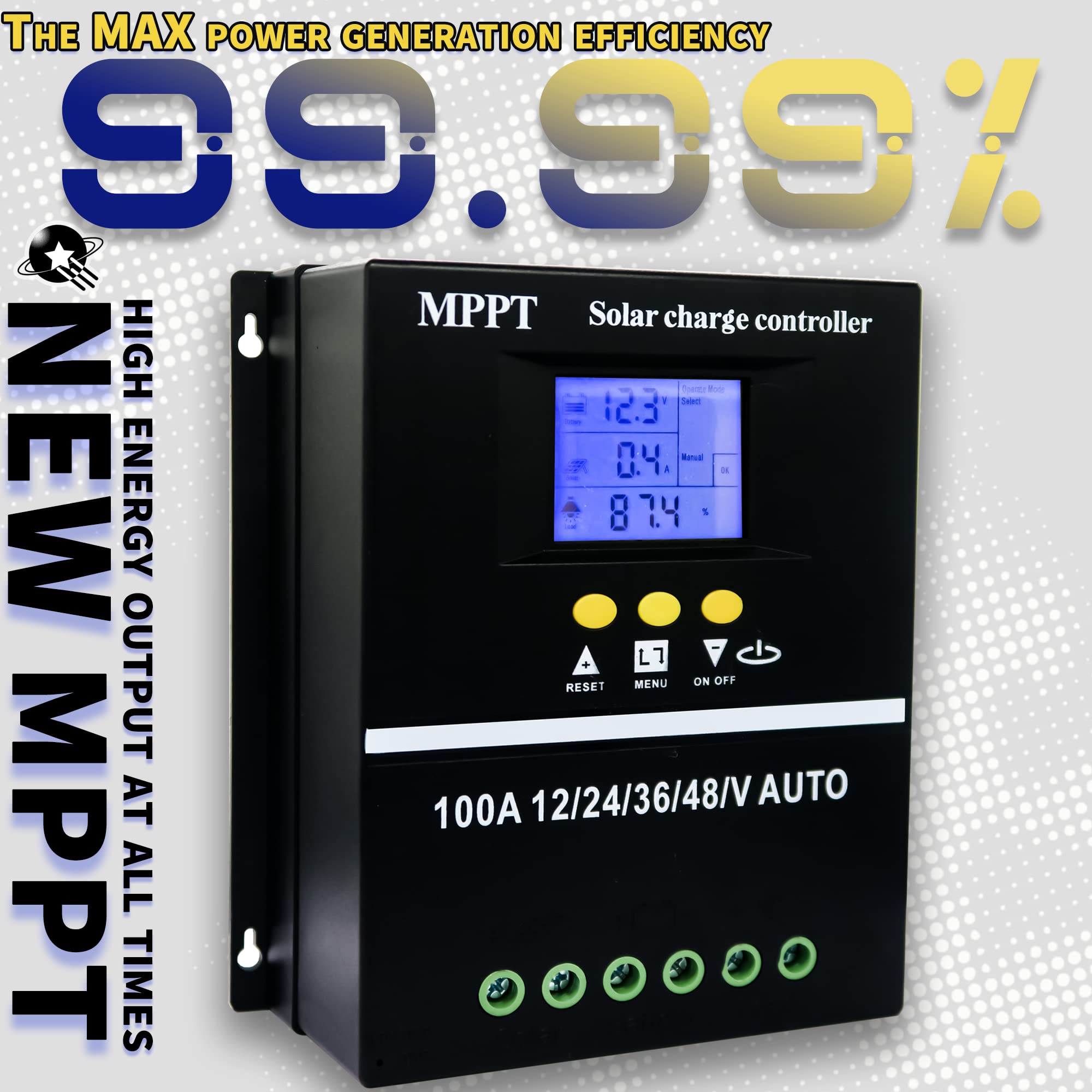

The controller uses Maximum Power Point Tracking (MPPT) to continually adjust to the panel’s best operating point, extracting more power than traditional PWM controllers. That means faster battery charging and better energy harvest across changing sunlight conditions. It also supports multiple battery voltages so the same controller adapts to different system sizes.

• Automatic MPPT algorithm increases conversion efficiency under variable light.
• Supports 12V/24V/36V/48V systems for flexible panel and battery setups.
• Suitable for lead-acid and lithium battery charging profiles.

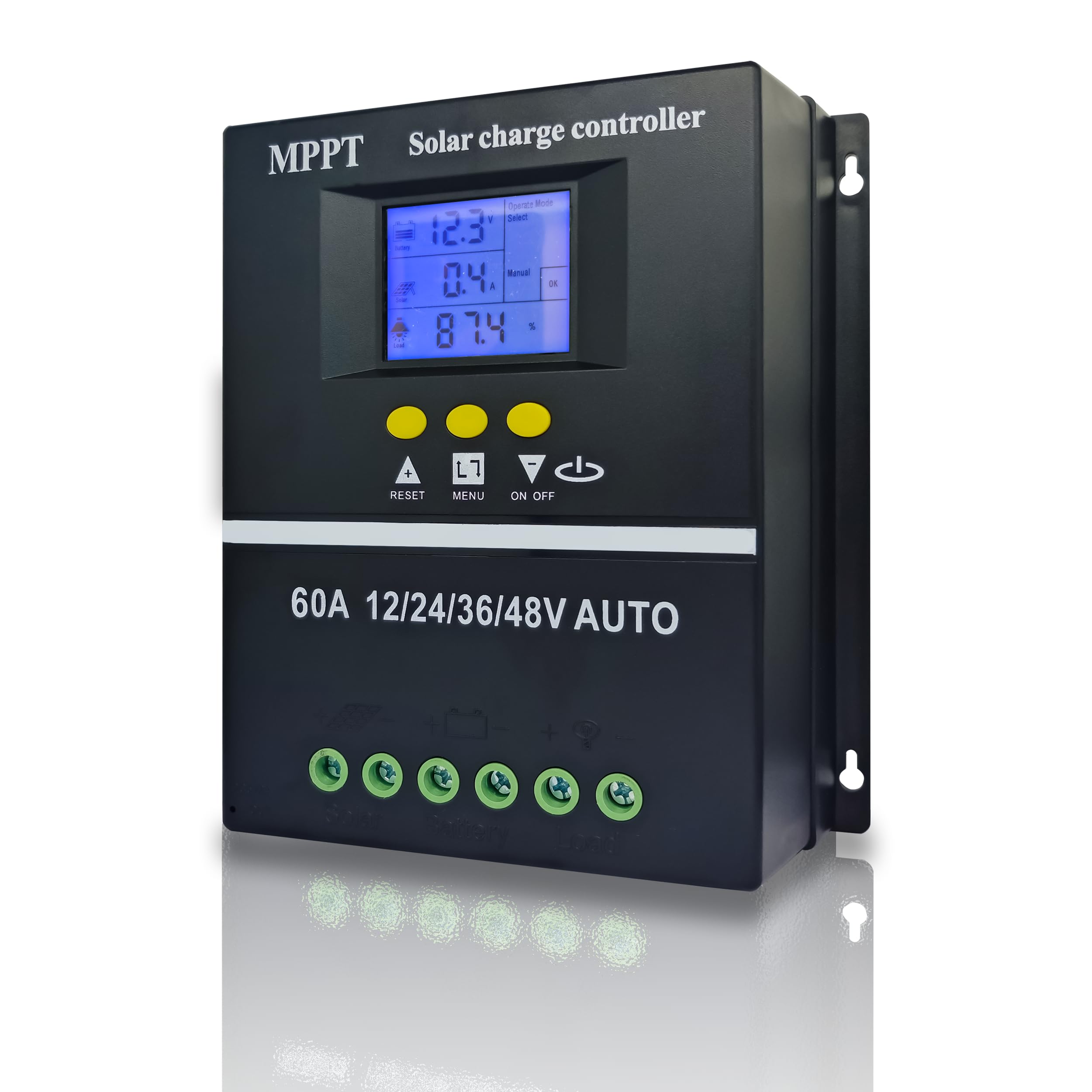

• Large LCD shows live charging power and voltage for quick verification.

What control and automation options are available for loads?

The POWLSOJX controller offers seven operation modes so you can match behavior to your application: charge-only, light control, timed delay, full programmable control, manual override, timing control, and factory test. These modes let you automate lighting, schedule devices, or operate loads manually when needed. Several discharge strategies help protect batteries while delivering power when required.

• Light control mode triggers loads based on ambient light conditions.
• Time-delay and timing control manage on/off cycles for lights or appliances.
• Manual mode gives instant user control of the load output.
• Factory test mode simplifies commissioning and troubleshooting.

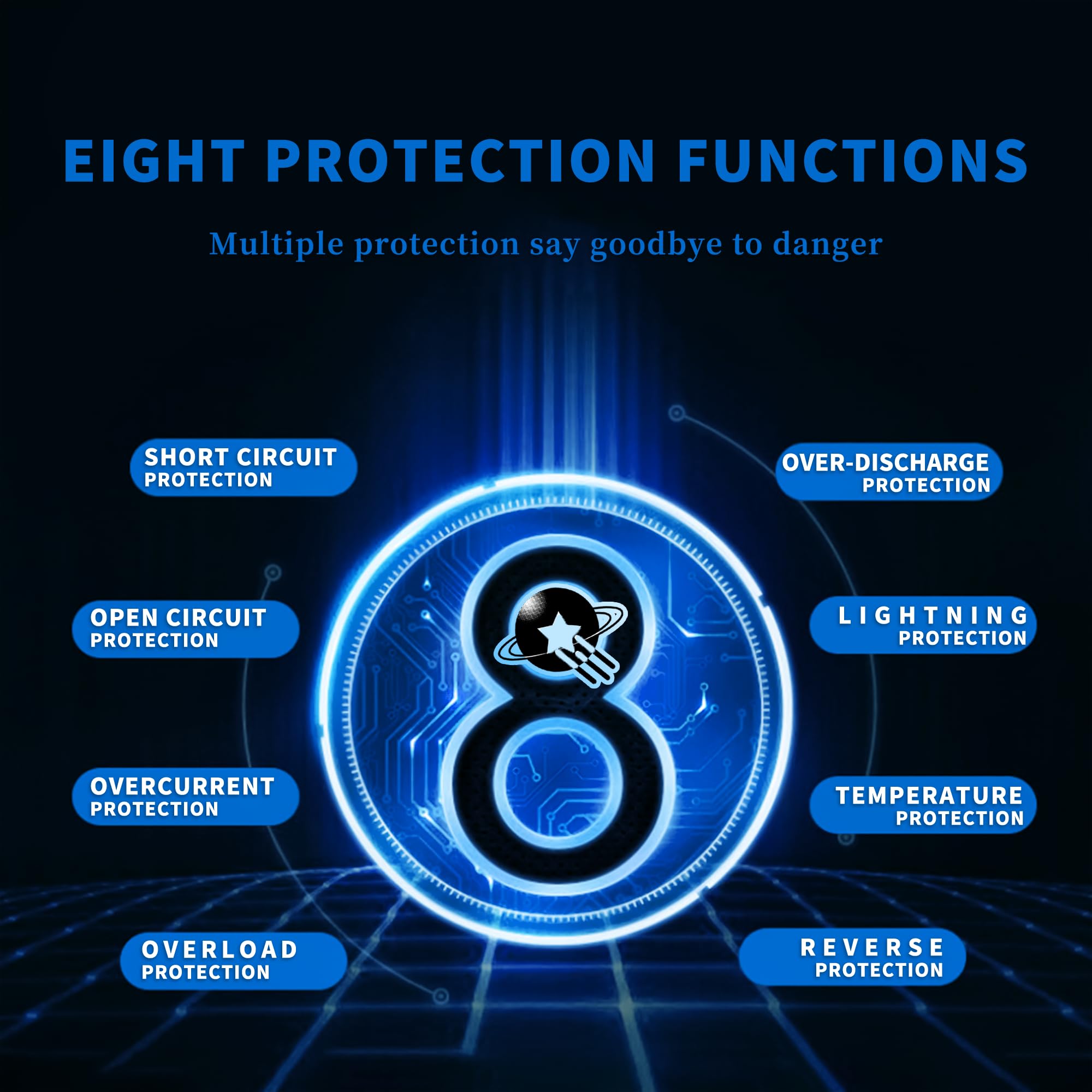

What protection and compatibility features keep systems safe?

The unit includes essential protections and recommended wiring order to reduce risk: low-voltage battery protection prevents excessive discharge, optional air switch compatibility allows fast isolation, and the LCD reports status so you can spot issues early. Its compatibility with common battery voltages and chemistries makes it a fit for household, cabin, RV, or small commercial arrays.

• Built-in low-voltage protection safeguards battery health.

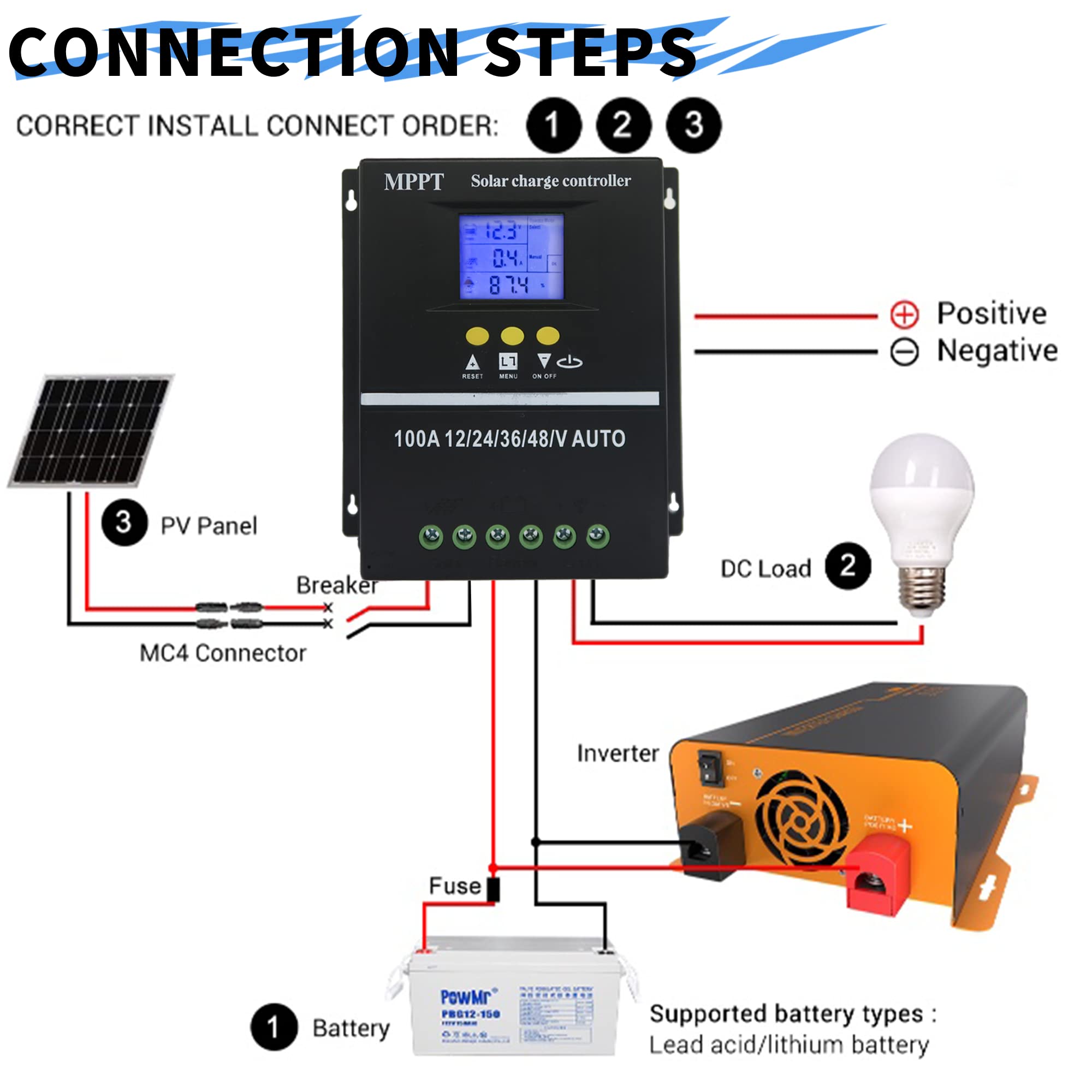

• Supports recommended installation sequence: battery, solar panels, then load.
• Optional air-switch integration for circuit isolation and safety.
• Clear fault and status indicators via the LCD screen for quick diagnostics.

How easy is it to set up and monitor daily performance?

Setup is straightforward with a visible LCD and simple mode selection. The screen reports battery voltage, charging current, load status, and active mode so routine checks are fast and informative. Dual USB ports add convenience by letting you charge phones or sensors directly from the controller.

• Large LCD shows battery voltage, charge current, and load state in real time.
• Simple menus make switching operational modes fast for installers.
• Dual USB outputs provide on-board charging for small devices.

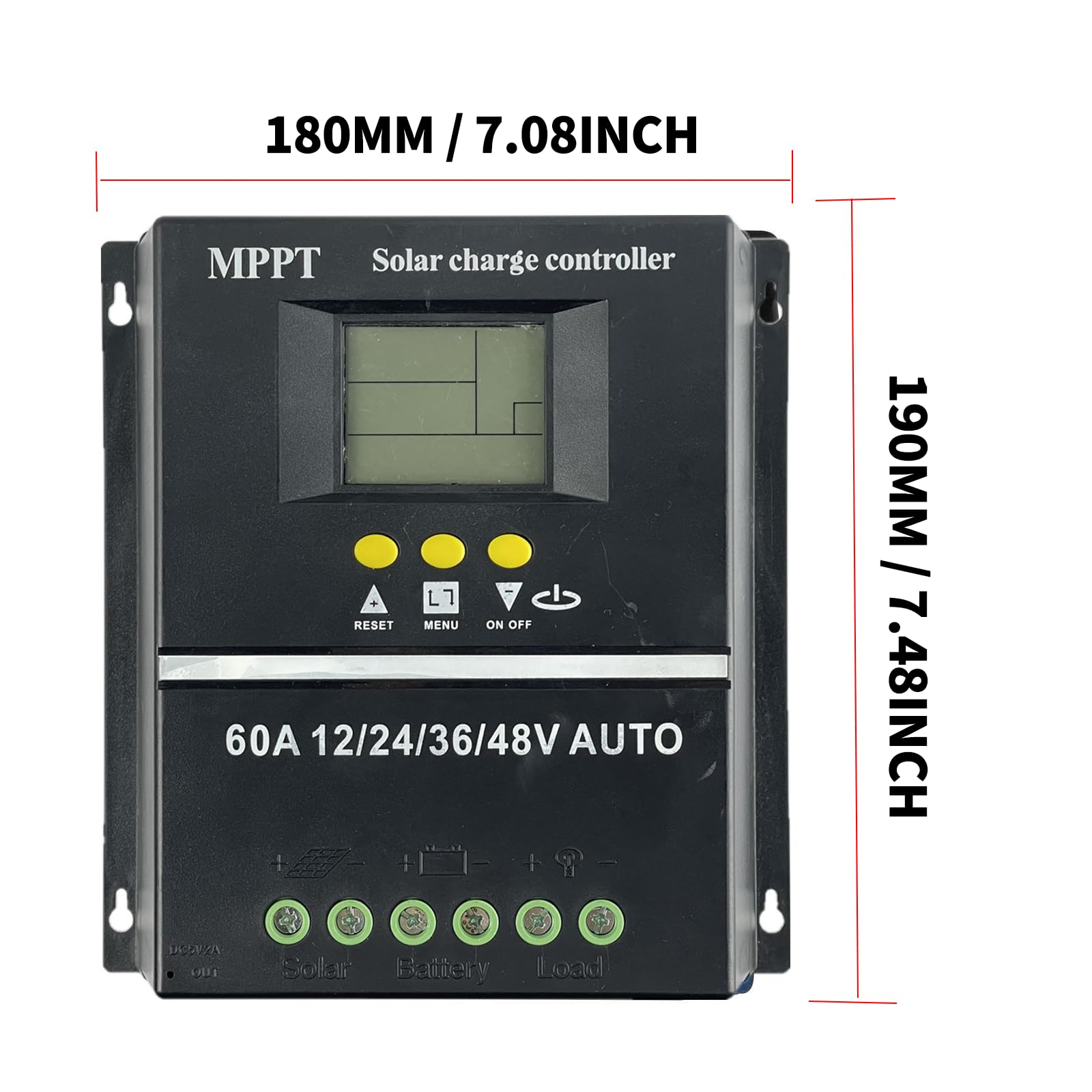

• Compact form fits common mounting locations in solar enclosures.

Who is this for? The POWLSOJX MPPT 100A controller is aimed at homeowners, off-grid or backup power installers, RV and marine operators, and small commercial users who need flexible voltage support and programmable load control. If you want higher charging efficiency than PWM controllers, versatile automation for lighting or timed devices, and a clear LCD for on-site monitoring, this unit provides a practical balance of features, safety protection, and convenience ports for modern solar setups.
