perfsign automatic poultry watering kit — Complete 8-cup 1/2" PVC gravity-fed, drip-free system

perfsign Complete Set is a ready-to-install DIY automatic poultry watering kit that supplies consistent, drip-free water to chickens, ducks, turkeys and quail using 1/2" PVC pipe and a bucket reservoir.

If you want to build a dependable automatic drinking line for your flock without buying mismatched parts, this kit gives you the fittings and cups needed to assemble a gravity-fed water system. The package includes eight drinking cups, specialized tee fittings, a float inlet valve, bucket connectors, clamps, and the hole saws required to adapt a standard bucket into a low-pressure reservoir. Clear assembly steps and online technical support are provided so you avoid leaks from improper connections or water pressure issues.

How does the perfsign kit prevent overflowing and leaks?

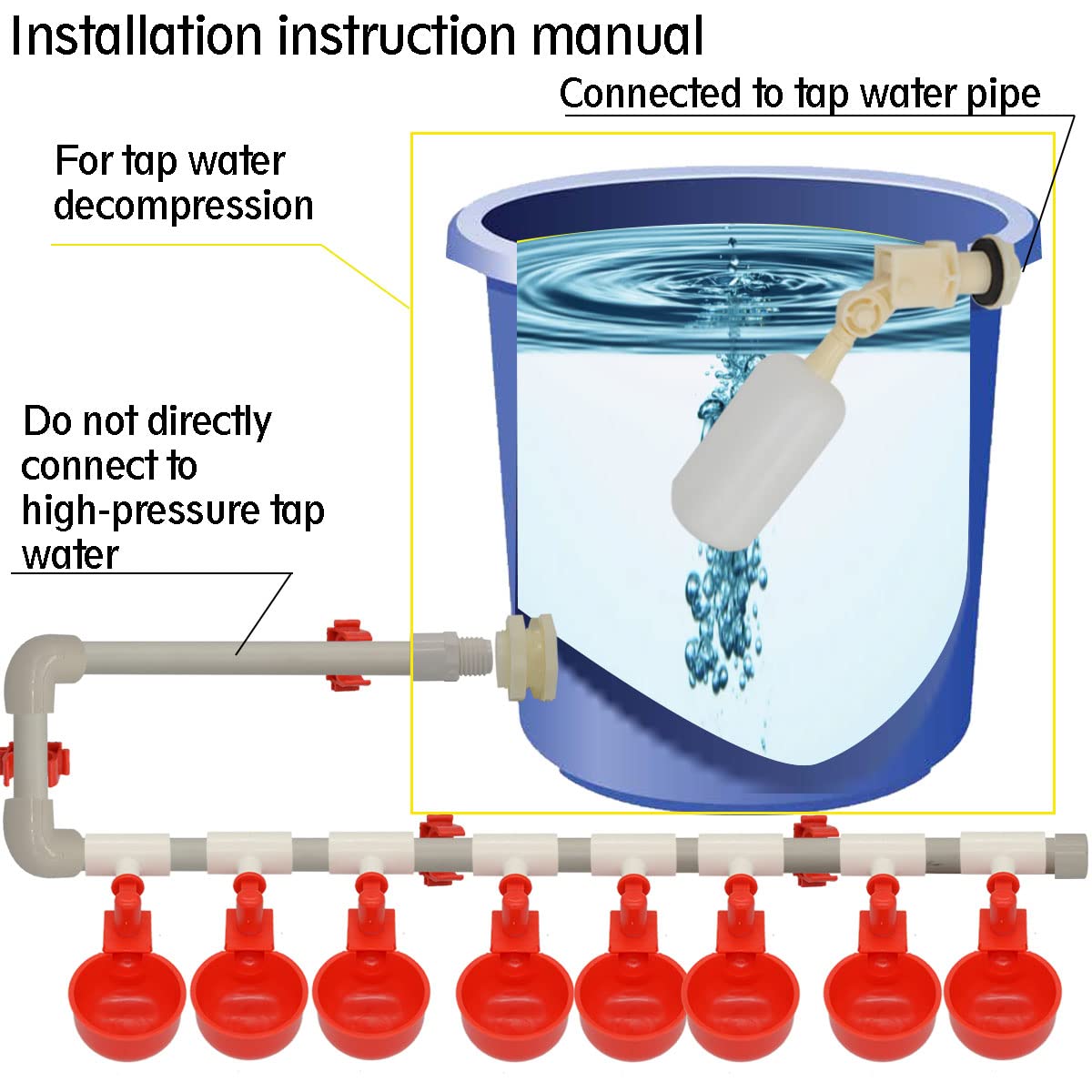

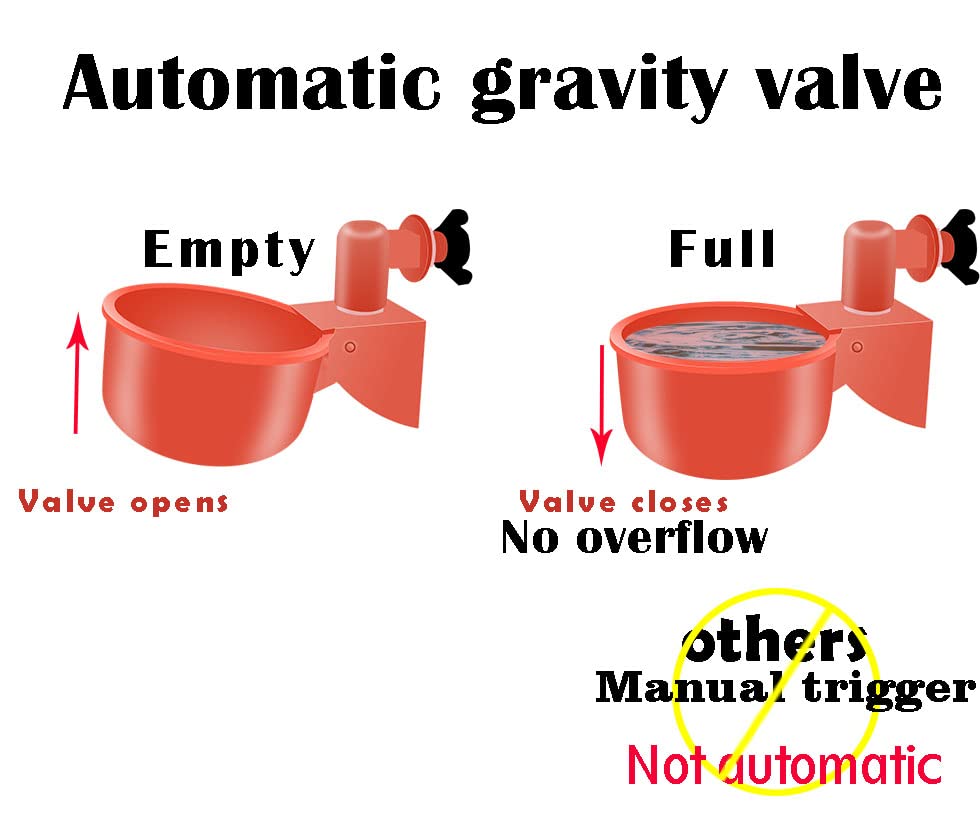

The system uses a bucket as a low-pressure reservoir and a buoyant inlet valve to control water entry, so the PVC line remains at safe pressure and the cups don’t overfill. Properly leveled cups and glued PVC joints produce a watertight installation that fills cups only as chickens drink.

• Gravity-fed design minimizes line pressure and prevents constant flow.
• Float (buoyancy) inlet valve controls water level in the reservoir.
• Special tee fittings match the included cups for secure connections.
• Supplied hole saws and seals make bucket-to-pipe penetrations reliable.

What exactly is in the box and what tools do I still need?

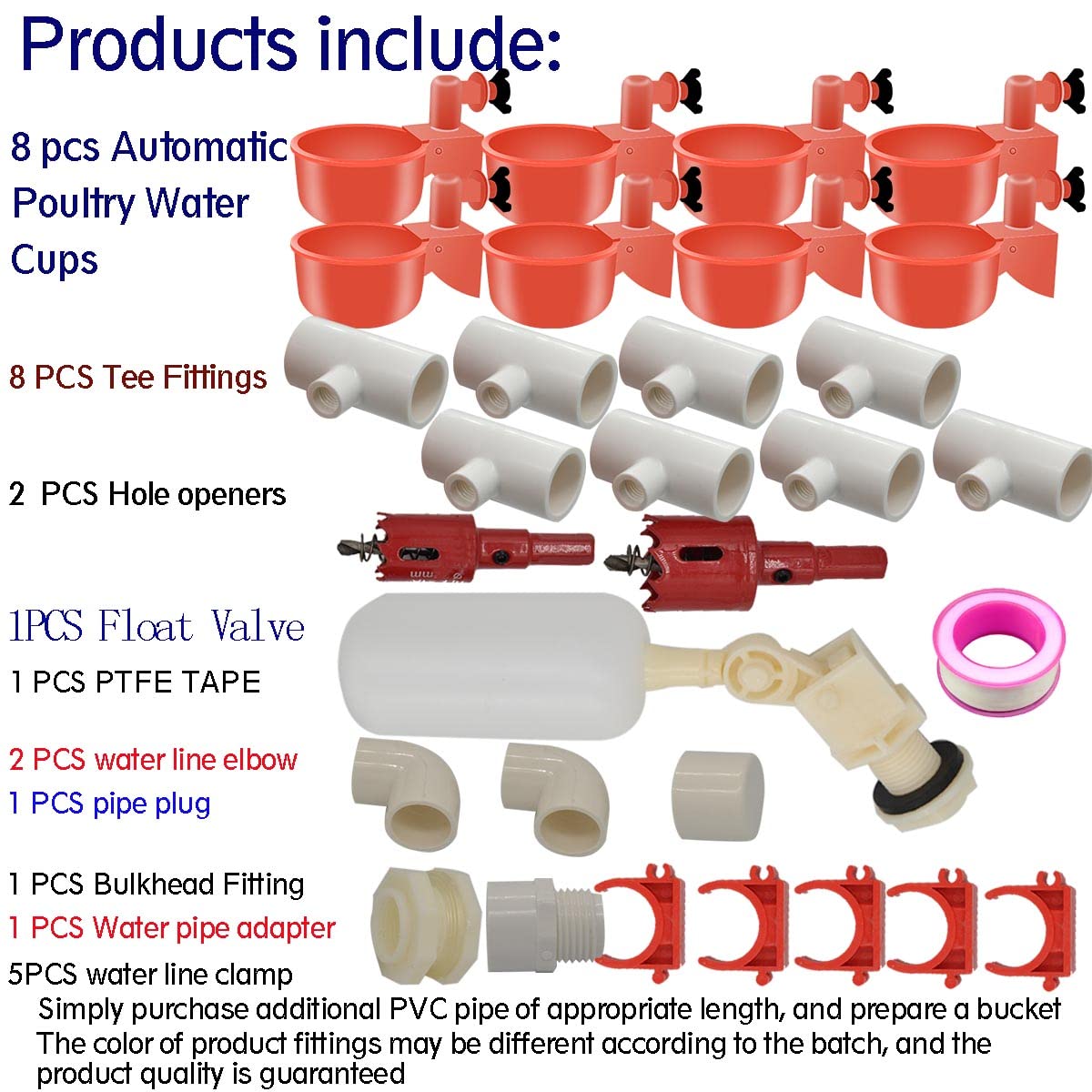

The kit ships with eight poultry drinking cups, eight matching tee fittings, a float valve, bucket fitting and adapter, pipe clamps, elbows, an end plug, and two hole saws sized for the reservoir openings. You’ll need a 1/2" PVC pipe, PVC cement, and basic hand tools to cut, glue and mount the line.

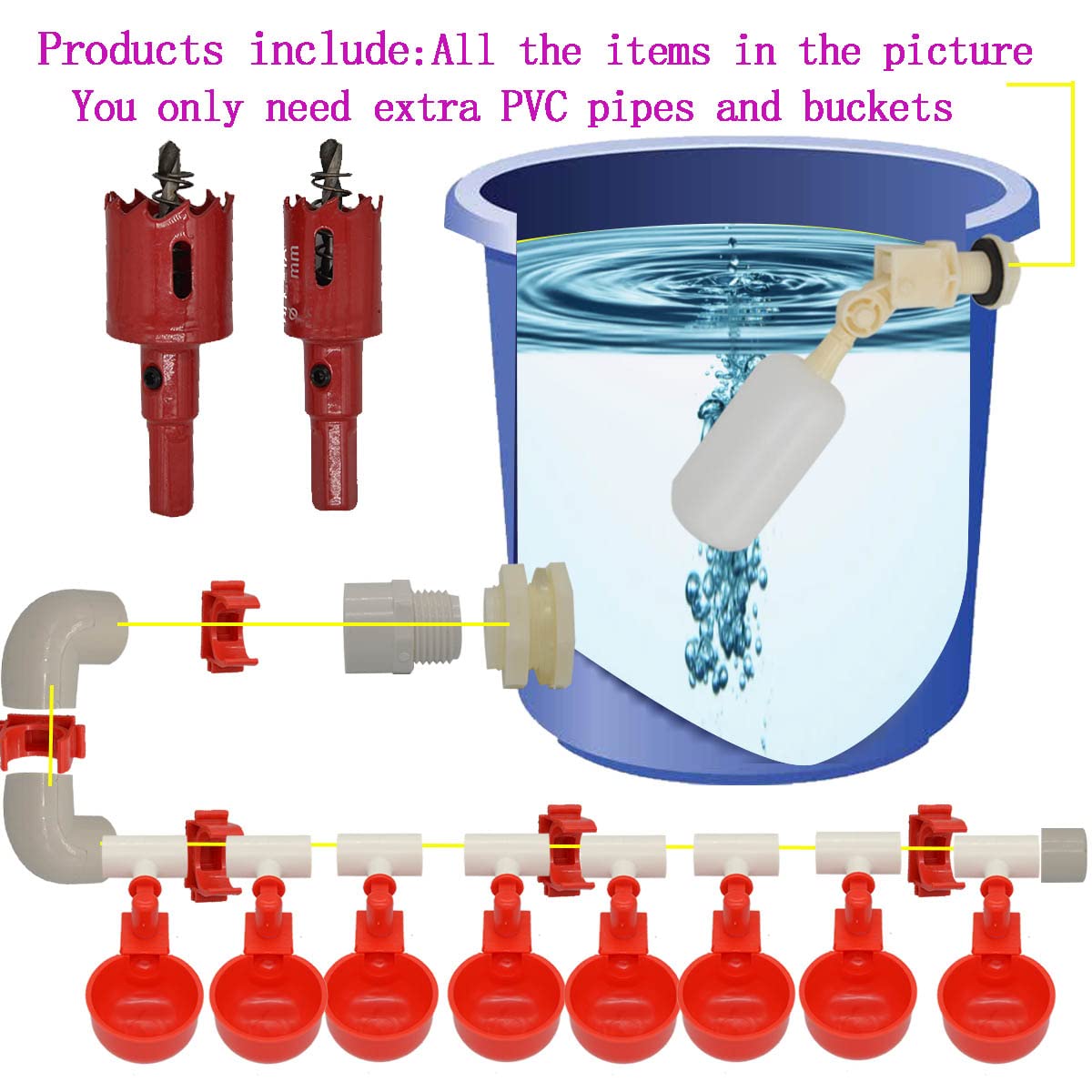

• Included: 8 cups, 8 special tees, float inlet valve, bucket fitting, adapter, clamps, elbows, plug, two hole saws.

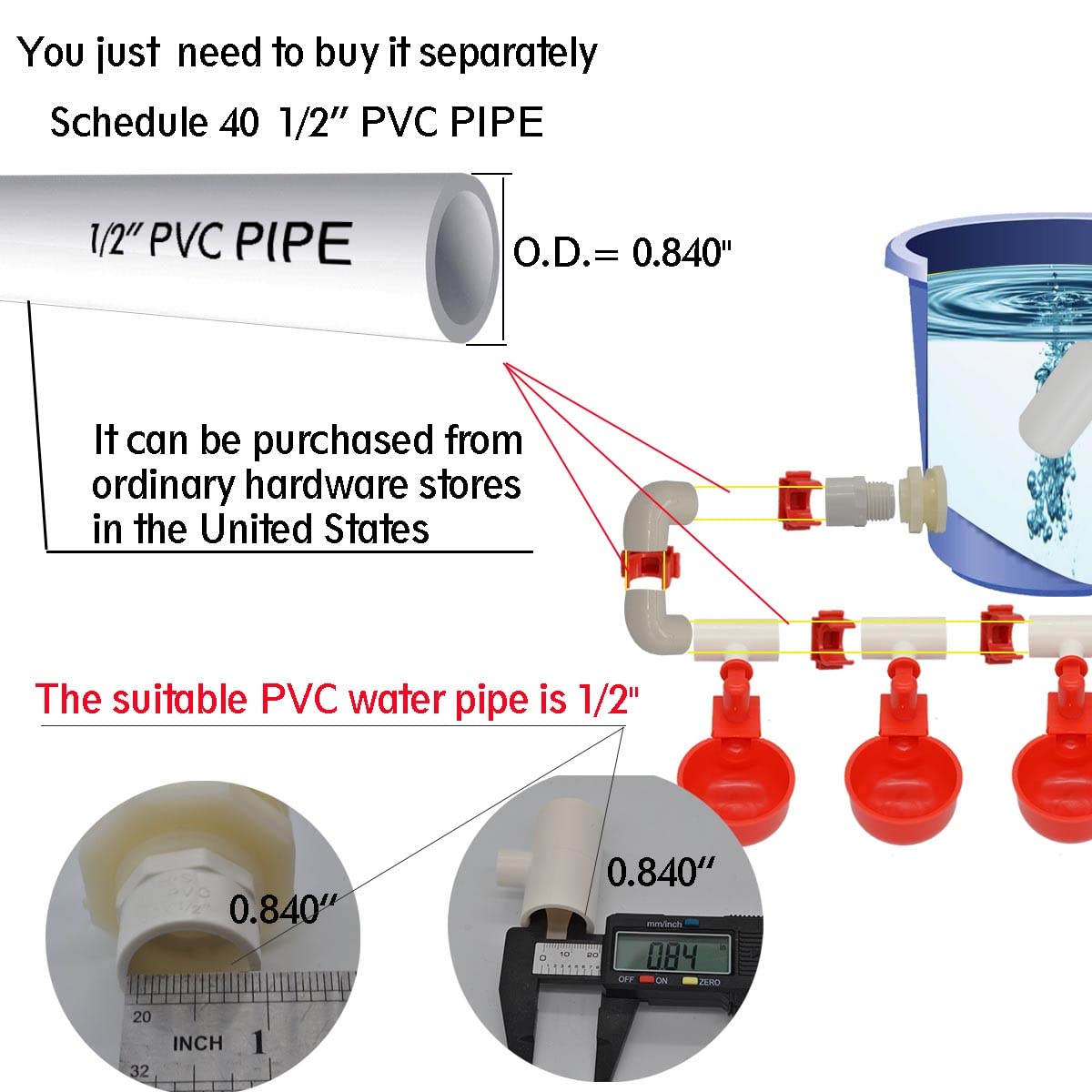

• Required from you: 1/2" PVC pipe, PVC glue, hacksaw or PVC cutter, screwdriver or wrench for clamps.
• Optional: PVC primer, mounting brackets or supports for level runs.

How simple is installation and maintenance for a small backyard flock?

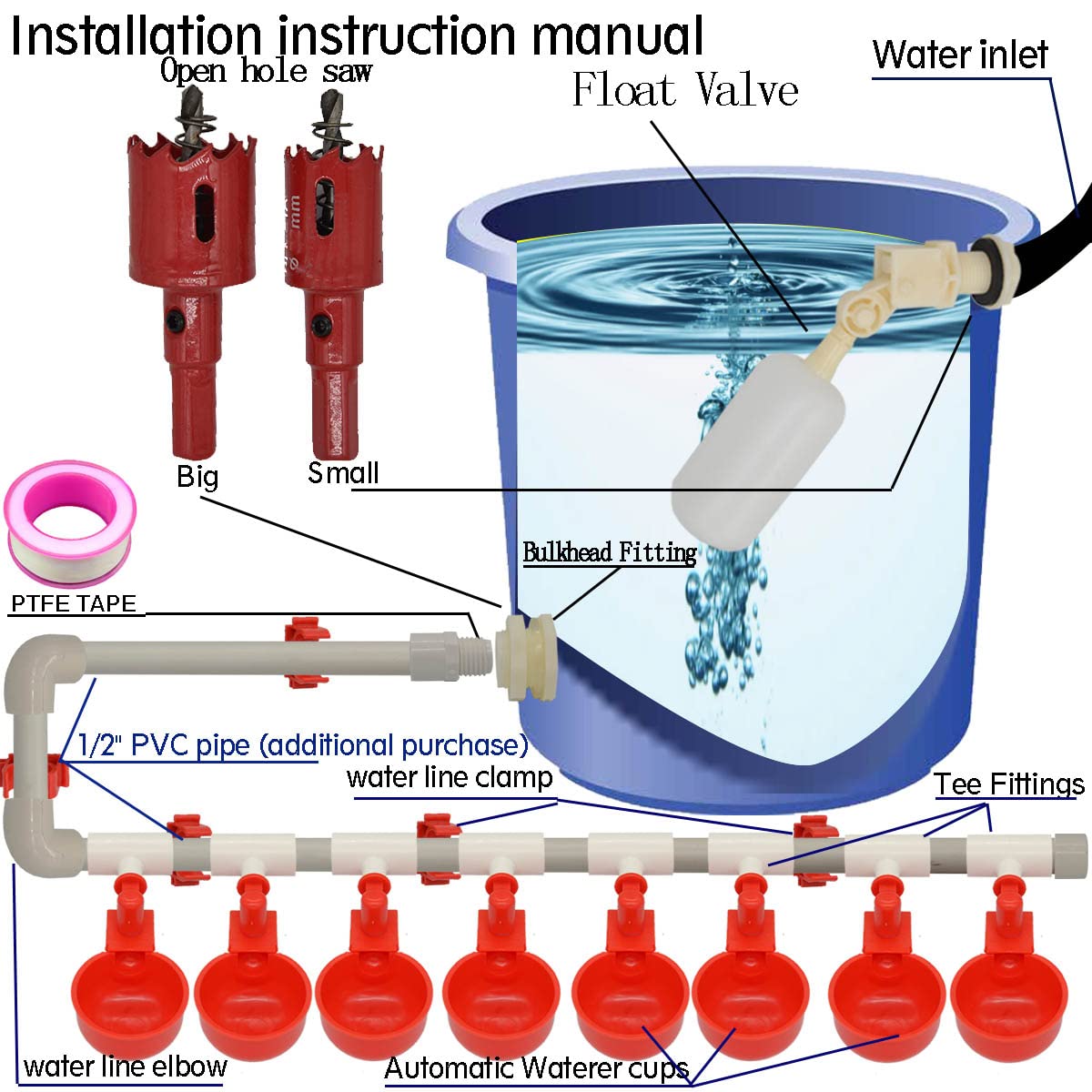

Installation follows a straightforward sequence: cut the reservoir holes, install the float valve and bucket connector, run and glue 1/2" PVC, attach all cups level, then test for leaks. Routine upkeep is minimal — inspect seals, clean cups periodically, and check the float valve for debris.

• Step-by-step: cut reservoir openings, secure fittings, assemble PVC line, tighten clamps, level cups, test.
• Maintenance: clean cups, check seals, clear float valve and occasional clamp tightening.
• Troubleshooting support available from perfsign if leaks or fit issues occur.

Who is this for: This perfsign kit is ideal for homesteaders, backyard poultry keepers, small farmers and hobbyists who want a low-cost, low-pressure automatic watering system they can assemble themselves. It suits owners of chickens, ducks, turkeys and quail who prefer a gravity-fed setup that reduces waste and keeps drinking areas cleaner than open pans. Choose this kit if you have basic DIY skills, a spare bucket to act as a reservoir, and a willingness to glue and level 1/2" PVC lines for a reliable watering solution.
