Pentair Challenger Pool Pump Volute Housing — Black High-Pressure/High-Flow, 1-1/2" FPT, 4-Bolt

The Pentair Challenger volute is a high-pressure, high-flow black replacement housing designed to restore or upgrade your pool pump's hydraulic performance.

This molded volute fits Challenger-series pumps and pairs with the corresponding trap body and seal plate to create a sealed flow path for water through your pool pump. Built for demanding circulation tasks, the part uses a stainless steel band clamp for secure attachment and a four-bolt mounting interface to mate to the trap body. The following details explain fit, function, and installation considerations so you can decide whether this volute matches your repair or maintenance needs.

How does this volute affect pump performance?

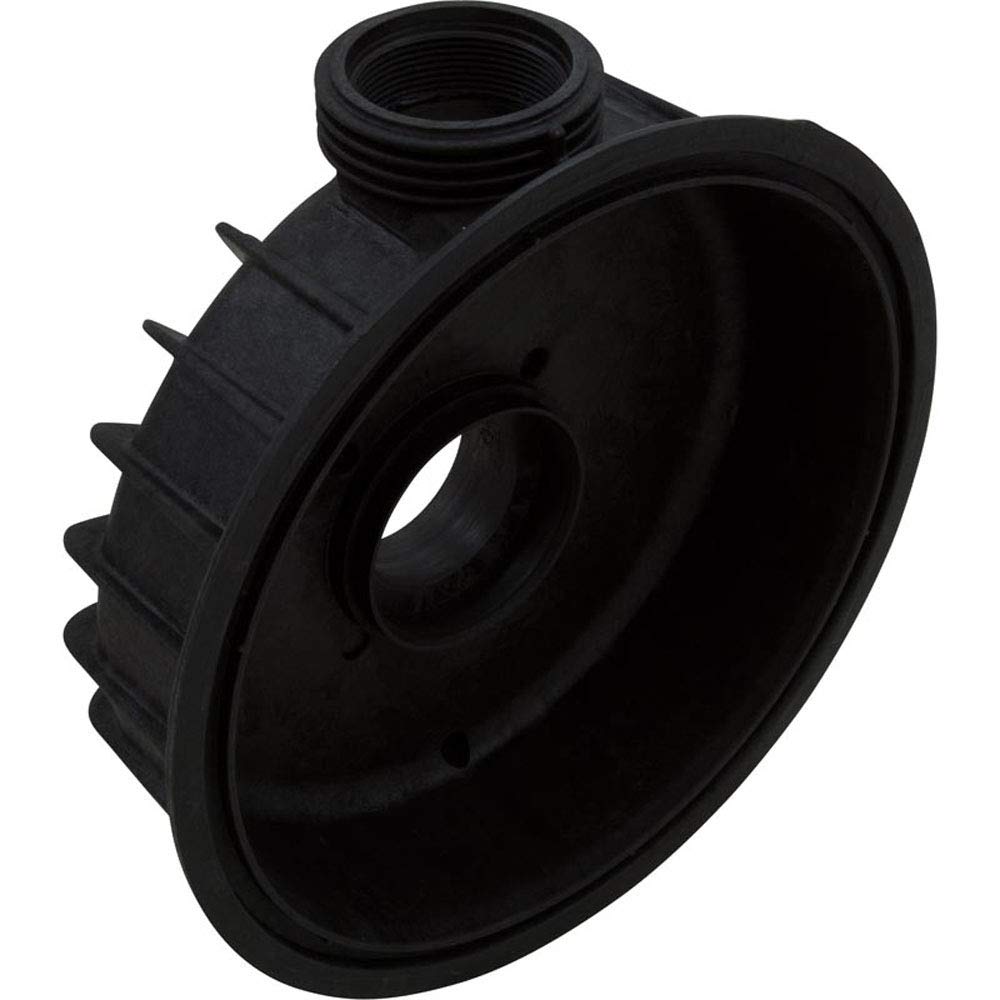

Replacing a worn or cracked volute restores the original flow contours and pressure-handling capability of your Challenger pump. Because the volute shapes the water path into the discharge, using the correct high-pressure/high-flow housing helps maintain rated pump output and reduces turbulence that can lower efficiency.

• Engineered for high-pressure, high-flow operation in Challenger pumps
• Molded internal passage geometry preserves design flow characteristics
• Black corrosion-resistant material suited for wet environments
• Compatible with original Challenger components for reliable performance

Will this volute fit my pump and what are the key dimensions?

This volute fits Pentair Challenger trap bodies that match the specified mounting pattern and discharge thread. Confirm spacing and thread size before ordering to ensure a direct replacement without modification.

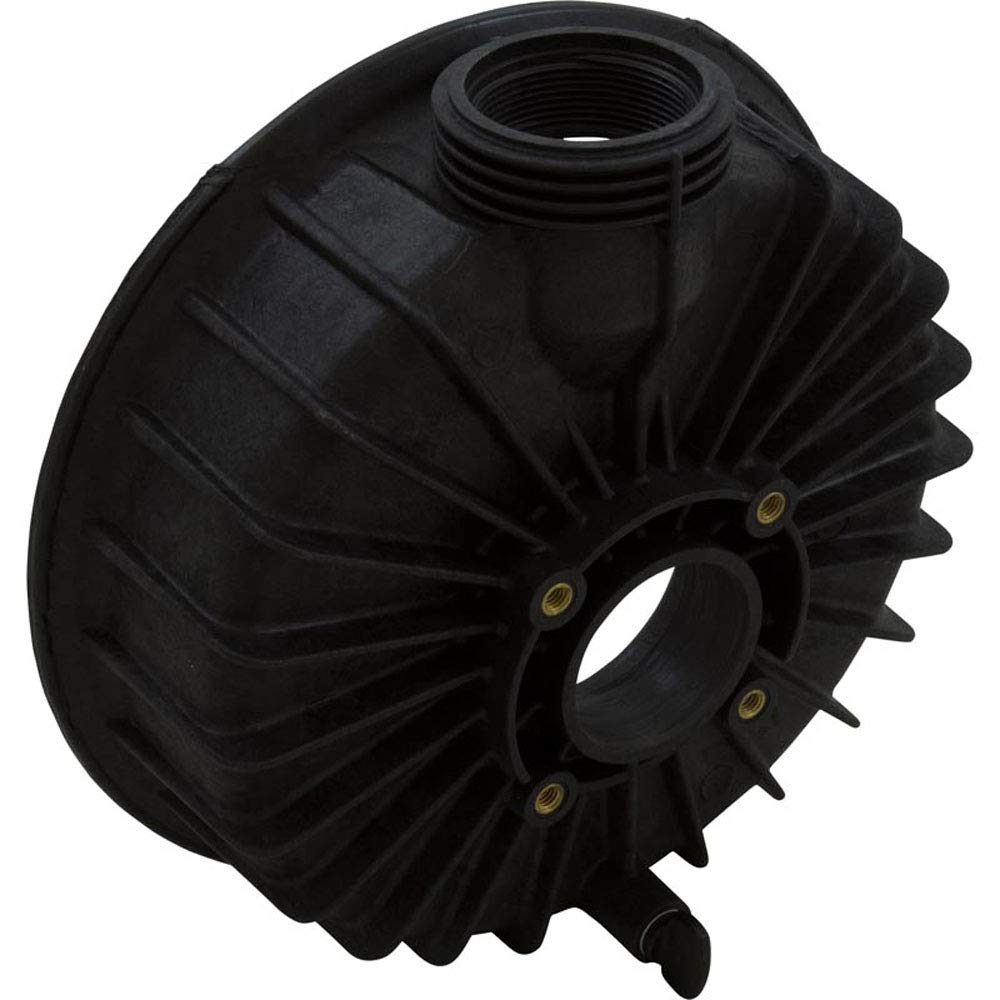

• Discharge pipe connection: 1-1/2" female pipe thread (FPT)

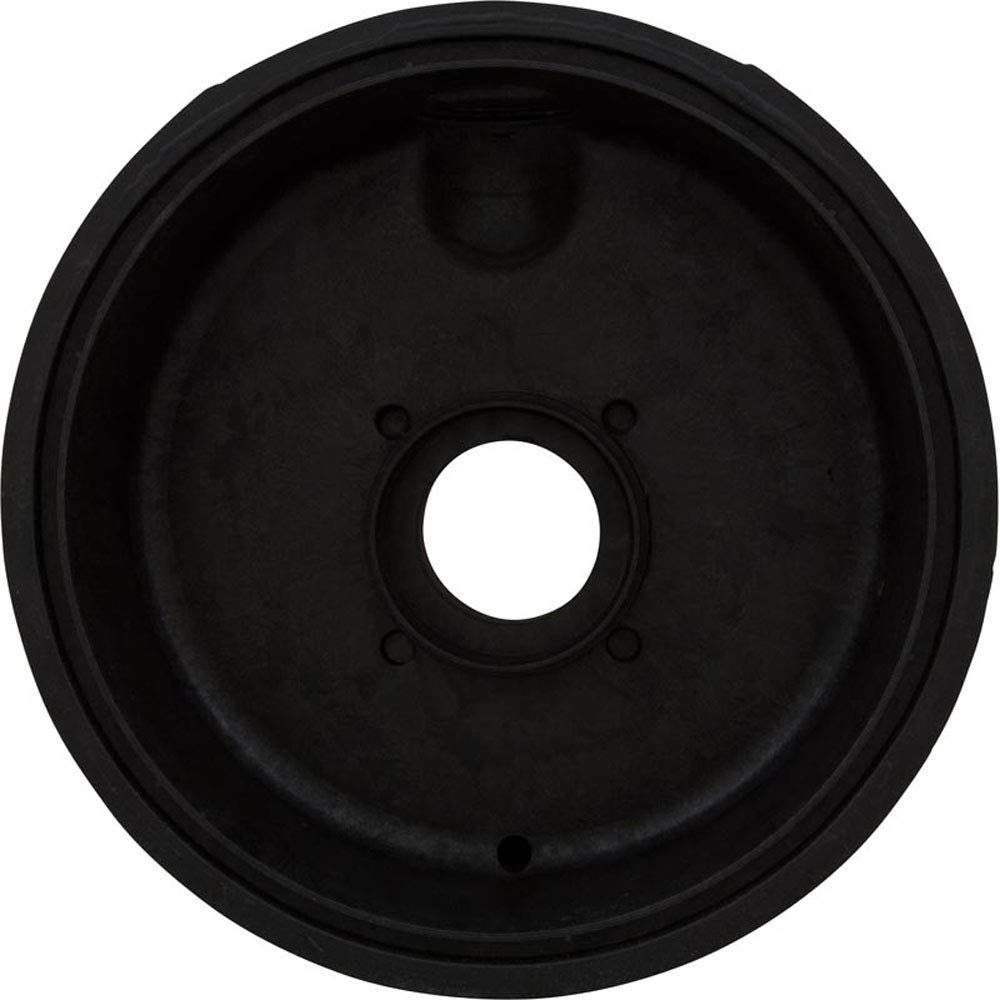

• Trap body to volute mounting hole spacing: 2-7/8" center-to-center

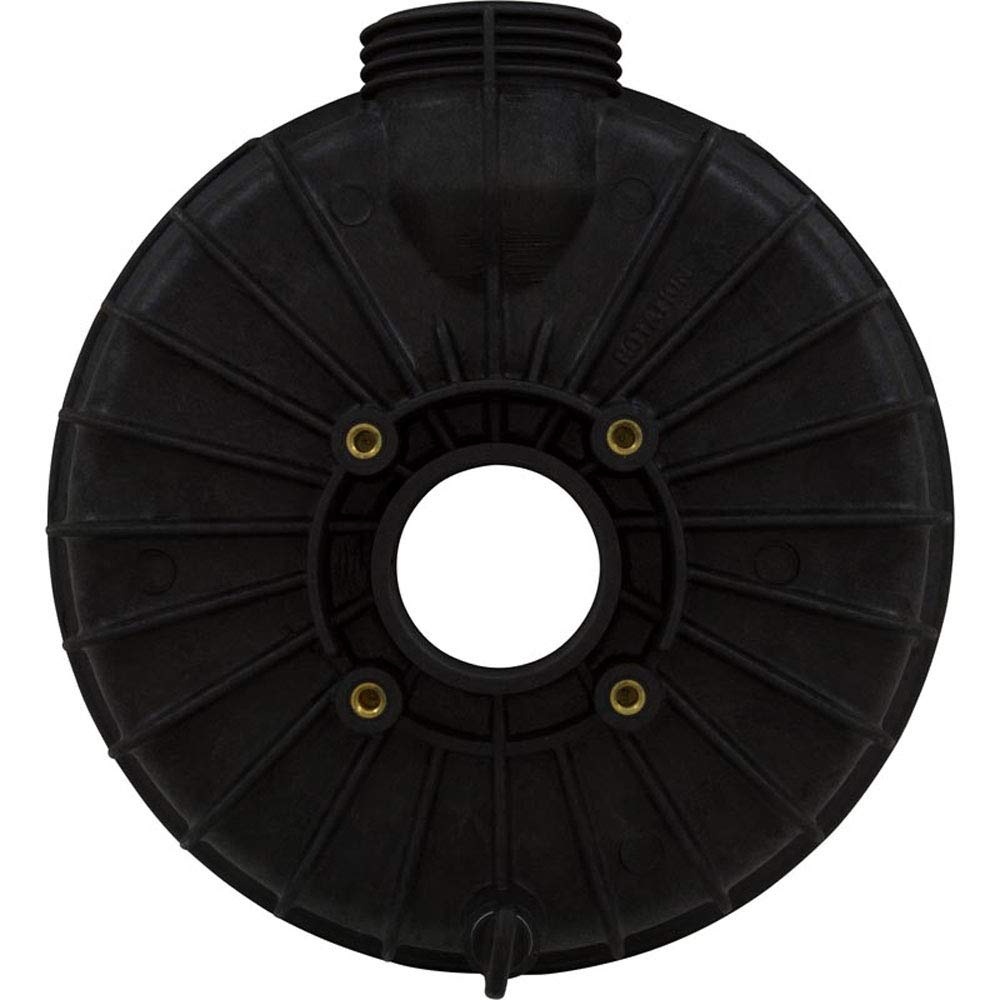

• Trap-to-volute attachment uses a four-bolt mounting arrangement
• Volute to seal plate fastens with a stainless steel band clamp for a leak-resistant seal

What materials and hardware are included or required for installation?

The volute is supplied as the molded housing; installation requires compatible fasteners and a stainless band clamp for the seal plate. Use corrosion-resistant bolts and follow torque recommendations for a secure, watertight assembly.

• Volute: durable black molded thermoplastic designed for pump housings
• Mounting: four-bolt trap body interface (bolts not always included; check supplier)
• Seal plate attachment: stainless steel band clamp provides clamping pressure without deformation
• Recommended: stainless or zinc-plated bolts and appropriate thread sealant on discharge thread

How difficult is the replacement and what tools will I need?

Swapping the volute is a straightforward repair for anyone familiar with pool pump servicing. With the trap body accessible and the motor/pump disconnected from power, basic hand tools and the correct clamp will let you complete the job quickly.

• Required tools: wrench/socket set for four mounting bolts, screwdriver for clamp, pipe tape for threaded discharge
• Preparation: disconnect power, drain pump housing before disassembly
• Time estimate: typically 30–60 minutes for an experienced DIYer or technician
• Tip: inspect seal plate and trap body gasket for wear and replace simultaneously for best results

Who this is for: This volute is suited to pool service professionals, DIY maintainers, and pool owners with Challenger-series Pentair pumps that require a high-pressure/high-flow replacement housing. Choose this part if you need an OEM-compatible volute with a 1-1/2" FPT discharge, a 2-7/8" mounting hole spacing to match your trap body, and a stainless band clamp attachment for a durable, leak-resistant assembly.
