Oududianzi 30ft 10AWG Solar Extension Cable Pair — Tinned Copper PV Wire with Waterproof MC4 Connectors, UV‑Resistant

Oududianzi 30ft 10AWG solar extension cable is a ready-to-use pair of red and black tinned-copper PV wires with waterproof male/female MC4-style connectors for extending solar panel runs safely and reliably.

These 30-foot 10-gauge solar panel extension cables from Oududianzi are built for photovoltaic systems that need longer cable runs without excessive voltage drop. The pair includes one red and one black 10AWG tin-coated copper conductor, each pre-fitted with locking connectors to make installation plug-and-play. Designed for outdoor use, the cables combine low resistance conductors with a dual-sheath insulation to resist UV, moisture and extreme temperatures.

How does this cable reduce power loss on longer runs?

The 10AWG conductors are made from tin-coated pure copper and have low DC resistance, which lowers voltage drop on extended cable runs. Tinning improves corrosion resistance compared with bare copper, supporting consistent conductivity over years of exposure.

• 10 AWG (6mm²) conductor with 84 strands for flexible routing
• Conductor resistance ≤ 5.09Ω/km at 20°C to keep losses low

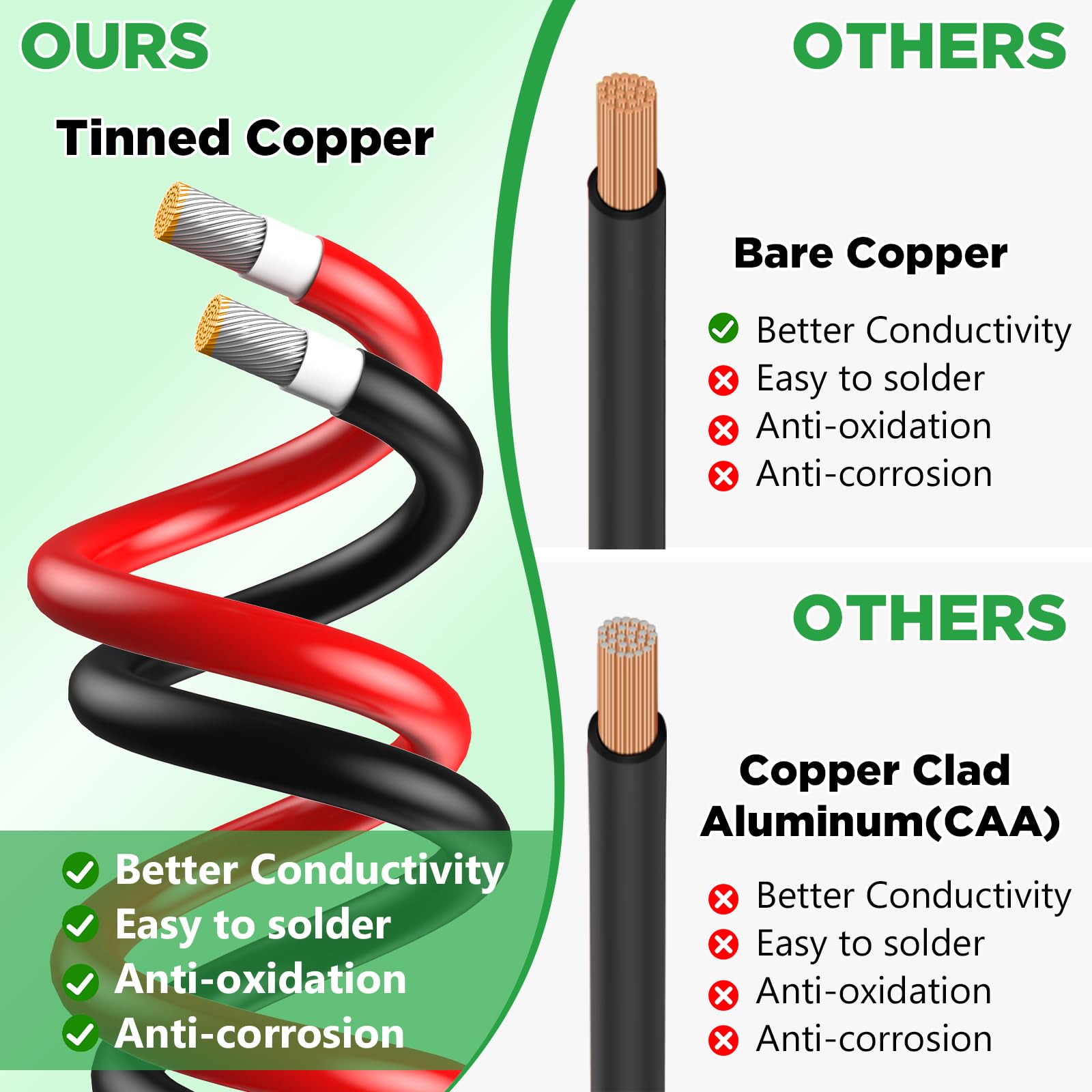

• Tinned copper finish resists oxidation for long-term conductivity

Are these cables weatherproof and safe for outdoor photovoltaic use?

Yes—the cable’s dual-sheath build uses XLPE insulation and an XLPO jacket able to handle -40°F to 194°F, while materials provide UV, moisture and aging resistance. The connector assembly incorporates an IP67-rated waterproof seal to keep dust and water out of the electrical junction.

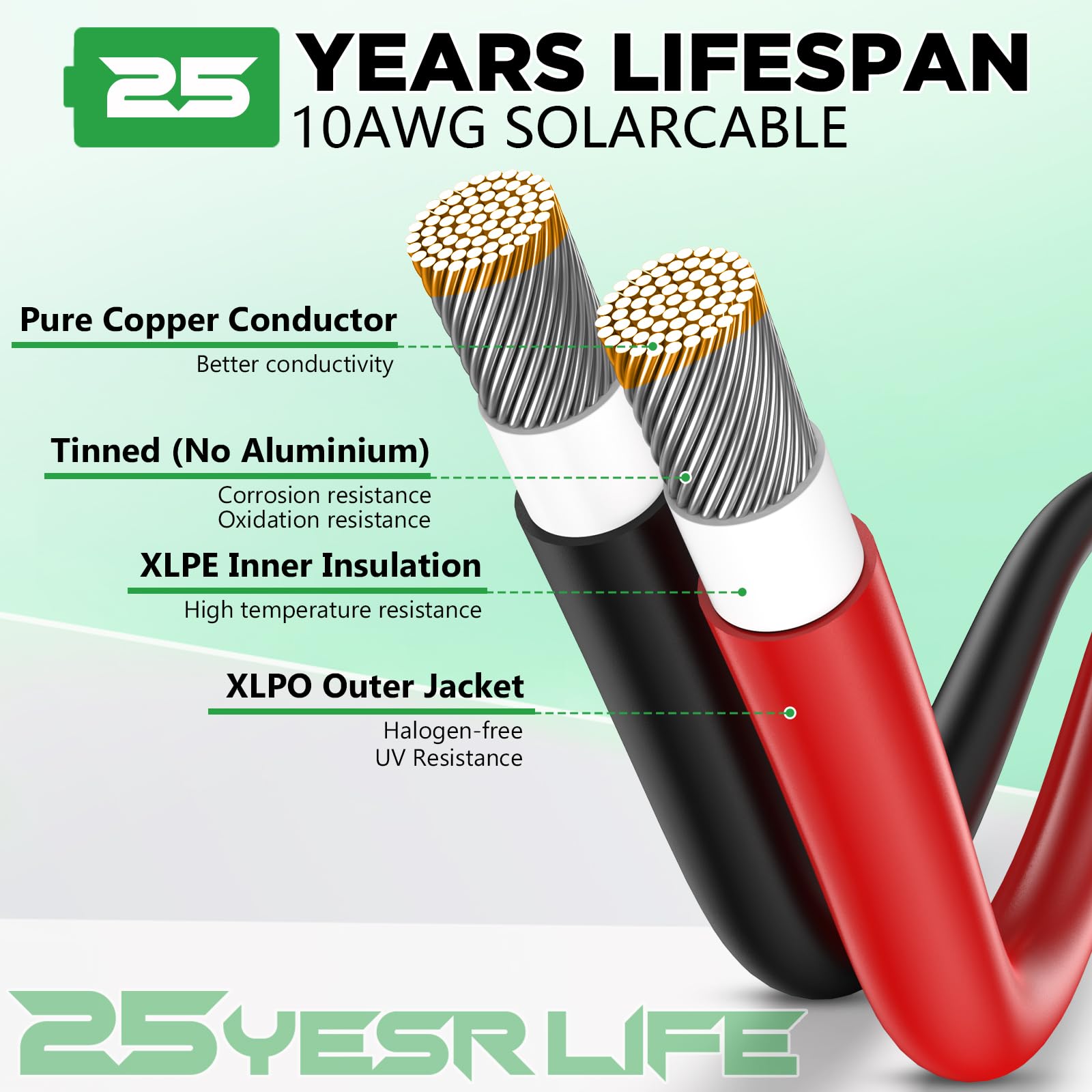

• XLPE/XLPO dual sheath for higher temperature and UV tolerance
• IP67-rated waterproof ring on the male connector
• IEC 62930 and IEC 60332 compliance with TÜV, CE, RoHS certifications

Will this cable work with my existing panels, inverters, or RV system?

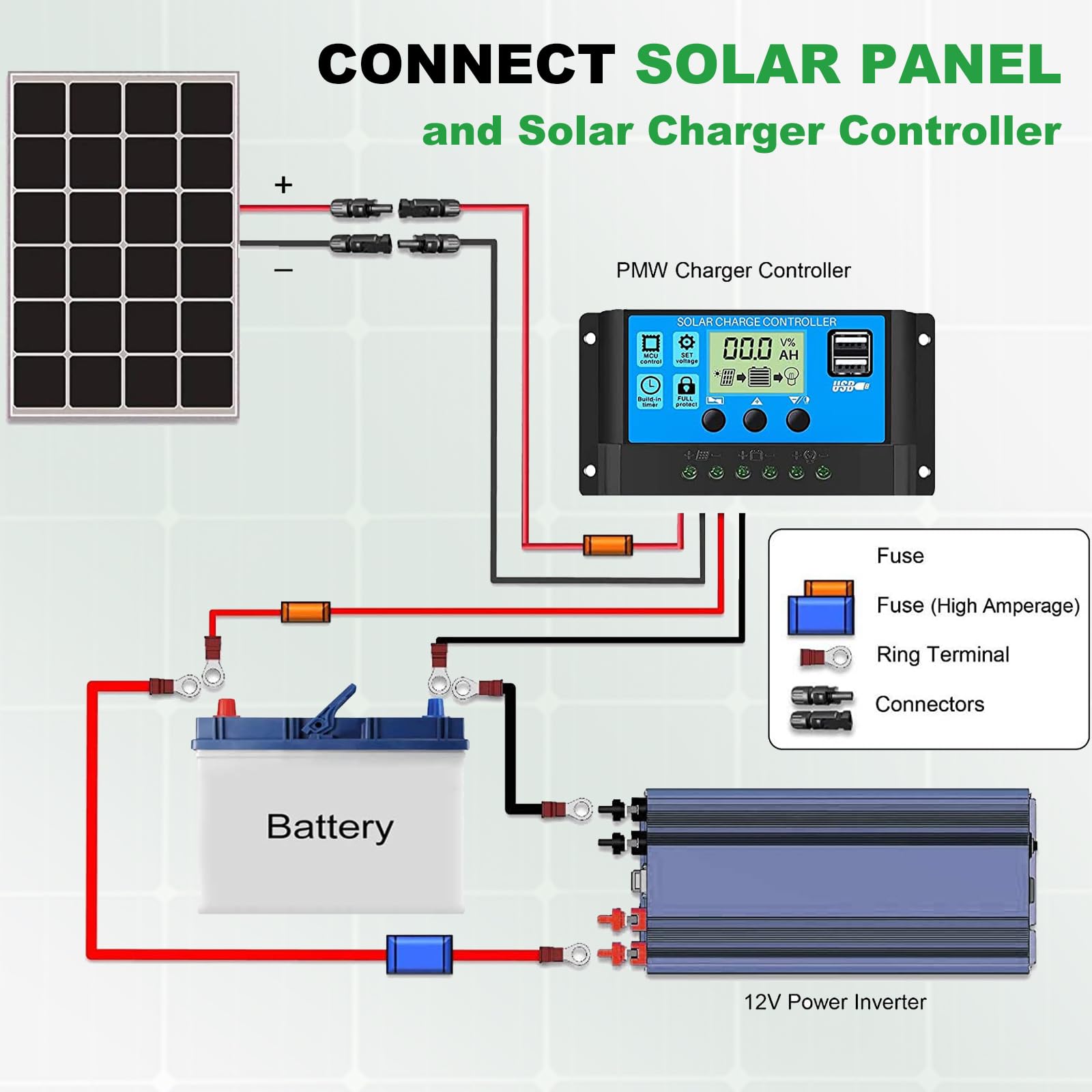

Oududianzi 10AWG solar extension cable is designed to be widely compatible with common PV components and MC4-style systems. The pre-installed male and female connectors allow straightforward plug-in connections to panels, combiners and portable solar generators without extra crimping or specialized tools.

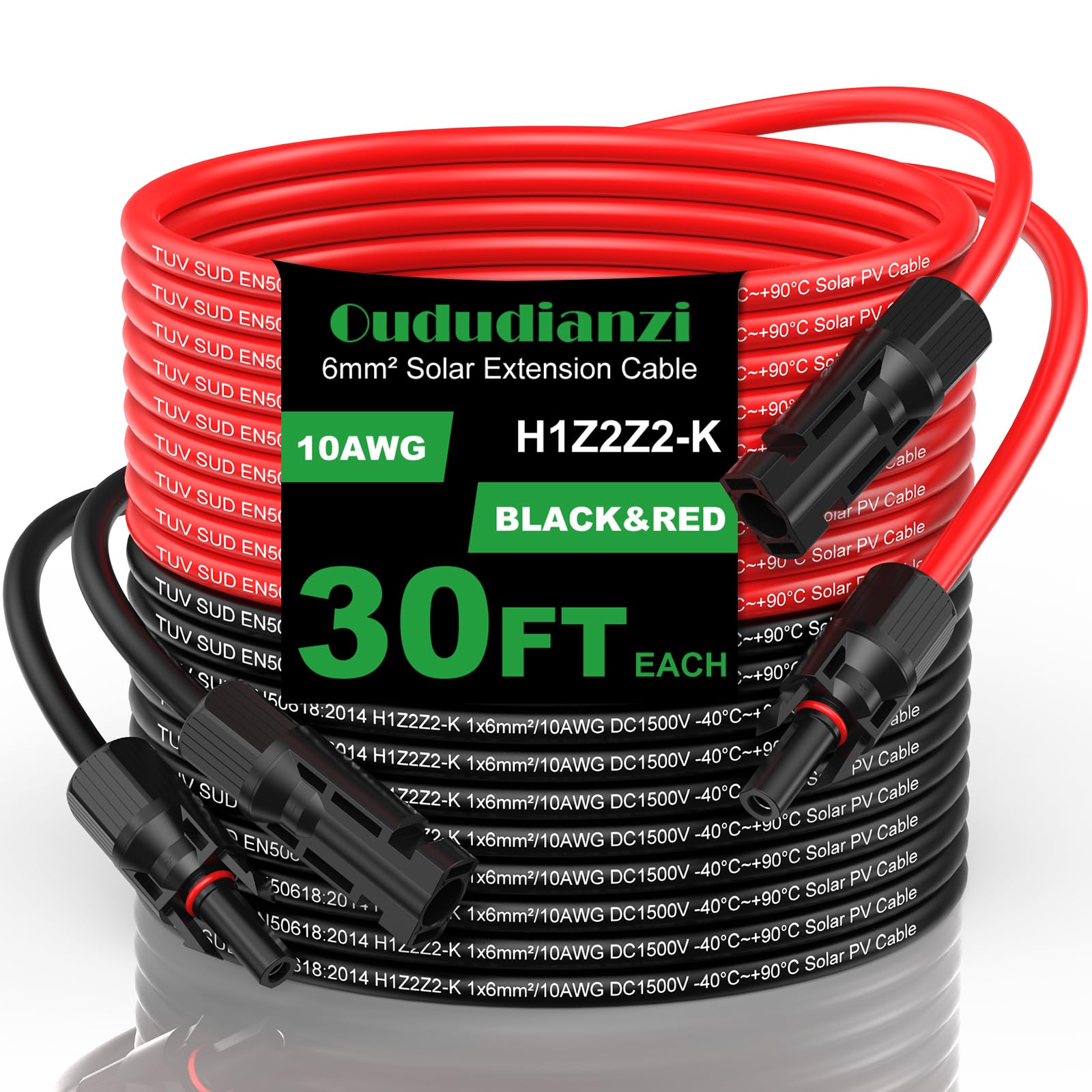

• Pre-installed male and female locking connectors for plug-and-play use
• Rated DC voltage up to 1500V (max DC 1800V), AC 1000V, current rating around 40A
• Common use: rooftop arrays, RVs, boats, off-grid systems, portable solar

How easy is installation and what features speed setup?

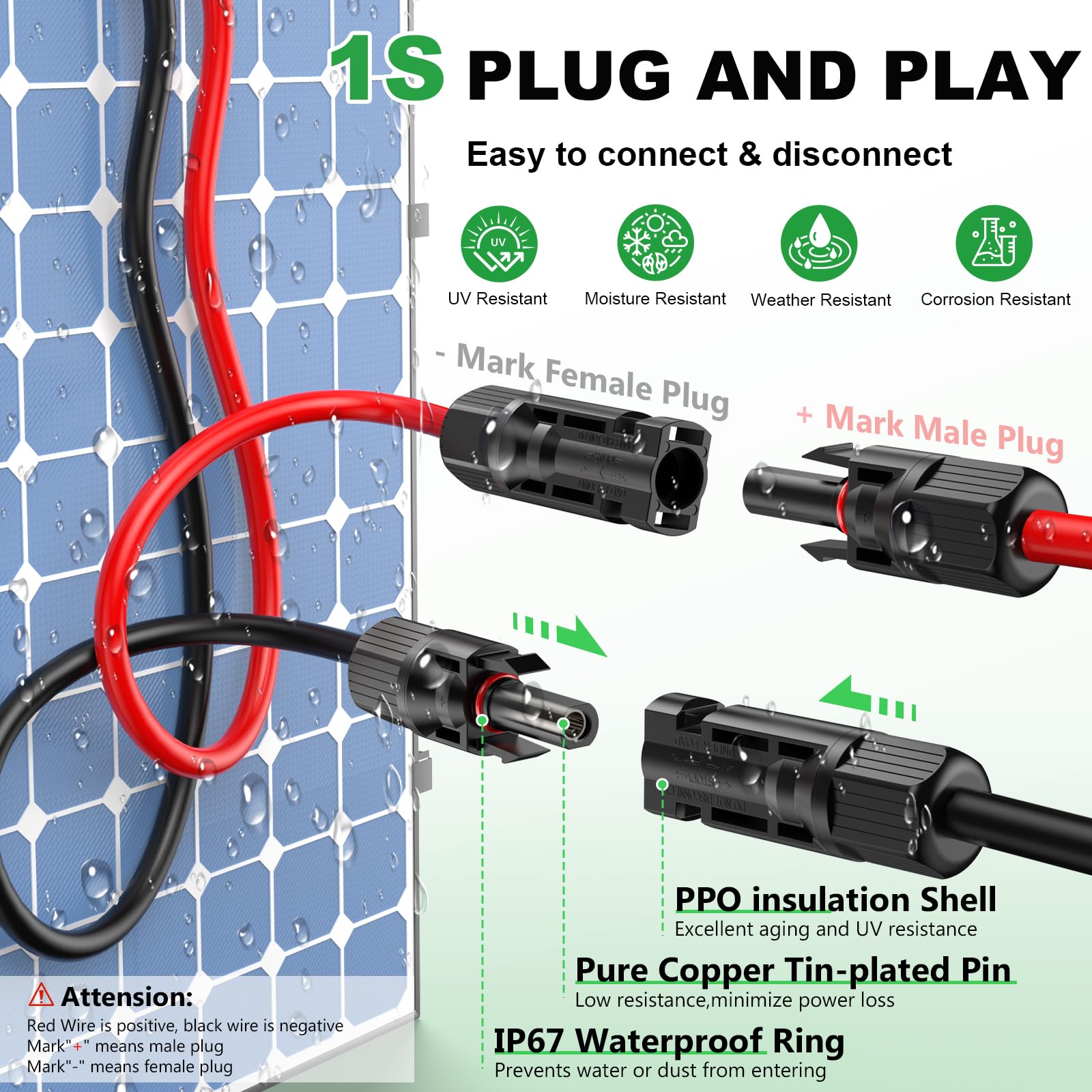

The cables come as a matched red and black pair with connectors already attached, so installation only requires plugging connectors together and routing the cable. The locking tabs on the male connector allow tool-free engagement and secure retention during vibration-prone environments like boats and RVs.

• Pre-terminated connectors reduce installation time
• Push-tab lock on male connector for quick tool-free disconnects
• Flexible multi-strand construction simplifies bending and cable management

Who is this for? Installers, DIY homeowners, and mobile-living owners who need a durable, longer PV cable run will benefit from Oududianzi’s 30ft 10AWG extension pair. It’s aimed at anyone who requires a weather-resistant, low-loss connection for rooftop, balcony, boat, RV, or off-grid solar arrays and wants pre-installed connectors for rapid, reliable hookup without custom crimping.
