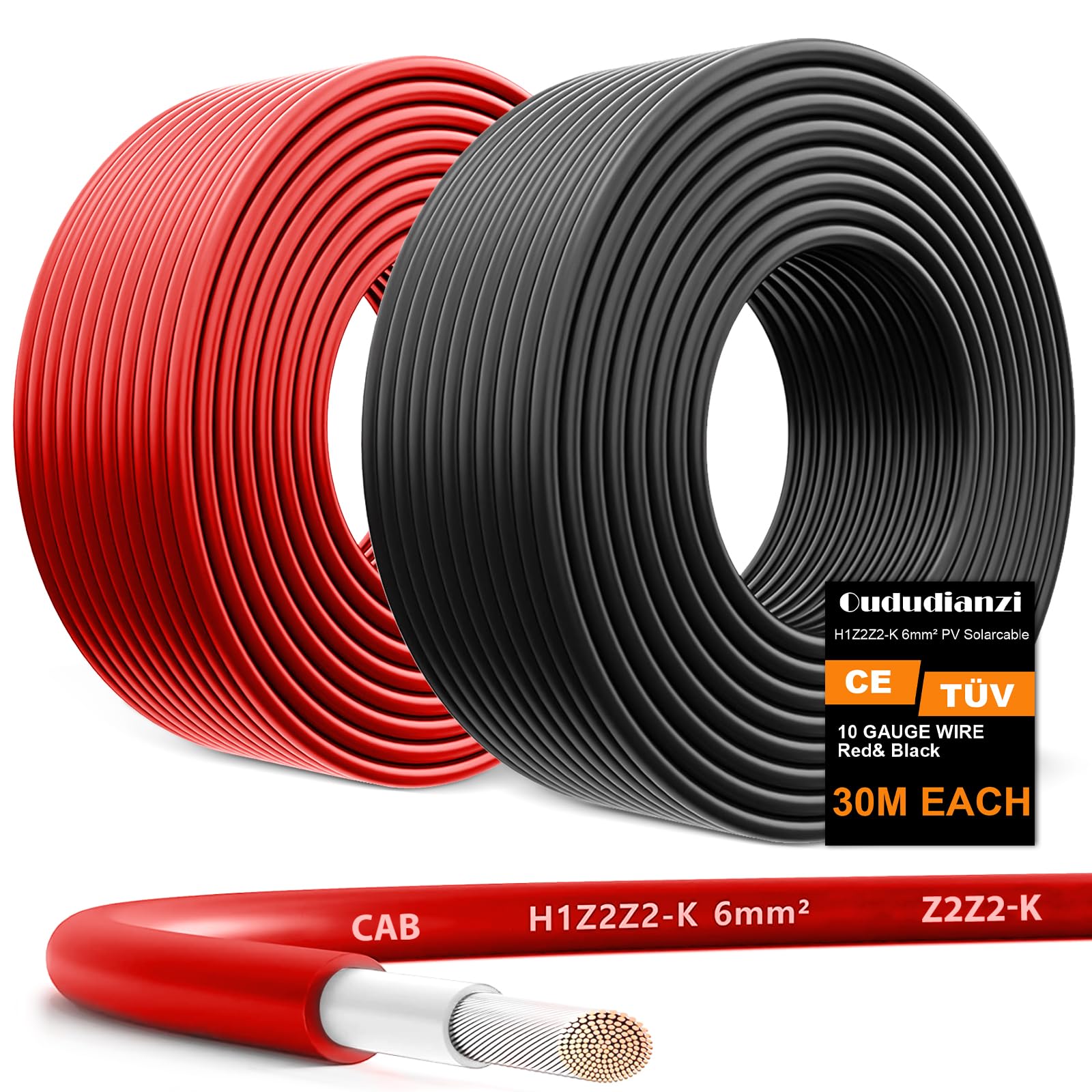

Oududianzi 10AWG Solar Panel Wire — 2×100ft reels, tinned copper, UV‑resistant low‑loss PV cable

Oududianzi 10AWG tinned-copper solar wire (two 100ft reels) is a heavy-duty, UV- and IP68-rated PV cable built for low-resistance, long-lived rooftop, RV, marine, and off-grid solar installations.

These two 100-foot reels of 10AWG solar cable combine thick tinned-copper stranding, double-layer XLPE/XLPO insulation and TÜV photovoltaic approvals to handle higher current with reduced loss and superior corrosion protection. The tin plating improves solderability and marine resistance while the XLPE/XLPO jacket protects against UV, abrasion and a wide temperature range, making this cable suitable for rooftop arrays, battery banks, and inverter connections.

How does this wire reduce power loss compared with standard solar cables?

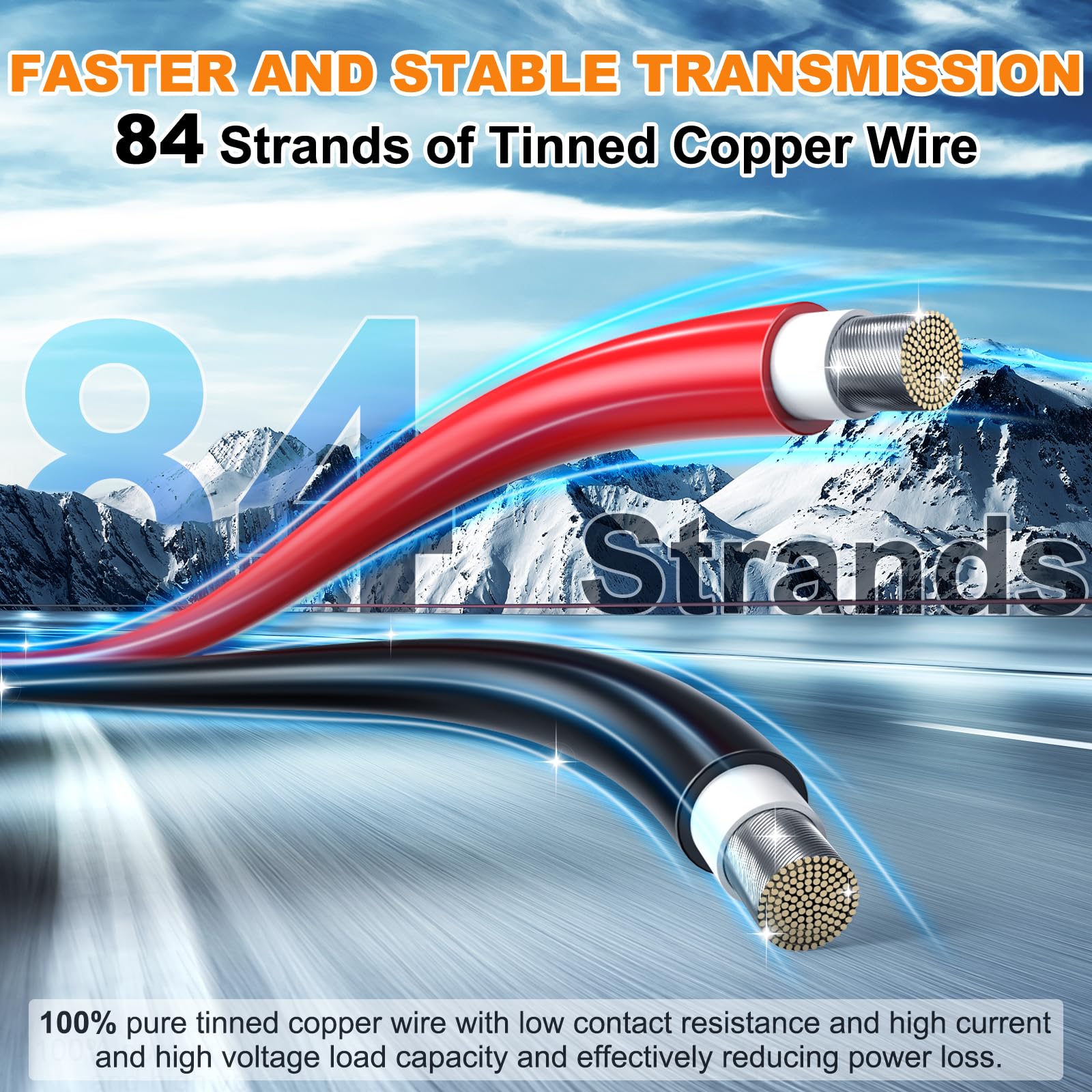

The Oududianzi 10AWG cable contains 84 strands of fine tinned copper per conductor, giving lower DC resistance than 12AWG alternatives and enabling cleaner current flow across longer runs. Lower resistance means less heat, smaller voltage drop and better performance for higher-output panels and longer cable runs.

• 10AWG (6mm²) cross-section with ultra-low 3.39 Ω/km resistance at 20°C

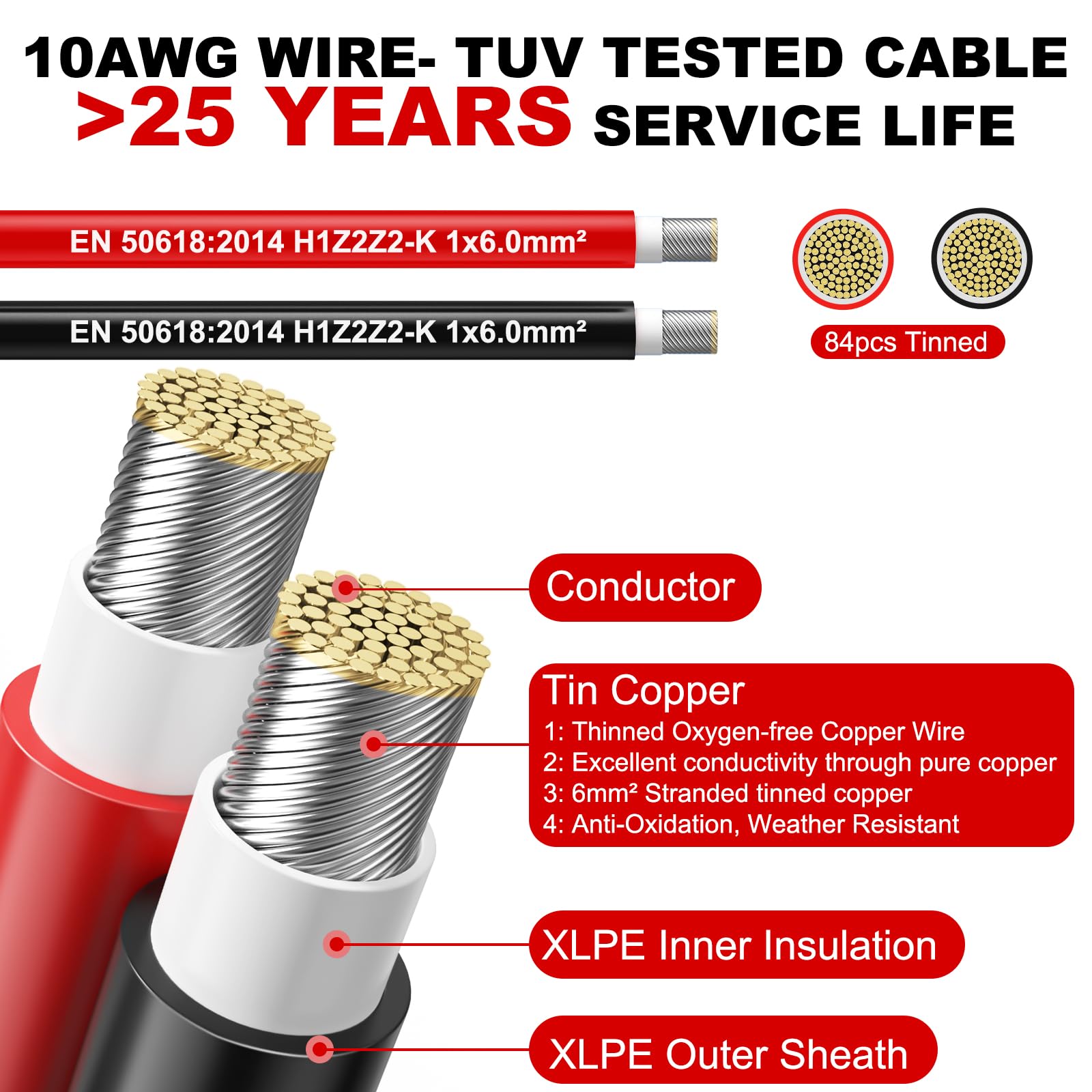

• 84-strand tinned-copper construction for improved conductivity
• Designed for higher continuous current (approx. 57A rating)
• Reduces voltage drop and improves system efficiency over distance

Will this cable withstand outdoor, marine, or buried installations?

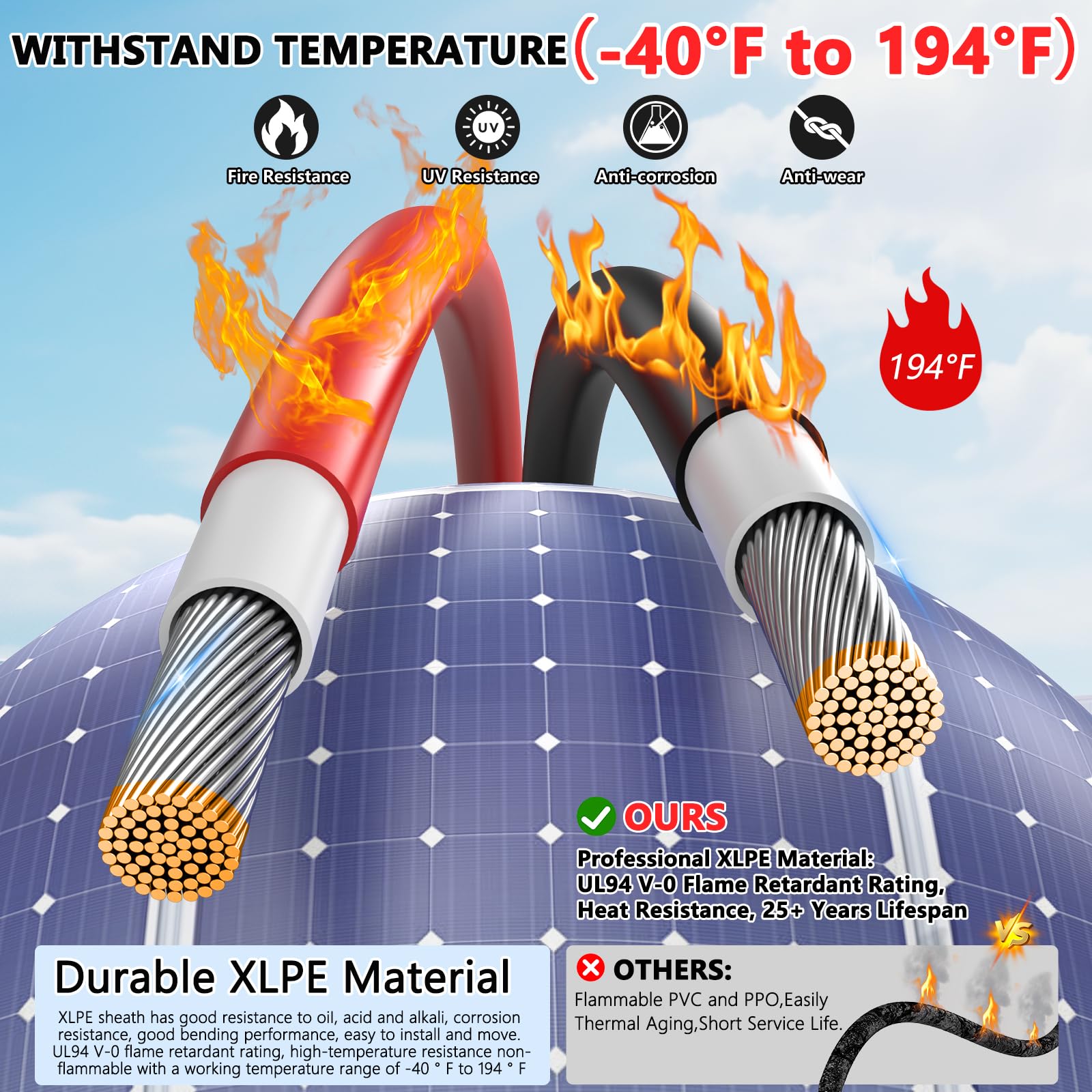

Yes — the cable’s tin-plated copper conductors resist corrosion, and the dual XLPE/XLPO jacket delivers strong UV, abrasion and weather resistance. The assembly meets IP68 standards, tolerates extreme temperatures and can be used on rooftops, in buried runs or in marine/RV environments where splash and salt exposure occur.

• IP68 waterproof rating for long-term moisture protection

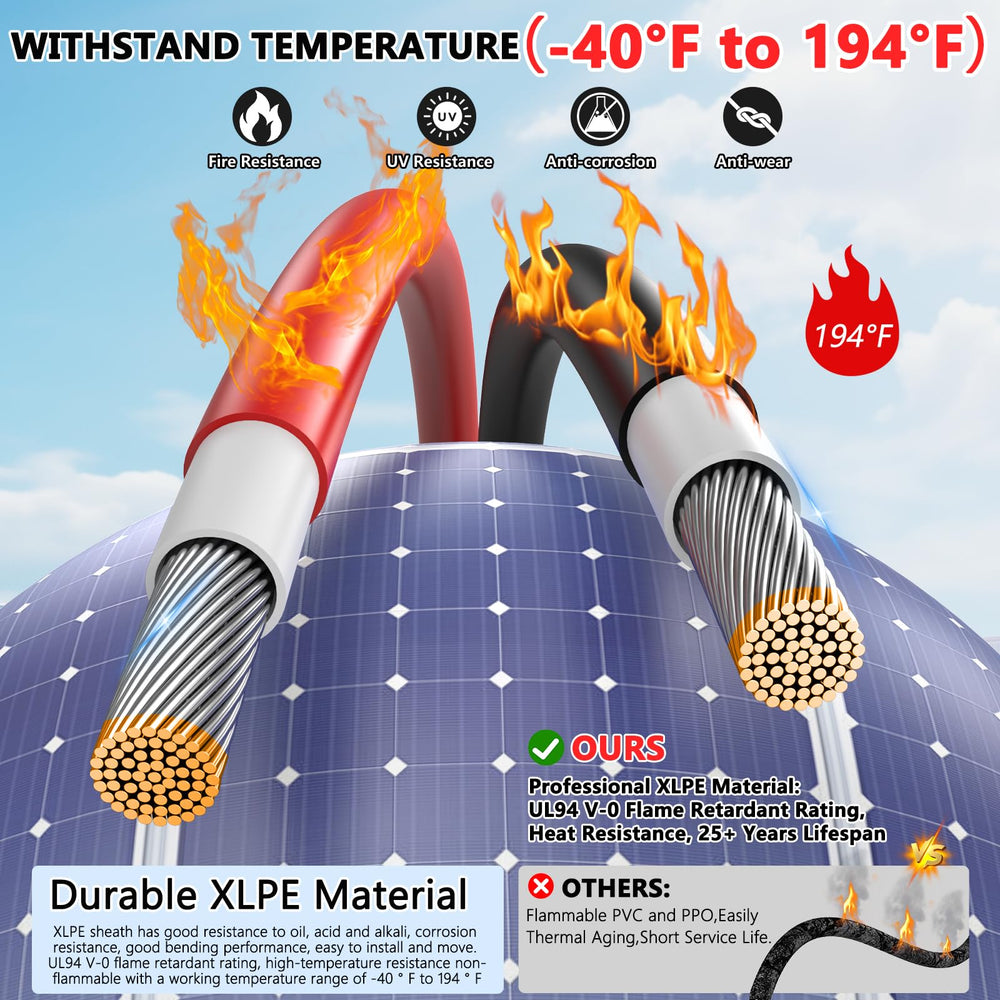

• Operating temperature range of −40°F to 194°F (−40°C to 90°C)
• Double-layer XLPE/XLPO insulation for UV and abrasion resistance
• Tin plating provides additional corrosion resistance in coastal settings

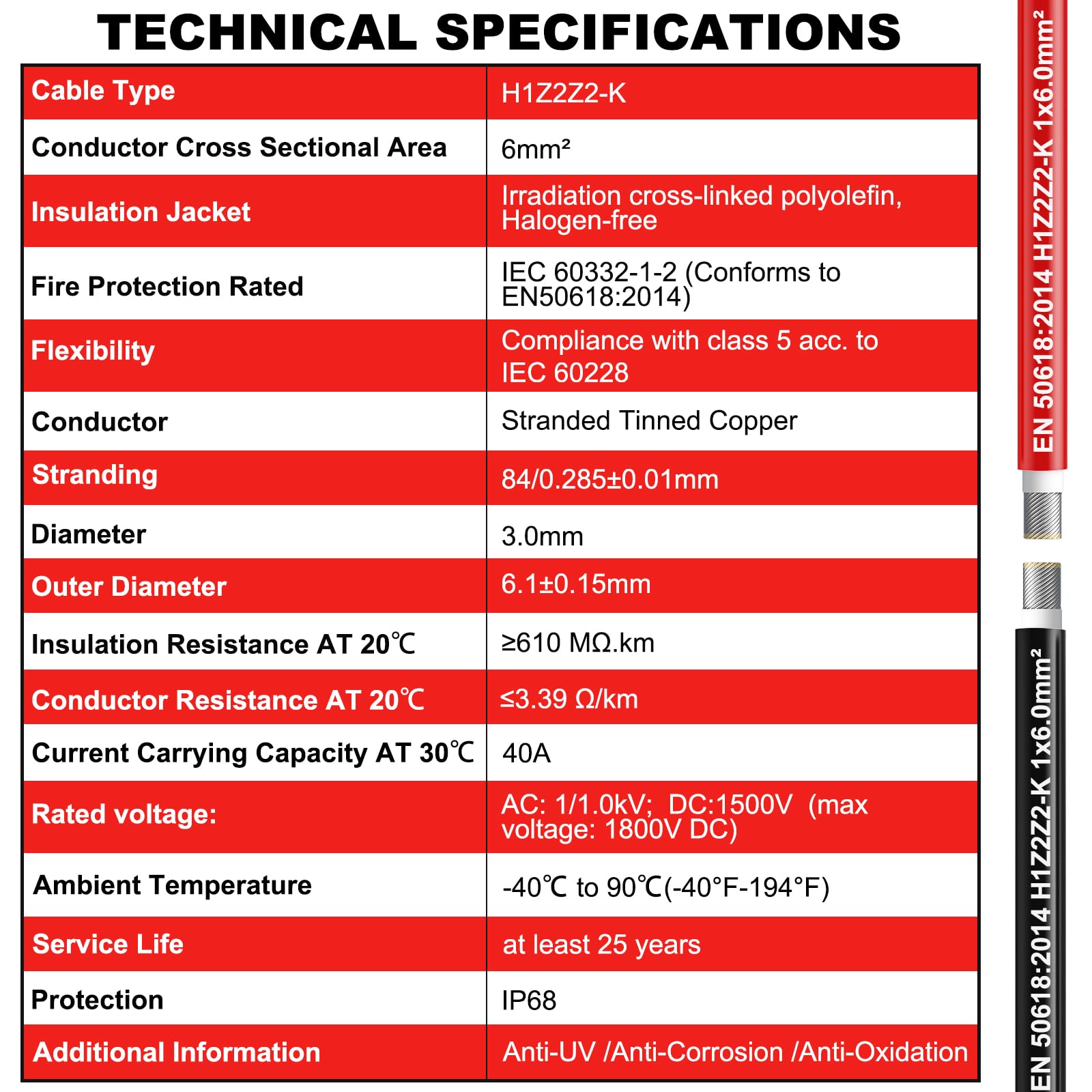

What safety and certification standards does this PV cable meet?

Oududianzi 10AWG PV wire is engineered and tested to photovoltaic industry standards and carries multiple certifications that installers and inspectors expect. Its rated DC voltage and insulation testing support use in modern solar arrays and battery/inverter systems.

• TÜV, CE and RoHS certifications included
• Compliant with IEC 62930 and IEC 60332 fire-test standards
• DC voltage rating up to 1800V and 6500V insulation test voltage
• Built for reliable long-term service in PV systems

How easy is the cable to work with for DIY or pro installers?

The flexible tinned-strand design makes cutting, stripping, soldering and routing straightforward for both field technicians and DIYers. Oududianzi offers length options so you can choose the right run without excessive splicing; the cable’s flexibility keeps routing around panels, combiner boxes and battery banks simple.

• Flexible multi-strand tinned copper is easy to bend and terminate
• Available in multiple lengths to match project requirements
• Solder-friendly tin plating improves secure connections
• Works with standard PV connectors, inverters and battery terminals

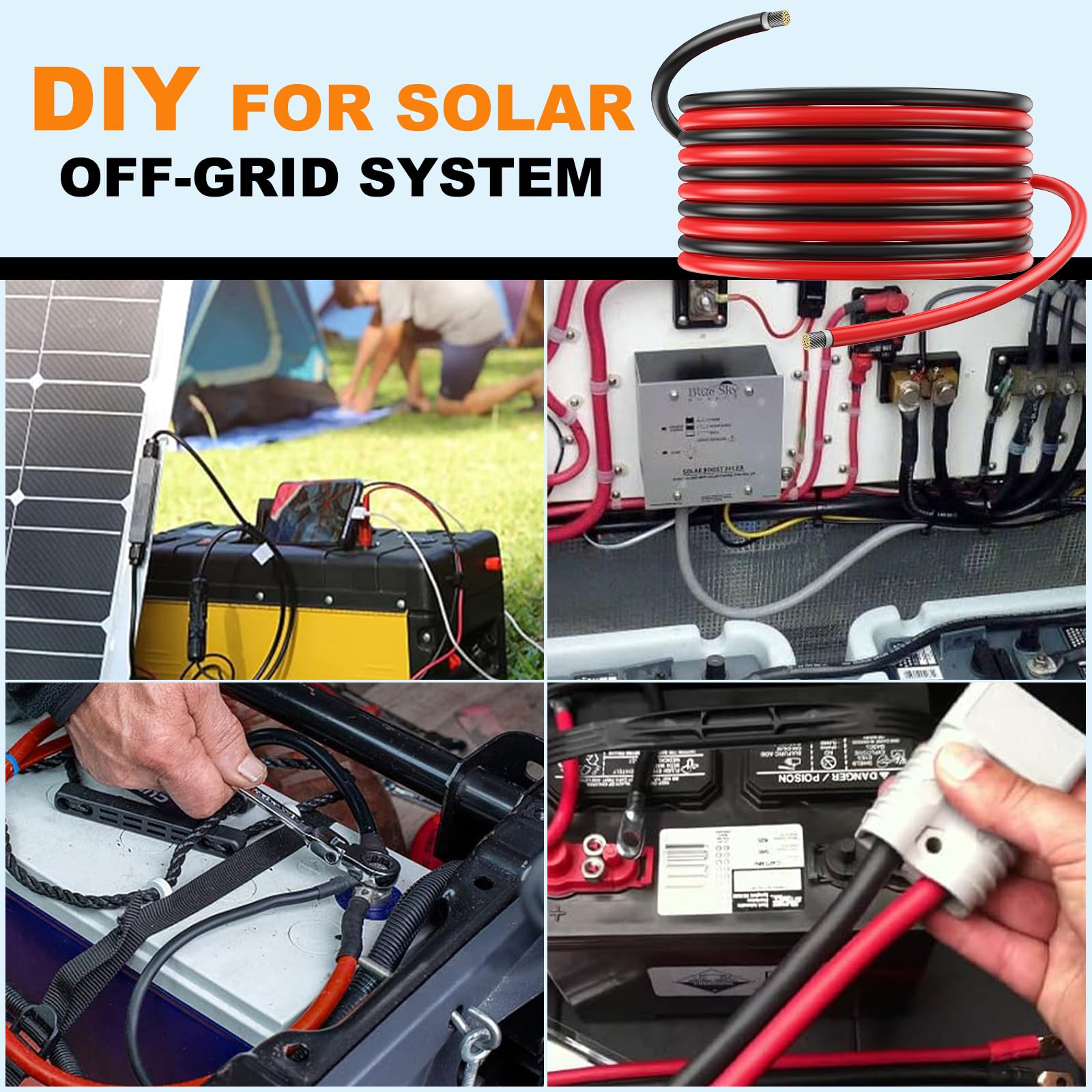

Who is this for: installers, RV and marine owners, tiny-home builders and DIY solar enthusiasts who need a robust, low-resistance PV cable for medium-to-high-power systems. If you want a longer-lasting, corrosion-resistant 10AWG cable with proven certifications and weatherproofing for rooftop, off-grid, or mobile power setups, these two 100ft Oududianzi reels are designed to meet those needs.
