Orbit 6-Station Outdoor/Indoor Sprinkler Timer — Locking Cabinet, Swing-Access Panel, Multi-Start Scheduling

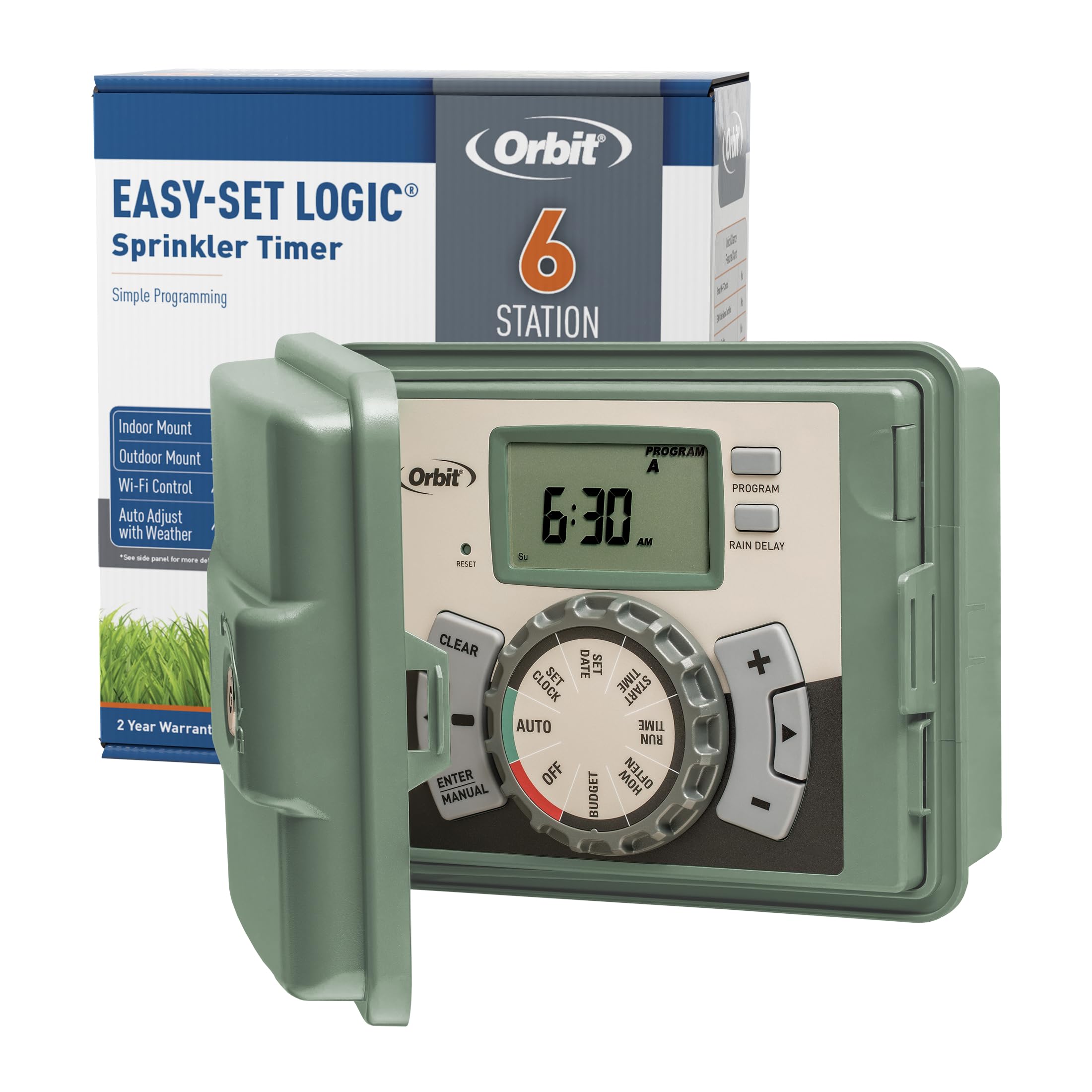

The Orbit 57896 is a six-station indoor/outdoor sprinkler timer with a swing-access wiring panel, locking cabinet, and easy-to-program multi-start schedules for reliable yard irrigation.

Designed for homeowners who want a straightforward, durable controller, this Orbit timer handles up to six zones (expandable family models support more) and installs indoors or outdoors. Its lockable housing and swing panel simplify wiring and protect the unit from weather and tampering. Built-in scheduling options, cycle-and-soak capability, and a rain-delay/relay input let you tailor water delivery while avoiding waste.

How do I set up programs and start times for different zones?

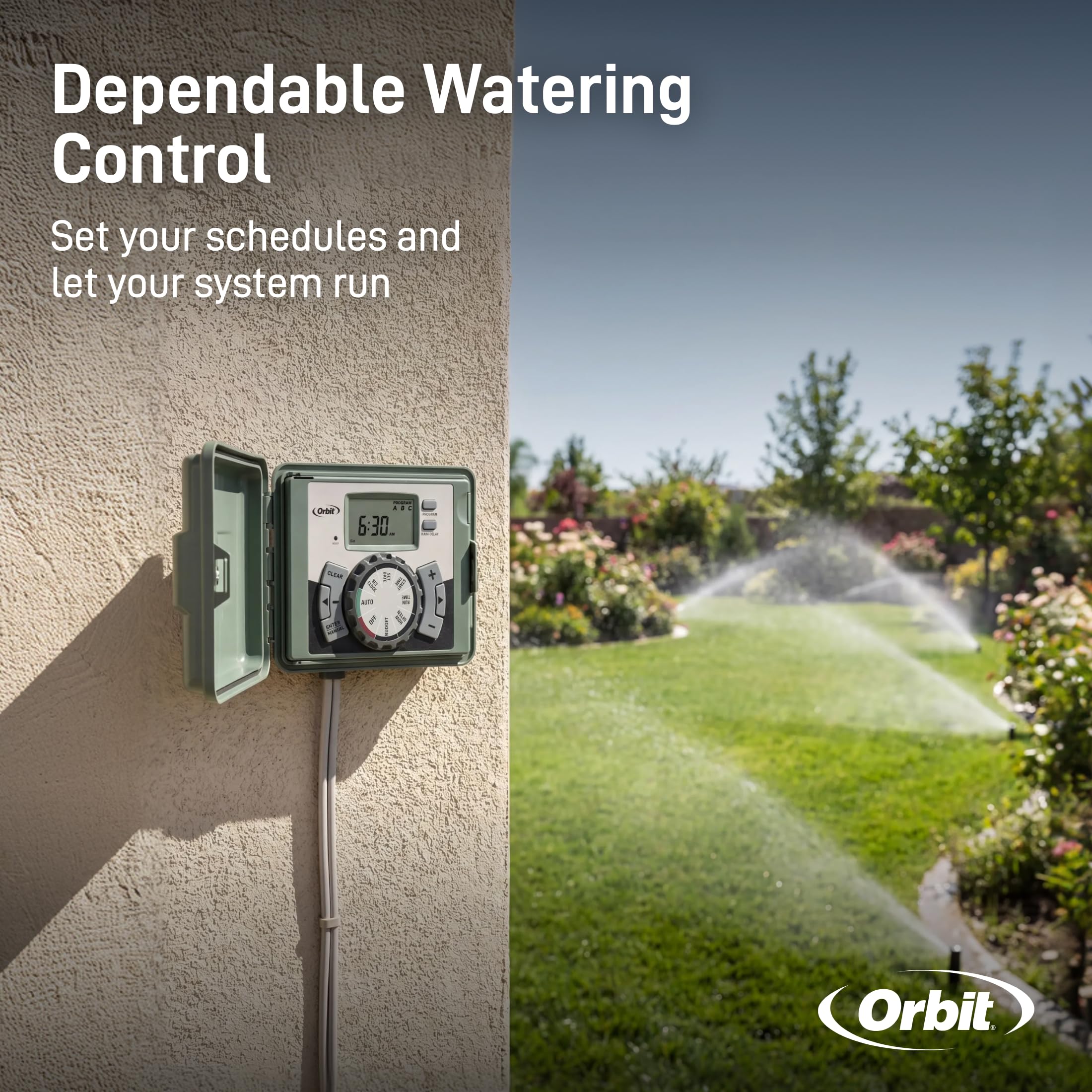

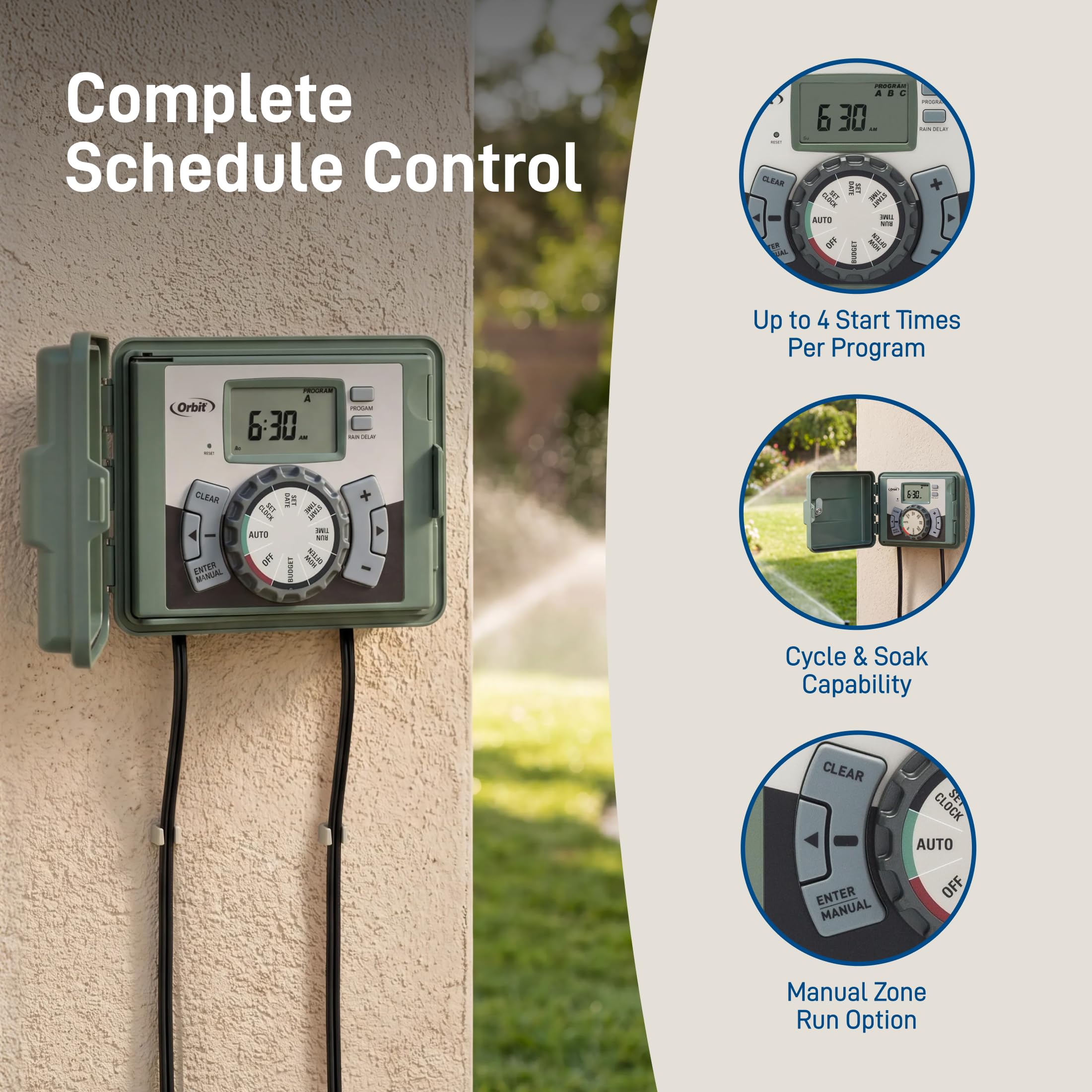

Programming is simple: the 57896 offers three program banks (A, B, C) and up to four start times per program so you can run multiple zones at different times of day. Use short run times with cycle-and-soak windows to improve absorption and prevent runoff on slopes or compacted soils. Manual run and station advance let you test or water a single area without disrupting saved schedules.

• Create up to three distinct schedules for turf, flower beds, and vegetable gardens.
• Assign up to four daily start times per program for early morning and evening watering.
• Use cycle-and-soak to break long runtimes into shorter intervals for better infiltration.
• Run zones manually to verify coverage and adjust sprinklers quickly.

What features make installation and wiring easier?

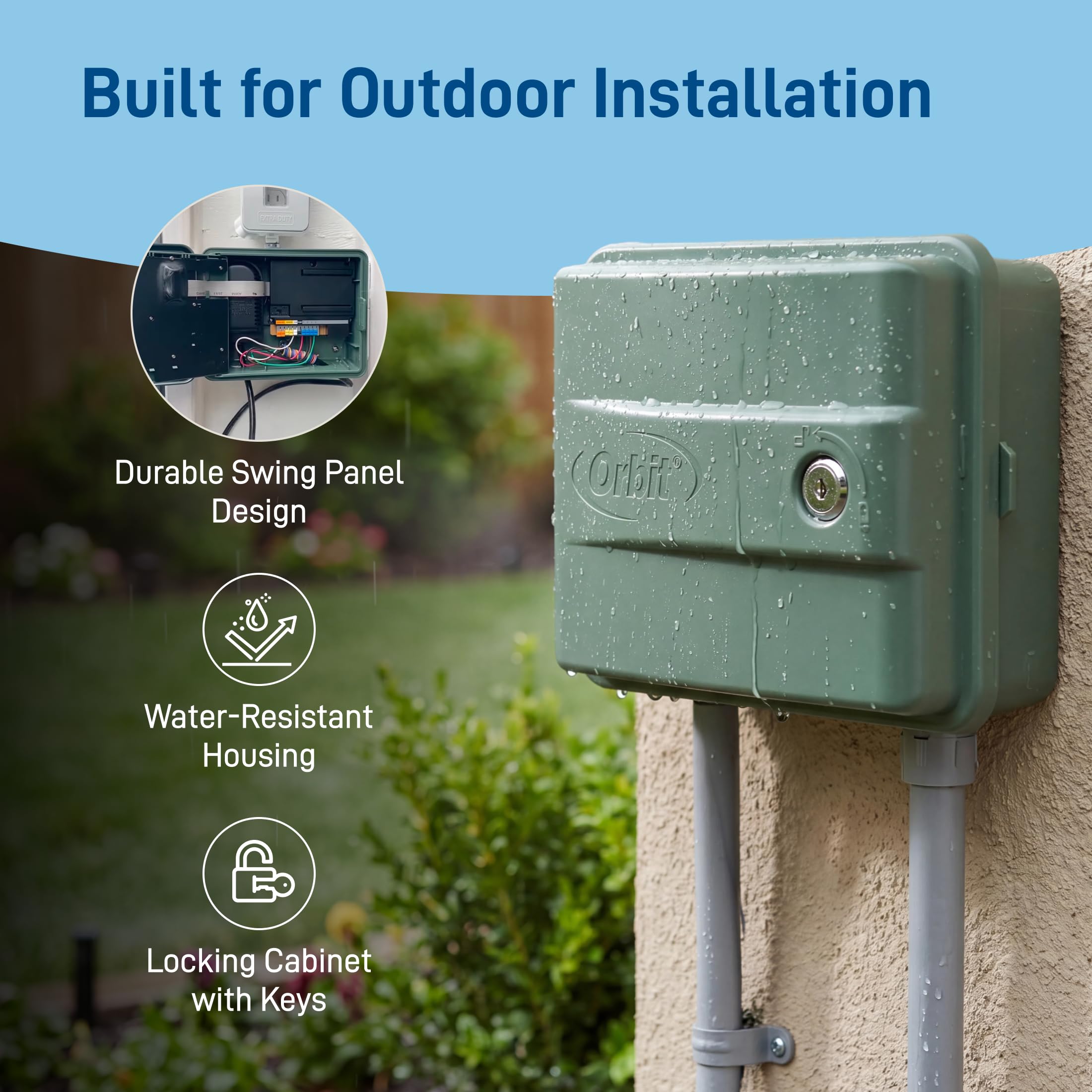

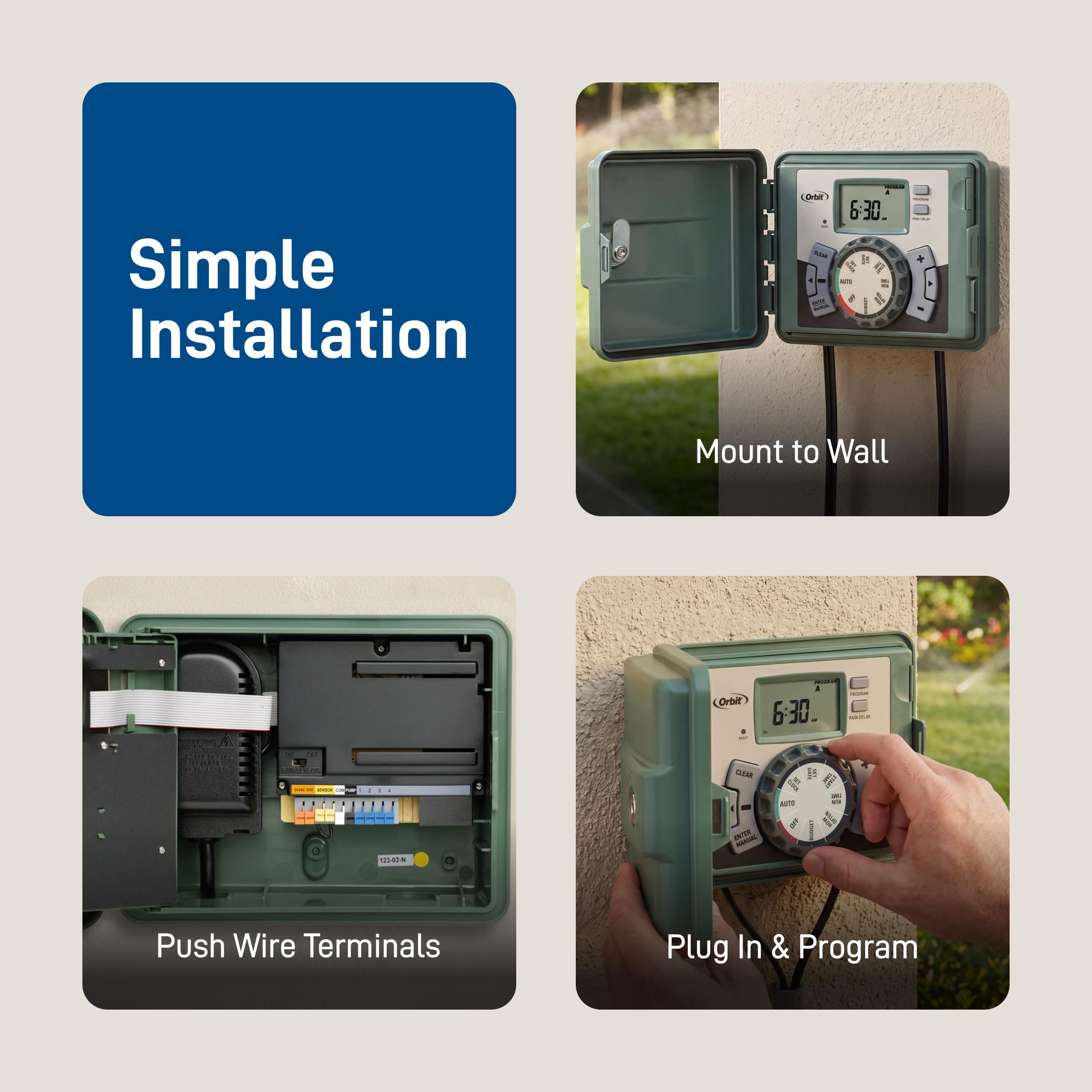

The timer includes a swing-access wiring panel and push-in wire terminals so you can connect or remove zone wires without tools. A locking door with two keys secures the controller when mounted outdoors, and the unit accepts standard 18‑gauge multi-strand sprinkler wire. The common (C) terminal and numbered station posts are clearly labeled for fast, error-free hookup.

• Swing panel provides unobstructed access to terminal block and transformer.
• Push-in terminals enable tool-less wire insertion and removal.
• Labels for common and station terminals reduce wiring mistakes.

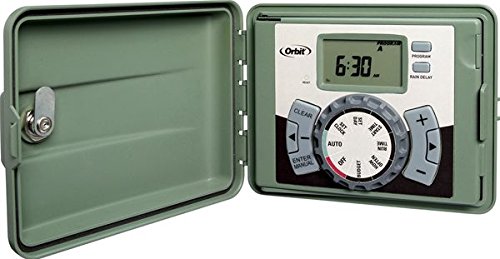

• Locking cabinet protects settings and electronics from tampering and weather.

Can it conserve water and work with sensors?

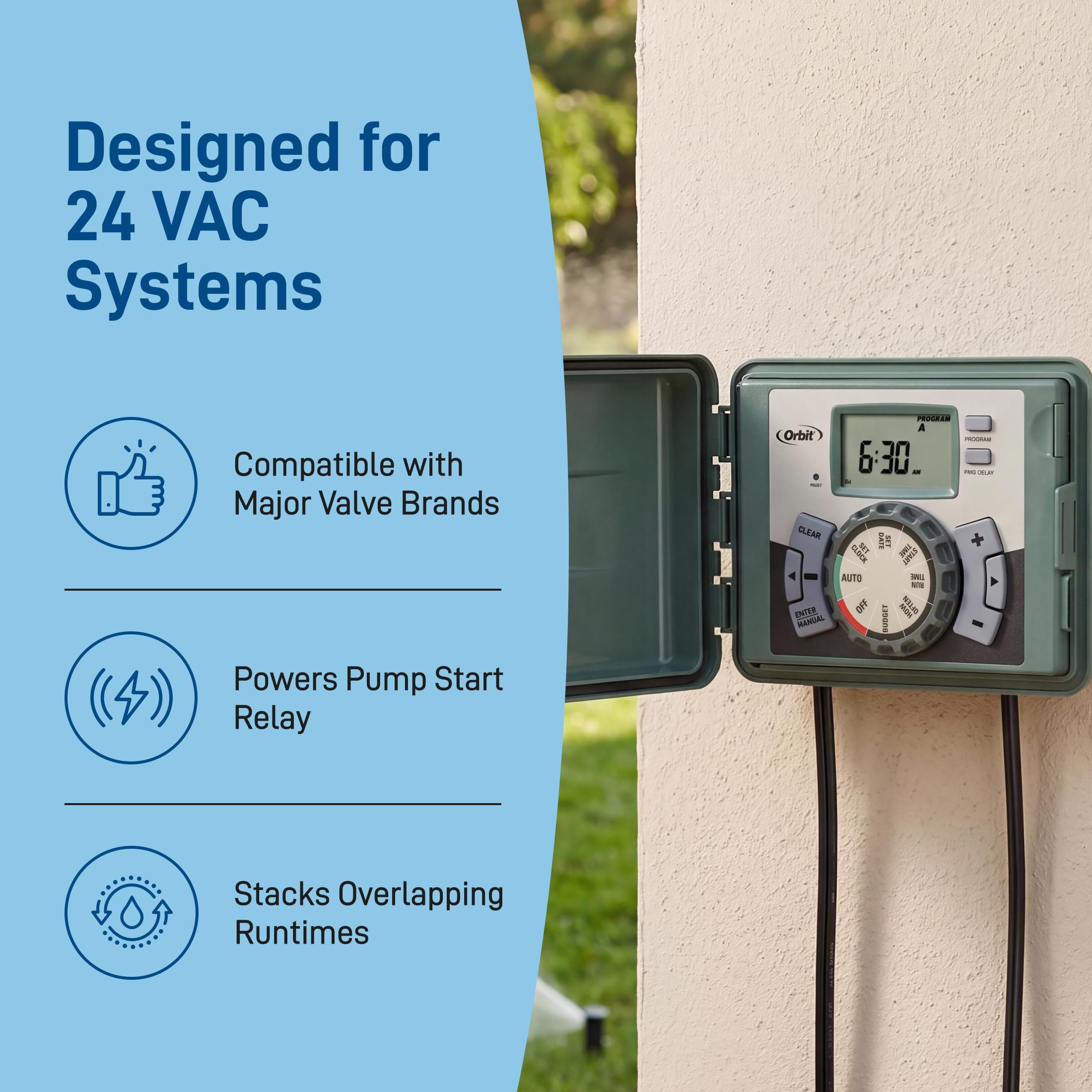

Yes — the controller supports rain delay and includes a relay for connecting an automatic rain or freeze sensor (sold separately) so irrigation is skipped during wet or freezing conditions. The timer’s runtime stacking and multi-start options let circuits run one solenoid at a time, lowering pressure spikes and promoting efficient water use. These controls help reduce unnecessary watering without complicated programming.

• Rain delay temporarily suspends schedules after rainfall events.
• Relay input allows an automated rain/freeze sensor to override watering.
• Automatic runtime stacking prevents multiple valves from running simultaneously.
• Cycle-and-soak reduces runoff on slopes and improves soil absorption.

Who is this for? The Orbit 57896 6-station swing panel timer is aimed at homeowners, landscapers, and rental property managers who need a dependable, easy-to-install controller for small-to-medium irrigation systems. If you want clear wiring access, a lockable outdoor cabinet, straightforward multi-program scheduling, and the option to add a rain sensor, this timer provides a practical, cost-conscious solution for maintaining healthy lawns and garden areas without constant manual attention.
