Orbit outdoor battery-powered sprinkler controller 1" FPT jar-top valve — 2 programs, cycle-and-soak

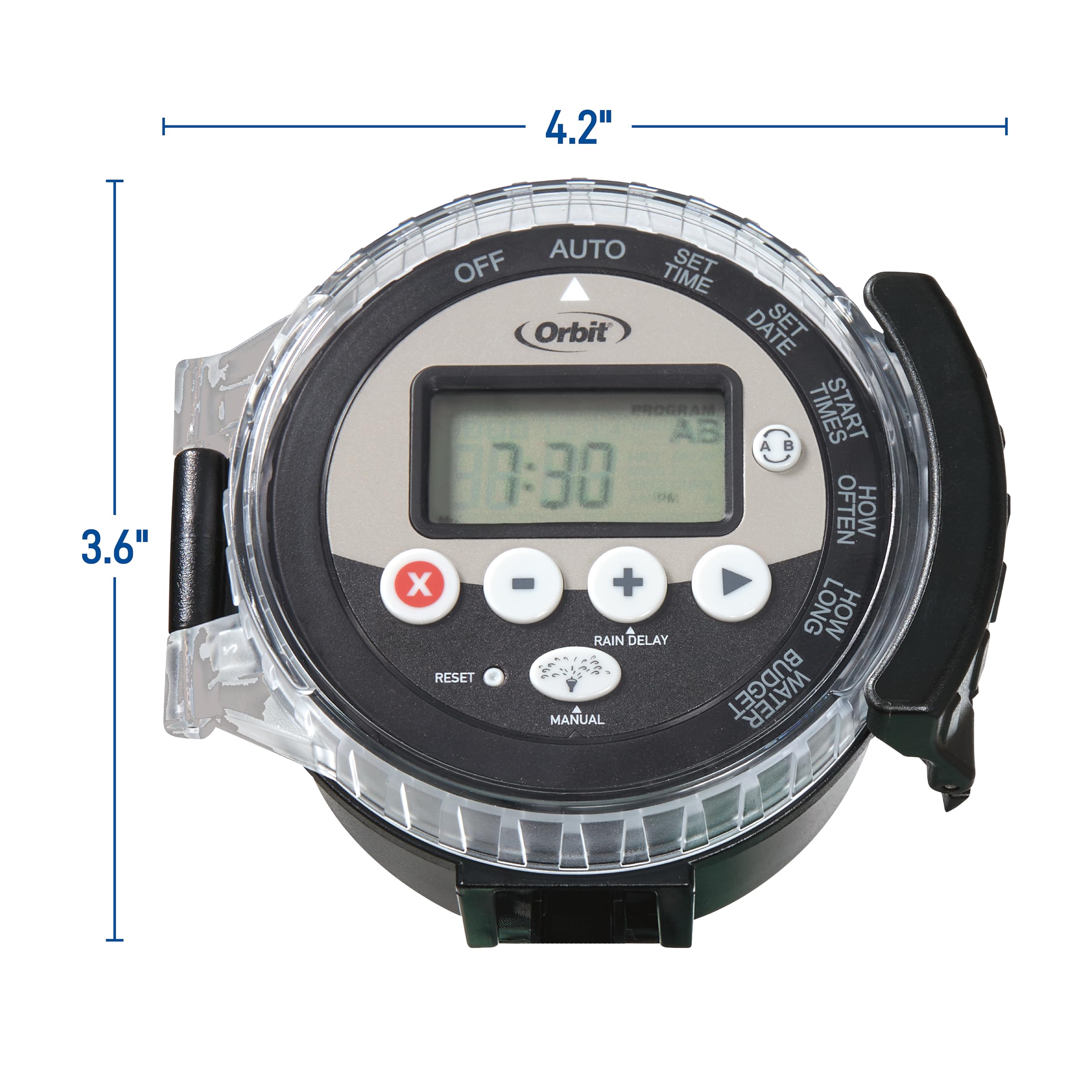

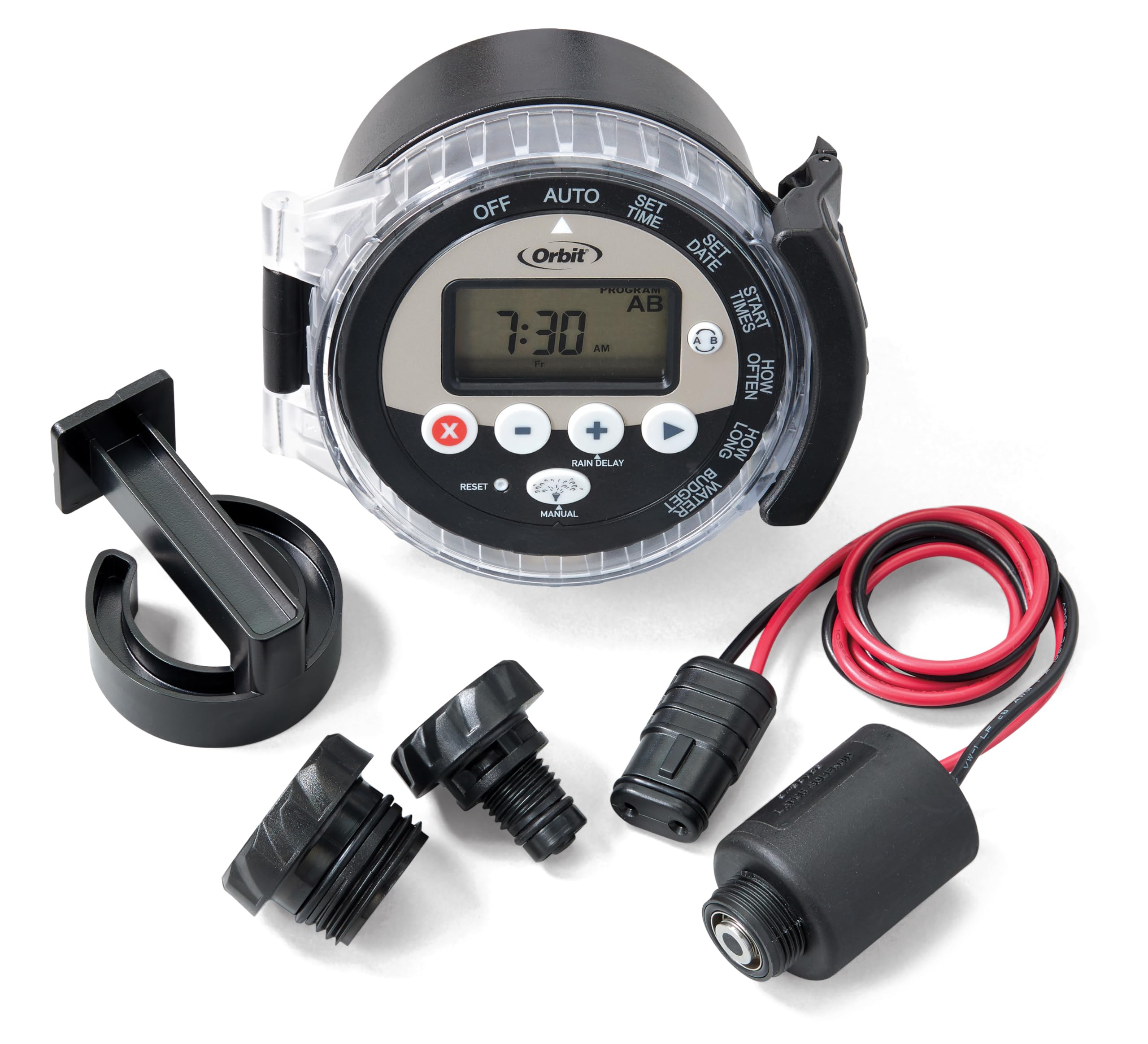

The Orbit 57865 is a battery-powered outdoor sprinkler controller with a 1" FPT jar-top automatic valve that runs up to four solenoids and two independent watering programs.

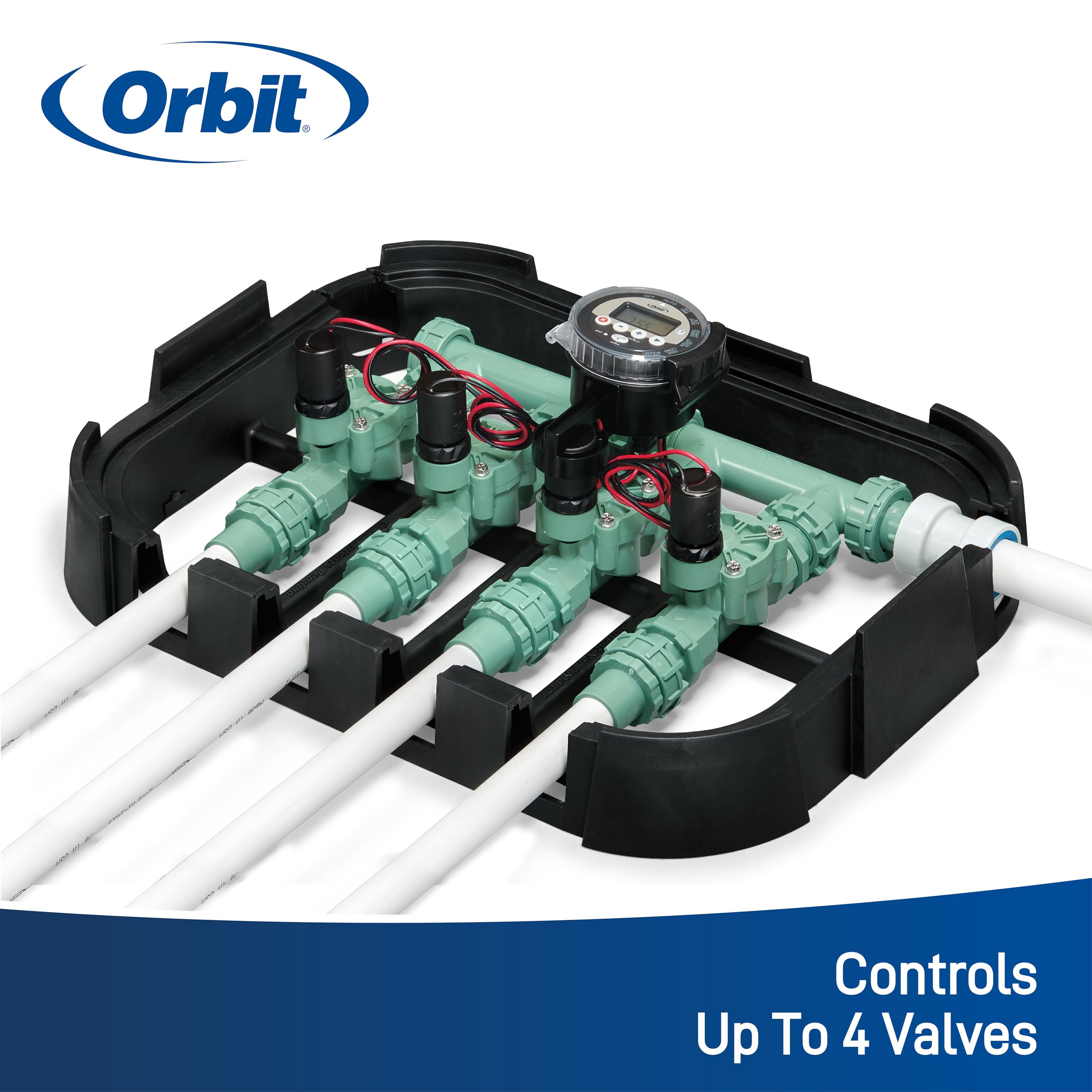

This compact, wire-free irrigation timer is built for easy installation on a mainline or as part of a multi-valve manifold, making it a practical upgrade for yards, gardens, and small commercial landscapes. Powered by two AA alkaline batteries, the controller operates season-long schedules, supports cycle-and-soak programming to improve soil absorption, and includes manual and rain-delay options to match changing weather and maintenance needs.

How do I install the Orbit 57865 without calling a plumber?

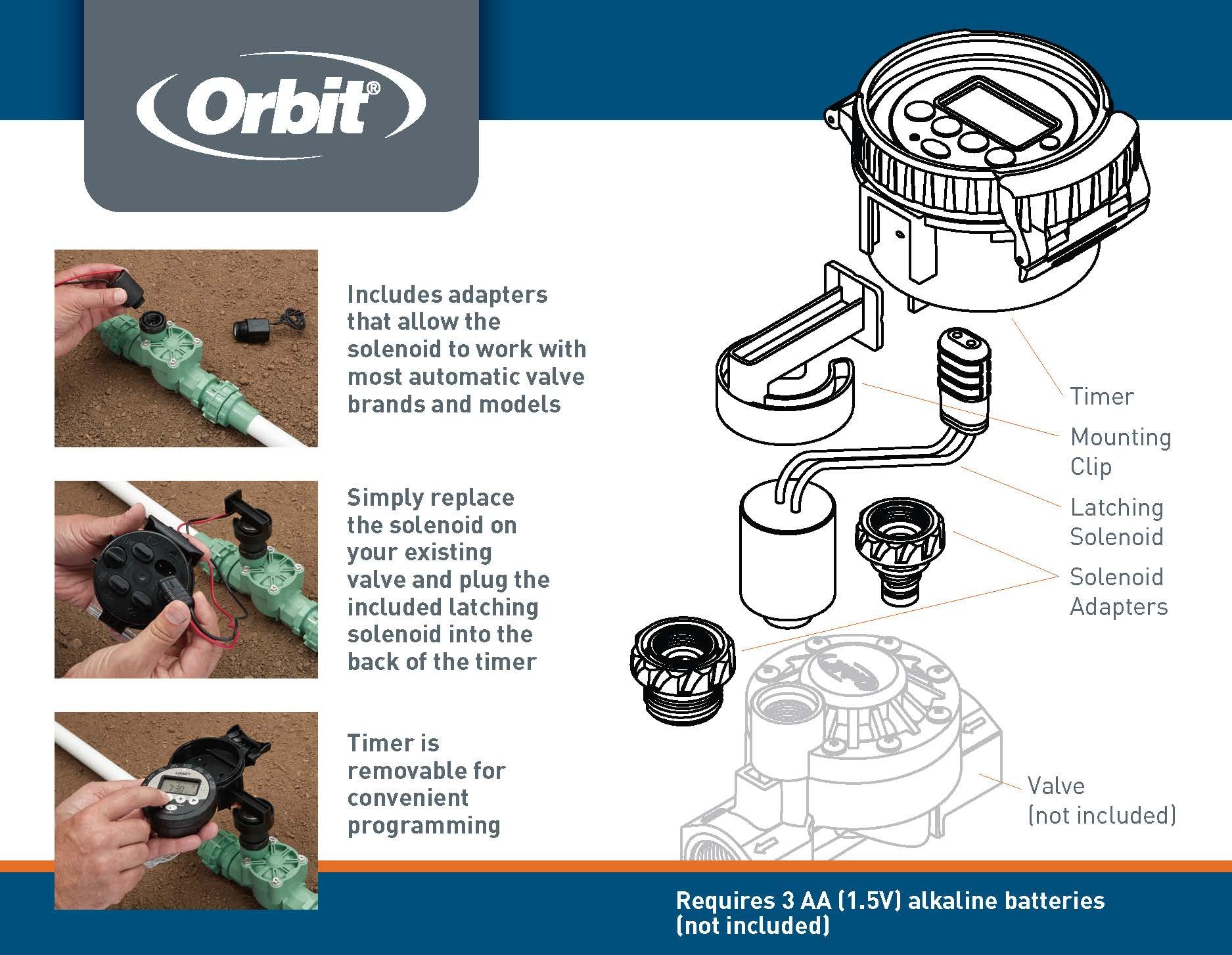

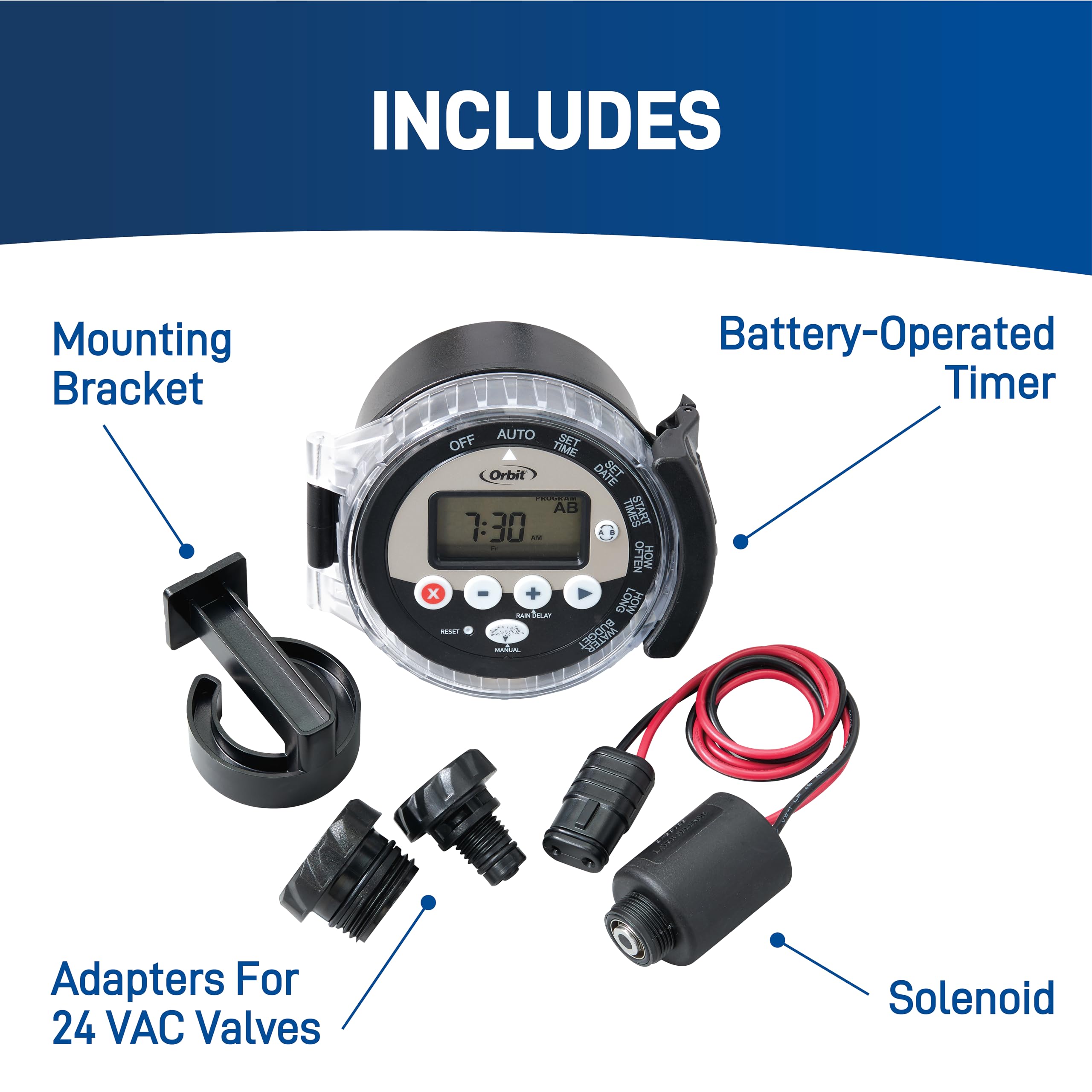

Installation is designed to be straightforward: attach the 1" FPT jar-top valve to the pipe, mount the control unit to the solenoid with the included clip, insert two AA batteries, and use the removable dial to set schedules. Recommended fittings (1" MPT PVC-Lock or Blu-Lock) enable fast, glue-free connections for PVC or poly pipe.

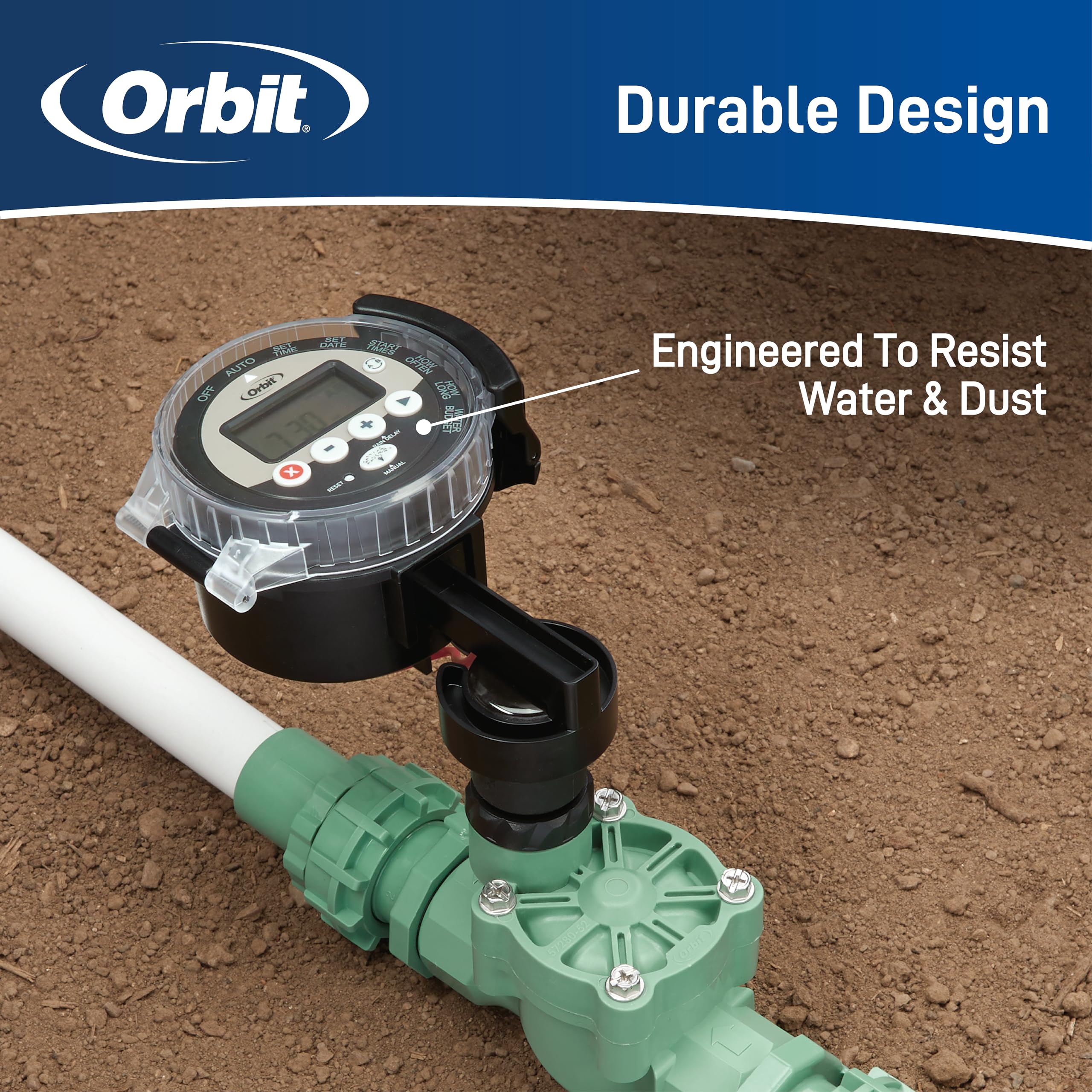

• Mounts directly to valve solenoid using a latching clip for secure placement

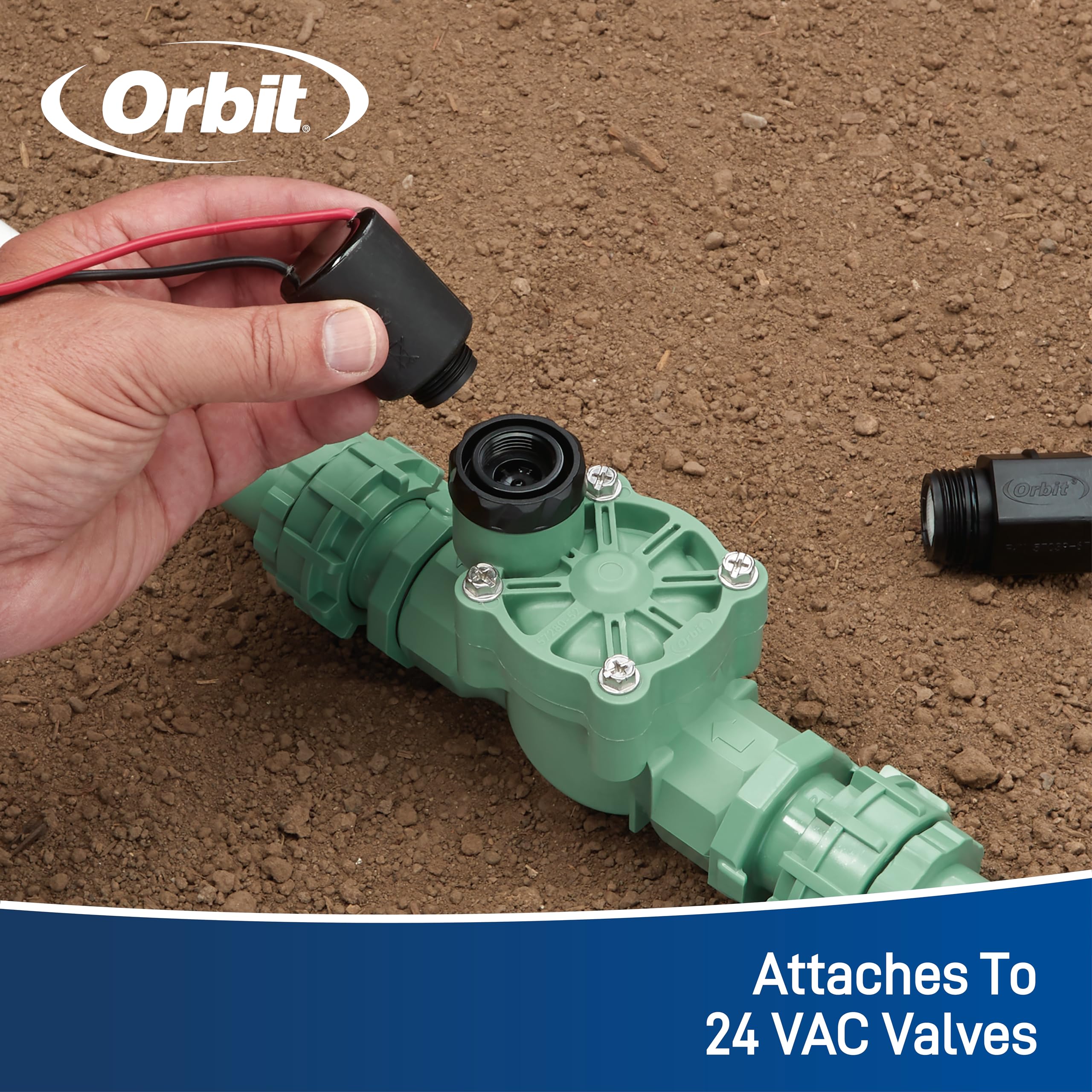

• 1" FPT jar-top valve fits standard irrigation mainlines and manifolds
• Compatible with PVC-Lock and Blu-Lock quick fittings for tool-free connections
• Battery operation avoids trenching and wire runs

What scheduling and watering features does it offer?

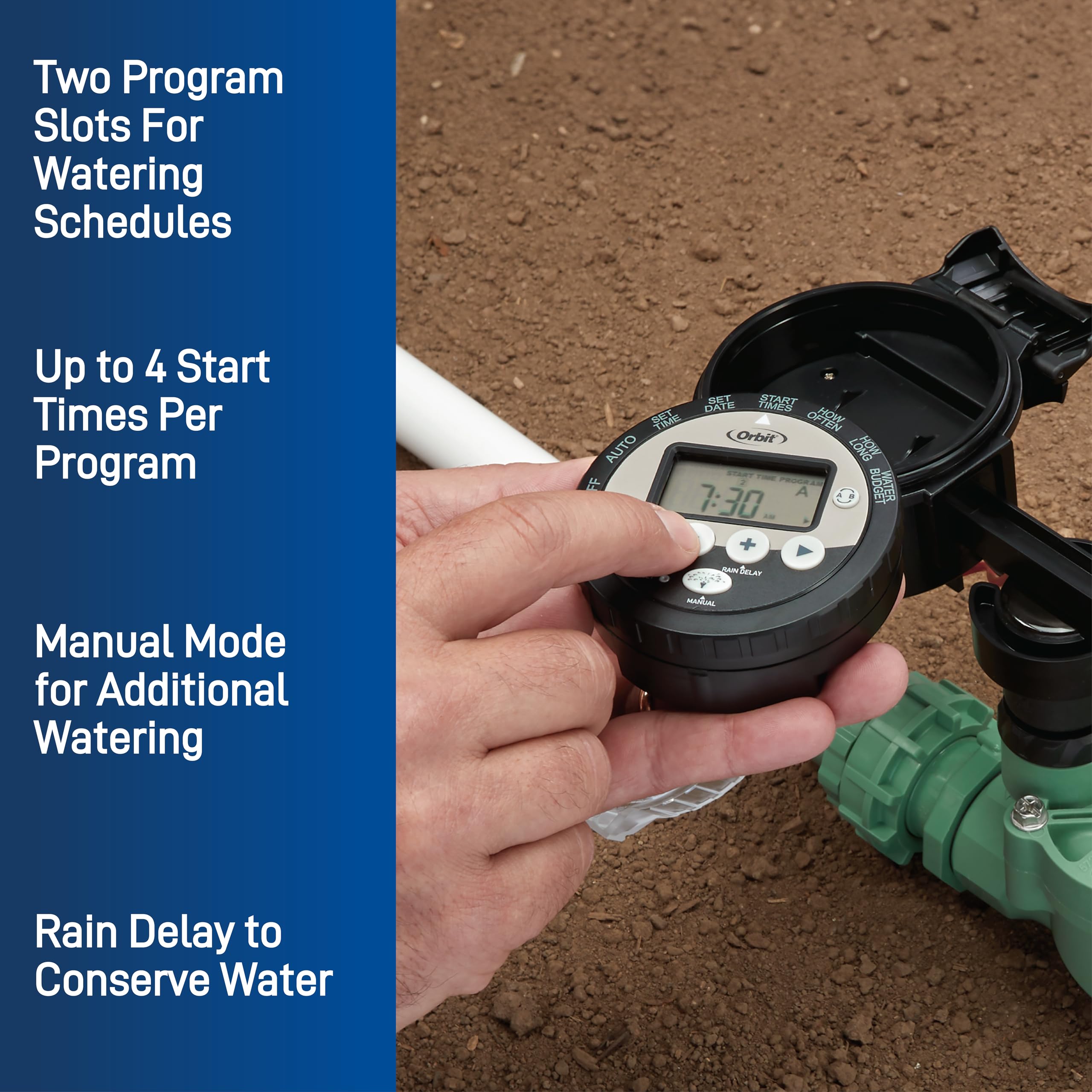

The controller supports two independent programs, each with up to four start times, plus cycle-and-soak windows to limit runoff and improve water penetration. Overlapping runtimes are automatically stacked so multiple solenoids do not run simultaneously, helping manage water pressure and efficiency.

• Two programs (A and B) let you tailor morning/evening or seasonal zones
• Four start times per program for staggered irrigation and better infiltration
• Cycle-and-soak reduces runoff and supports deeper root watering
• Automatic runtime stacking prevents simultaneous valve overlap

How do manual operation and weather controls work?

Manual run lets you activate one zone, multiple selected zones, or all zones instantly—useful for testing or targeted supplemental watering. A rain delay feature pauses scheduled irrigation for a set number of days when natural rainfall makes watering unnecessary.

• Manual run selects single, multiple, or all zones for immediate watering
• Rain delay suspends programs to conserve water after rainfall
• Removable control dial simplifies temporary adjustments and programming
• Battery operation ensures settings stay active without external power

Who is this for: The Orbit 57865 fits homeowners and small property managers who need a reliable, low-maintenance irrigation controller without running wires. It’s ideal for retrofit installs, secondary valves on larger systems, backyard vegetable beds, container landscapes, and rental properties where minimal plumbing and simple seasonal programming are priorities. If you want a compact, battery-driven valve controller that balances scheduling flexibility with easy installation, this model delivers that capability.
