Orbit 9-Station Outdoor Swing Panel Sprinkler Timer — 9-Zone Weatherproof Controller with Easy-Set Logic

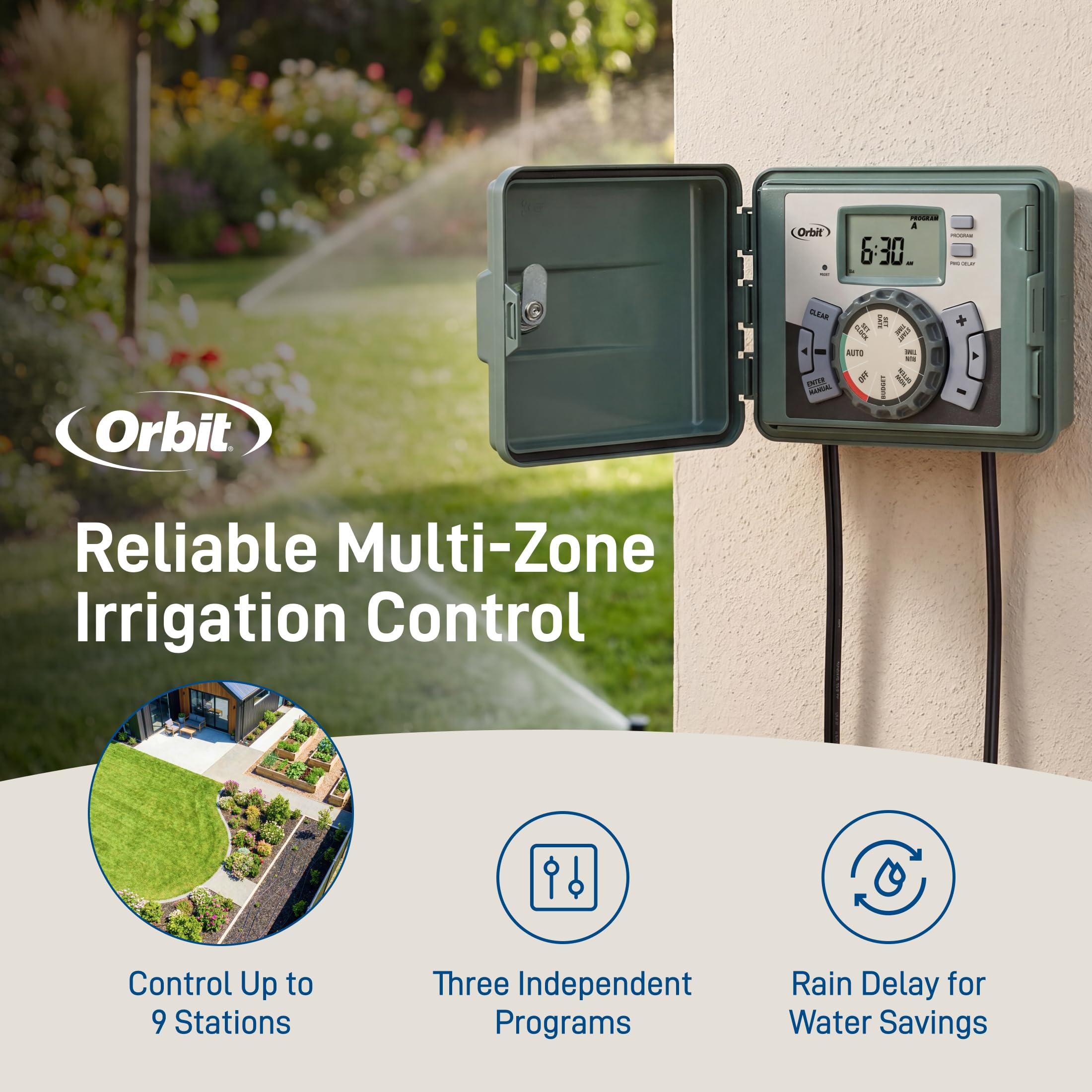

The Orbit 9-Station Outdoor Swing Panel Sprinkler Timer is a weatherproof, user-friendly controller that automates up to nine irrigation zones with programmable schedules, rain delay and easy wiring access.

Designed for homeowners and landscape pros who want precise, reliable watering without daily fuss, this Orbit Easy Set Logic timer mounts indoors or outdoors and simplifies irrigation management. It supports multiple programs and start times, stacks runtimes to avoid simultaneous valve operation, and accepts an optional sensor for rain or freeze interruptions. The locking cabinet and swing-open wiring panel speed up installation while protecting controls from the elements.

How do I program multiple watering schedules?

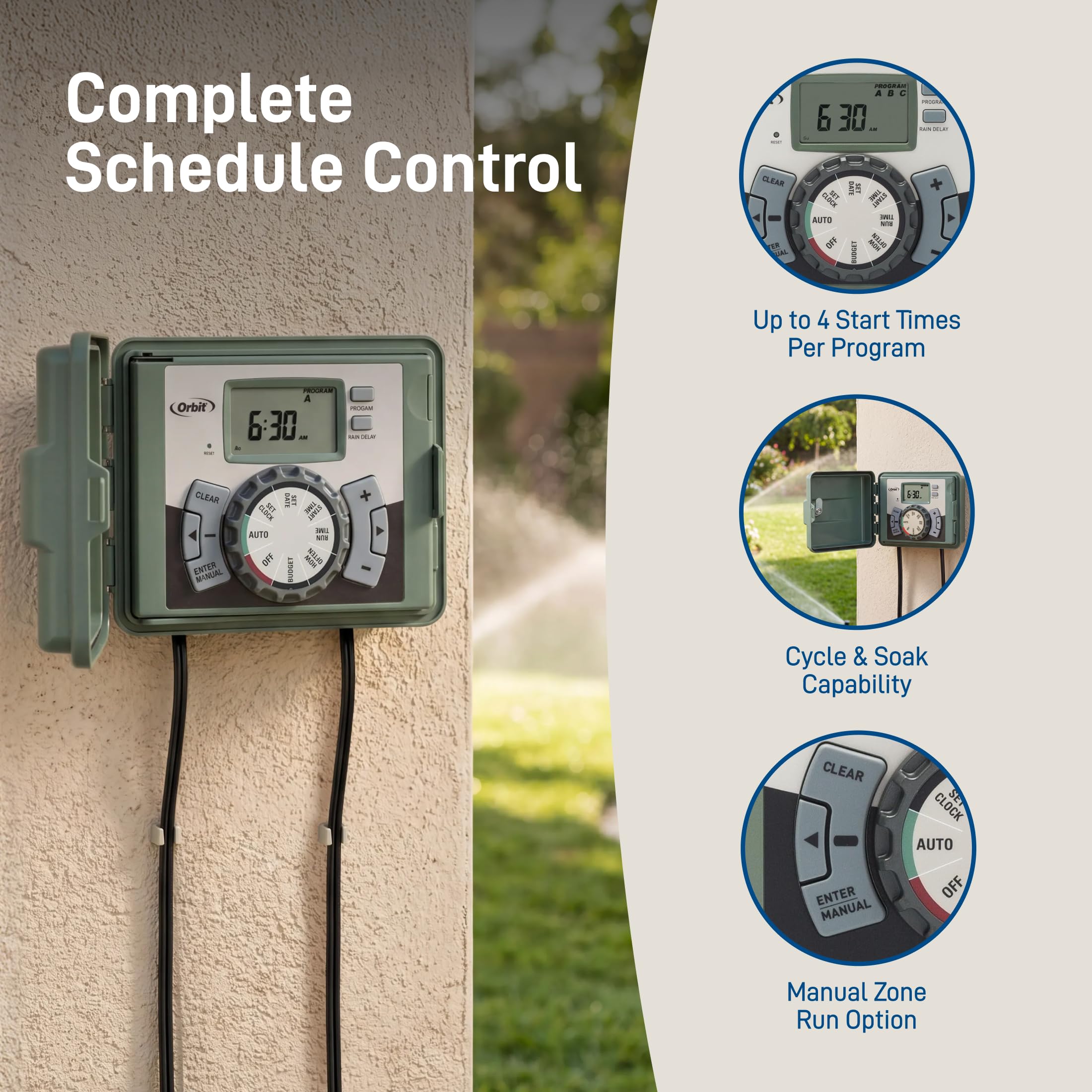

Set up to three separate programs (A, B, C) on this controller so different areas receive tailored runtimes and frequencies. Each program can have up to four start times, letting you cycle and soak in stages to improve soil absorption and reduce runoff.

• Create program A for turf, B for flower beds, and C for drip lines.
• Use up to four start times per program to space cycles across the day.
• Adjust days and runtimes per zone for seasonal needs.
• Cycle-and-soak capability reduces water waste on slopes or compacted soil.

What makes installation fast and secure?

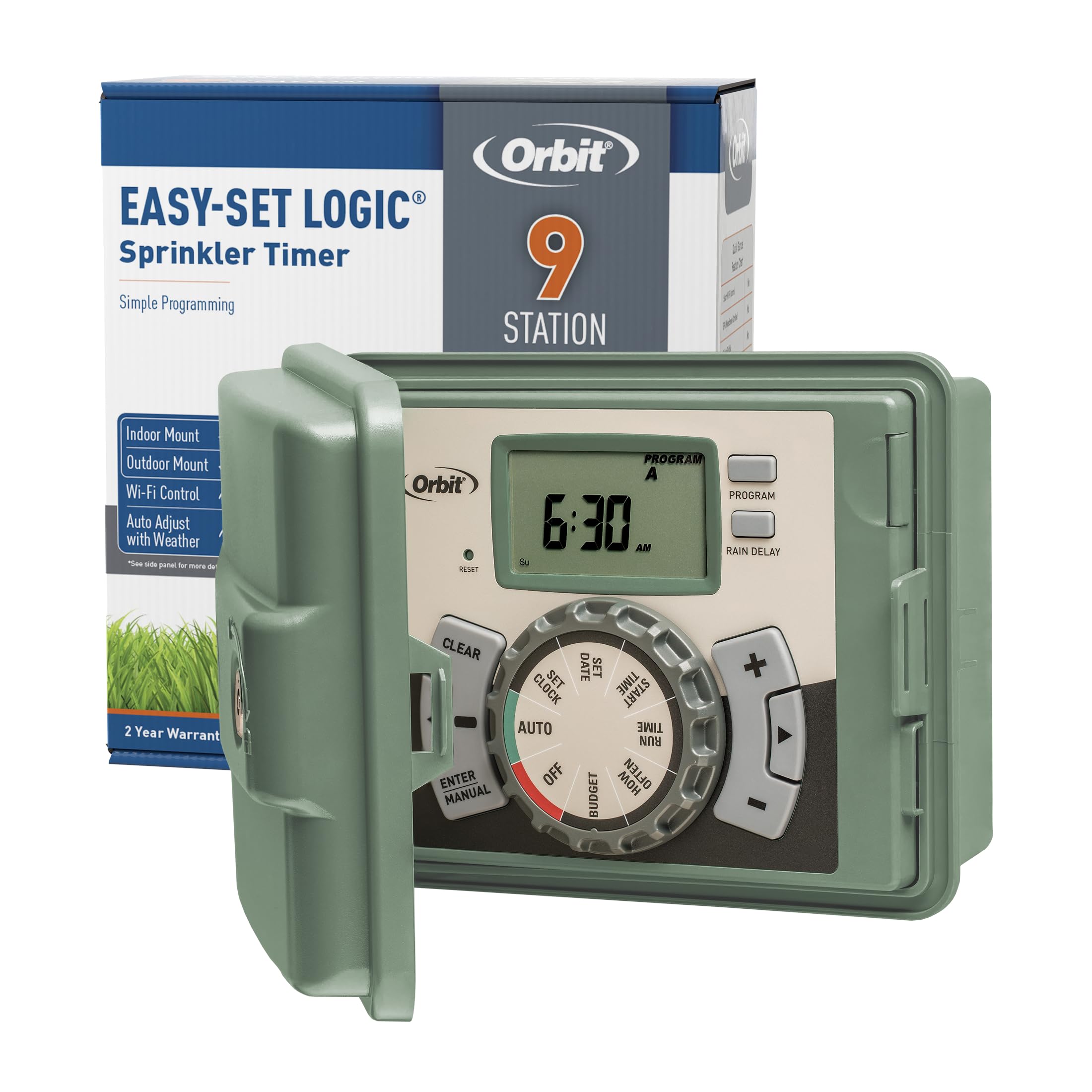

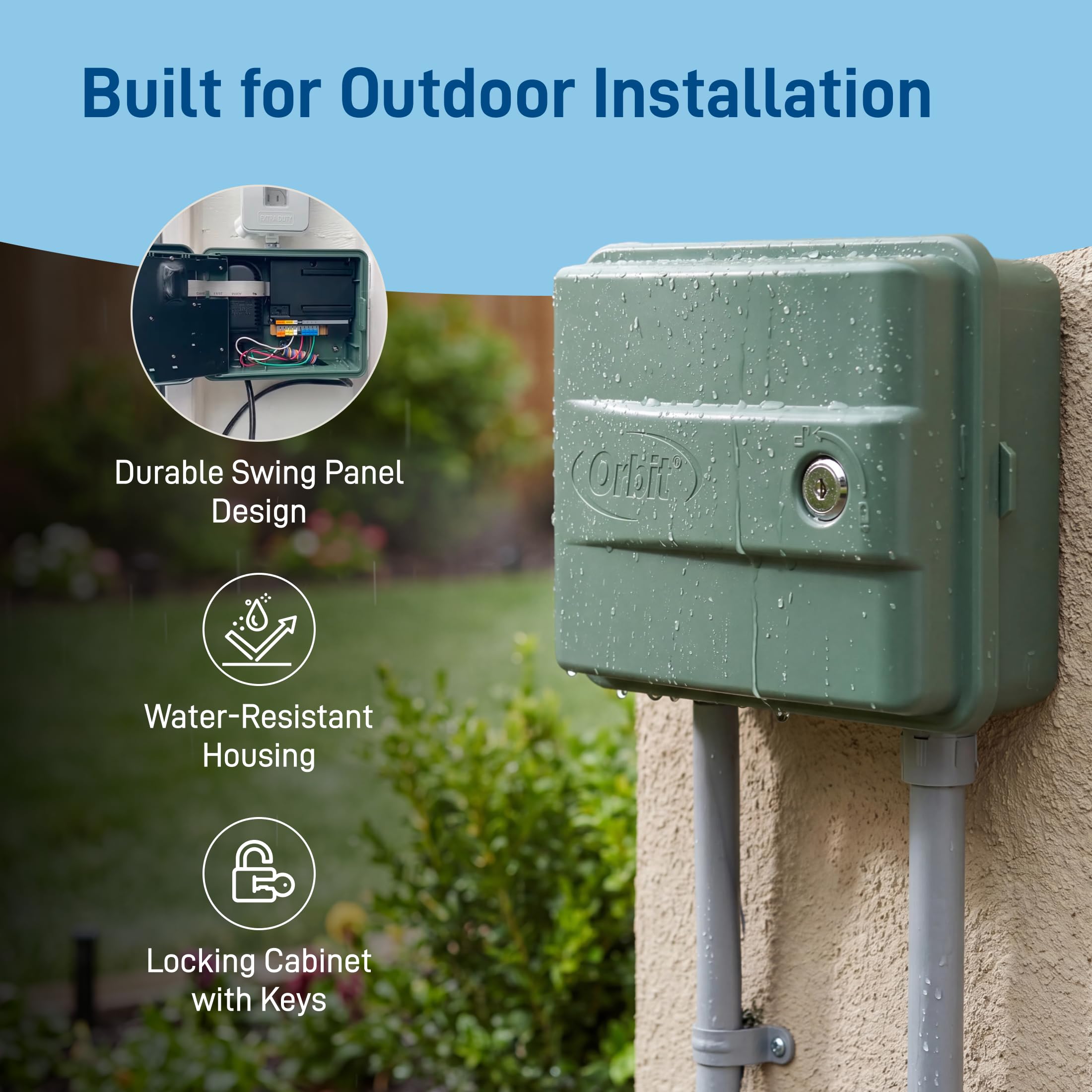

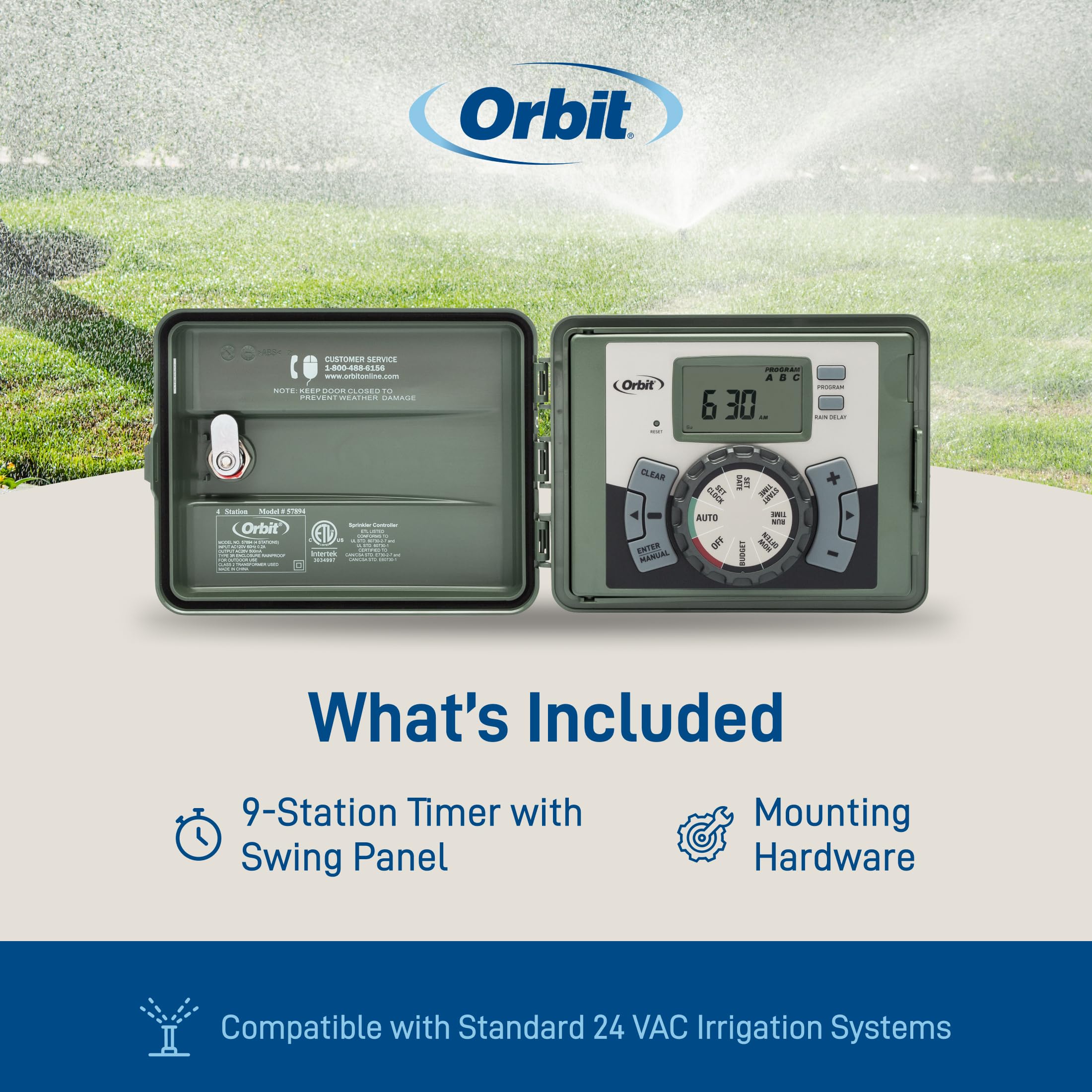

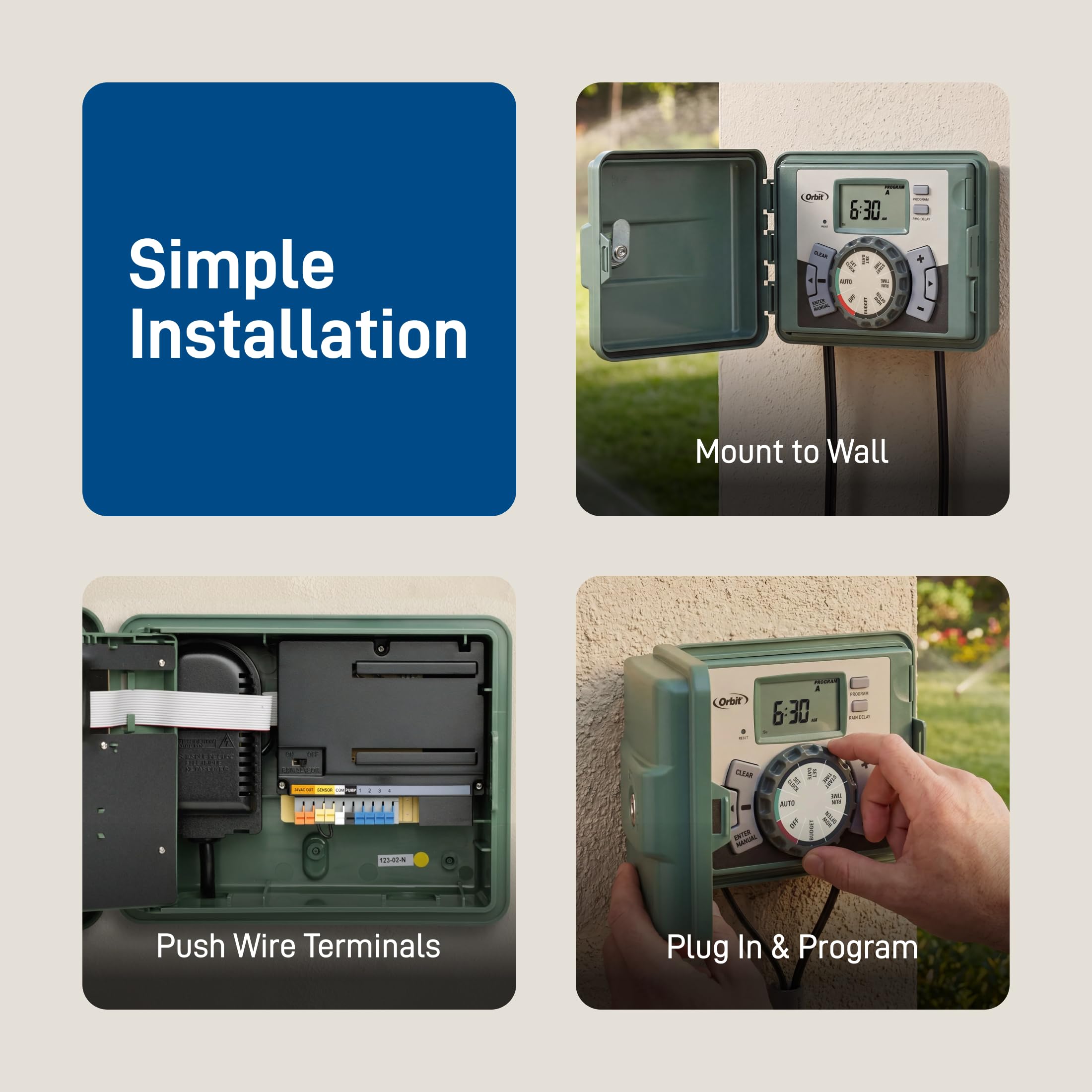

The timer features a hinged swing panel that exposes push-in wire terminals, so you can connect common and station wires without tools or complicated splicing. A lockable weatherproof cabinet with two keys protects the electronics when mounted outside.

• Push wire terminals accept standard 18-gauge multi-strand sprinkler wire.
• Numbered station terminals simplify zone identification during hookup.
• Mounting points allow quick wall installation indoors or outdoors.
• Locking door keeps controls safe from tampering and weather.

How does the timer conserve water and coordinate valves?

Easy Set Logic stacks runtimes automatically so only one solenoid is energized at a time, preventing pressure drop and reducing water stress on valves. The rain delay function and a relay input for an external rain/freeze sensor (sold separately) pause irrigation during wet or freezing conditions.

• Automatic runtime stacking prevents multiple valves from running simultaneously.
• Rain delay skips scheduled cycles for a selected number of days.
• Relay input supports automatic sensors to suspend watering based on conditions.
• Manual-run options let you test or add supplemental watering zone-by-zone.

Which valves and wiring are compatible with this controller?

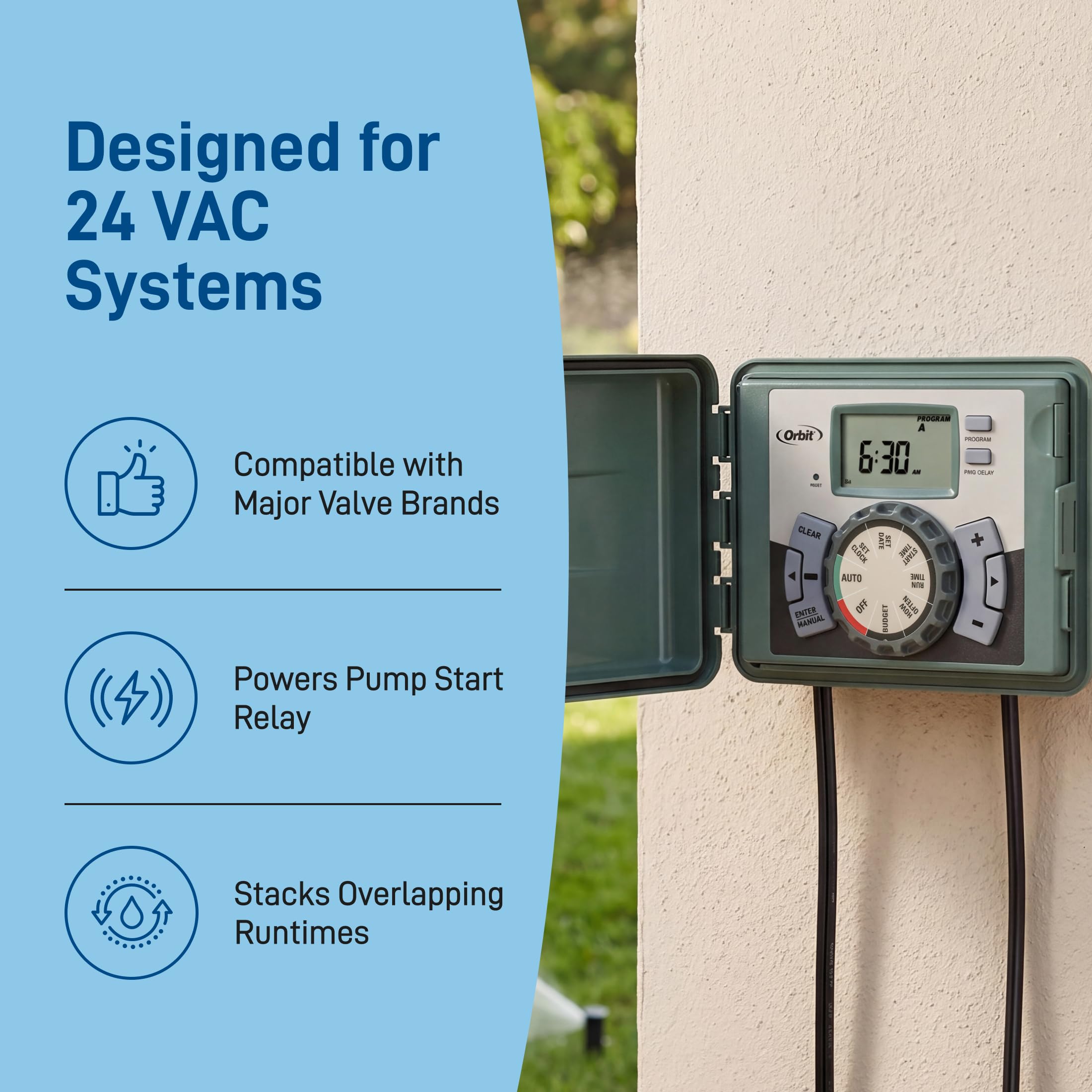

The Orbit timer is built for 24 VAC irrigation valves and works with major brands including Orbit and Hydro-Rain. It accepts common 18-gauge multi-strand cable with five or seven conductors, covering most residential sprinkler layouts.

• Compatible with standard 24 VAC solenoid valves.
• Supports 5- or 7-conductor 18 AWG sprinkler wire.
• Numbered terminals make adding or replacing zones straightforward.
• Relay terminal for sensor integration extends efficiency capabilities.

Who this is for: The Orbit 9-Station Outdoor Swing Panel Sprinkler Timer fits homeowners, landscapers, and small-property managers who need reliable automated irrigation for lawns, garden beds, or mixed-zone systems. If you want a durable outdoor controller with easy wiring access, flexible program options, and basic sensor compatibility, this model balances functionality with straightforward operation.
