Orbit 12-Station Outdoor Swing-Panel Sprinkler Timer — 3 Programs, Rain-Delay, Locking Cabinet

The Orbit 57900 is a 12-station indoor/outdoor sprinkler timer with an easy-access swing panel, rain-delay and multi-program scheduling to automate residential lawn and garden irrigation.

This weather-ready controller is built to replace manual watering with timed, efficient irrigation for up to twelve zones. It combines a locking cabinet for outdoor placement, push-in wire terminals for tool-free connections, and three independent programs (A, B and C) with multiple start times. The controller stacks runtimes so valves operate one at a time and supports cycle-and-soak scheduling to improve water absorption.

How simple is installation and wiring?

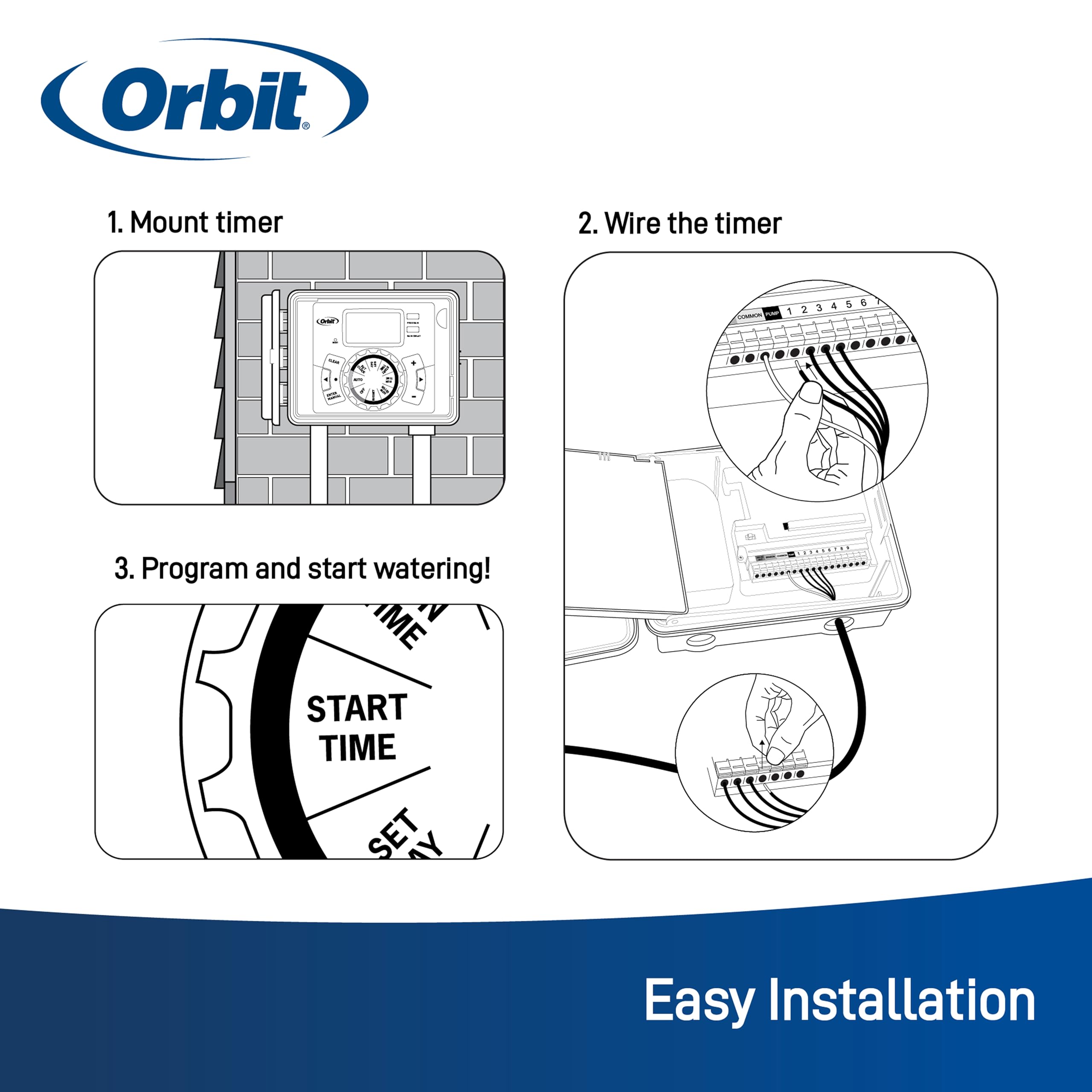

Installation is straightforward: mount the cabinet, connect the common wire to C and insert each zone conductor into the numbered station terminals. The swing panel exposes wiring points and the push wire terminals accept standard 18-gauge sprinkler wire for a clean, fast hook-up without special tools.

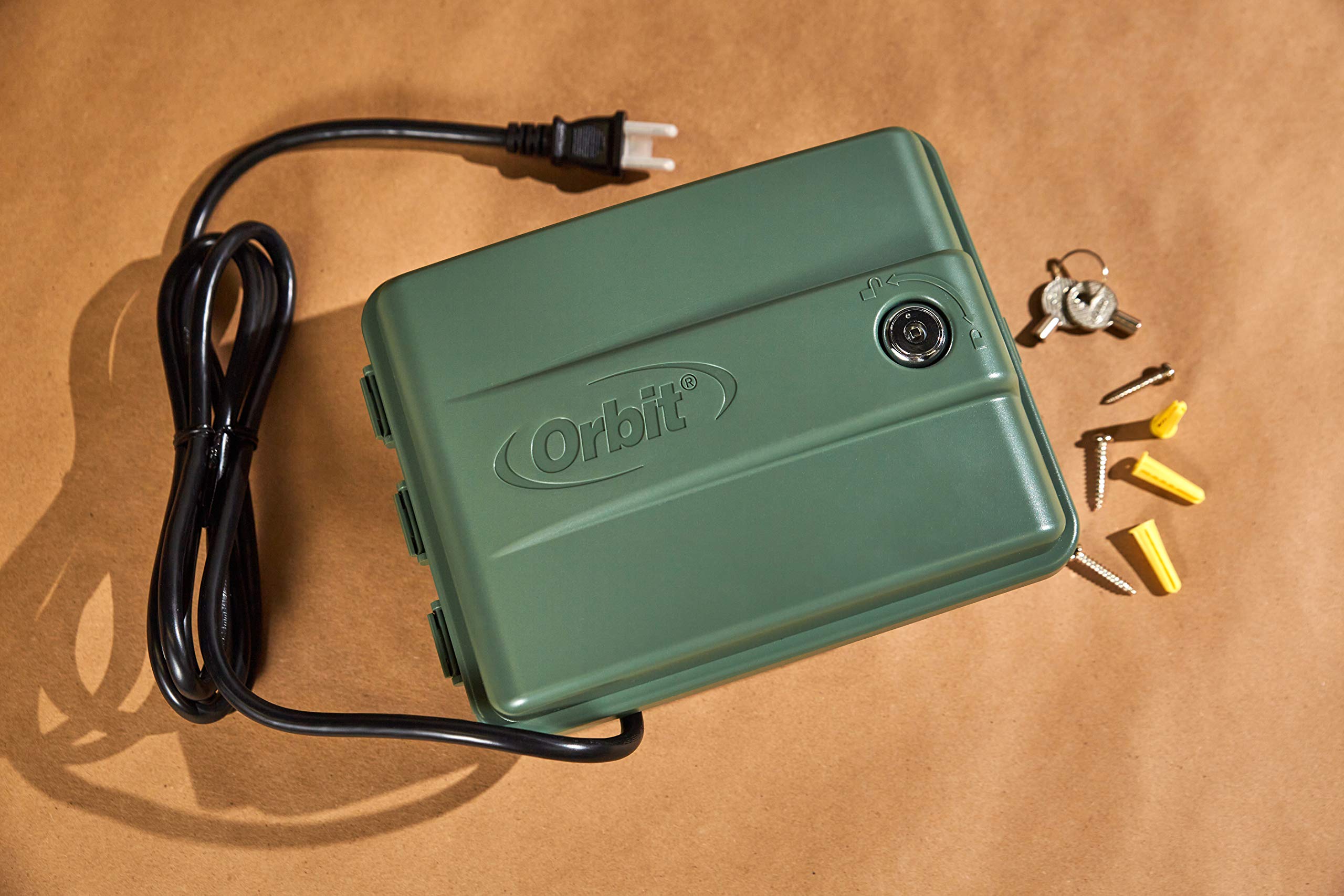

• Locking outdoor cabinet with two keys for secure placement

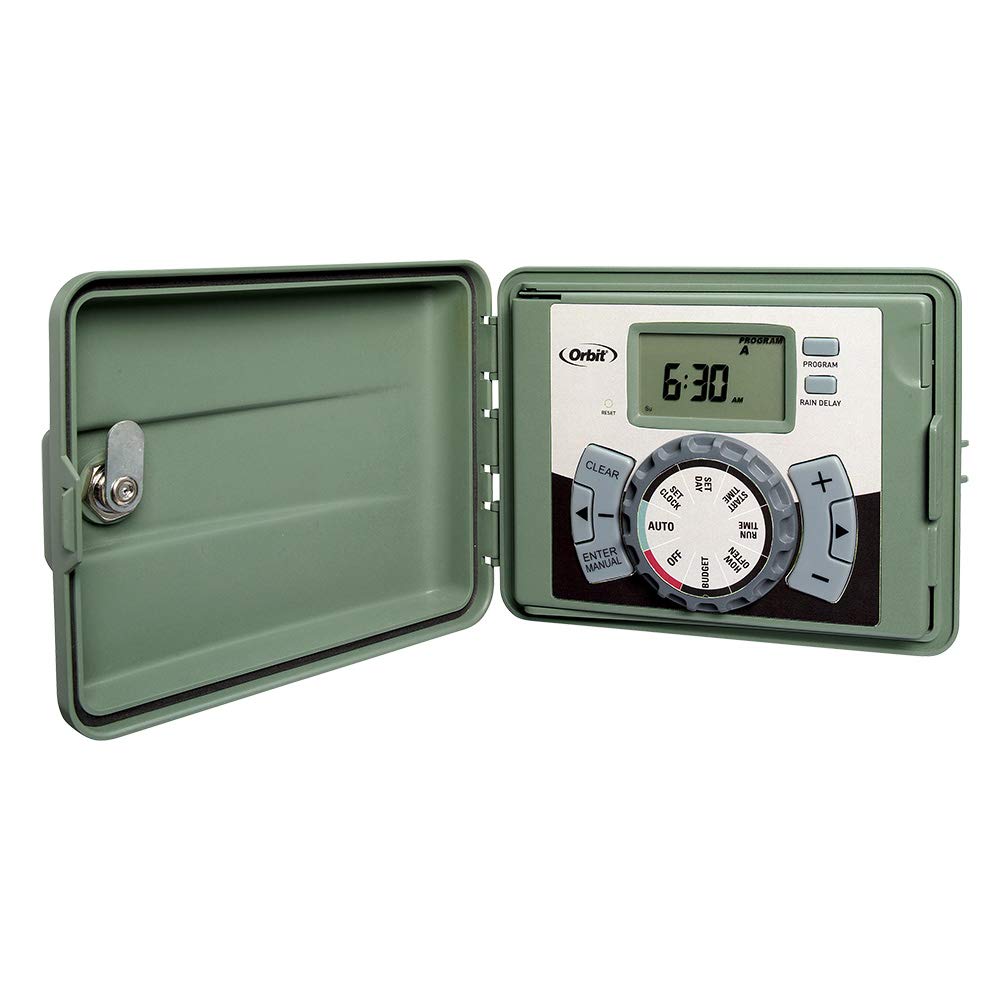

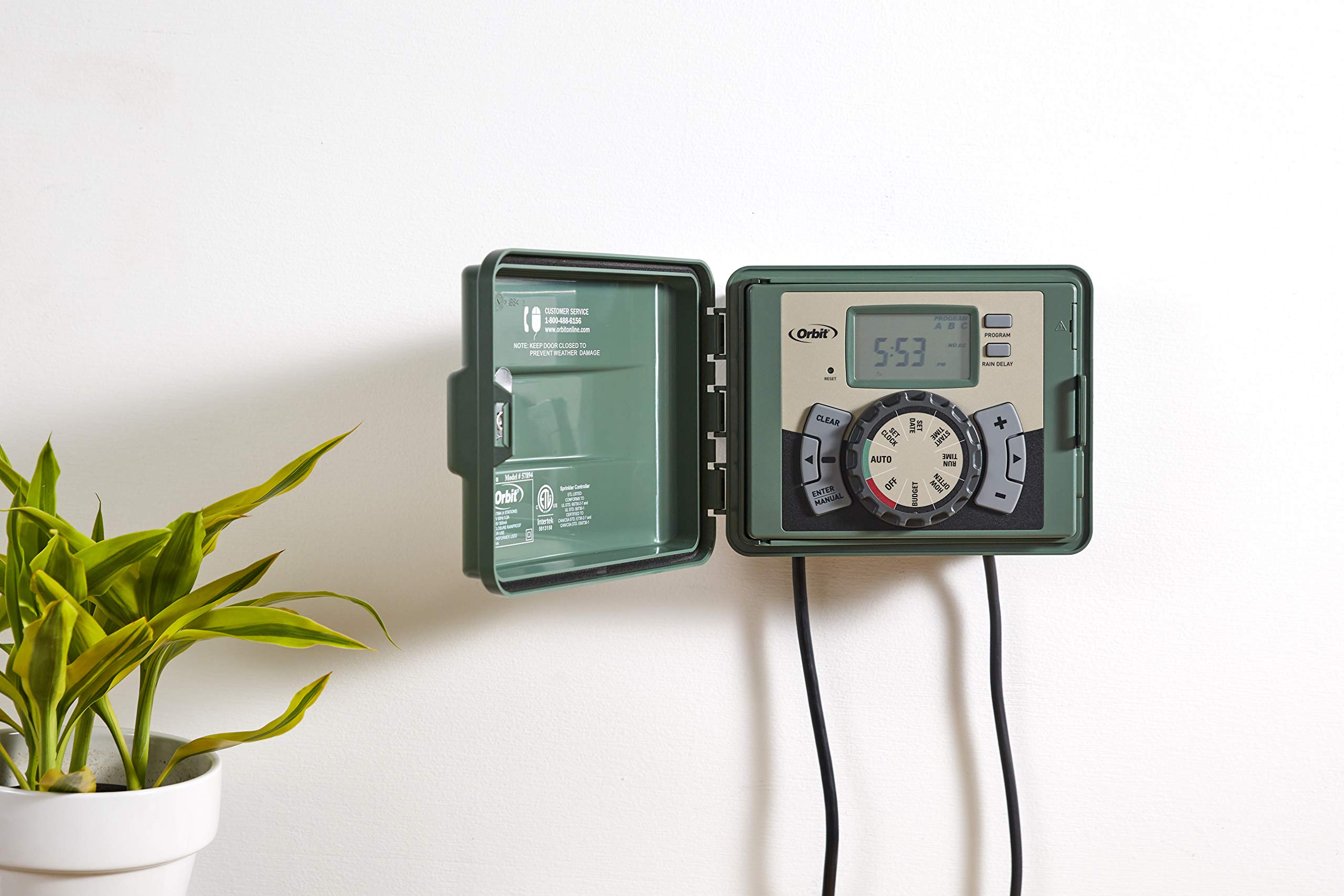

• Swing panel gives clear access to terminal block
• Push-in terminals for easy insertion and removal of wires
• Compatible with 5- or 7-strand 18 AWG sprinkler wire

What scheduling and watering features are available?

Three independent program slots (A, B, C) let you run different schedules for lawns, flower beds, and shrubs. Each program allows up to four start times and cycle-and-soak windows to reduce runoff and improve soil infiltration.

• Up to four start times per program for flexible watering patterns
• Cycle-and-soak control to break long runtimes into shorter cycles
• Automatic runtime stacking ensures only one valve is powered at a time
• Manual run option for testing or supplemental watering of selected zones

Can it handle rain or freezing conditions?

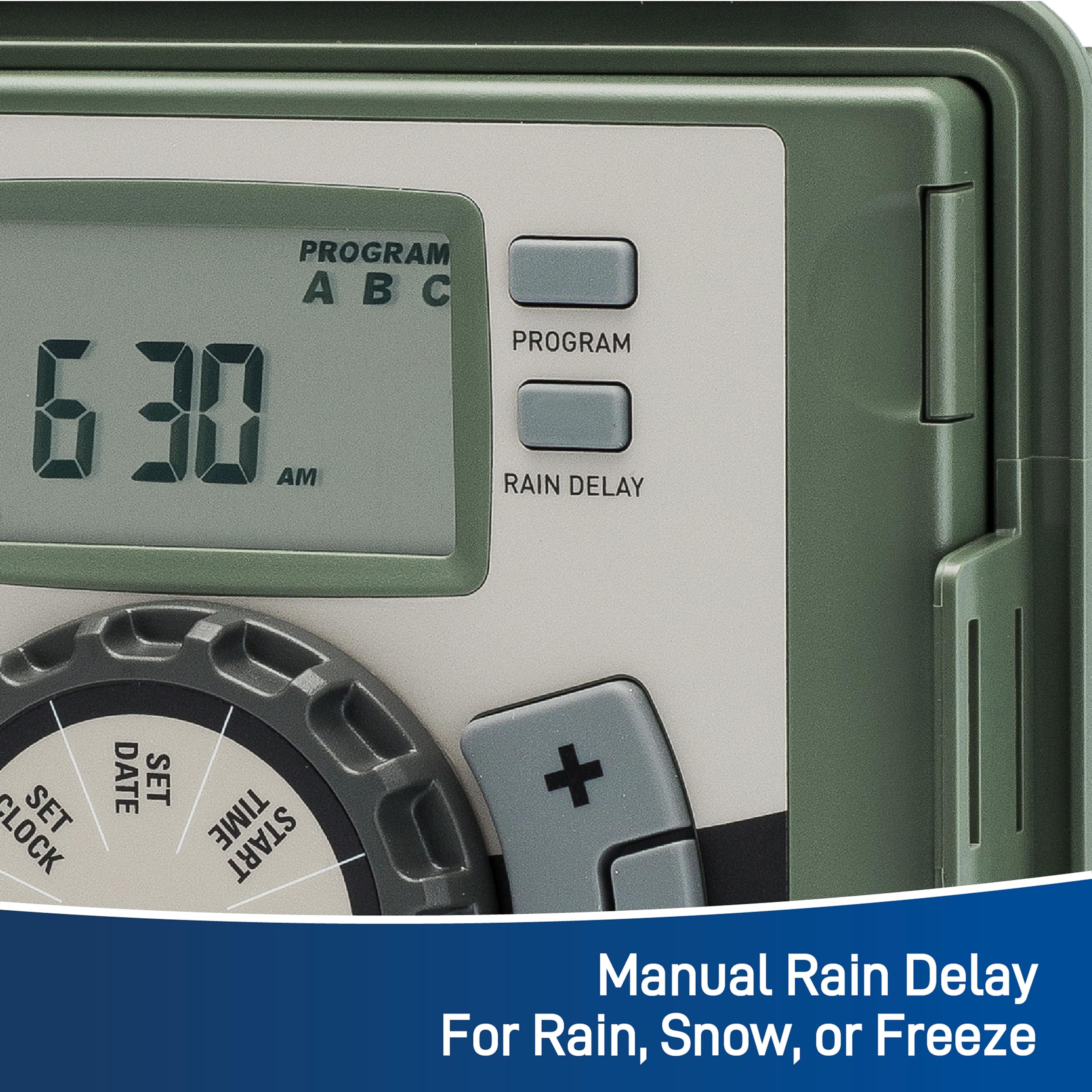

The Orbit 57900 includes a rain-delay feature to skip scheduled irrigation during wet periods. For automated shutoff with external sensors, it provides a relay input to connect an optional rain or freeze sensor (sold separately).

• Rain delay temporarily suspends programmed schedules
• Relay for automatic rain/freeze sensor integration (sensor not included)

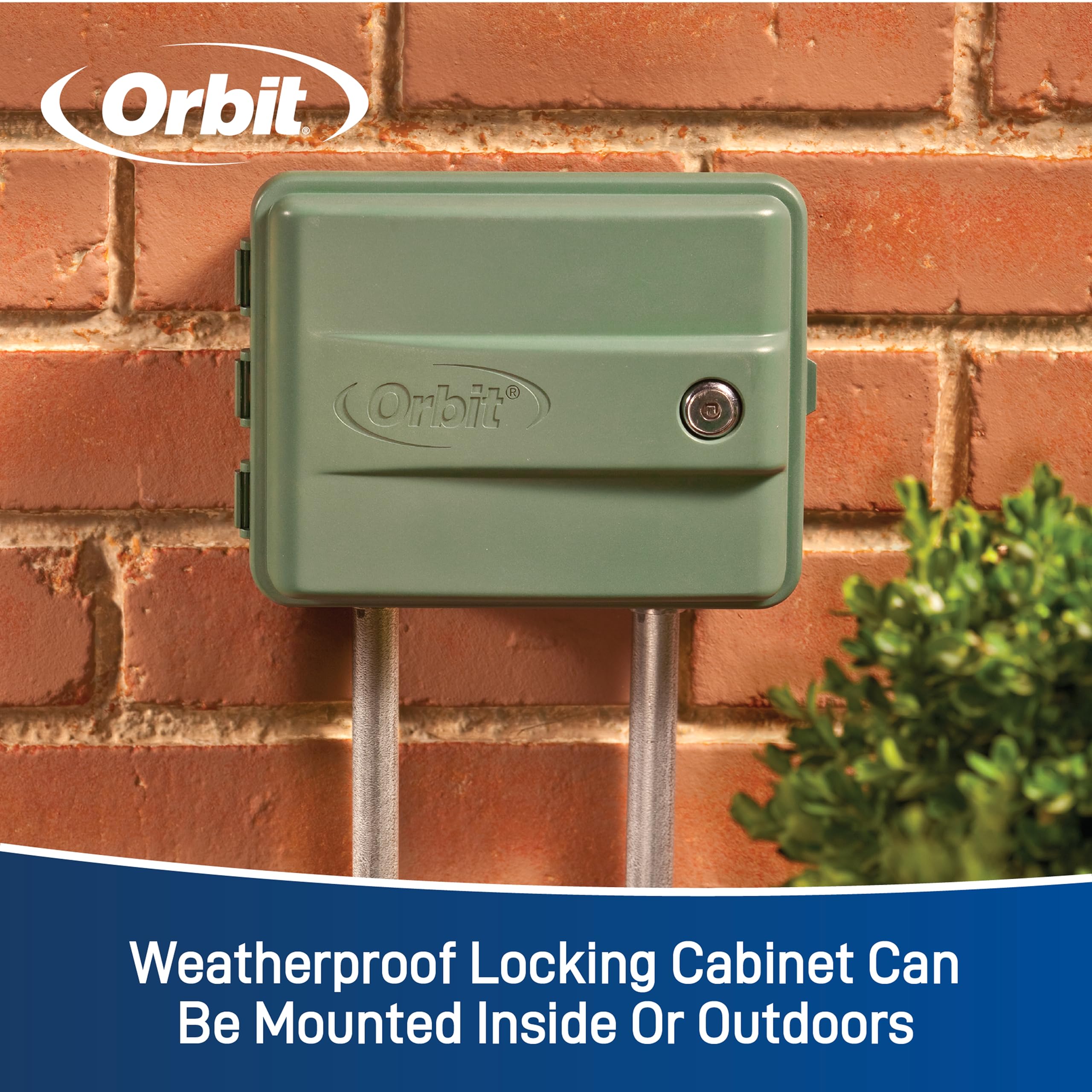

• Durable cabinet designed for outdoor installation when mounted properly

Which valves and systems are compatible with this controller?

This controller is rated for standard 24 VAC irrigation valves and is compatible with Orbit, Hydro-Rain and many major brands. It’s engineered for residential landscapes and performs reliably with typical solenoid valves and common sprinkler wiring.

• Works with 24 VAC solenoid valves used in most residential systems
• Supports up to 12 zones/stations for medium-to-large yards
• Manual zone testing and full-run features for quick system checks

Who is this for: homeowners and landscapers who want a dependable, feature-rich timer for controlling up to twelve irrigation zones. If you need a robust, easy-to-install controller with multiple programs, rain-delay capability and secure outdoor mounting, the Orbit 57900 provides practical automation for lawns, gardens, and mixed landscape beds without the complexity of advanced smart controllers.
