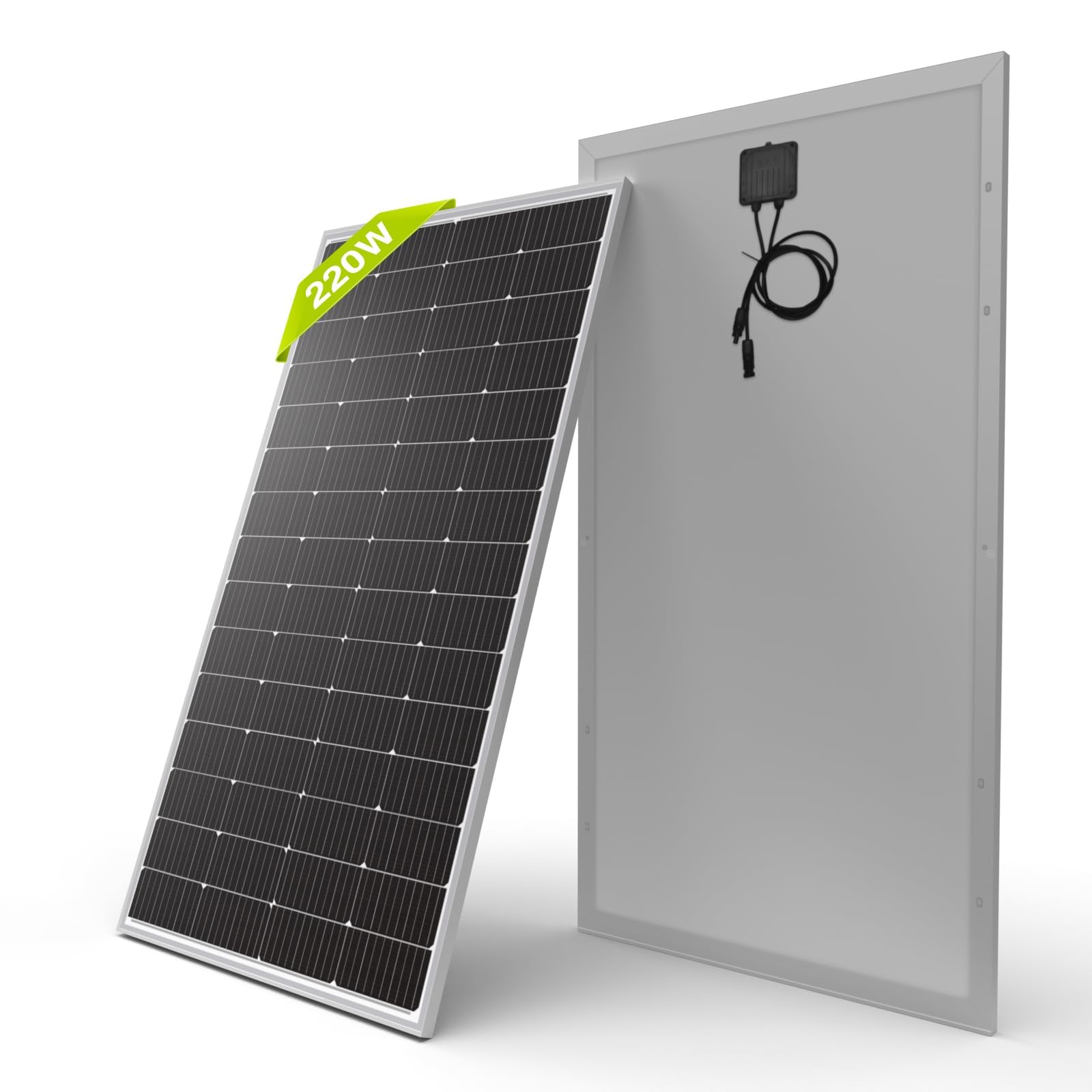

Newpowa 220W Monocrystalline Solar Panel 12V 10BB — Compact, High-Efficiency RV & Marine Module

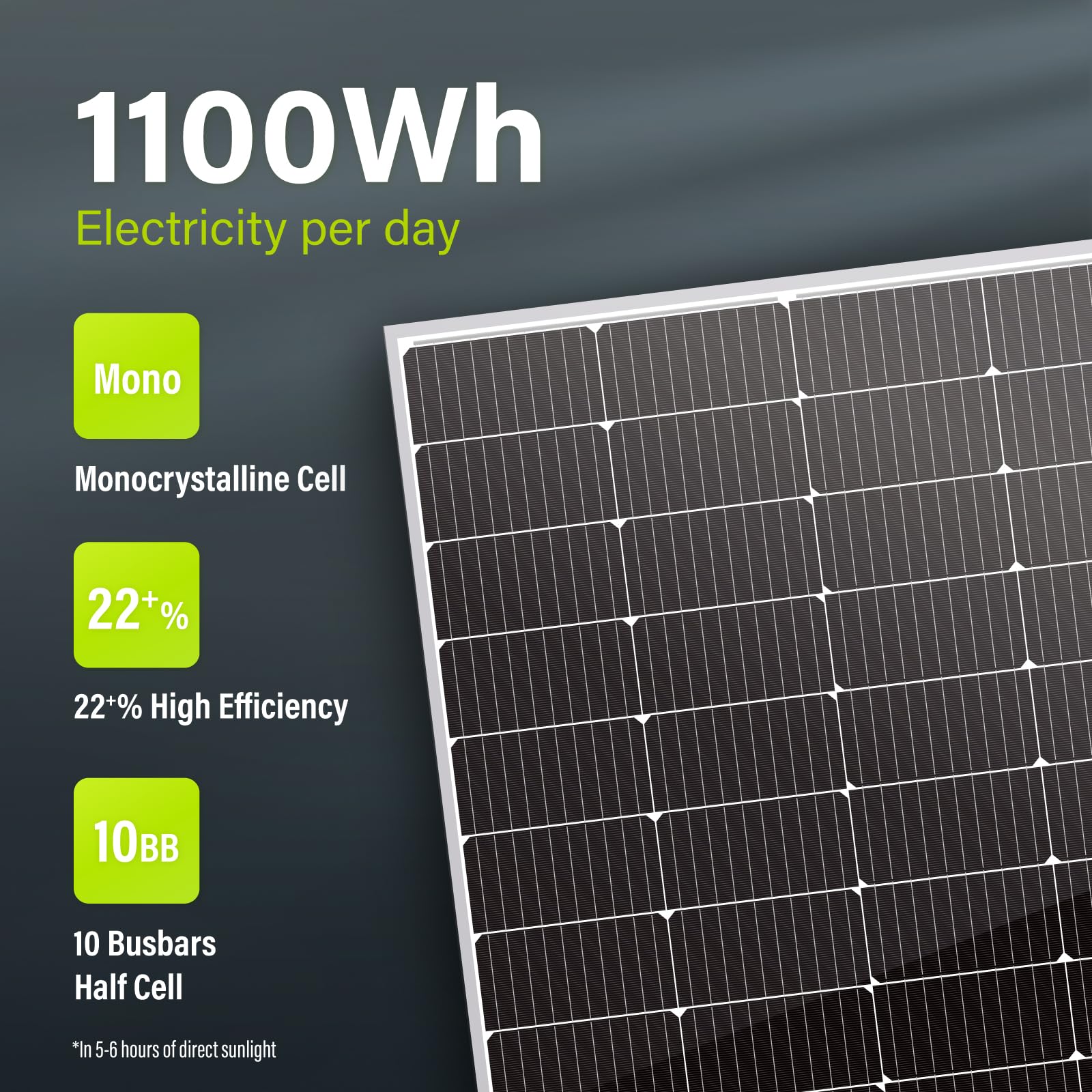

Newpowa 220W Monocrystalline Solar Panel is a compact, high-efficiency 12V module built with 10BB 182mm cells for reliable power on RVs, boats, and off-grid systems.

Designed to deliver strong performance in a small footprint, this 220-watt panel pairs modern 10-busbar monocrystalline cells with robust mechanical ratings to withstand harsh outdoor conditions. It ships with a pre-installed junction box and 3 ft MC4 cables for easier mounting and quick electrical hookups. With long-term output retention promises and a two-year workmanship assurance, the module targets consumers who want dependable, space-efficient solar generation.

How much usable power will this 220W panel produce for a 12V system?

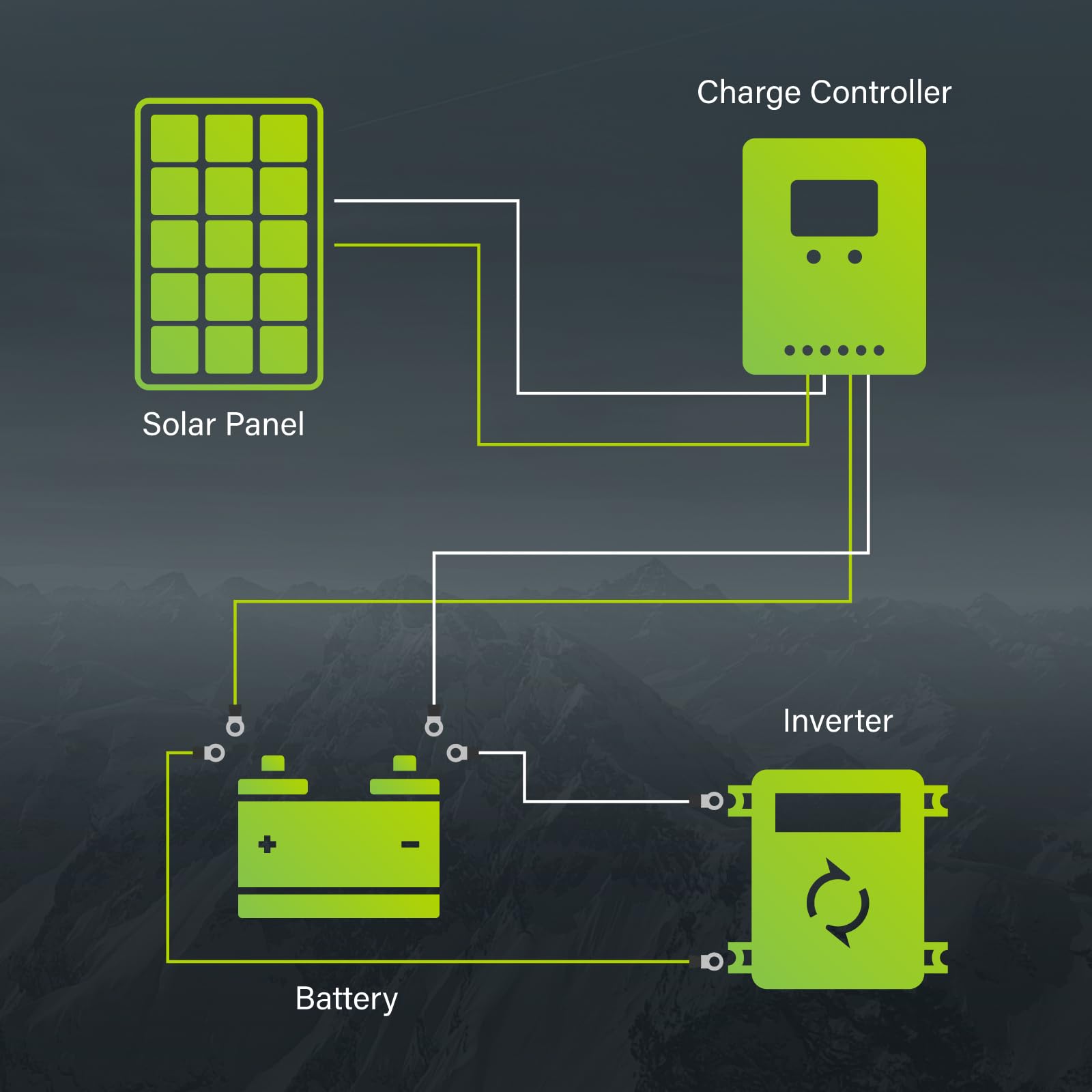

Under standard test conditions the panel’s maximum power (Pmax) is 220W, with a Vmp of 17.52V and an Imp of 12.60A, making it suitable for charging 12V battery banks through an appropriate charge controller. Real-world daily energy depends on sun hours, orientation and shading, but the listed specs give a clear baseline for system design.

• Peak output: 220 watts (Pmax = 220W)
• Operating voltage: 17.52V at maximum power
• Operating current: 12.60A at maximum power
• Best paired with MPPT or PWM charge controllers sized to >12.6A

How durable is the panel for marine, RV, and off-grid conditions?

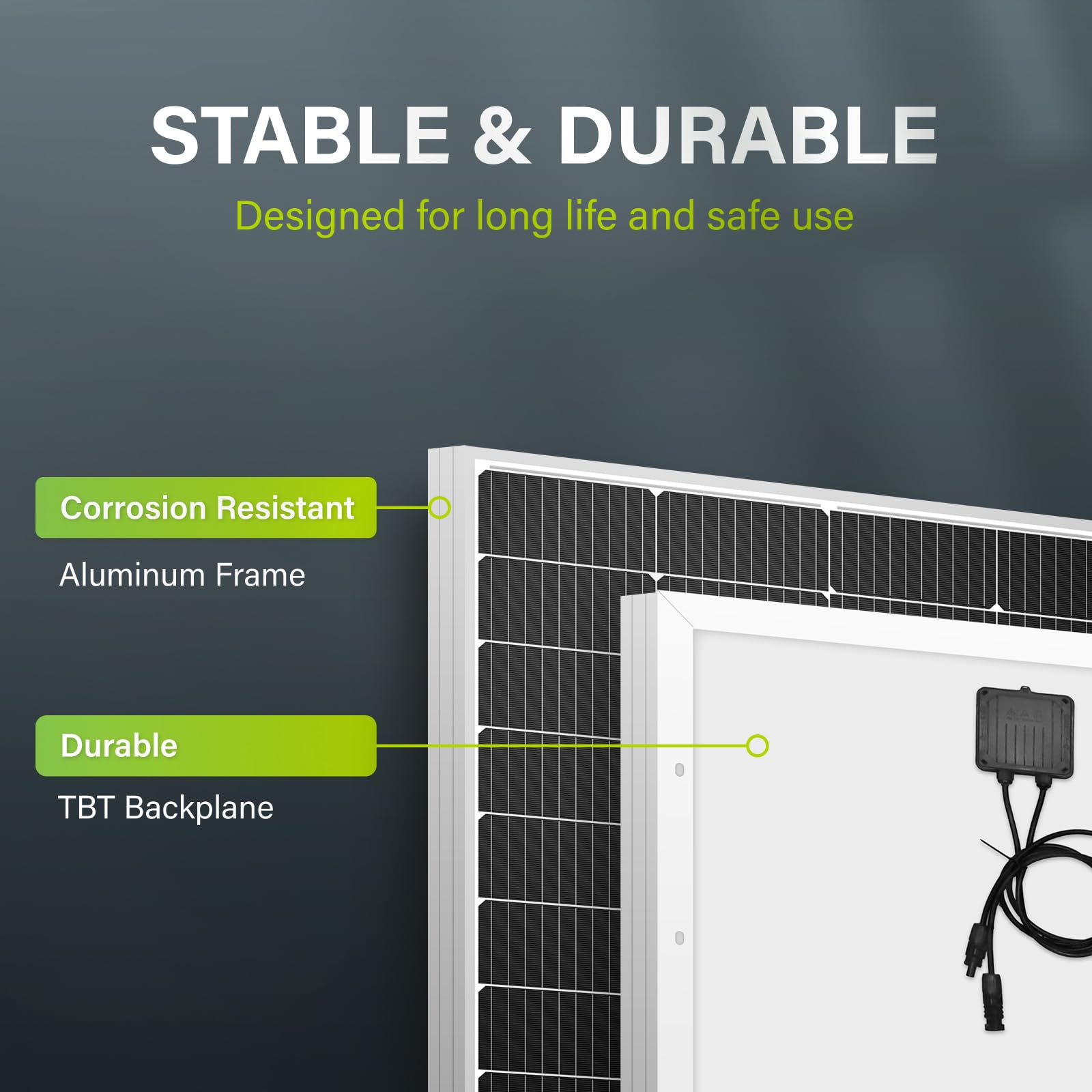

The Newpowa 220W module is built with reinforced laminates and a sturdy frame rated to resist high wind and heavy snow loads. It’s engineered for outdoor use on boats, RV roofs and remote installations where weather resistance and long-term structural integrity matter.

• Mechanical load ratings: 2400 Pa wind, 5400 Pa snow

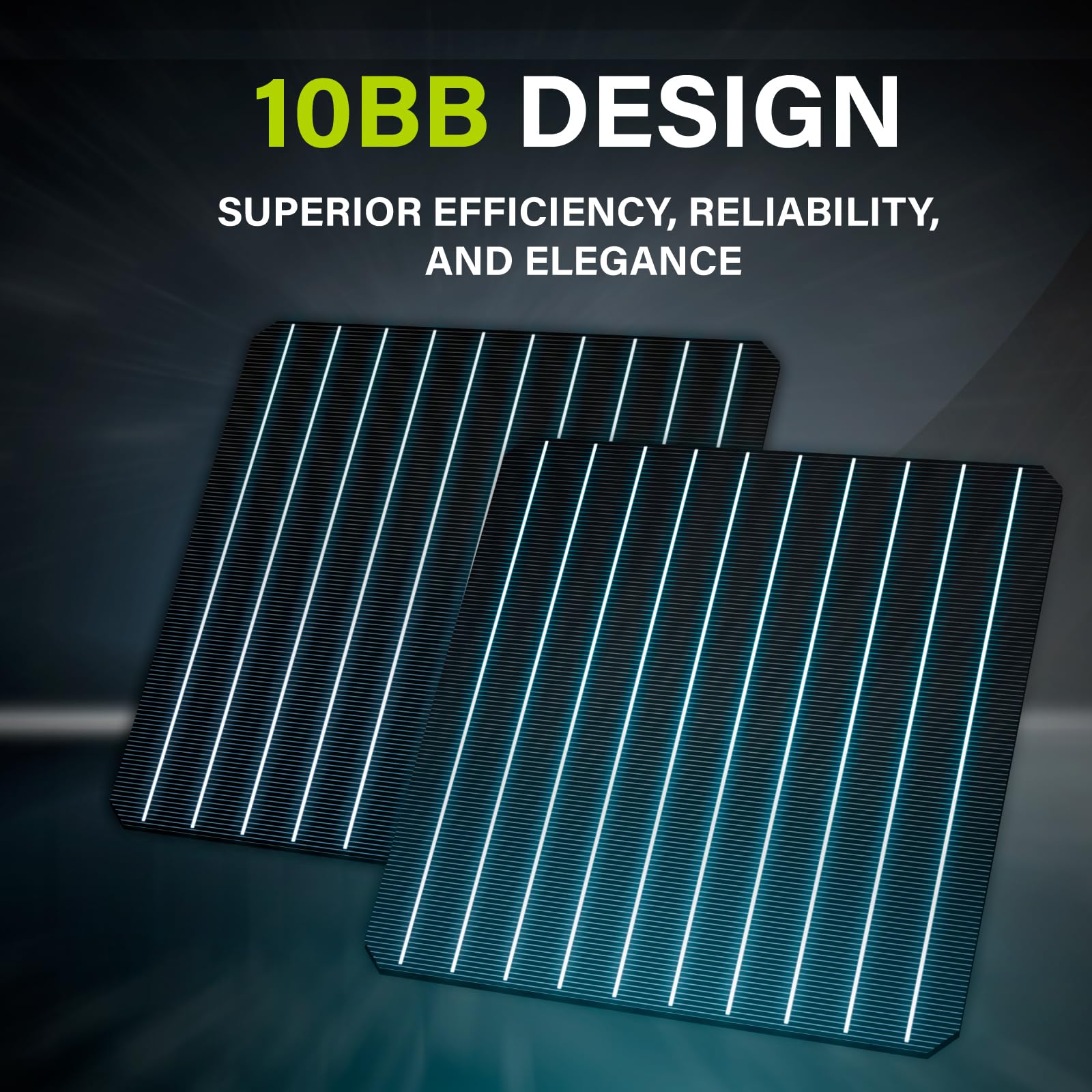

• 10-busbar cell layout improves mechanical and electrical reliability
• Multi-layer encapsulation for moisture and UV resistance
• Aluminum frame for corrosion resistance in marine environments

What features make installation and maintenance easier?

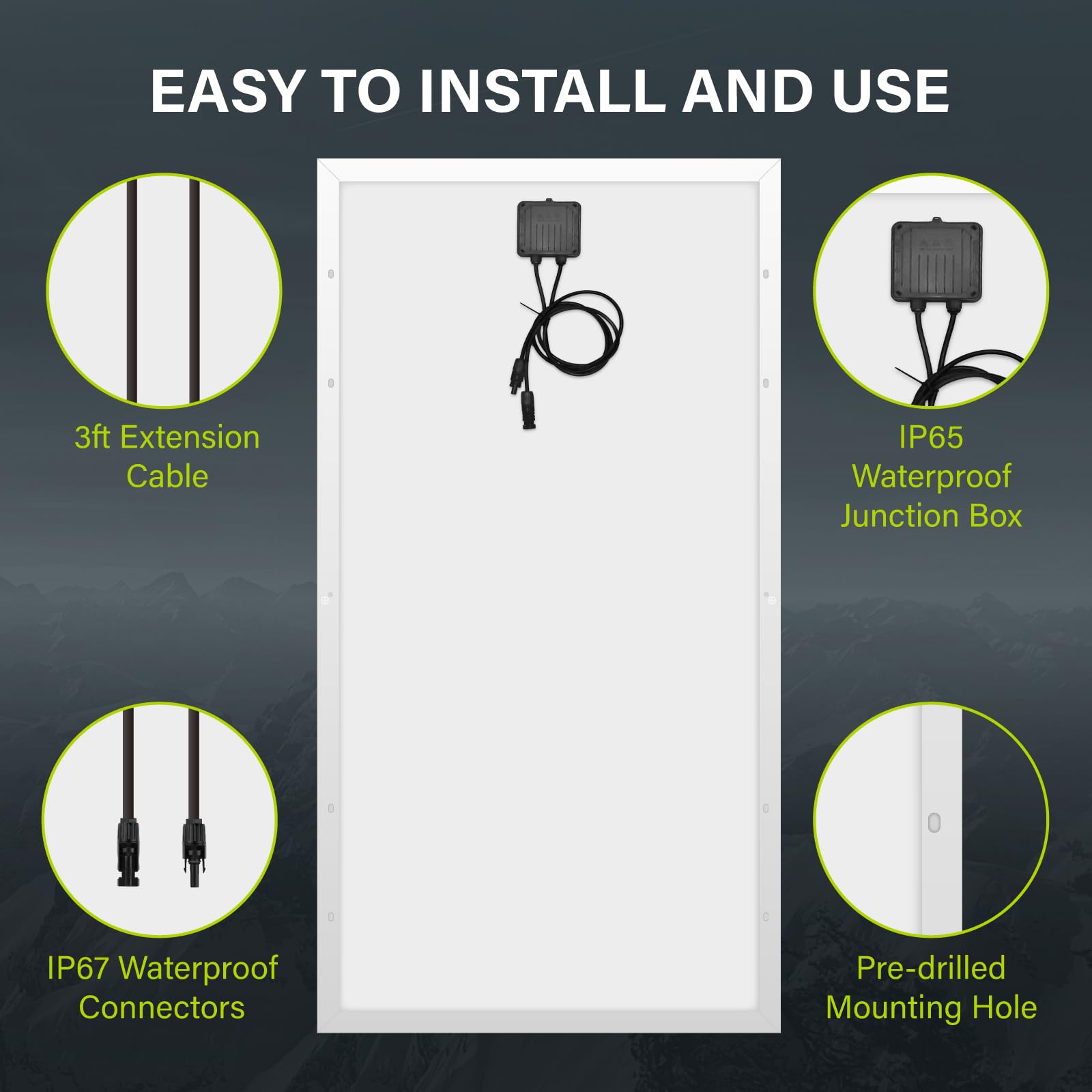

The panel arrives ready for quick integration: diodes are already installed in the junction box and a pair of 3 ft MC4 cables is attached. Its size and mounting flexibility reduce labor time on RV roofs or small off-grid racks, and routine upkeep is limited to periodic cleaning and visual checks.

• Pre-installed diodes in junction box to prevent reverse current
• Included 3 ft MC4 cable pair for plug-and-play wiring

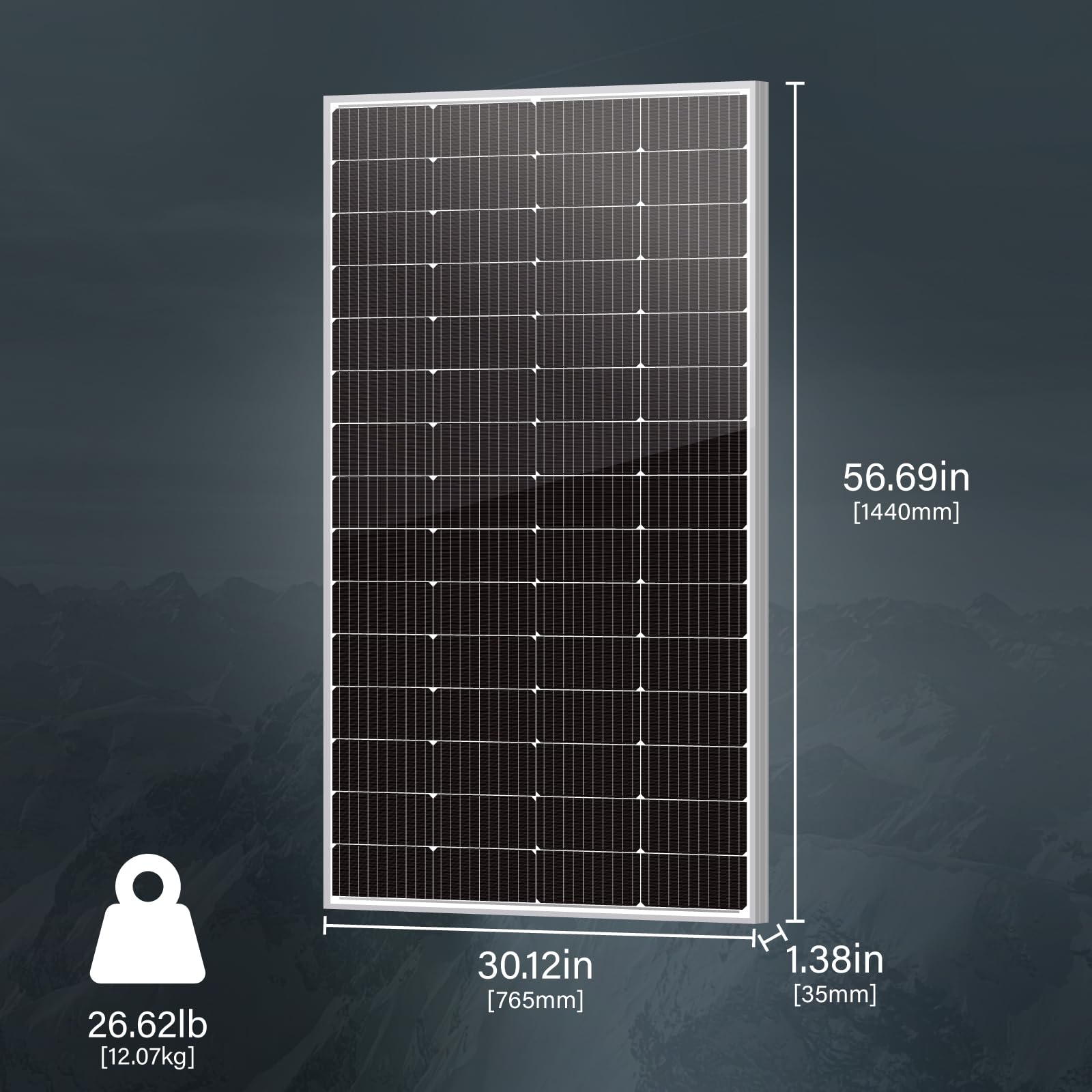

• Compact footprint: 56.69" × 30.12" × 1.38" for tight mounting spaces
• Simple cleaning and inspection routine—no special tools required

What warranty and long-term output can I expect?

Newpowa backs this module with a two-year material and workmanship assurance and performance projections for gradual degradation. The power retention estimates help you plan for future energy needs when sizing battery banks and additional panels.

• 2-year warranty on materials and workmanship
• Power output: >90% for first 10 years
• Power output: >80% at 25 years according to manufacturer specification

Who is this for? The Newpowa 220W Monocrystalline Solar Panel is aimed at vanlifers, RV owners, boaters and small off-grid households who need a compact, durable panel that balances strong wattage with space-conscious design. It fits installations that require reliable daily charging, modest roof real estate, and straightforward wiring—ideal when you want proven monocrystalline efficiency and a rugged build without oversized modules.
