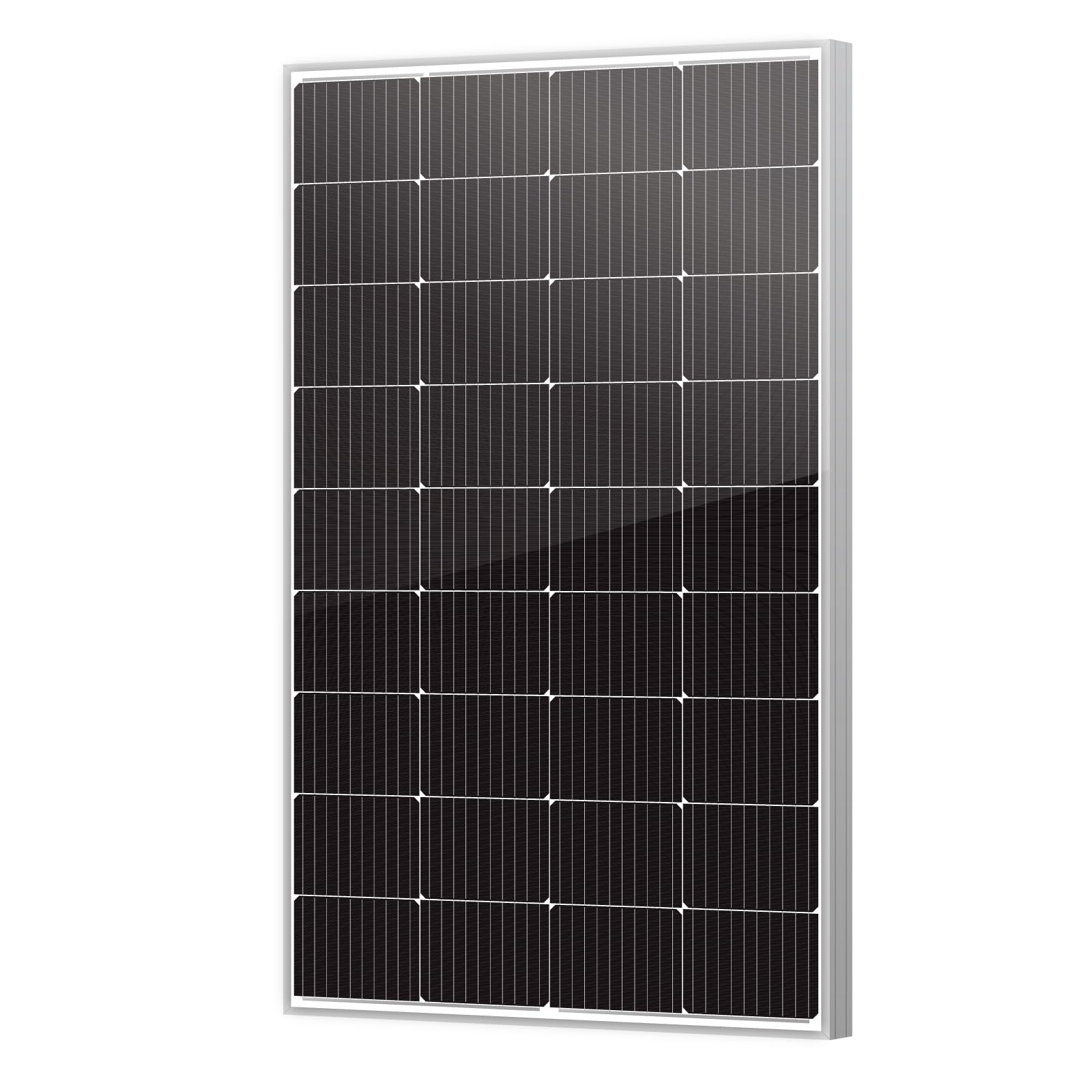

Newpowa 200W Monocrystalline Solar Panel 10BB Cell, High Efficiency 12V Panel for RV & Marine

Built with advanced 10-busbar 182mm mono cells, this 200-watt panel delivers improved performance and longevity versus older 5BB designs. With durable construction rated for heavy snow and strong winds, pre-fitted diodes and a 3 ft extension cable for faster setup, the Newpowa 200W panel is engineered for easy rooftop installation on boats, campers, and cabin arrays.

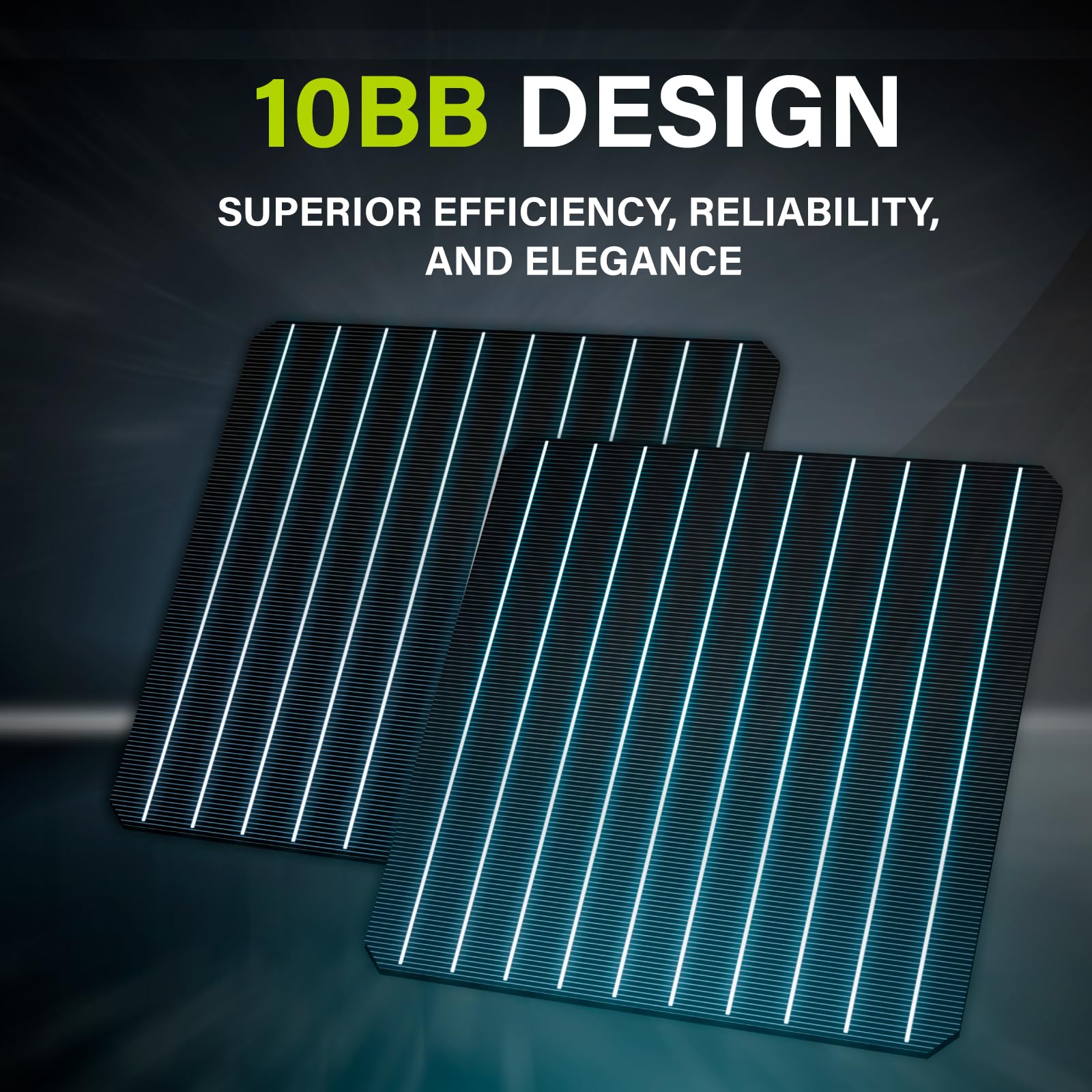

How does the 10BB cell design improve energy output?

The 10-busbar layout reduces internal resistance and supports more uniform current collection across each cell, which boosts overall module efficiency. That means you get higher usable power in the same footprint compared with panels using fewer busbars.

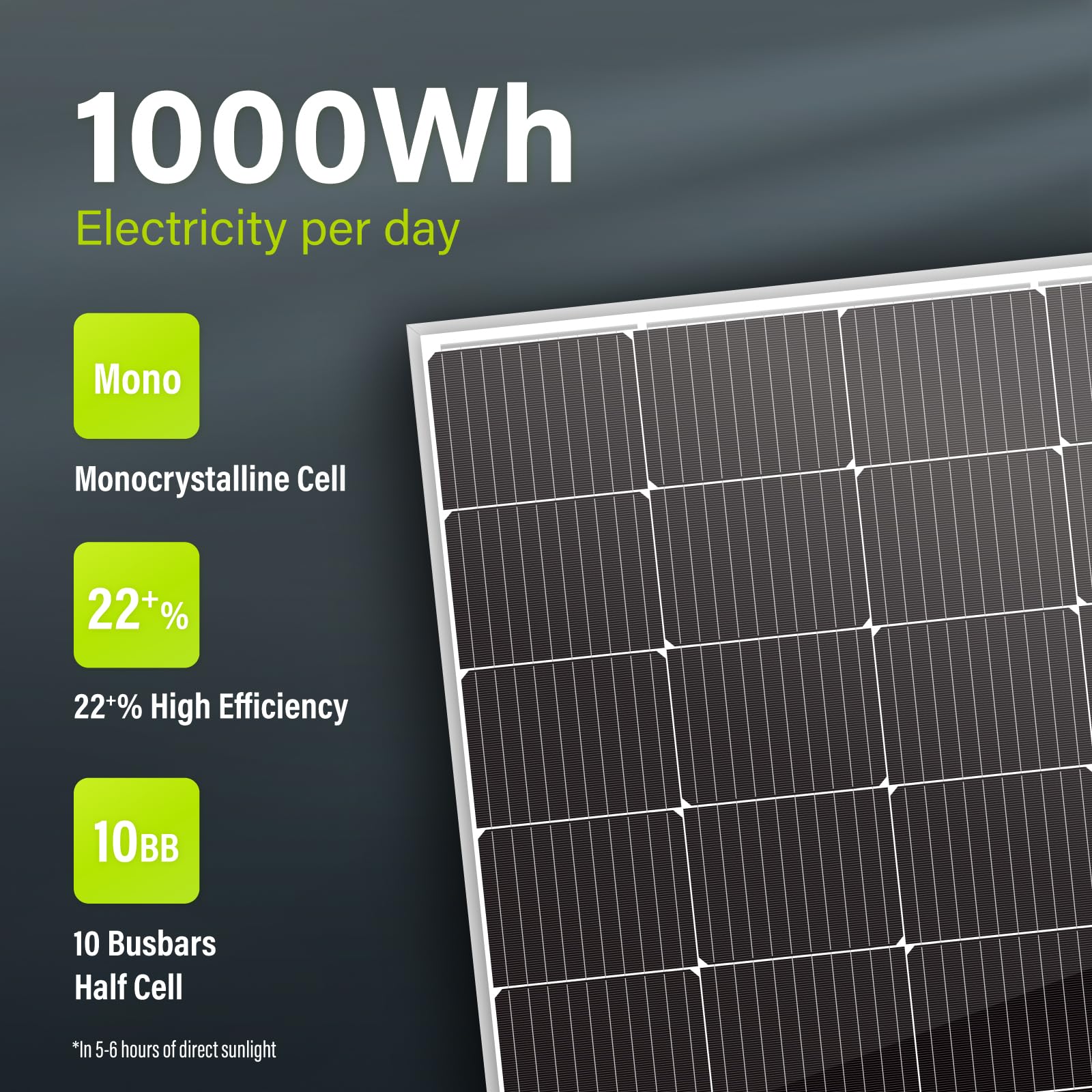

• 10BB 182mm monocrystalline cells for better efficiency and cell longevity
• Lower electrical loss during conversion for steadier output
• Improved shade tolerance relative to older cell topologies

What are the electrical ratings and real-world performance details?

The panel provides a peak power of 200W with a Vmp (voltage at maximum power) of 20.74V and an Imp (current at maximum power) of 9.68A, making it suitable for 12V battery systems and MPPT controllers. Newpowa publishes conservative long-term output expectations to help plan system sizing.

• Rated maximum power: 200W
• Vmp 20.74V and Imp 9.68A, compatible with 12V setups
• Expected output: >90% at 10 years, >80% at 25 years (manufacturer guidance)

Is this panel durable enough for marine and rooftop use?

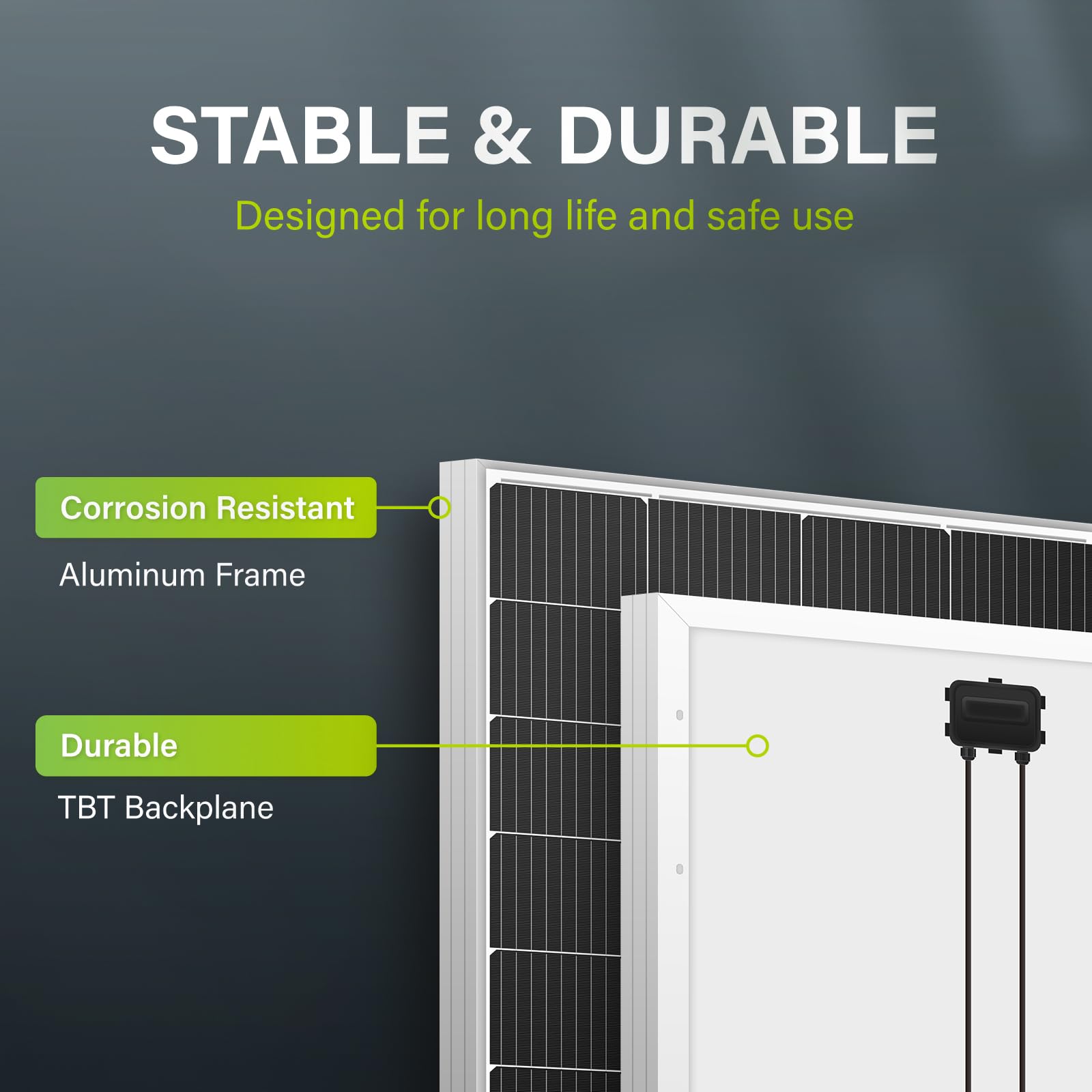

Yes — the mechanical specifications account for harsh outdoor conditions with robust wind and snow load ratings. The tempered glass and aluminum frame are built to withstand mounting stresses common on boats, RV roofs, and small remote installations.

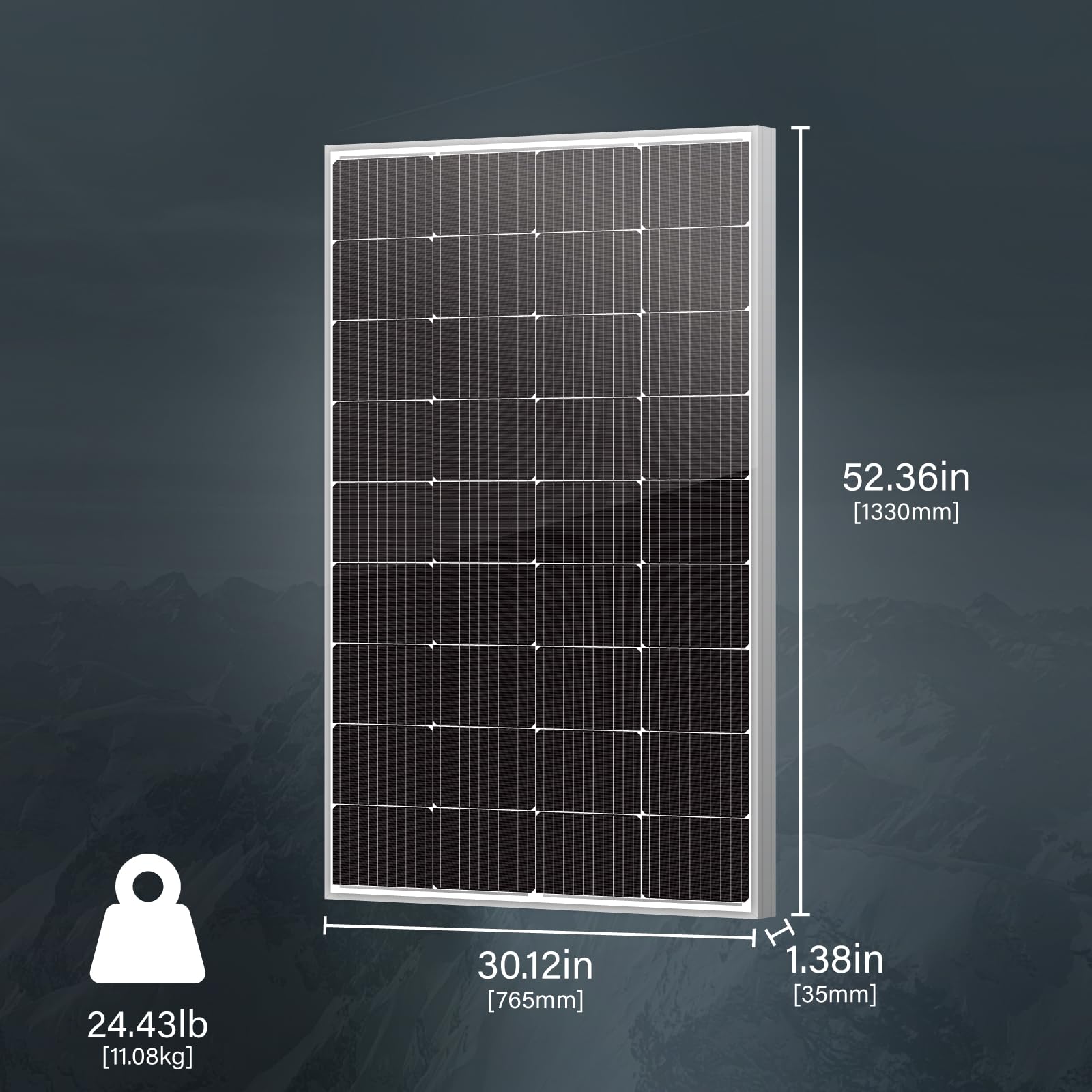

• Overall dimensions: 52.36 x 30.12 x 1.38 inches for compact rooftop fit
• Wind load rating up to 2400 Pa and snow load up to 5400 Pa
• Pre-installed junction box with diodes for protection against reverse currents

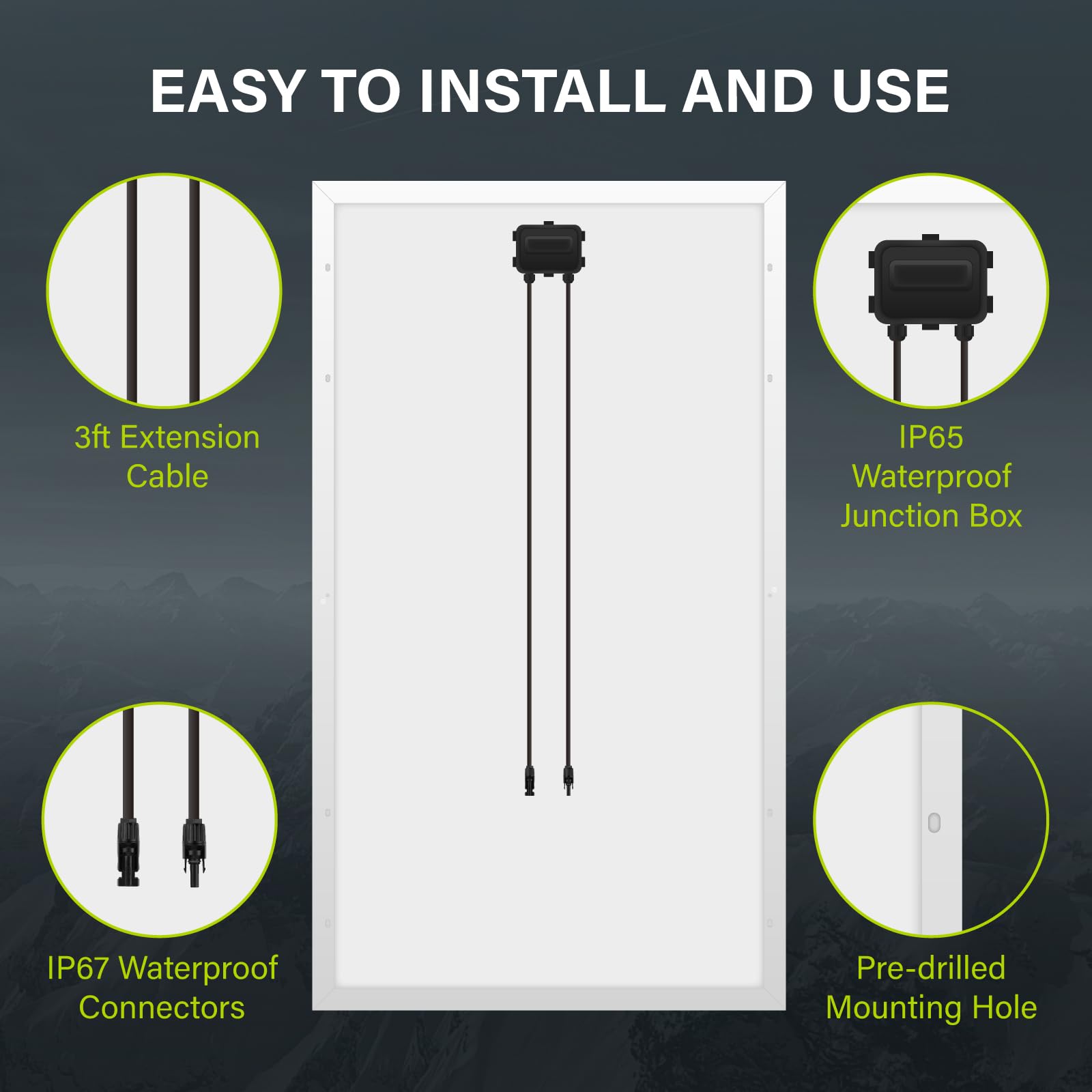

How easy is installation and what support is included?

The panel ships ready for wiring with a pre-attached 3-foot extension cable and factory-installed diodes, so hobbyists and professionals can complete electrical connections quickly. Newpowa backs the unit with material and workmanship coverage plus long-term performance expectations.

• Factory-fitted diodes in junction box reduce installation time
• Includes a 3 ft pre-attached extension cable for quick connection
• 2-year workmanship guarantee and long-term power output estimates

Who is this for: The Newpowa 200W 10BB monocrystalline panel fits owners of RVs, small boats, cabins, or off-grid micro-systems who need a compact, higher-efficiency solar module that’s easier to mount and wire. It’s also a practical option for anyone replacing older low-efficiency modules or adding more capacity to an existing 12V setup where space and durability matter.
