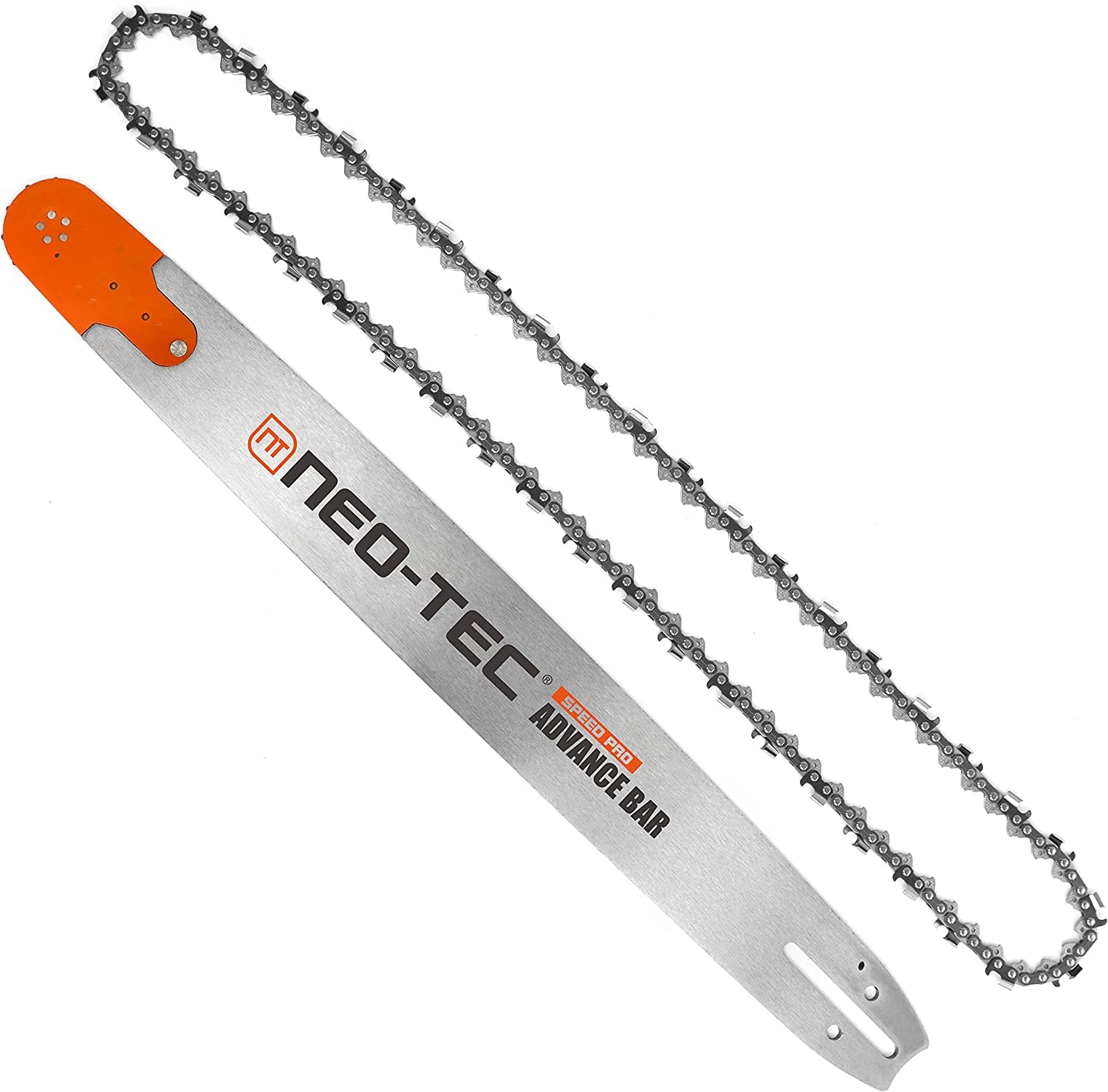

NEO-TEC 24" Laminated Chainsaw Guide Bar & 84DL Chain – 3/8" Pitch 0.058" Gauge, Replaceable Sprocket Nose

NEO-TEC's 24-inch laminated guide bar and matching 84DL saw chain deliver a durable, field-serviceable replacement engineered for mid to large-frame chainsaws.

This bar-and-chain combo pairs a replaceable sprocket-nose laminated bar with a full-chisel 3/8" pitch, 0.058" gauge chain built to the 84 drive link spec (248RNDD009). Designed for pro users and serious homeowners, it fits a wide range of models including Husqvarna 372XP and many Echo, Poulan, Partner, Shindaiwa, and Jonsered machines. The laminated construction reduces vibration, and the replaceable nose allows quick repairs without replacing the entire bar.

Which saw models and bolt patterns does this NEO-TEC combo fit?

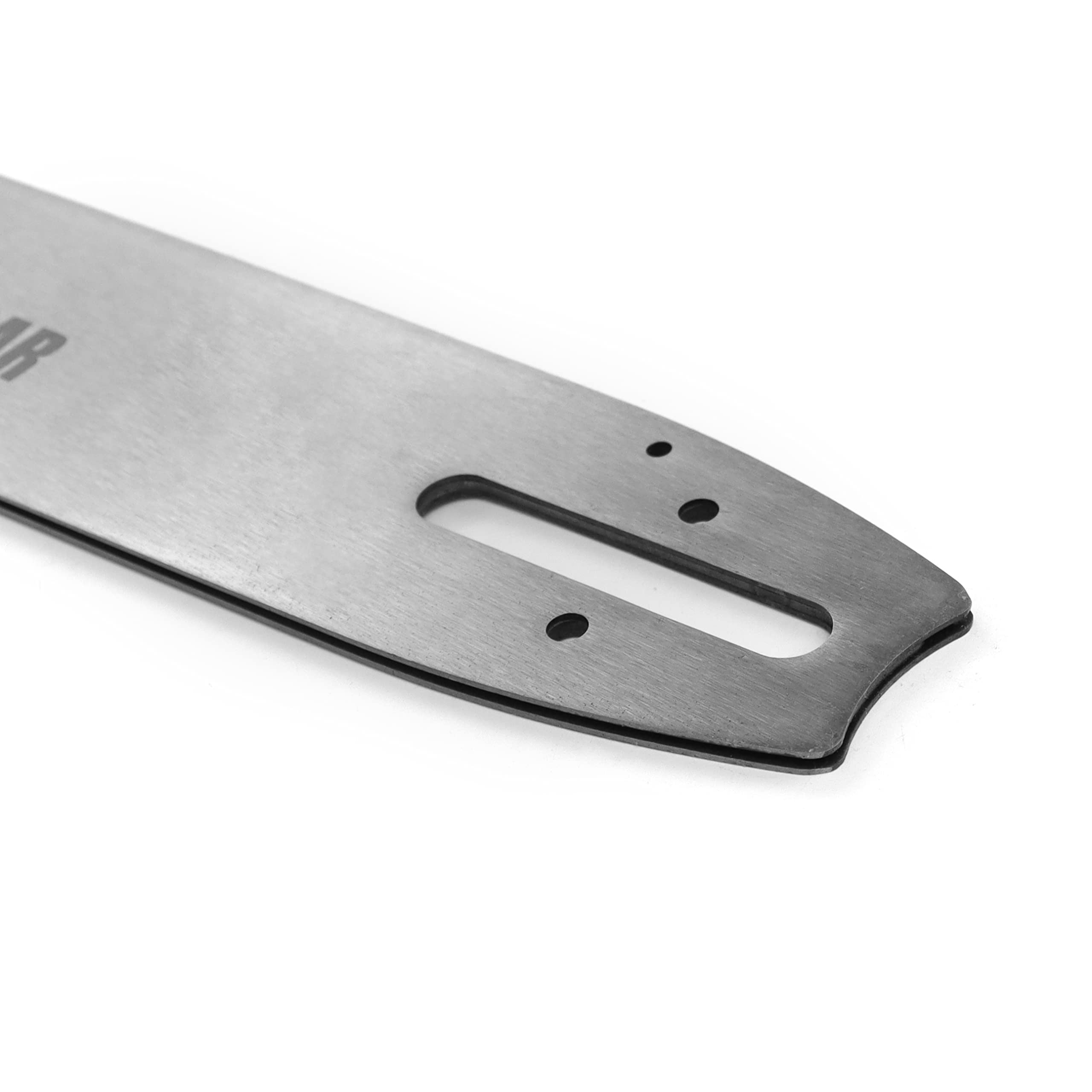

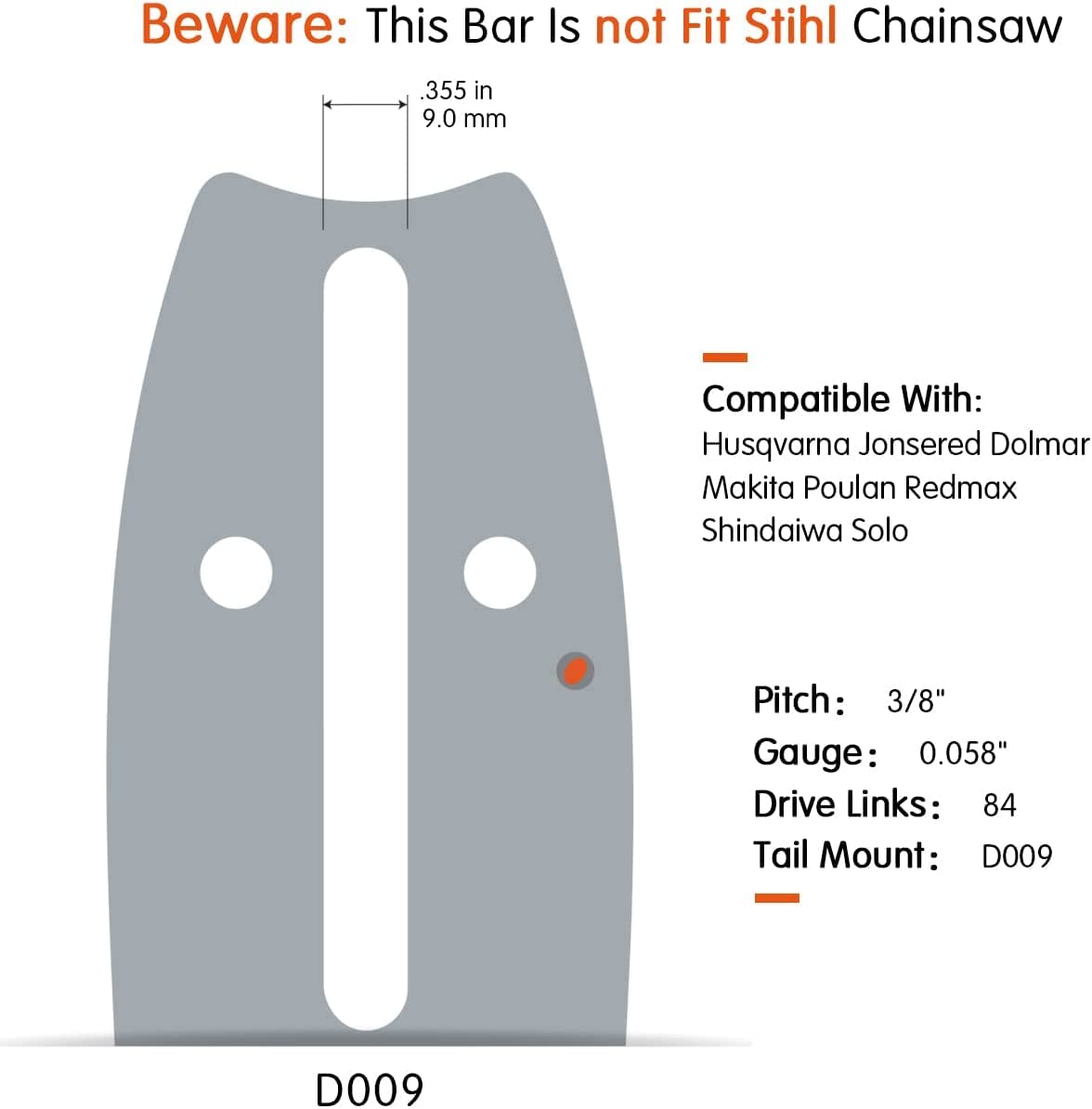

This 24" bar uses the D009 9.00mm tail mount and 84 drive links, matching many mid to large professional chainsaws. It fits numerous Husqvarna models (including 372XP), Echo CS-7310 series, Shindaiwa, Poulan, Partner, Jonsered, Dolmar, Efco and McCulloch machines, but it does not fit Husqvarna 460 Rancher.

• Tail mount: D009 (9.00mm)
• Drive links: 84 DL
• Pitch: 3/8"; Gauge: 0.058"
• Model compatibility: wide OEM list; verify your saw's spec before ordering

How does the replaceable sprocket nose help when I'm cutting in the field?

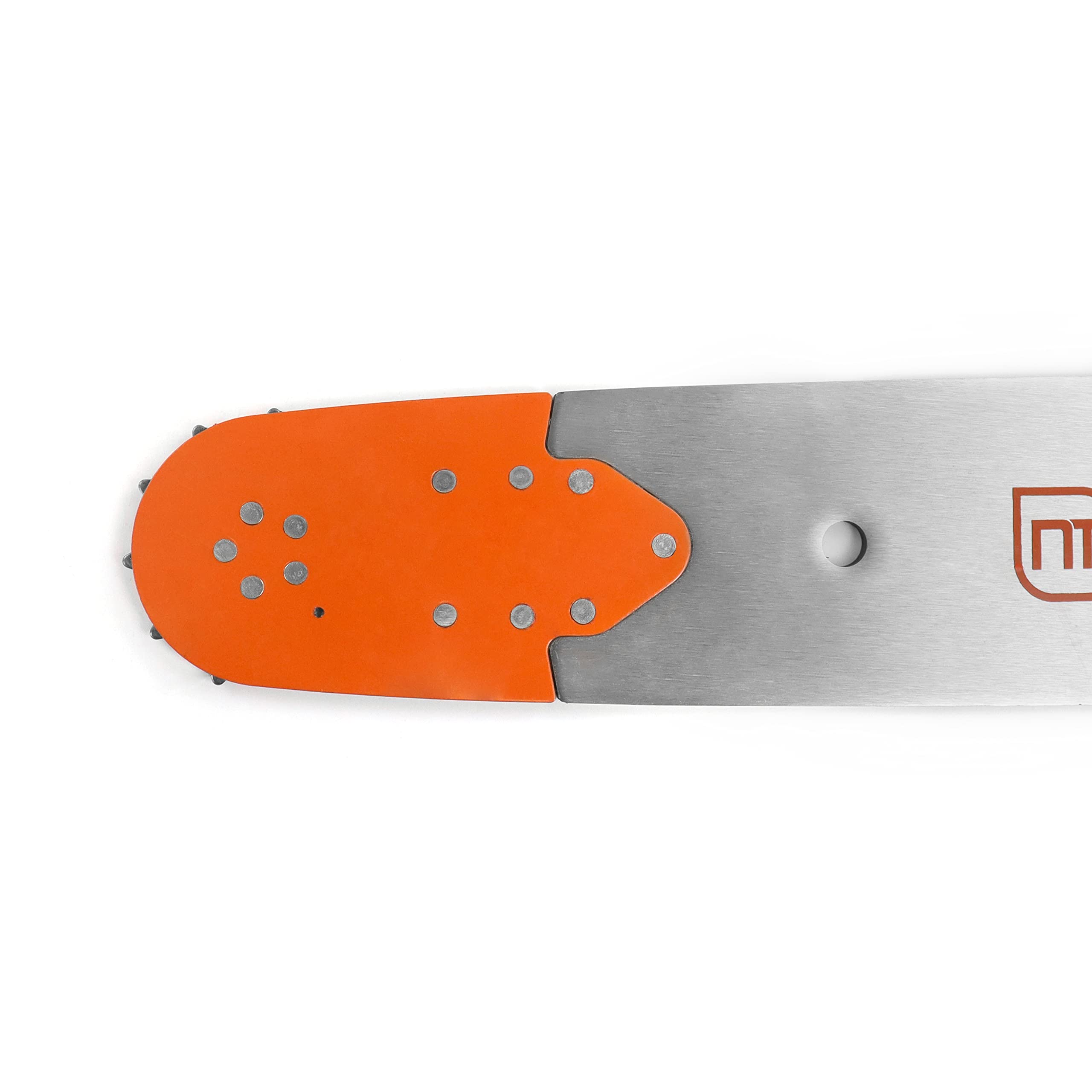

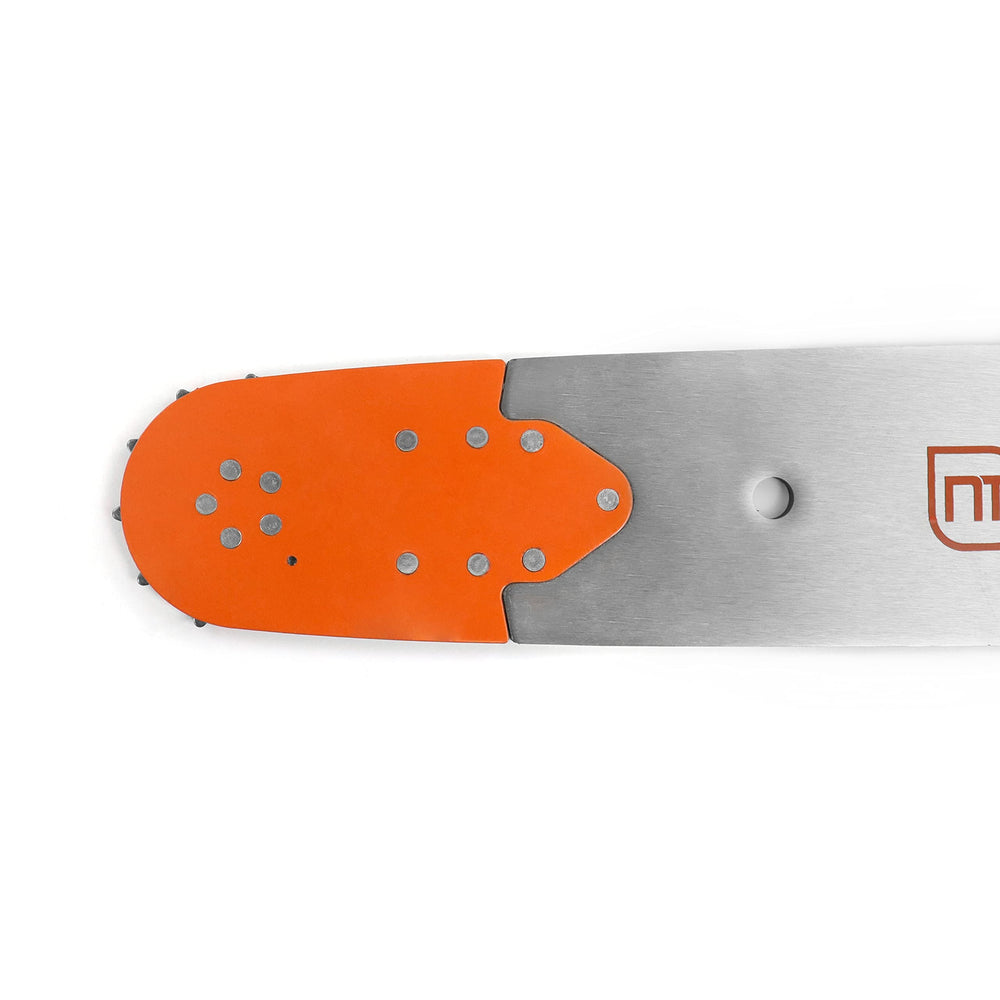

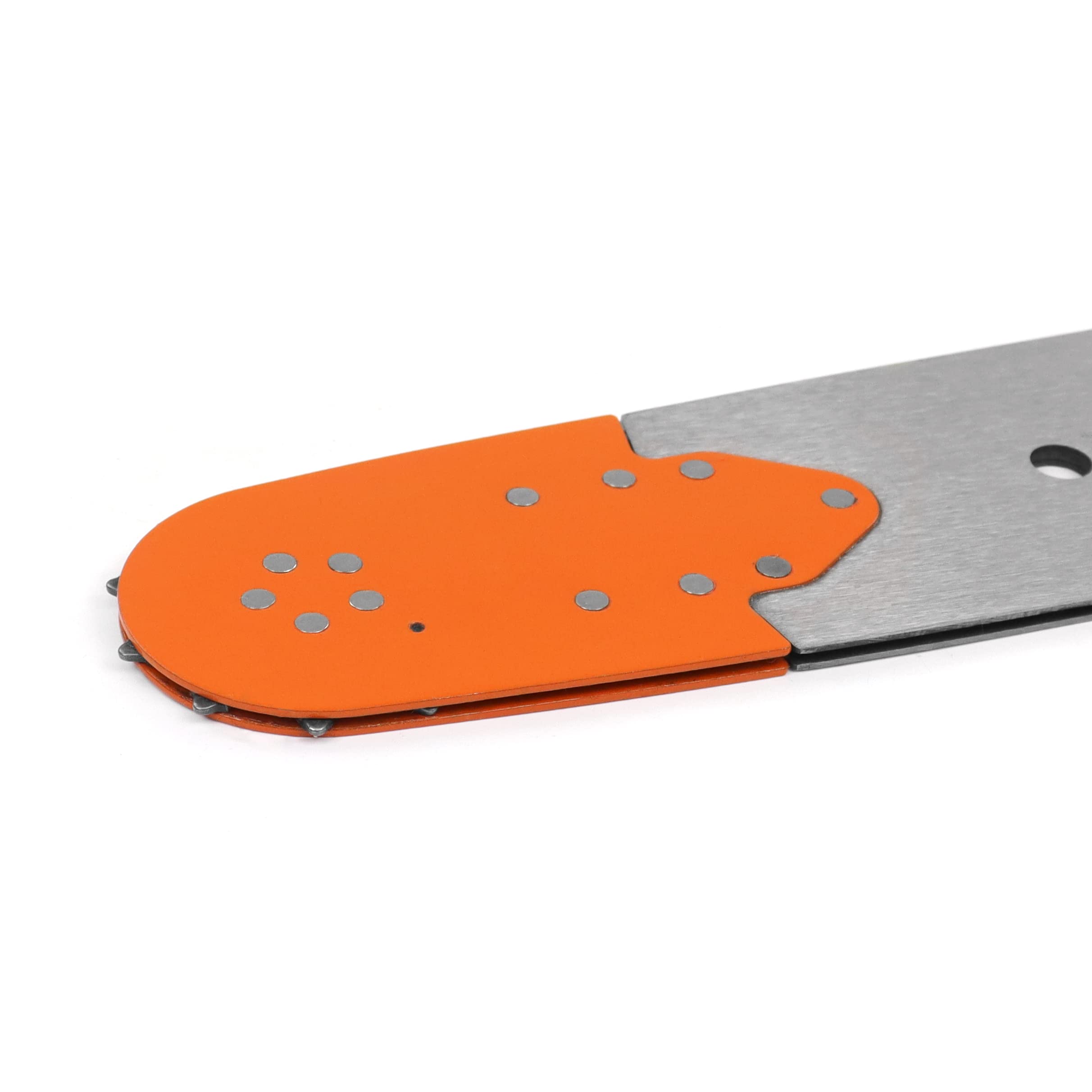

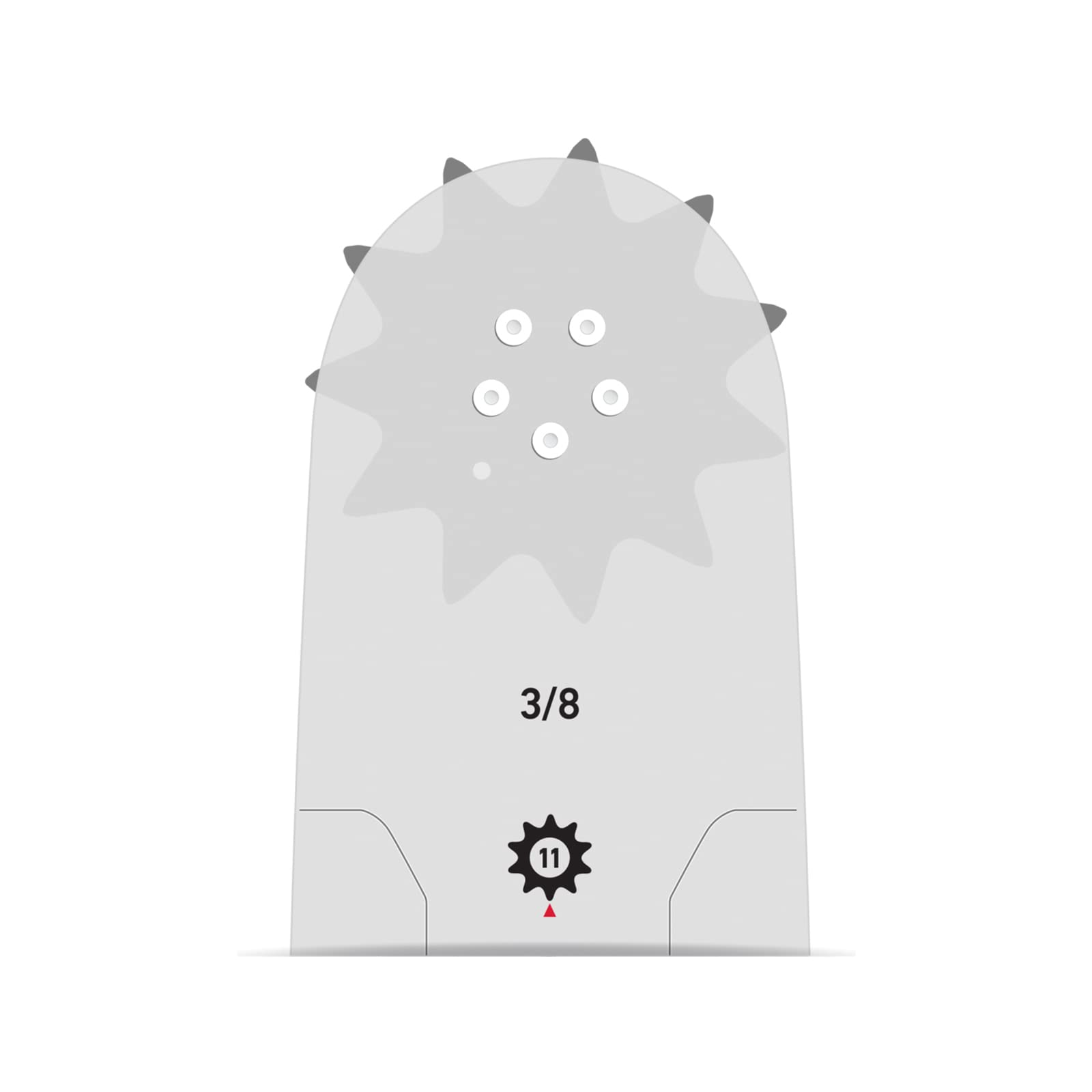

The sprocket-nose is secured with a single rivet and supported by overlapping ears, so it can be swapped without specialized presses or full bar replacement. That means you can restore smooth nose rotation and reduce downtime after wear or damage, keeping productivity high on long jobs.

• Sprocket nose removable in the field with basic tools
• Wide overlapping ears add strength at the nose
• Single-rivet retention for straightforward servicing
• Reduces need to replace entire bar for nose wear

What cutting performance and durability should I expect from the laminated bar and full-chisel chain?

The laminated bar construction balances rigidity and vibration damping for long cuts and heavy use, while the full-chisel chain provides fast, aggressive cutting suitable for felling and bucking. Regular maintenance—proper tensioning, sharpening, and lubrication—keeps cutting consistent and extends component life.

• Laminated bar reduces vibration and resists bending
• Full-chisel chain offers fast, efficient wood removal
• 0.058" gauge gives a robust cutting face for heavy-duty tasks
• Works well with regular sharpening and correct chain tension

How do I install and maintain the NEO-TEC 24" bar and chain safely?

Installation follows standard chainsaw procedures: remove the side cover, fit the bar's tail mount to the studs, loop the chain over the sprocket and bar, and tension to manufacturer specs before testing. Maintenance is straightforward—keep the bar groove clean, maintain adequate oiling, and sharpen the chain regularly using the correct file size for 3/8" pitch chains.

• Follow your saw manual for chain tension and torque specs
• Use proper bar oil and keep the oil port clear
• Sharpen with the right file for full-chisel cutters and depth gauges
• Replace the sprocket nose if it shows wear or noisy operation

Who is this for: This NEO-TEC 24" laminated bar and 84DL chain combo is aimed at professional arborists, forestry crews, and experienced homeowners who need a heavy-duty, serviceable replacement for mid- to large-frame saws. If you use your saw for felling, bucking, or long rip cuts and value quick field repairs plus broad compatibility, this kit is built to meet those needs.
