MCAMPAS fire pit burner valve system kit — Propane LPG control with CE/CSA flame-failure safety valve & push-button igniter (stain

MCAMPAS Fire Pit Burner Valve System Kit is a complete LPG/propane control assembly that replaces your outdoor fire pit or patio heater controls with a CE/CSA-certified flame-failure safety valve and push-button spark igniter.

This kit combines a polished 304 stainless steel control faceplate, a brass safety main control valve, ignition hardware, and backup thermocouples to give you a compact, serviceable gas control solution for low-pressure propane systems. It’s designed for retrofit and replacement use on outdoor fire tables, insets and patio heaters that run on LPG/propane (not for natural gas). The components are sized for straightforward wiring and burner placement so installation is practical for experienced DIYers and technicians.

How does the safety valve protect my fire pit?

The included brass main control valve is a flame-failure safety valve that shuts gas flow if the pilot or burner flame goes out. Certified to CE and CSA standards, it reduces the risk of uncontrolled gas flow in low-pressure propane systems when installed correctly.

• Brass main control safety valve with flame-failure function (certified CE & CSA)

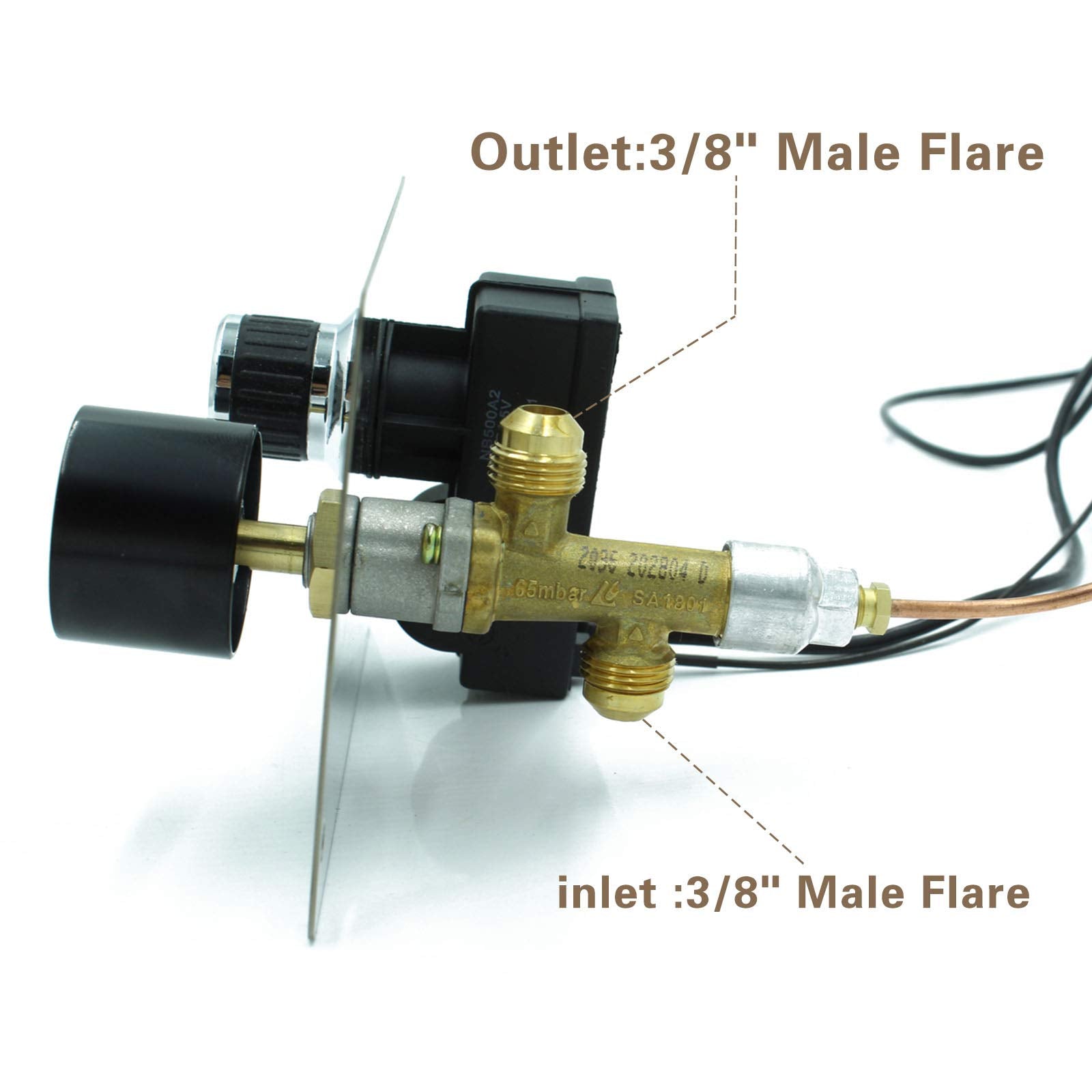

• Inlet/outlet 3/8" flare male threads for standard LPG connections
• Maximum BTU rating: 50,000; working pressure up to 65 bar
• Not compatible with natural gas — for LPG/propane only

What comes in the MCAMPAS control system assembly kit?

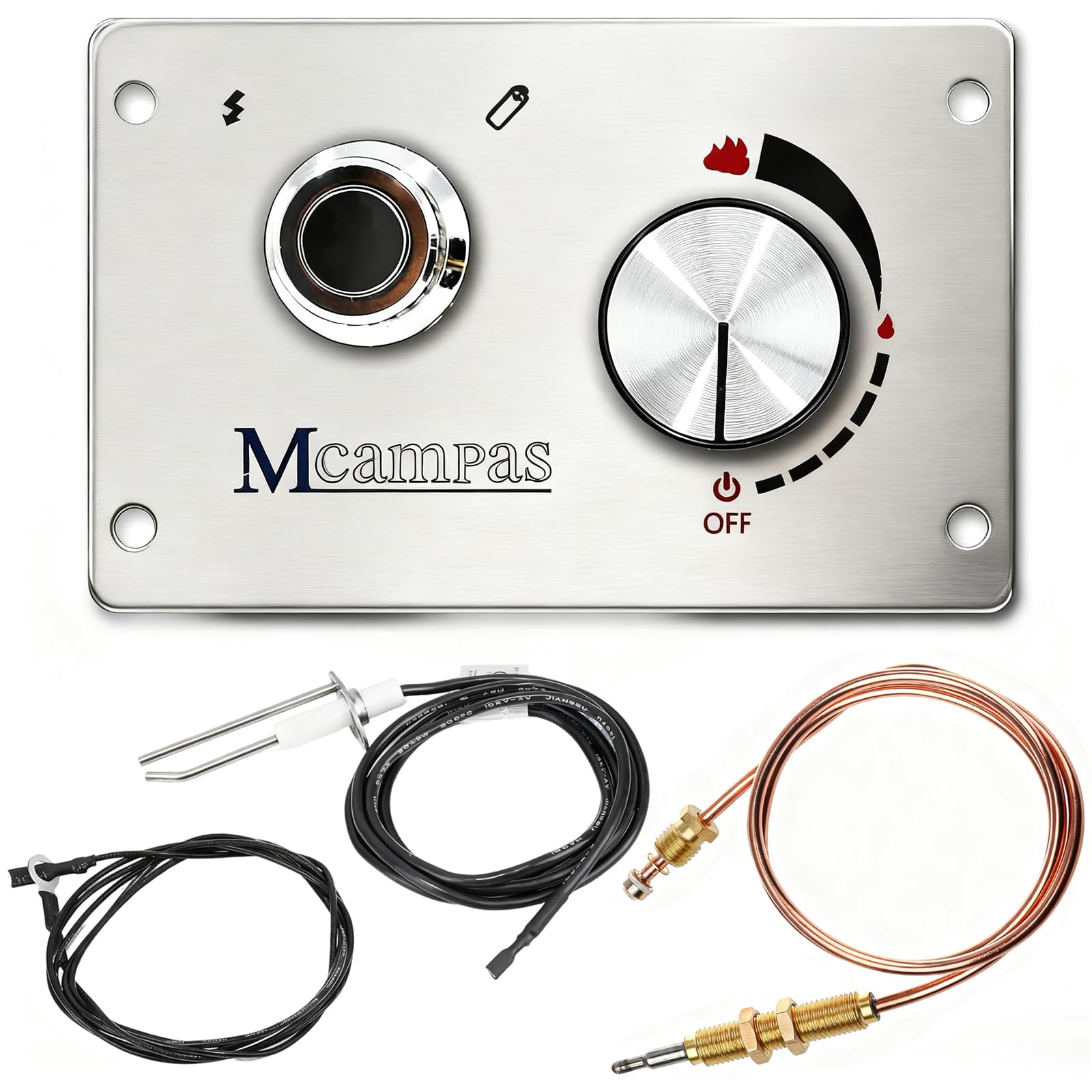

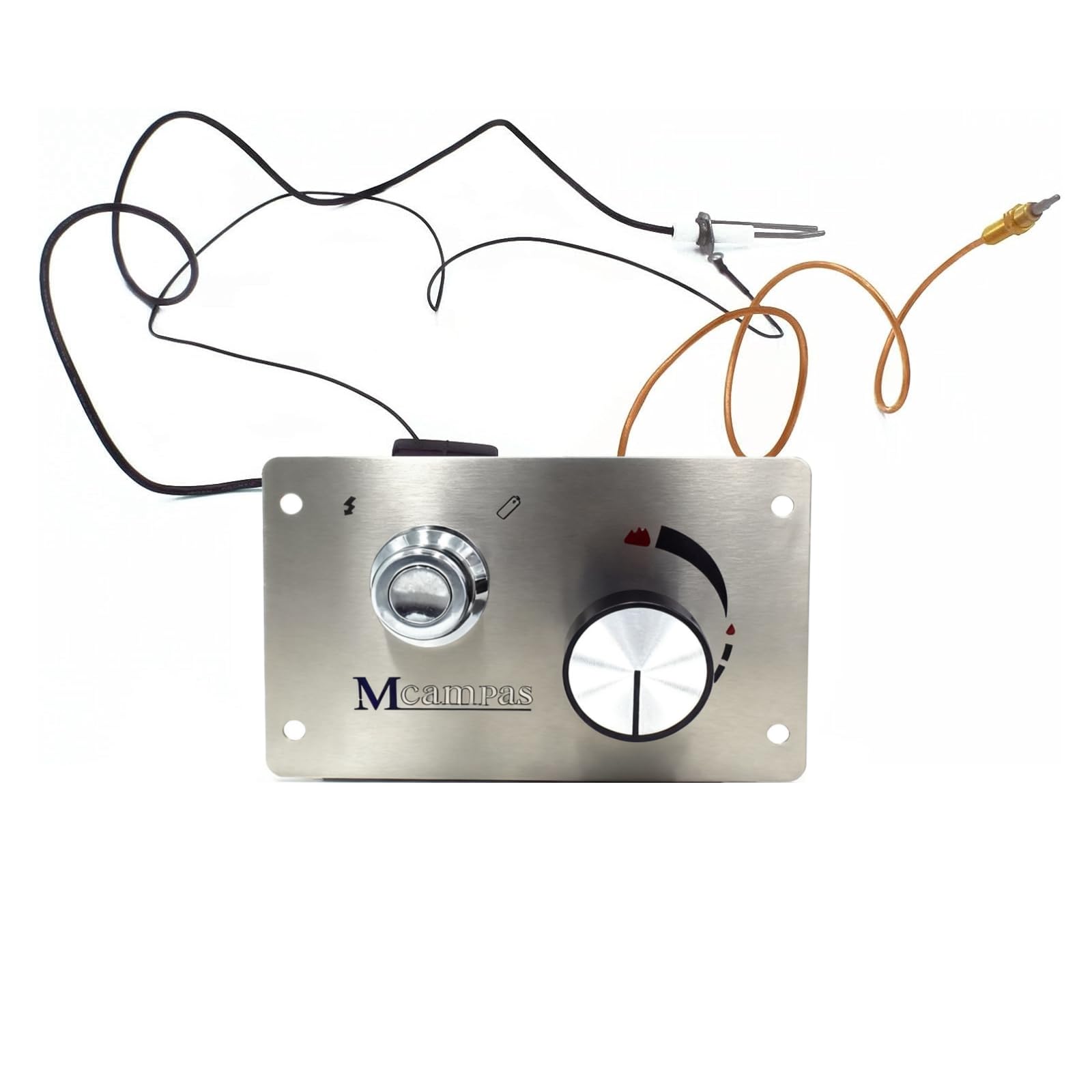

The kit bundles the control faceplate and knob with all the gas-control hardware needed for replacement: an igniter with leads, a primary safety valve, and two thermocouples (one spare) so you have a ready-to-fit repair set. The faceplate is stainless steel for outdoor durability and easy cleaning.

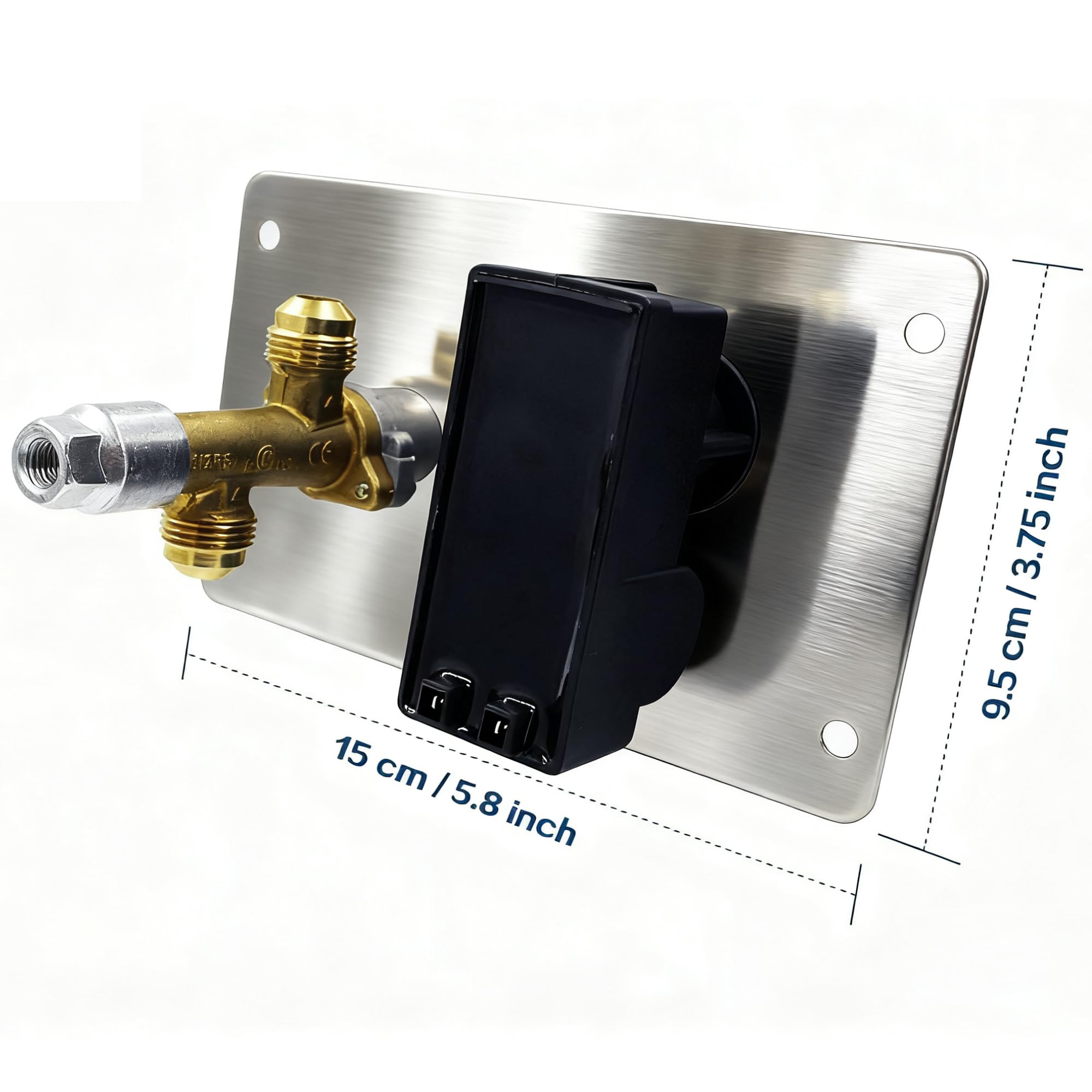

• 304 stainless steel faceplate (5.9 x 3.78 in / 150 x 96 x 1 mm) with glossy finish
• Push-button spark igniter with 35.4" lead and ground wire included
• Brass 1/2 psi main control safety valve plus two overload-protection thermocouples
• Comfortable black round zinc-alloy control knob for manual adjustment

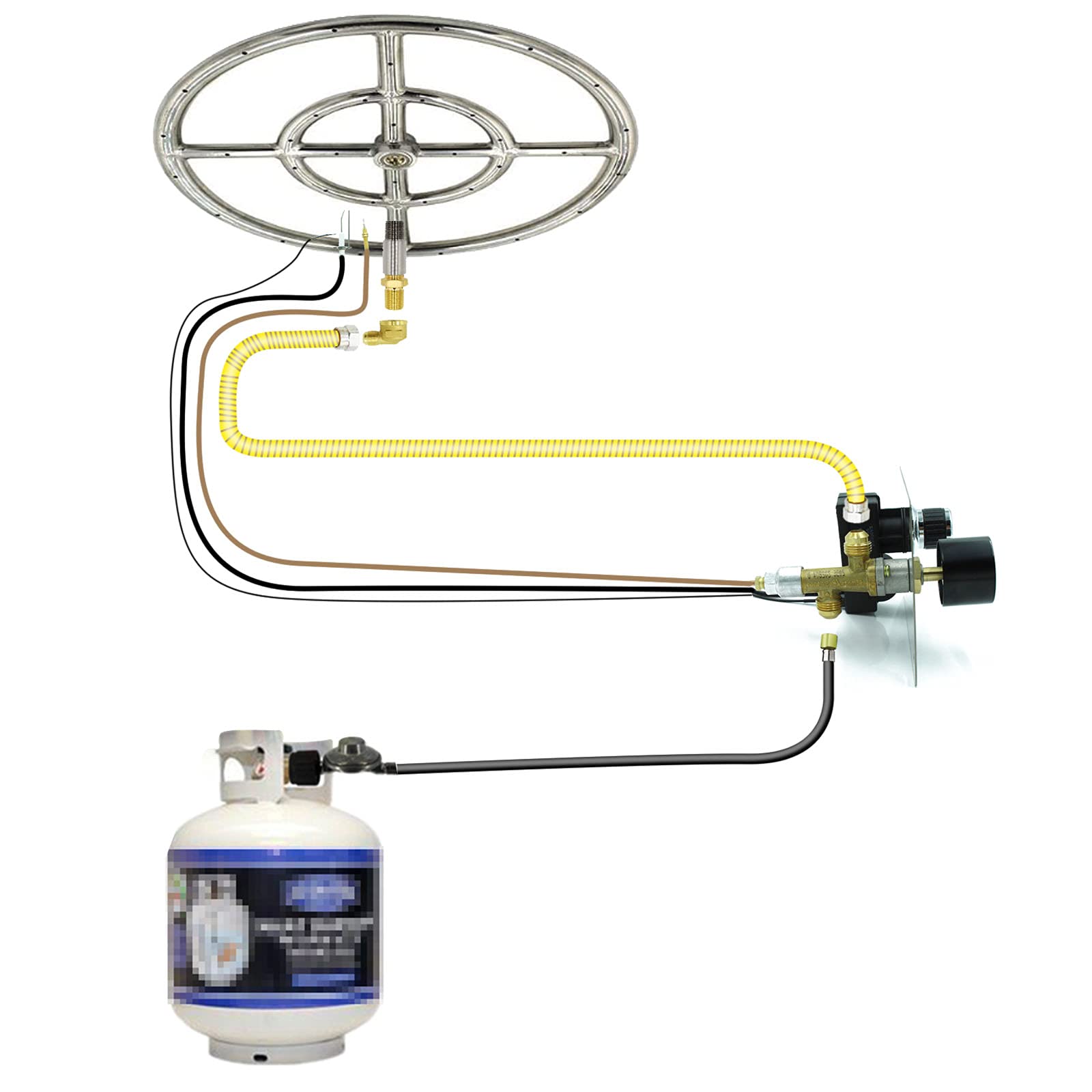

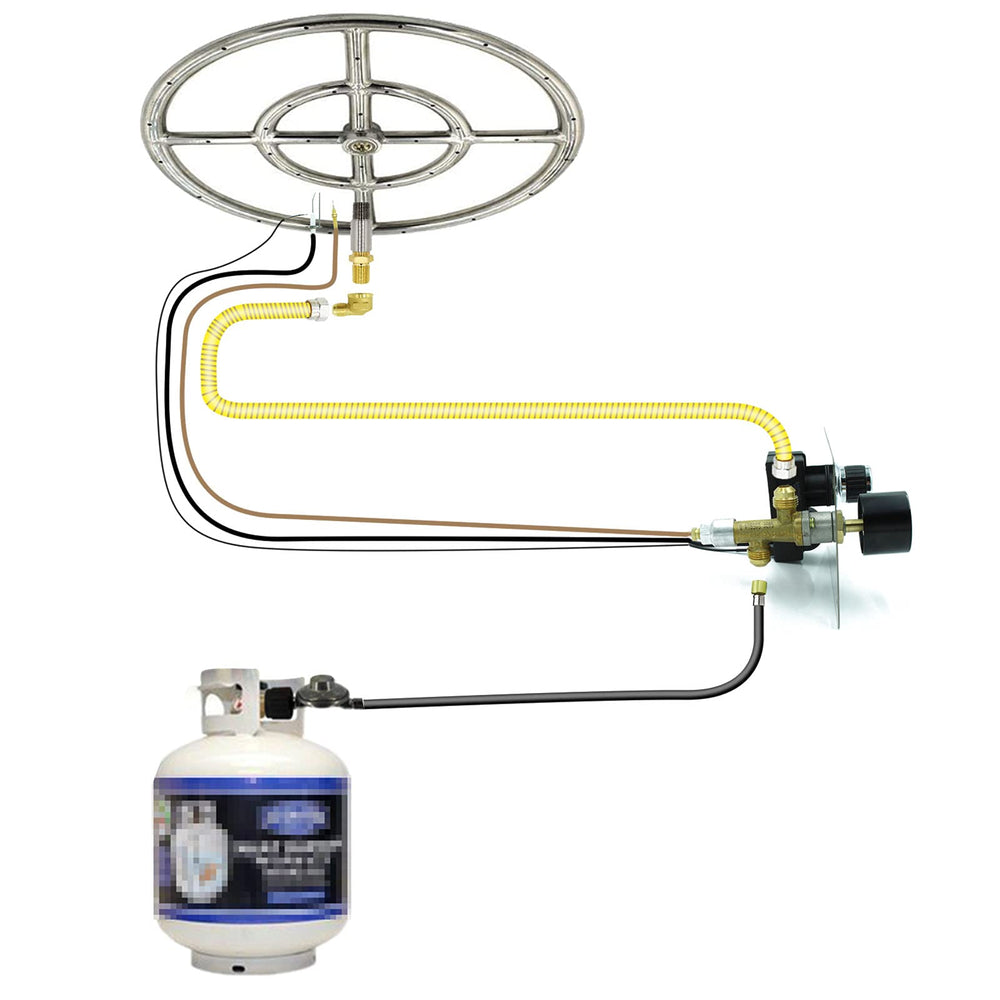

How do I install and wire the igniter and thermocouple?

Install the ignition needle wire and thermocouple around the burner outlet as instructed so the safety valve senses flame presence properly. The kit’s lead lengths and standard fittings make routing and securing simple for a technician or experienced DIY installer; an AA battery powers the igniter.

• Ignition lead length: 35.4 inches for flexible routing to the spark electrode
• Thermocouple lengths: 600 mm and 900 mm options included (one spare)
• Igniter requires one AA battery (not included) — handle with care to avoid accidental sparks
• Thermocouple and ignition needle must be positioned near the burner outlet for reliable sensing

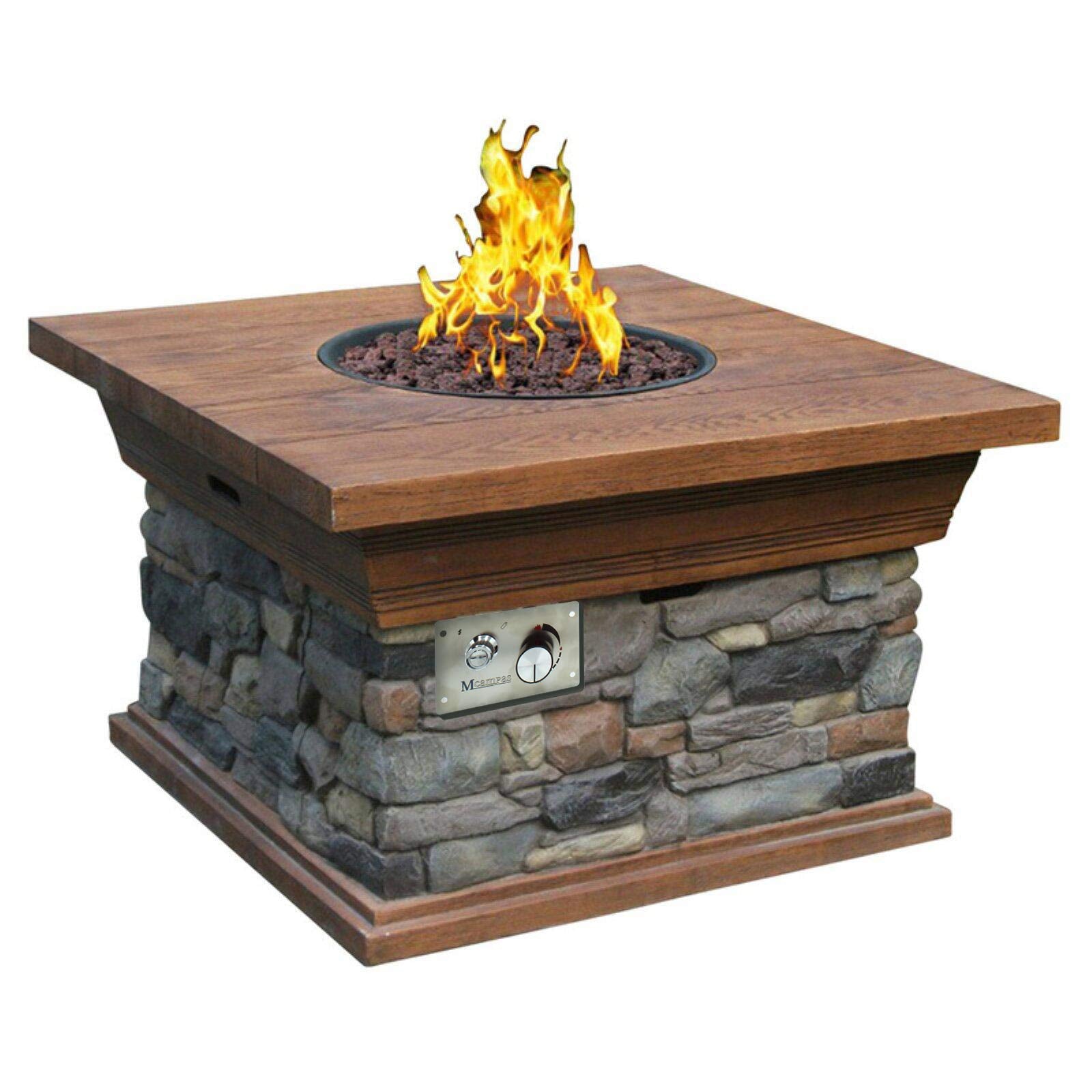

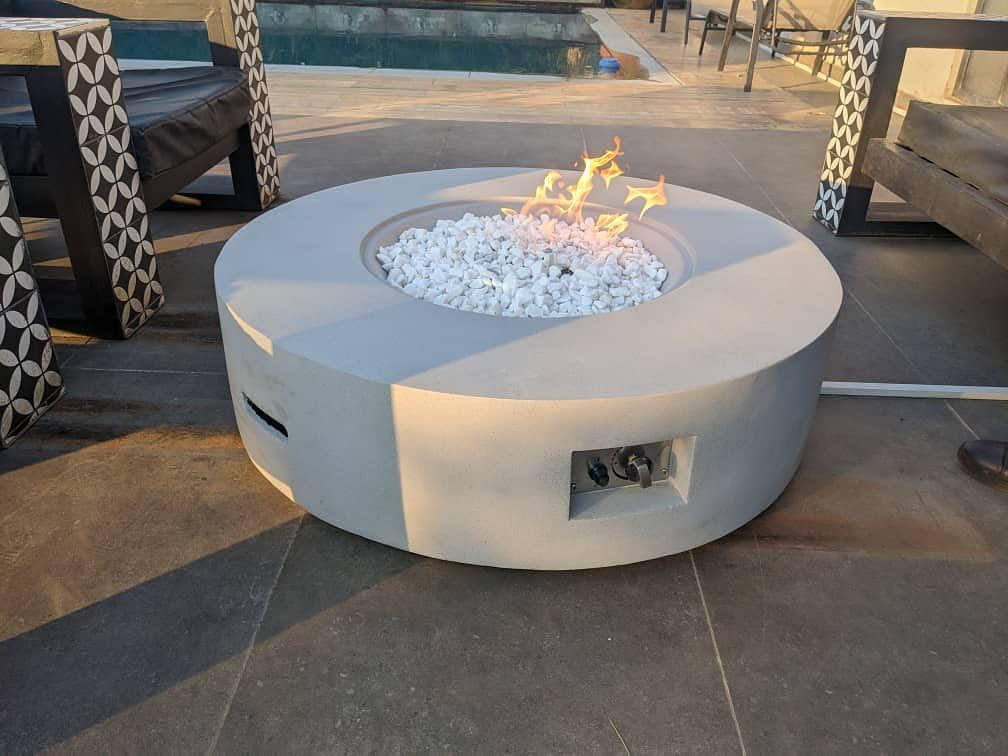

Who is this for? The MCAMPAS Fire Pit Burner Valve System Kit is intended for homeowners, contractors, and outdoor-living specialists who need a reliable replacement or upgrade for small to medium LPG/propane fire pits, patio heaters, and decorative outdoor burners. It suits installations where a compact stainless-steel control panel, certified safety valve, and a reliable push-button ignition are required. Do not use this kit with natural gas appliances; consult a qualified gas technician for installation and local-code compliance.
