Mayset Pergola Beam Riser Brackets — 3-Pack 304 Stainless (Black), 6in Lift & 0–90° Adjustable

Mayset 3 Pack Heavy Duty Stainless Steel 304 Pergola Roof Riser Beam Brackets lift and angle your pergola roof up to 6 inches while providing corrosion-resistant support and 0–90° adjustability.

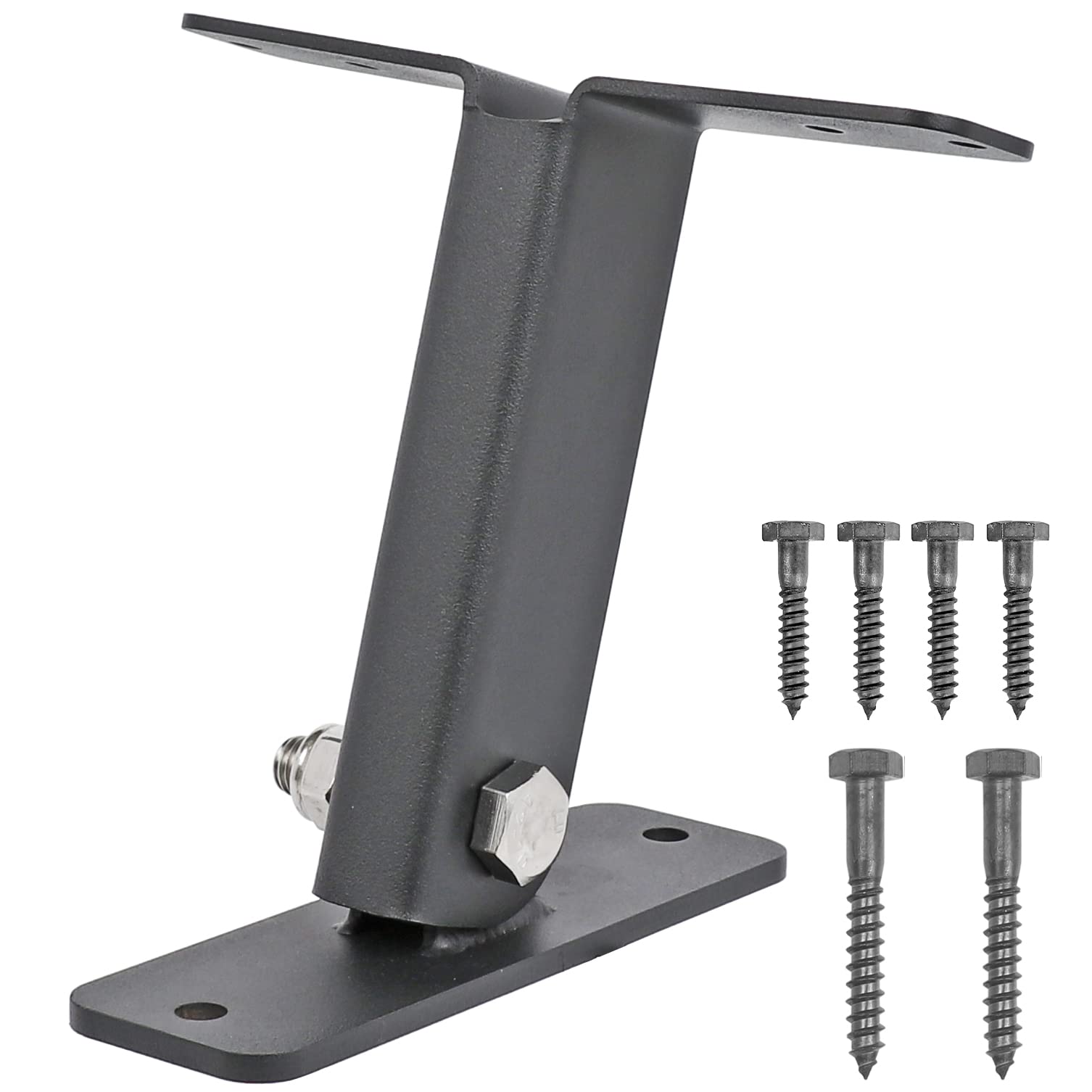

If you need a compact, durable way to raise and angle a pergola beam for better airflow, rain runoff, or roof clearance, these brackets are built to handle outdoor exposure and flexible installation. Each package contains three powder-coated stainless steel riser brackets engineered to be bolted to a wall and to a pergola beam. The parts are finished in black for low-profile appearance, and the stainless construction helps resist rust where metal meets weather.

How will these brackets change my pergola’s roof angle?

The bracket design allows the swing arm to pivot so the beam can be set anywhere between 0° (flat) and 90° (vertical) to suit your roof slope or desired opening. Adjustment is simple and designed to remain stable once fastened. Use the included fasteners to lock the chosen angle for a secure fit.

• Angle range: fully adjustable from 0° to 90°
• Pivoting swing arm locks to maintain selected angle
• Suitable for common pergola roof pitches and custom angles

How much lift do these riser brackets provide and what are the dimensions?

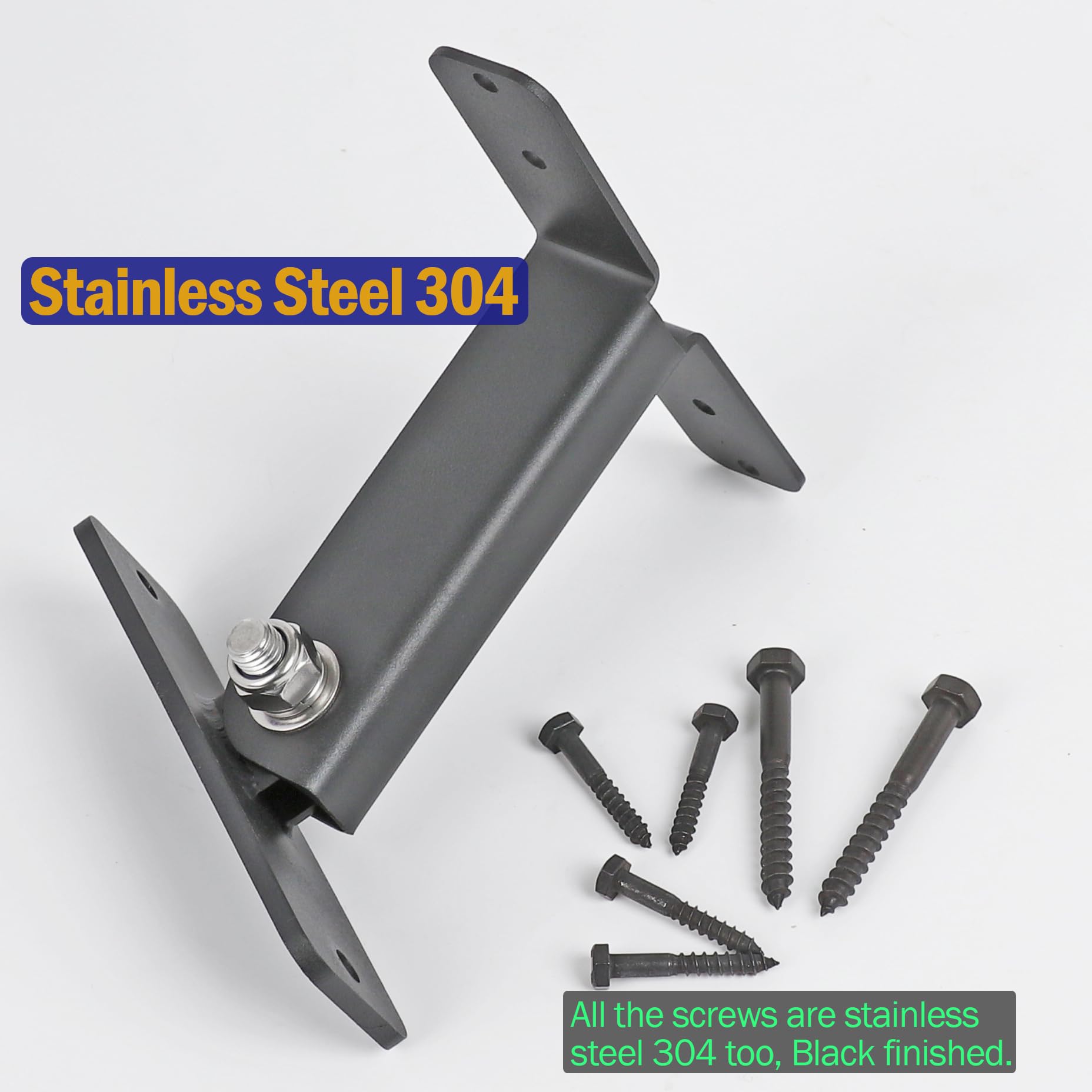

Each bracket contains a 6-inch support arm that raises the attached beam roughly 6 inches vertically from the mounting surface, giving extra clearance or a steeper roofline without changing the beam length. The swing arm is fabricated from 11-gauge steel for strength, while the baseplate uses thicker 7-gauge steel for secure wall attachment. The compact footprint makes them suitable for most residential pergolas.

• Vertical rise: approximately 6 inches
• Swing arm thickness: 11GA for rigidity
• Baseplate thickness: 7GA for secure mounting

What hardware is included and what should I prepare for installation?

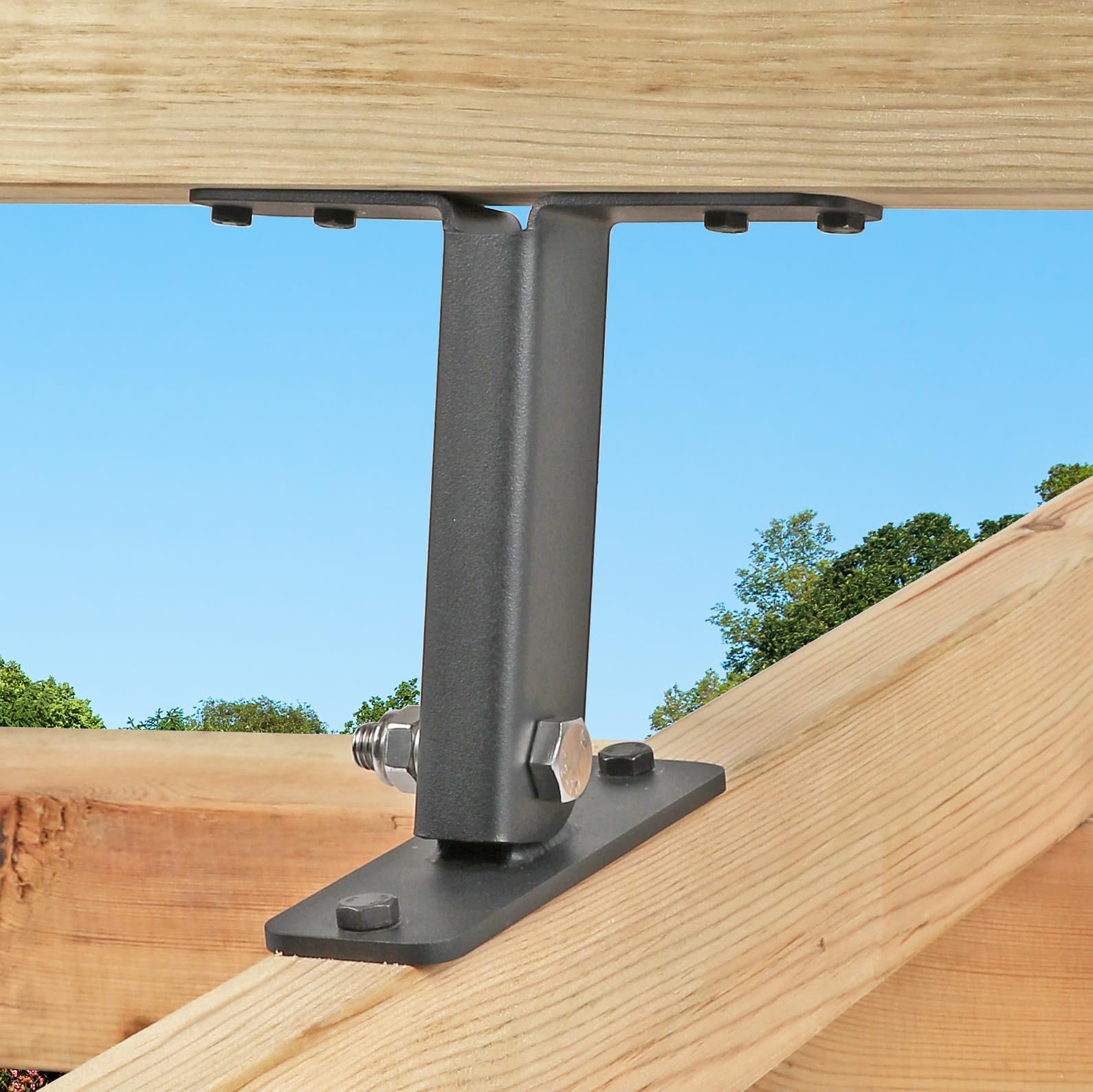

The kit includes stainless-steel fastening hardware sized for wooden supports and pergola beams; pre-drilling is recommended before driving the hexagon screws. Two 5/16" screws are supplied for the wall or post base, and four 7/32" screws are included for attaching the beam to the swing arm. Because all screws are stainless steel, they match the bracket finish and resist corrosion outdoors.

• Included fasteners: 2 × 5/16" screws (wood base) and 4 × 7/32" screws (beam)
• All screws are stainless steel; pre-drill holes before installing hexagon screws
• Recommended tools: drill, appropriate hex driving bit, level, and measuring tape

Are there any load or span limits I should know about?

These brackets are intended to support a beam in typical residential pergola builds when used as specified. For a single beam supported by the three supplied brackets, Mayset advises that the beam span should not exceed 16 feet to maintain safe support spacing and performance. For wider structures or heavier roofing materials, consult a structural professional or supplement with additional supports.

• Maximum recommended beam width when using three brackets: 16 feet
• Best for standard pergola beams and lightweight roofing materials
• For heavy loads or longer spans, add more supports or get engineering guidance

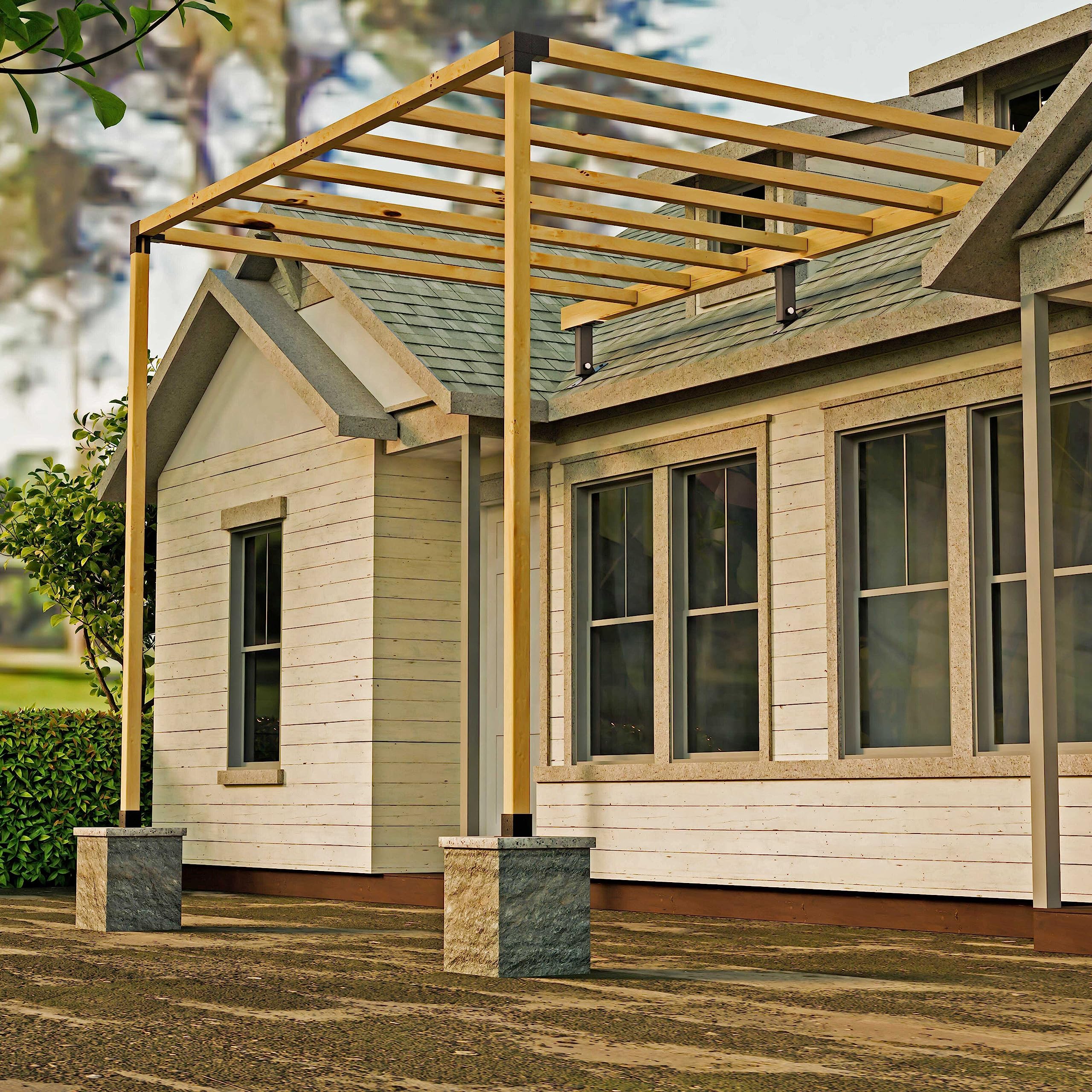

Who is this for: These Mayset riser brackets suit homeowners, contractors, and DIYers who want to raise or angle pergola beams with a durable, weather-ready solution. They are especially useful when you need a neat black-finished steel bracket that resists rust, offers a 6-inch lift, and provides a full 0–90° pivot range. If you plan to support a beam wider than 16 feet or carry heavy roofing loads, consider adding extra brackets or consulting a pro to ensure structural safety.
