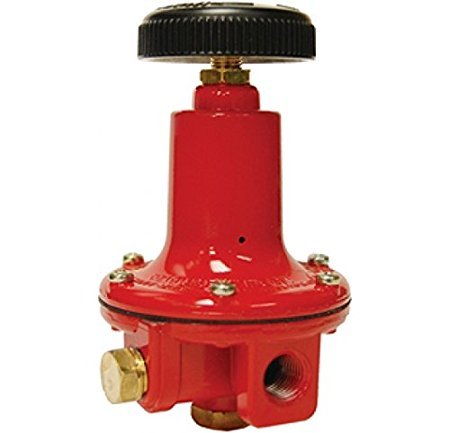

Marshall Excelsior Propane Regulator MEGR-6120-60 0–60 PSI, Die-Cast Aluminum, 1/4" FNPT, 2-Port

Marshall Excelsior MEGR-6120-60 is an adjustable die-cast aluminum propane regulator that delivers controllable high-pressure output from 0 to 60 PSI with 1/4" FNPT inlet and outlet and two ports for flexible hookups.

This compact regulator is built to manage propane in either vapor or liquid form and is designed for applications that require higher-than-standard pressures. Its die-cast aluminum body keeps weight down while providing a corrosion-resistant housing, and the side outlet port accepts a pressure gauge (not included) for quick monitoring. The MEGR-6120-60 fits systems that use 1/4" FNPT connections and includes two ports to simplify installation or attach accessories.

How does the MEGR-6120-60 control propane pressure?

The regulator uses an adjustable spring-and-diaphragm mechanism to vary outlet pressure from 0 up to 60 PSI, letting you fine-tune flow for different appliances or systems. Turning the adjustment screw changes spring tension and therefore setpoint pressure, while the robust construction helps maintain stable output under normal load.

• Adjustable range: 0–60 PSI for high-pressure needs
• Side outlet port suitable for adding a gauge for real-time monitoring
• 1/4" FNPT inlet and outlet for standard plumbing compatibility
• Die-cast aluminum body for reduced weight and corrosion resistance

Can I use it for vapor and liquid propane?

Yes — the MEGR-6120-60 is specified for use with both vapor and liquid propane, offering flexibility when working with different delivery methods. Ensure tubing, fittings, and downstream components are rated for the chosen phase and the regulator's pressure range.

• Rated for vapor or liquid propane service
• Two ports allow branching or adding monitoring devices
• Use compatible piping rated for up to 60 PSI or higher as required

What fittings and installation considerations should I know?

The regulator uses 1/4" FNPT for both inlet and outlet, a common thread size in propane assemblies for compact systems. Mount and seal the regulator with appropriate thread sealant or tape rated for LPG, and install a pressure gauge on the side outlet if you need visual verification of set pressure; gauge is not included.

• 1/4" FNPT inlet and outlet — commonly available fittings
• Side outlet port can accept a pressure gauge (not included)
• Use LPG-rated thread sealant and follow local codes for installation

How durable and safe is the construction?

The regulator's die-cast aluminum housing balances strength and light weight while resisting rust in many environments. It is intended for use within its rated pressure range; proper installation, leak-checking, and use of compatible components are essential for safe operation.

• Die-cast aluminum for corrosion resistance and low weight
• Adjustable control with visible side port for optional gauge monitoring
• Two ports increase flexibility for system layout and diagnostics

Who this is for: The Marshall Excelsior MEGR-6120-60 suits technicians, fabricators, and hobbyists who need a compact, adjustable high-pressure propane regulator for equipment testing, custom burners, industrial pilot systems, or portable setups where 0–60 PSI control and 1/4" FNPT connections are required. It’s best for users who will pair it with properly rated fittings, add a gauge if pressure verification is needed, and follow applicable safety and code requirements during installation.
