LNEX Solar Charge Controller 10A PWM Slim IP65 for 12V/24V Systems with LCD, 5-Stage Charging

The LNEX Solar Charge Controller is a slim, IP65-rated 10A PWM regulator that manages 12V/24V solar systems and protects multiple battery chemistries while showing system status on a backlit LCD.

Designed for compact solar installations where space and weather resistance matter, this controller combines a very low-profile housing with five-stage PWM charging logic, automatic 12V/24V detection, and wide battery compatibility. It presents real-time current and voltage information via an LCD and LEDs, and its protection features reduce risk from common electrical faults. The unit aims to maximize usable solar charge without adding notable self-consumption and to remain functional outdoors under wet conditions.

How does the LNEX controller improve battery charging and lifespan?

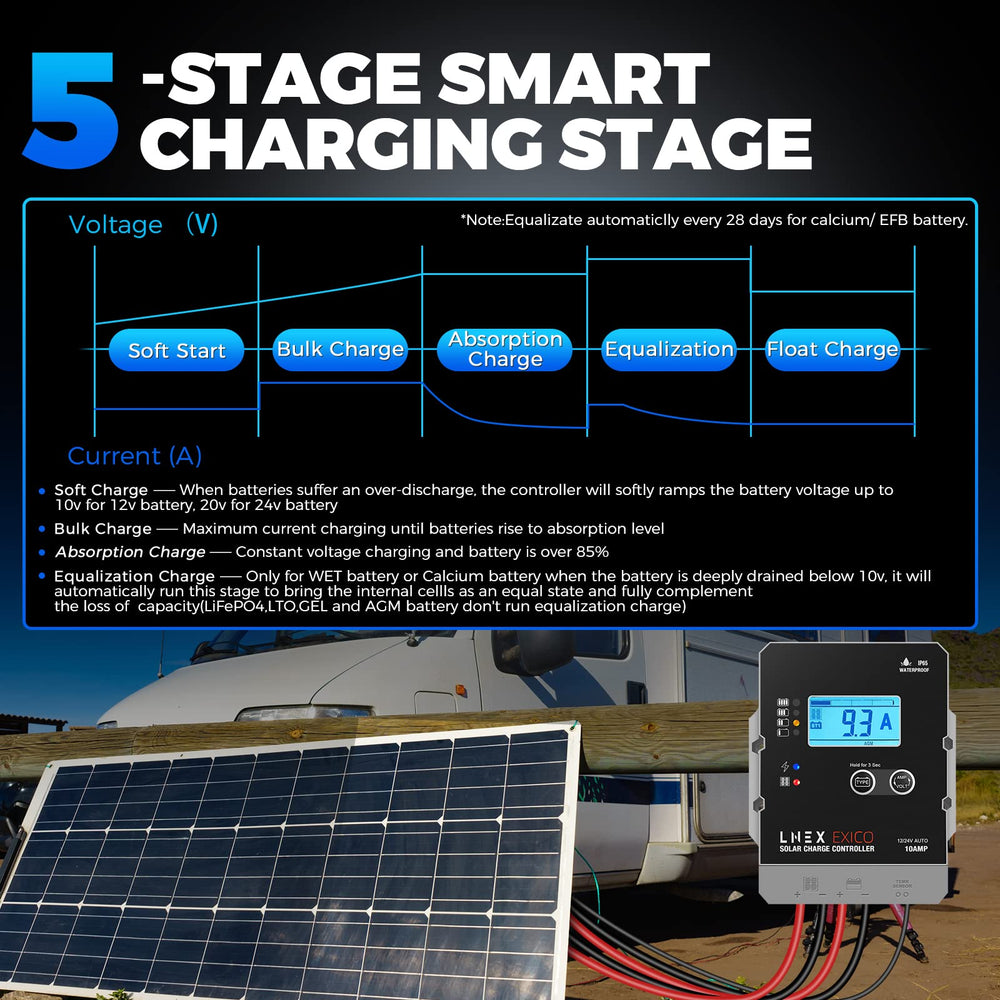

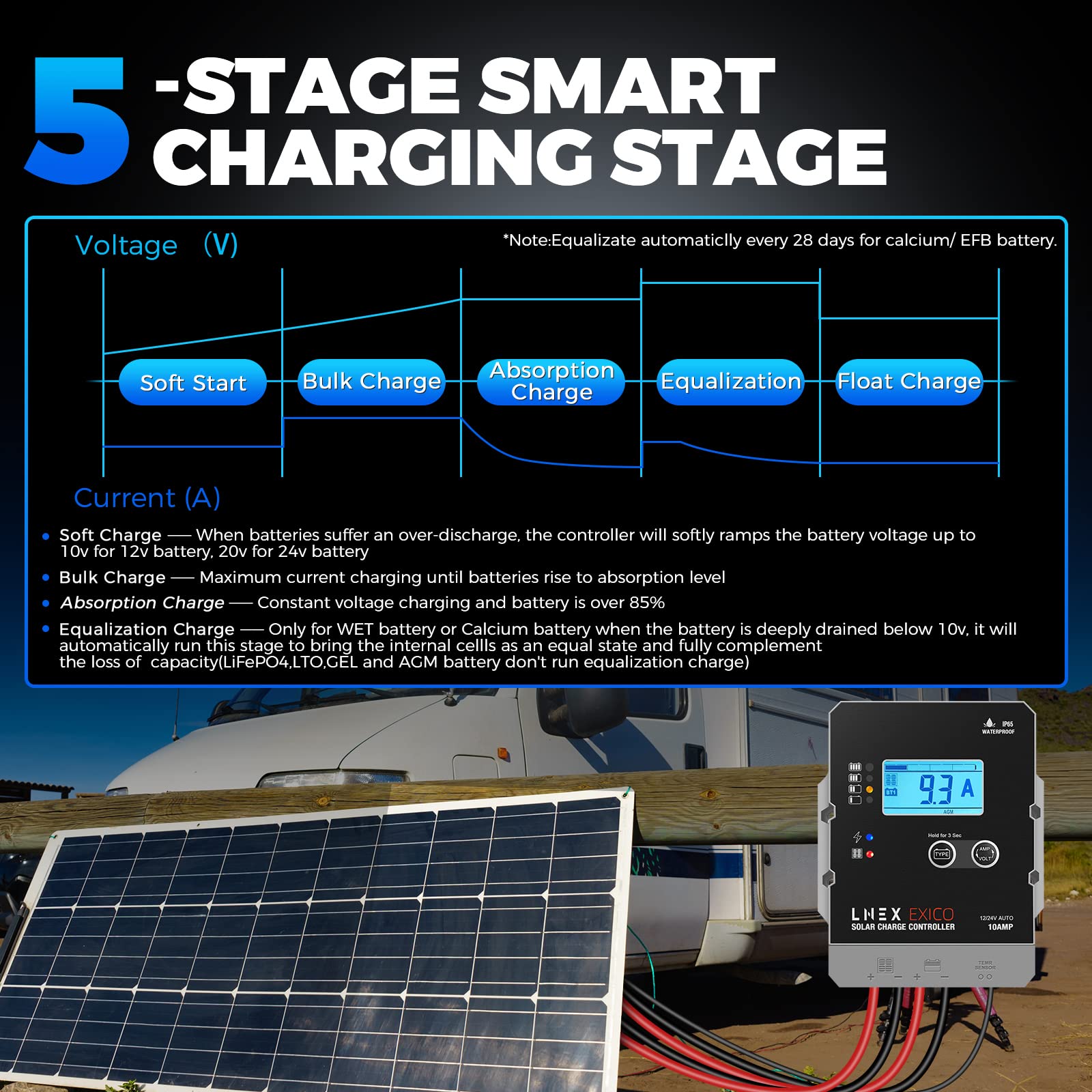

The controller uses intelligent PWM sequencing to deliver staged charging tailored to battery needs rather than a single fixed output. By cycling through soft start, bulk, absorption, float and timed equalization, it reduces stress on cells and supports more complete, balanced charging.

• 5-stage PWM algorithm for controlled charge phases
• Automatic equalization every 28 days for applicable battery types
• Soft-start prevents inrush current to protect batteries and panels
• Compatible charge profiles for LiFePO4, GEL, AGM, flooded and more

Will this controller work with my 12V or 24V system and battery type?

The LNEX unit detects system voltage automatically and configures itself for either 12V or 24V arrays, so no manual switching is needed. It supports a wide range of chemistries including lead-acid variants and lithium formats commonly used in RVs, boats, cabins and off-grid kits.

• Auto-detects 12V/24V DC systems
• Profiles for LiFePO4, LTO, AGM, Gel, flooded lead-acid, EFB and calcium batteries
• Suitable for deep-cycle and starter battery applications
• Works for vehicles, marine, RV, small off-grid and powersports setups

How durable and weatherproof is the controller for outdoor use?

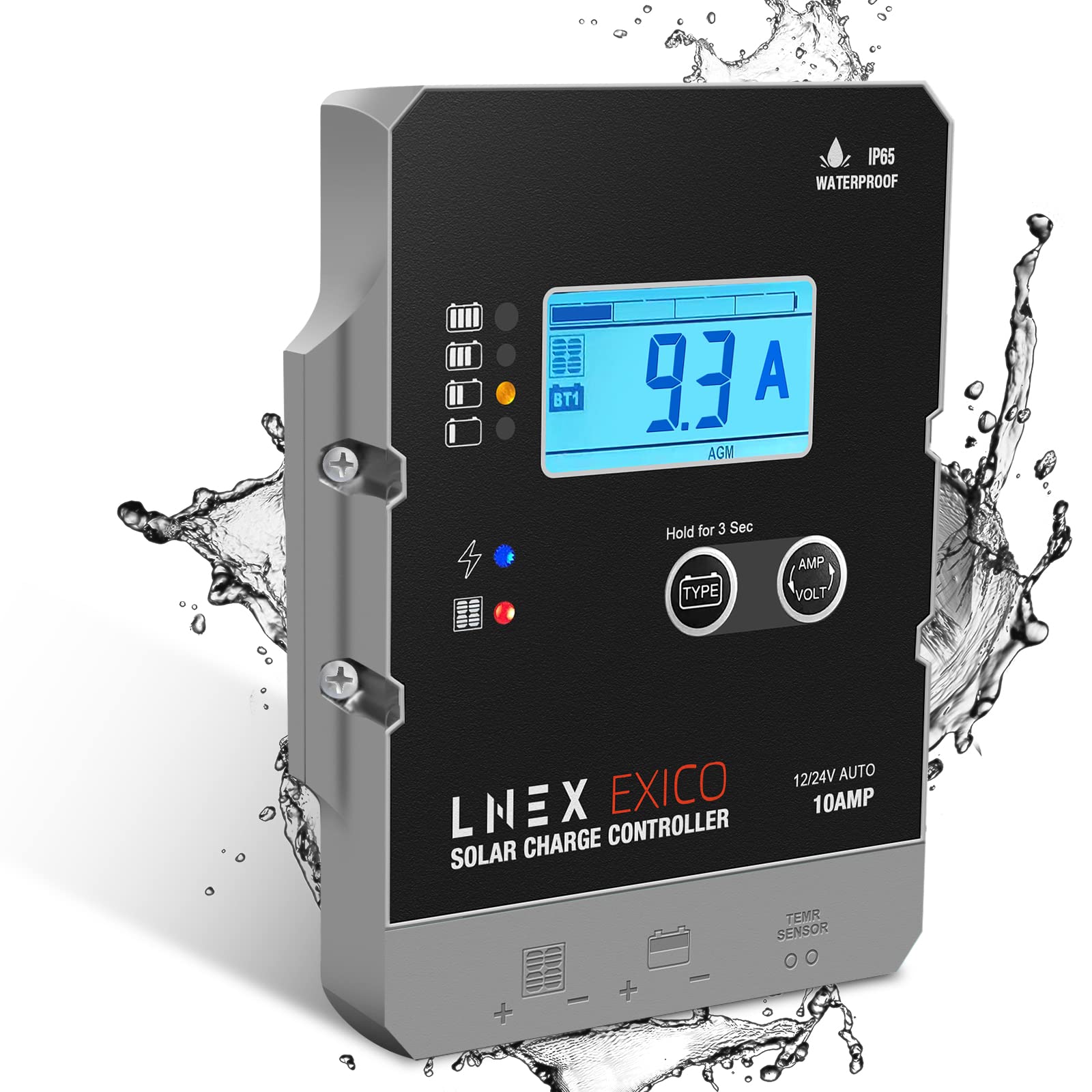

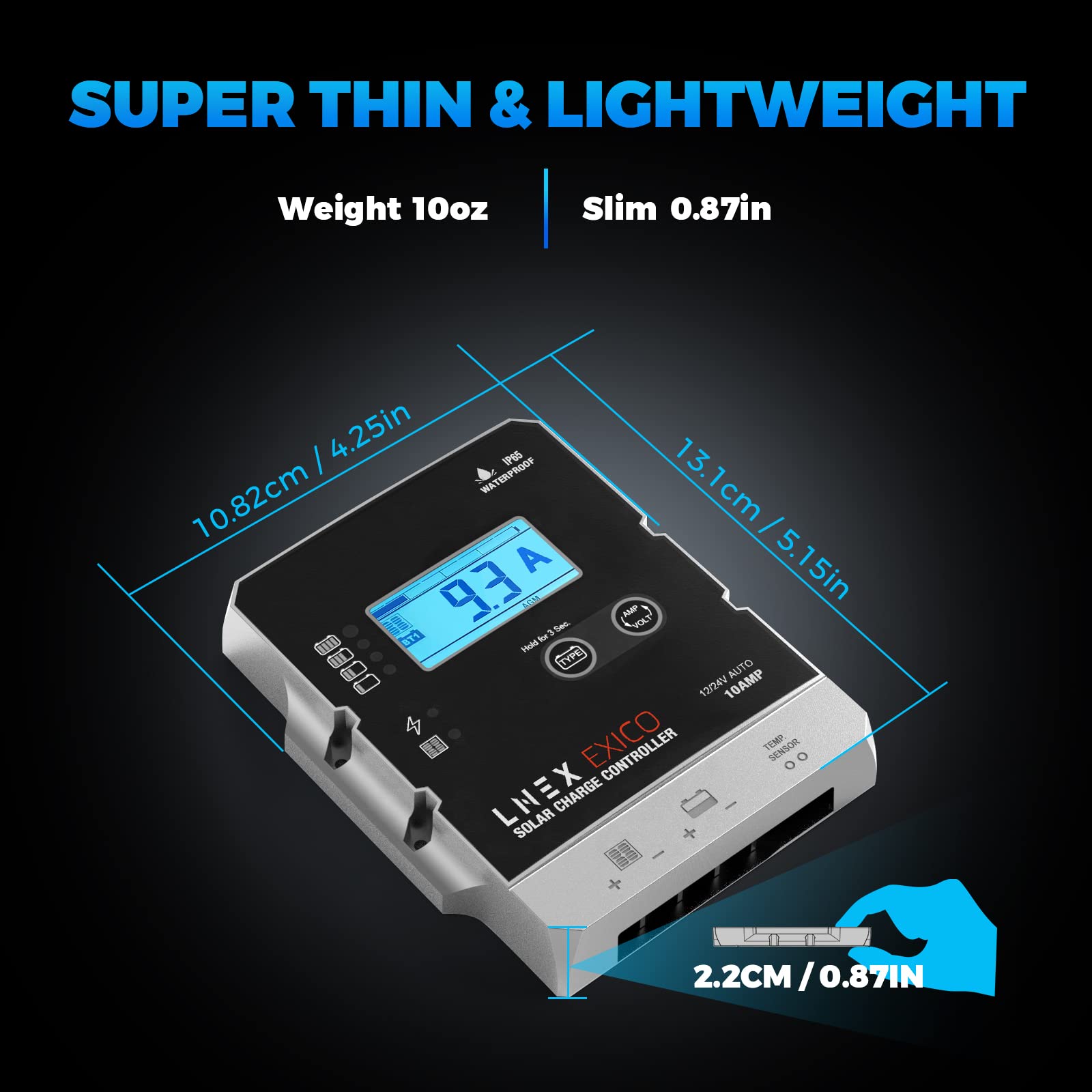

Encased in an IP65-rated body, the controller is engineered to withstand rain, sprays and condensation commonly encountered in outdoor installations. Its super-thin design minimizes footprint while still delivering rugged protection and consistent operation in exposed conditions.

• IP65 waterproofing resists rain and spray
• Low-profile housing for tight mounting locations
• Operates reliably in outdoor enclosures and shaded boxes
• LEDs and backlit LCD remain readable in varied light

What safety features and monitoring does the LNEX controller include?

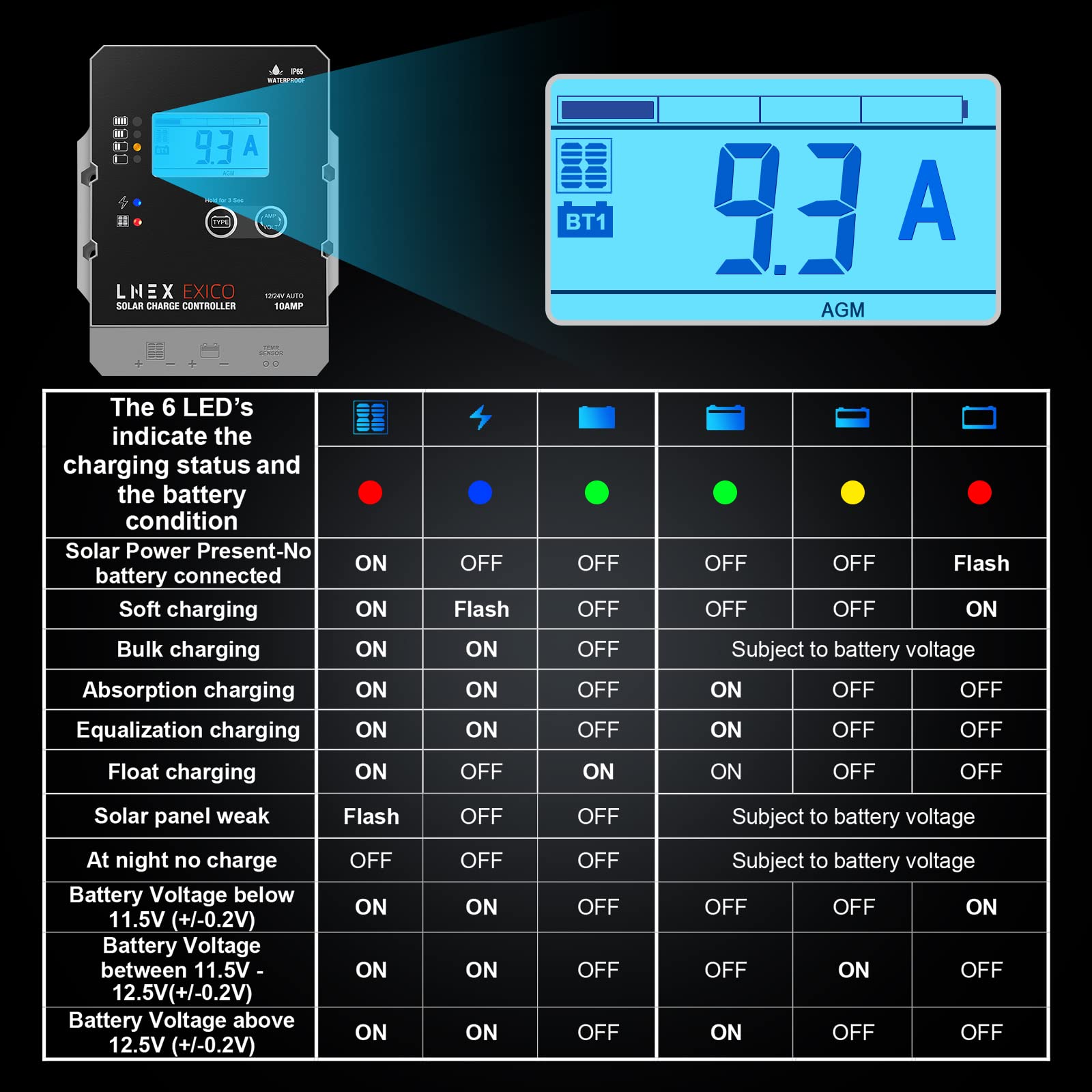

Multiple built-in safeguards protect the battery and system from common faults like overcharge, over-discharge, short circuits and overheating. The front-panel LCD and LED indicators keep you informed of solar current, battery voltage and operating mode, and the controller remembers the last selected settings after power cycles.

• Protections: over-temperature, over-voltage, over-current and short-circuit
• Overcharge and over-discharge prevention to protect battery health
• Auto memory returns to last configuration on restart
• Front-panel LCD plus multi-color LEDs for instant status

Who is this for? The LNEX 10A Solar Charge Controller is a fit for DIY solar enthusiasts, RV and marine owners, and anyone building a small off-grid or backup system who needs a compact, weatherproof regulator. It’s especially useful where space is limited, diverse battery chemistries are used, or clear visual monitoring and multiple safety layers are priorities. Choose this controller when you want a thin, easy-to-install PWM solution that balances performance, protection, and outdoor durability without complex setup.
