Little Giant Submersible Pump 2E-N 115V 300 GPH — Compact Oil-Filled, 11.8 ft Head

The Little Giant 2E-N is a compact, oil-filled submersible pump that delivers up to 300 GPH for small water transfer, fountain, and recirculation jobs.

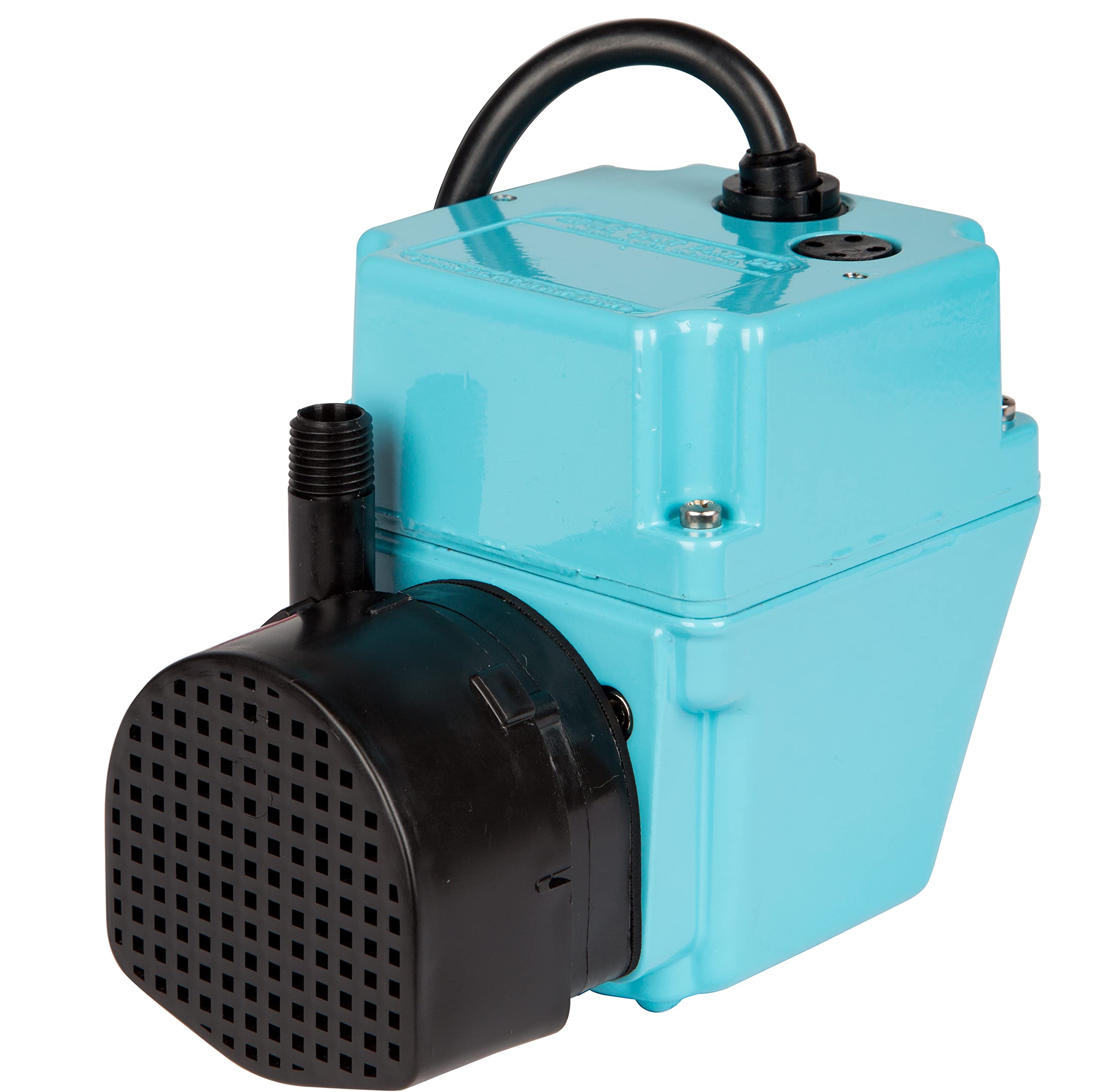

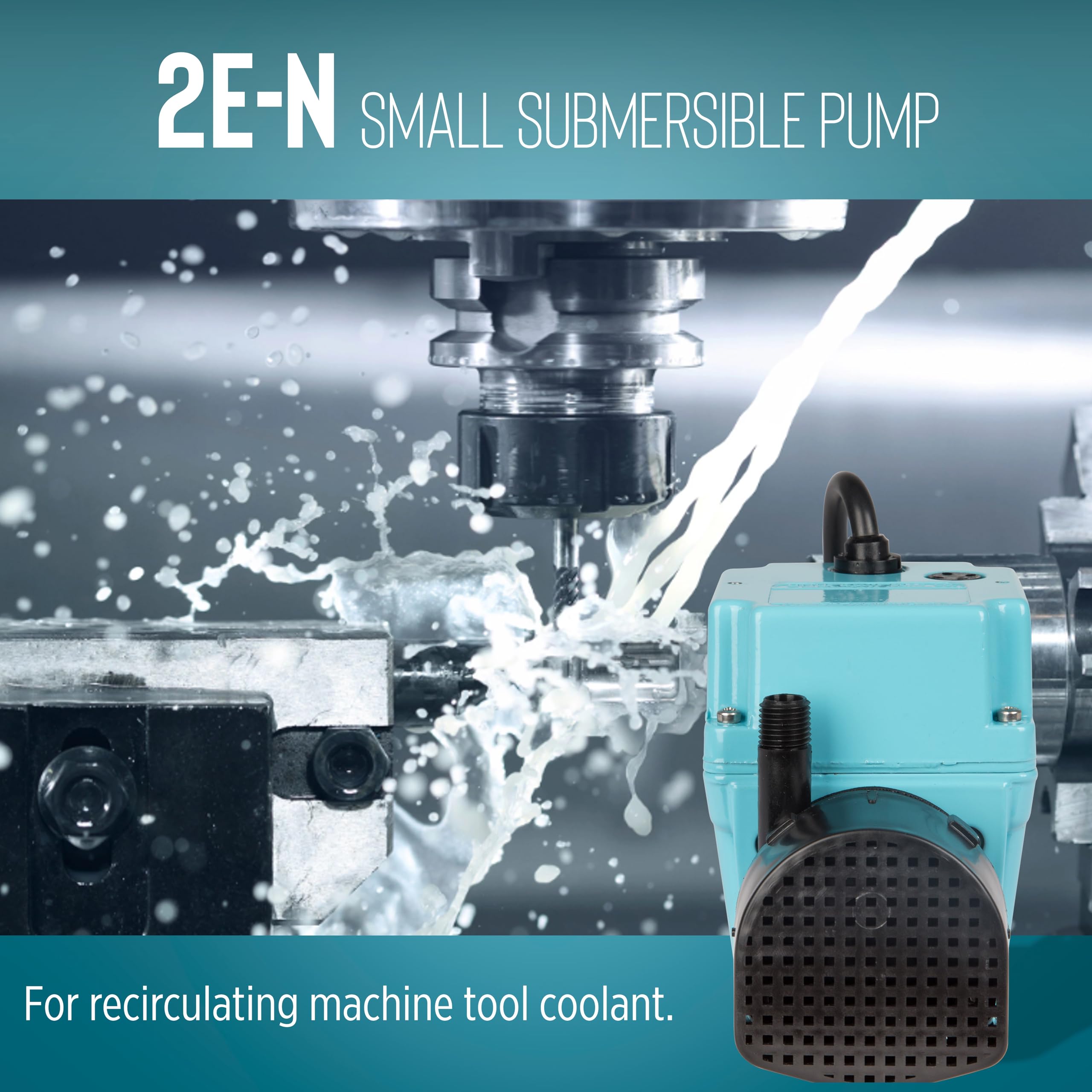

Designed for indoor and light outdoor use, the 2E-N combines a rust-resistant die-cast aluminum housing, screened intake and a nylon impeller to keep small debris out while maintaining steady flow. The pump runs on standard 115V power, includes thermal overload protection, and reaches a shut-off head of 11.8 feet — a useful balance of size, durability, and performance for fountains, condensate removal, machine tool coolants, and similar applications.

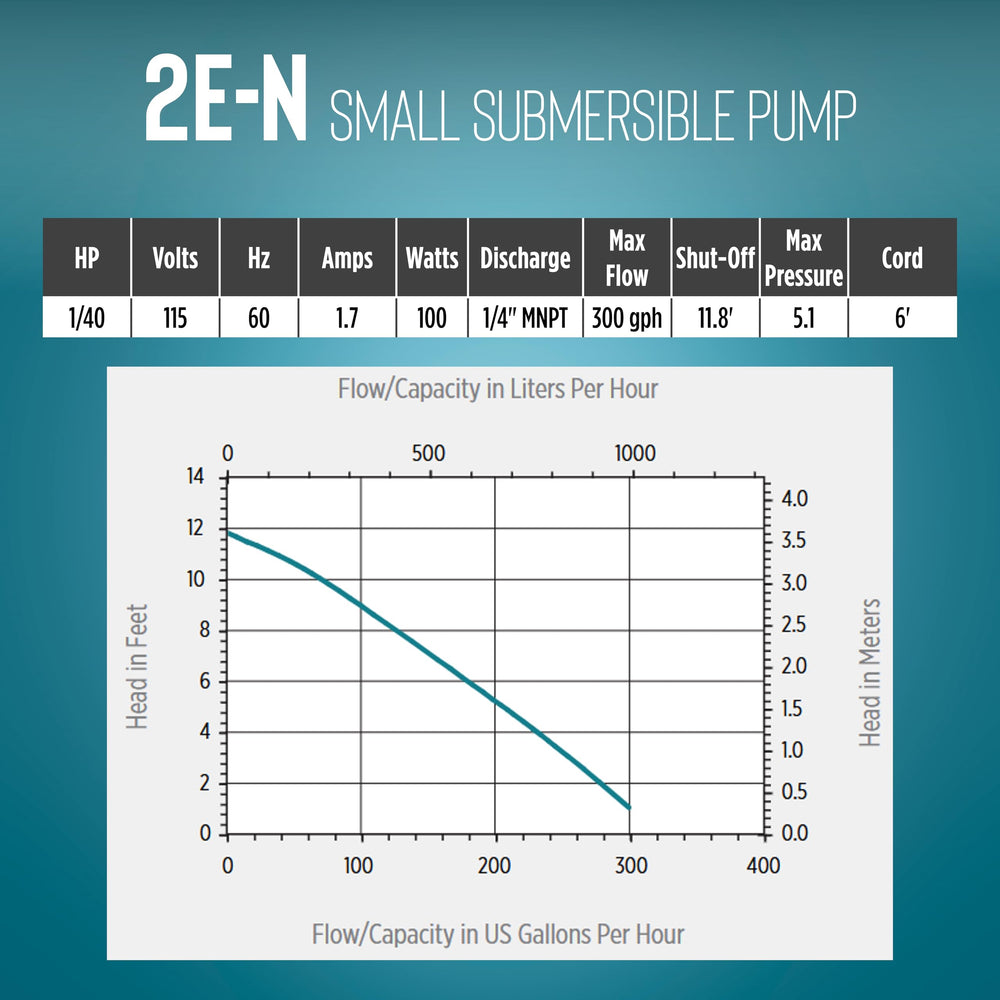

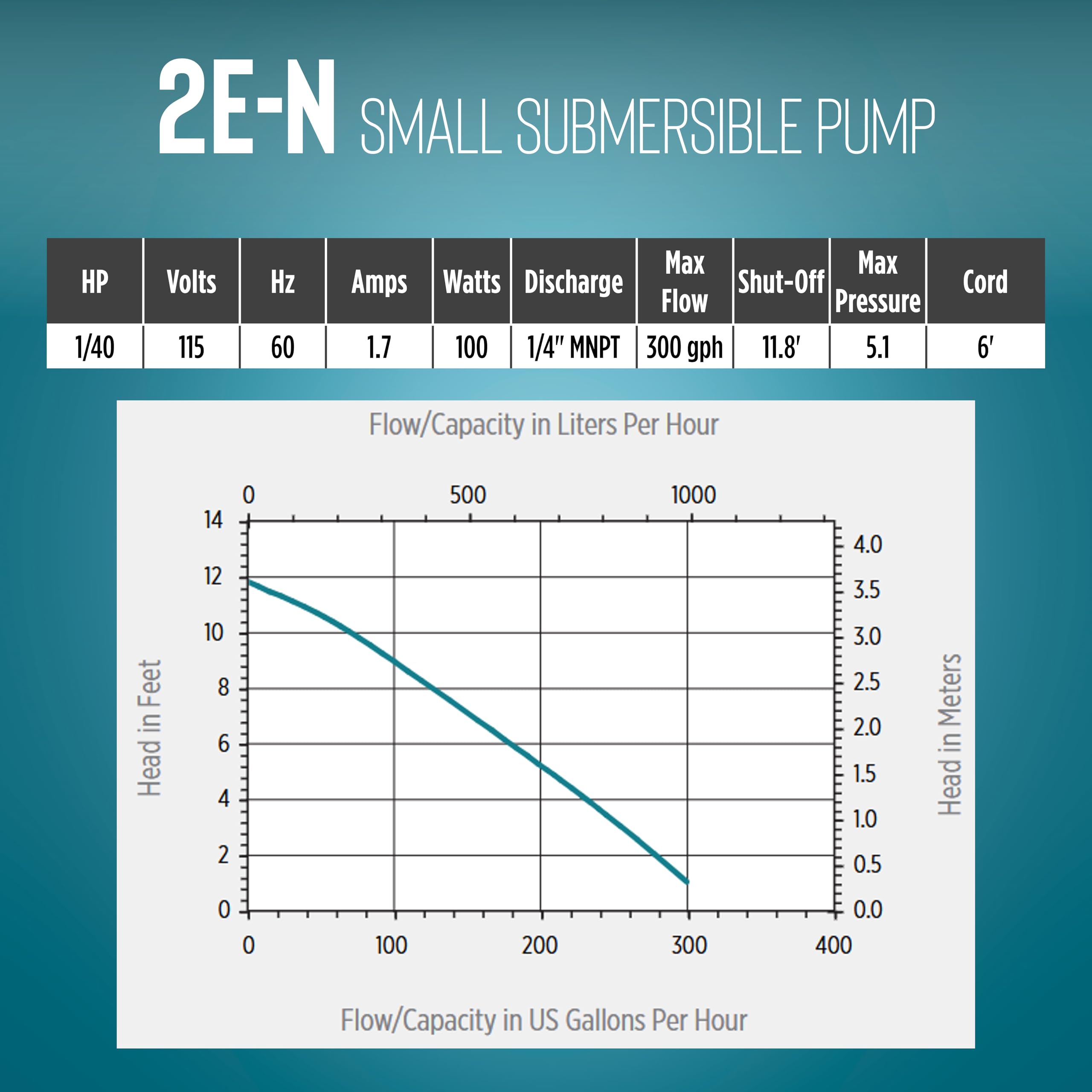

How much water can the 2E-N move and at what head?

The Little Giant 2E-N produces up to 300 gallons per hour at a 1-foot head and can push water up to an 11.8-foot shut-off head. Flow will decrease as vertical lift increases, so match system height and nozzle restrictions to expected performance.

• Rated flow: 300 GPH at 1 ft head
• Maximum shut-off head: 11.8 ft
• Max pressure roughly 5.1 PSI at peak head
• 1/4-inch MNPT discharge for standard fittings

What materials and protections does it include for longevity?

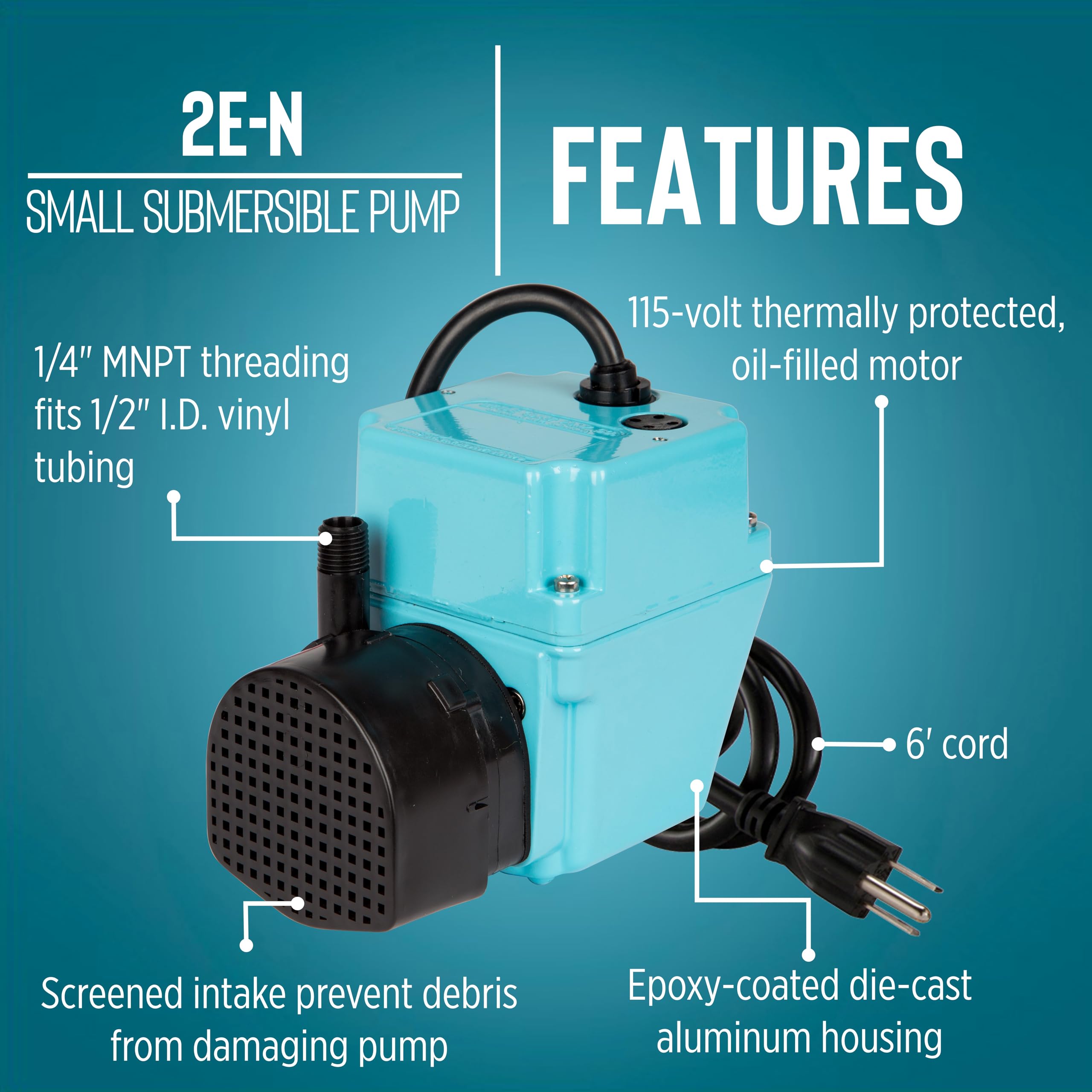

The pump uses an epoxy-coated die-cast aluminum housing and motor cover to resist rust and corrosion in wet environments. It’s oil-filled for quieter running and improved heat transfer, while a screened intake and nylon impeller reduce clogging and wear from small debris.

• Epoxy-coated die-cast aluminum housing and motor cover
• Oil-filled motor for smoother operation
• Screened intake to protect the impeller
• Nylon impeller and volute for chemical and wear resistance

What electrical and installation details should I know?

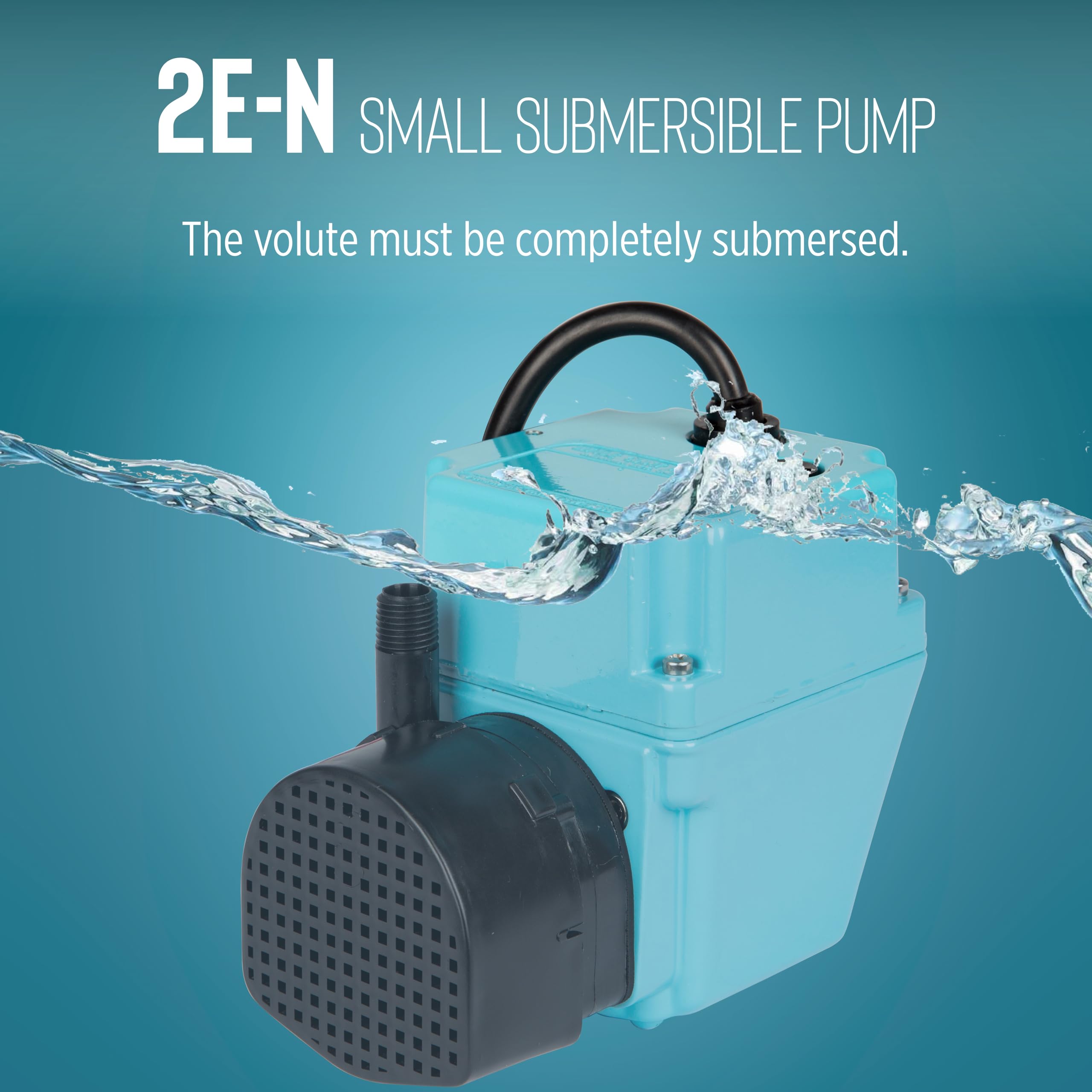

The 2E-N operates on 115 volts drawing about 1.7 amps (100 watts) and includes thermal overload protection for safety. Installation is straightforward: submerge the pump, connect standard 1/4-inch MNPT fittings or adapters, and route the 6-foot cord to a grounded outlet.

• 115 V, 100 W, 1.7 A motor with thermal overload protection
• cCSAus listed for safety compliance
• 6-foot power cord — plug-and-play for most installations
• 1/4-inch MNPT discharge for easy hose or pipe connection

How should I maintain the pump for reliable operation?

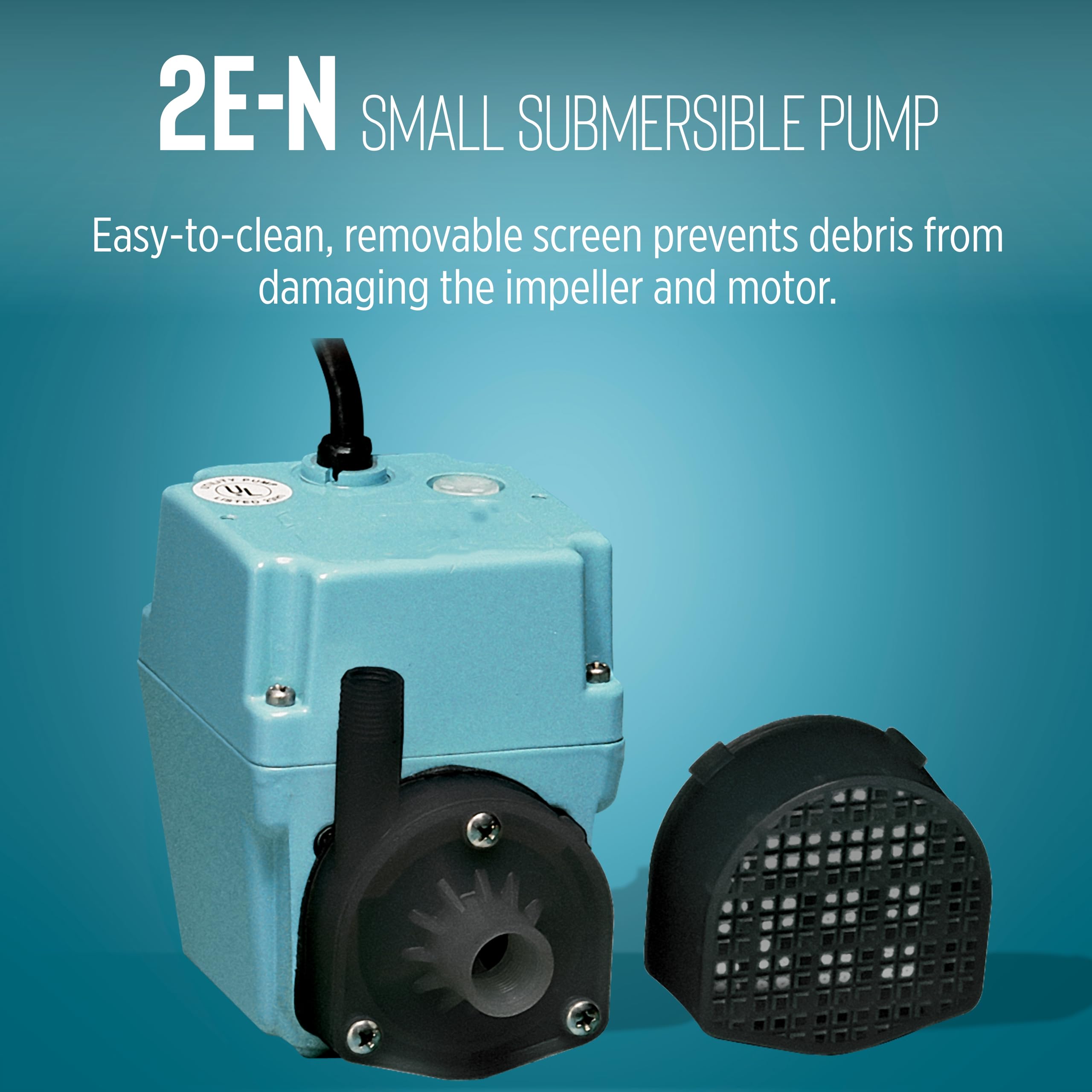

Regularly inspect and clean the screened intake to prevent debris buildup and verify the cord and fittings remain intact. For intermittent or seasonal use, store the pump dry and check oil fill and seals before returning to service.

• Clean screened intake and housing periodically
• Check cord and connections for damage before use
• Store dry when not in service for extended periods
• Replace fittings or adapters as needed for leak-free operation

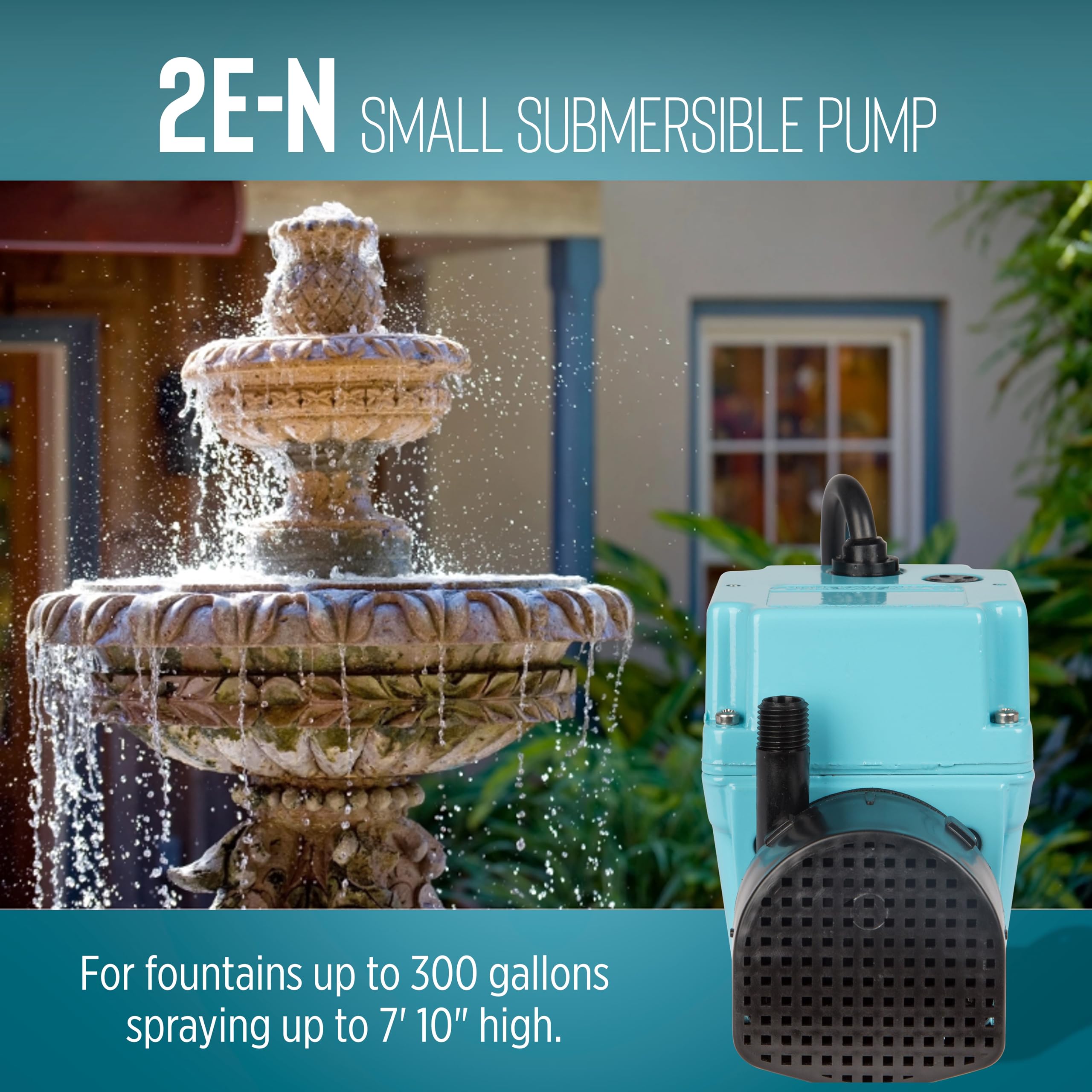

Who is this for: The Little Giant 2E-N is aimed at homeowners, landscapers and light industrial users who need a small, reliable submersible pump for fountains, water displays, condensate or coolant recirculation, and similar low-to-moderate flow tasks. If you need a compact pump with corrosion-resistant housing, screened intake and straightforward electrical requirements, the 2E-N offers an economical solution without complex installation.
