Little Giant fountain pump PE-1H-PW 170 GPH compact submersible, hooded volute & flow control (6' cord)

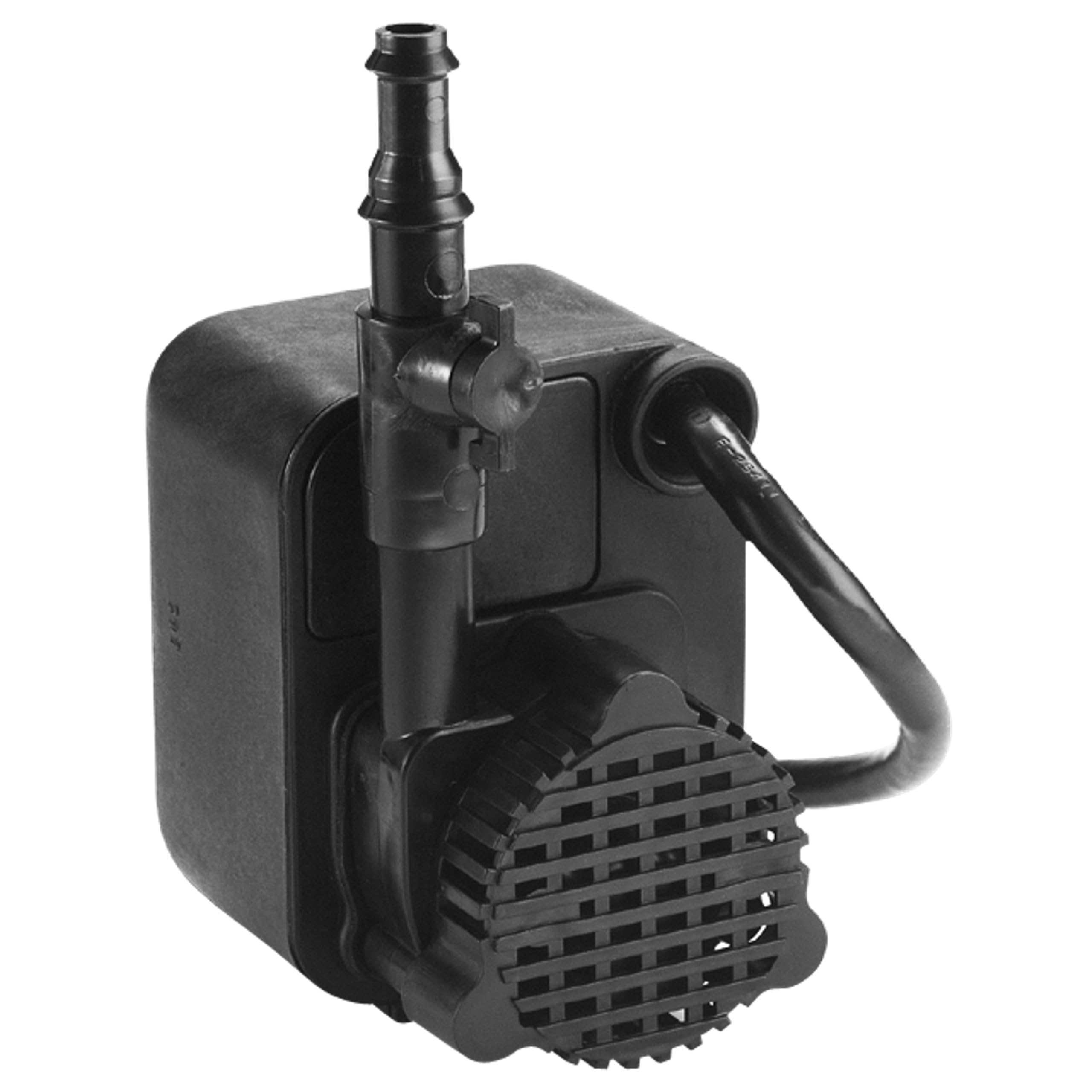

The Little Giant PE-1H-PW is a compact, epoxy-encapsulated submersible pump designed to circulate and lift water in shallow statuary fountains and small water features.

This compact 115V pump delivers reliable flow and quiet operation for backyard fountains, garden statuary, and small recirculation projects. With a hooded volute that helps lift water even in shallow basins, a 1/4" MNPT discharge fitted with a flow control valve, and a robust oil-filled motor, the PE-1H-PW balances gentle spray performance with long-lasting components. It is CSA listed, comes with a 6-foot grounded cord, and is built to handle applications where priming at low depths matters.

How much water can this pump move and how high will it spray?

The PE-1H-PW is rated at up to 186 gallons per hour at a 1-foot lift and can spray as high as 4 feet 4 inches in ideal conditions. It reaches a maximum shut-off head at 6.5 feet and produces up to 2.8 PSI, making it suitable for small to medium ornamental features.

• Flow: 186 GPH at 1 ft lift
• Spray height: up to 4'4" (approx.) depending on tubing and nozzle
• Shut-off/head: 6.5 ft maximum
• Pressure: up to 2.8 PSI

What features make it suitable for shallow basins and statuary?

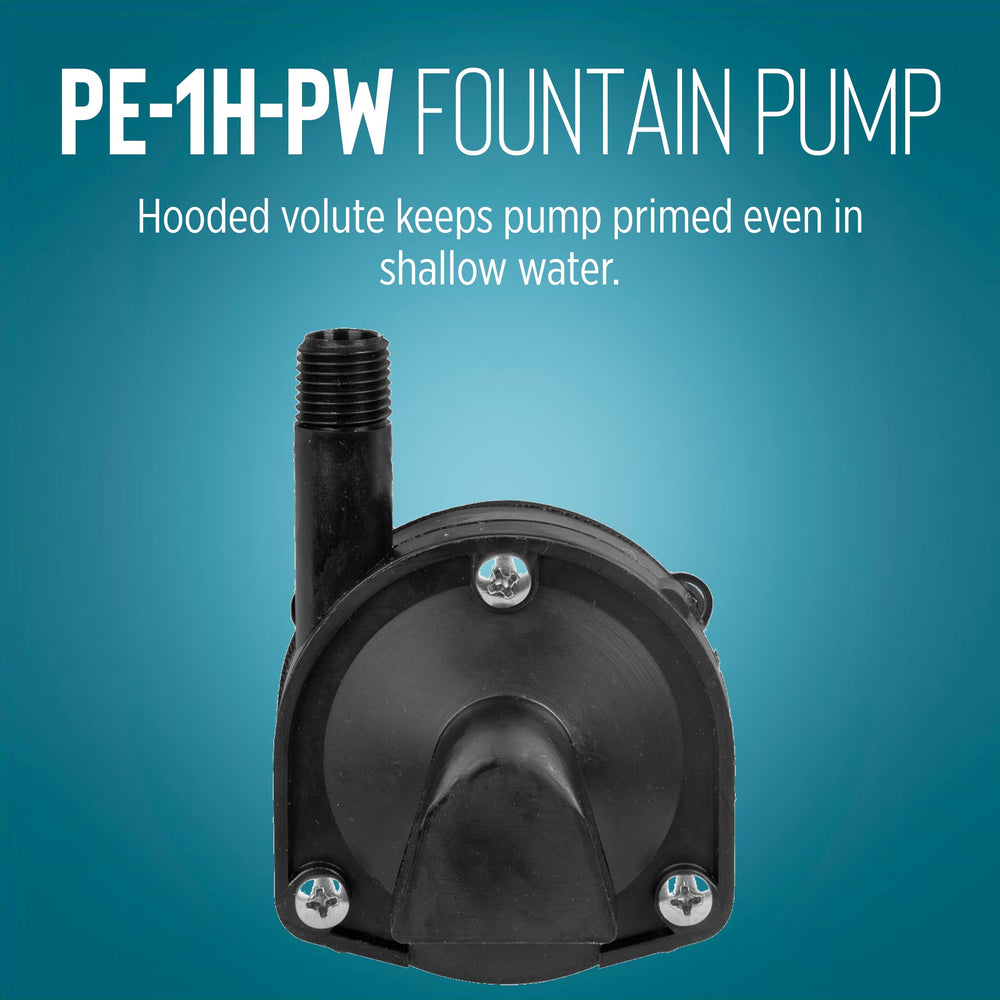

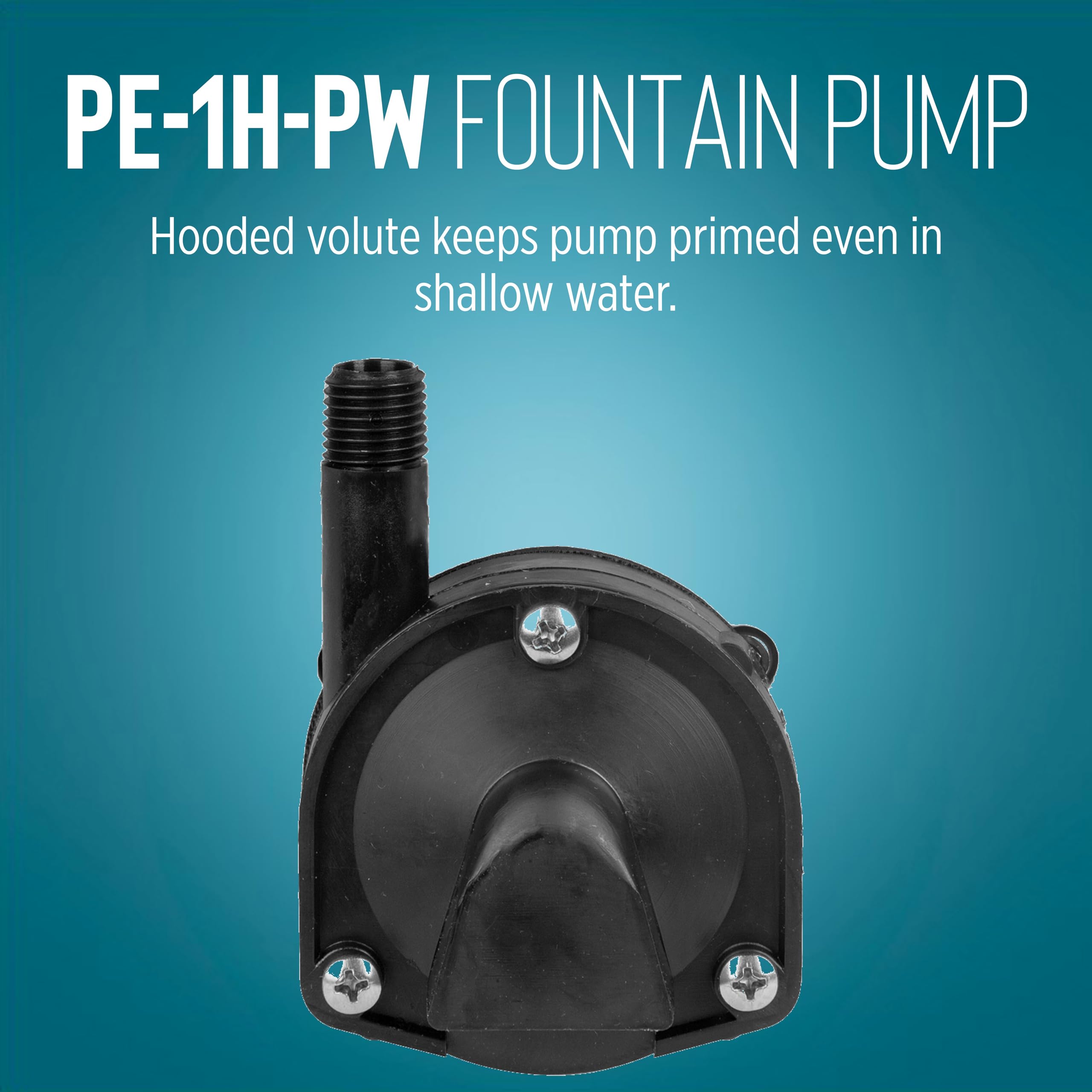

Its hooded volute is engineered to draw water from the basin bottom while keeping the pump primed in shallow installations. A screened intake protects the impeller from debris, and the included flow control valve lets you dial spray height and volume without changing hardware.

• Hooded volute lifts water from shallow depths in upright position
• Screened intake reduces clogging and impeller damage
• Barbed flow control accepts 3/8" or 1/2" tubing for easy adjustment

How durable and safe is the motor for continuous use?

The pump uses an oil-filled, epoxy-encapsulated motor that protects internal windings from moisture and vibration. It is impedance protected and CSA listed for use in the USA and Canada, giving peace of mind for long-term, low-maintenance operation.

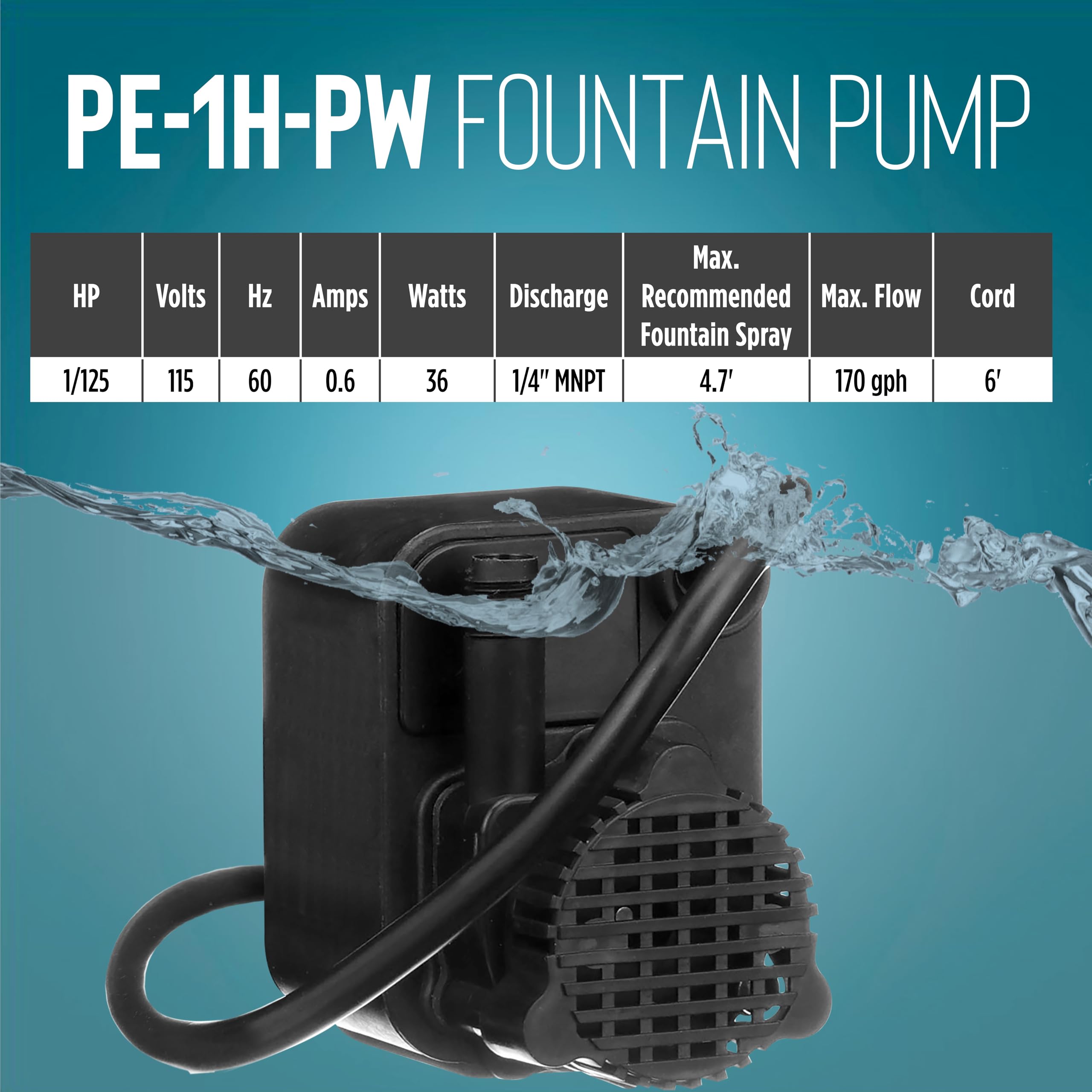

• Motor: 1/125 HP, 36 W, 0.6 A, 115 V, 60 Hz
• Construction: epoxy-encapsulated, oil-filled motor housing
• Seals: double-lip nitrile shaft seal and neoprene gasket for leak resistance

What tubing and fittings work with the PE-1H-PW?

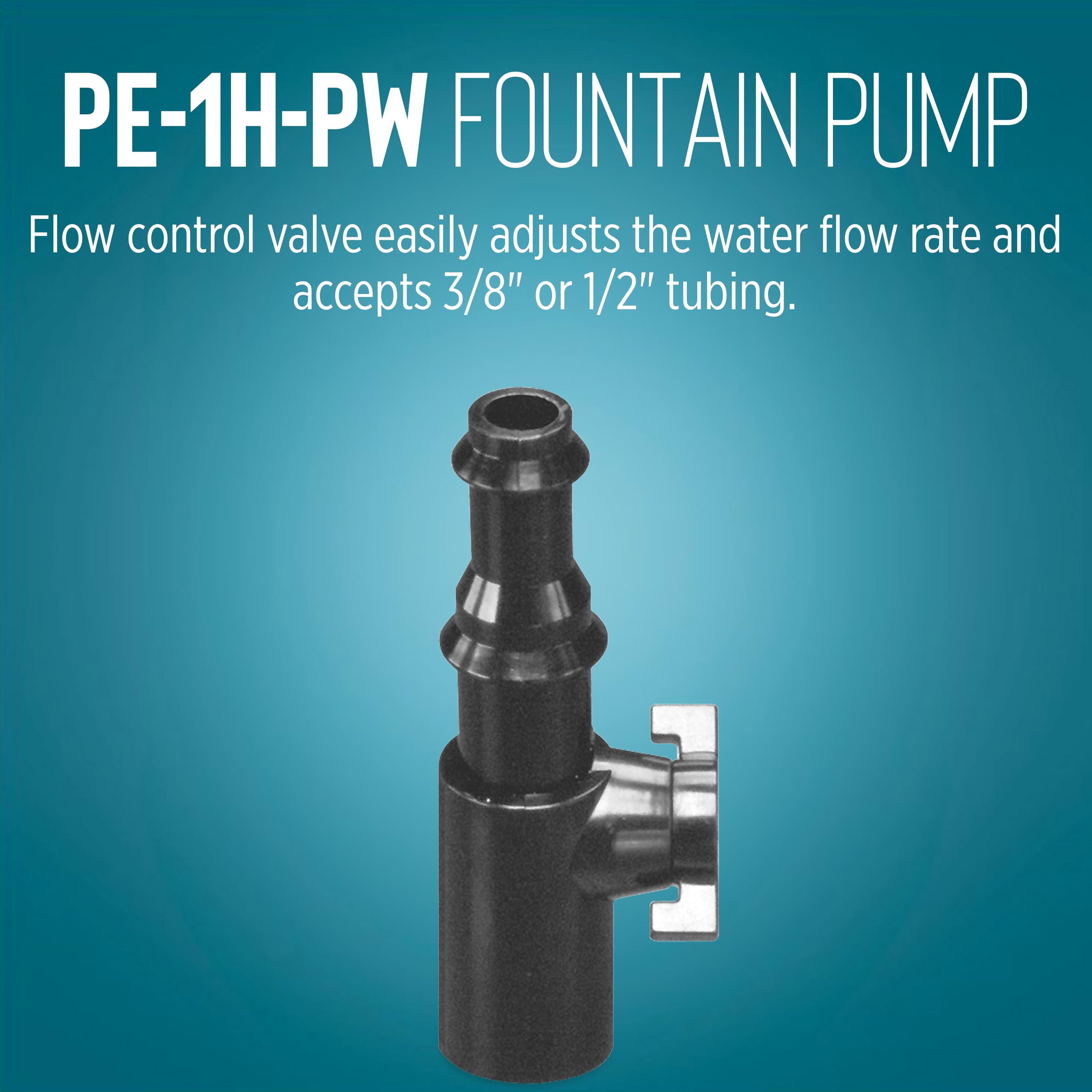

The pump includes a 1/4" MNPT discharge and a barbed flow control valve that fits either 3/8" or 1/2" inner-diameter vinyl tubing. That flexibility makes it simple to connect standard fountain tubing and fine-tune flow without additional adapters.

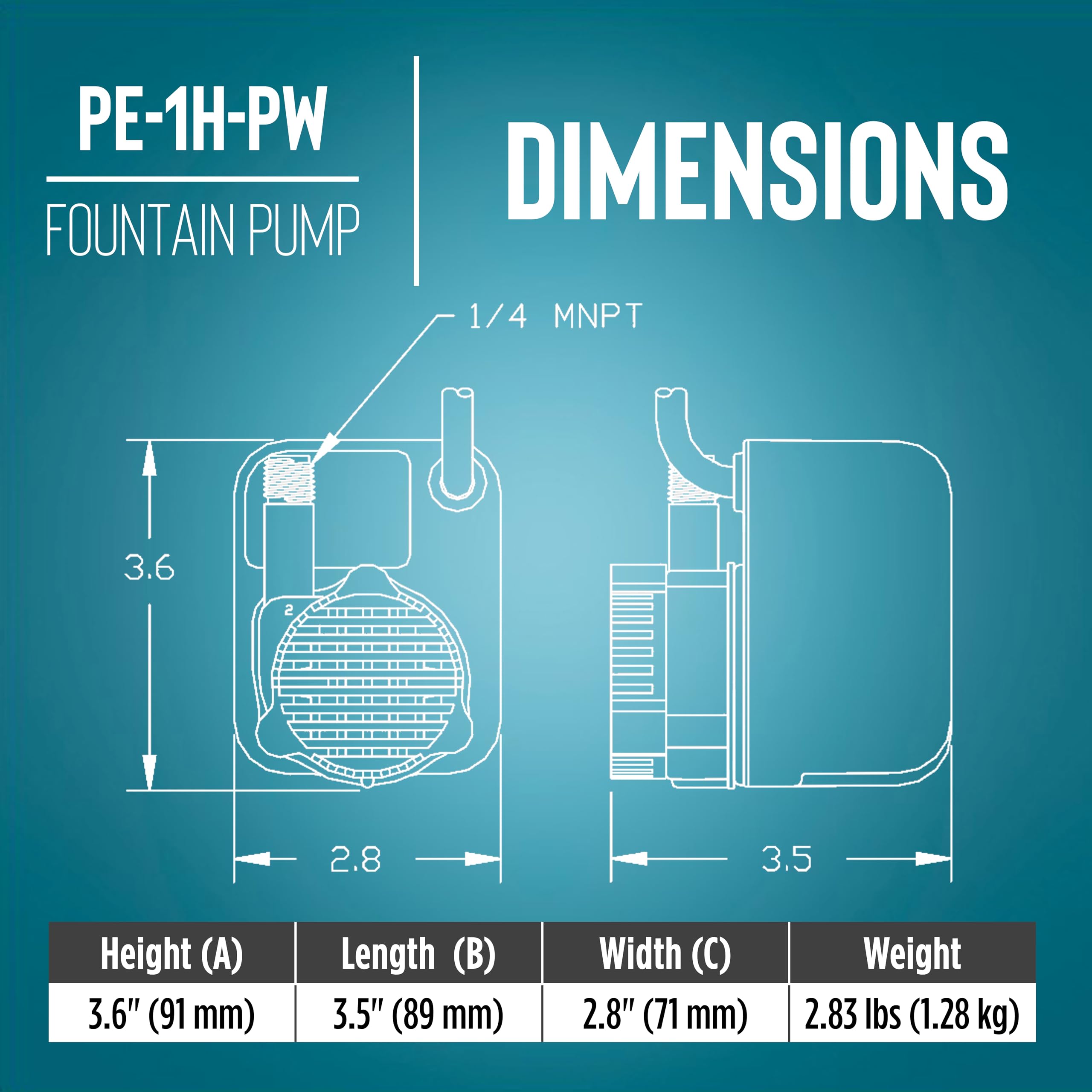

• Discharge: 1/4" male NPT thread
• Included valve: barbed flow control for 3/8" or 1/2" I.D. tubing
• Adjustable flow simplifies spray height and effect tuning

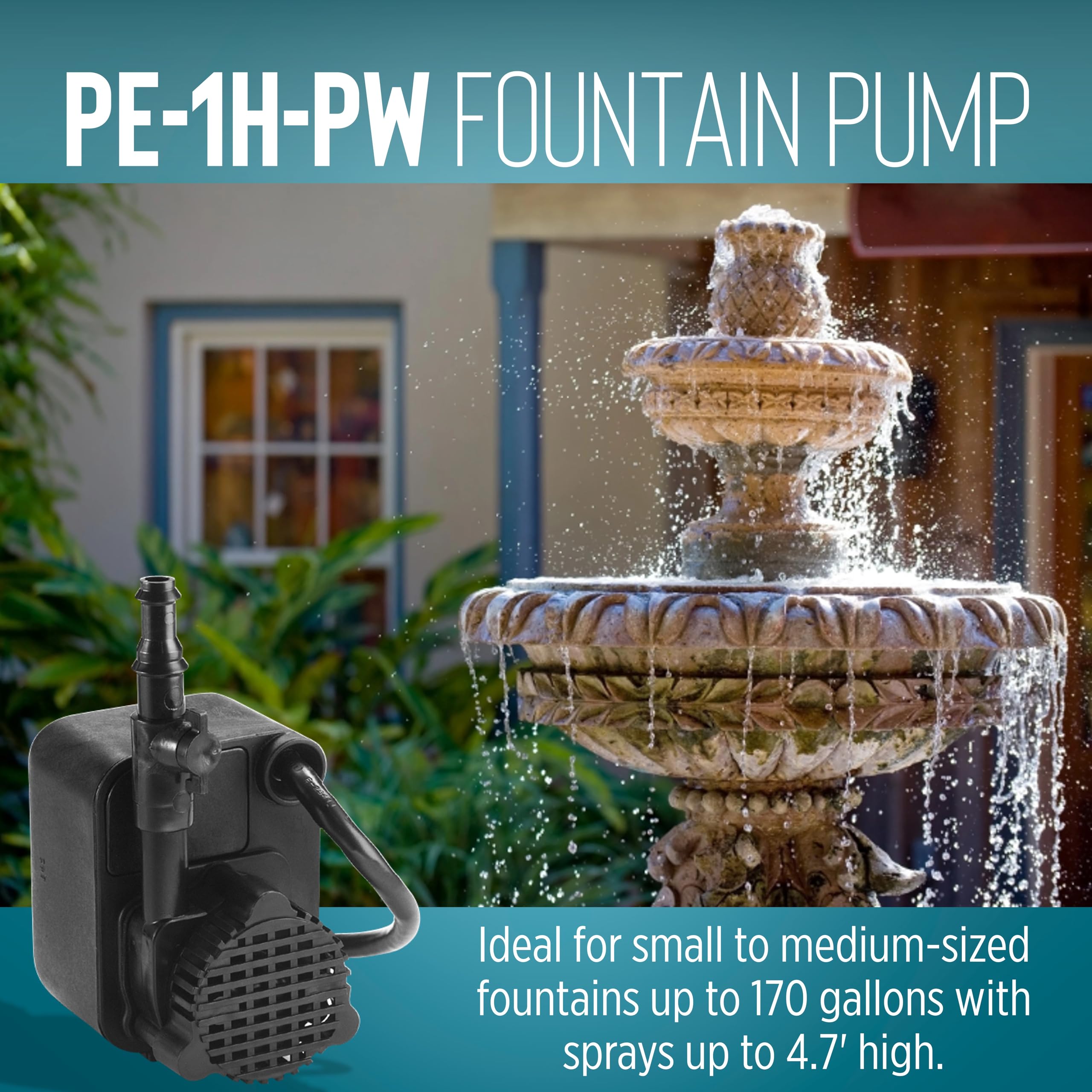

Who is this for: The Little Giant PE-1H-PW is aimed at homeowners, landscapers, and small business owners who need a dependable, easy-to-install pump for shallow statuary fountains, table-top water features, and small recirculation systems. Choose this model when you want a small, quiet pump with proven construction, priming reliability in low water depths, and simple flow adjustment.
