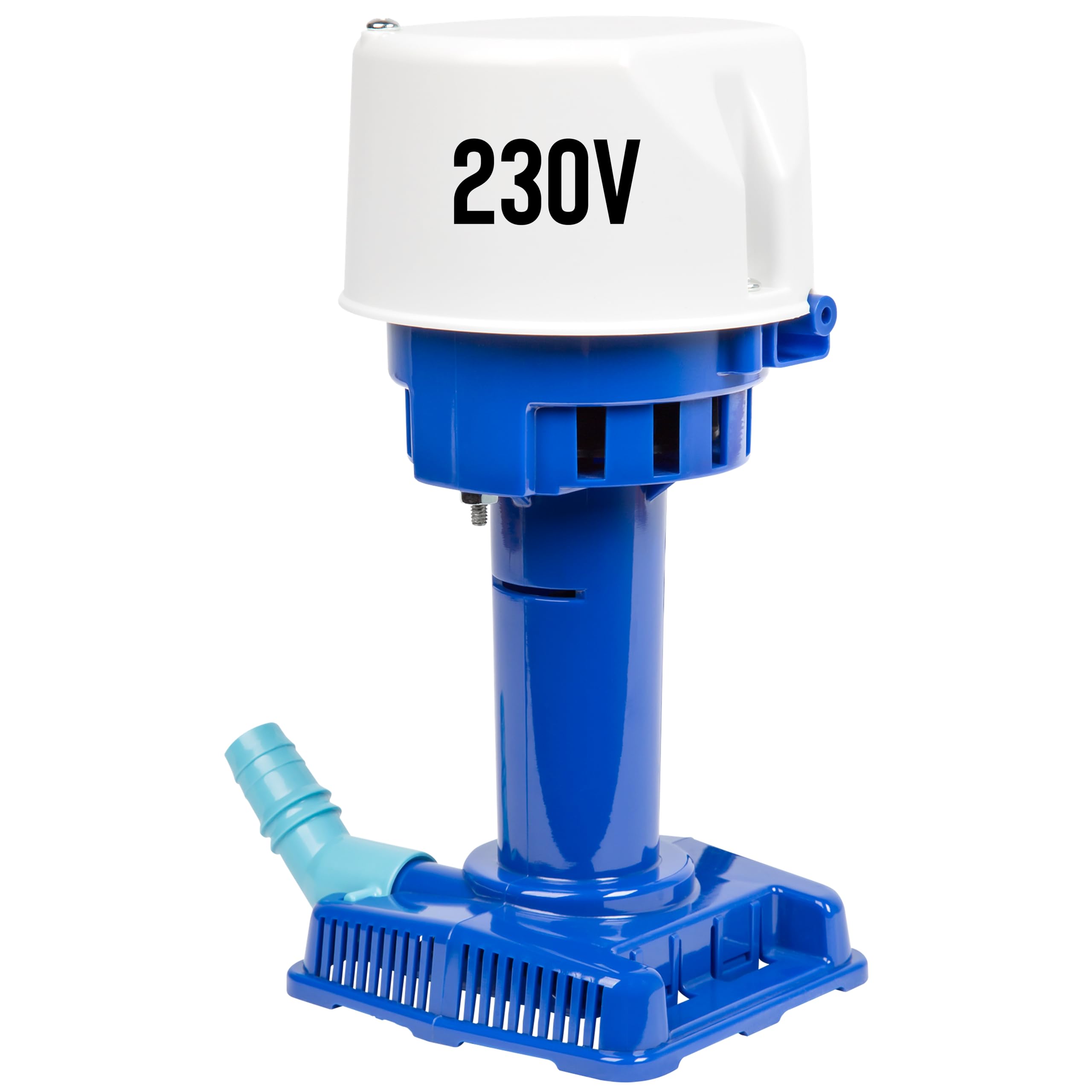

xThe Little Giant CP2-230 is a compact 230‑volt evaporative cooler pump that delivers 502 GPH for cooling systems, displays, and circulation tasks.

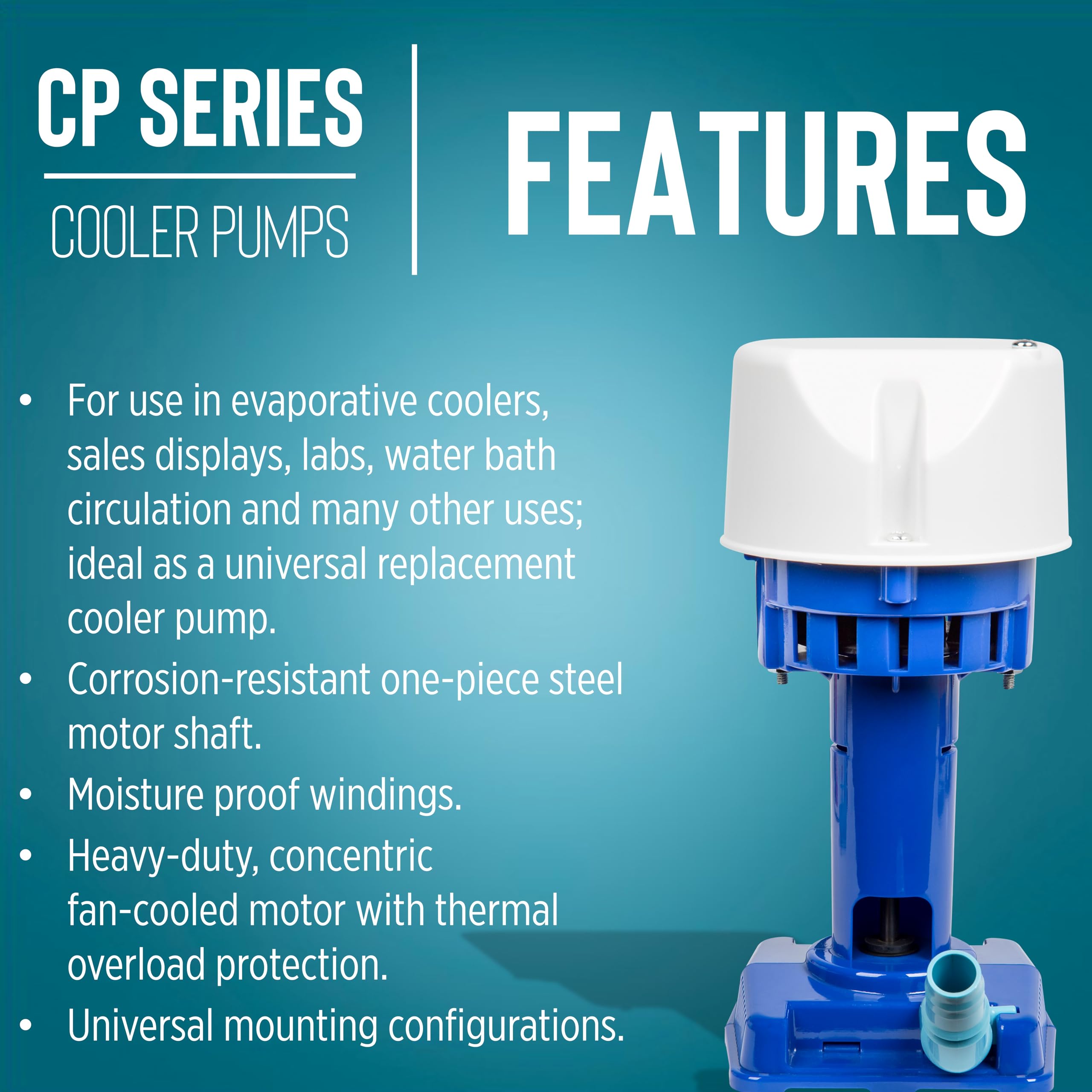

Compact and built for continuous service, this 1/50 HP pump is engineered specifically for evaporative (swamp) coolers, water baths, sales displays, labs and other small circulation needs where reliable flow and durable construction matter. It includes a 6‑ft cord with a 230‑volt plug and offers simple maintenance features so you can install, clean and run it with minimal downtime.
How much flow and pressure can I expect from the CP2-230?

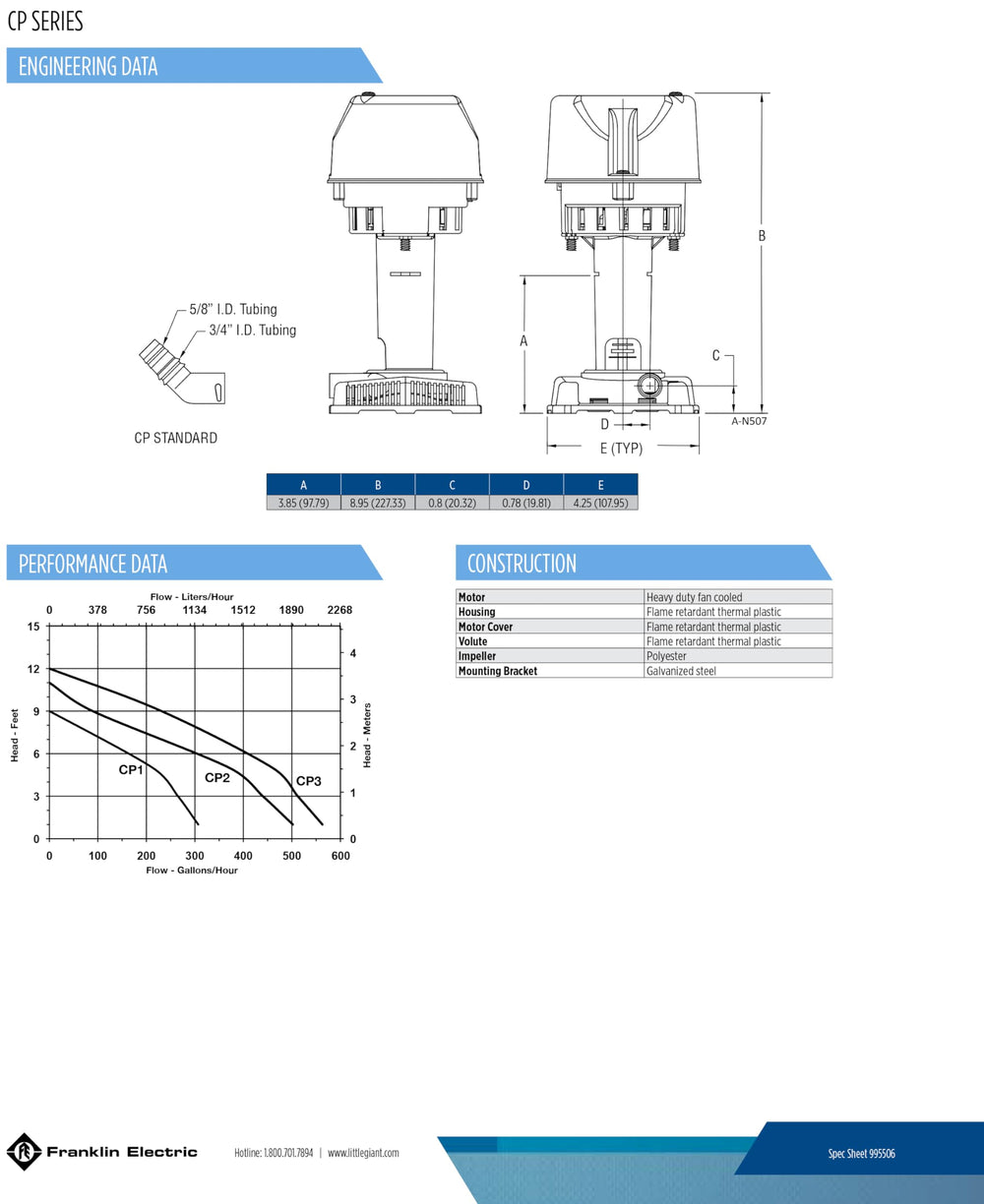

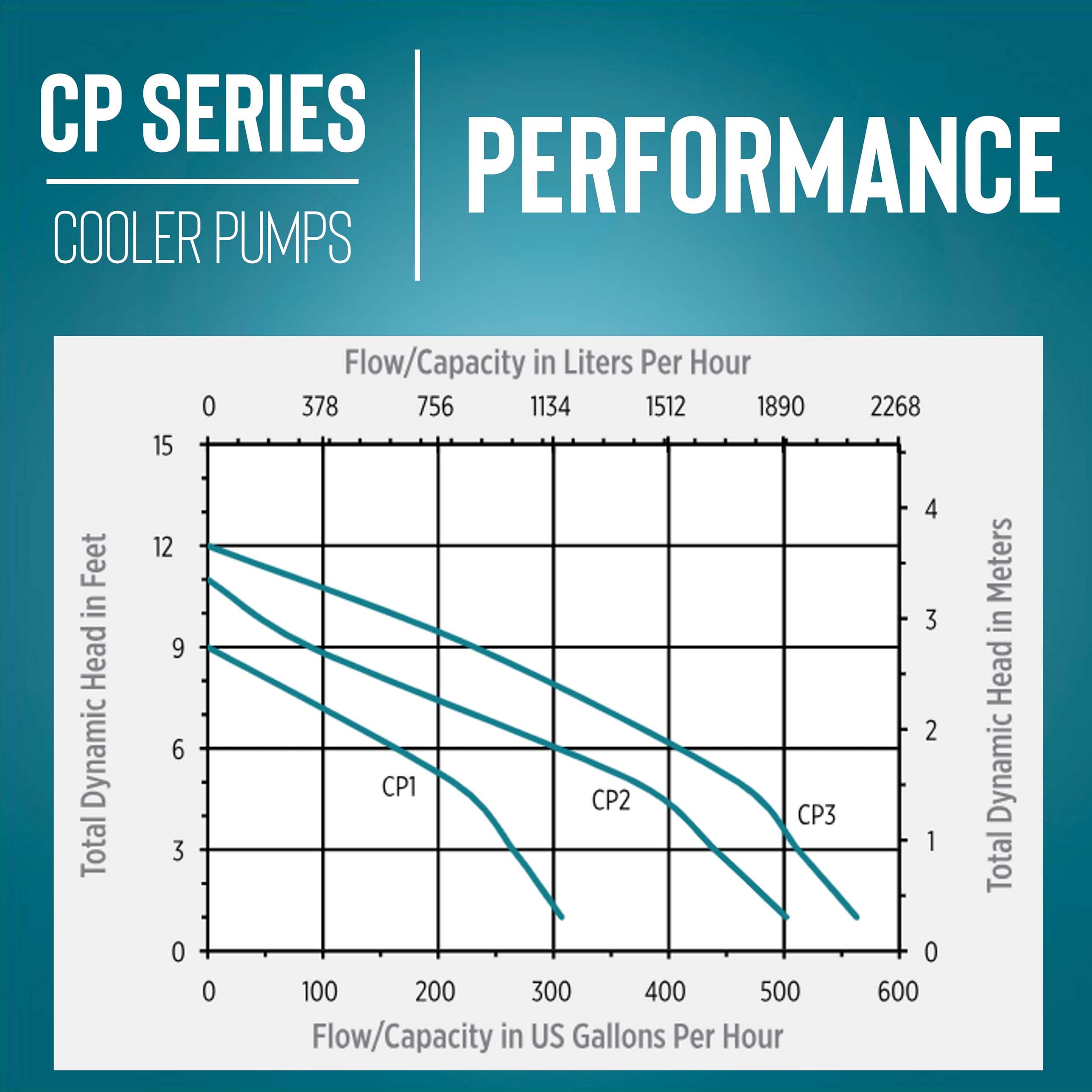

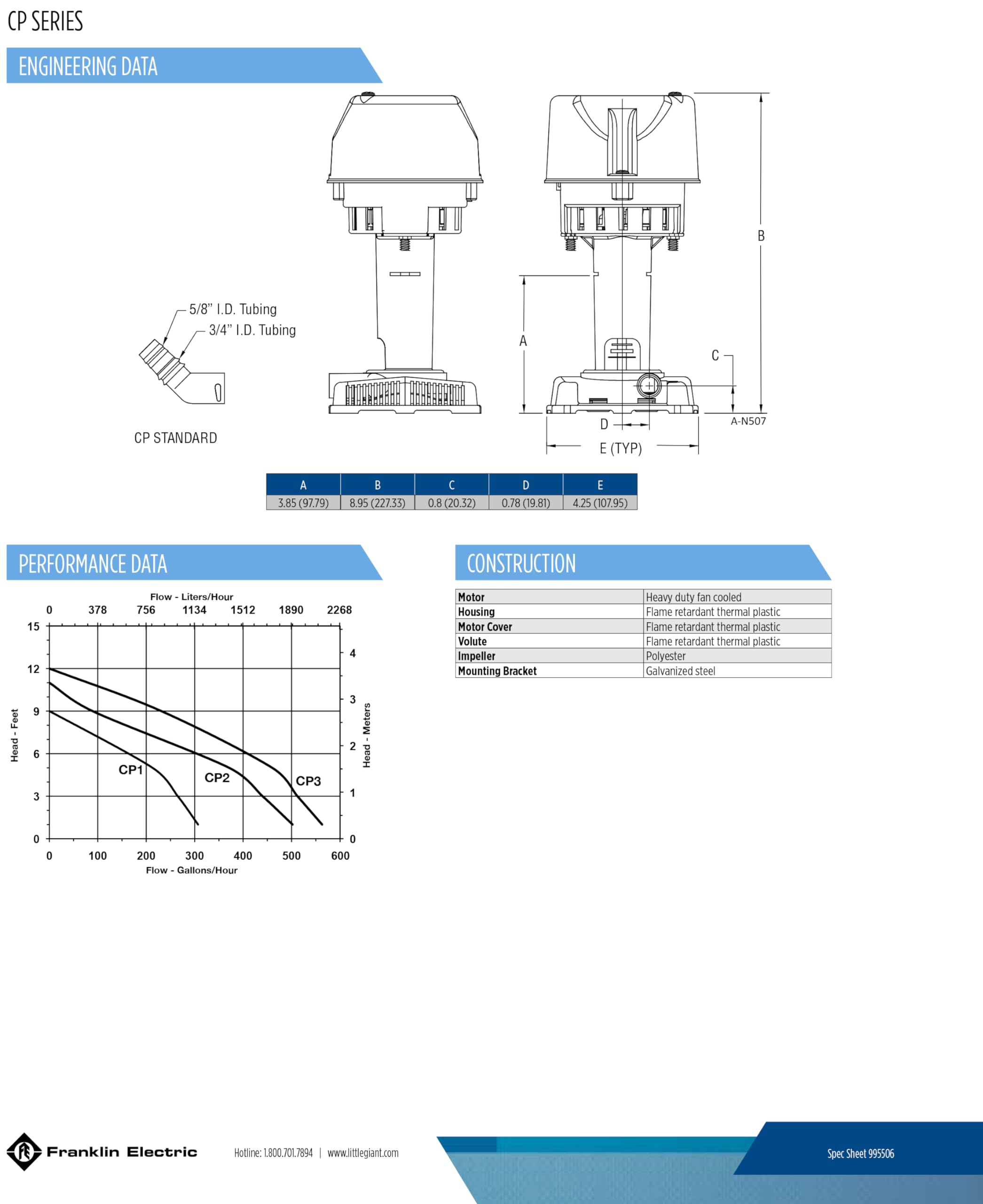

The CP2-230 produces up to 502 gallons per hour at a 1‑ft head and an 11‑ft shutoff, suitable for most residential and light commercial cooler applications. It provides around 4.8 PSI and supports airflow ranges commonly used with evaporative coolers.
- Maximum flow: 502 GPH at 1 ft head
- Shutoff head: 11 ft
- Pressure: approximately 4.8 PSI

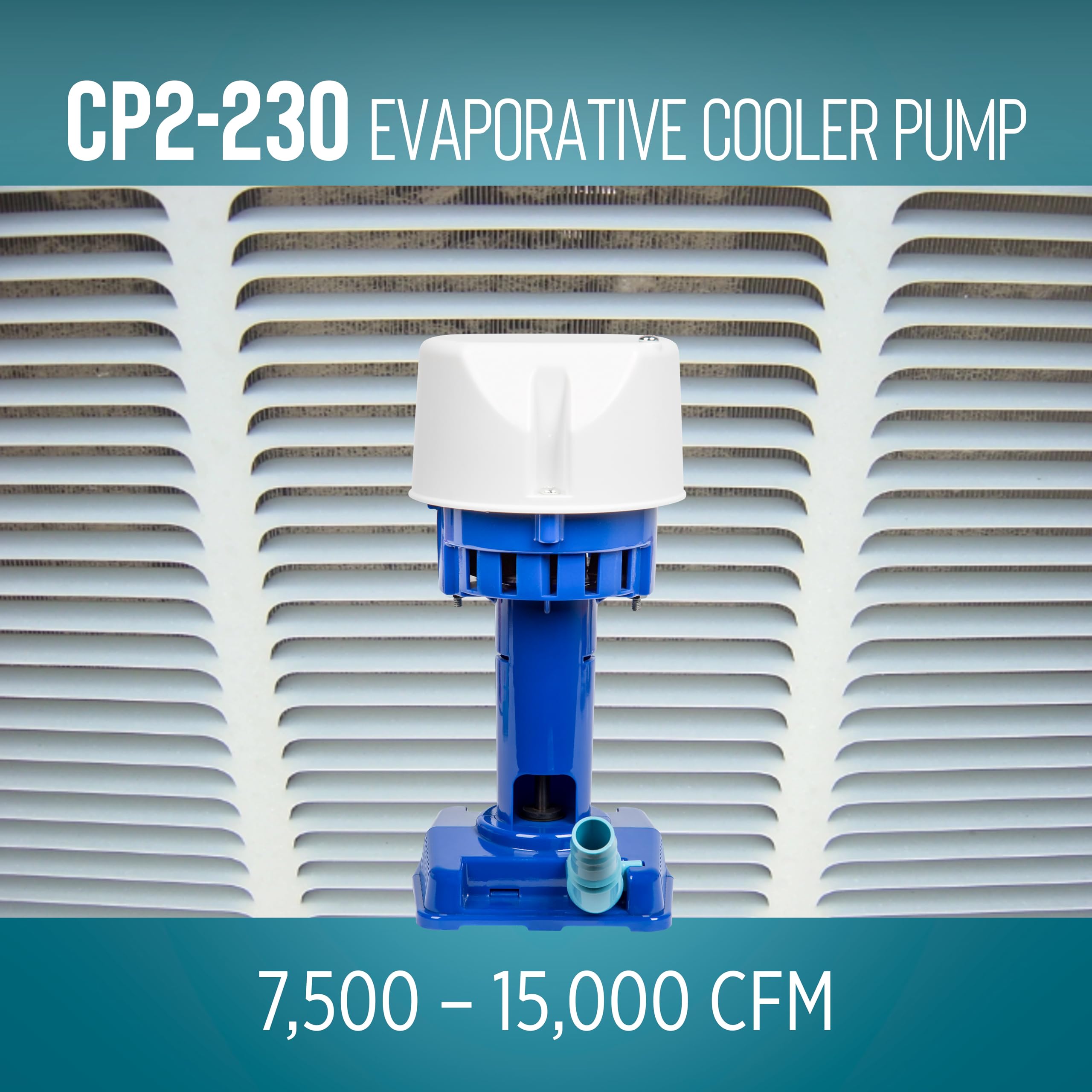

- Compatible with 7500–15000 CFM cooler capacities
What power and electrical requirements does this pump need?
This model runs on 230 volts with a 3‑prong 230V plug—do not attempt to plug it into a standard 115V outlet. The motor draws about 0.5 amps (approximately 80 watts) and is fan‑cooled with thermal overload protection for safer continuous use.

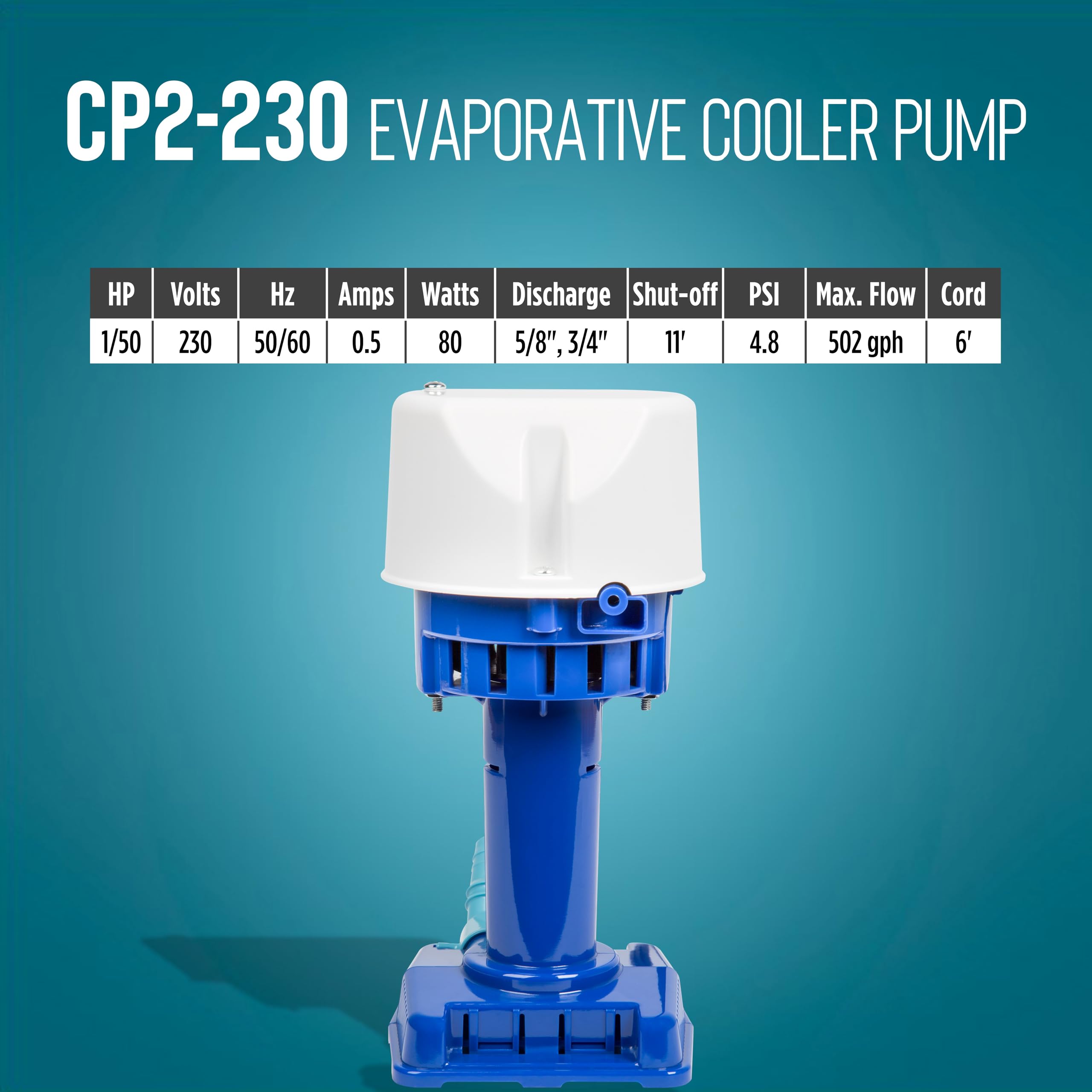

- Voltage: 230 V, 50/60 Hz
- Power draw: 0.5 A / 80 W
- Motor type: concentric fan‑cooled with thermal overload protection
- Cord length: 6 ft with 230V 3‑prong plug
How easy is installation and routine maintenance?

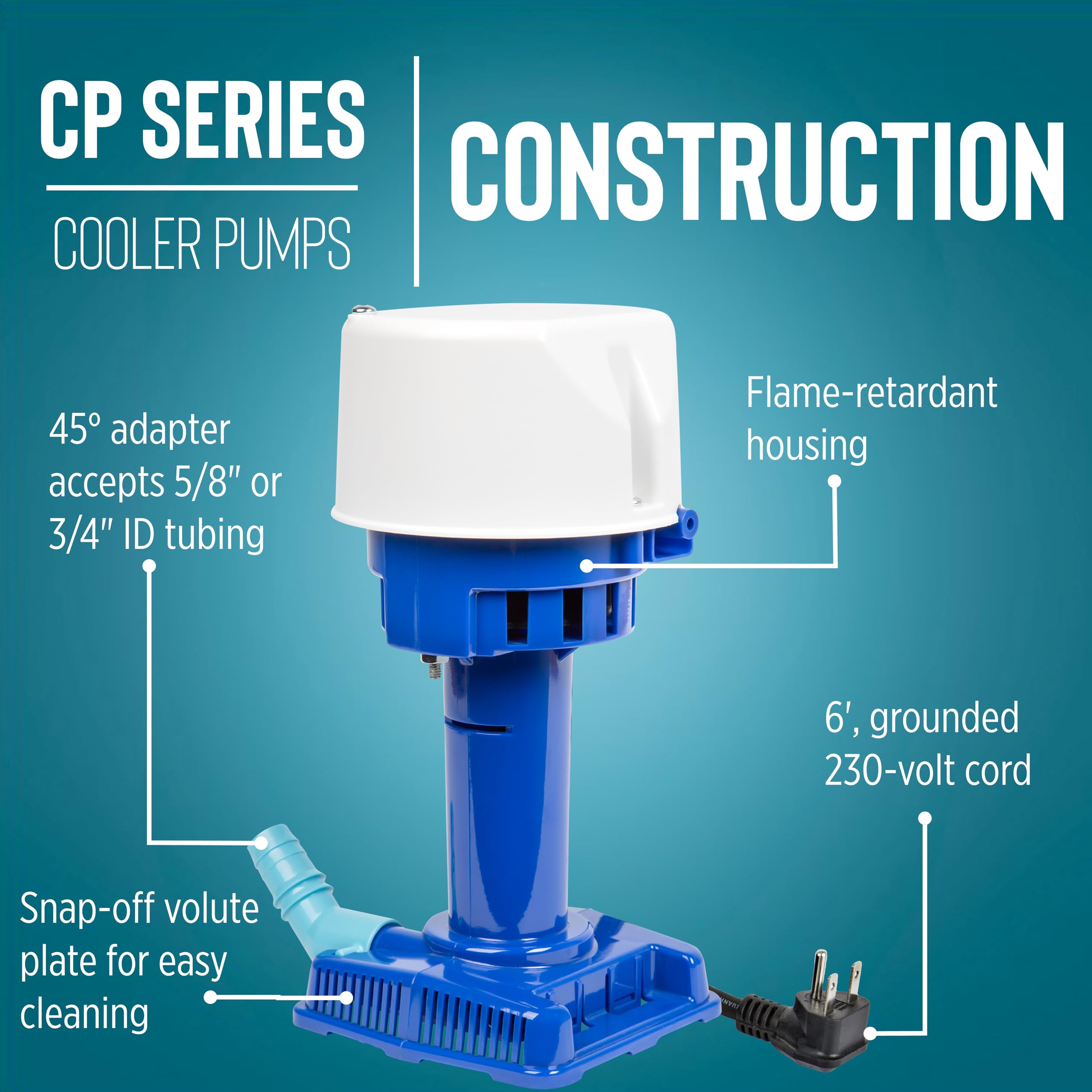

The CP2-230 installs quickly and includes a 45° discharge adapter that fits both 5/8" and 3/4" I.D. tubing for flexible hookups. A snap‑off volute plate and a one‑piece corrosion‑resistant steel shaft simplify cleaning and reduce the time required for routine servicing.
- 45° discharge adapter included for simple tubing connections
- Fits 5/8" and 3/4" inside diameter tubing
- Snap‑off volute plate for easy debris removal
- One‑piece corrosion‑resistant steel shaft for long life
Will this pump fit my cooler or application?
The CP2-230 is intended as a replacement or upgrade for small to medium evaporative coolers and similar circulation uses. Check your existing pump's voltage and flow specifications—this unit requires 230V power and is optimized for systems needing up to roughly 502 GPH.
- Ideal for swamp coolers, sales displays, labs, and water baths
- Not compatible with 115V outlets—verify electrical match first
- Good match for residential and light commercial cooler units
Who is this for: Technicians, homeowners and facility managers who need a dependable, low‑maintenance cooling or circulation pump that runs on 230V. If you require a straightforward replacement pump rated for continuous service with easy cleaning and flexible tubing connections, the Little Giant CP2‑230 offers a compact, durable solution.
FAQ
Q: Can the CP2-230 be used with a 115V outlet?
A: No. The CP2-230 requires a 230V outlet and its plug will not fit standard 115V sockets.
Q: What tubing sizes fit the included discharge adapter?
A: The included 45° adapter accepts 5/8" and 3/4" inside diameter tubing.
