LiTime 60A MPPT Solar Charge Controller Bluetooth 150V Max Input 12-48V High-Efficiency

LiTime 60A MPPT Solar Charge Controller is a high-efficiency, Bluetooth-enabled solar regulator that manages 12V–48V battery banks with up to 150V PV input and 60A charging.

Designed for RVs, off-grid homes, and DIY solar systems, this MPPT controller extracts maximum energy from panels while providing clear system monitoring and multiple safety protections. It supports series arrays up to six panels, delivers industry-leading tracking efficiency, and couples on-device display with smartphone monitoring for convenient status checks.

How much solar can I connect and what are the electrical limits?

This controller accepts a maximum PV open-circuit voltage of 150V and supports 12V, 24V, 36V, and 48V battery systems. Keep charging current below 60A and load current under 20A to avoid damage.

• Max PV VOC: 150V (up to six panels in series, depending on panel VOC)

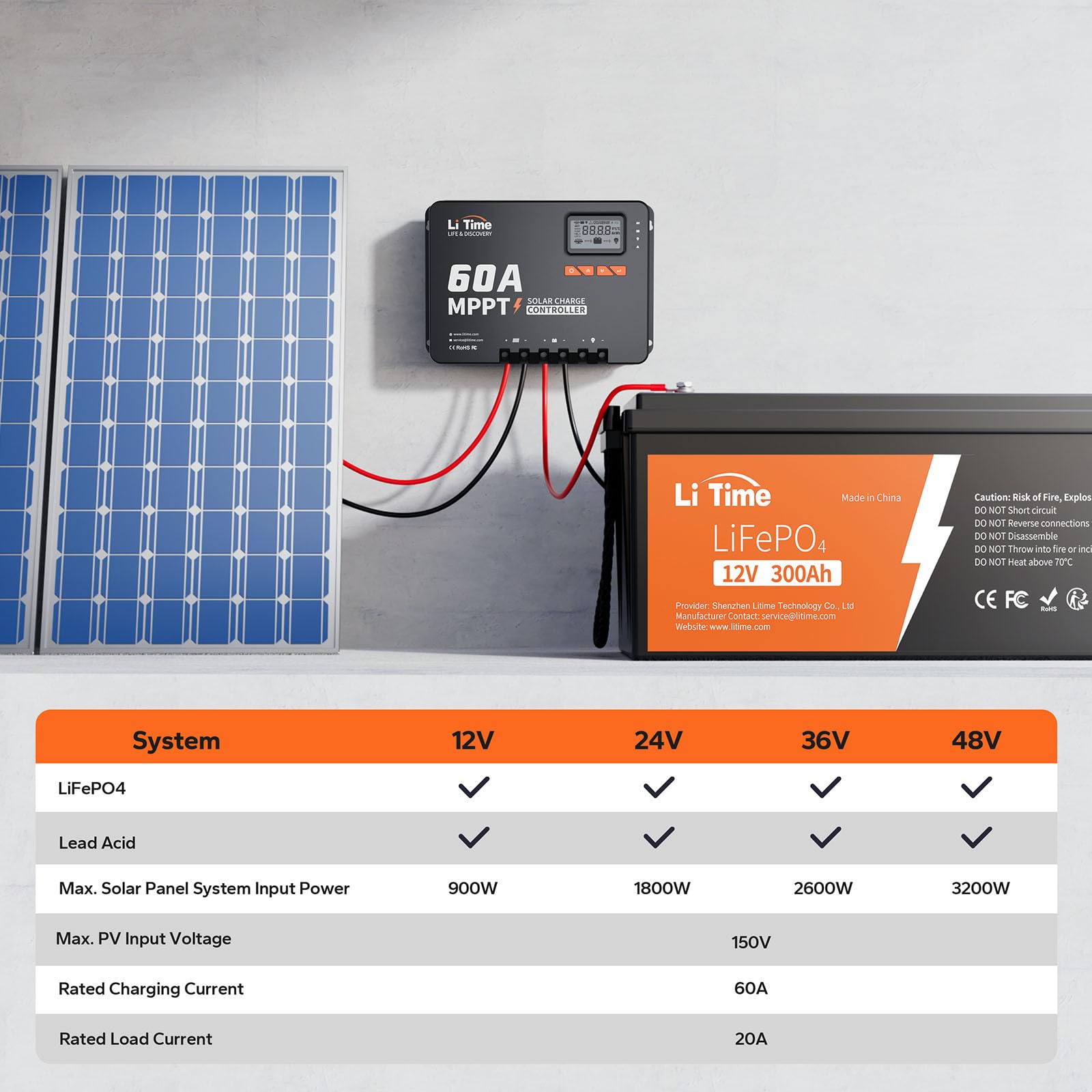

• Recommended PV input power: 12V@900W, 24V@1800W, 36V@2600W, 48V@3200W
• Maximum charge current: 60A; maximum load: 20A

How do I monitor and control the system remotely?

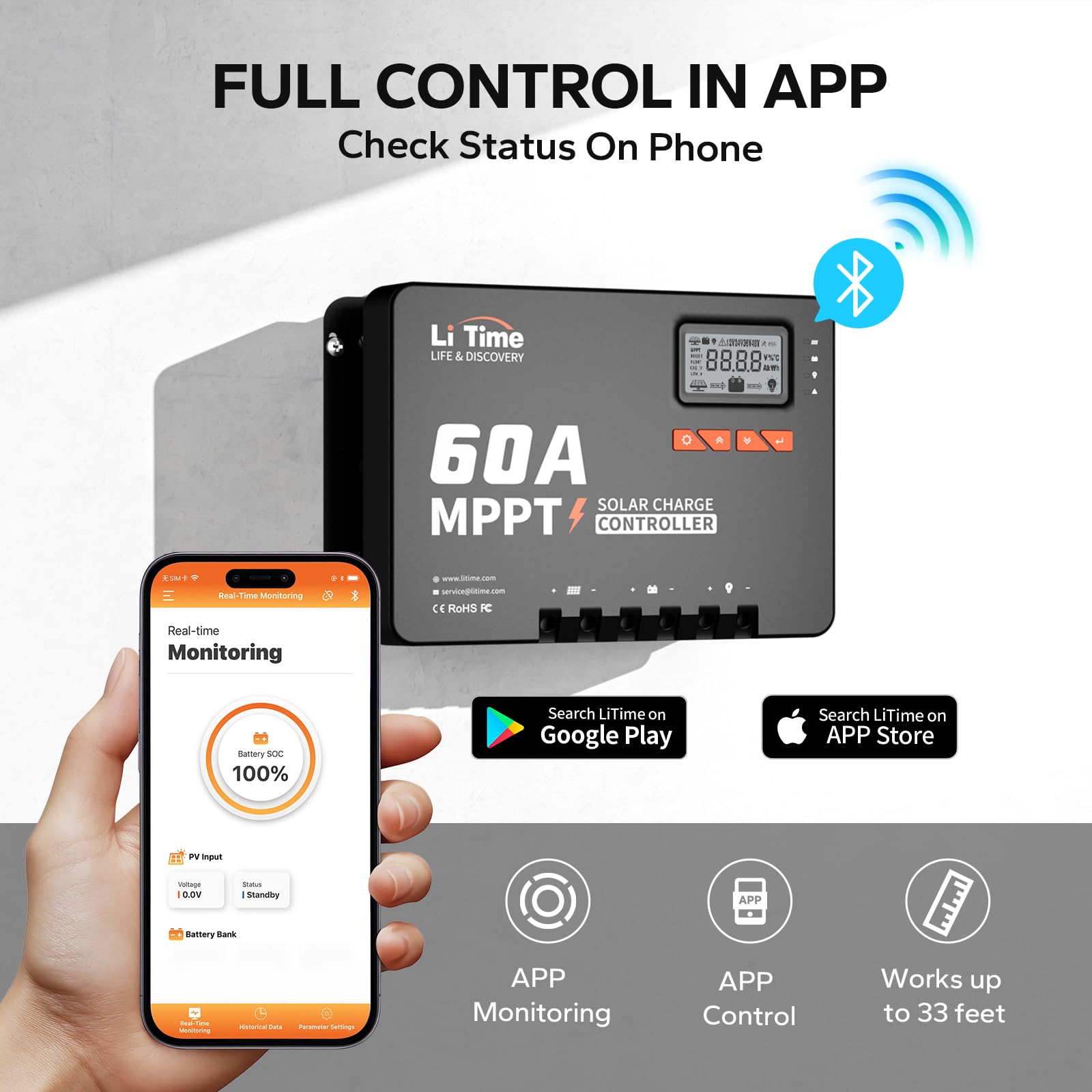

Built-in Bluetooth enables stable wireless monitoring and controller setup via a smartphone app. Expect different effective ranges depending on obstacles—open spaces give the best reach.

• Bluetooth pairing for app-based status and settings
• Estimated range: up to ~50 ft open, ~33 ft through wood, ~16 ft with iron enclosure, ~3 ft through walls

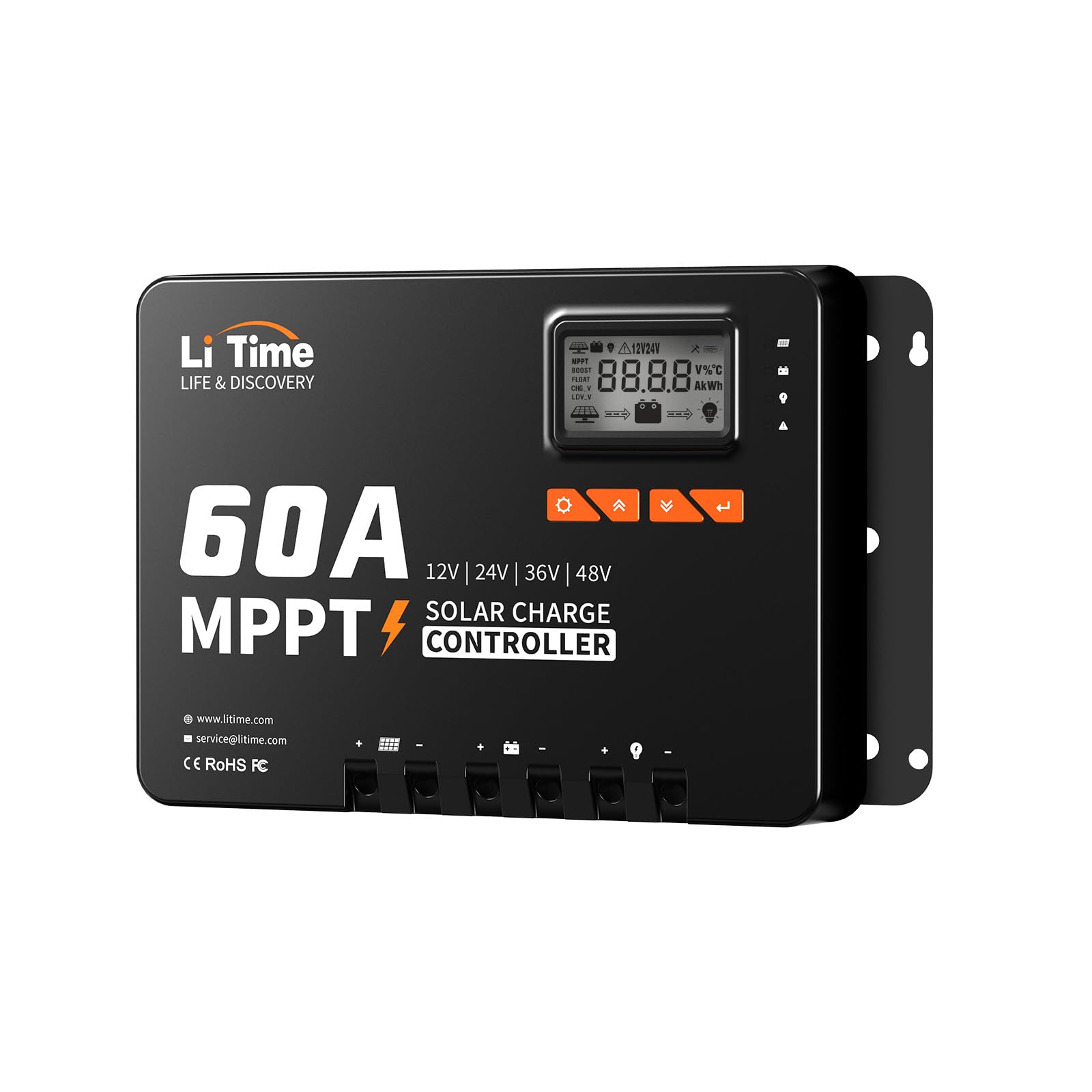

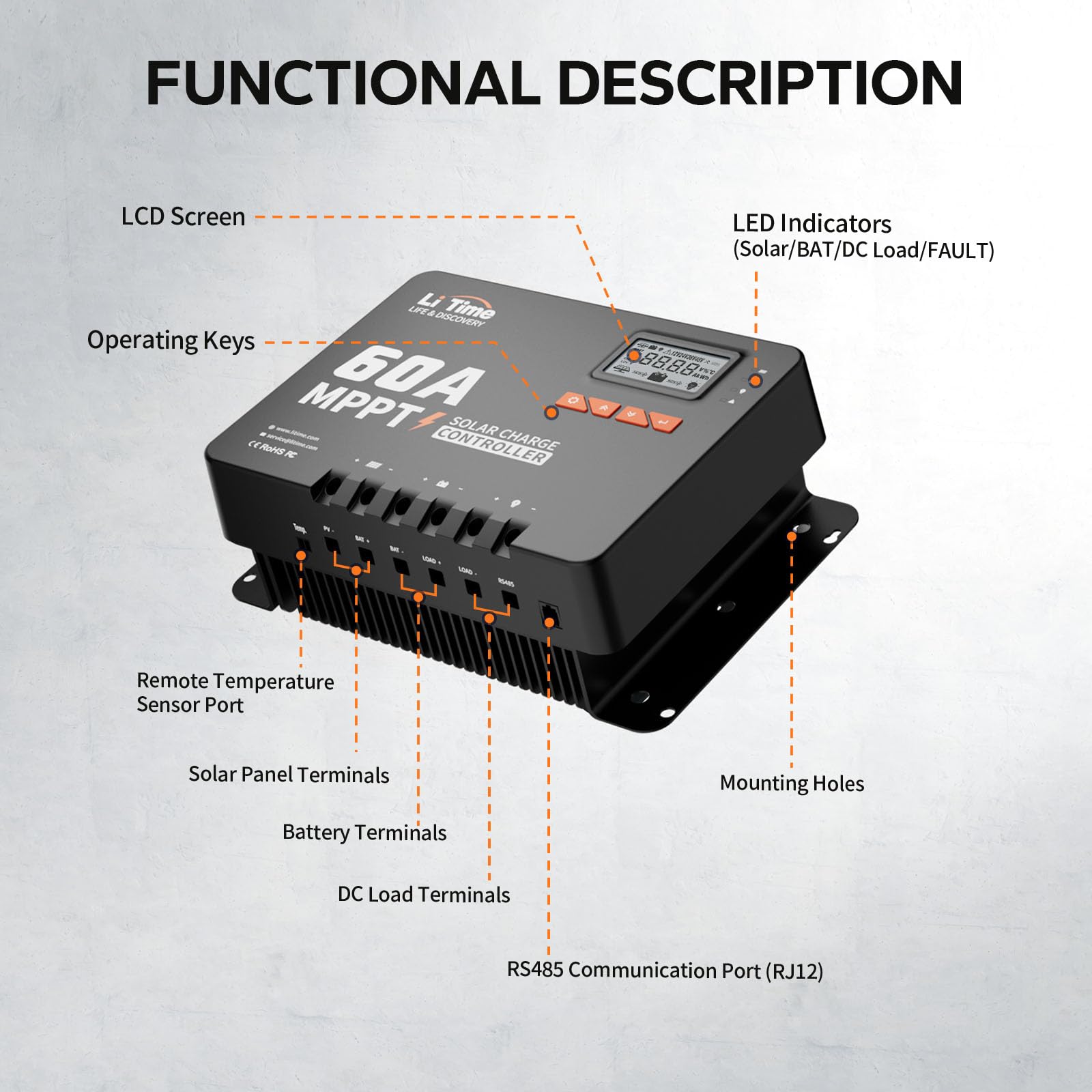

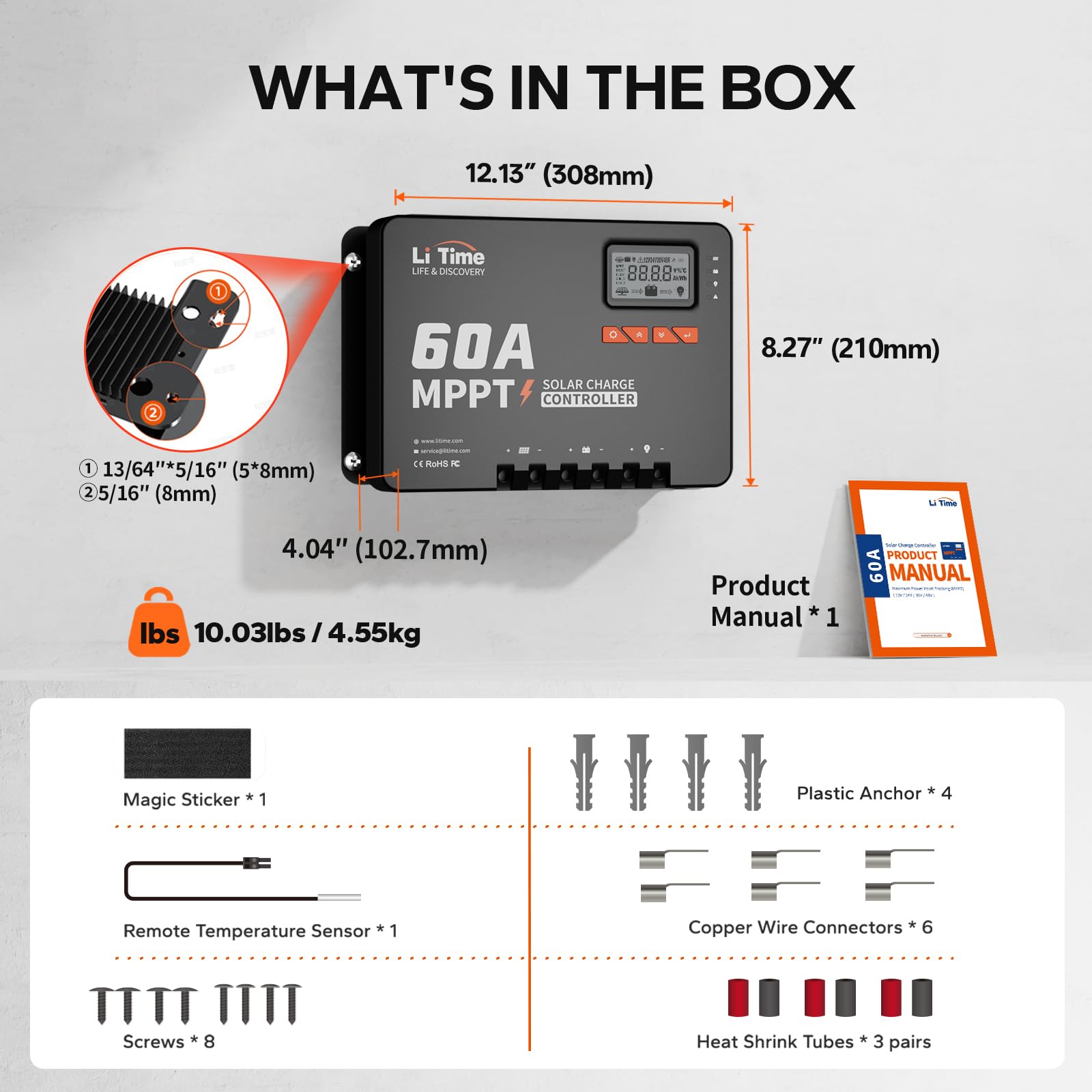

• Local LCD and LED indicators show charge, battery, load and error conditions

What protections and certifications does it include?

LiTime integrates multiple protective features to safeguard batteries and panels and meets international safety standards for consumer electronics. It ships with a limited warranty and product liability coverage to support peace of mind.

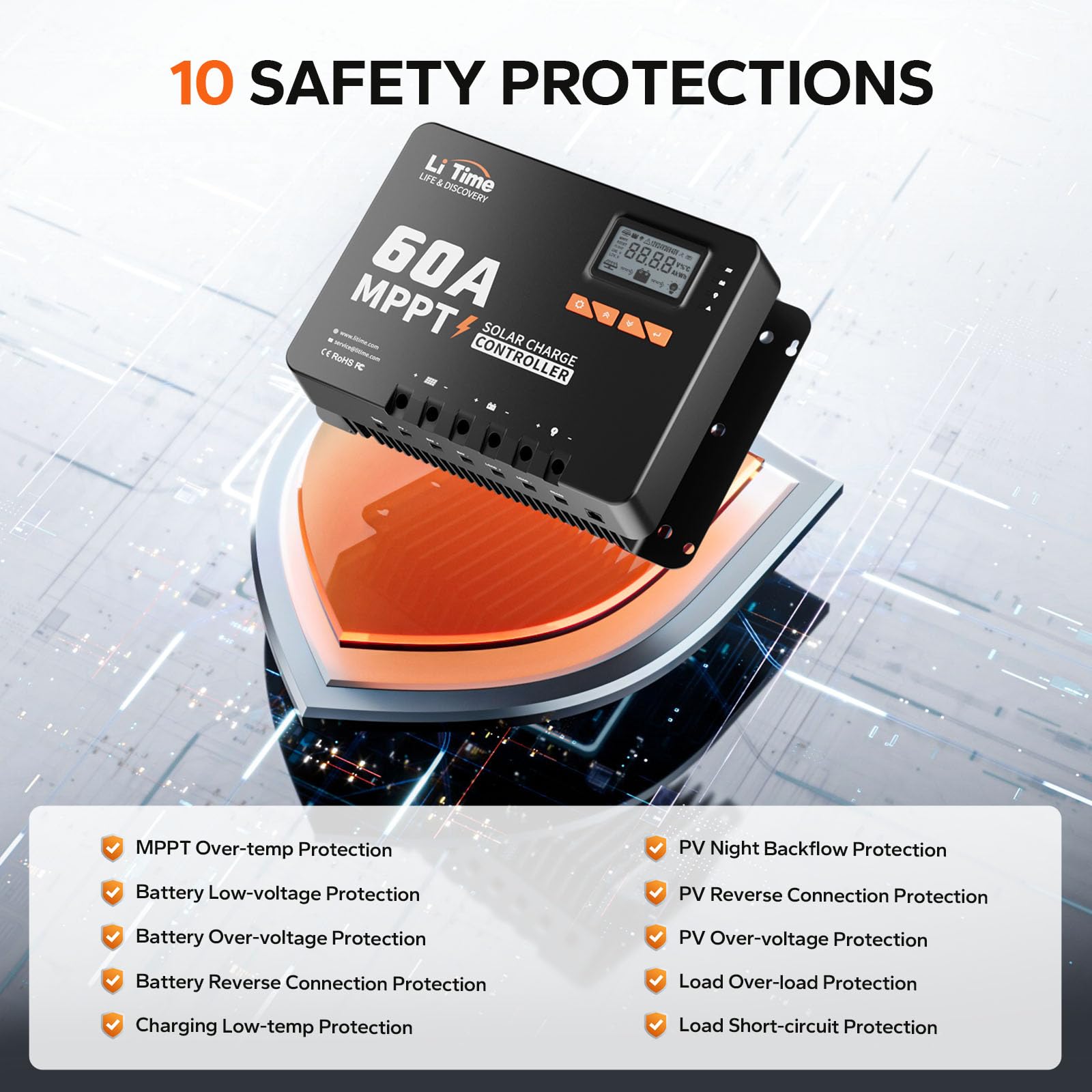

• Protections: PV reverse polarity, night backflow, over-temperature, battery over-voltage, and reverse polarity
• Certifications: CE, FCC, RoHS
• Warranty: 2-year manufacturer warranty and AIG Product Liability Insurance (effective May 22, 2026)

How does it perform in extreme temperatures and efficiency?

The controller is built for wide temperature ranges and optimized cooling to minimize energy loss and maintain stable output. Its MPPT algorithm achieves very high tracking and conversion efficiency so you capture more usable power from available sunlight.

• Operating temperature: -31°F to 113°F (-35°C to 45°C)

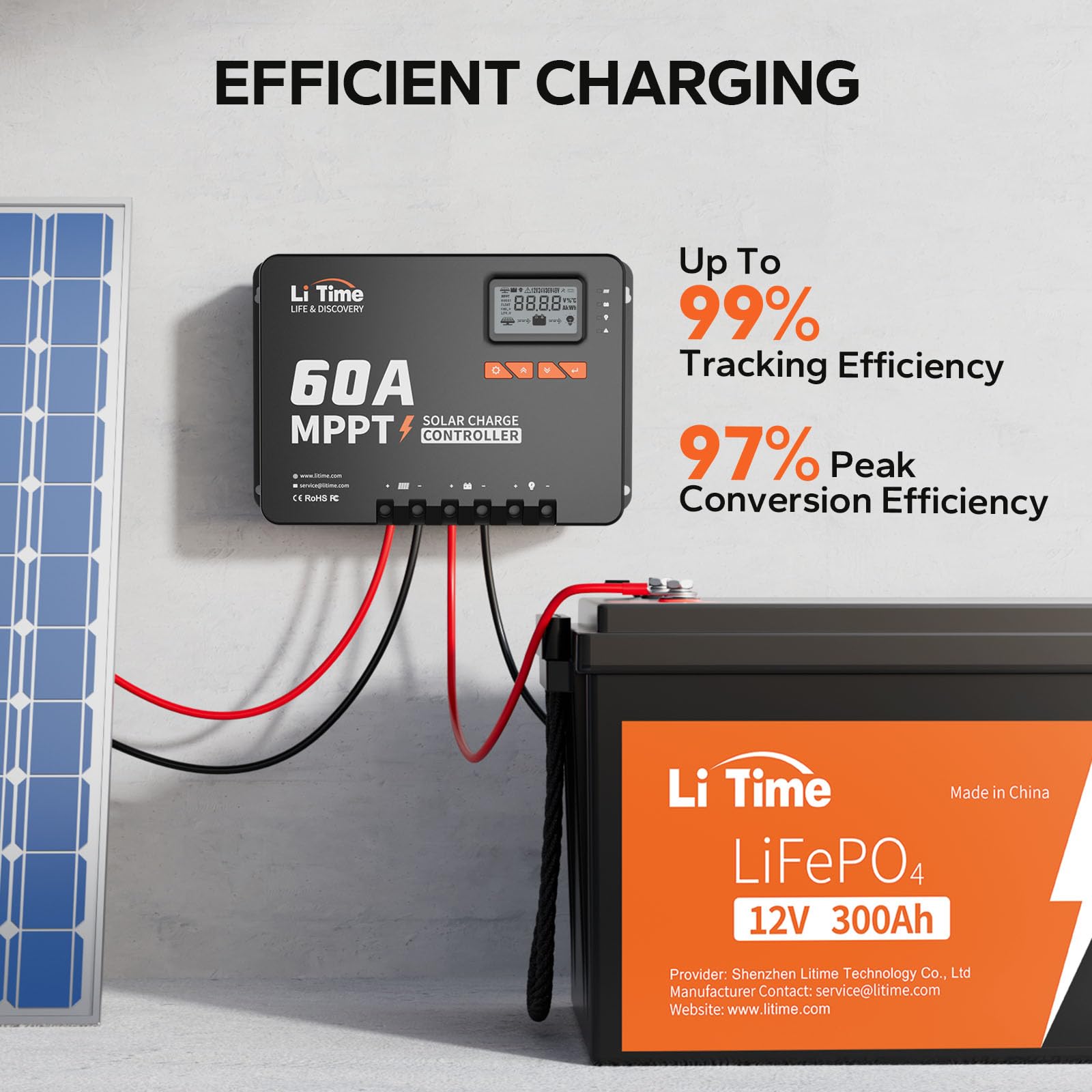

• MPPT tracking efficiency ≥99% and conversion efficiency up to 97%
• Enhanced cooling design for durable performance and lower thermal throttling

Who this is for: The LiTime 60A MPPT is suited to homeowners building small off-grid systems, RV and camper owners upgrading solar charge management, and DIY solar enthusiasts who want high-efficiency MPPT tracking, smartphone monitoring, and robust safety features. Avoid using it in marine environments or exposed wet locations, and respect the stated current and PV limits for reliable long-term operation.
