LINGXIAO 48WUA1502C-II Spa Pump 2.5HP (1.5HP out) 48 Frame 230V Two-Speed with 2" Union

LINGXIAO 48WUA1502C-II SPA Pump is a 2-speed, 230V hot tub pump designed as a direct replacement for many OEM 48 frame spa motors, delivering up to 2.5HP input (1.5HP output) with 2" plumbing compatibility.

This pump is engineered to swap into common hot tub and spa systems that use a 48 frame (Y) motor. It combines a two-speed motor for energy flexibility, robust copper winding and anti-creep bearing construction for quieter operation, and a thermal protector tested across extended charge-discharge cycles. The unit ships with a free 2" union set to simplify plumbing connections and meets UL / CUL / ETL certifications for electrical safety.

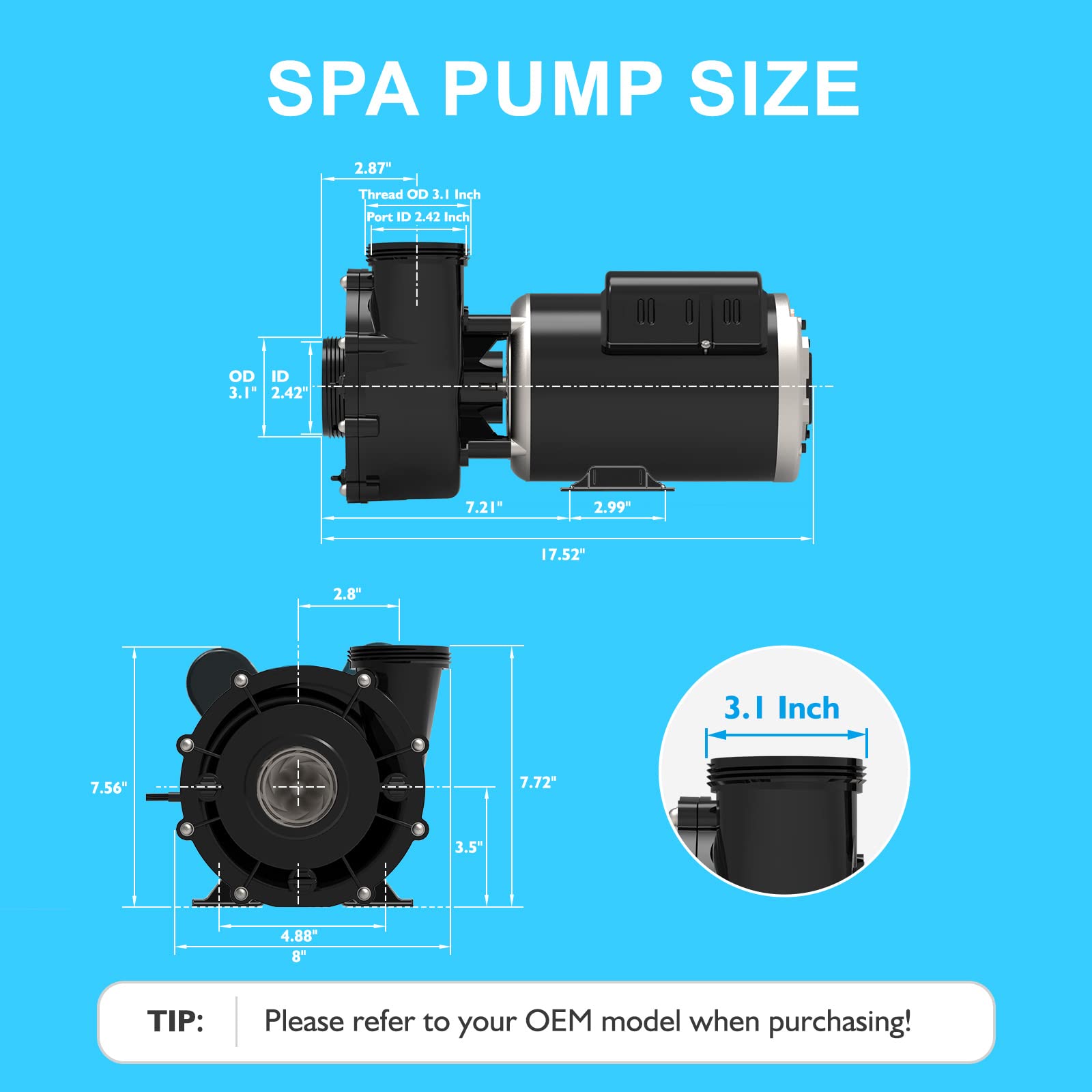

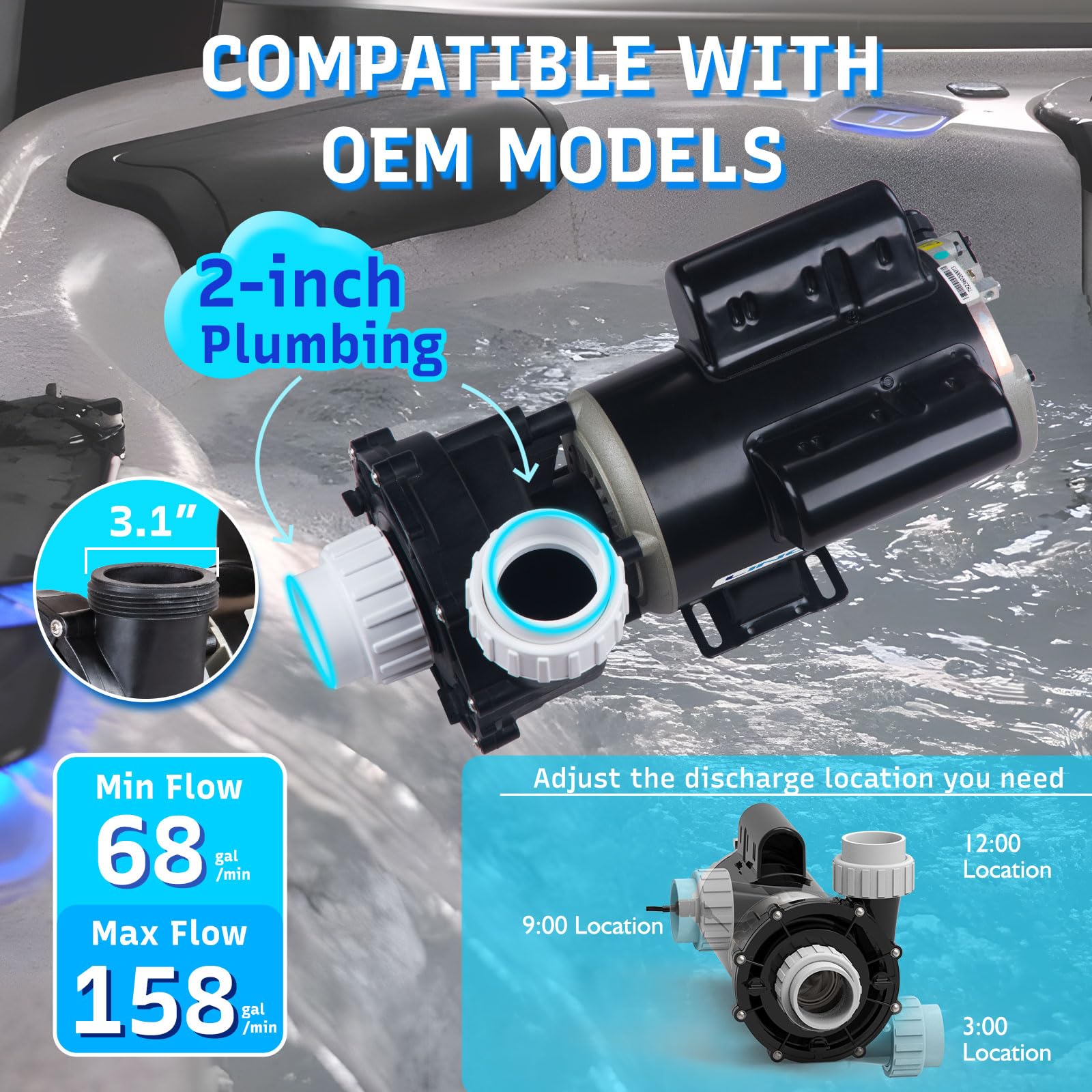

How do I know this LINGXIAO pump fits my hot tub?

Check your current pump’s model and the mounting frame size: this model fits 48 frame (Y) motors and uses 2" port plumbing. Verify supply voltage and amperage on your OEM label to ensure the 230V two-speed ratings match your system.

• Compatible frame: 48 frame (Y) standard.
• Plumbing: 2" union-ready ports; free 2" union included.
• Voltage: 230V / 60Hz two-speed operation.
• Confirm by matching OEM model label or consult technical support.

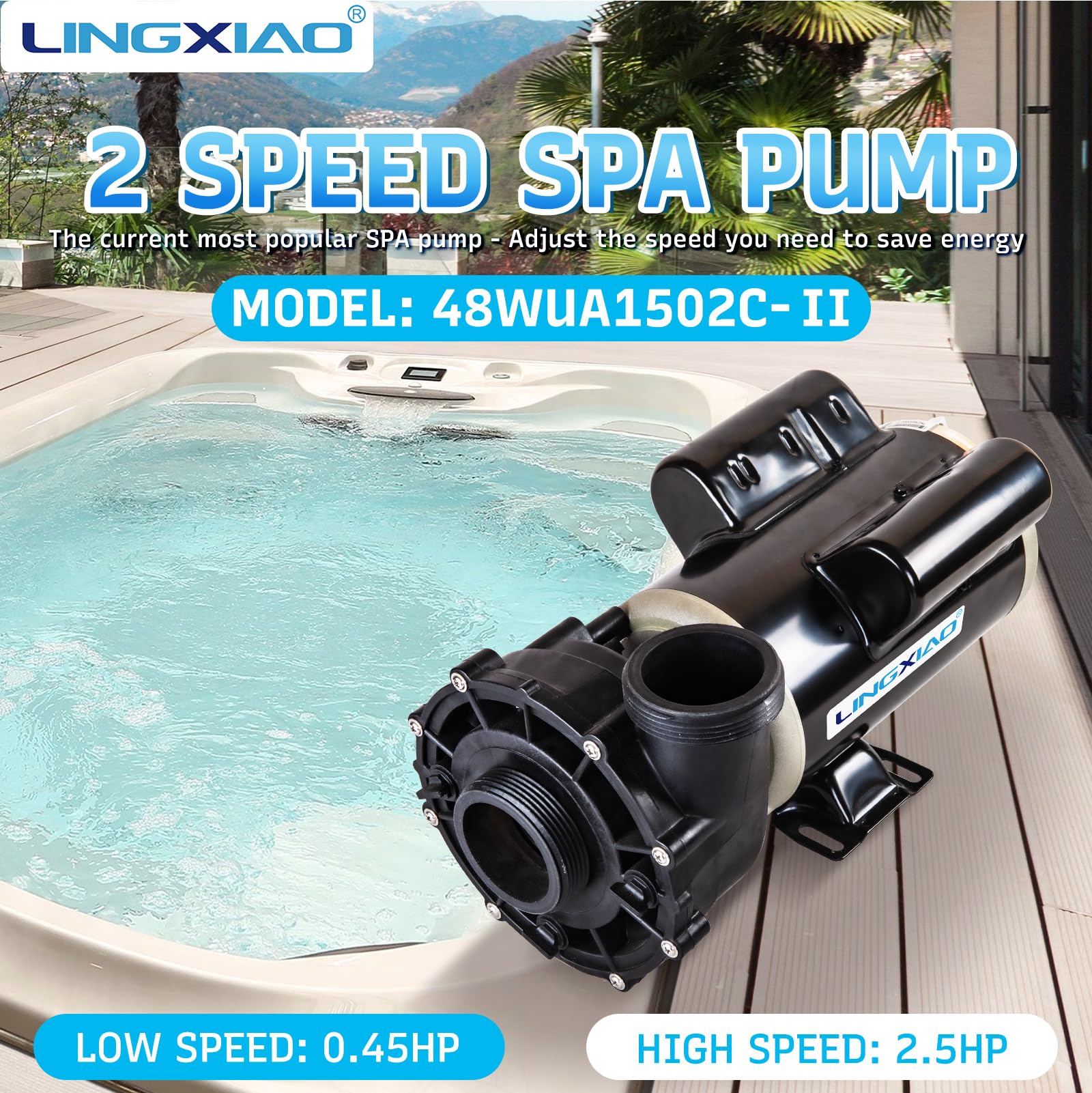

What are the electrical and performance specifications?

The pump runs on 230V/60Hz with two speed settings for balancing flow and energy consumption. Low speed draws ~2.6A and high speed ~8.0A; input power ranges from 0.45HP to 2.5HP while output ranges from 0.18HP to 1.5HP, which is typical for spa pumps rated by input.

• Two-speed amperage: Low 2.6A, High 8.0A.
• Input power: 0.45HP–2.5HP; output: 0.18HP–1.5HP.
• Designed for 230V residential spa systems.
• Includes thermal protector and UL/CUL/ETL safety marks.

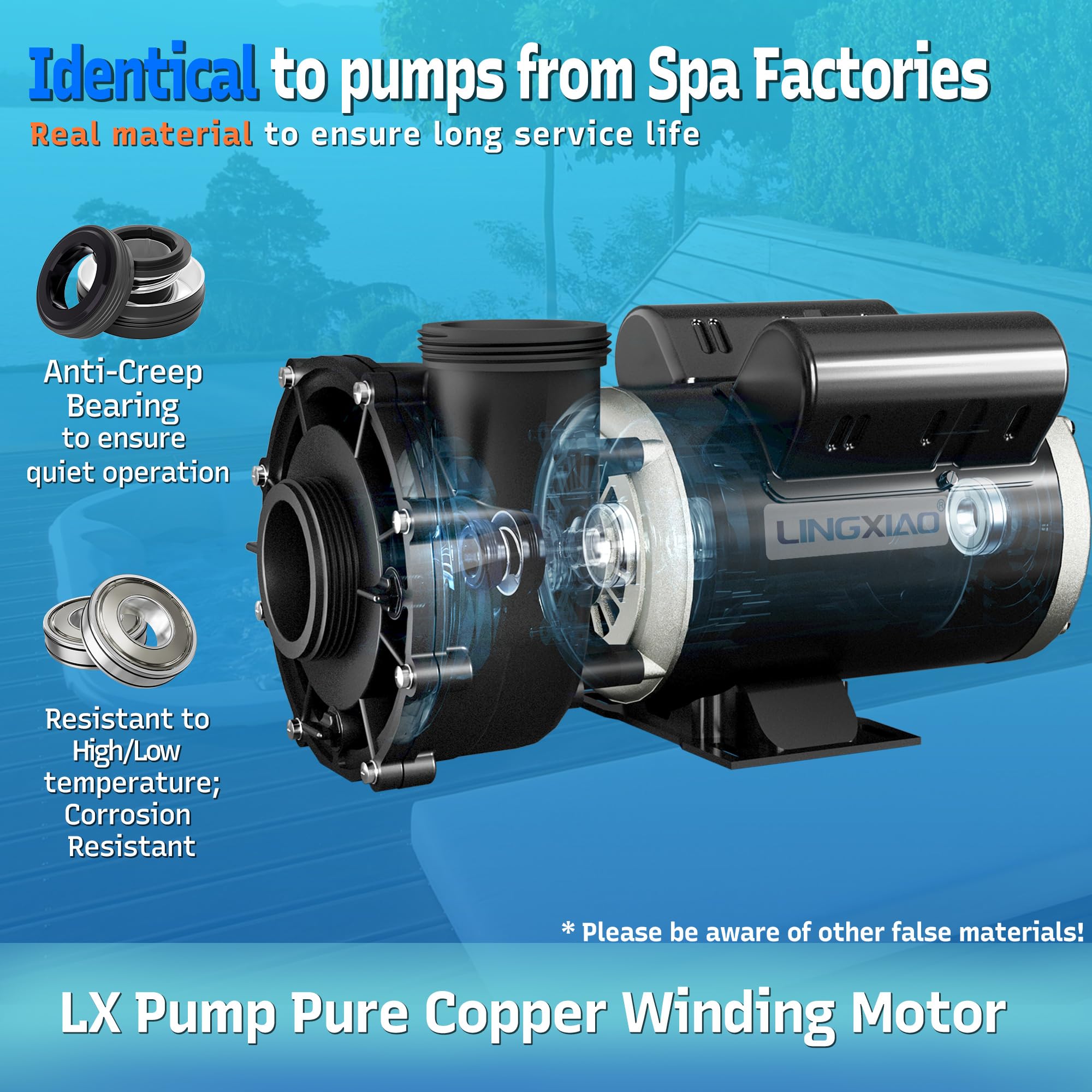

How reliable and quiet is the LINGXIAO 48WUA1502C-II?

Reliability is emphasized through long-cycle capacitor testing and a thermal protector to guard against overheating. The motor uses high-quality copper windings and an anti-creep bearing to reduce vibration and noise compared with older or worn pumps.

• Capacitor tested for 80,000 charge-discharge cycles.
• Thermal protector from a trusted supplier for safety.
• Copper-wound motor and anti-creep bearing for quieter life.
• UL/CUL/ETL certified components.

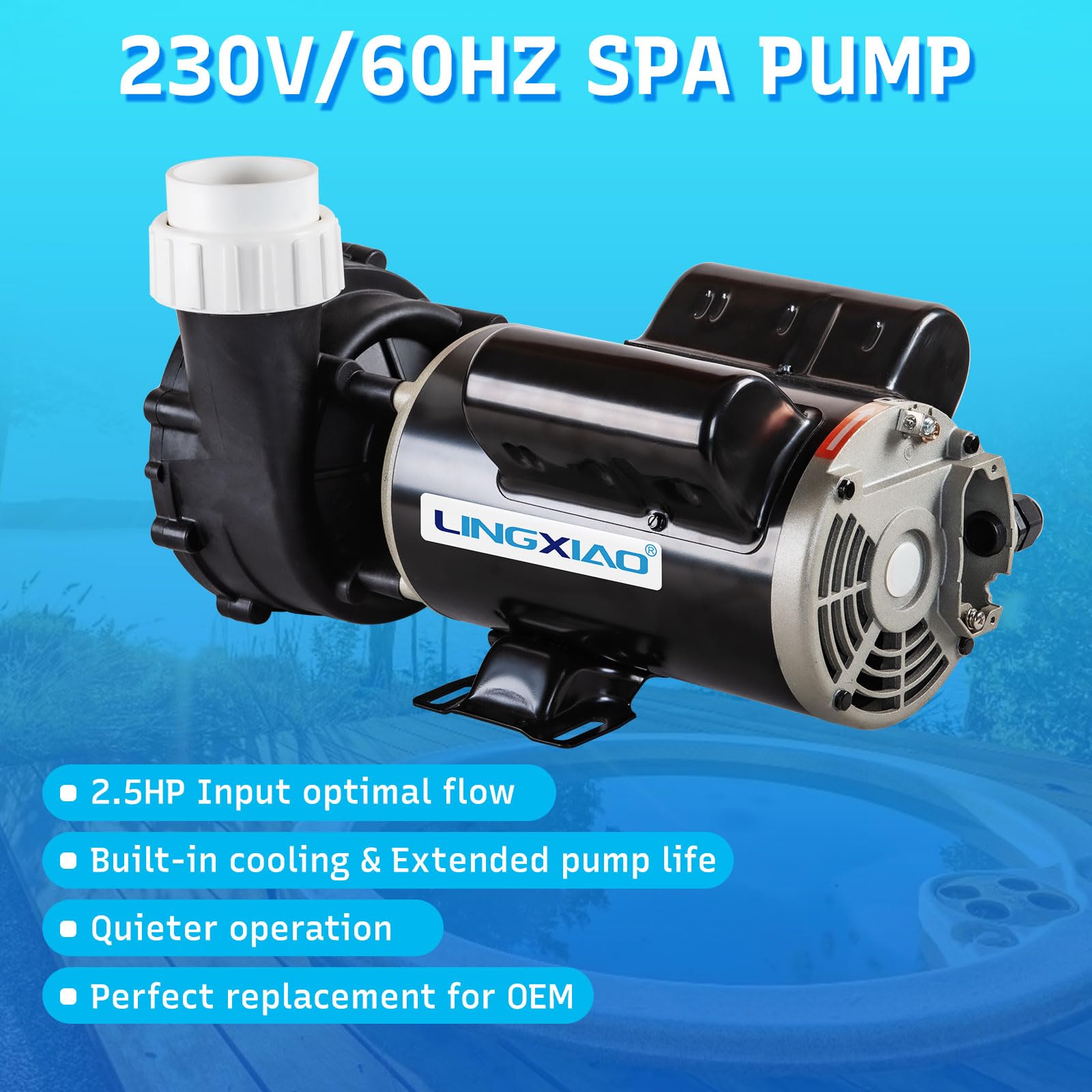

What comes in the box and what installation support is available?

Each unit ships with a free set of 2" unions to help connect the pump to existing plumbing quickly. The brand provides one-year warranty coverage and customer service to answer fitment or troubleshooting questions; technical help is available to confirm compatibility before purchase.

• Included: LINGXIAO 48WUA1502C-II pump + 2" union set.
• Warranty: 1-year limited warranty and customer support.
• Support: Technical assistance via seller contact for model matching.
• Tip: Verify OEM label parameters prior to installation.

Who is this for: The LINGXIAO 48WUA1502C-II is aimed at spa and hot tub owners or technicians who need a dependable OEM-compatible replacement for a 48 frame two-speed pump. It suits those replacing noisy or low-power pumps who want safer electrical certification, simpler plumbing with included unions, and a quieter, longer-lasting motor backed by one-year support.
