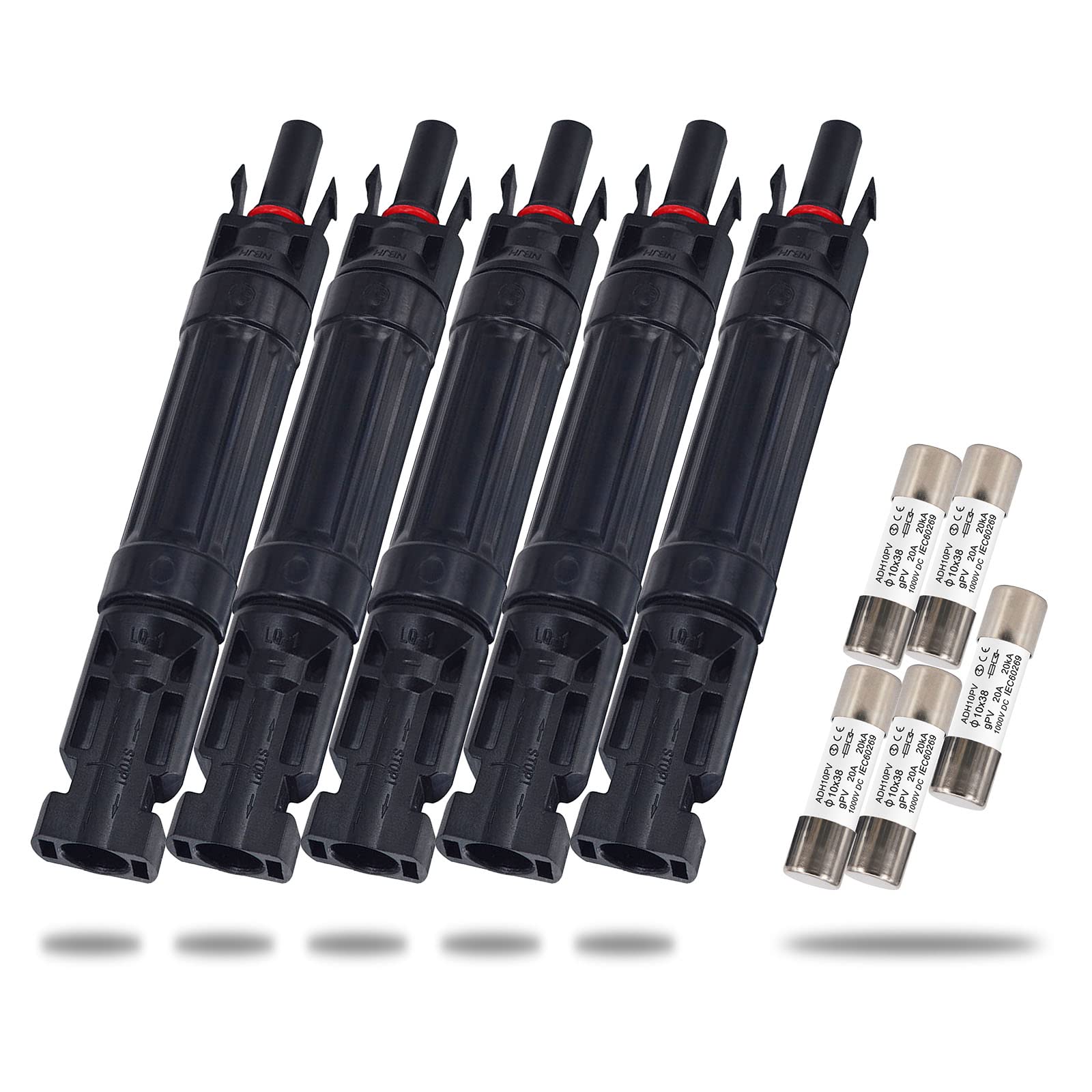

Leehitech 20A Solar PV Inline Fuse Holder — 5-Pack, IP67 Waterproof MC4-Compatible Protection

The Leehitech 20A Solar PV inline fuse holder is a weatherproof, plug-and-play connector that secures a single solar circuit with a replaceable 20A fuse — sold as a pack of five for outdoor photovoltaic systems.

Designed for rooftop and ground-mounted solar arrays, this inline fuse holder combines a standard MC4-compatible plug interface with an IP67-rated sealed body to keep moisture and dust out while protecting components from overcurrent. Its PPO construction and auto-locking male/female ends help ensure reliable electrical contact through routine maintenance and changing weather. The connector works with common solar cable sizes (AWG 14–10) and fits most PV installations that use inline fuses for circuit protection.

How does this fuse holder protect my solar array?

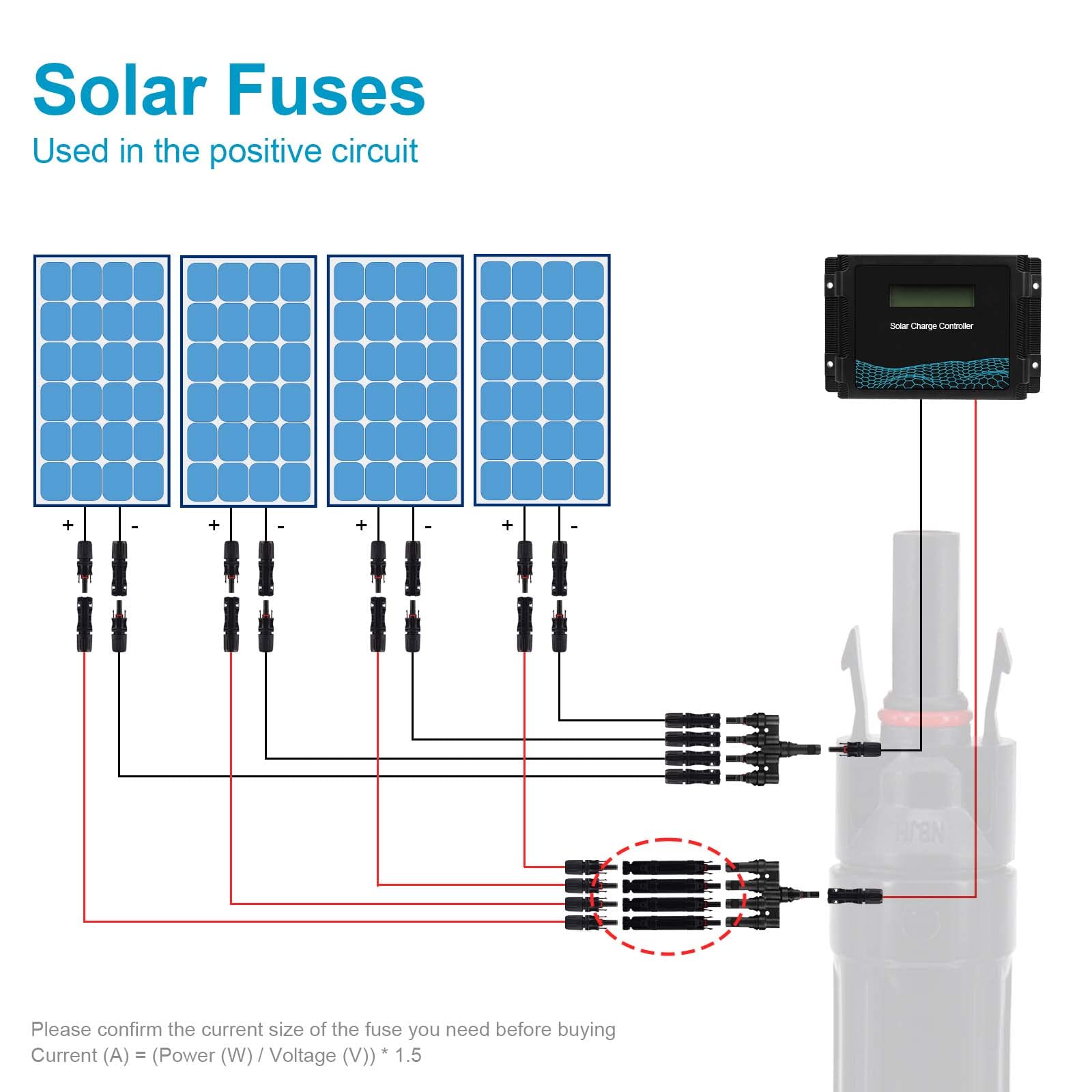

The device houses a replaceable 20A blade fuse that interrupts excessive current before wiring or modules are damaged. It installs inline on the positive conductor of a circuit, so any overcurrent is localized and removable without altering the rest of the string.

• Holds a standard 20A blade fuse for straightforward replacement
• Shuts down current flow when fuse element melts, preventing further stress
• Uses a single-circuit inline configuration for targeted protection

Is this connector suitable for outdoor use and harsh conditions?

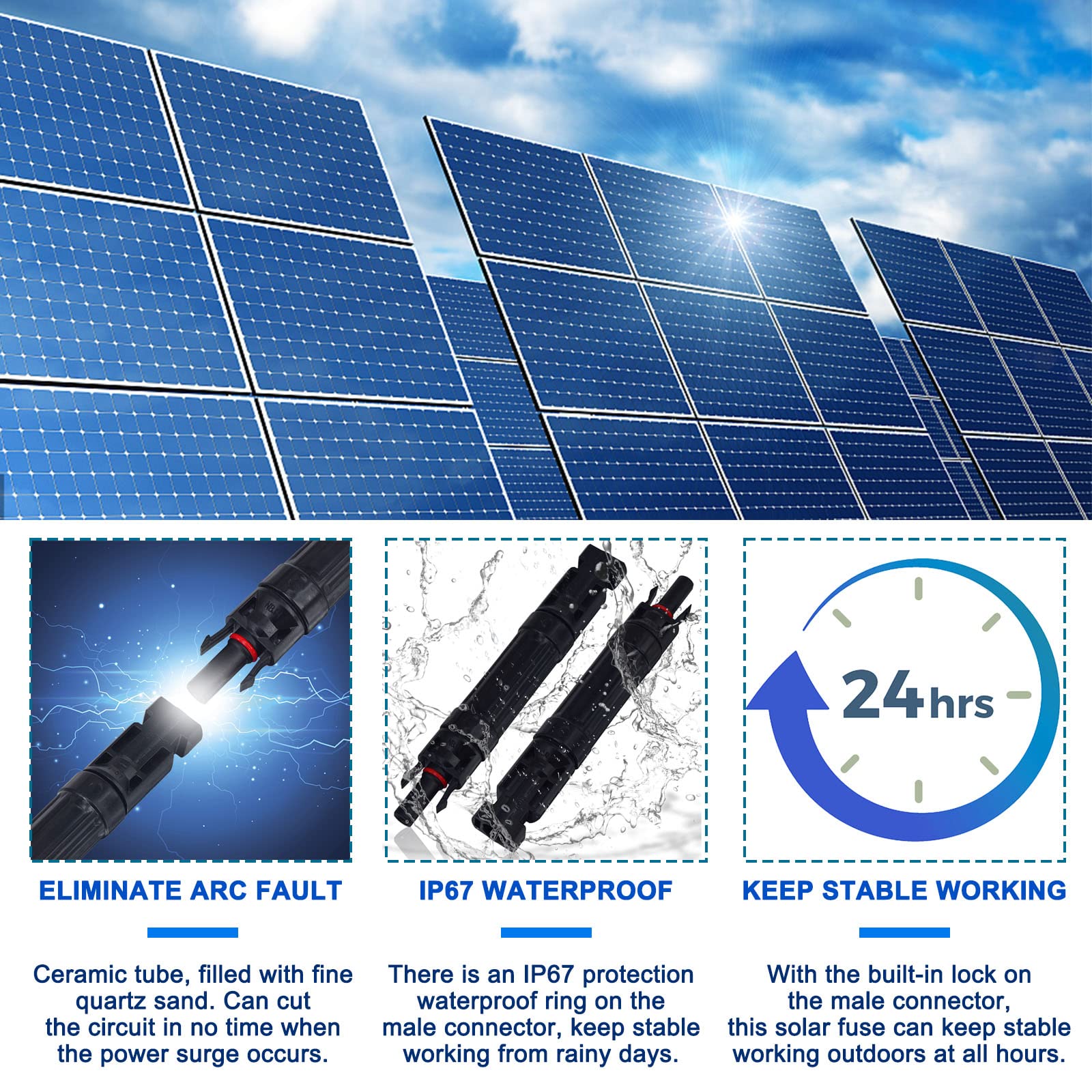

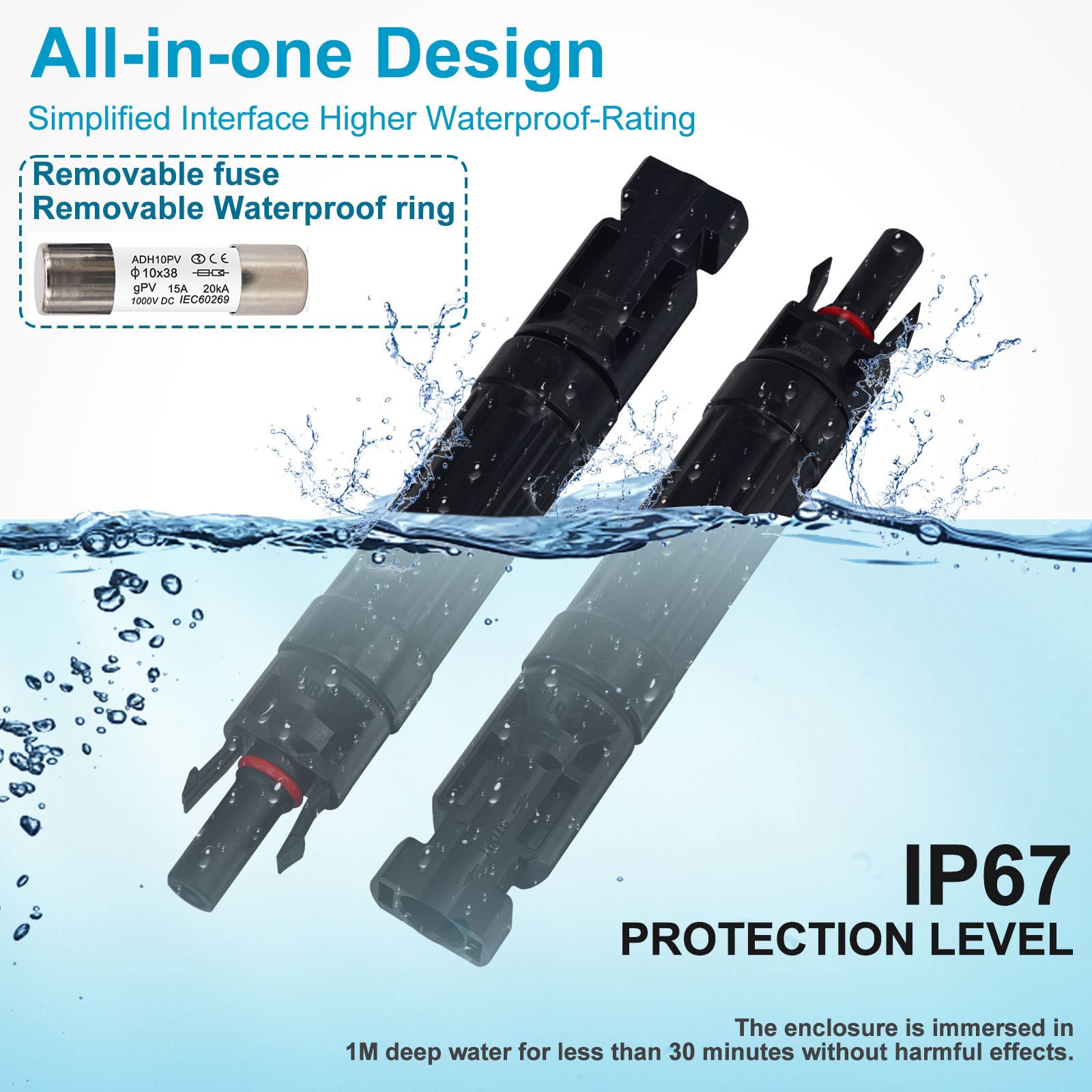

The Leehitech fuse holder is built to withstand outdoor exposure when fully mated and locked. An integrated waterproof sealing ring and IP67 rating mean the connector resists temporary immersion and heavy rain when properly connected.

• IP67 rating in the locked position for protection against dust and water
• PPO housing resists UV and physical wear for longer lifespan

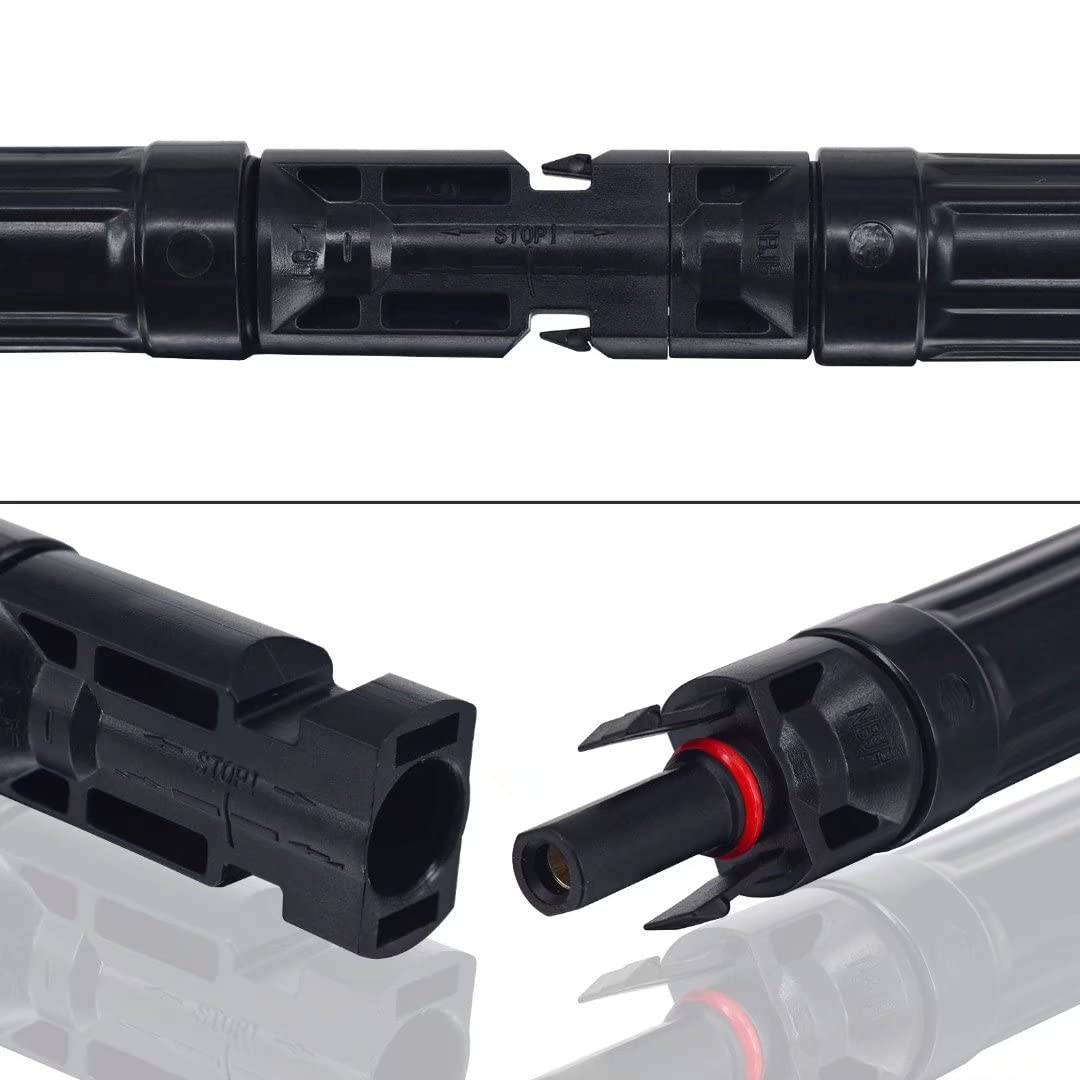

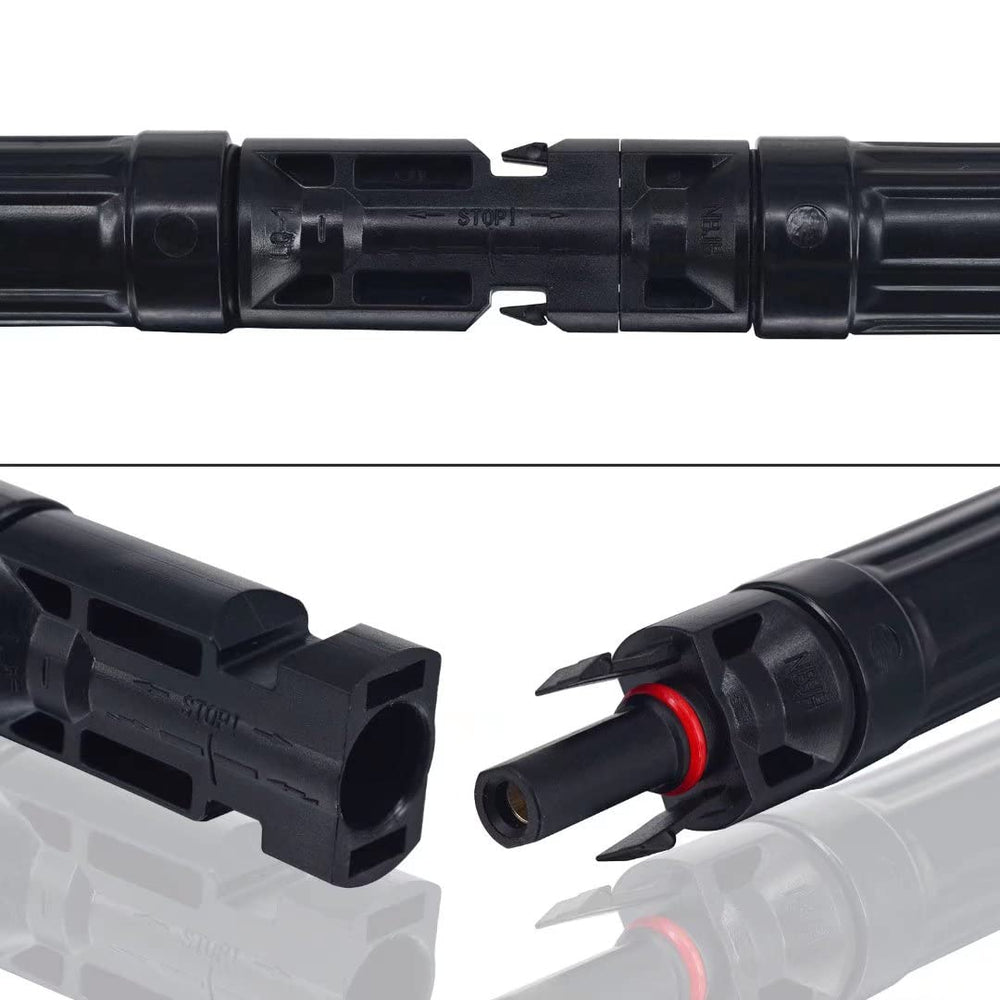

• Secure auto-lock mechanism prevents accidental disconnection

Will this fit my existing solar cables and connectors?

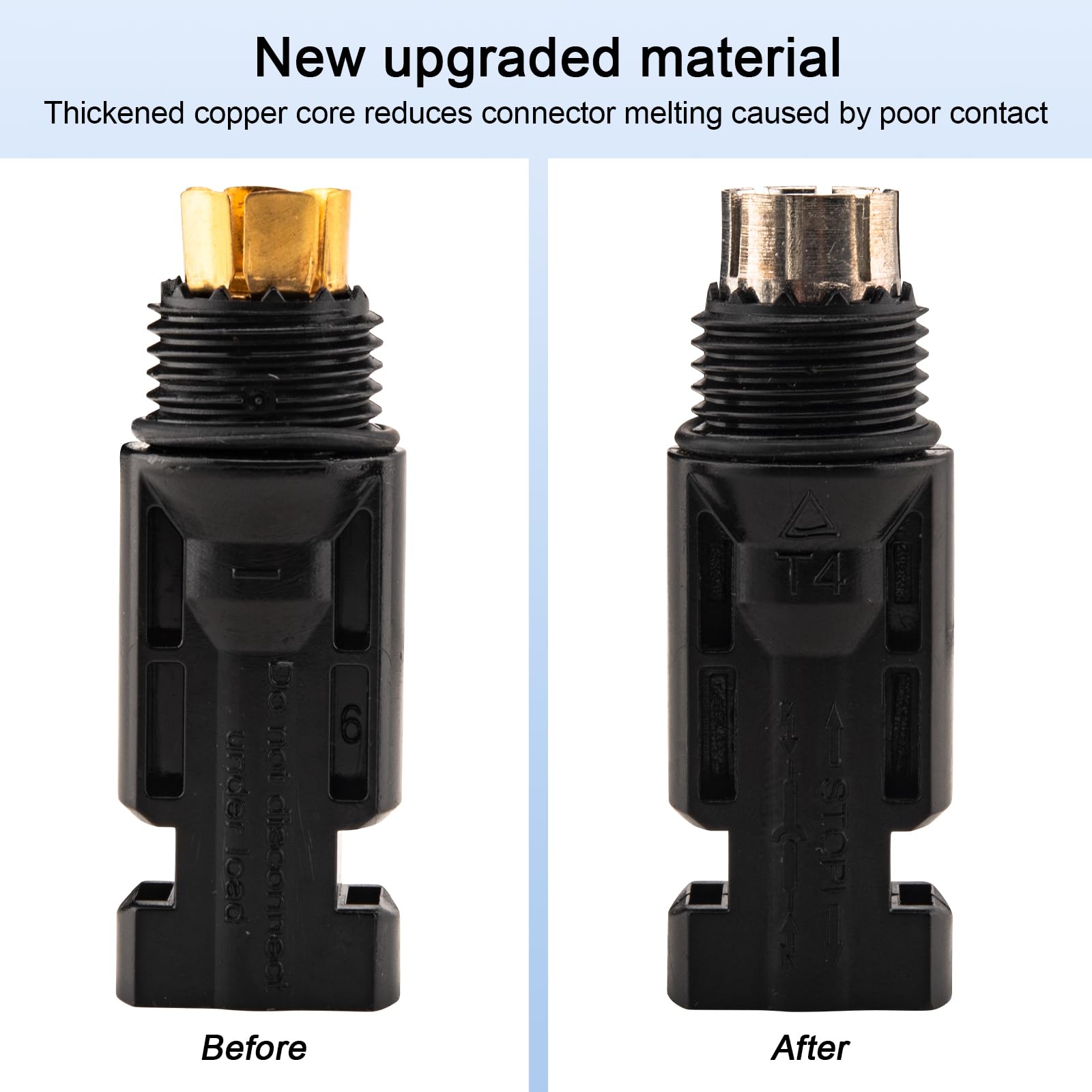

This inline fuse holder was designed to be broadly compatible with common PV connector standards and cable gauges. It accepts 14–10 AWG cable sizes and mates with most MC4-style plugs, simplifying retrofit and new installations.

• Compatible with typical solar cable AWG 14–10
• Works with most MC4-compatible connector systems used in PV arrays
• Plug-and-play male/female pair for quick inline insertion

How do I choose the correct fuse size and install it safely?

Pick a fuse rated to protect wiring and downstream devices: calculate expected circuit current, then select a fuse with appropriate margin. Always perform installation with the system de-energized and follow local electrical codes or consult a qualified installer.

• Estimate circuit current: Current (A) = (Power (W) / Voltage (V)) and apply a safety multiplier (commonly 1.25–1.5 depending on code)
• Install fuse inside the holder and fully lock the two connector halves for IP67 sealing
• Turn off PV strings or isolate before connecting or replacing the fuse

Who this is for: Installers, DIY solar enthusiasts, and maintenance technicians who need a reliable, compact inline protective device for small to medium PV setups. The 5-piece pack suits multi-panel arrays, rapid replacements, or stocking spare parts. It’s ideal when you want a straightforward, weatherproof fuse solution that integrates with common solar cable sizes and MC4-style systems while keeping installation and service time to a minimum.
