L-FENCE LYDITE FENCE Electric Fence Charger — 5 Mile (20 Acre) AC Energizer, 0.2J 5100V with Lightning Arrester

The L-FENCE LYDITE FENCE Electric Fence Charger is an AC-powered energizer that delivers 0.2 joule pulses at up to 5 miles (covers about 20 acres) to deter small wild animals and protect poultry, pets, and garden areas.

If you need a compact, affordable energizer to add a reliable deterrent pulse to perimeter wiring, this AC unit combines a sturdy housing, a built-in lightning arrester, and visible status indication for quick checks. Its output specification — 5100 volts peak with 0.2 joule energy — is sized for short-to-medium length fences where a clear but limited pulse is sufficient to discourage intruders without the bulk or expense of high-energy systems.

How far will this energizer protect my fence line?

The charger can energize up to approximately 5 miles of wire, which is commonly estimated to protect roughly 20 acres under normal installation conditions. Actual performance depends on fencing material, vegetation contact, and ground quality; heavy weed growth or poor grounding reduces effective range.

• Rated coverage: about 5 miles of continuous wire
• Typical area coverage: up to 20 acres with good conditions
• Performance affected by vegetation contact and grounding quality

What are the electrical specs and safety features?

This model outputs pulses at about 5100 volts peak and stores 0.2 joules of energy per pulse — suitable for controlling small animals and creating a clear deterrent. The unit is AC-powered, housed in a rugged enclosure, and includes a built-in lightning arrester to reduce surge damage risks.

• Output voltage: 5100 V (peak)
• Stored pulse energy: 0.2 J
• AC-powered with internal lightning arrester and durable casing for outdoor installation

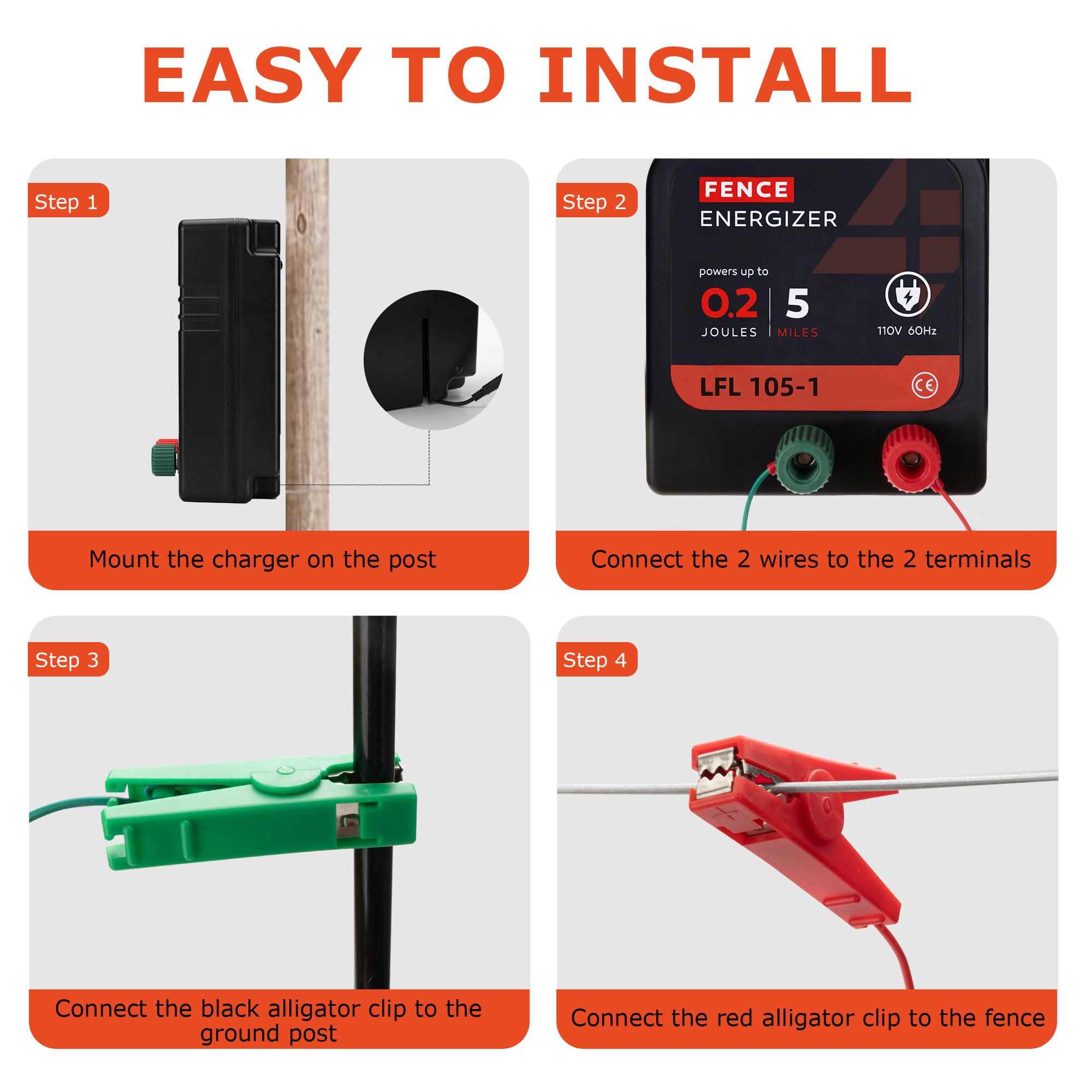

How do I install and connect the energizer?

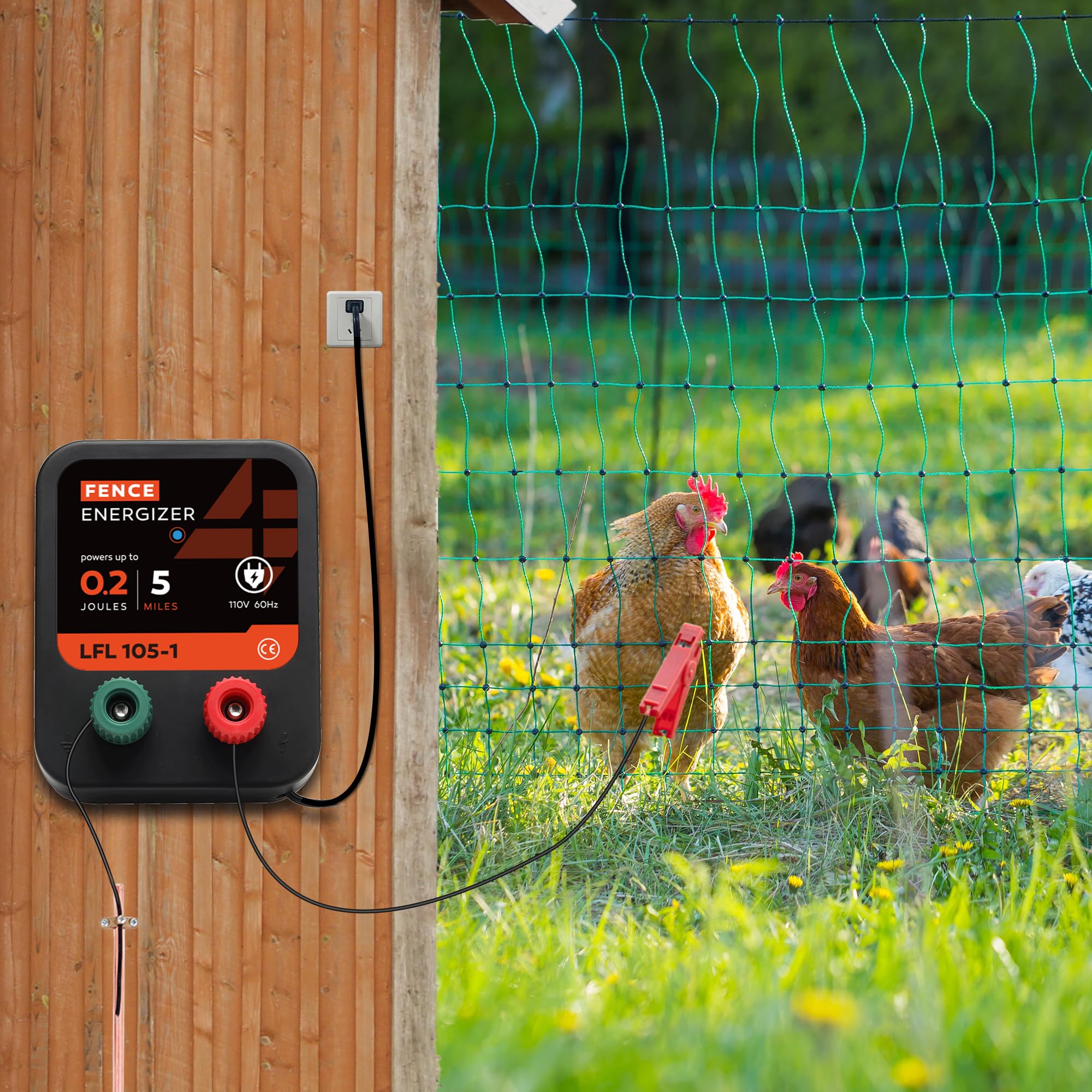

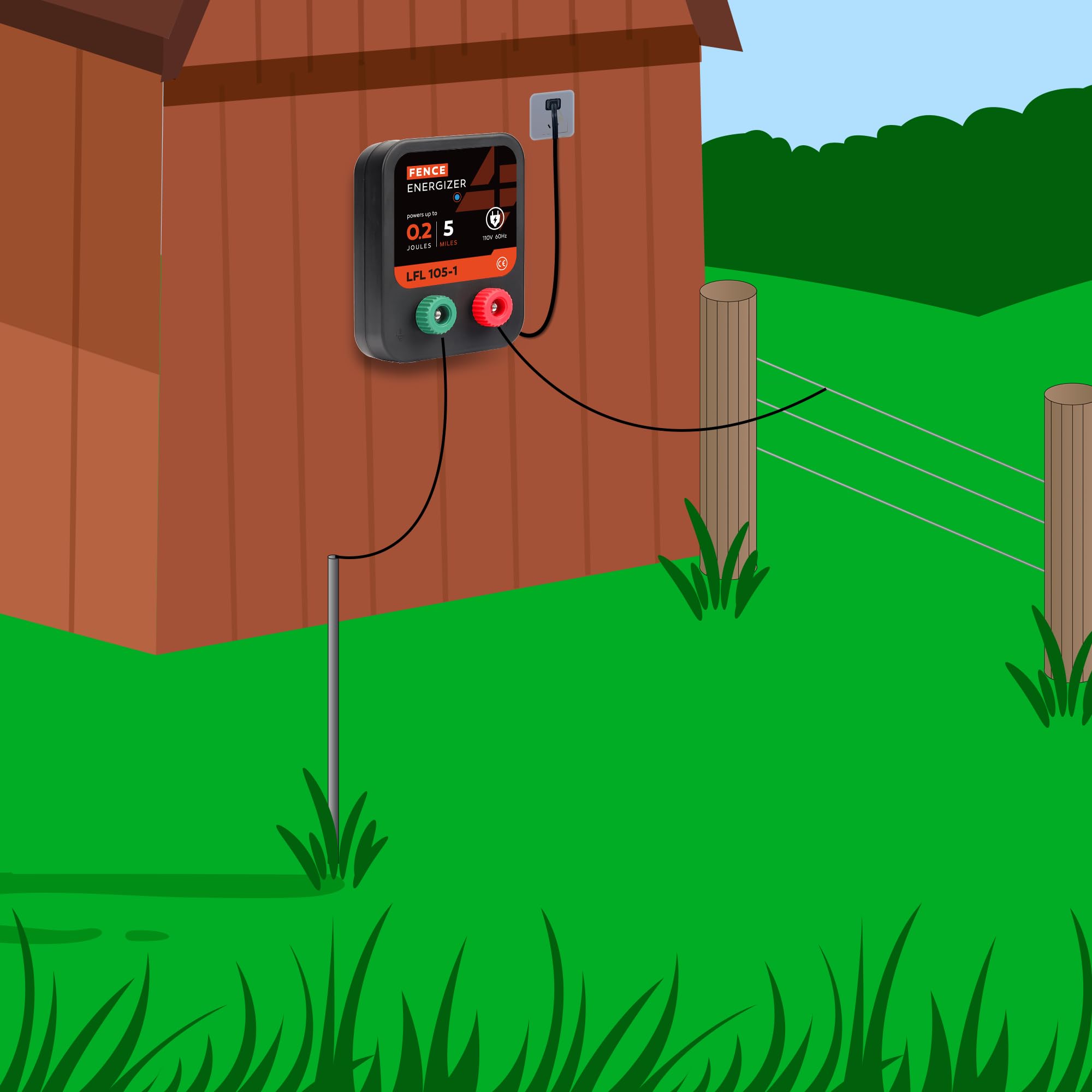

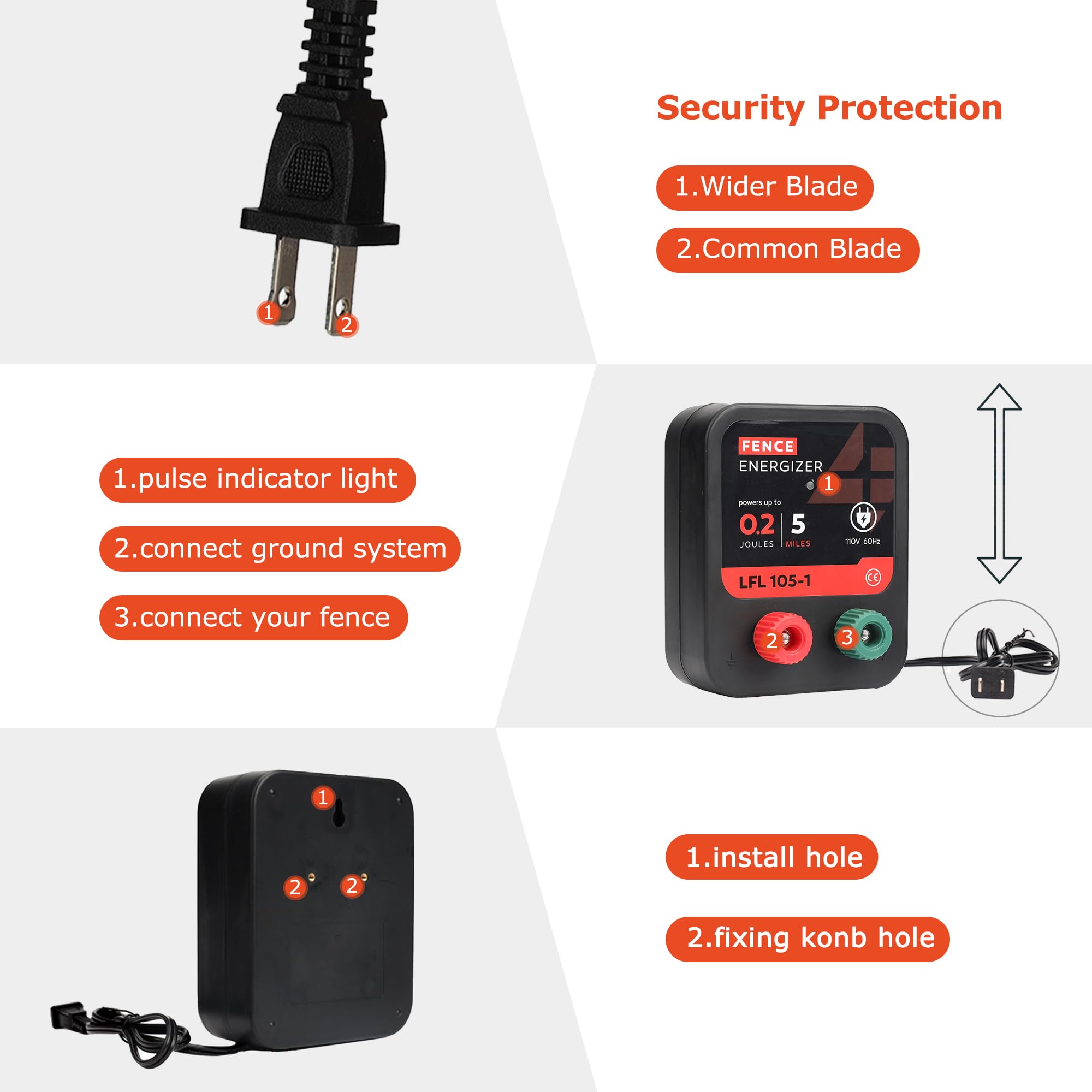

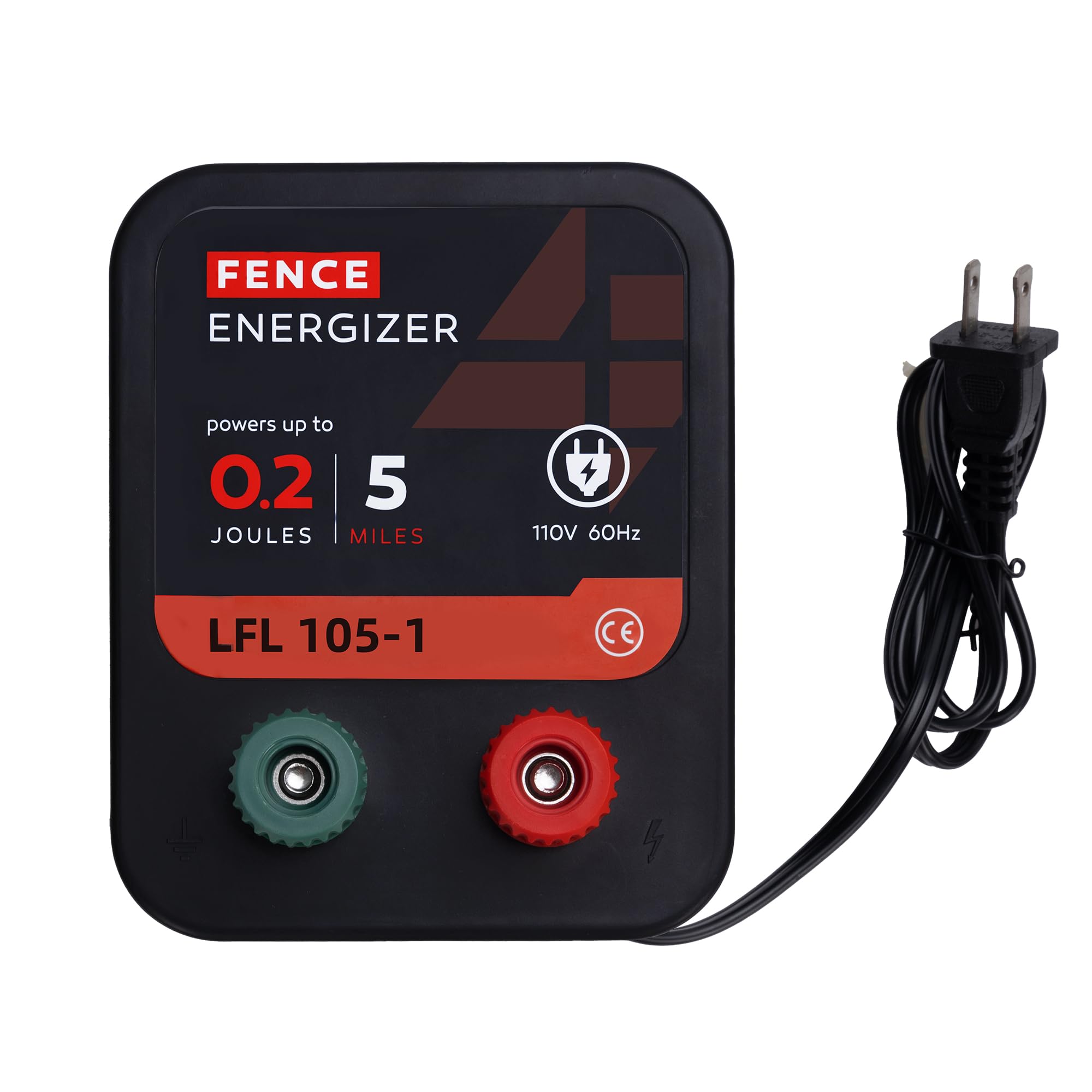

Installation is straightforward: mount the unit on a wooden stake, post, or wall using the rear mounting slots, then connect the red terminal to the fence conductor and the green terminal to a separate ground rod. The charger features a visible indicator light to confirm operation; you will need to supply your own alligator clips or terminals for the wire connections.

• Mounting: screws or nails through rear slots; fits wood, fiberglass, steel posts
• Connections: red terminal to fence wire, green terminal to ground rod
• Requires user-supplied alligator clips or wire lugs for terminals

Which fencing materials and animals is this best suited for?

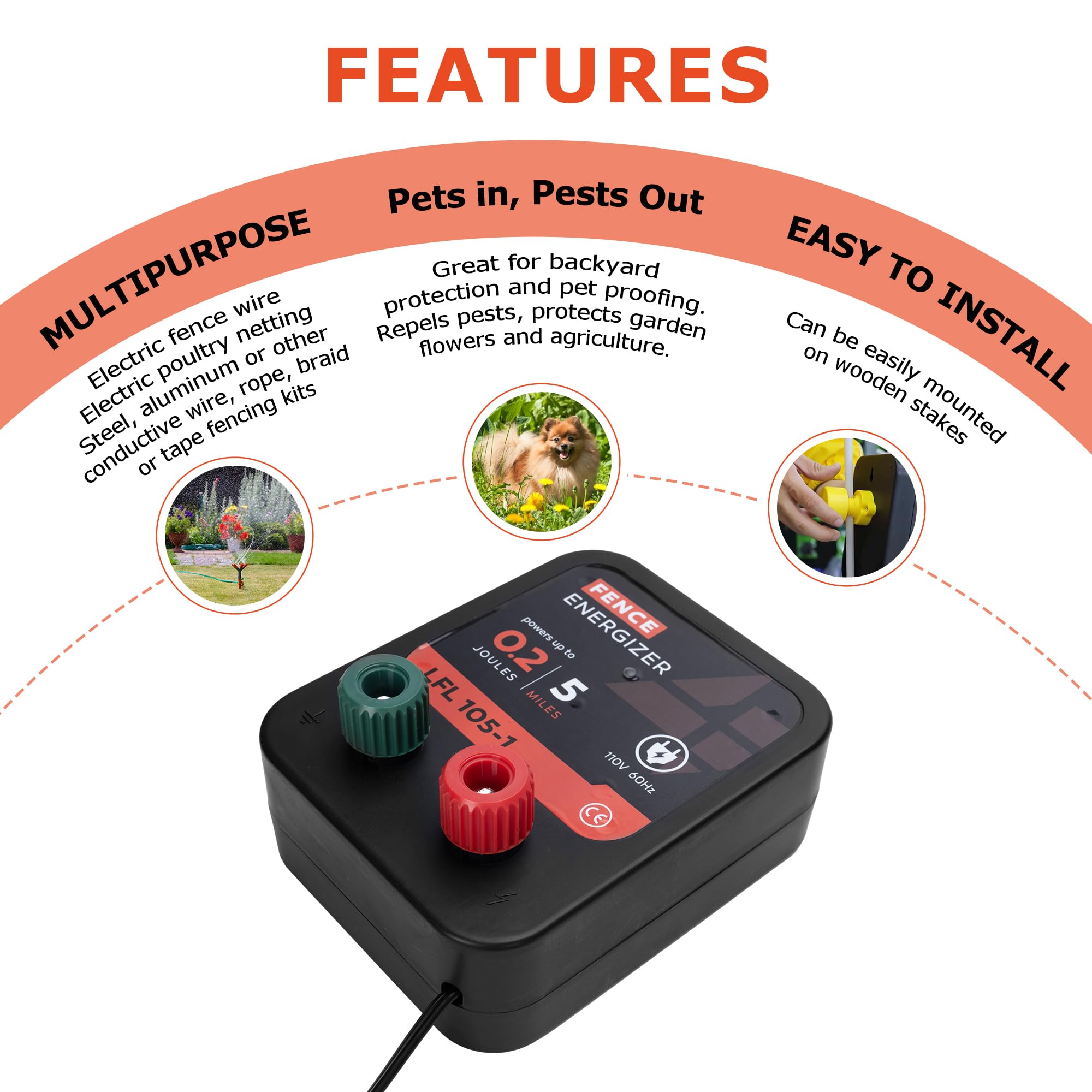

The L-FENCE LYDITE FENCE charger works with a variety of conductive materials including steel, aluminum, braided wire, rope, and tape. It is designed principally for poultry, small livestock, and garden perimeter protection where short deterrent pulses are effective against foxes, raccoons, skunks and similar small intruders.

• Compatible conductors: metal wire, tape, braid, rope with conductive core

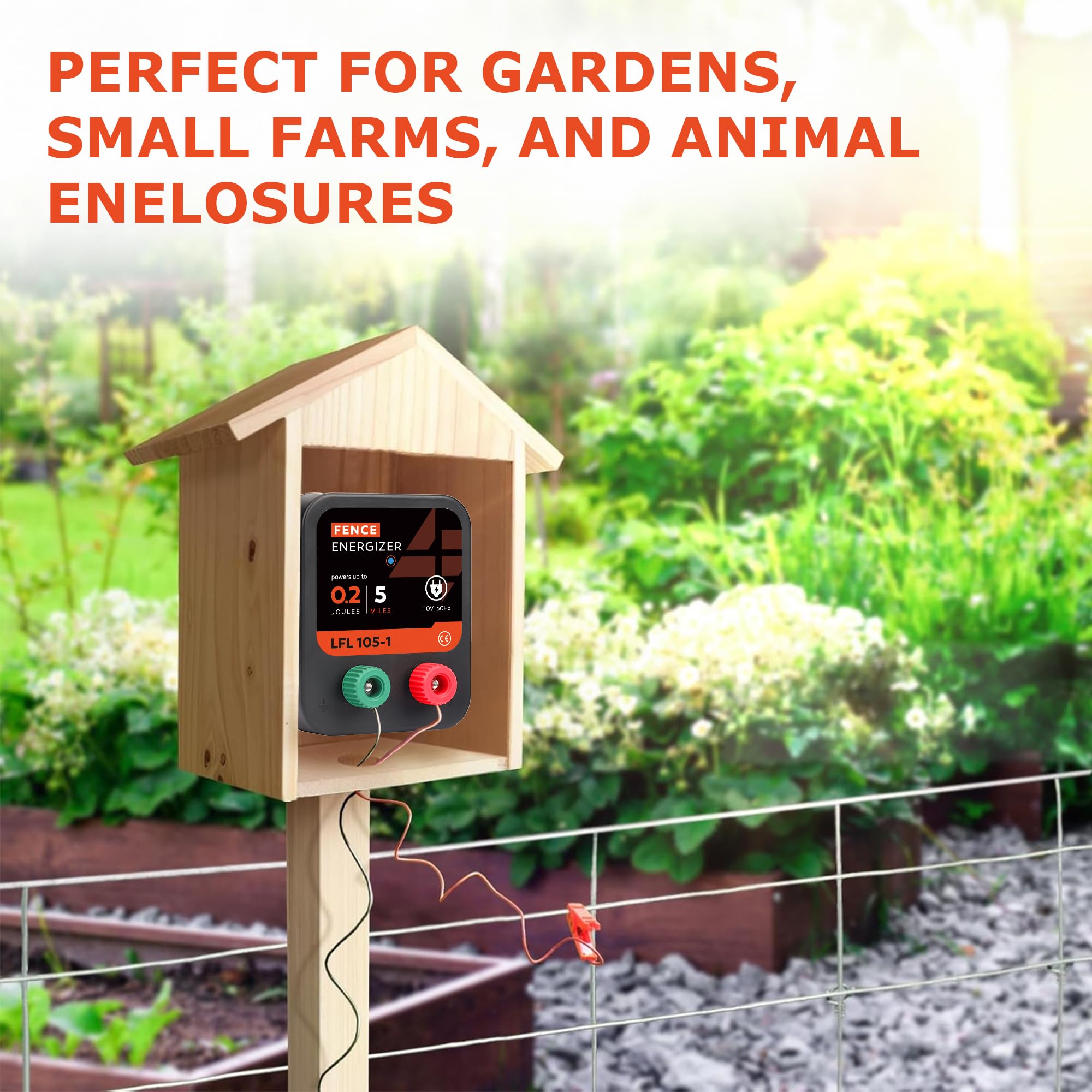

• Best for: poultry runs, small livestock paddocks, garden perimeters
• Not intended as a high-energy perimeter solution for large wildlife or long-distance industrial fences

Who this is for: Farmers, hobby homesteaders, and gardeners who want an inexpensive, easy-to-install electric energizer to protect poultry, pets, and small livestock from common nuisance animals. Choose this unit when you need a compact AC-powered charger for short to medium-length fences and value simple installation, visible status feedback, and basic surge protection.
