L-FENCE LYDITE FENCE AC Electric Fence Charger 110V Plug-In — 2 Joule, 50-Mile Range, Surge Protected

The L-FENCE LYDITE AC electric fence charger is a 110V plug-in energizer delivering up to 2 joules and a maximum 10 kV output to power fences across roughly 50 miles (165 acres) for reliable livestock and predator control.

Designed for farms, ranches and large properties, this plug-in energizer provides low-impedance pulses that travel long distances and maintain output under typical fence loads. The hard-wearing housing, built-in surge protection and clear indicator lights make it straightforward to mount, wire and monitor. It is intended for above-ground installation where it can be protected from direct rain.

How does this energizer keep livestock and property secure?

The unit produces short, high-voltage pulses that discourage animals from pushing through or contacting the fence line. Because it delivers up to 2 joules of stored energy and a peak output near 10 kV, the pulse remains effective along extensive runs of wire when properly grounded.

• Covers up to 50 miles of single-strand fence under typical conditions.
• Low-impedance design helps overcome vegetation contact and leakage.

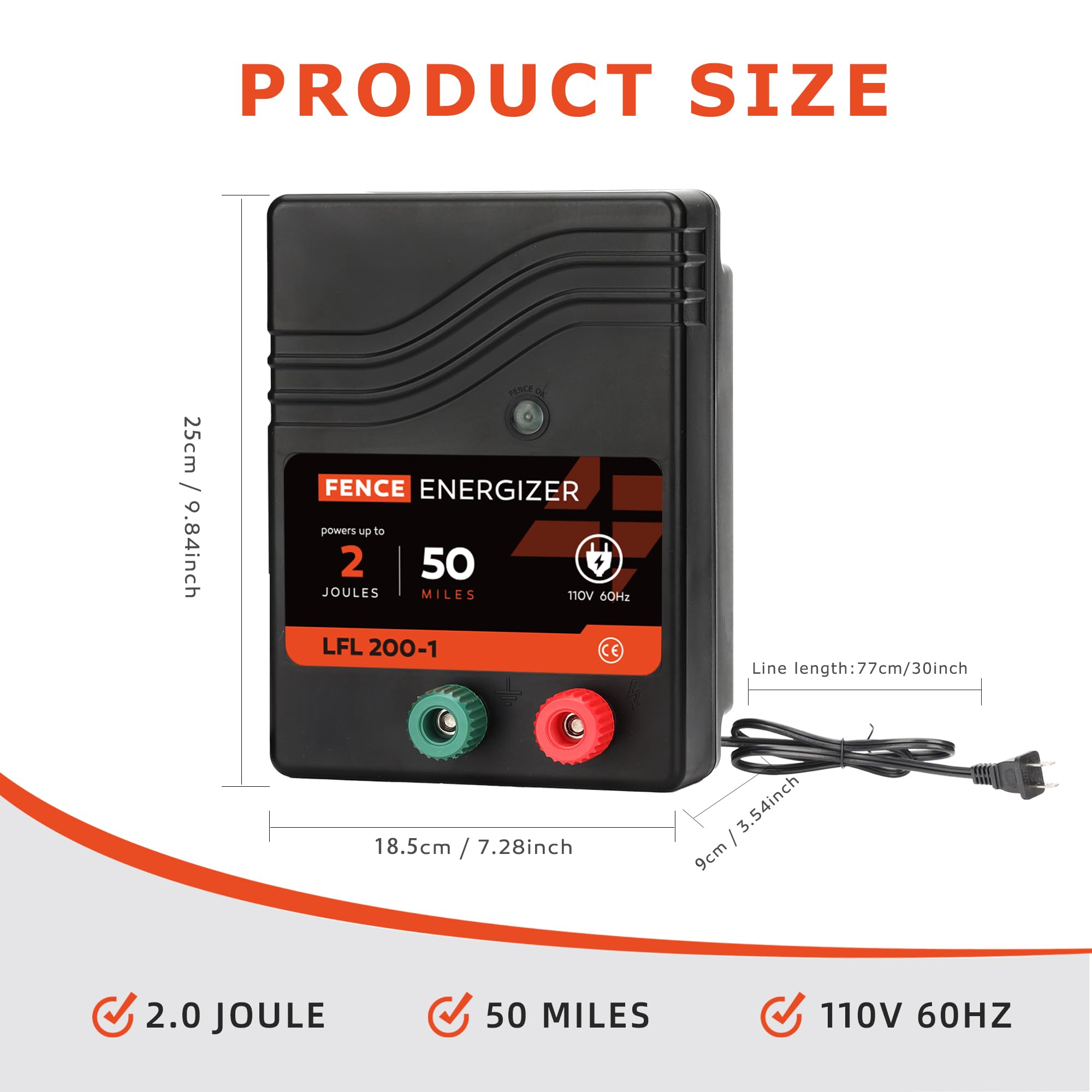

• Two clearly marked terminals for fence and ground connections.

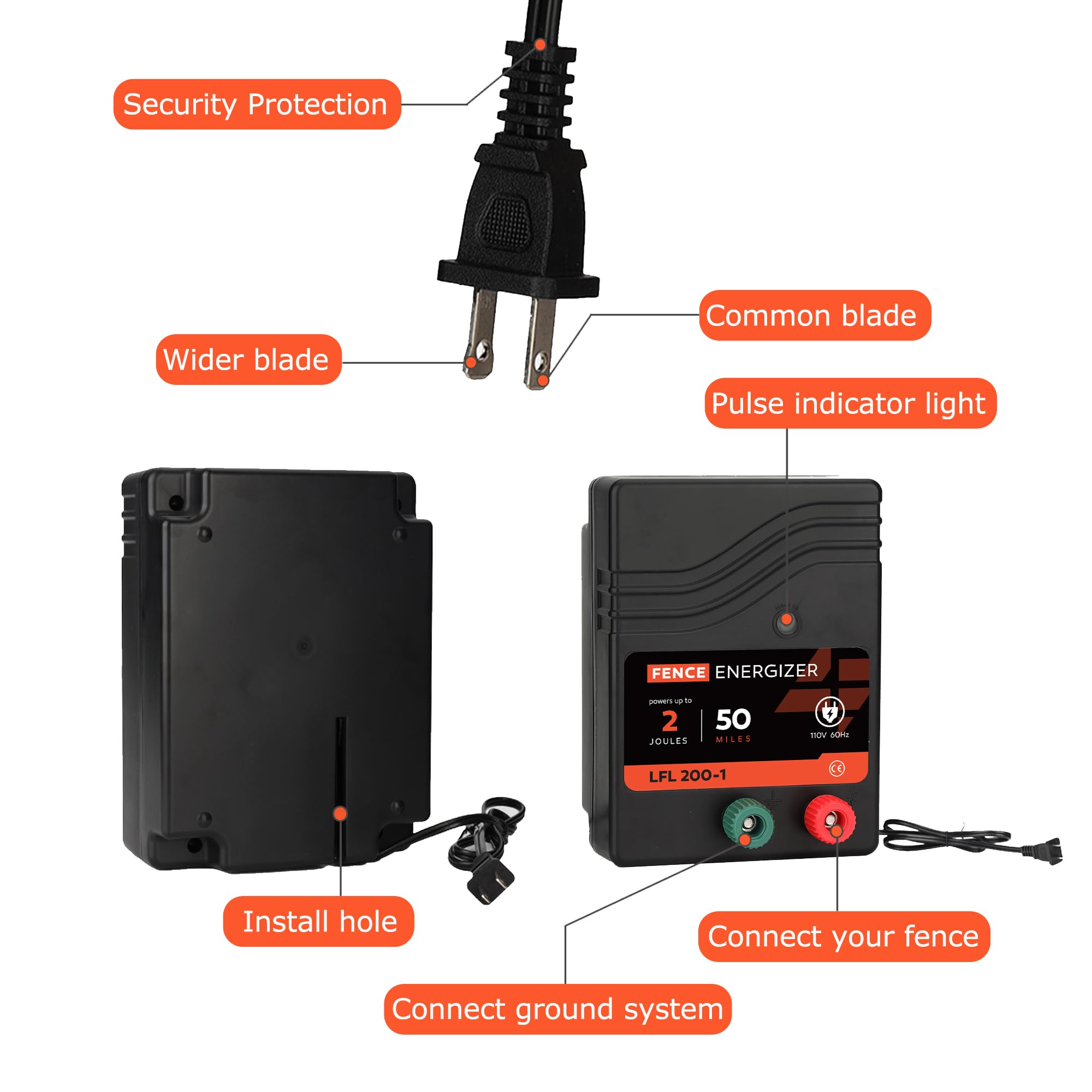

• Indicator lights for quick confirmation of operation and pulse output.

What are the electrical specs and installation basics?

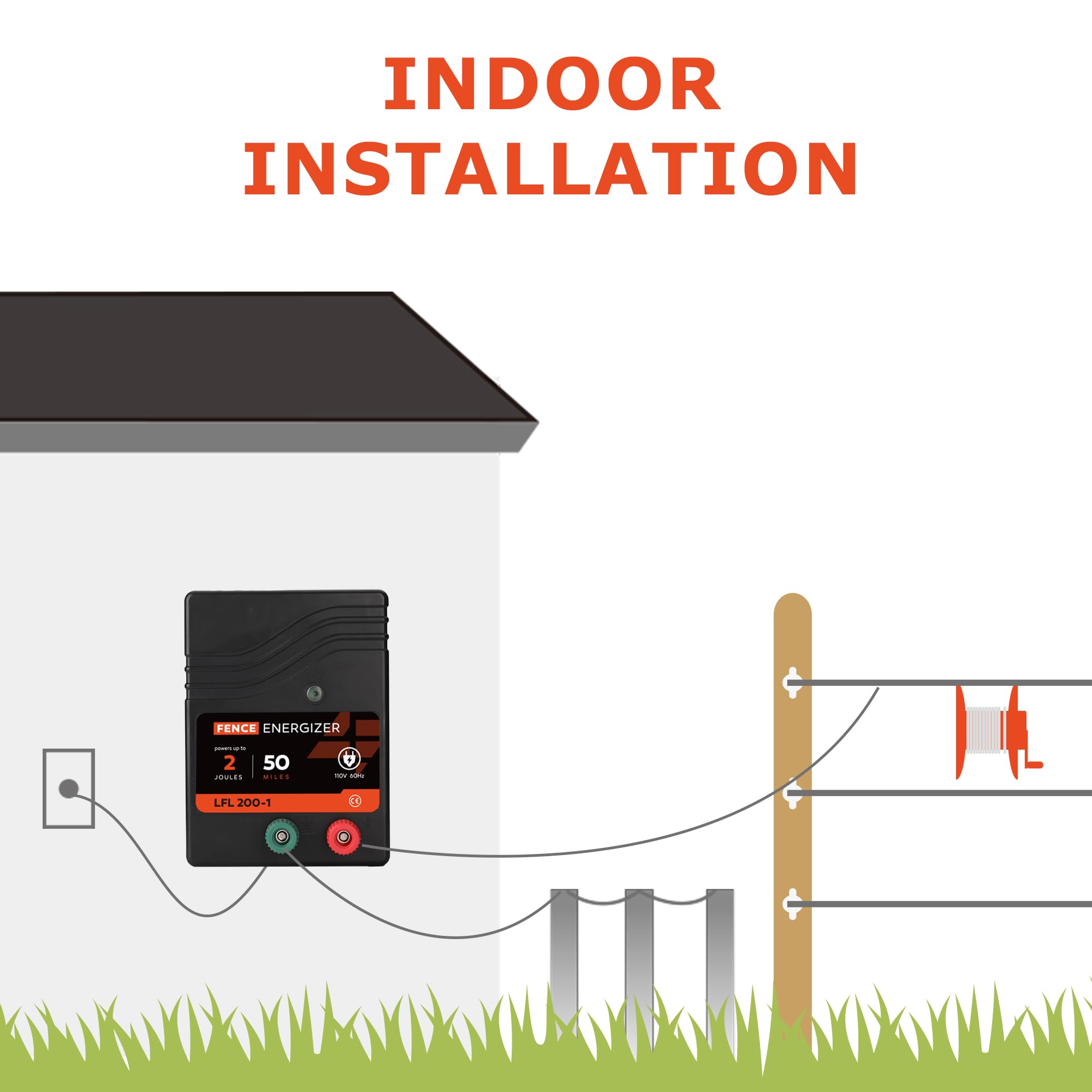

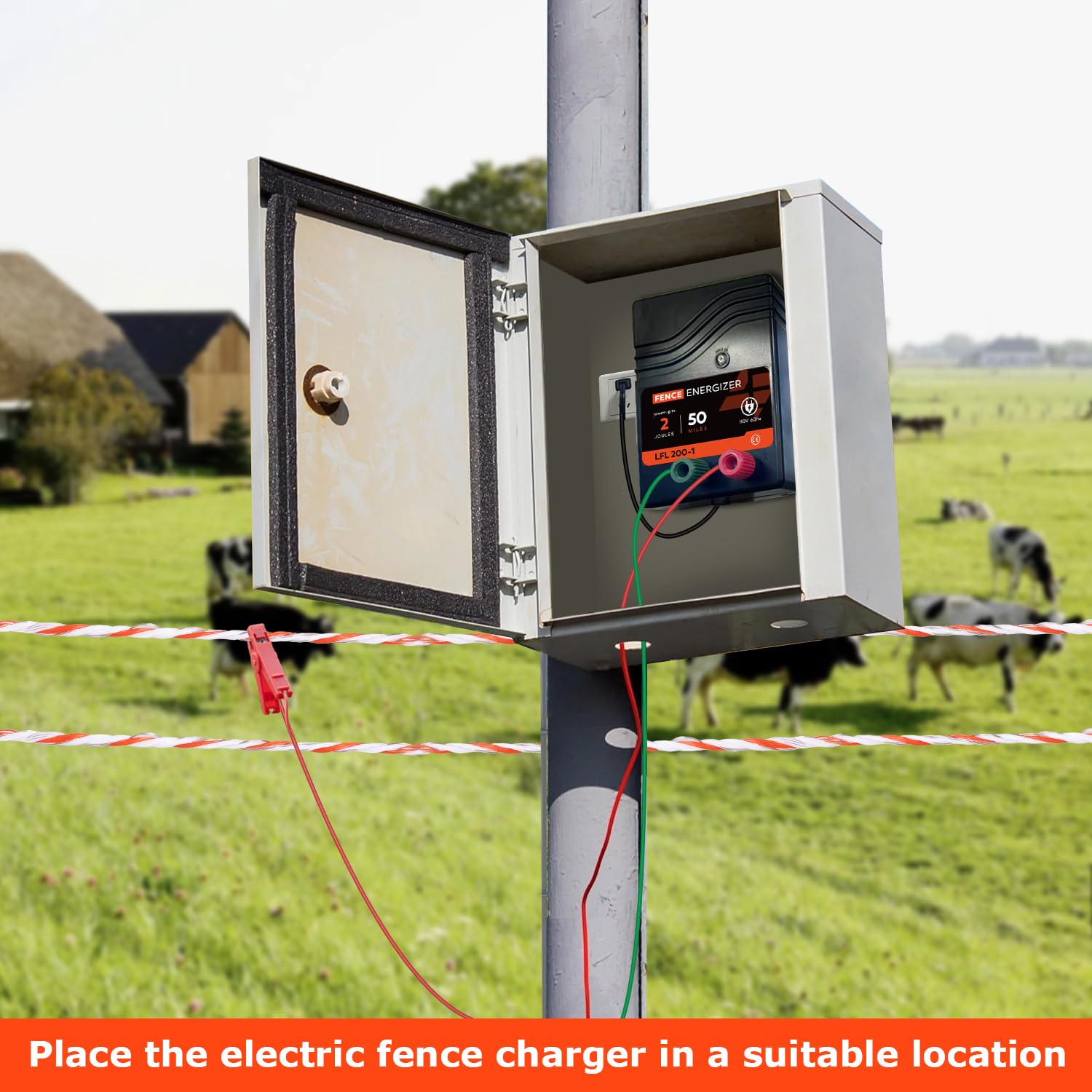

This model runs on standard 110V/60Hz household power and delivers a measured pulse voltage of around 5.7 kV into a 500-ohm load, with a maximum open-circuit output near 10 kV. Mounting is versatile — it can be strapped to a T-post, nailed to a wooden stake, or fixed to a barn wall out of direct weather.

• Input: 110V 60Hz; Output: 2 joules stored energy.
• Typical pulse voltage under load: 5.7 kV; peak open-circuit: up to 10 kV.

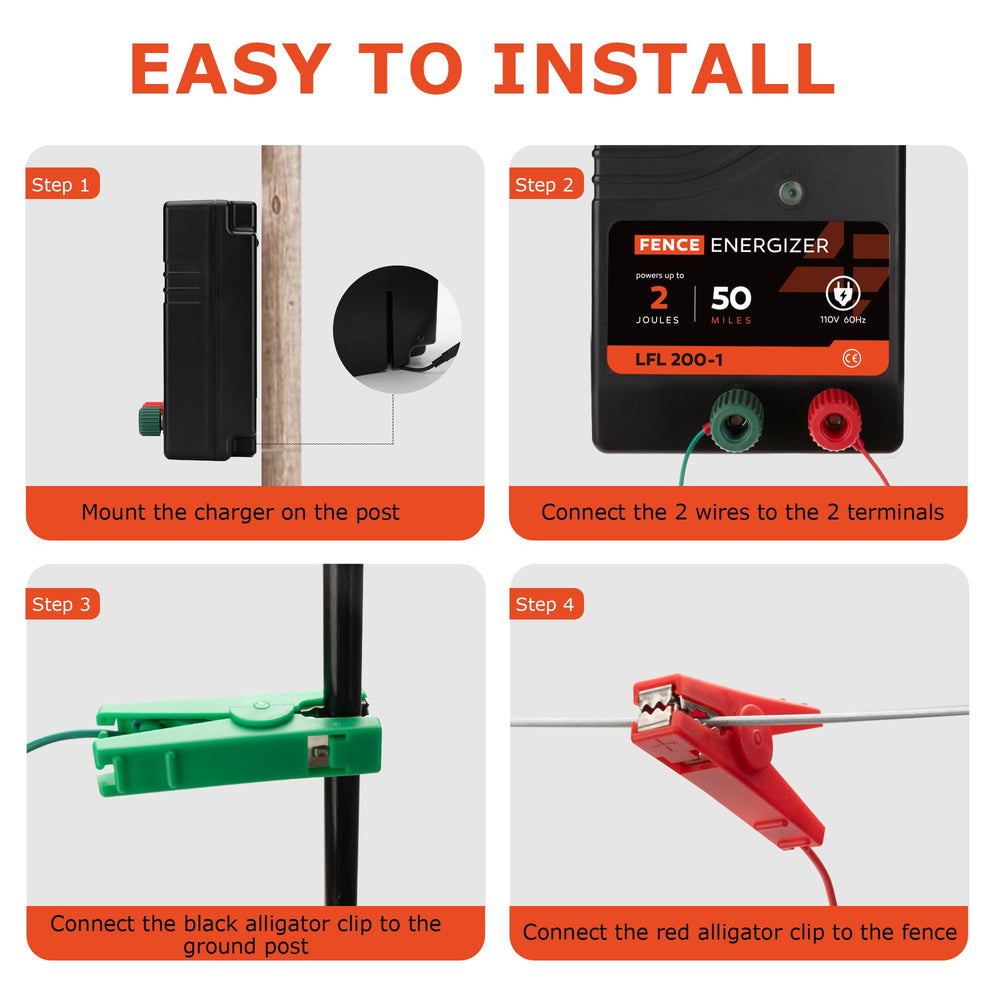

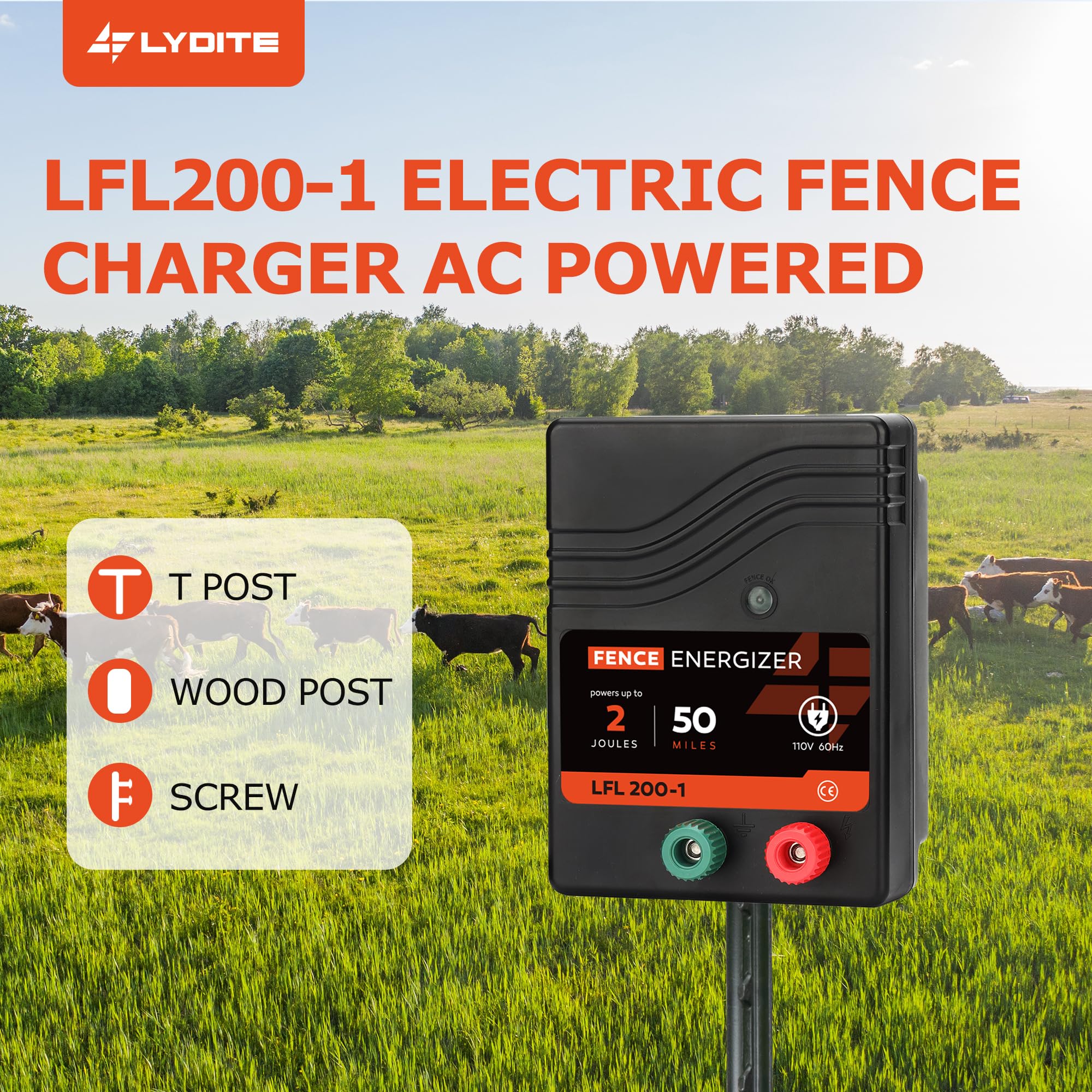

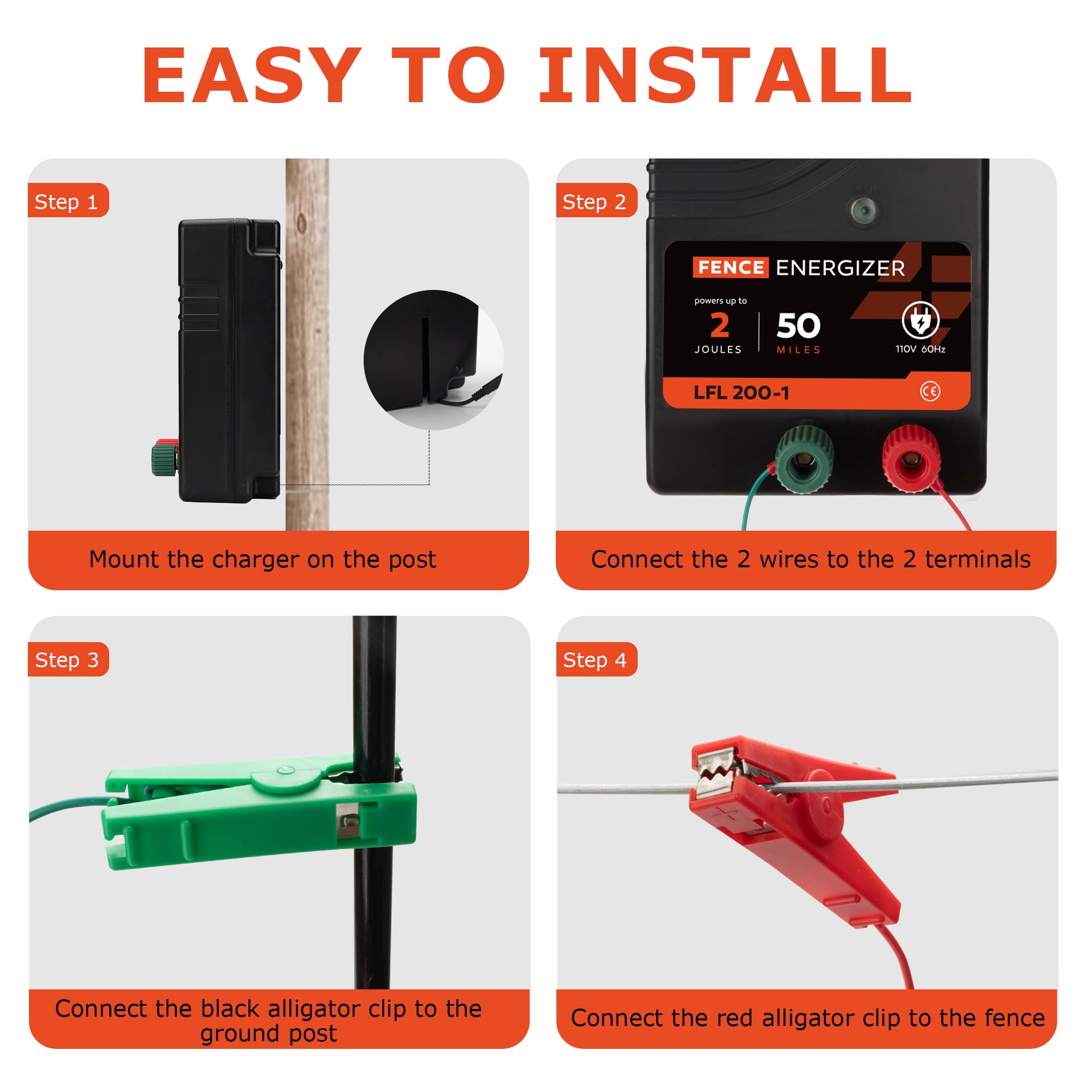

• Mounting options: T-post back mount or screw/washer on wood/ stake.

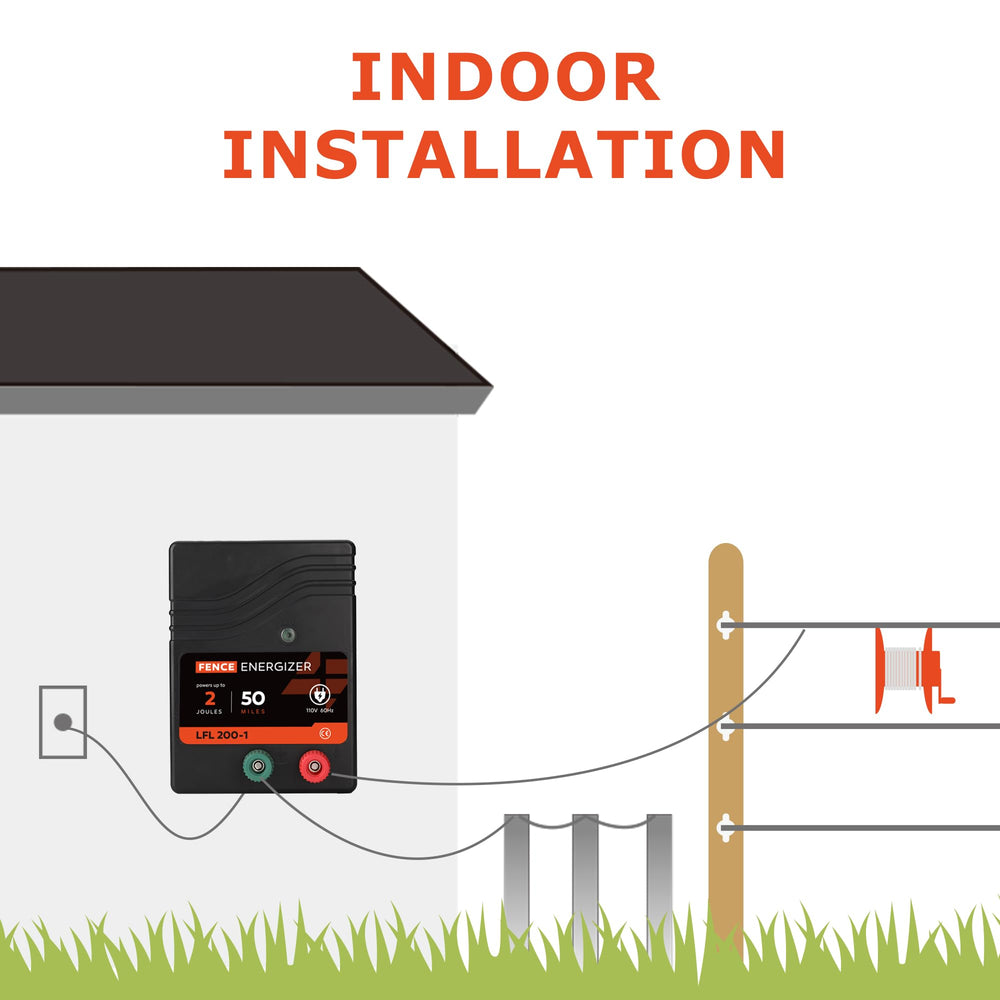

• Requires at least one ground rod connected to the green terminal for effective performance.

What durability and safety features are included?

The energizer housing is built to withstand outdoor farm conditions and integrates a surge protector to reduce damage from transient spikes. Note that while the case is robust, the product is not fully waterproof; it must be sited where it is shielded from direct rain and heavy moisture.

• Robust, impact-resistant enclosure for agricultural use.
• Internal surge protection to guard electronics against lightning-related spikes.
• Clear visual status indicators for simple troubleshooting.
• One-year manufacturer warranty and after-sales support from LYDITE.

How do I get the best performance across long fences?

Effective performance depends on proper grounding, regular fence inspection, and reducing vegetation contact. Using high-quality connectors, properly spaced ground rods, and routine clean-up of grasses and vines will keep the fence delivering strong pulses across long runs.

• Install multiple ground rods if soil is dry or sandy; connect firmly to the green terminal.
• Keep fence wires clear of vegetation and broken insulators to maintain continuity.
• Use corrosion-resistant connectors and tight crimps for long-term conductivity.
• Check indicator lights regularly and test pulses with a suitable voltmeter.

Who this is for: Farmers, ranchers and property owners with medium to large perimeter needs who want a plug-in, low-impedance energizer capable of powering extensive fence runs. It suits users who can mount the unit in a sheltered outdoor location or inside an outbuilding and who will pair it with proper grounding and routine fence maintenance. This energizer is especially useful for managing cattle, horses, sheep, and for deterring common predators on larger acreage, while offering a durable housing and simple installation for everyday farm use.
