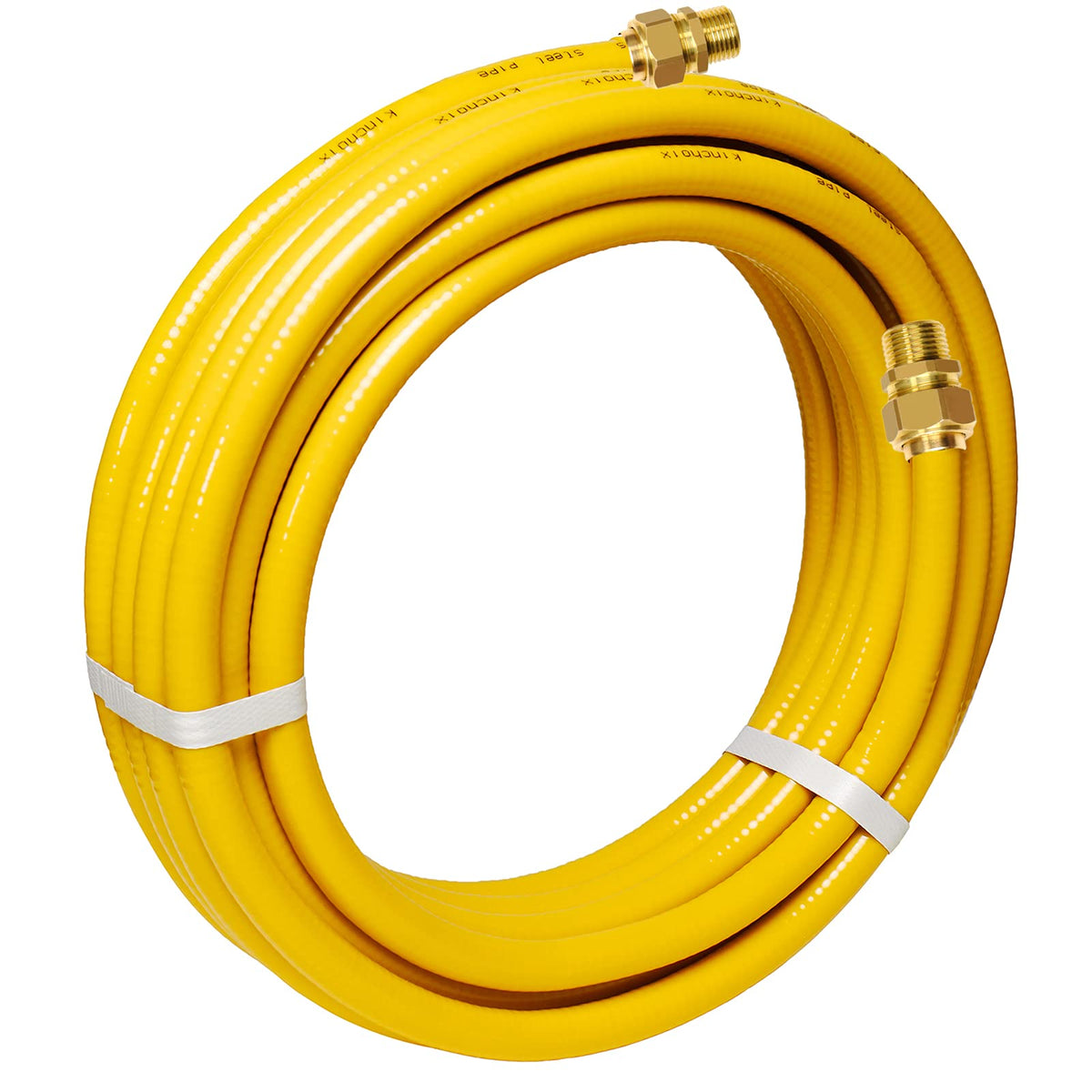

Kinchoix 17ft 3/4" CSST Flexible Gas Line Kit — 17-foot corrugated stainless steel with brass male fittings for high-BTU appliance

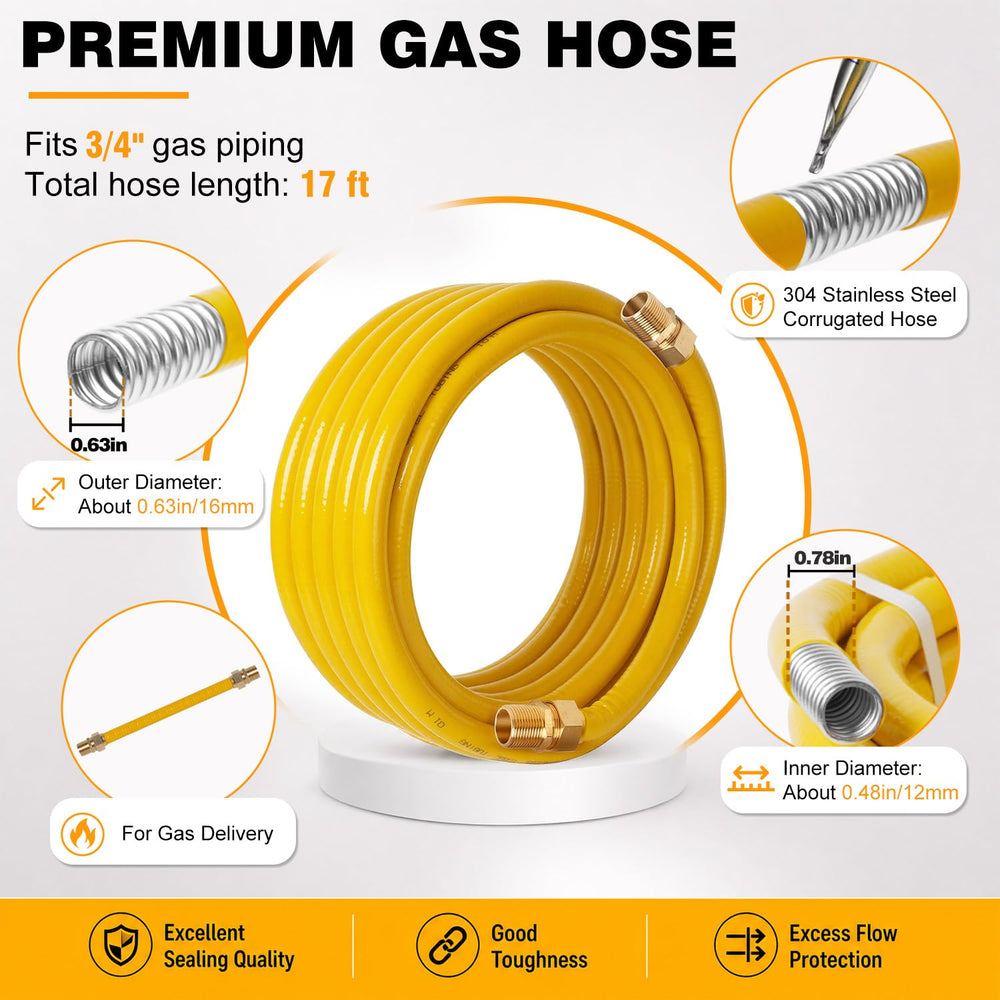

This 17-foot, 3/4-inch (0.625" ID / 0.787" OD) CSST (corrugated stainless steel tubing) kit from Kinchoix is built for higher-BTU outdoor and indoor gas appliances where a longer, flexible run is needed. The tubing combines a 304 stainless-steel corrugated inner conduit with an outer protective sleeve and solid brass connector ends. It is pressure-tested during manufacture, allows multiple installation styles (exposed, concealed, or buried), and is intended for natural gas and LPG (propane) equipment such as grills, patio heaters, ranges, water heaters, generators, and fire pits.

How does this CSST help when installing high-BTU outdoor appliances?

The 3/4" diameter supports larger gas flow compared with smaller connector hoses, reducing pressure drop for devices that demand more fuel. The long 17-foot length avoids extra fittings and allows direct connection from supply to appliance over greater distances.

• 17 ft length for extended reach without extra joints
• 0.625" inner diameter suited for higher-BTU equipment

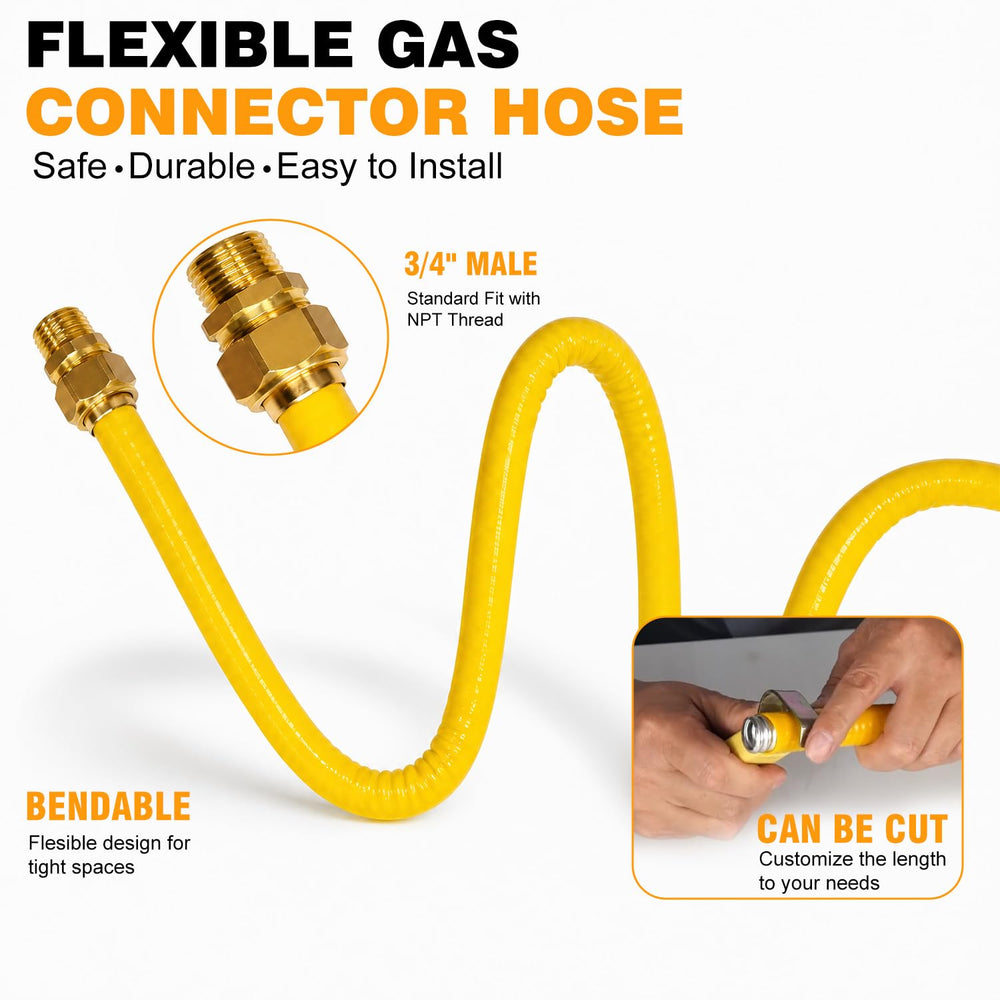

• Solid brass male fittings for weather resistance and secure connections

Is the Kinchoix flexible gas line easy to route and adapt in tight spaces?

Yes — the corrugated stainless core plus flexible outer sleeve permits bending and routing through walls, attics, or around obstacles while maintaining internal flow integrity. You can cut the tubing to length and form gentle bends without breaking the inner path.

• Bendable corrugated tubing for tight or irregular runs
• Can be cut to size on-site for custom installations
• Reduced midline interfaces lower the number of leak-prone joints

What construction and safety features does this kit include?

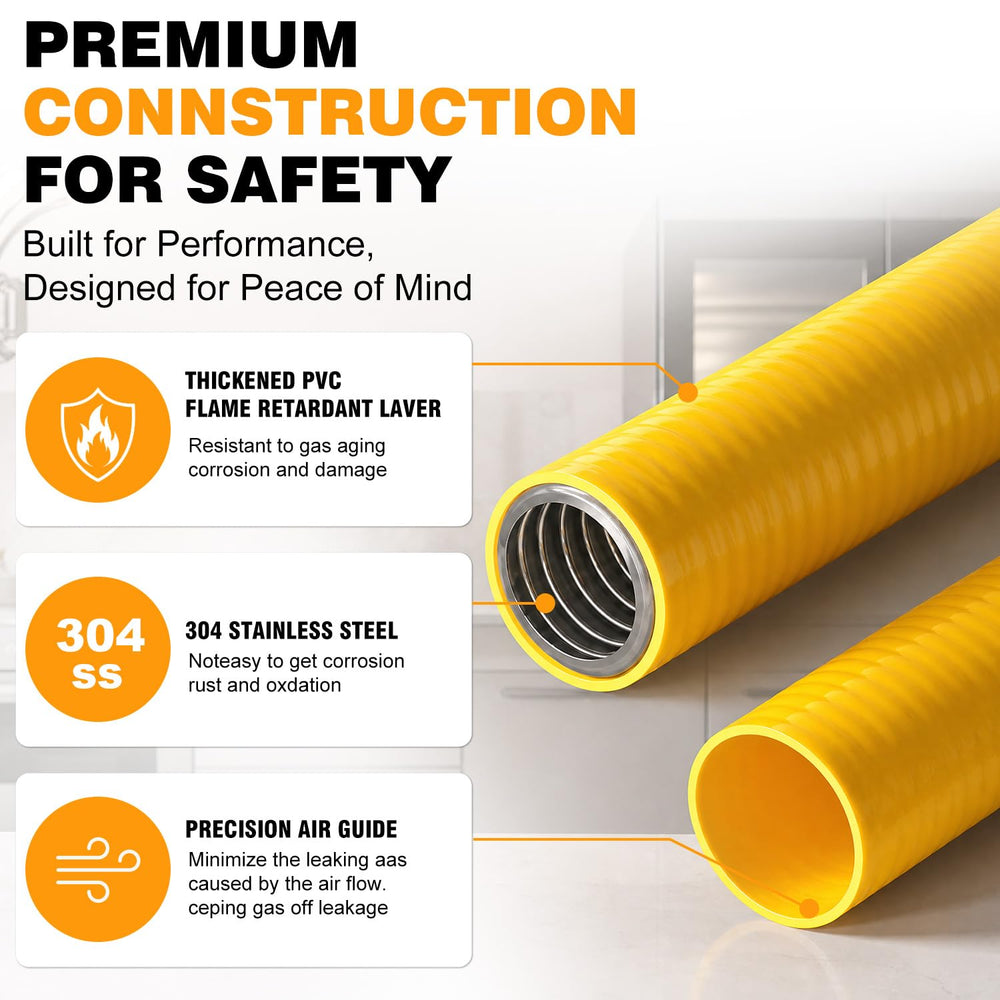

The tube uses 304 stainless steel for the internal bellows and an external protective sleeve to resist abrasion and moisture. Each assembly undergoes multi-layer pressure testing at manufacture, and the brass fittings resist corrosion for long-term service life.

• 304 stainless-steel corrugated inner tubing for strength and flexibility
• Protective outer sleeve to shield the core from wear and environment
• Triple pressure-tested units and solid brass connectors at both ends

How should I plan installation and appliance compatibility?

Verify pipe size and expected pressure loss for your specific appliance and supply line; 3/4" CSST supports many larger appliances but pressure drop depends on run length and fittings. Use recommended connectors and follow local codes — if a fitting is missing contact Kinchoix for a replacement before use.

• Match pipe size (3/4") to appliance inlet and local code requirements
• Account for pressure loss across long runs when sizing supply systems
• Suitable for natural gas and liquid propane installations when installed per code

Who is this for: Installers, HVAC technicians, contractors, and experienced DIYers who need a longer, flexible gas supply line for high-BTU outdoor equipment or larger indoor appliances. This Kinchoix kit suits applications where fewer joints, corrosion-resistant materials, and flexible routing are priorities — always install following local regulations and use qualified personnel when required.
