Kimbluth 10 AWG Solar Extension Cables 20 ft Red & Black — Tinned Copper, IP68 Waterproof

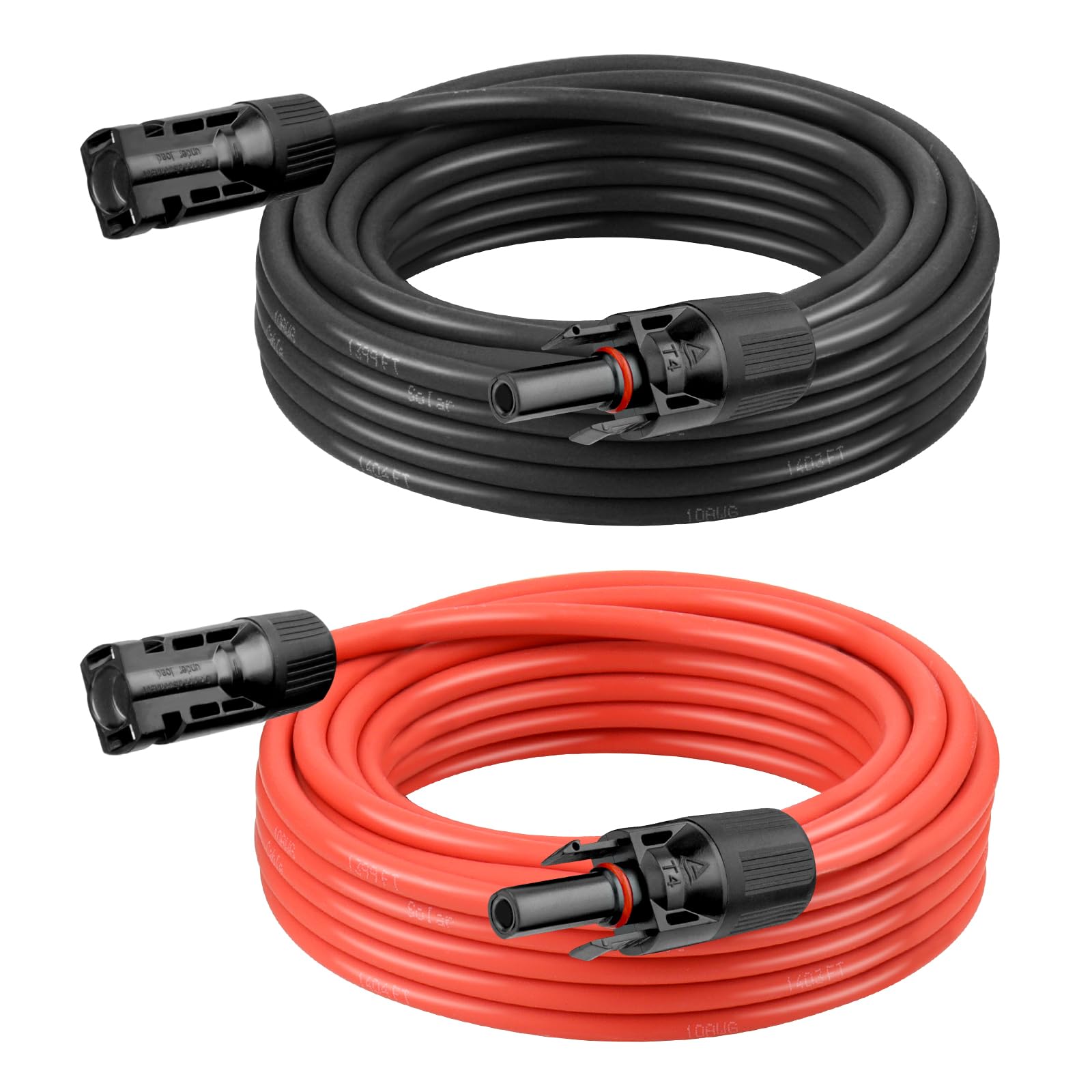

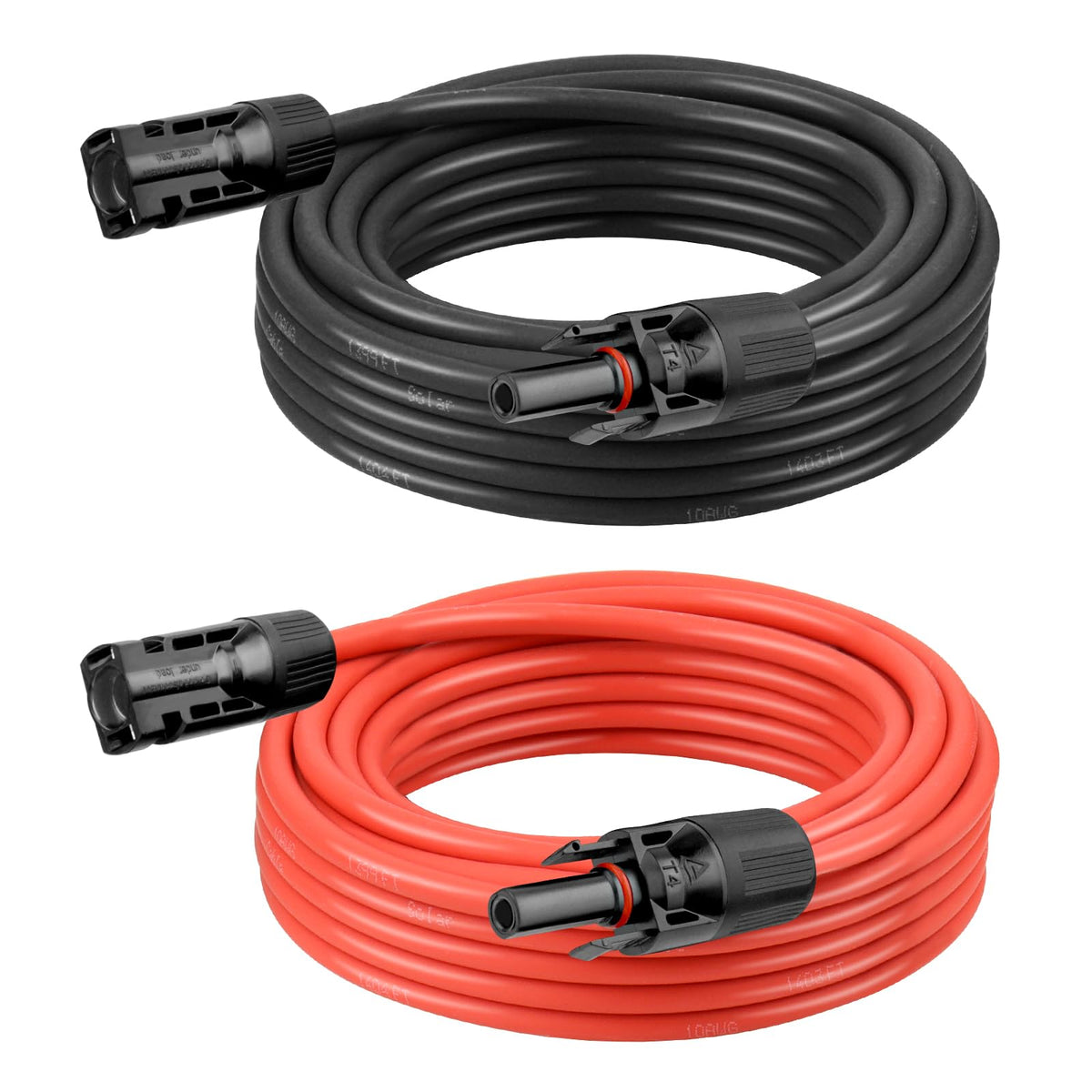

Kimbluth 10 AWG Solar Extension Cable is a weatherproof, tinned-copper male-to-female set (20 ft red + 20 ft black) built for reliable outdoor solar and vehicle power connections.

These 10 gauge extension wires combine high-strand tinned copper conductors with dual XLPE insulation to deliver a durable, corrosion-resistant connection for solar panels, RVs, boats, cars and other off-grid systems. Designed for harsh environments, the cable set offers IP68 waterproofing, UV resistance and a wide operating temperature range so your array and accessories stay connected through sun, rain, cold and heat.

How does this cable keep solar connections stable outdoors?

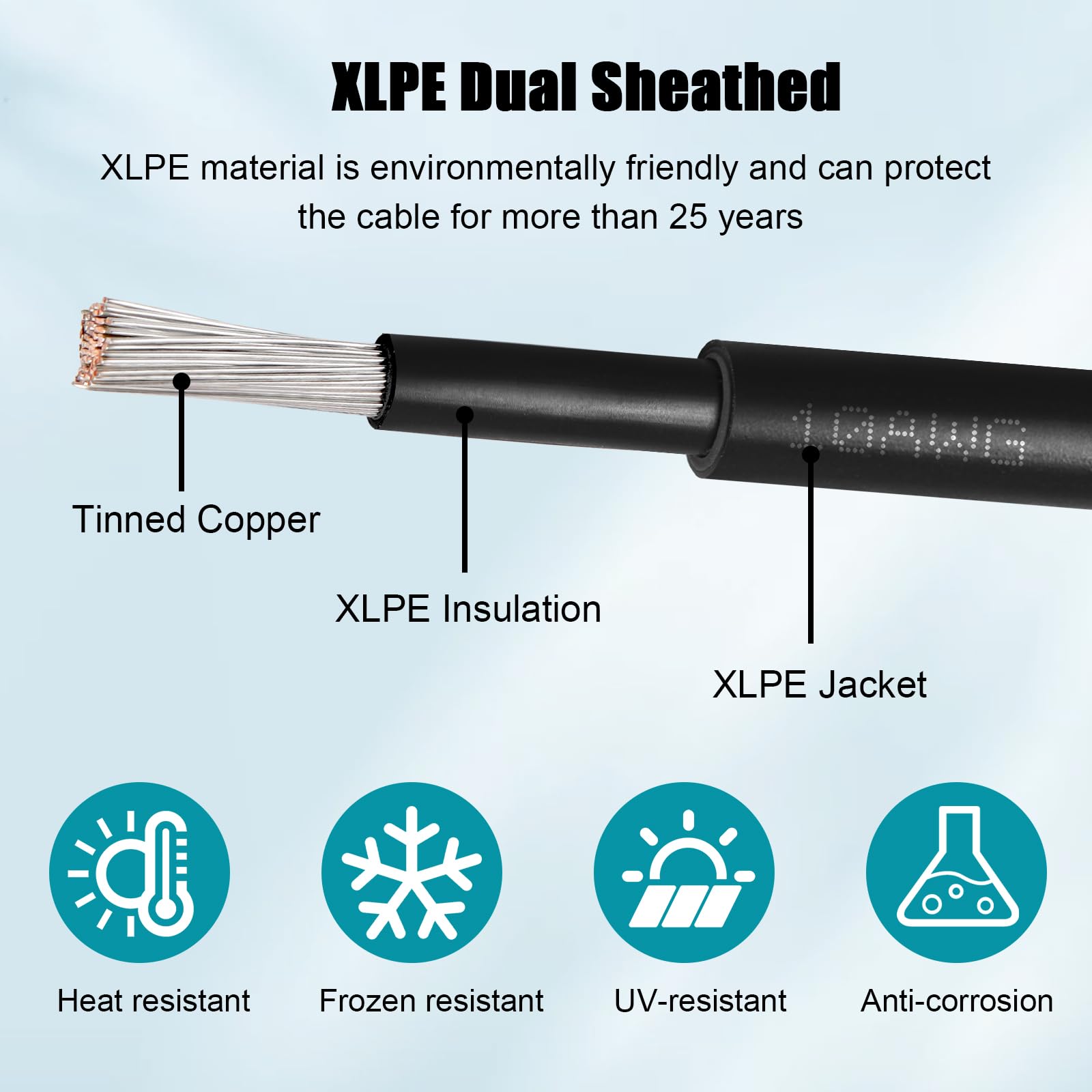

The Kimbluth cable uses 84 finely stranded tinned copper cores to improve conductivity and resist corrosion from moisture and salt air. Dual-layer XLPE insulation plus an IP68 rating seals the conductor from dust and water, while UV- and oxidation-resistant compounds protect the jacket from long-term sun exposure.

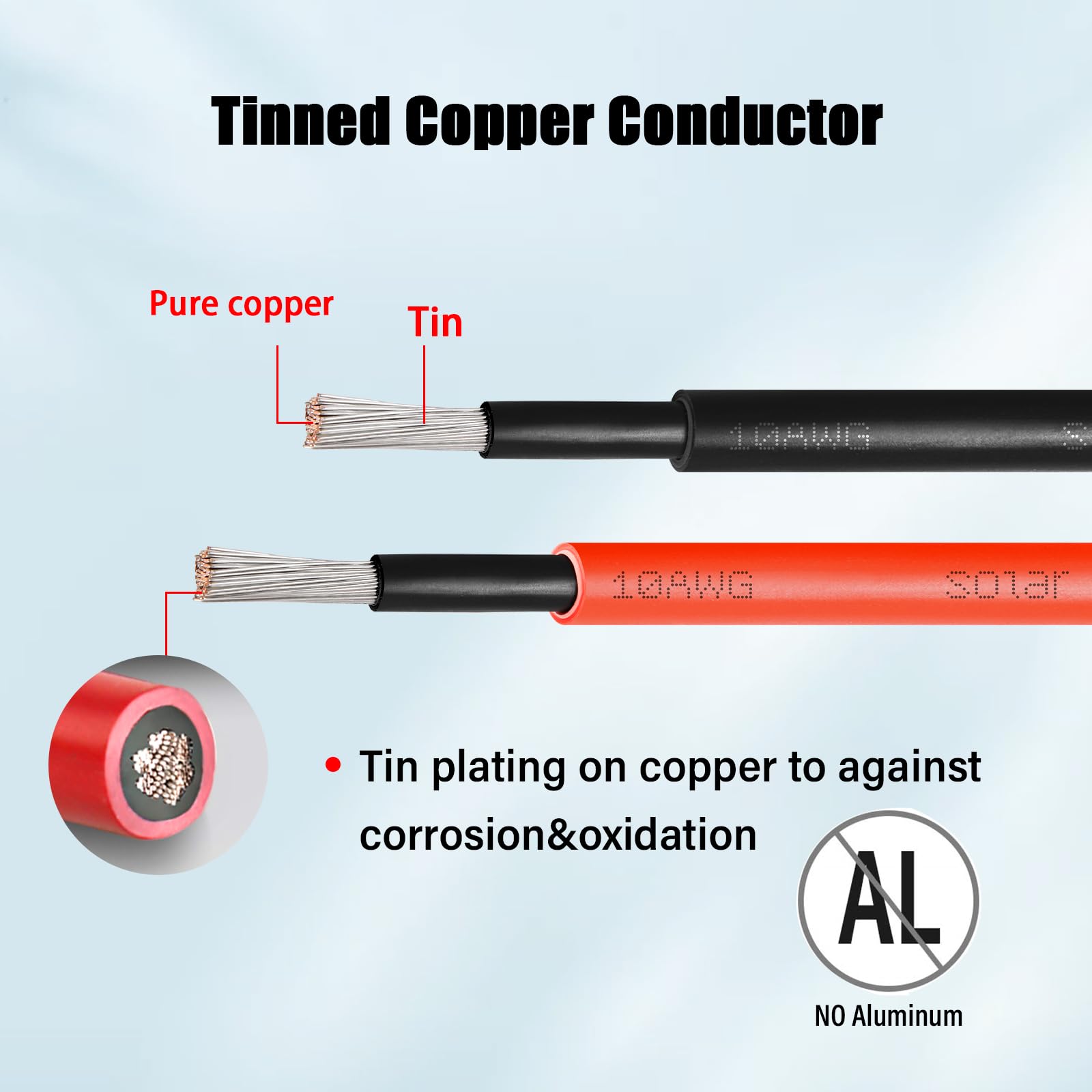

• 84-strand 0.295 mm tinned copper for flexibility and corrosion resistance
• XLPE sheath and insulation resist UV, oxidation and temperature extremes
• IP68 waterproofing blocks ingress during heavy rain or splashes

Will this cable handle heavy current and high-voltage solar systems?

Yes — 10 AWG sizing supports up to 50 A continuous current with a DC voltage rating up to 1800 V, suitable for many residential and mobile solar setups. Conductor resistance is minimized by the high-strand design, reducing voltage drop across the 20 ft runs.

• Rated current: 50 A for sustained throughput
• Rated voltage: DC 1800 V for high-voltage string compatibility
• Low conductor resistance (≤3.39 Ω/km at 20°C) to curb losses

How easy is it to install and secure these lead wires?

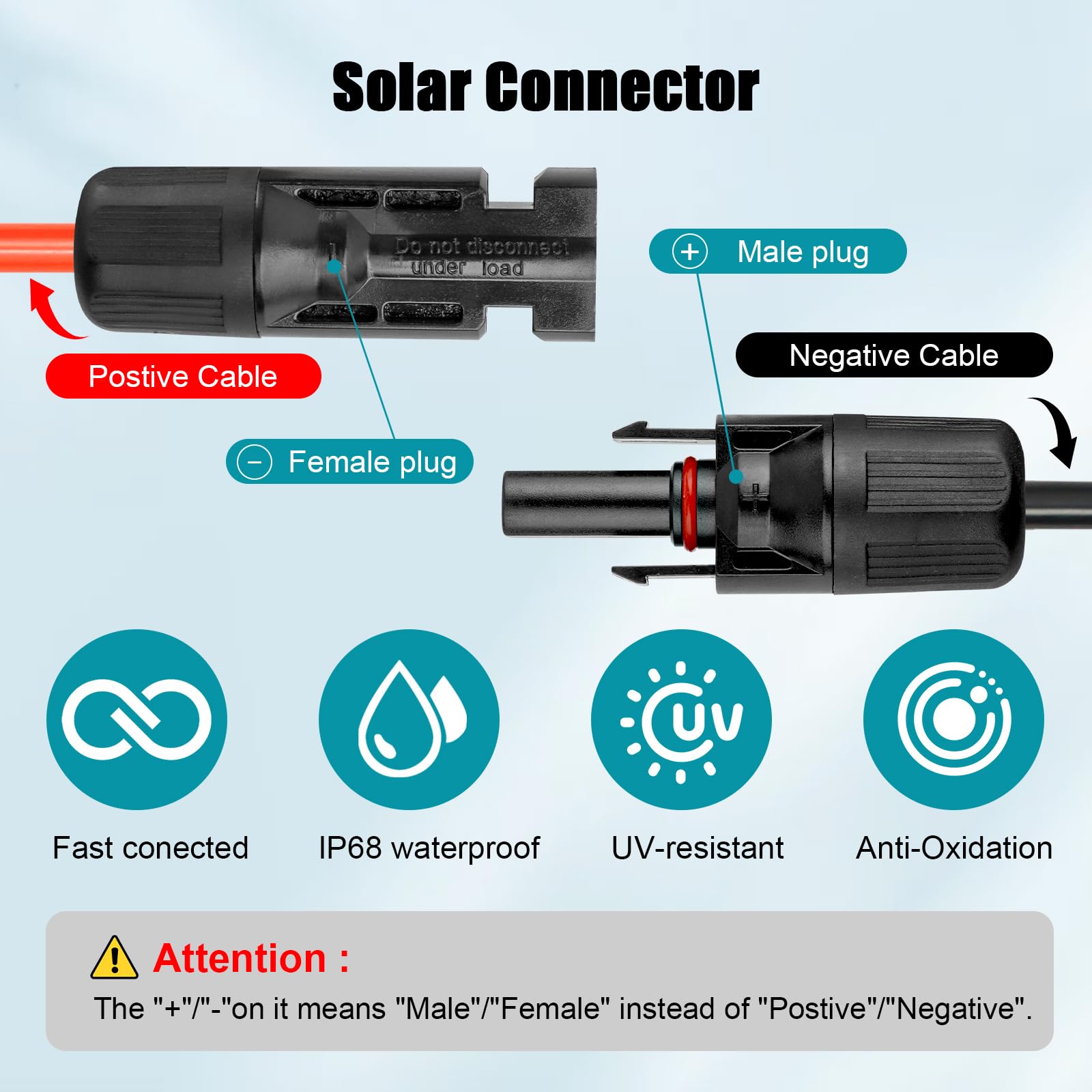

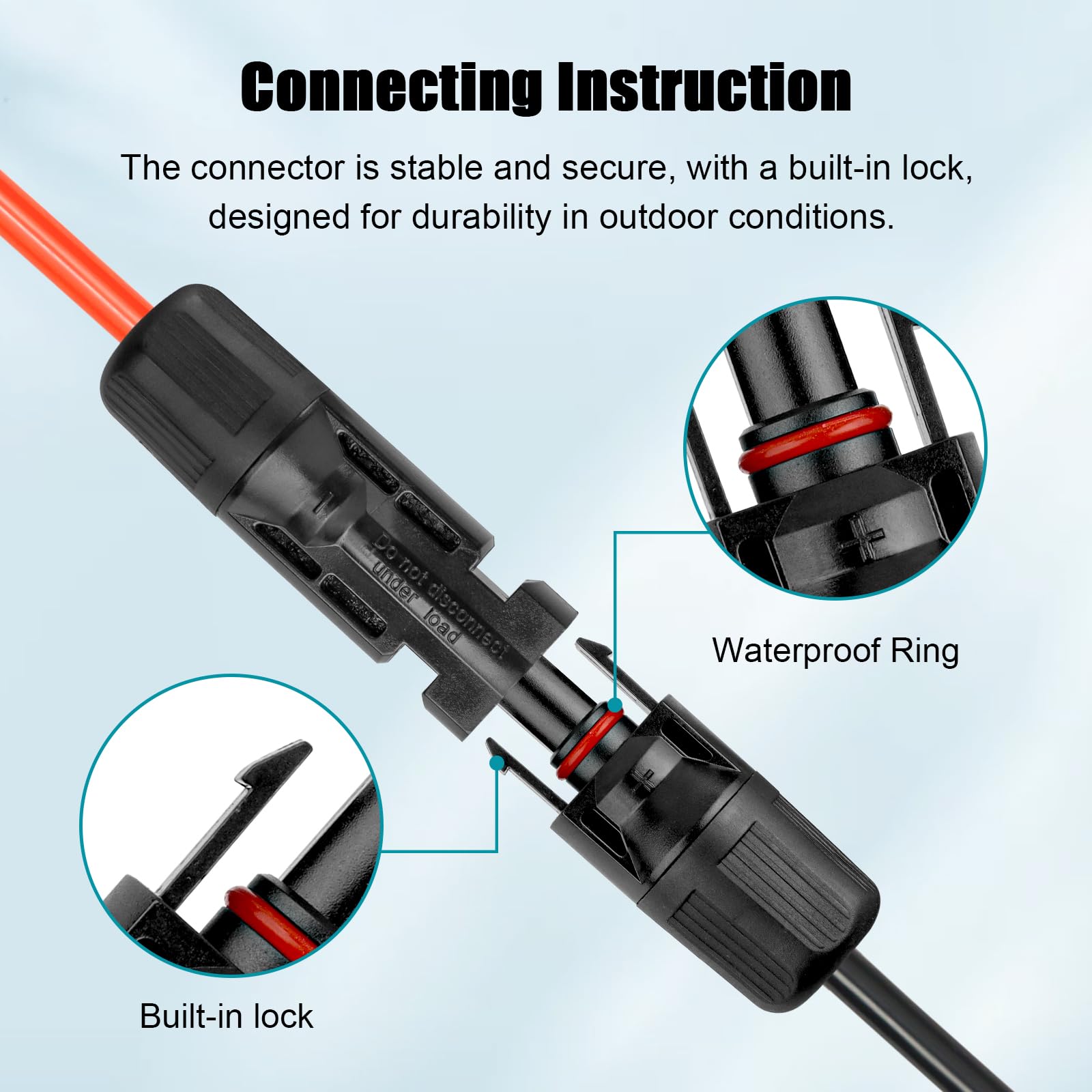

The set comes with pre-assembled male-to-female solar connectors featuring a built-in locking mechanism for quick, tool-free hookups. The locking pair keeps the connection tight against vibration and prevents water and dust entry, simplifying installations on roofs, RVs and boats.

• Pre-attached male and female solar connectors for plug-and-play setup
• Secure locking latch holds connectors in place under movement
• Color-coded red and black 20 ft lengths for clear polarity identification

How durable is this cable under extreme temperatures and fire risk?

Kimbluth’s 10 AWG wire is specified for operation from -40°F to 248°F (-40°C to 120°C), keeping flexibility in frigid winters and stability in hot summers. The jacket also meets UL94 V-0 flame retardant standards, helping reduce flame spread in emergency conditions.

• Wide working temperature: -40°F to 248°F (-40°C to 120°C)
• UL94 V-0 flame retardant rating for enhanced safety
• Durable jacket designed for up to 25 years of outdoor service life

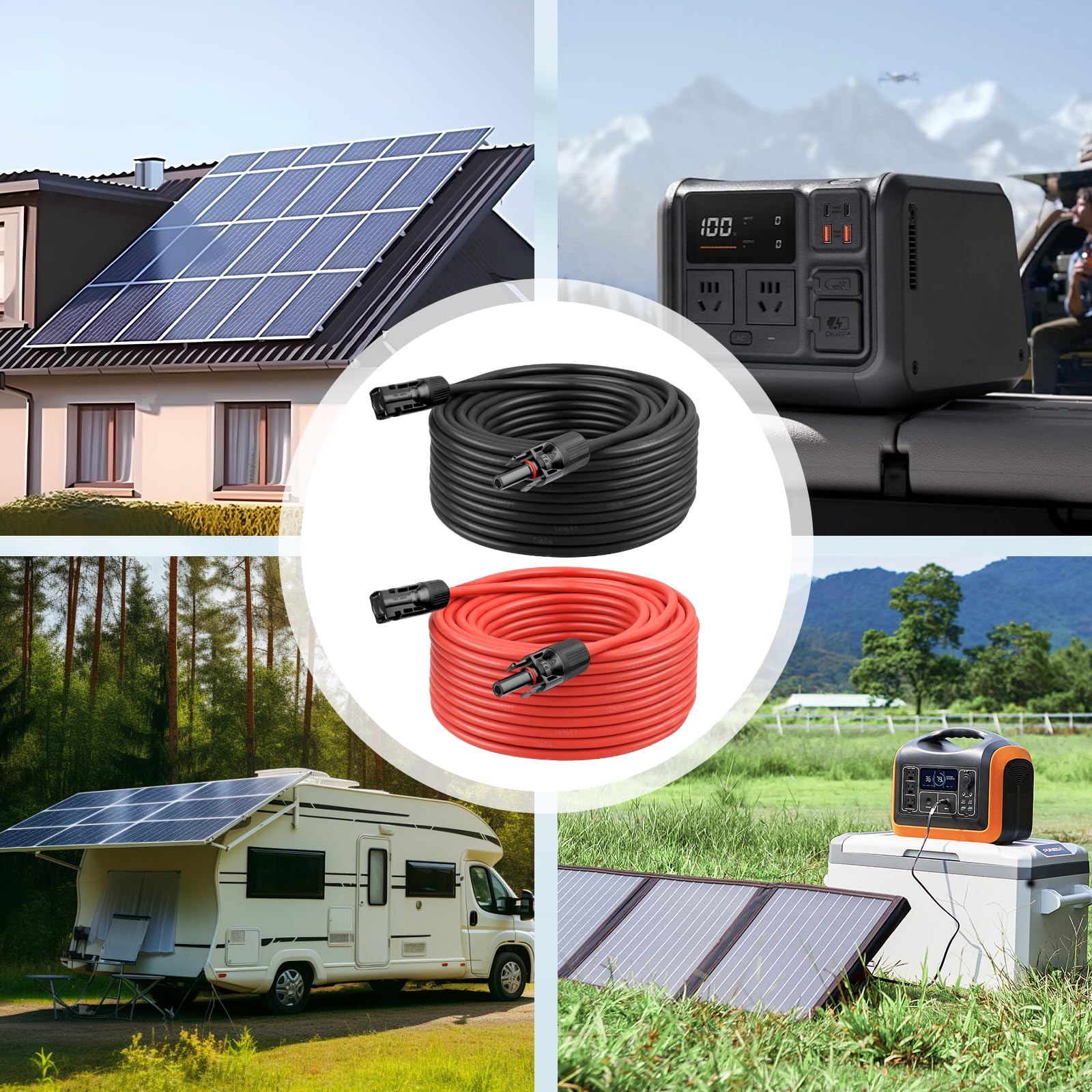

Who is this for: The Kimbluth 10 AWG Solar Extension Cable set is aimed at homeowners installing rooftop or ground-mounted solar arrays, vanlifers and RV owners wiring auxiliary panels, boat owners adding solar power, and technicians needing rugged extension leads for off-grid systems. If you need robust, weatherproof 20 ft leads with secure male-to-female connectors and low voltage loss, this kit fits commercial, mobile and residential applications.
