Kerty 2" Geo Gravel Grid - 36x4 ft HDPE Driveway Stabilization Kit, 1885 lb/ft² Load Capacity

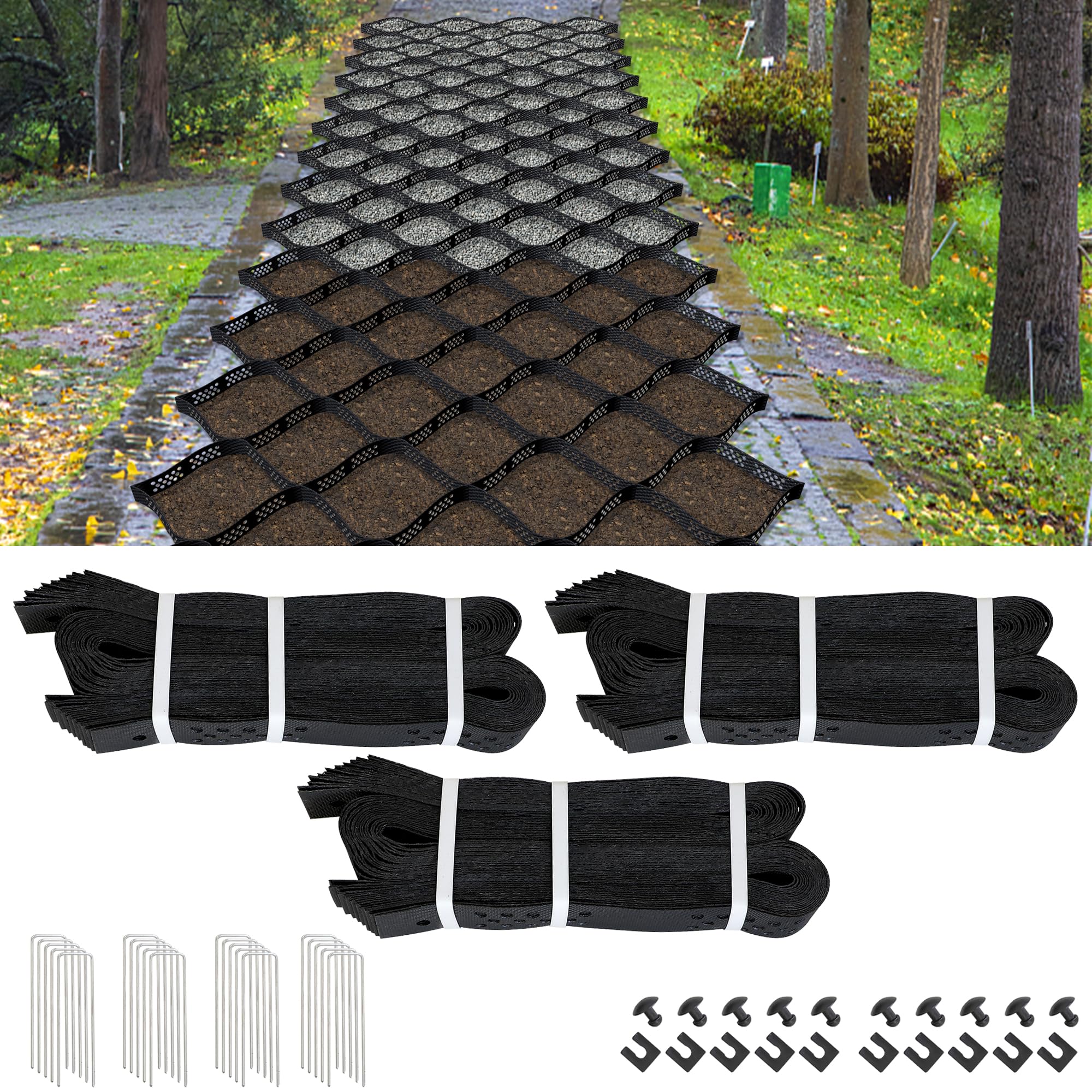

This 36 x 4 ft kit (three 12 x 4 ft panels) is a permeable geo-cell grid made from high-density polyethylene (HDPE) with 2-inch-deep, 10 x 10 inch cells. Designed for contractors and homeowners, it improves surface stability, reduces rutting and washout, and keeps infill materials locked in place while preserving drainage. The panels fold for transport, connect with buckles, and can be trimmed to fit irregular layouts.

How much weight can this grid support for driveways and parking?

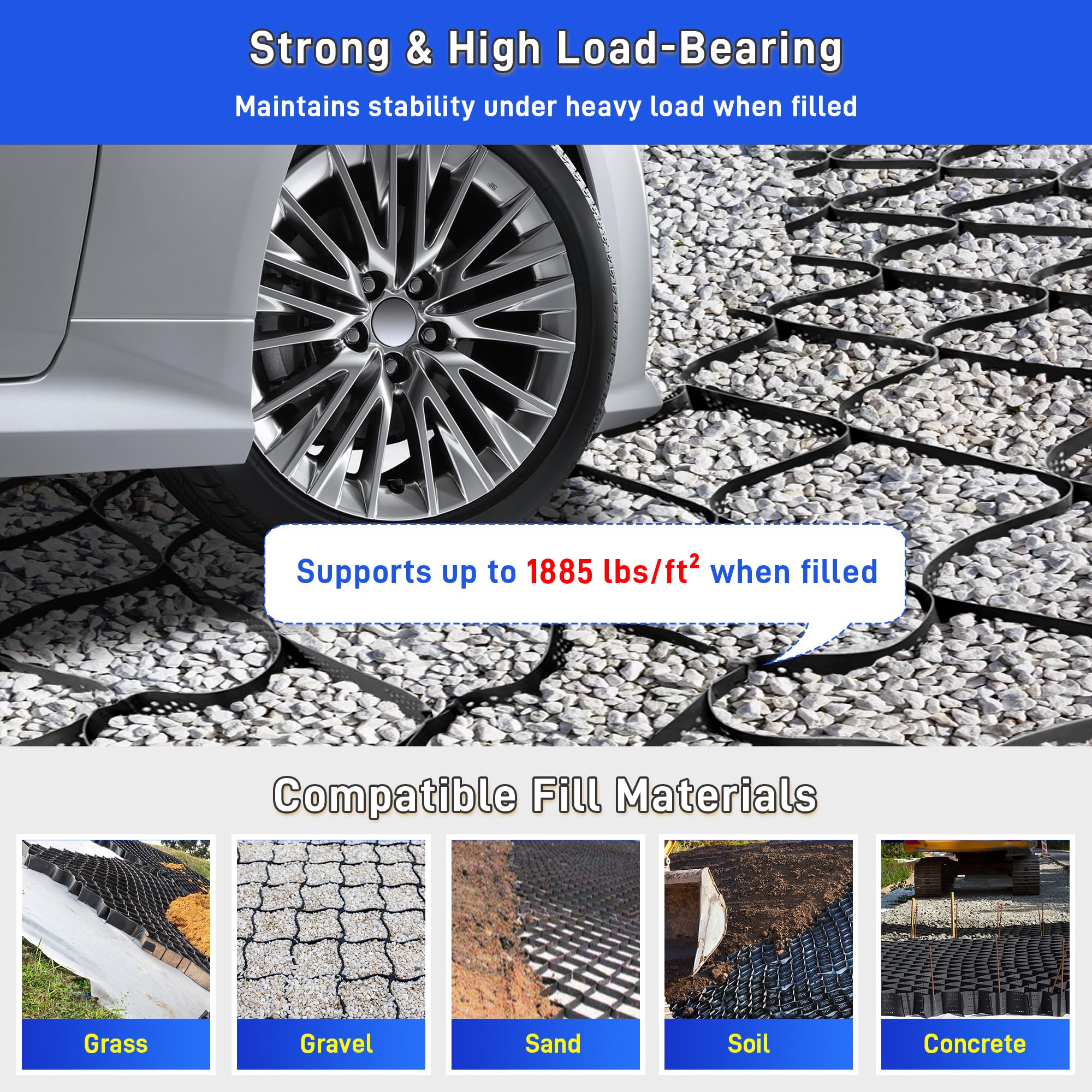

The Kerty gravel grid delivers heavy load capacity when properly installed and filled. Filled cells distribute weight across the stabilized plane, with a rated support capacity up to 1885 lbs per square foot—suitable for passenger vehicles and many light commercial uses.

• Rated load: up to 1885 lbs per sq ft when correctly installed and compacted.

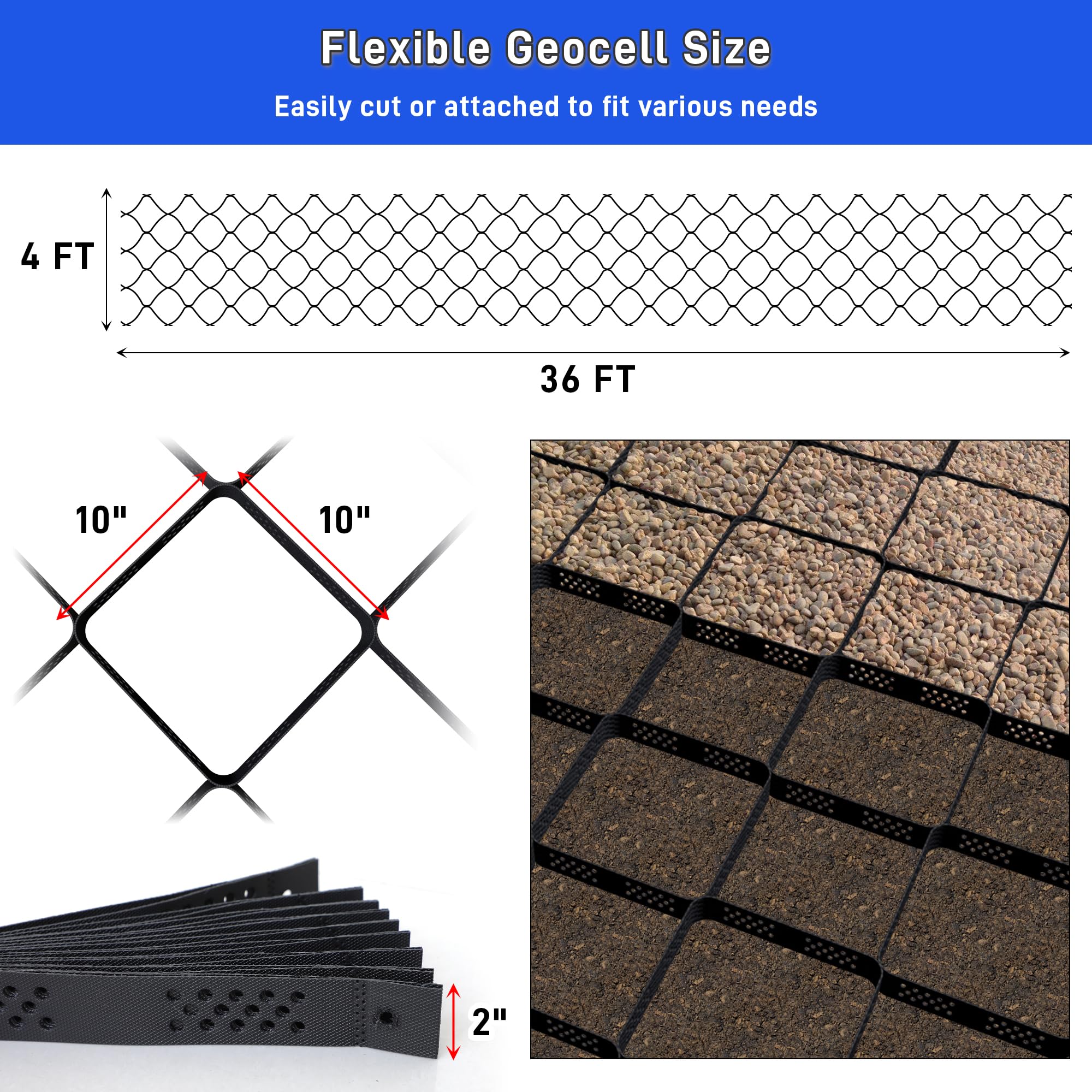

• 2" cell depth and 10x10" cell size for even load distribution.
• Best results with angular gravel or crushed stone infill and compaction.

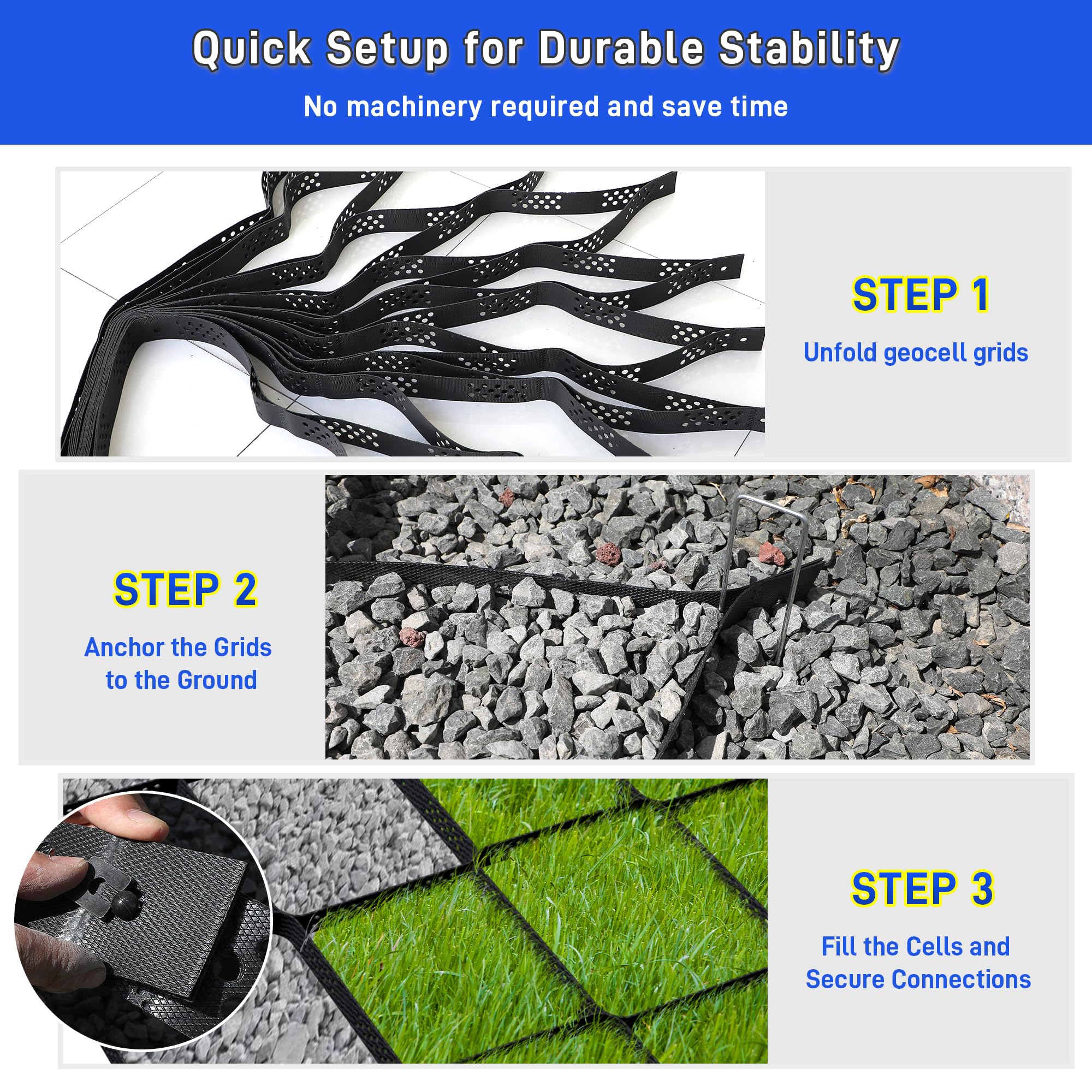

What materials and tools are needed and how easy is installation?

Installation is straightforward and requires common landscaping tools. Panels come with connection buckles and can be staked into place; cutting to shape is quick with a utility knife or saw. No special equipment is necessary for small to medium jobs.

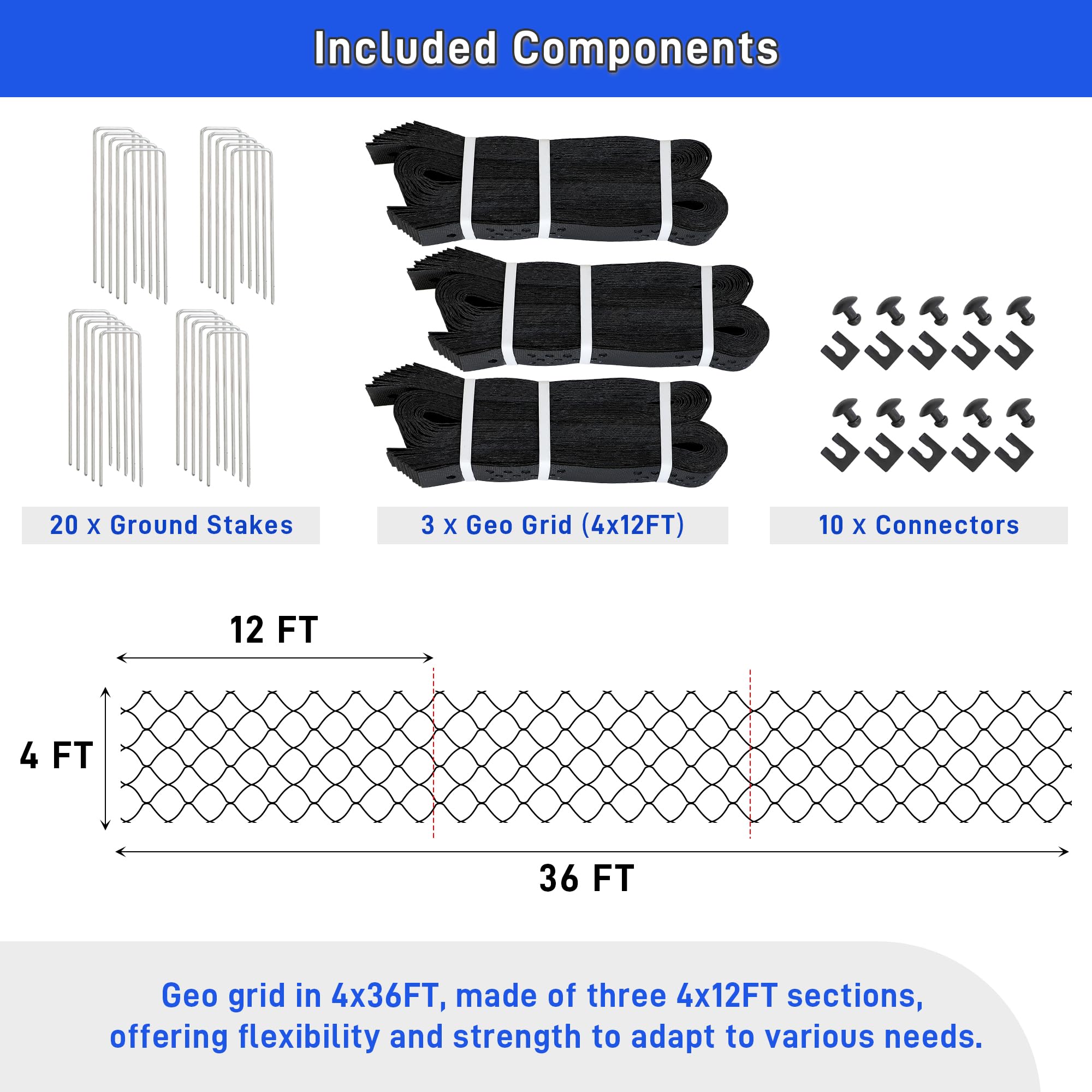

• Included: connection buckles and ground stakes for secure placement.
• Cut with a utility knife or jigsaw for curves and edges.
• Fill with gravel, sand, or soil and compact for best performance.

Will this grid handle slopes and prevent erosion?

The flexible HDPE panels conform to uneven ground and lock infill into a stable matrix that resists migration. On slopes, the interconnected cells reduce displacement and channeling of water while retaining aggregate, which slows erosion and maintains a usable surface.

• Flexible design adapts to contours and slopes without fracturing.
• Open-cell structure preserves permeability and drainage.
• Recommended staking pattern and proper infill reduce slippage on grades.

How durable and weather-resistant is the product?

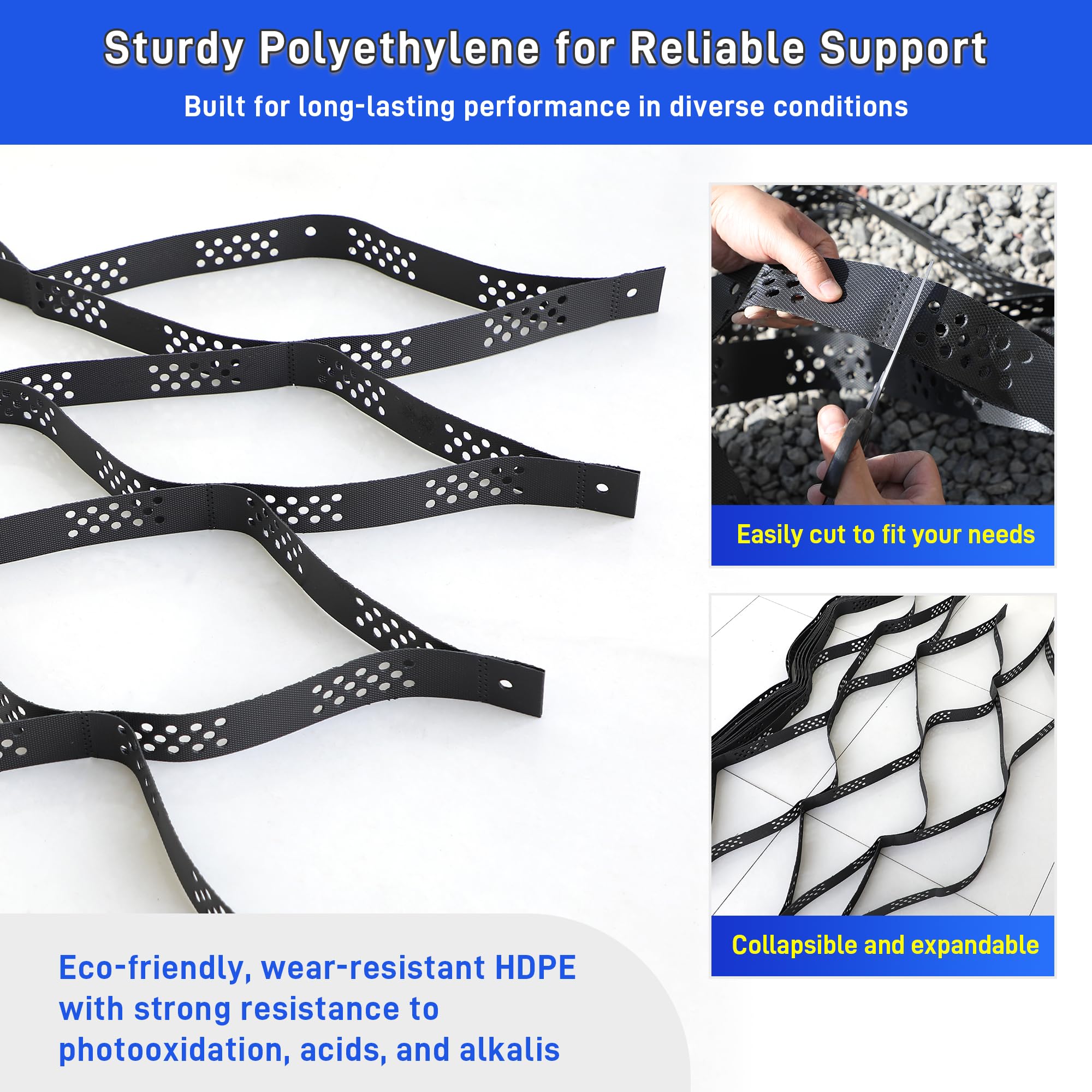

Manufactured from recyclable HDPE with ultrasonic welding, this ground grid resists deformation, oxidation, and aging under typical outdoor conditions. It is built for long-term use in seasonal climates and withstands freeze-thaw cycles when installed with appropriate base preparation.

• HDPE construction resists UV, moisture, and chemical breakdown.
• Ultrasonic welds enhance structural reliability at panel joints.
• Foldable and easy to transport while maintaining long-term strength.

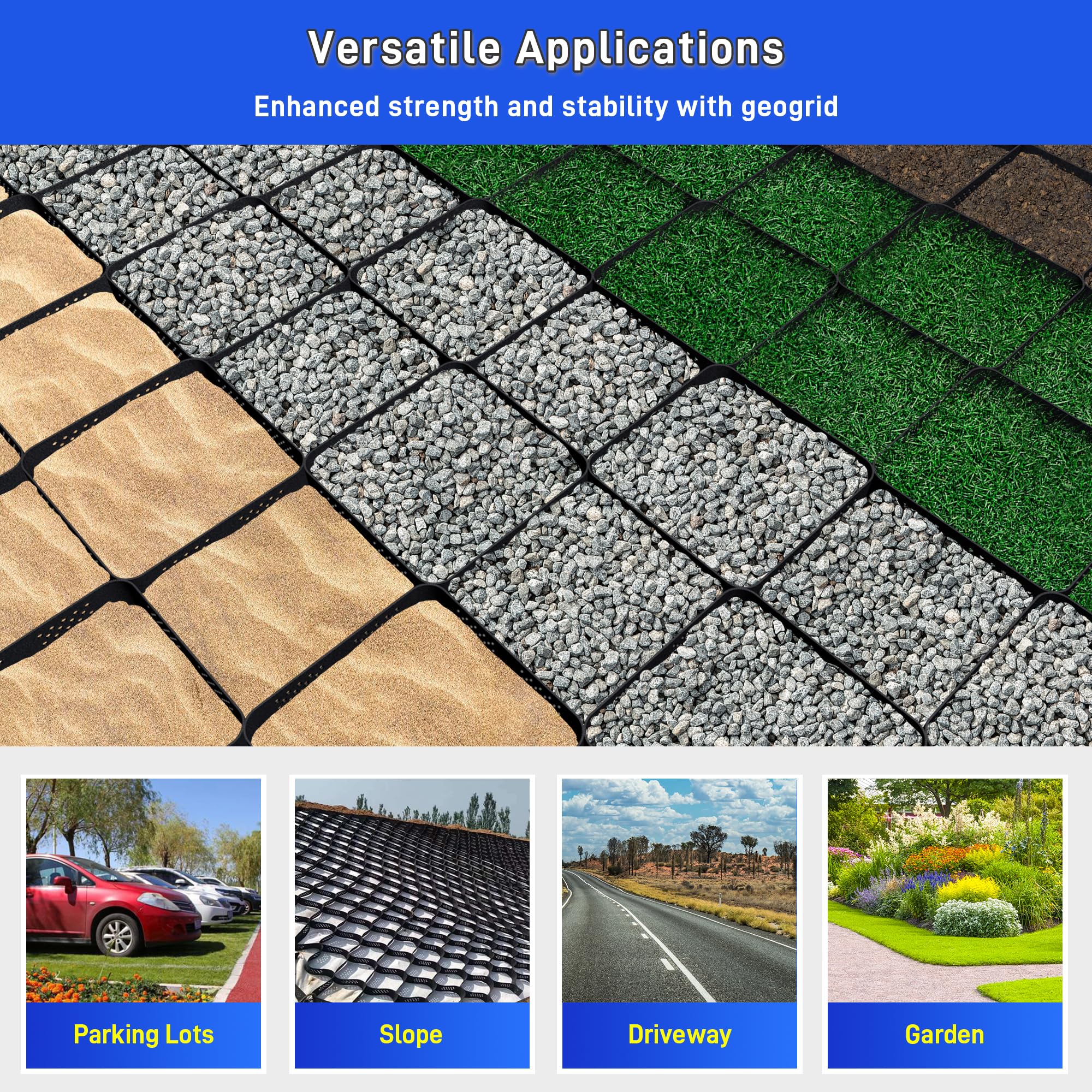

Who is this for: Kerty's 2" Geo Gravel Grid is made for homeowners, landscapers, and small contractors who need an affordable, permeable solution to reinforce driveways, walkways, parking bays, garden paths, and erosion-prone slopes. Choose this system if you want a recyclable, easy-to-install grid that locks in aggregate, improves drainage, and supports vehicle loads without hardscaping or concrete.
