kbaoele Solar Cable Entry Gland for RVs and Boats — 10ft 10AWG MC4 Extension, UV‑resistant ABS and IP68 Waterproof Housing

kbaoele's Solar Cable Entry Gland is a weatherproof roof-through housing with a 10 ft 10AWG MC4 extension cable designed to route and protect solar wiring on RVs, boats, campers and vans.

This complete kit combines a UV-resistant ABS cable entry gland, an IP68-rated MC4 connector pair and a heavy-duty 10AWG tinned-copper solar extension so you can run array leads through an exterior roof or wall while keeping the junction point sealed against water and dust. The design focuses on durable materials, easy locking MC4 connections and flexible mounting options for both adhesive and screw installations.

How does this cable entry gland keep my roof wiring sealed?

The entry housing is molded from UV-stable ABS and includes a gasketed seal to protect the cable pass-through. It isolates the connector junction inside the housing so the exterior connection point is shielded from direct weather exposure.

• UV-resistant ABS body resists fading and aging.
• Built-in gasket and IP68-rated MC4 seals block water and dust.
• Internal cavity stores the MC4 coupling away from direct elements.
• Recommended use of sealant creates a double waterproof barrier.

What electrical features protect performance and safety?

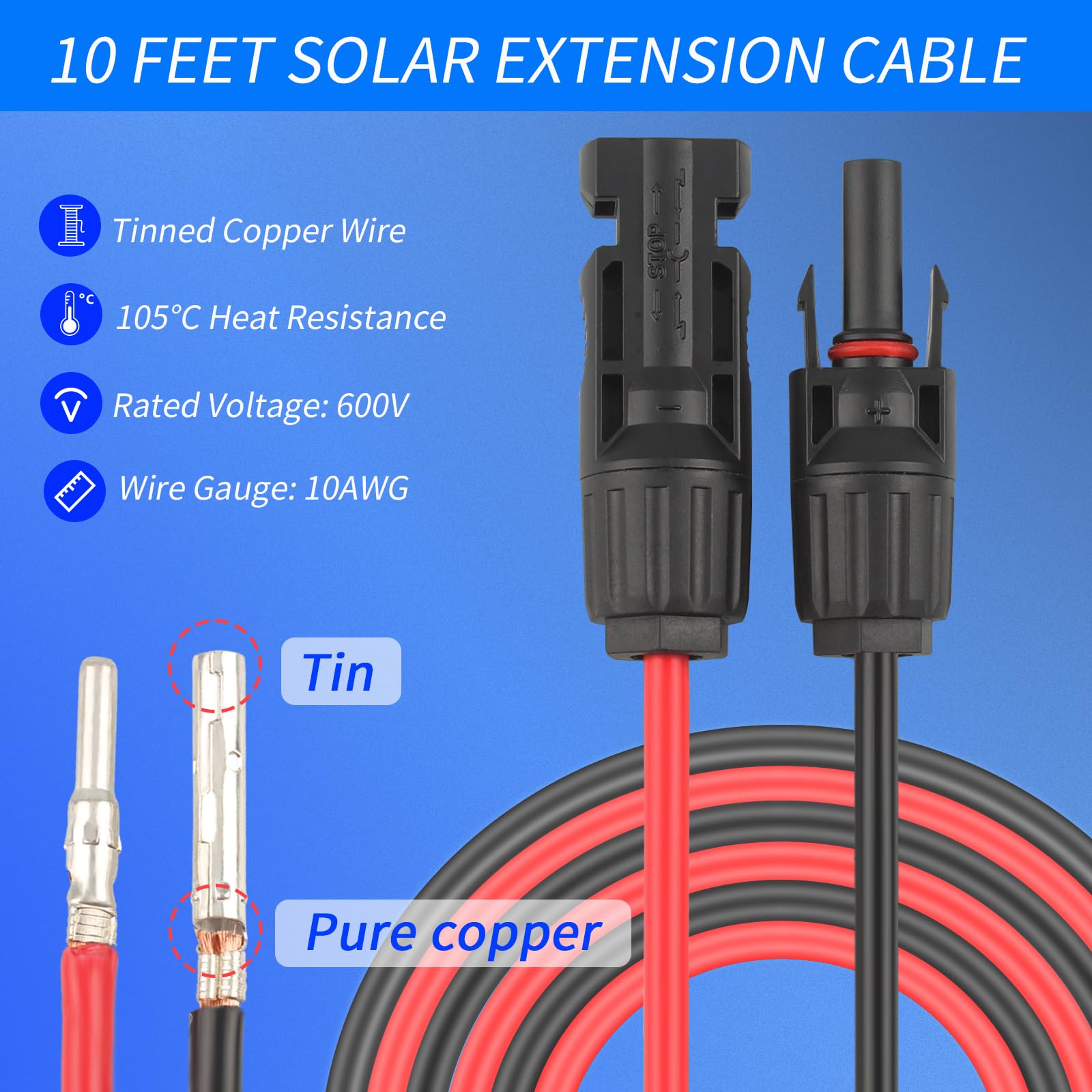

The included 10AWG cable has a PPO insulation layer and tinned-copper conductors for low resistance, corrosion protection and reliable current flow. MC4 connectors use a locking snap design and the supplied waterproof ring to maintain secure electrical contacts under outdoor conditions.

• 10AWG tinned copper minimizes voltage drop and resists oxidation.
• PPO insulation offers flame retardance and weather durability.

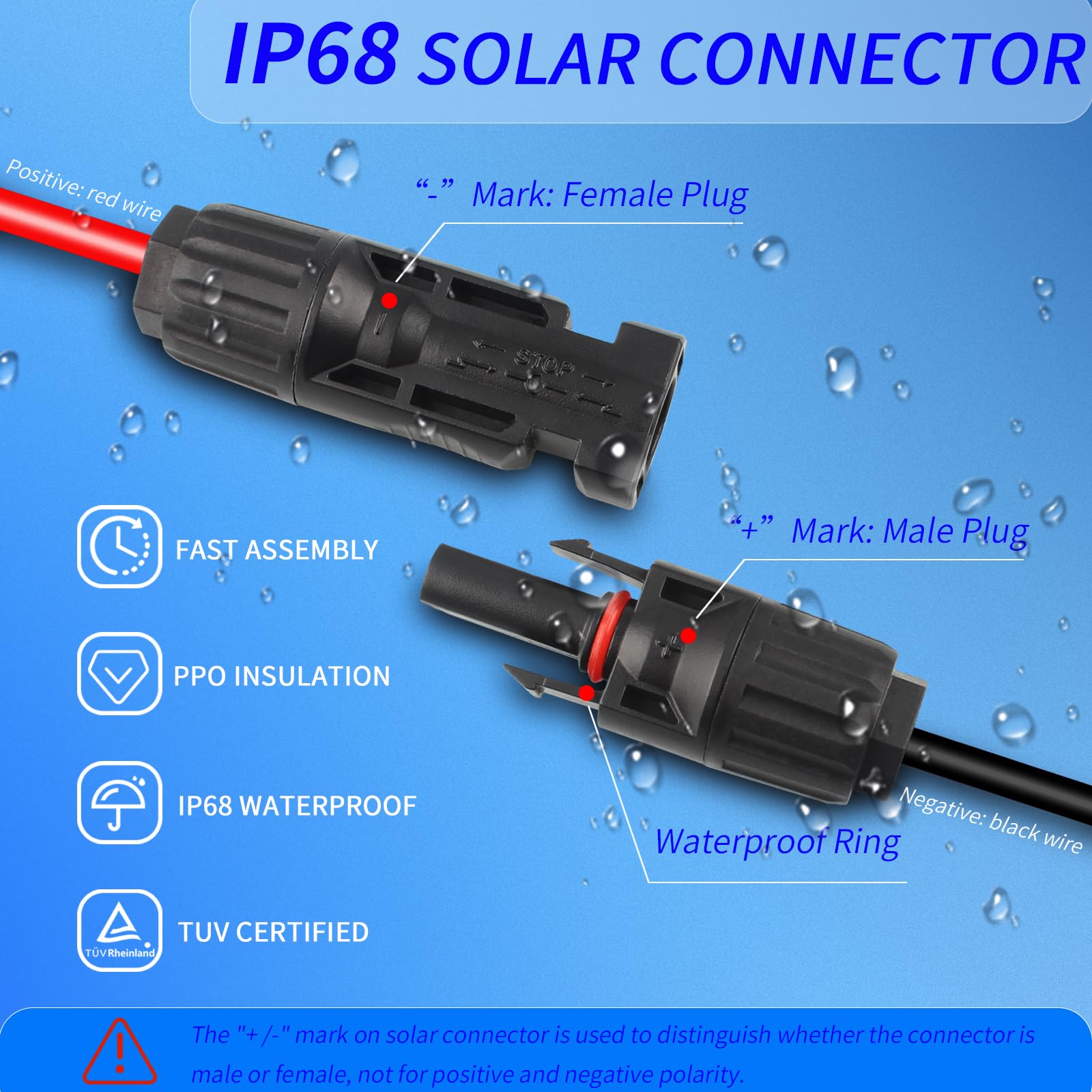

• MC4 male/female pair with waterproof O-ring rated IP68 and TUV certified.

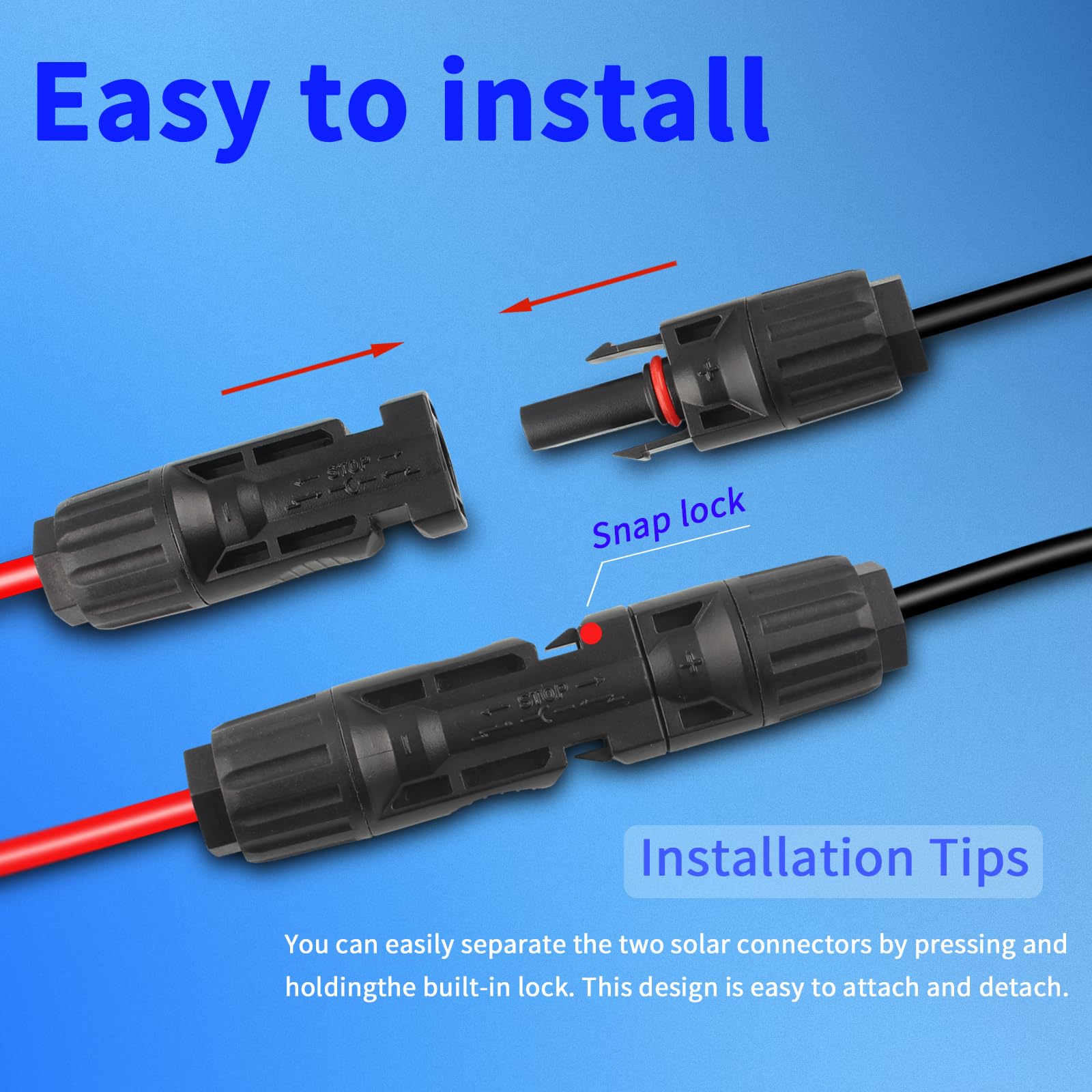

• Snap-lock MC4 plugs simplify connection and secure locking/unlocking.

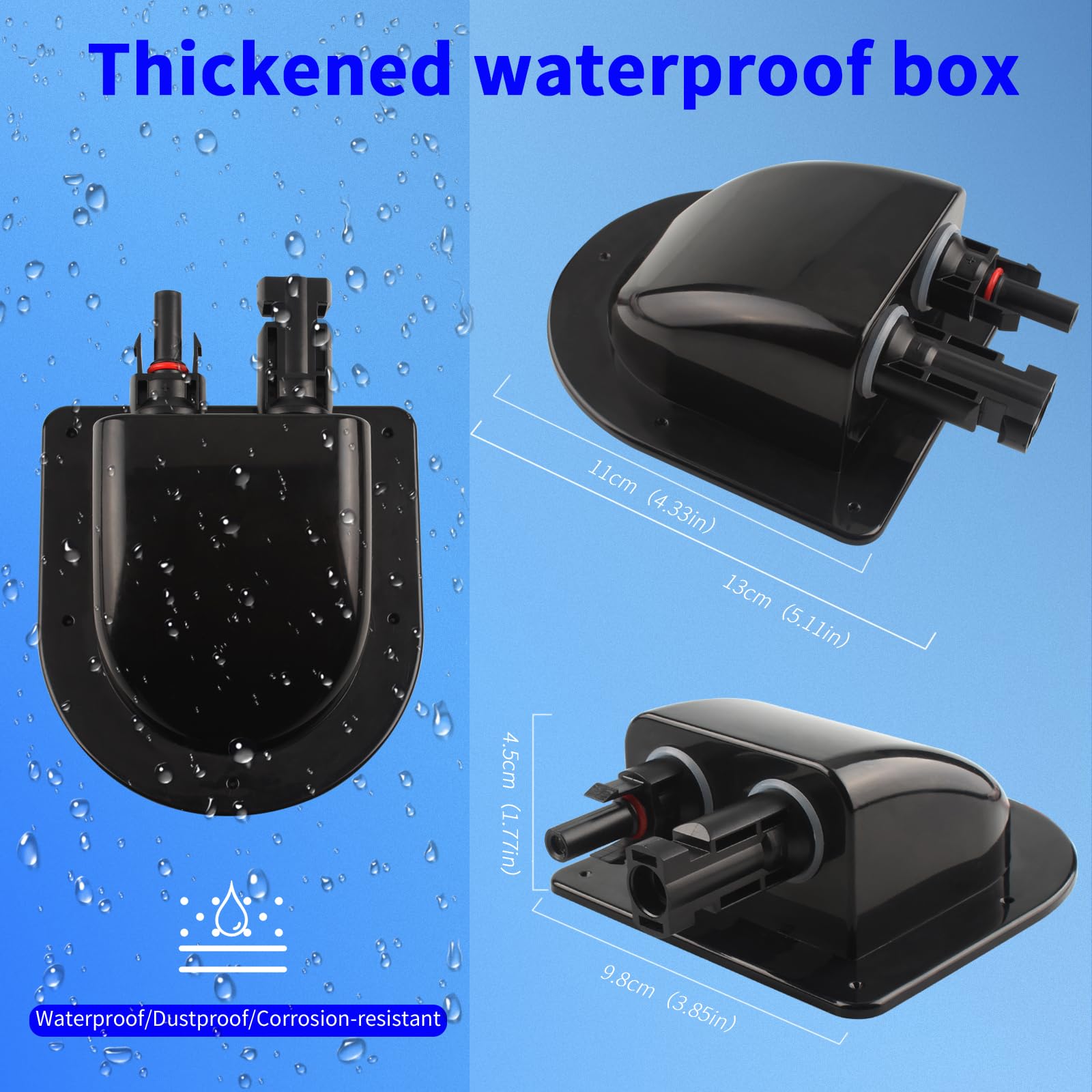

How is the housing mounted and maintained on vehicles?

The product includes five stainless steel self-tapping screws and supports adhesive mounting as an alternative, giving installers two practical options depending on substrate and preferences. Whichever method you choose, applying a quality sealant around the flange is advised to ensure a lasting, leak-resistant installation.

• Five stainless steel screws included for secure screw-down mounting.
• Adhesive mounting is possible when mechanical fasteners are undesirable.
• Use sealant (not included) around the flange for extra water protection.
• Periodic inspection of seals and connectors recommended for long-term reliability.

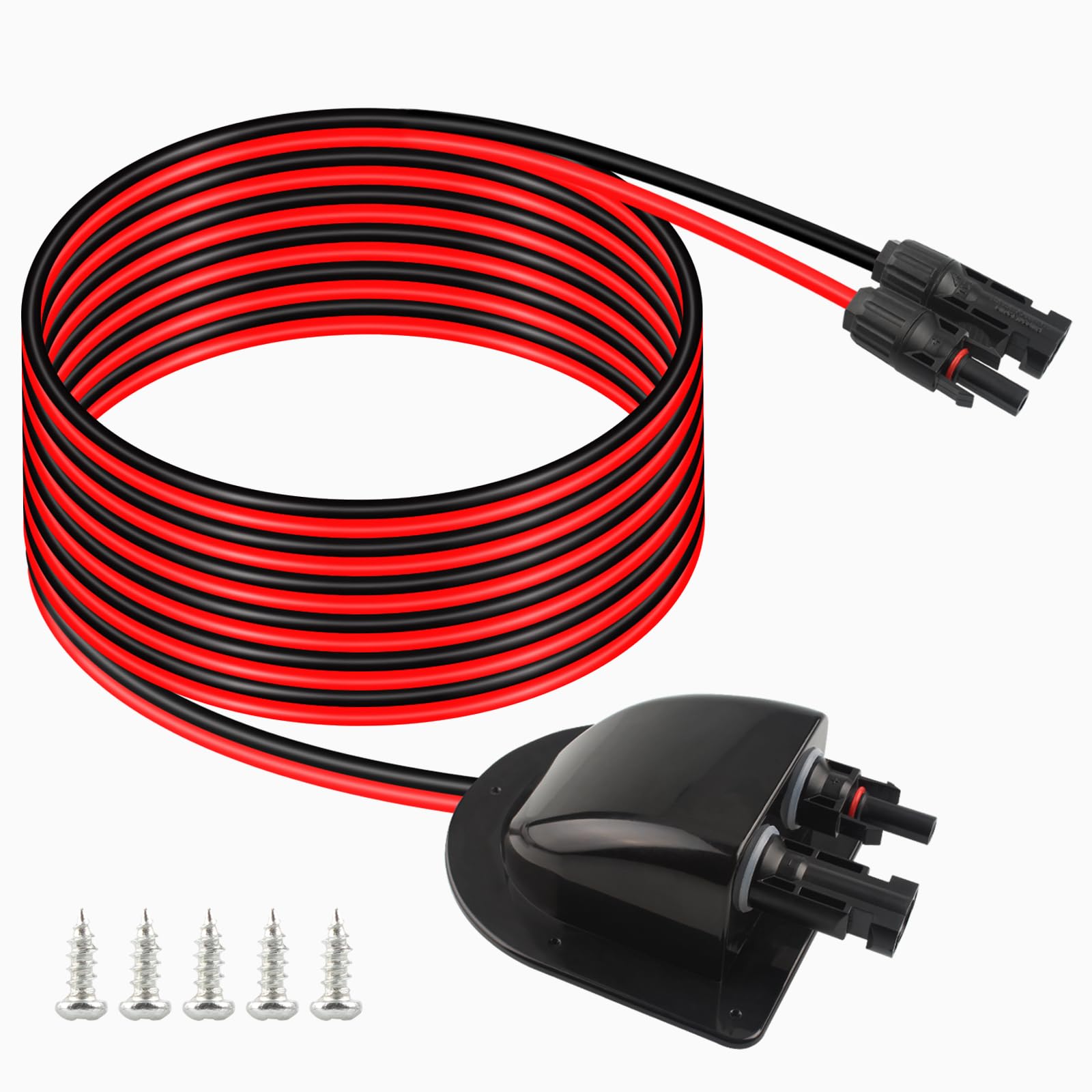

What comes in the box and what can I expect during installation?

The kit ships as a single ABS cable inlet housing preassembled with a 10 ft 10AWG cable and one MC4 male plug plus one MC4 female plug. The package is intended to be a near-ready solution — you will still need appropriate sealant and basic tools to complete a roof or wall penetration.

• One ABS cable entry gland housing with gasketed cavity.
• 10 ft (approx.) of 10AWG tinned-copper solar extension cable.
• MC4 male and female connectors with waterproof ring.
• Five stainless steel self-tapping screws for mounting.

Who is this for: This kbaoele assembly is aimed at DIY installers, RV/boat/campervan owners and professional mobile-electricians who need a compact, weatherproof method to route and connect solar panel leads through exterior roofs or walls. Choose this kit when you want a durable entry gland with IP68-rated connectors, heavy-gauge cable for lower losses and flexible mounting options to suit different vehicle and marine installations.
