Description
xJZW-Shop’s AC03P9 control board replaces the Pit Boss pellet grill thermostat and LCD controller, restoring full temperature, smoke mode, and probe monitoring for compatible Pit Boss models.
If your Pit Boss pellet grill’s original controller failed or shows erratic temperatures, the JZW-Shop Control Board AC03P9 offers a direct-fit replacement with a clear LCD, smoke mode, and dual probe capability. Designed to match the electrical and mounting layout of many Pit Boss SPORTSMAN, NAVIGATOR, MAHOGANY and Pro Series grills, this digital thermostat board returns precise digital control and easy setup without modifying the grill.
Which Pit Boss grills will this control board work with?
This replacement board is compatible with a broad range of Pit Boss models, including many SPORTSMAN, Pro Series, and other popular grills. Check your grill model number against the list below before purchasing to ensure a match.
- Fits models such as PB500SP, PB0820SP, PB1100SP, PB550G and PB850G.
- Works with PB1150G, PB440D2, PB1000D3 and PB1000SC2 variants.
- Also compatible with PB820XL, PB1000XL, PB820D2/D3 and other listed part numbers.
How do I install the AC03P9 control board?
Installation is straightforward for anyone comfortable removing a front control panel and reconnecting four wires. The board plugs into existing connectors, and wire colors align to the grill functions to simplify wiring.
- Remove the outer control panel to access the old controller.

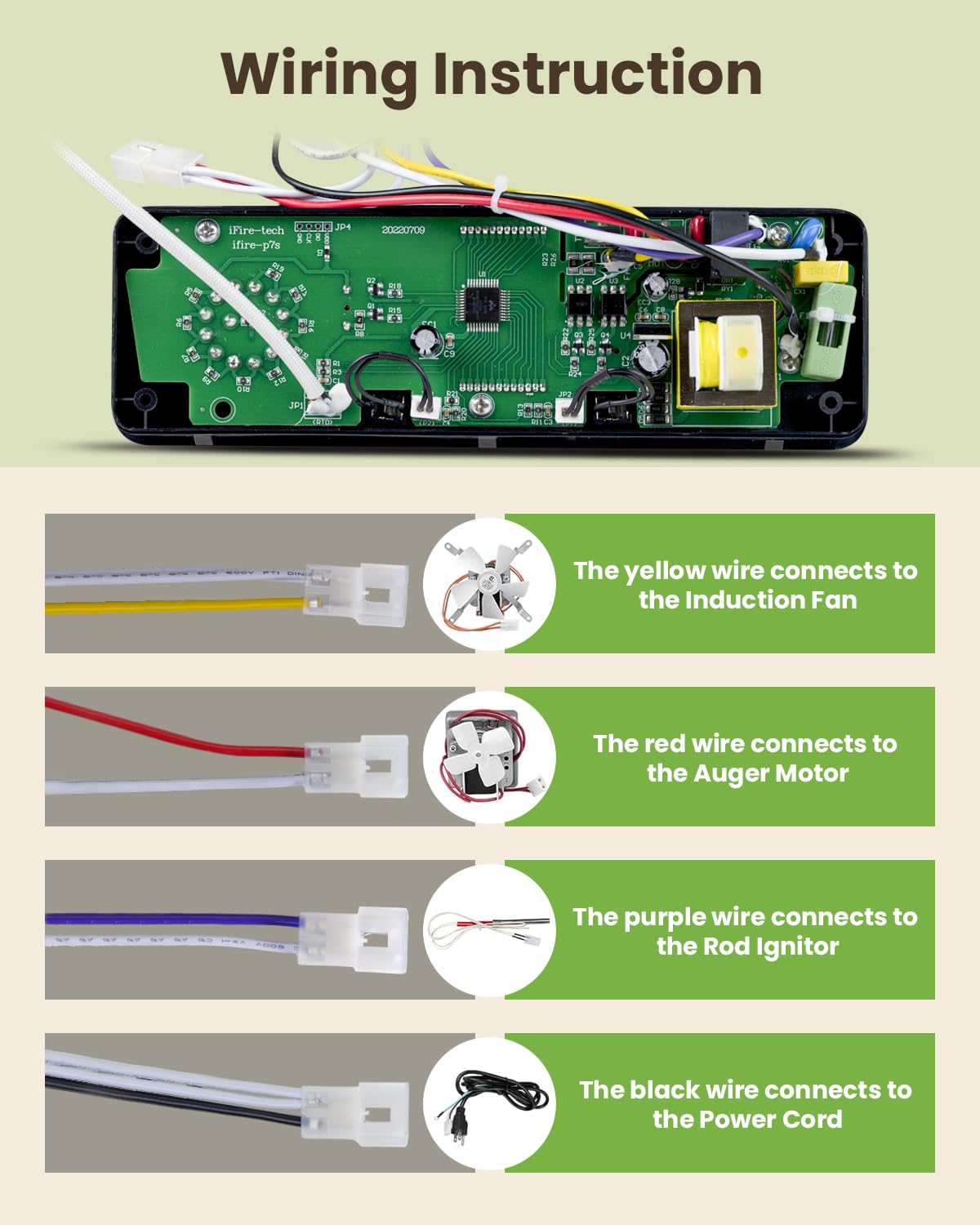

- Match and connect yellow to fan, red to motor, purple to igniter, black to AC power.
- Secure the board in the original mounting points; no drilling or adapter required.
What temperature control and features does this board provide?

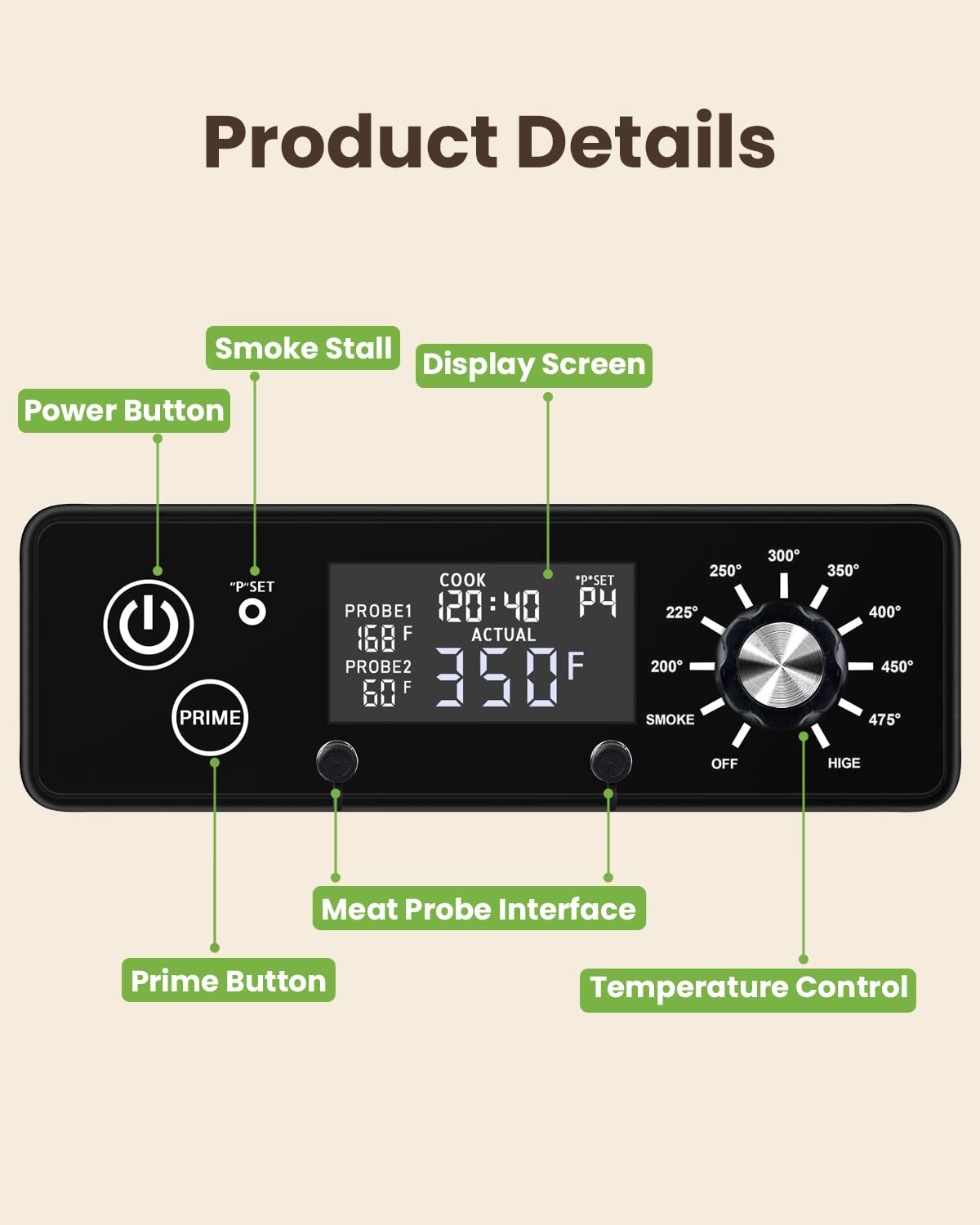

The AC03P9 offers eight adjustable temperature settings from 200°F to 475°F plus a dedicated smoke mode selectable via the “P” setting. A high-clarity LCD displays set and actual temperatures, while two probe ports let you monitor internal meat temperatures for better cooking control.
- Temperature range: 200–475°F with smoke mode option.

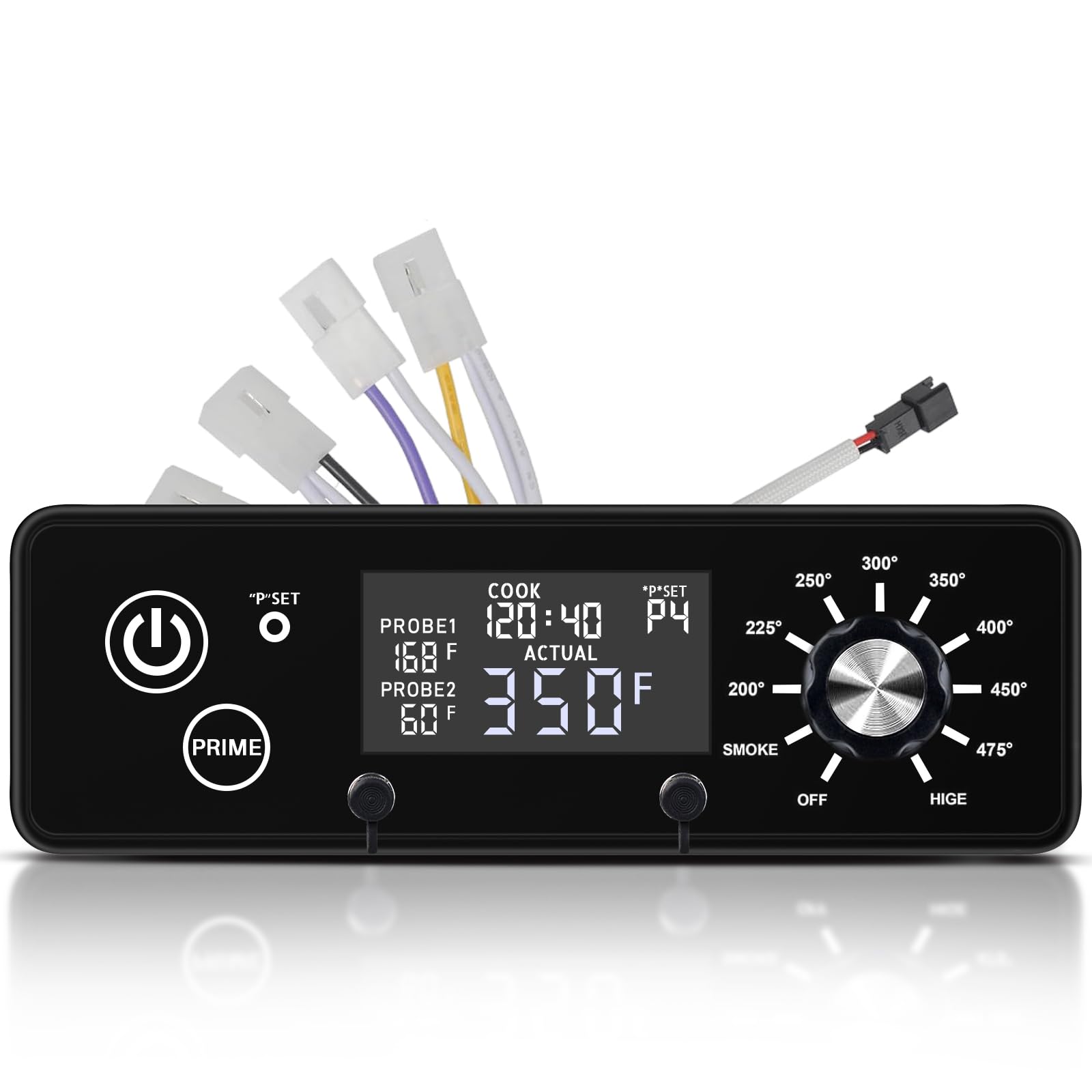

- Large LCD shows cooking temperature and status clearly.
- Two meat probe interfaces (probes sold separately) for internal meat monitoring.
What are the board’s electrical and size specifications?
The replacement controller operates on standard household power and is sized to fit the original control opening. Verify your grill uses AC120V/60Hz and confirm dimensions to ensure proper fitment.
- Power rating: AC120V / 60Hz for common North American grills.

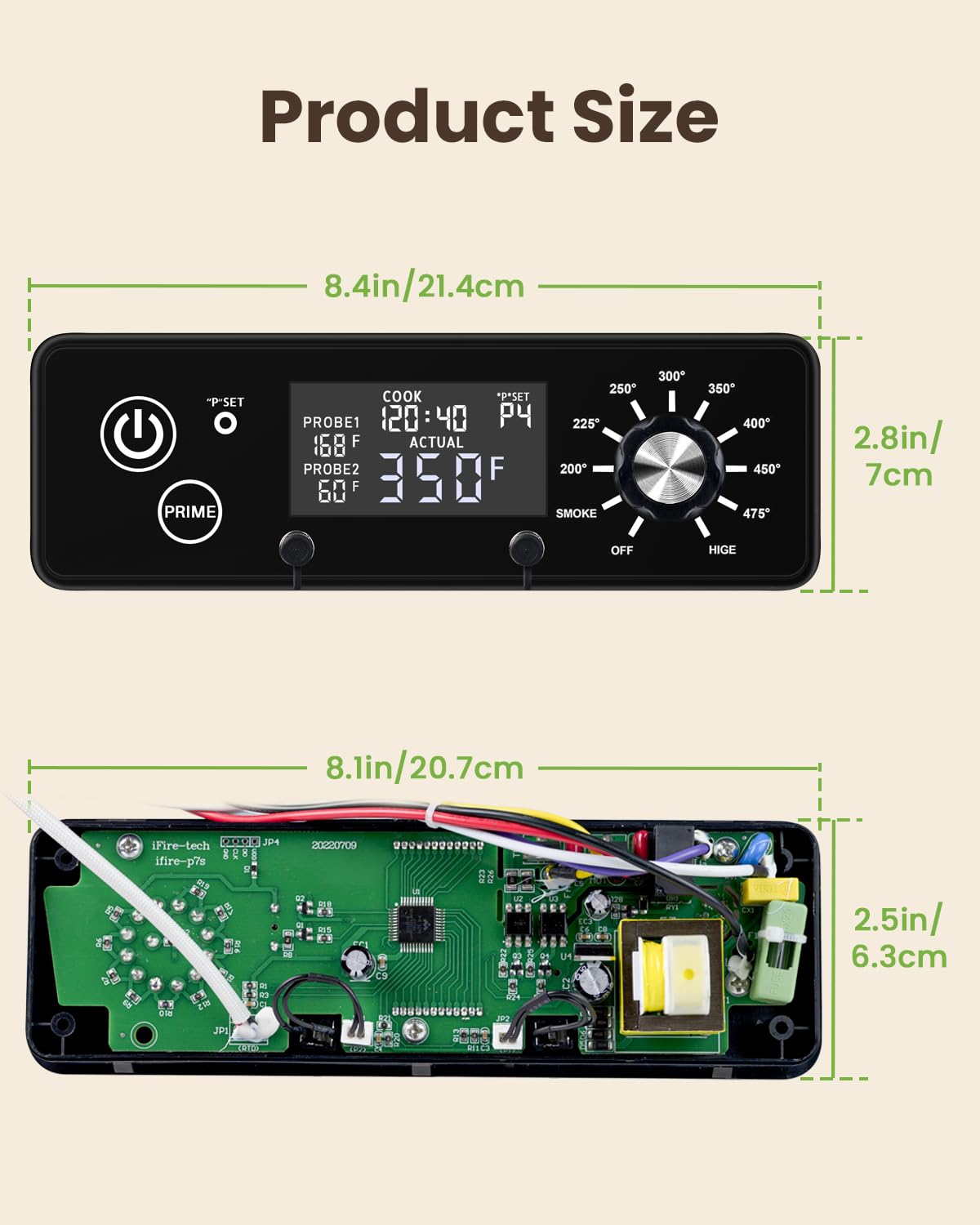

- Dimensions: approximately 21.4 x 7 cm (L x W) to match factory cutouts.
- Supplied as the control board only; meat probes are not included.
Who this is for: Grill owners with a malfunctioning or non-responsive Pit Boss controller who want an OEM-style replacement without custom rewiring. It’s aimed at DIYers comfortable with basic panel removal and wire reconnection, barbecue enthusiasts who use probe monitoring, and anyone restoring full digital control to compatible Pit Boss pellet grills.
FAQ
Q: Does this replace the original Pit Boss controller?
A: Yes—AC03P9 is a direct-fit replacement for many Pit Boss models listed; verify your model number first.
Q: Are meat probes included?
A: No, the board has two probe ports but meat probes are not included and must be purchased separately.
