JIYANG Solar Automatic Drip Irrigation Kit — 20‑30 Pot Solar Watering System with 12 Timing Modes and Anti‑Siphon

JIYANG Solar Automatic Drip Irrigation Kit is a self-contained, solar-powered watering system that automatically delivers measured drip irrigation to up to 30 pots using 12 adjustable timing modes and an anti-siphon safeguard.

This compact kit converts sunlight into reliable pump power to draw water from a reservoir and distribute it across planters, balconies, or small garden beds without a fixed faucet or mains electricity. Built for easy DIY assembly, the system includes drippers, tubing, a filter-protected pump, and multiple mounting options so you can tailor flow, frequency and layout to your plants’ needs.

How does the solar pumping and timing work?

The integrated solar panel charges an internal battery that powers the pump and timer. Choose from 12 pre-set timing patterns to control how often and how long the pump runs — from short daily bursts to longer intervals for thirstier plants. The unit also stores enough power to continue running through several cloudy days.

• Solar-charged battery provides energy for continuous operation and storing charge.

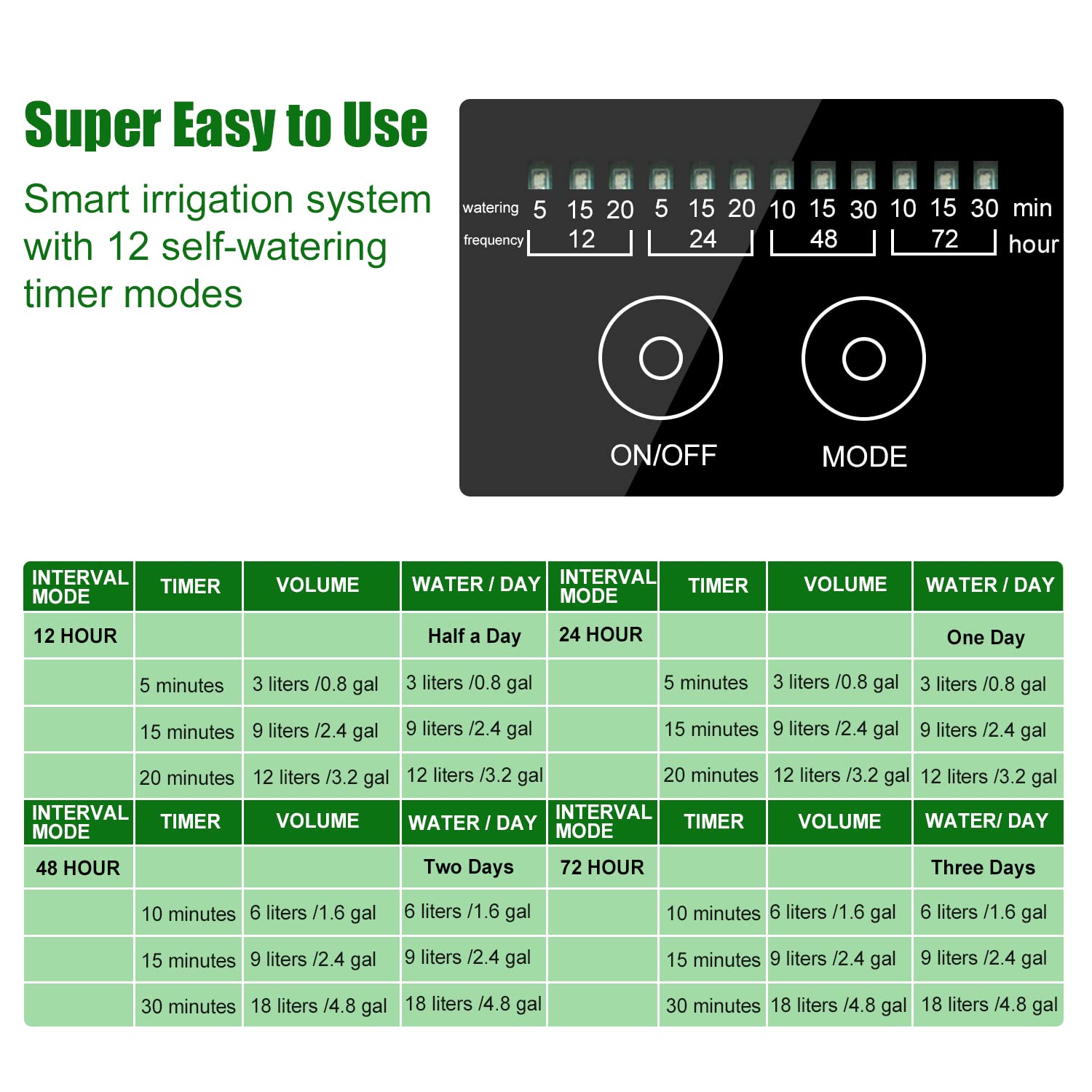

• 12 timing modes let you set frequency and duration to match plant species.
• Flow rate near 600 ml/minute accommodates multiple drippers simultaneously.

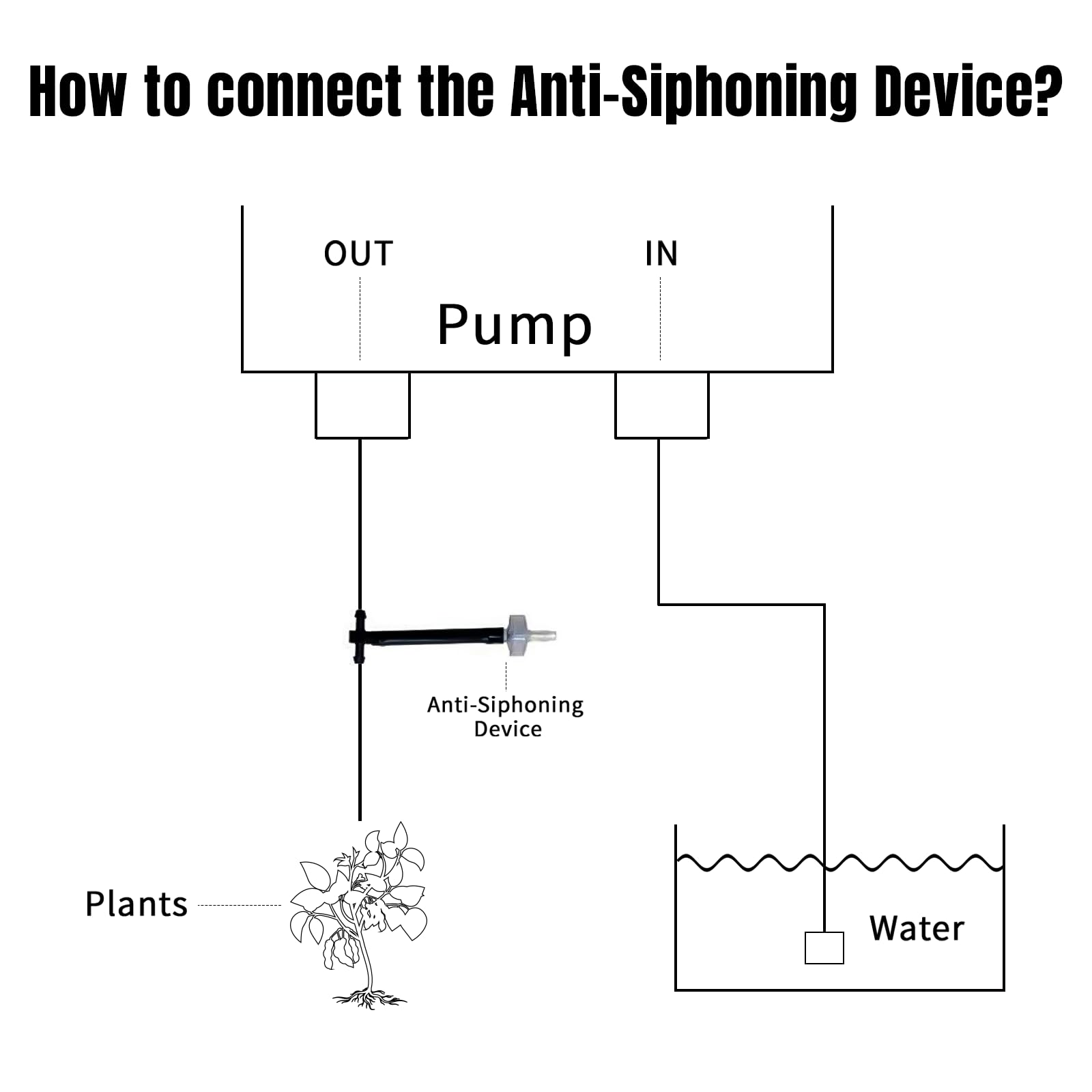

• Anti-siphoning device prevents backflow from the irrigation lines into the reservoir.

What components are included and how do I set it up?

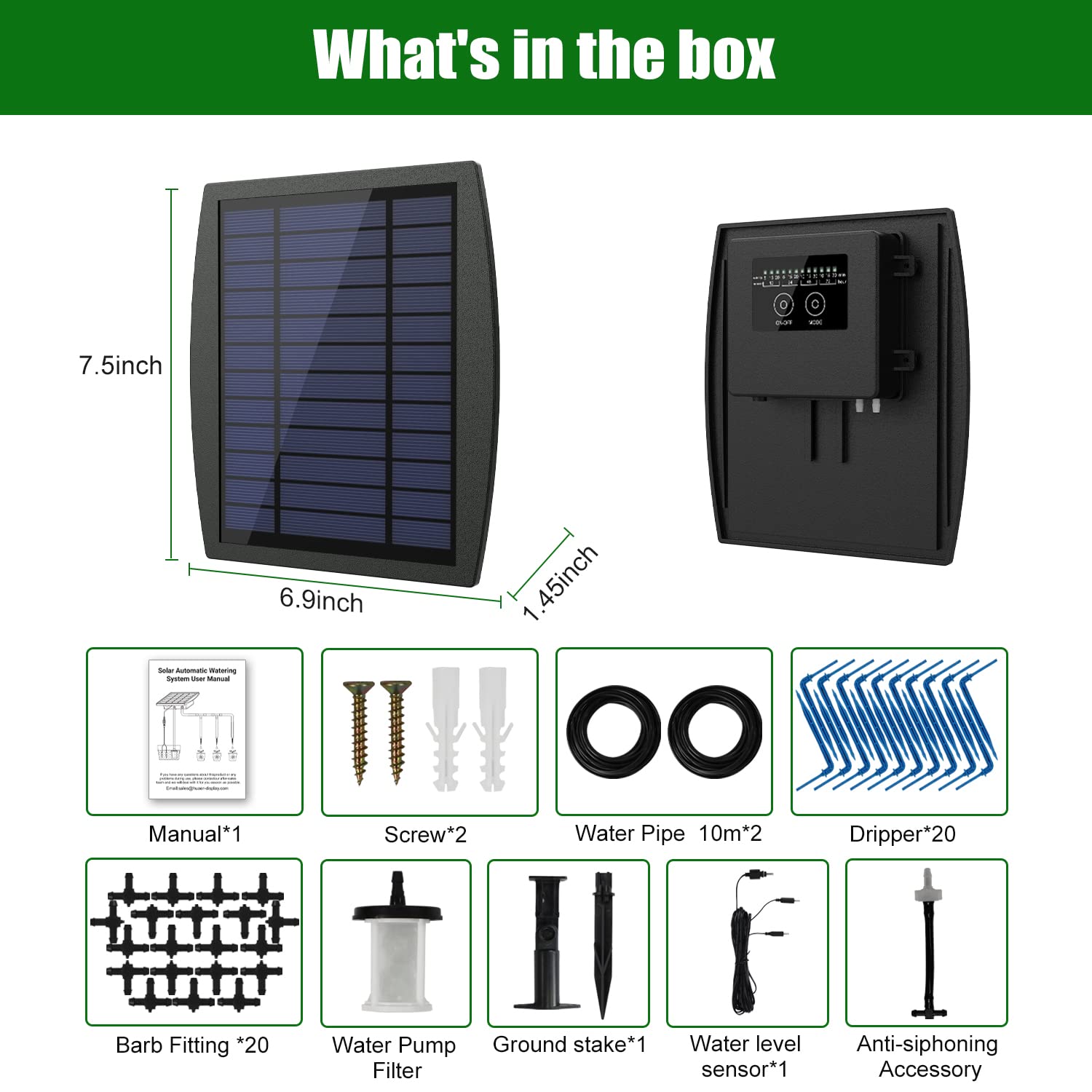

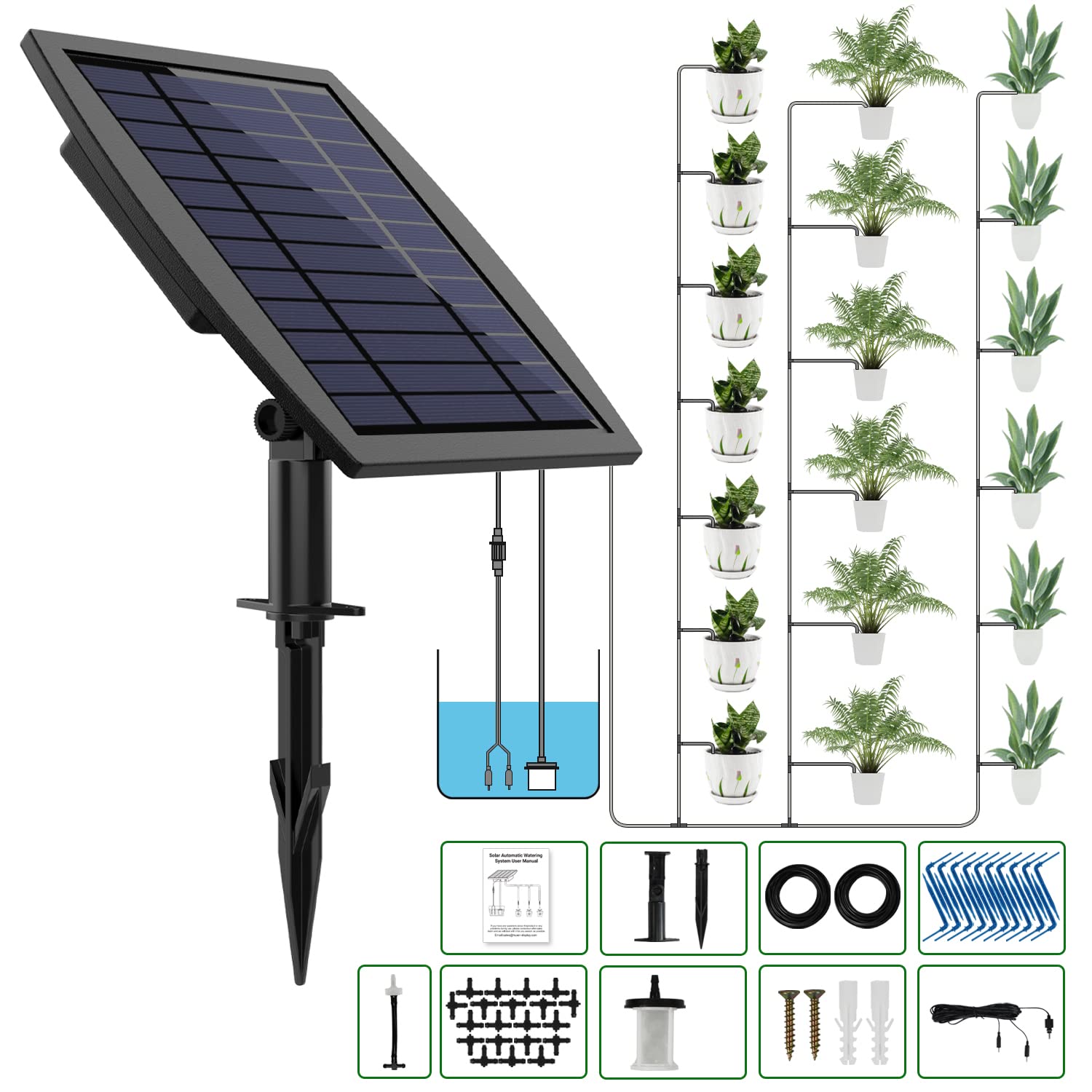

The standard kit ships with a solar pump unit, tubing, 20 drip-stakes, connectors, a filter, a ground stake and mounting screws. Installation is straightforward — place the pump in your water container, route tubing to pots, set drippers, select a timing mode, and mount the solar panel where it gets sun. Expansion parts are available if you plan to water up to 30 pots.

• 20 drip-stakes included; expansion kit available to reach 30 pots.
• Filter-protected inlet reduces clogging; syringe cleaning recommended for blockages.
• Ground stake and screws allow soil insertion or wall/fence mounting.
• Quick-connect tubing and adjustable drippers simplify layout changes.

How reliable and durable is the system outdoors?

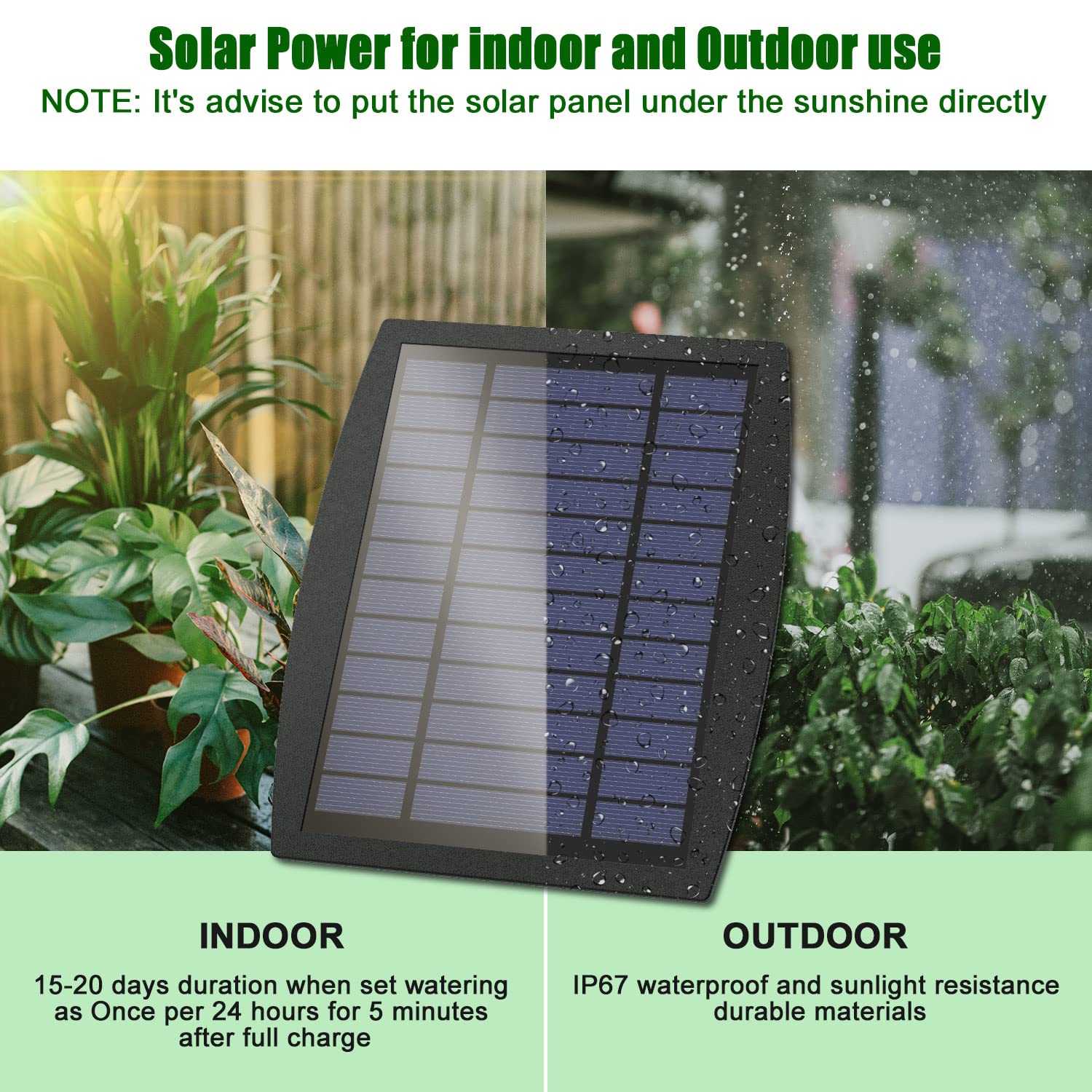

The housing and solar panel are rated for outdoor use and resist sunlight and water exposure. An IP67-level design helps component longevity, and the pump includes a simple audible/visual alarm to indicate blockages or empty reservoirs so you can troubleshoot quickly. On a full charge the system can operate for many days without direct sun, letting you leave plants unattended for vacations.

• IP67-level protection for weather and splash resistance.
• Buzzer and LED alarm signal clogs or low water; night mode silences the buzzer.
• Can run 15–20 days after a full charge depending on usage and sunlight.
• Robust materials resist UV exposure for extended outdoor life.

What maintenance does this kit need?

Routine care is minimal: check the reservoir, clean the inlet filter periodically, and clear drippers if flow slows. The kit’s alarm helps you diagnose issues — a repeating beep by day or flashing LED at night indicates the pump may be blocked or the water supply is empty. A quick syringe flush and restart usually restores normal operation.

• Inspect and rinse the filter monthly or as flow decreases.
• Unclog drippers with a needle or replace them from spare parts.
• Top up reservoir before long absences; expansion accessories available.
• Contact after-sales support for replacement parts if needed.

Who is this for? The JIYANG Solar Automatic Drip Irrigation Kit suits apartment gardeners, balcony growers, seasonal vacationers and small-plot hobbyists who need a low-power, faucet-free watering solution. It’s ideal for those who want to automate regular watering across multiple pots without running mains electricity or complex plumbing, while keeping system setup and maintenance simple.
