Jebao All‑in‑One Pond Filter UFP‑2000 with 13W UV & 530 GPH Pump — Submerged Compact Unit for Small to Medium Ponds

The Jebao UFP-2000 is an all-in-one submerged pond filter with a 13W UV clarifier and a 530 GPH pump, designed to simplify installation and keep small to medium ponds clearer without external filters.

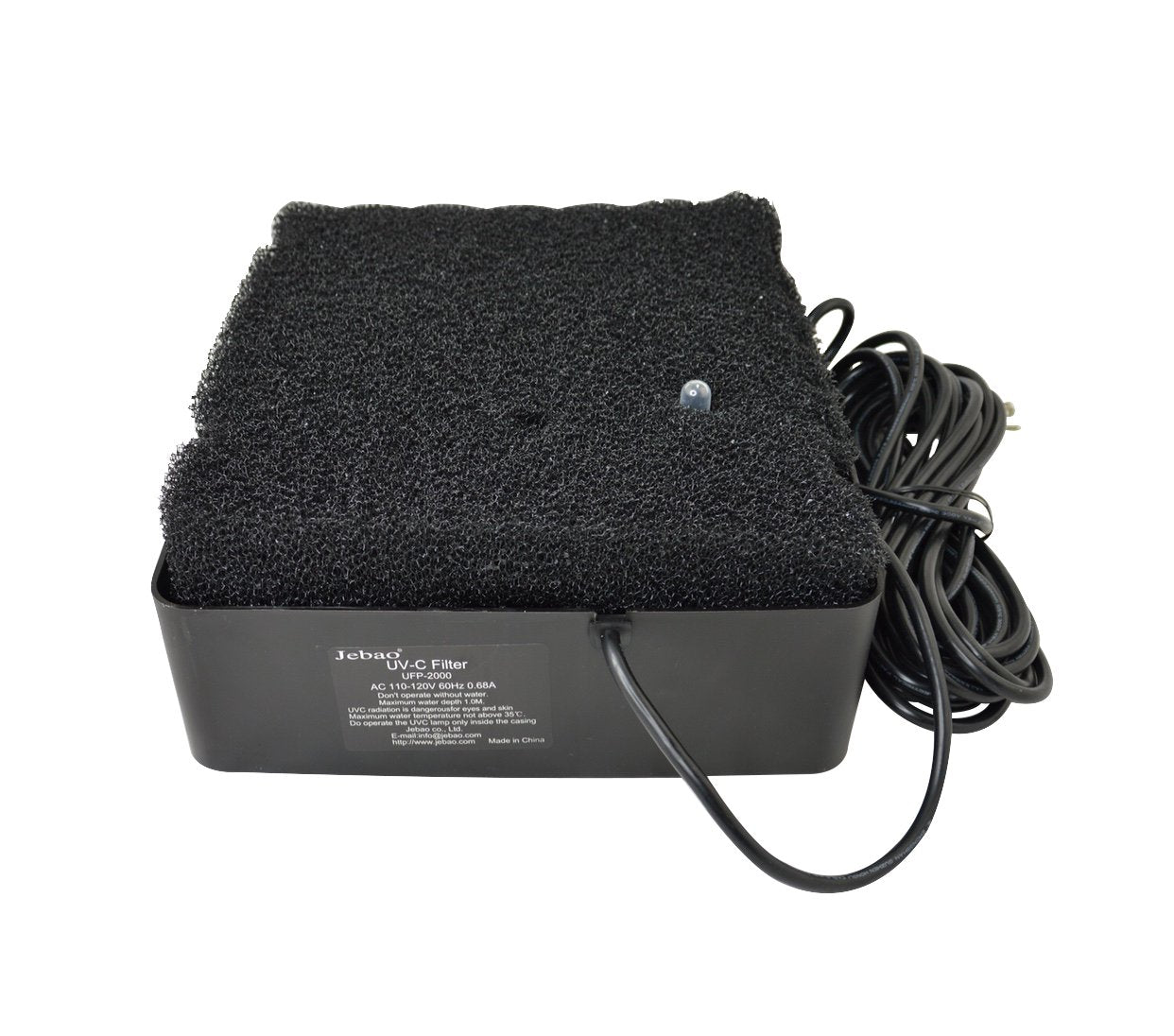

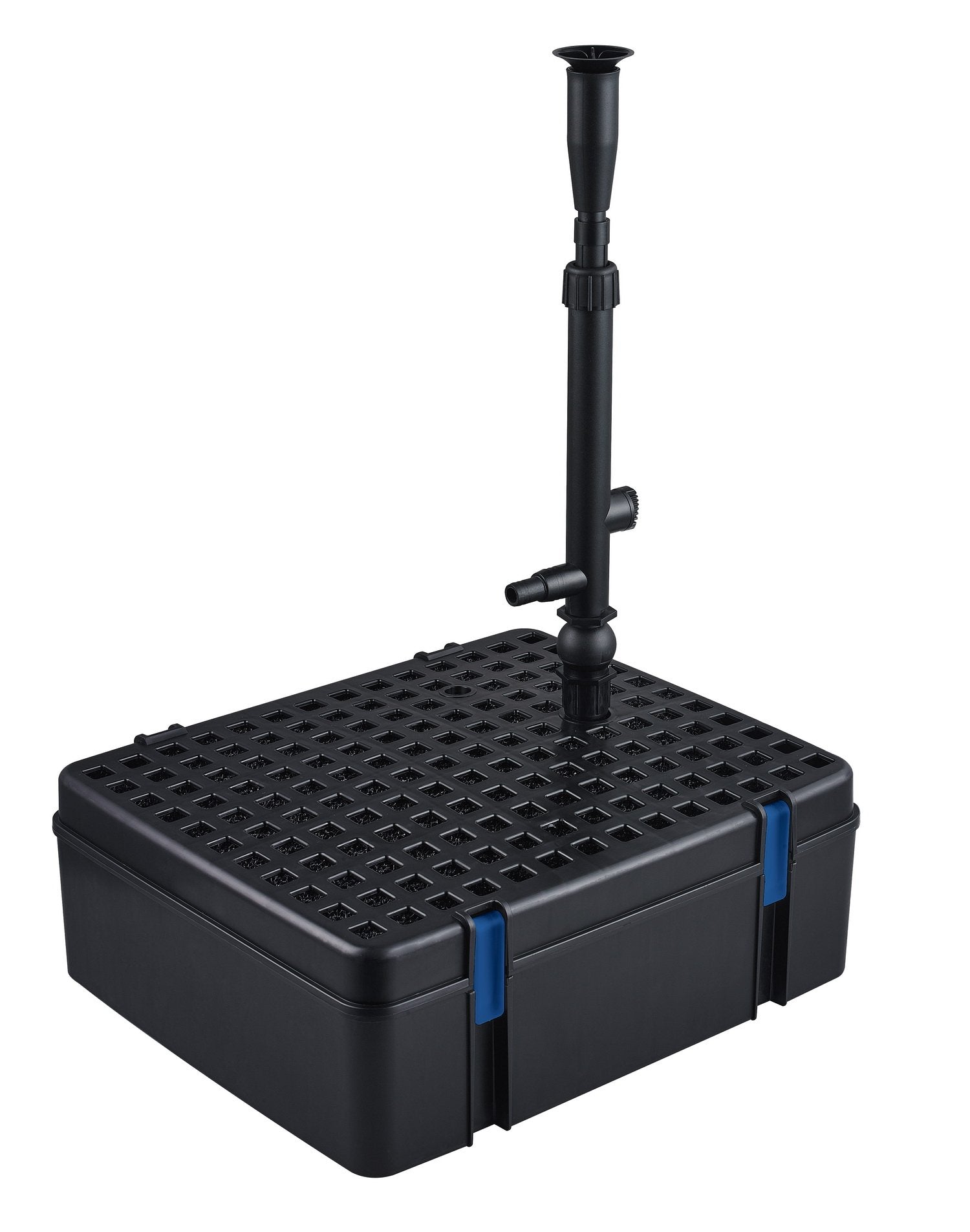

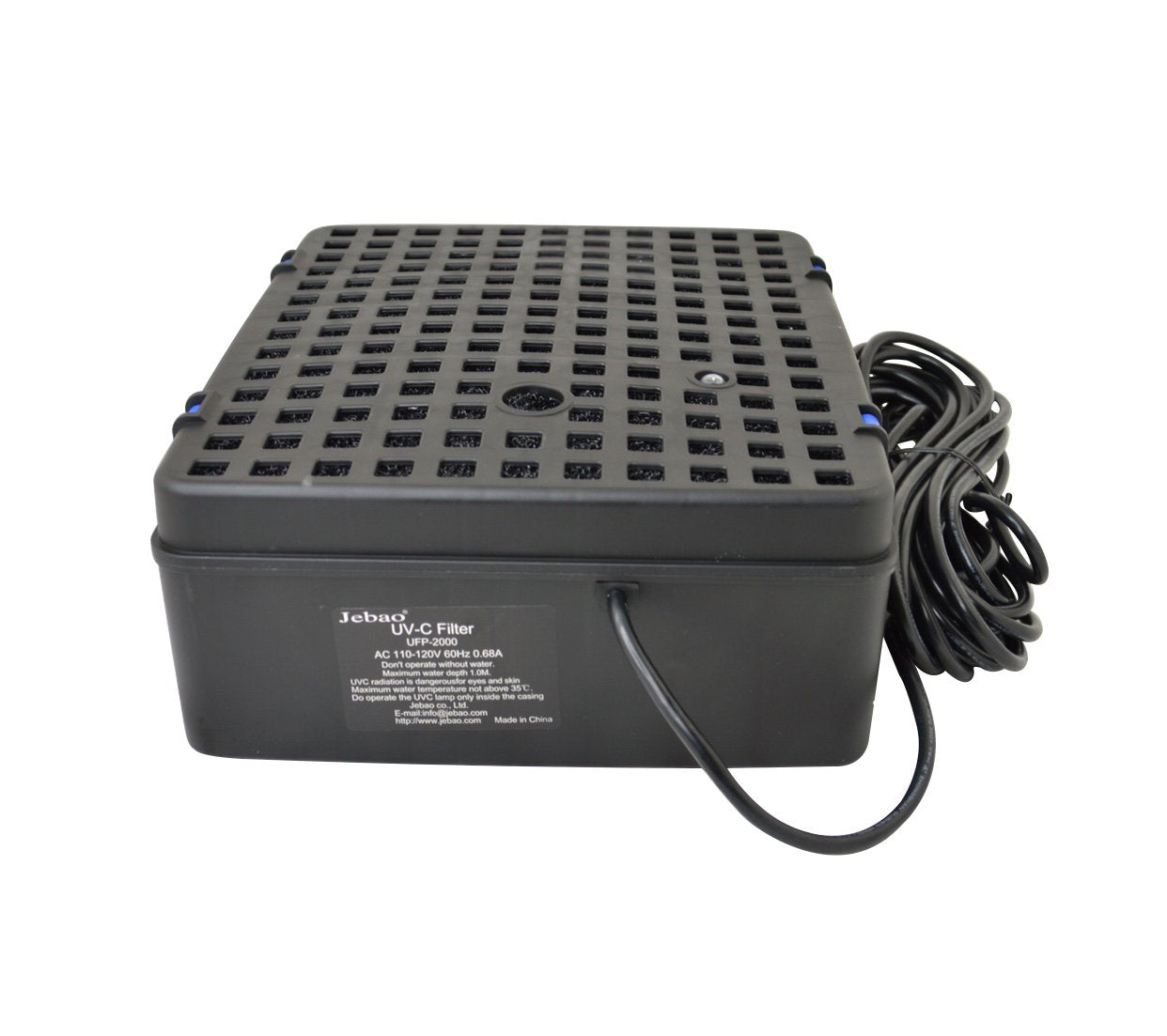

The UFP-2000 combines a compact filter housing, a powerful submersible pump, and an integrated UV sterilizer into a single unit that sits inside the pond. That design reduces the need for separate filtration equipment and complex plumbing, making it a practical option for backyard ponds, water gardens, and koi-less ornamental pools. The unit ships with coarse foam, three media baskets, multiple fountain nozzles, and a flow-splitting valve for flexible water-feature setups.

How does this system simplify pond setup compared to separate components?

Because the pump, clarifier, and filter are housed together, you avoid routing external plumbing and hiding a separate filter box. One power cable and one compact footprint streamline placement and integration with landscaping. Maintenance access is also simplified with removable clips and easy media access.

• Single submerged unit that eliminates external filter housings.
• Built-in 13W UV sterilizer removes free-floating algae particles.
• Quick-release clips provide full access for cleaning.
• 32-foot grounded power cable for flexible placement.

What filtration and flow options can I use for different pond sizes?

The pump delivers up to 530 GPH with an 8.2 ft max head, suitable for most small to medium pond layouts. The system includes coarse foam first-stage filtration plus three media baskets you can fill with biomedia, sponges, or polishing pads depending on your needs. A flow splitter and adjustment valve let you route water to a fountain or a waterfall while controlling flow to each feature.

• Max flow: 530 GPH; useful for ponds and moderate waterfalls.
• Filter footprint: 14.5 x 12 x 5.25 inches; compact submerged design.

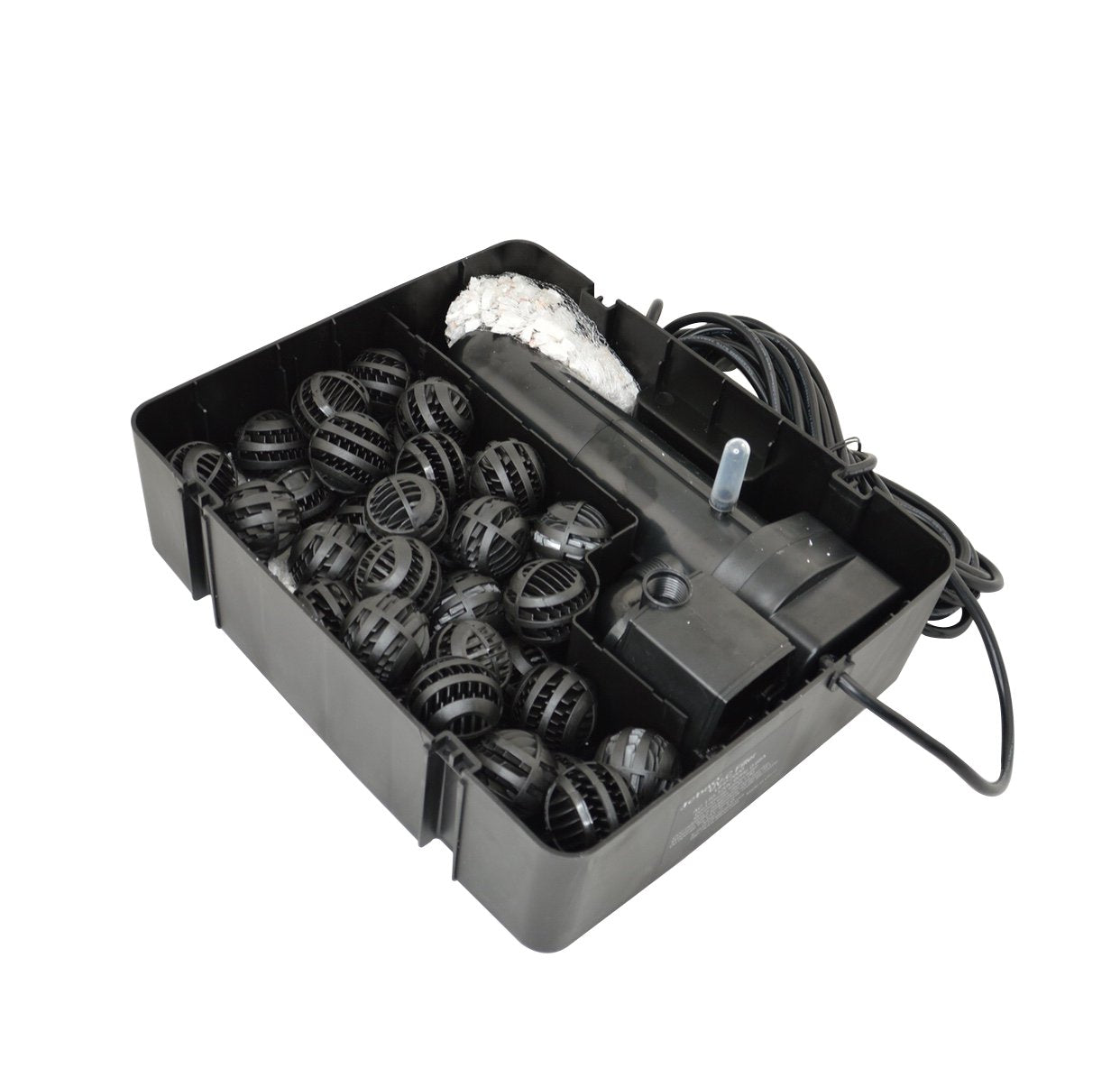

• Includes foam and three media baskets; customizable media options.
• Adjustable splitter manages fountain height and auxiliary flow.

How do I perform routine maintenance and bulb replacement?

Maintenance is designed to be straightforward: unclip the four fasteners to open the housing and access all media for rinsing or replacement. The UV bulb and quartz sleeve are removable after unscrewing a single fastener, allowing you to replace the lamp or clean the sleeve without disassembling the entire base. Regularly inspect foam and biomedia to keep flow and performance consistent.

• Four side clips for fast access to internal media areas.
• One screw releases bulb and quartz sleeve for easy servicing.
• Replace or rinse foam and biomedia as needed to maintain flow.
• Check splitter and fountain nozzles for clogs seasonally.

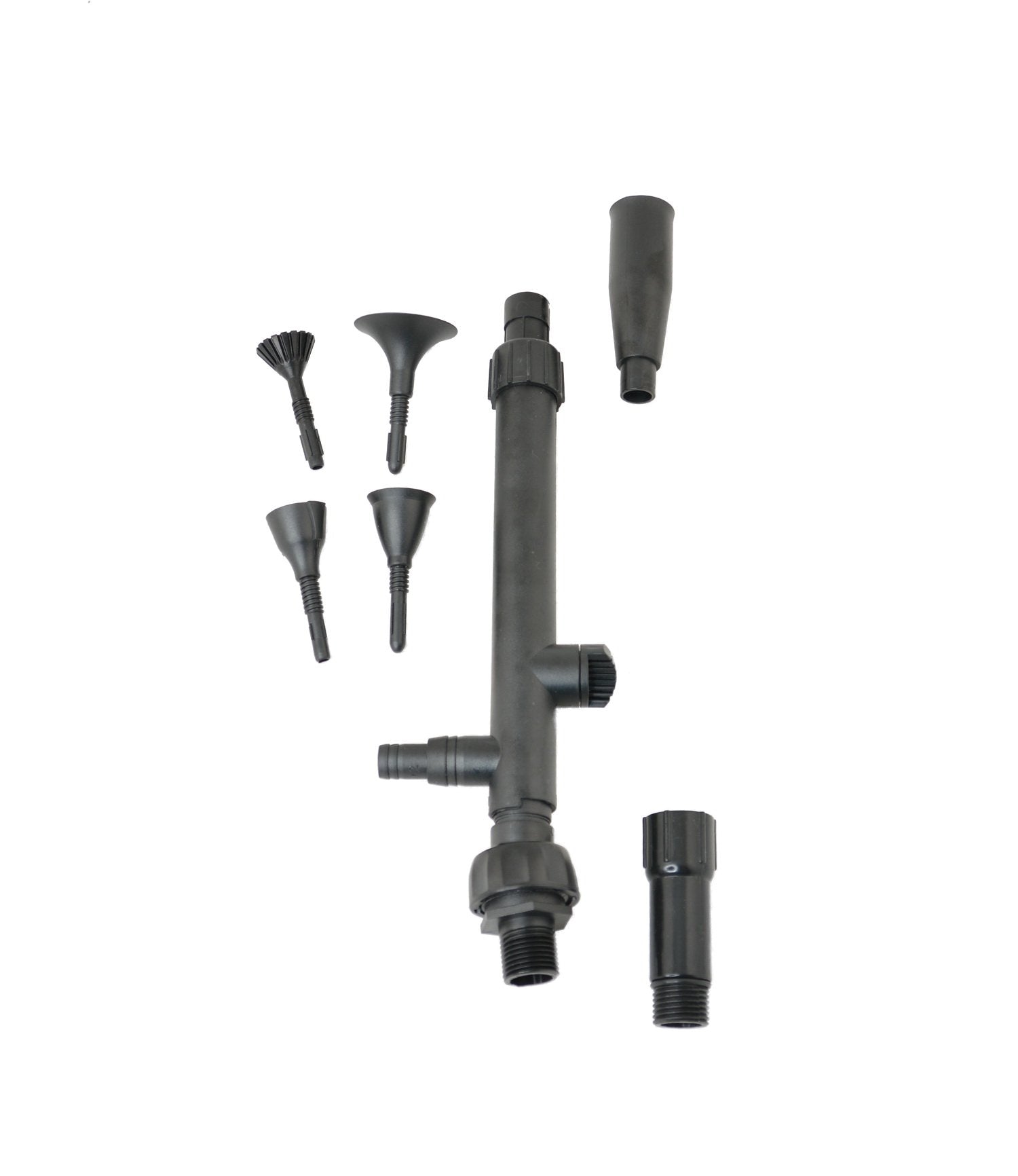

Which fountain and tubing options fit the unit and what displays can I make?

The outlet accepts 1/2" and 3/4" ID tubing and includes a set of fountain attachments so you can create different spray patterns and heights between 20" and 24". The package also includes a flow control valve and splitter so you can divert water to a waterfall, multiple features, or a single prominent spray display while fine-tuning the output.

• Outlet fits 1/2" and 3/4" inside diameter tubing for common pond hose.
• Four fountain attachments offer varied spray textures and sizes.
• Height range for fountain tube: approximately 20"–24" depending on flow.
• Flow-adjustable splitter sends water to additional features like waterfalls.

Who this is for: The Jebao UFP-2000 suits homeowners and gardeners who want a tidy, easy-to-install filtration and water-feature solution for small to medium ponds. It's ideal if you prefer a submerged, compact unit that reduces visible equipment in the landscape, need integrated UV clarification to help control green water, and want flexible fountain and waterfall options without extensive plumbing work. If you have a larger pond with heavy fish load or large koi populations, consider scaling up to multiple units or larger external filtration systems.
