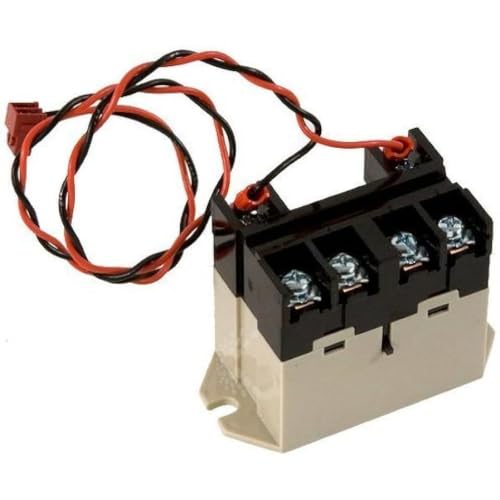

Jandy AquaLink RS 6581 3 HP Relay with Harness — 25A Pump Control, Plug‑In Integration

Jandy 6581 AquaLink RS relay is a dedicated 3 HP, 25‑amp control module with harness designed to integrate pool pumps and equipment into AquaLink systems.

This compact relay plugs into the Jandy AquaLink RS ecosystem to switch and protect pool and spa devices without requiring a full replacement of your automation controller. Built for installers and pool owners who need straightforward electrical control, the 6581 Relay offers a reliable interface for equipment circuits up to 3 horsepower and 25 amps while keeping wiring tidy through its supplied harness.

What does the Jandy 6581 Relay actually control?

The 6581 functions as an equipment relay that lets your AquaLink RS system open and close power to pumps and other pool components. It does not change automation features but provides the switched circuit capacity required for mid‑sized pumps and accessories.

• Rated for motors up to 3 HP to handle typical medium pool pumps.
• 25‑amp switching capacity for most pump and heater control circuits.
• Included harness simplifies connection to the AquaLink RS controller.

How is the harness useful during installation?

The harness is pre‑terminated to reduce field wiring errors and speed up installation. Installers benefit from clearer connections and fewer loose wires, which lowers labor time and improves reliability.

• Prewired connectors match AquaLink RS terminals for plug‑and‑play hookup.
• Cleaner wiring layout inside equipment enclosures for maintenance.
• Minimizes the chance of incorrect terminal wiring during installation.

Will this relay protect my equipment and meet code expectations?

The relay provides controlled switching but should be used alongside appropriate circuit protection devices required by local electrical code. It is intended as a control device within an automation system rather than a substitute for overload protection or disconnects.

• Use with proper fusing or breakers sized to the motor and supply voltage.
• Mount within an enclosure that meets installation and environmental requirements.
• Follow local code and manufacturer instructions during installation.

Can the 6581 work with different pump types and spa gear?

The relay switches AC power to compatible pumps and equipment up to its horsepower and amp limits. Confirm the specific motor starting characteristics and the device’s current draw so the relay is not overloaded.

• Suitable for single‑speed pumps and many spa devices within the 3 HP/25 A limit.
• Not intended for high inrush or specialty motors without additional protection.
• Compatible when integrated with an AquaLink RS automation controller for timed or remote control.

Who this is for: The Jandy 6581 AquaLink RS 3 HP Relay with harness is aimed at pool professionals, electricians, and informed DIYers who need a reliable switching module to expand or repair AquaLink RS automation systems. It’s a practical choice when you require a neat, code‑conscious way to control medium‑sized pumps and pool equipment while keeping wiring organized and simple to service.
