IWISS iCrimp Solar Crimping Tool Kit — IWS4 Crimper + Cutter & Stripper, 14–10 AWG Portable Kit

IWISS iCrimp Solar Crimping Tool Kit is a complete, portable set for cutting, stripping, crimping, and assembling IWS4 solar connectors on 14–10 AWG PV cables.

This compact kit brings together the specialist tools installers need to prepare and join photovoltaic wiring quickly and consistently. Inside you'll find a ratcheting crimper built for IWS4 male and female solar contacts, a precision cable cutter, a compound-action wire stripper, and a plastic solar connector assembly spanner — all organized for jobsite convenience. The tools focus on clean cuts, accurate insulation removal, and repeatable crimps compatible with 2.5/4/6 mm² conductors, helping reduce rework and speed up panel-to-inverter wiring.

How does the iCrimp kit simplify solar connector crimping?

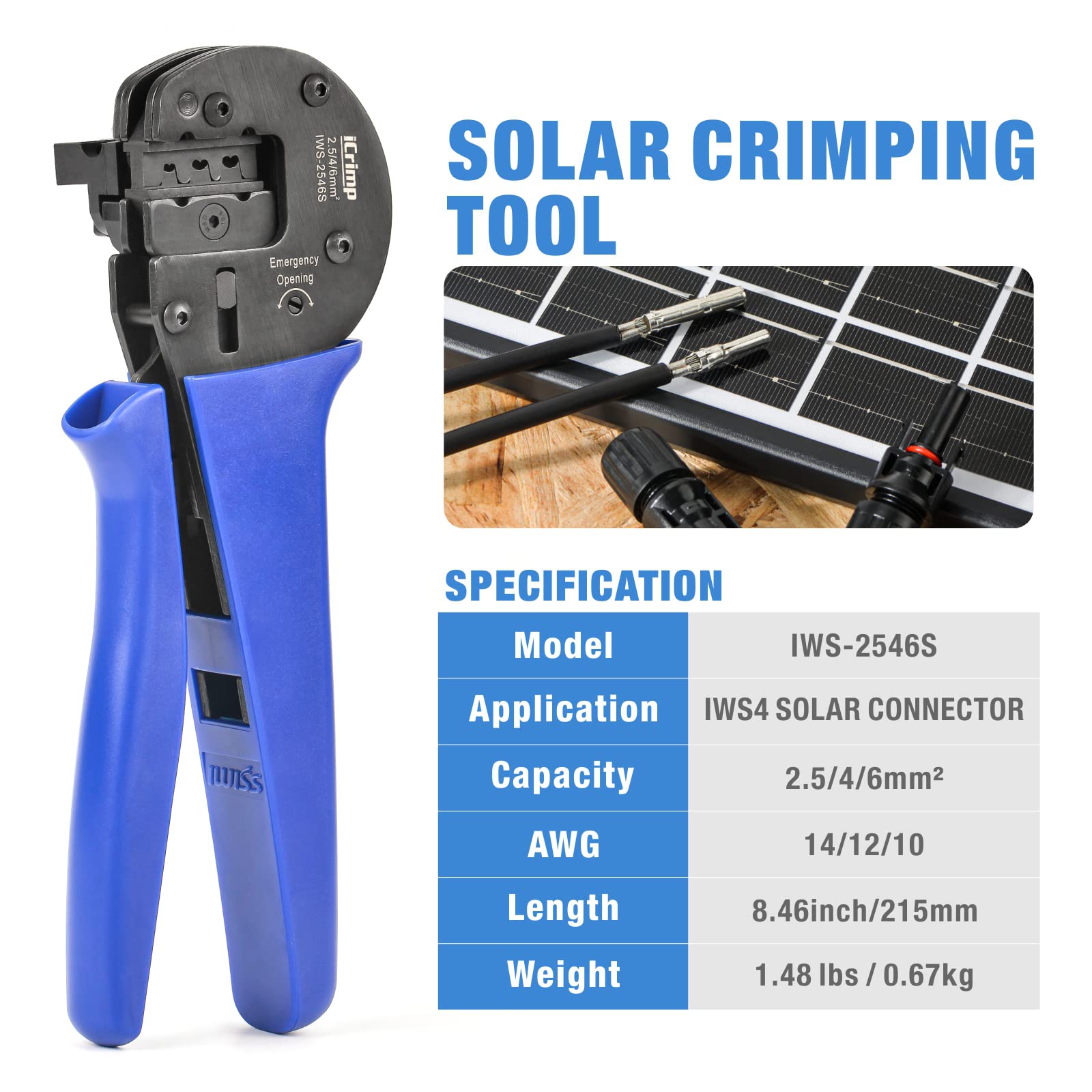

The IWS-2546S crimper is calibrated specifically for IWS4 solar terminals, delivering consistent compression with a ratcheting action to ensure full, reliable crimps. That precision reduces loose connections that can cause heat or power loss.

• Ratcheting mechanism ensures complete crimps every cycle

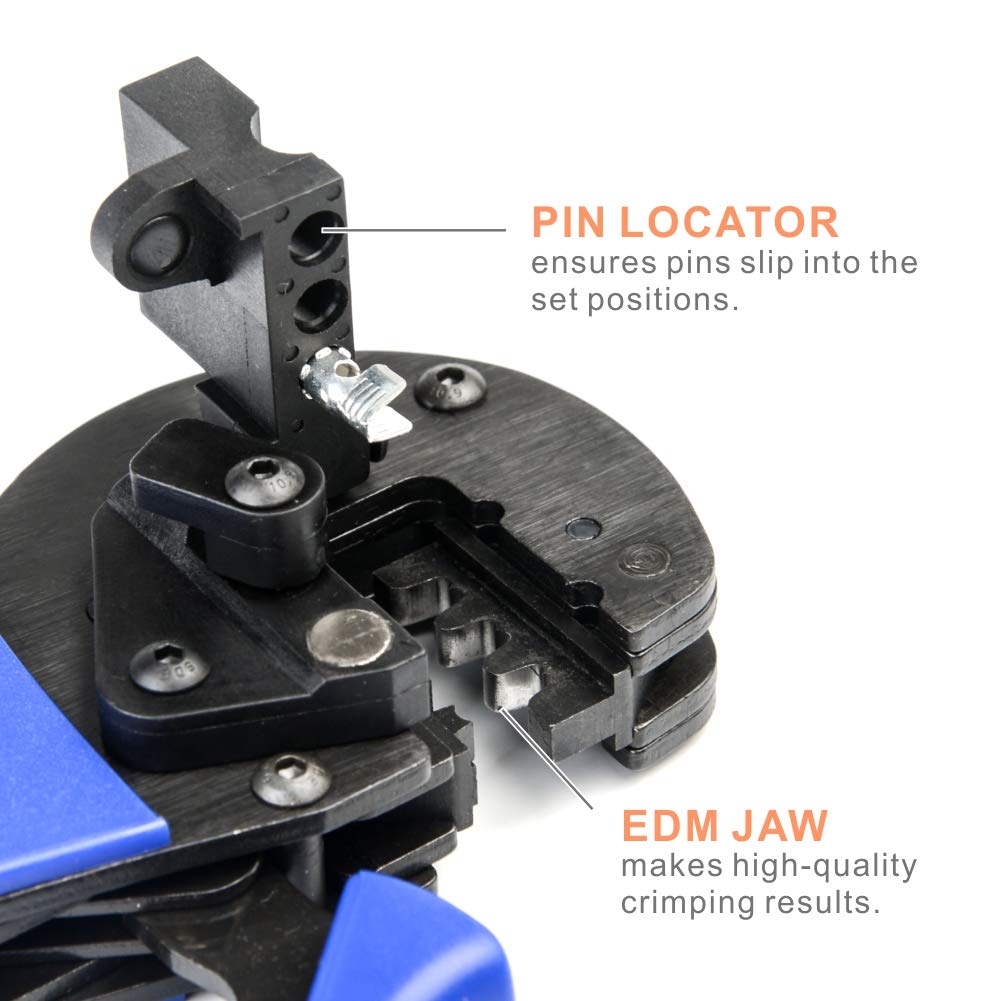

• Die geometry tailored to IWS4 male and female contacts
• Compatible with 14, 12, 10 AWG (2.5/4/6 mm²) PV cables
• Ergonomic handles reduce hand fatigue during repetitive work

What quality can I expect from the wire cutter and stripper?

The WX-206 cutter gives smooth, deformation-free cuts on copper and aluminum single or stranded conductors up to 3 AWG. The compound-action stripper removes insulation accurately without nicking conductors.

• Cutter blades designed for clean cross-sections without crushing
• Stripper supports 8–20 AWG solid and 10–22 AWG stranded wires
• Single-squeeze operation speeds repeat work and improves consistency
• Durable construction for frequent field use

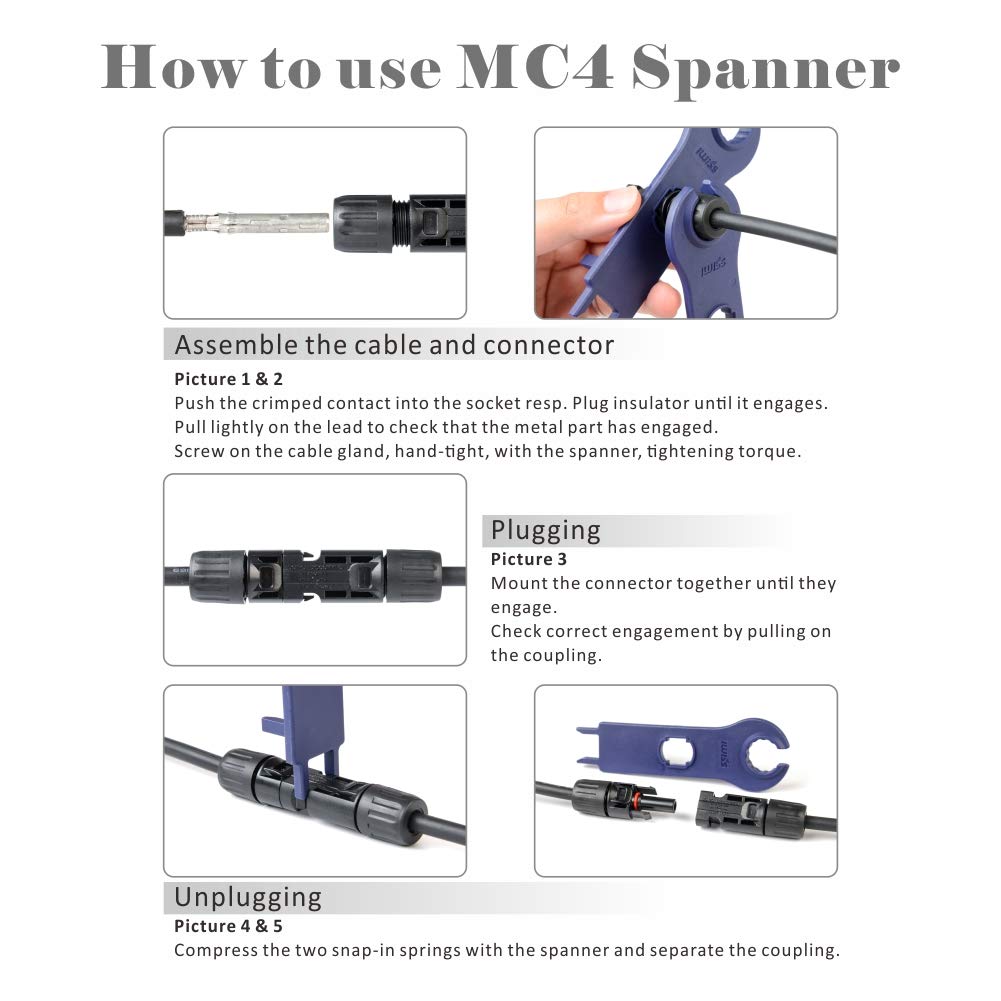

How do the connector assembly spanners help during installation?

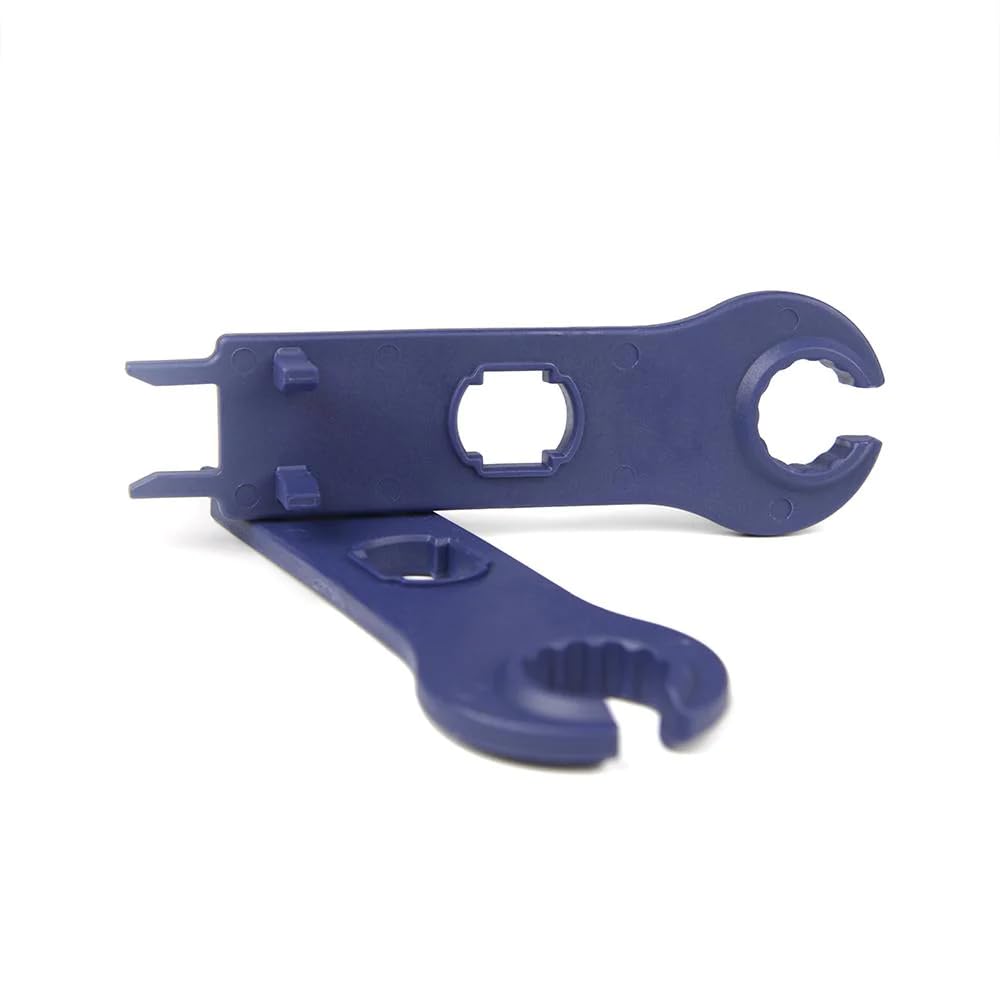

The molded plastic assembly tool is sized for IWS4 connectors to make tightening and disassembly faster and safer than pliers or improvised tools. It gives secure grip and helps maintain connector integrity when joining panel leads or replacing MC4-style parts.

• Pre-shaped for consistent connector engagement and torque
• Non-conductive material reduces risk when working near live circuits
• Compact, lightweight for easy transport in the kit case
• Simplifies assembly for both new installers and experienced technicians

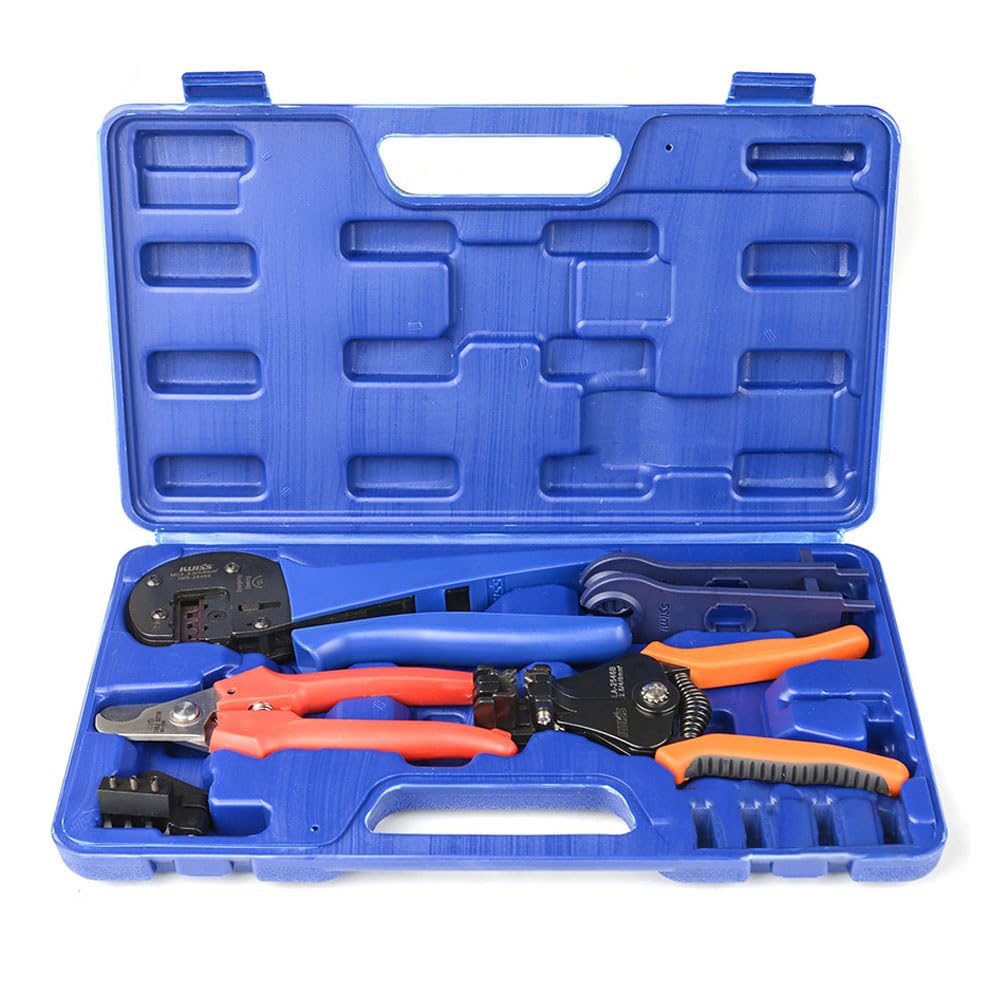

What comes in the KIT-2546S and how is it organized?

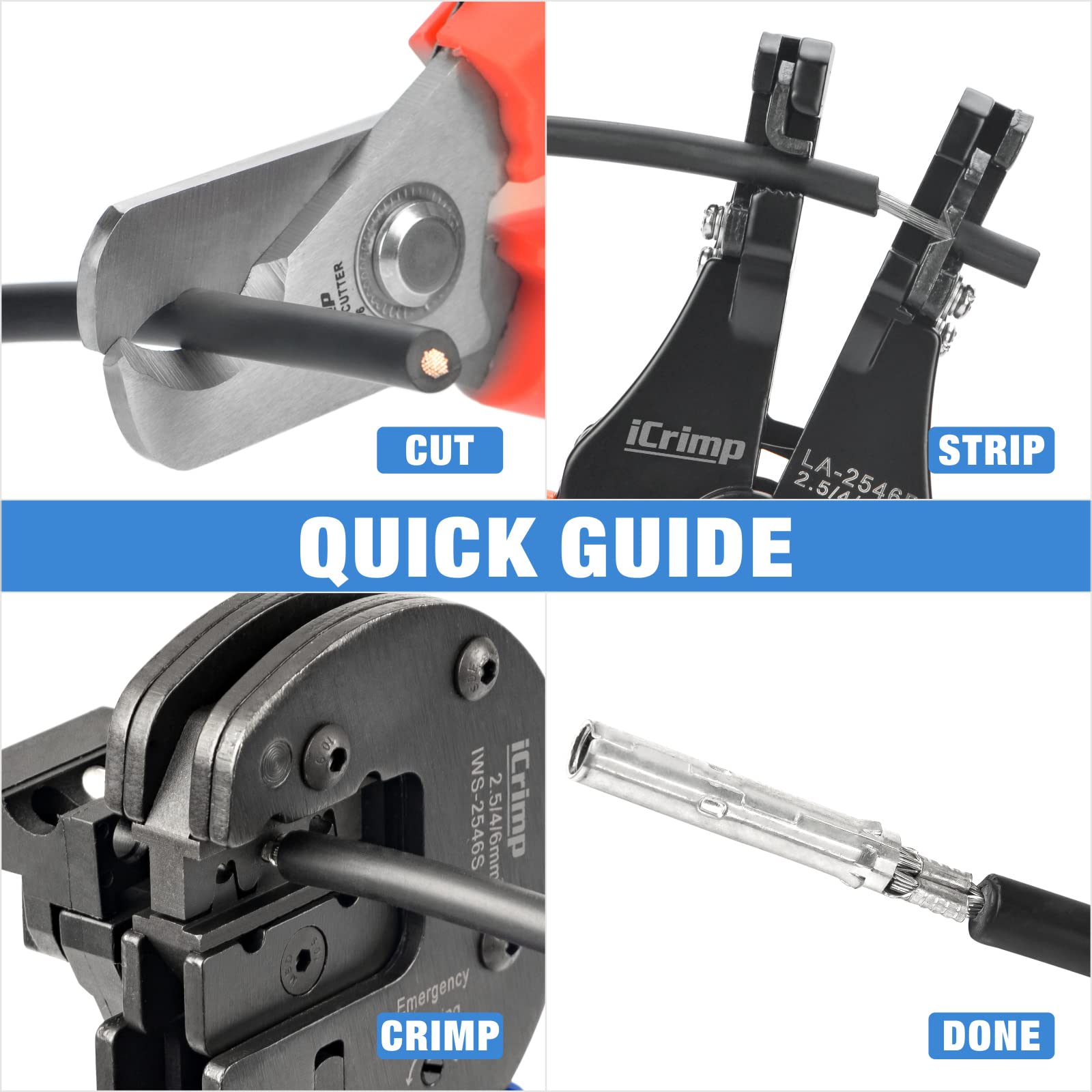

The kit combines the crimper, cutter, stripper, and assembly spanner in a molded case sized for jobsite portability and quick tool selection. Each tool is chosen to complete the PV cable preparation and connector assembly workflow.

• IWS-2546S solar crimping tool (for IWS4 contacts)
• WX-206 cable cutter (clean cuts up to 3 AWG)
• Compound-action wire stripper (8–20 AWG solid, 10–22 AWG stranded)
• Plastic solar connector assembly spanners and compact storage case

Who is this for: The IWISS iCrimp kit is aimed at solar installers, electricians, and experienced DIYers who assemble PV connectors on-site or in a workshop. It's useful for commercial and residential PV array wiring, maintenance crews replacing connectors, and anyone who needs a portable, purpose-built toolset for reliable IWS4 crimps and clean cable preparation.
