Intermatic Pool & Spa Load Center T30404R 100A — 8-Breaker Spaces with 2 Timers, NEMA 3R Weatherproof

The Intermatic T30404R is a weatherproof 100A pool and spa load center with two 24-hour timers and eight breaker spaces to centralize and schedule equipment on an equipment pad.

The T30404R combines power distribution and timing controls in a single outdoor metal enclosure designed for pool and spa installations. Built to accept Intermatic mechanical and digital timer mechanisms and a range of wiring devices, it reduces the need for extra junction boxes and simplifies equipment-pad wiring. CSA-approved for Canada and the U.S., the panel is rated for 240 VAC service and protected with a NEMA 3R raintight housing.

What components and controls come built into this load center?

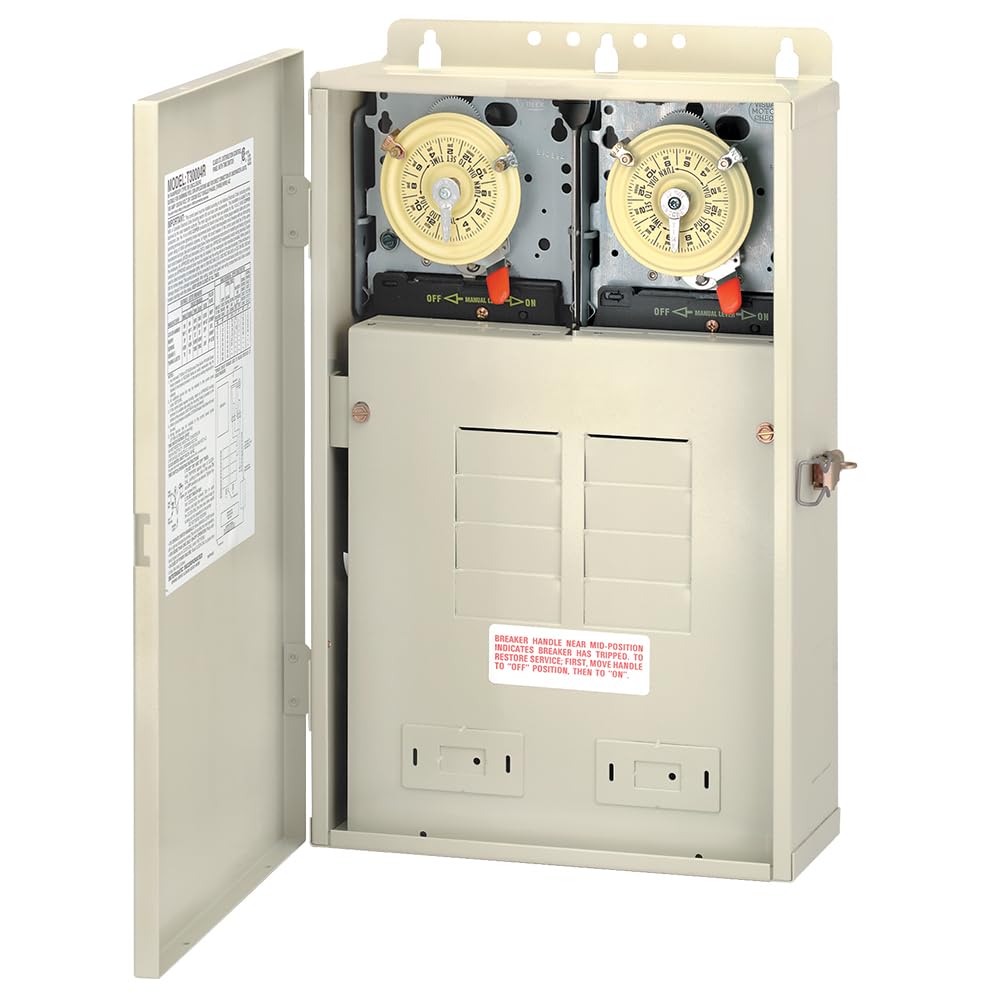

This panel ships as a complete load center with two T104M 24-hour timer mechanisms preinstalled, accommodating scheduled control of pumps, lighting, and other pool equipment. The enclosure includes eight breaker spaces, knockouts for additional switches or GFCIs, and mounting provisions for compatible Intermatic mechanisms.

• Two factory-installed T104M 24-hour mechanical timers for independent schedule zones
• Eight breaker spaces to manage multiple circuits from one enclosure

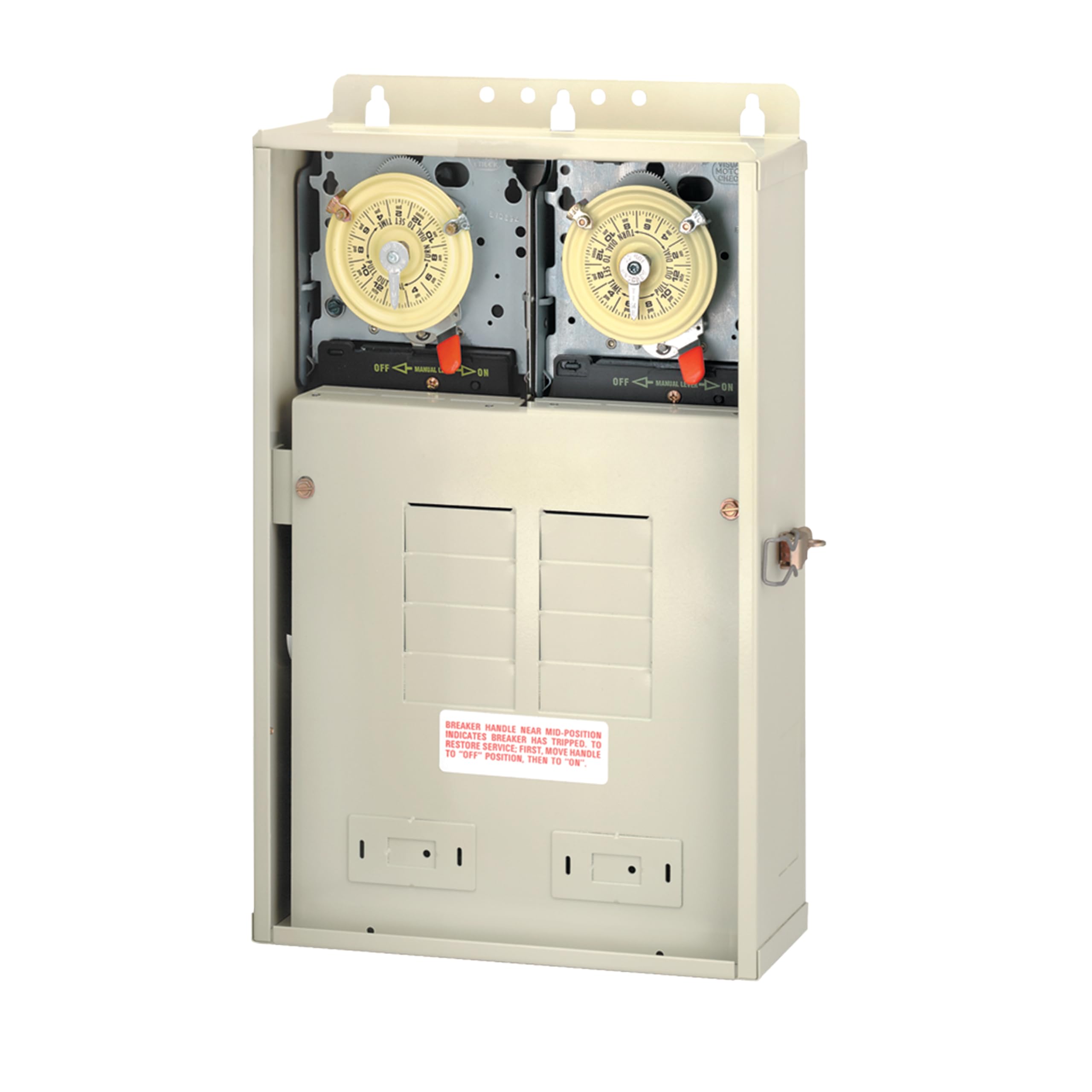

• Front and side knockouts for adding switches or GFCI devices
• Compatibility with Intermatic T100 Series and PE Series timer mechanisms

How does the T30404R simplify pool and spa installations?

By consolidating breaker spaces and timing controls into one panel, the T30404R eliminates separate service panels and extra junction boxes at the equipment pad. That streamlines wiring runs, reduces parts and labor, and provides a neat, code-friendly location for all pool electrical needs.

• Single enclosure for distribution and scheduling trims installation steps
• Reduces conduit and cable runs between equipment and power source
• Preconfigured knockouts and standoffs support clean wiring layouts
• NEMA 3R metal housing resists weather at the equipment pad

Which devices and wiring options are supported?

The T30404R accepts a variety of Intermatic timer mechanisms and control modules, and it can be populated with standard breakers, switches, or GFCIs as needed. Wiring devices mount using available standoffs and the load center is set up for 240/240 VAC at 60 Hz service typical of pool equipment installations.

• Works with P1353ME, P4243ME, T100M, RC2000M, PF1000M series mechanisms
• Supports standard circuit breakers and optional GFCI/switch add-ons
• Wiring device standoffs available to keep devices organized (sold separately)
• Rated for 240 VAC, 60 Hz, and 100 amp main service

Is the enclosure suitable for outdoor and poolside use?

Yes — the metal enclosure meets NEMA 3R requirements, providing a raintight housing for outdoor equipment pads. The panel is CSA approved for use in both the U.S. and Canada and is specifically designed to satisfy electrical needs commonly required for pool and spa installations.

• NEMA 3R metal enclosure for protection against rain and splashing
• CSA certification for U.S. and Canadian installations
• Compact footprint fits typical equipment-pad spaces: 10-7/8" W x 4-3/4" D x 16-7/8" H
• Designed specifically for pool and spa electrical requirements

Who is this for: The Intermatic T30404R is built for pool builders, electricians, and backyard contractors who need a consolidated, outdoor-rated control and distribution center for pumps, heaters, and lighting. It’s also a solid choice for homeowners upgrading an equipment pad who want two programmable 24-hour timers, space for up to eight breakers, and a weatherproof metal enclosure that accepts a wide range of Intermatic control devices.
