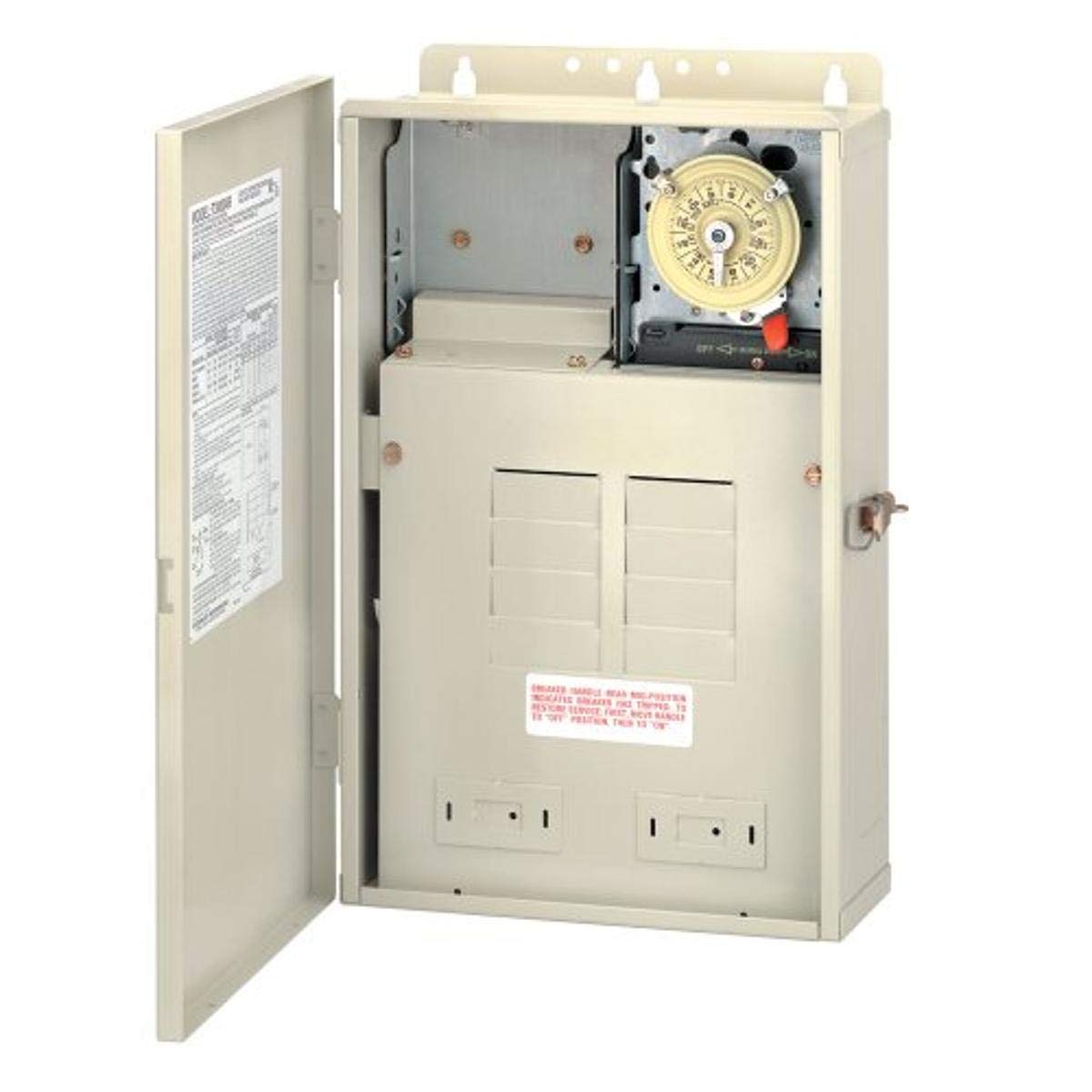

Intermatic 100A Pool Load Center 8-Pole Breaker Base with T104 Timer, NEMA 3R Weatherproof

The Intermatic T30004R is a compact, weatherproof 100A pool and spa load center with an 8-pole breaker base and an included T104 timer mechanism for centralized control of pumps, lights and accessories.

Built to simplify outdoor pool electrical installations, this Intermatic control panel combines a 100-amp load center, space for multiple breaker mechanisms and a T104 timing mechanism inside a NEMA 3R enclosure. It accepts a range of Intermatic mechanisms and is CSA-approved for U.S. and Canadian installations, letting electricians consolidate junctions and reduce equipment clutter while meeting code requirements for 240 VAC, 60 Hz systems.

How does the T30004R make pool wiring easier?

The T30004R centralizes breakers and control mechanisms into one weatherproof enclosure so you don’t need extra junction boxes or separate service panels near the pool equipment. Its design accepts Intermatic P1353ME, P4243ME, T100M, RC2000M or PF1000M series mechanisms for flexible configurations.

• Pre-sized for 100A service and 8 pole-breaker spaces
• Accepts multiple Intermatic mechanism types for pumps, lights and accessories
• Reduces on-site junction boxes and wiring complexity
• CSA-certified for US and Canada, simplifying code compliance

What are the key electrical and physical specifications?

This panel is rated for 240 VAC at 60 Hz and supports industry-standard breaker mechanisms compatible with Intermatic product families. The NEMA 3R enclosure protects components in outdoor locations while the compact footprint fits tight equipment pads.

• 100 amp load center rating, 8 pole breaker base
• Dimensions: approximately 10-7/8" W × 4-3/4" D × 16-7/8" H
• NEMA 3R weather-resistant enclosure for outdoor use
• CSA approval for both Canada and the United States

What controls and mechanisms are included or supported?

The package includes the T104 timing mechanism so you get immediate time-based control of pool equipment upon installation. The enclosure also accepts a wide variety of Intermatic control mechanisms so you can tailor the panel to your pool’s specific needs—pump switching, light control, automation inputs and more.

• Includes T104 timing mechanism for scheduled control
• Compatible with P1353ME, P4243ME, T100M, RC2000M, PF1000M series
• Supports mixed configurations for pumps, heaters and lights
• Easy access for wiring and future service upgrades

Is the enclosure durable enough for outdoor pool equipment?

Yes. The T30004R ships in a NEMA 3R rated enclosure designed to resist rain and splashing water, making it suitable for typical pool-side environments. Durable construction helps protect internal mechanisms and wiring from weather and reduces maintenance needs.

• NEMA 3R enclosure resists rain and ice exposure
• Compact but sturdy housing for long-term outdoor use
• Mounts easily to pool equipment pads or nearby walls
• Design helps prevent corrosion and water intrusion

Who is this for: The Intermatic T30004R is aimed at pool and spa contractors, electricians and DIY homeowners who need a reliable, code-friendly control center for outdoor aquatic equipment. It’s particularly useful when you want a single, weatherproof enclosure to host multiple Intermatic mechanisms—including a built-in T104 timer—while keeping wiring tidy and compliant on 240 VAC, 60 Hz installations.
