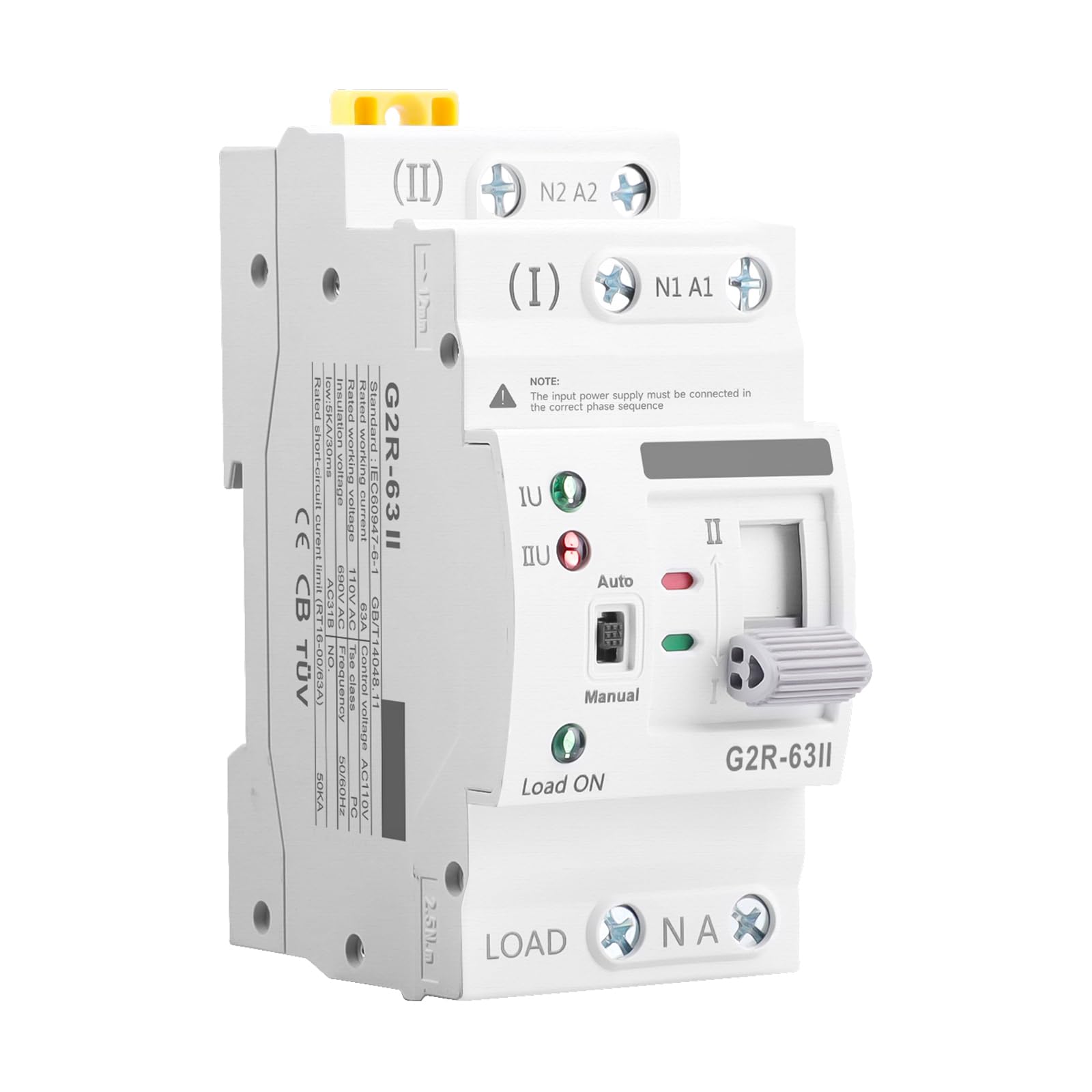

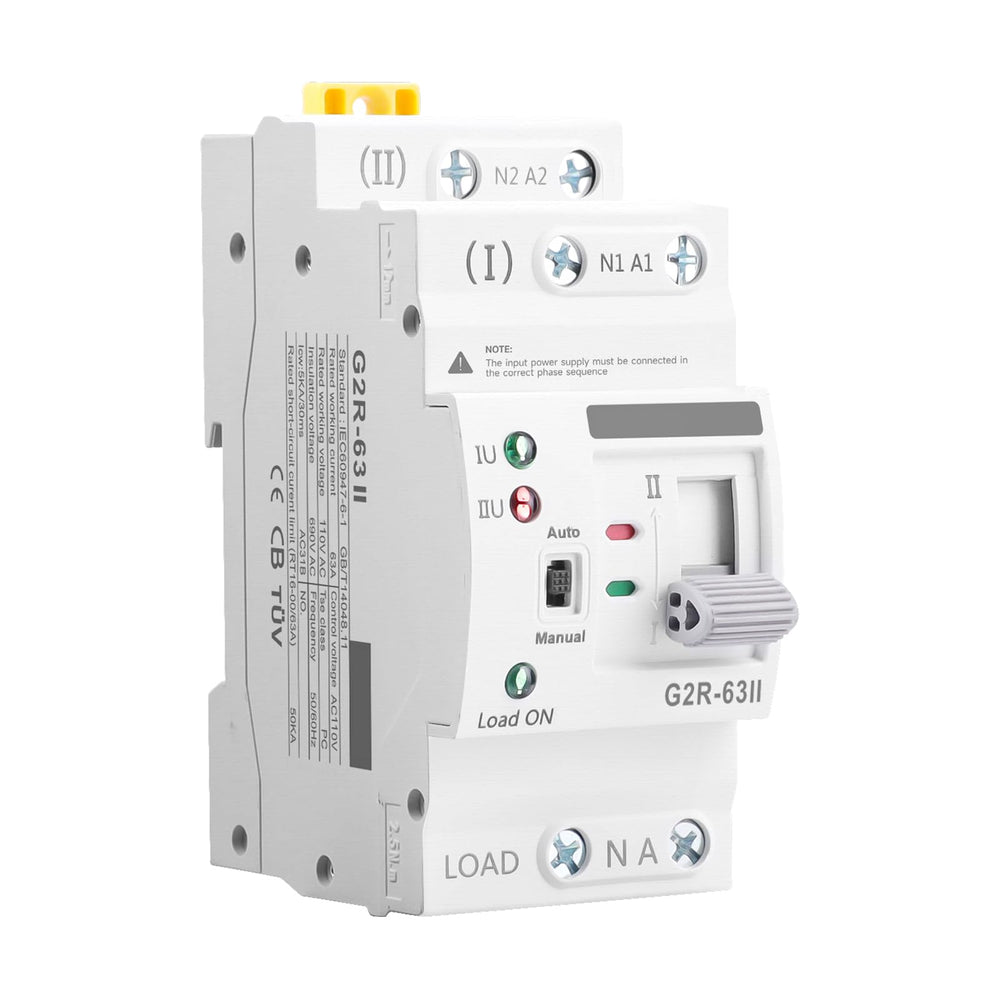

IGEYAPA Mini ATS 2P 63A AC110V Automatic/Manual Transfer Switch DIN-rail mount, fast 0.05s switching

IGEYAPA Mini ATS is a compact 2-pole 63A transfer switch that automatically or manually swaps between two AC power sources (110V) in under 0.05 seconds to keep critical systems powered.

This DIN-rail mountable ATS (model G2R 2P 63A AC110V) is engineered for fast, reliable switching between a primary supply and a backup source such as a generator or inverter. It combines automatic sensing and manual override in a small PA6 housing designed for PZ30 distribution boxes. Ideal where uninterrupted power matters, the unit monitors voltage thresholds and shifts supply quickly when values fall outside preset limits.

How does the automatic mode protect equipment during a power interruption?

In automatic mode the switch continuously monitors the normal power line and the standby line. If the primary supply goes outside preset voltage limits, the ATS flips to the backup circuit in approximately 0.05 seconds, then returns to the primary once it stabilizes.

• Fast transfer time (~0.05 seconds) to minimize downtime
• Visual LED indicators show which source is active
• Voltage sensing with defined under/over thresholds for dependable switching

What control options are available when I need to operate it manually?

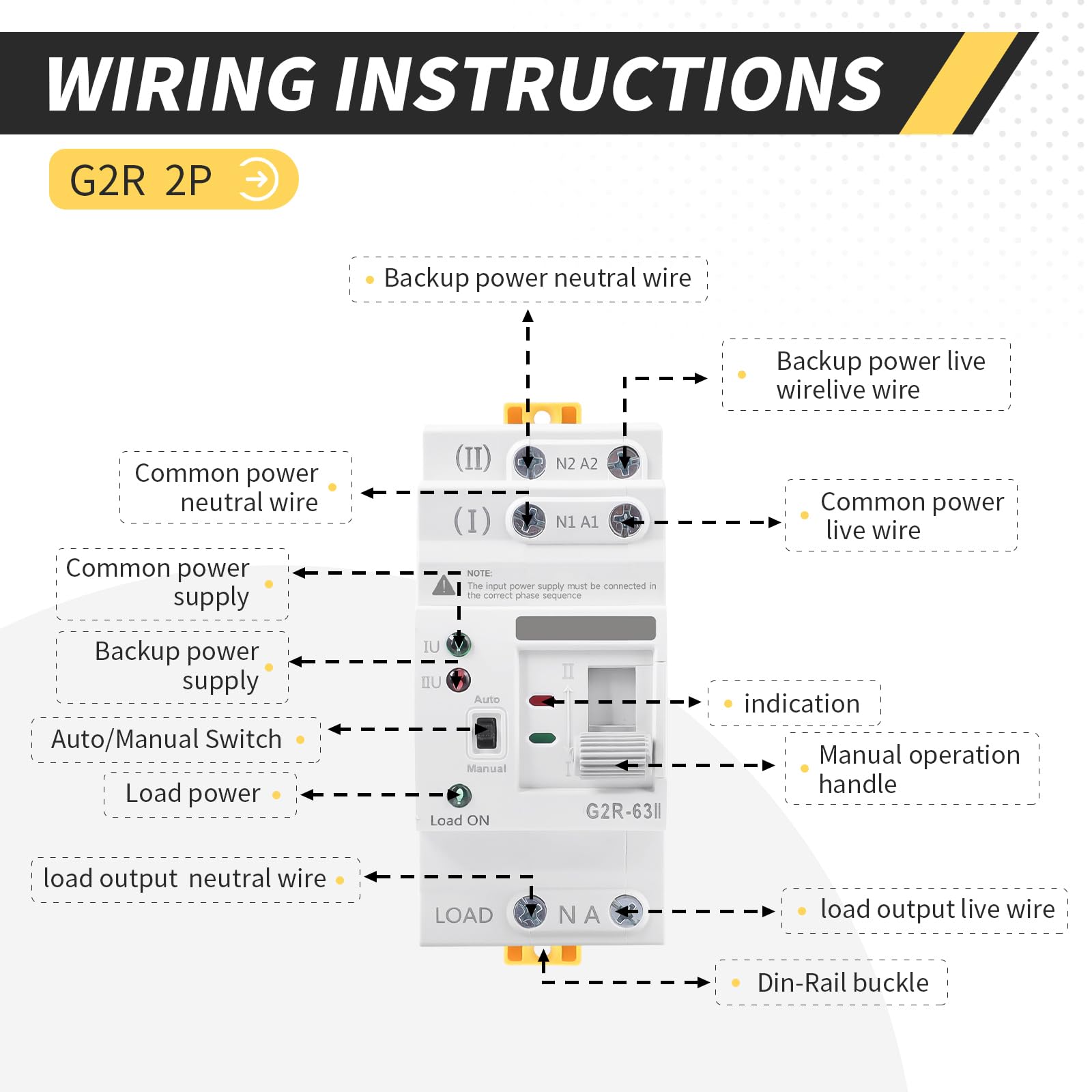

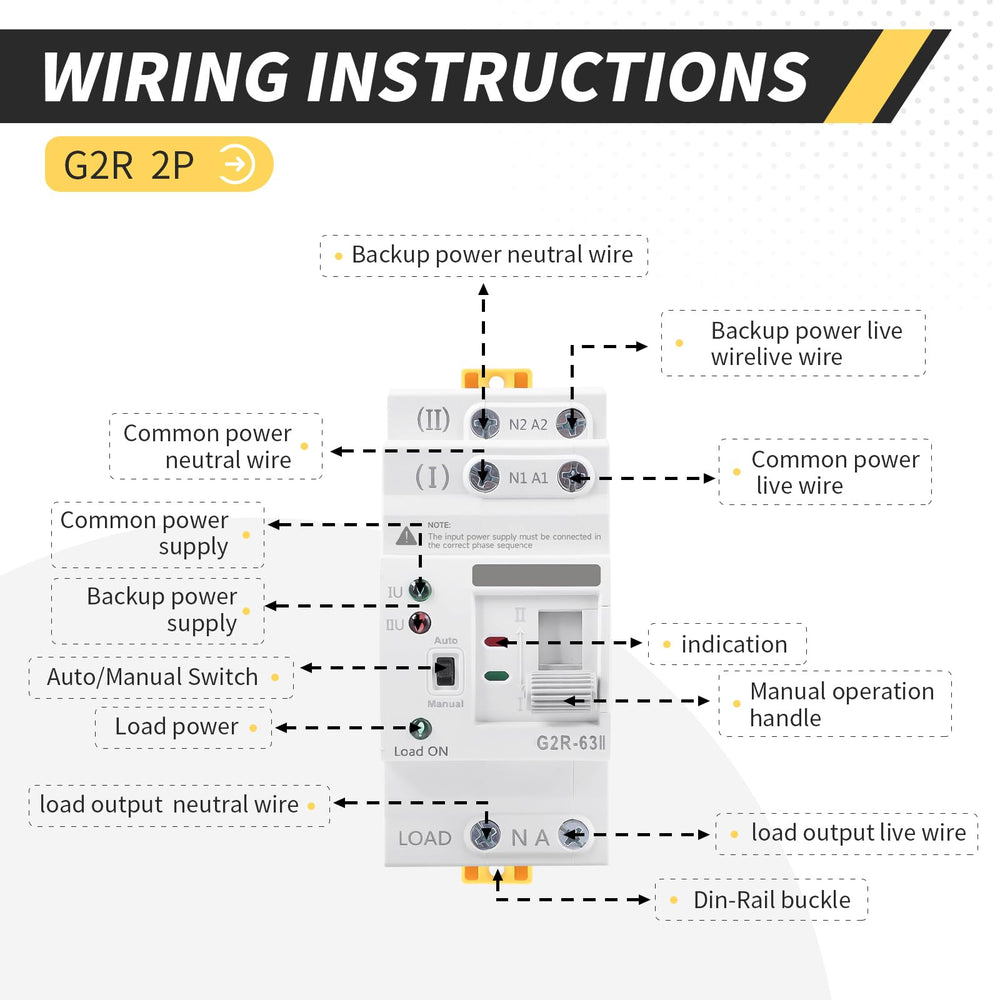

The device provides a clear manual mode that lets you force the selector to either power source. Put the left control in Manual, then move the right handle to choose supply I or II; the associated LED confirms the active circuit.

• Manual selector for planned switching or maintenance
• Simple mechanical handle for straightforward operation
• LED confirmation prevents accidental mis-selection

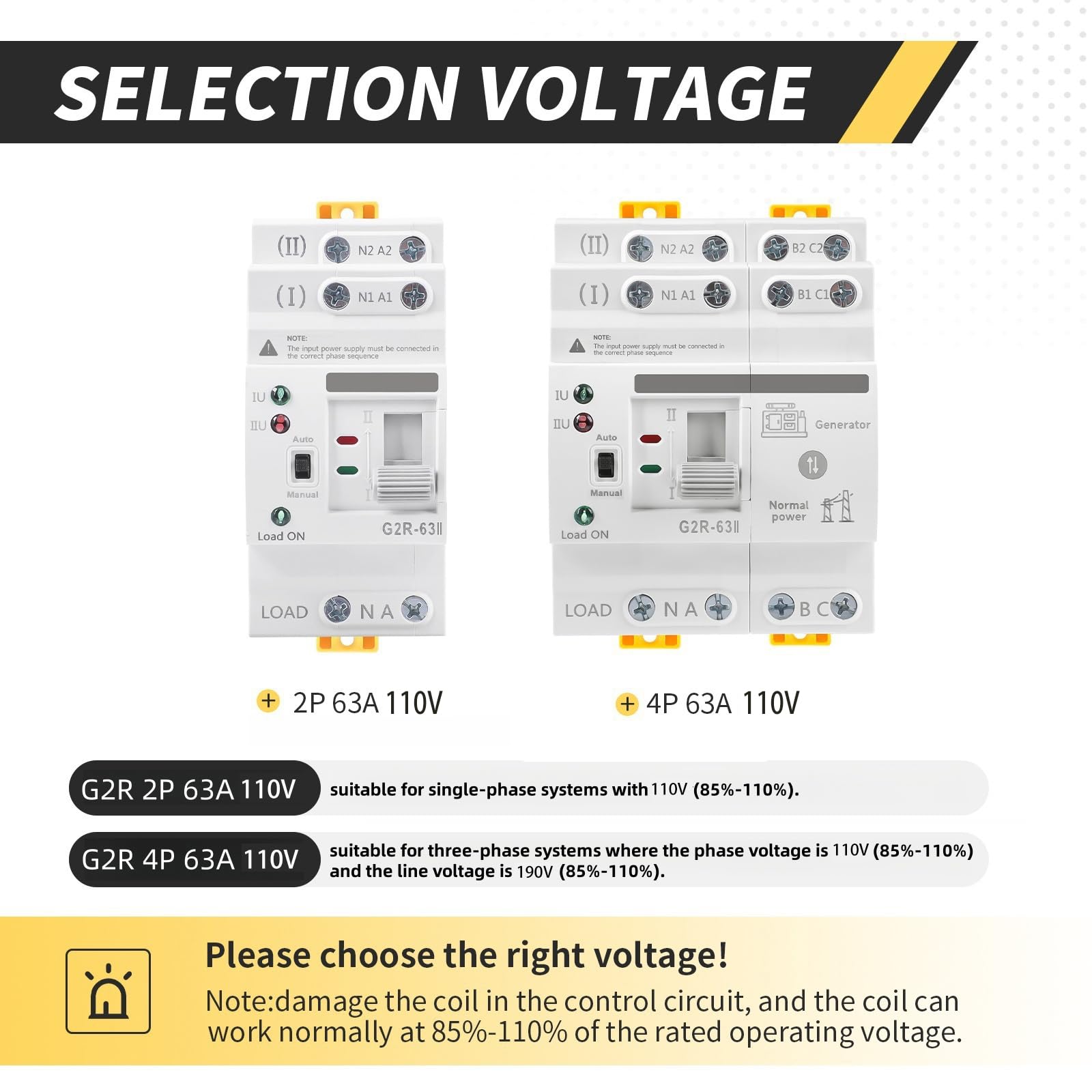

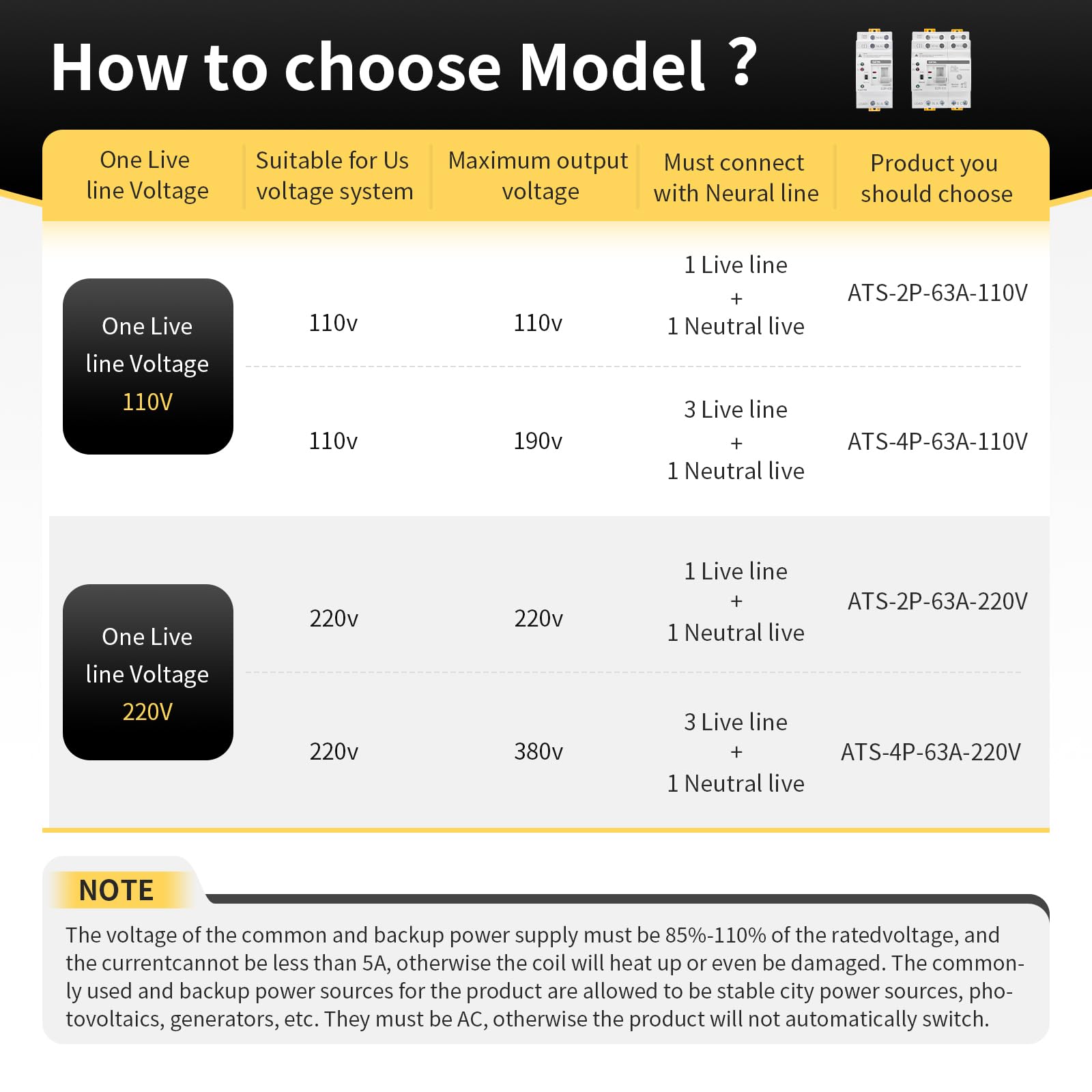

Which voltage and protection settings are built into this 110V ATS?

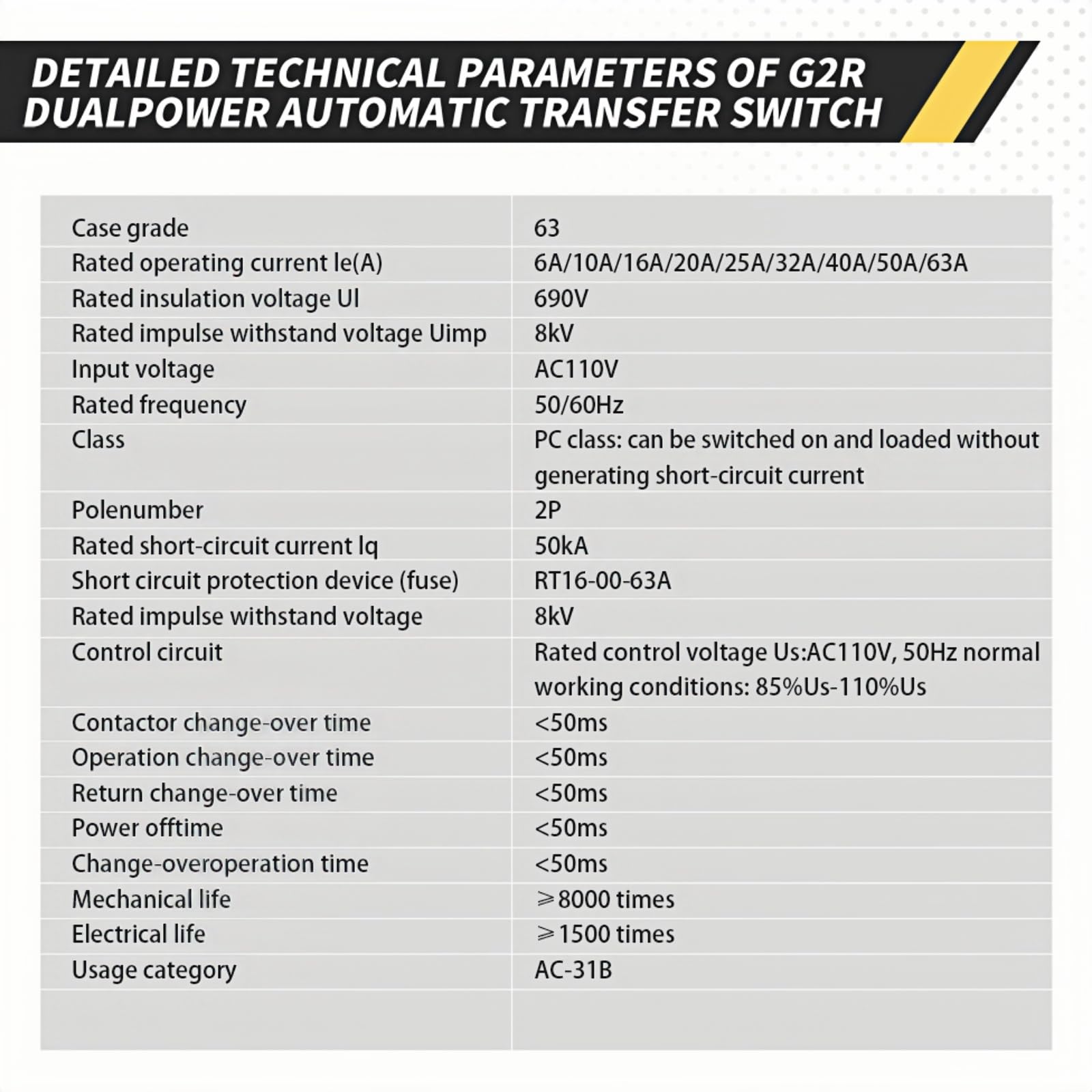

This ATS is tuned for 110V systems and supports operation across 50/60Hz networks with working currents from 6A up to 63A. It includes under-voltage and over-voltage thresholds with recovery points so the switch only toggles when necessary, avoiding frequent or spurious transfers.

• Undervoltage trigger around 85V with recovery near 95V
• Overvoltage trigger around 145V with recovery near 130V

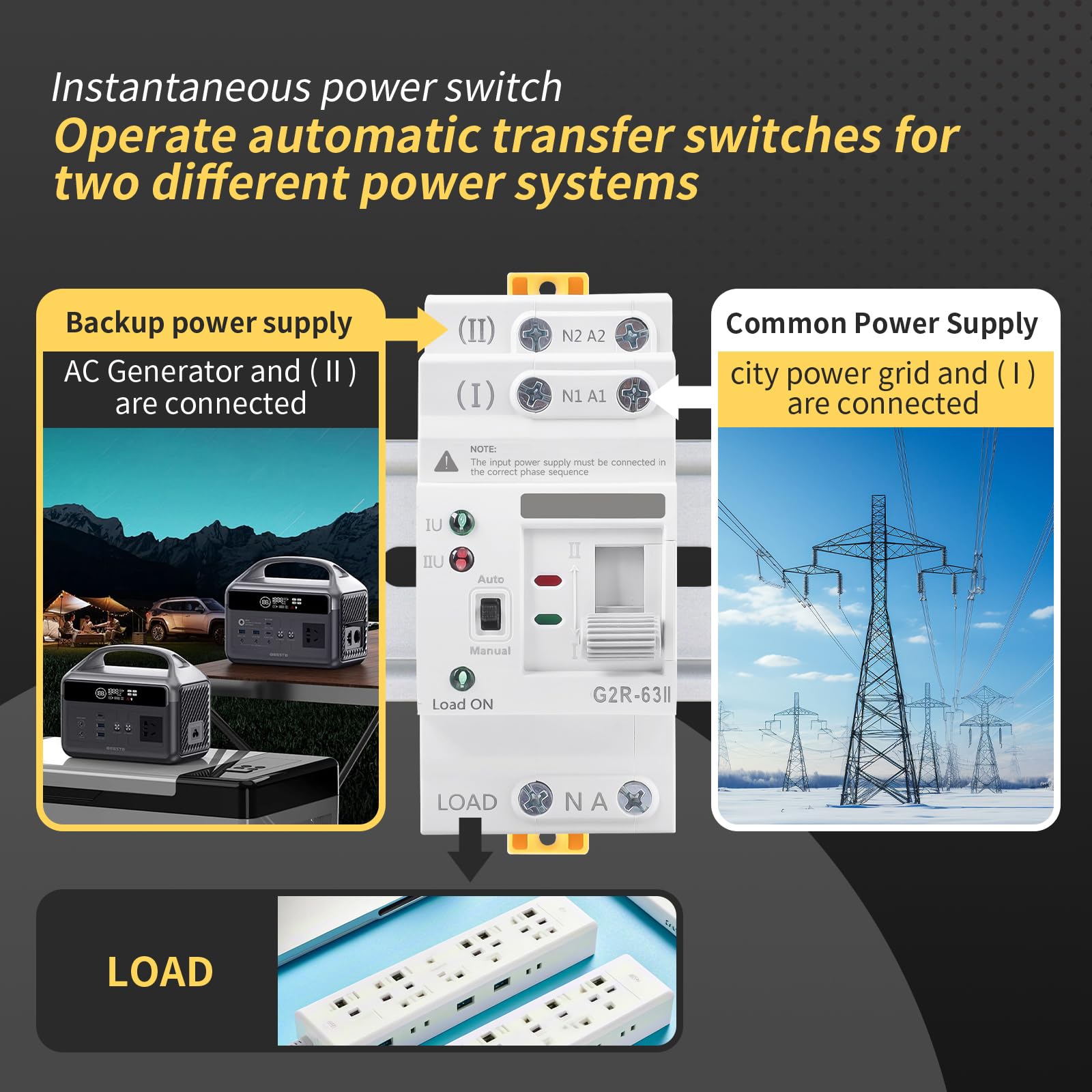

• Compatible with dual-grid or generator/inverter setups

How is the ATS installed and what environments is it suited for?

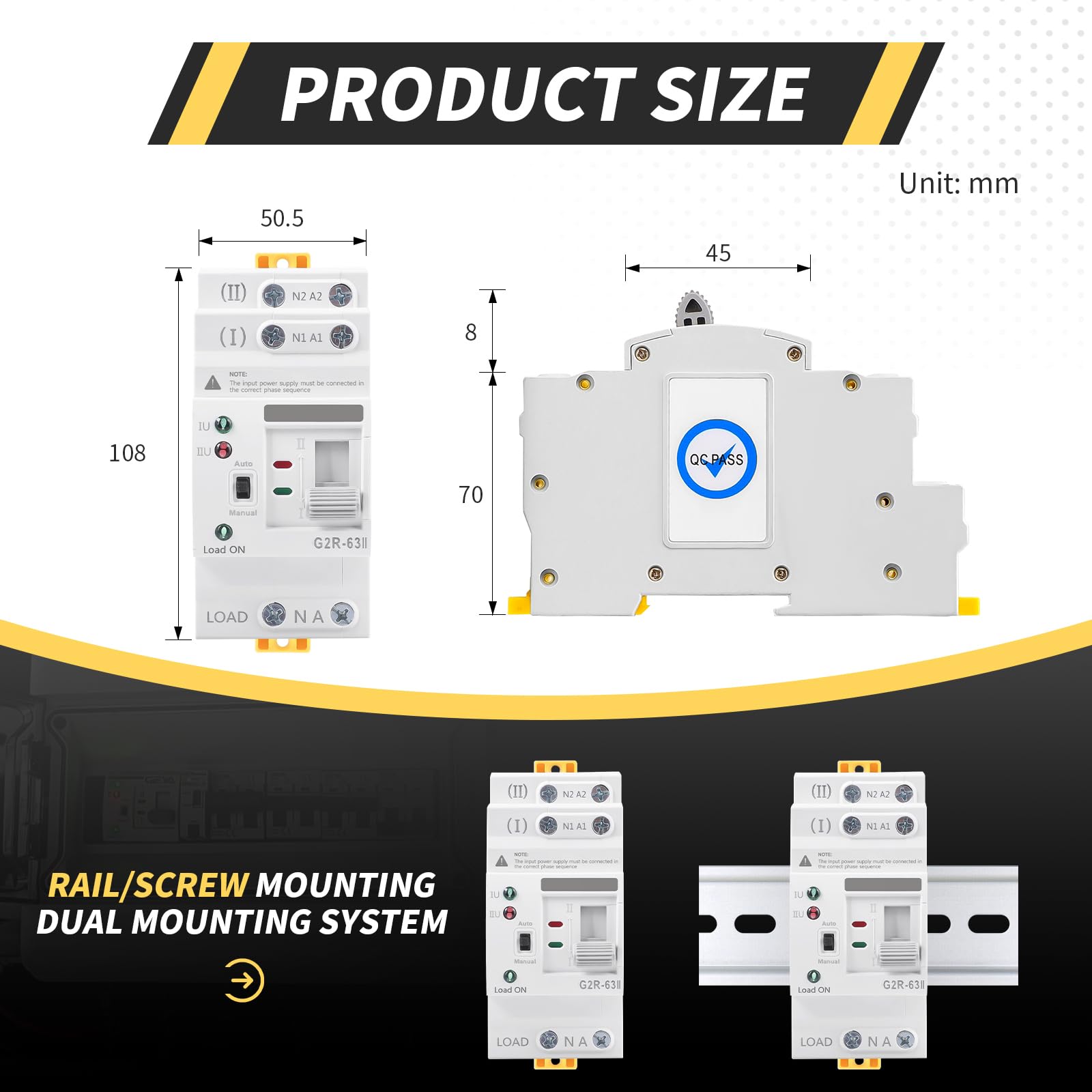

The compact module is designed for DIN-rail mounting inside PZ30 distribution boxes and similar enclosures. Its PA6 construction balances light weight and toughness, and it’s intended for indoor use and protected outdoor generator installations where a quick changeover is required.

• DIN-rail form factor for standard electrical cabinets
• PA6 housing for industrial durability and low weight
• Suitable for data centers, refrigeration, medical support systems, and emergency circuits

Who this product is for: The IGEYAPA Mini ATS 2P 63A AC110V is designed for electricians, small facility managers, and homeowners who need a compact, dependable transfer switch to protect essential loads. It’s a practical choice when automatic fault response and an easy manual override are required for generators, inverters, or dual-grid systems. If you need a DIN-rail mounted, quick-switching device that monitors voltage and reduces downtime for critical equipment, this ATS is a suitable option. The product comes with a 30-day return window and a 3-year warranty for buyer peace of mind; contact support for installation or troubleshooting guidance.
