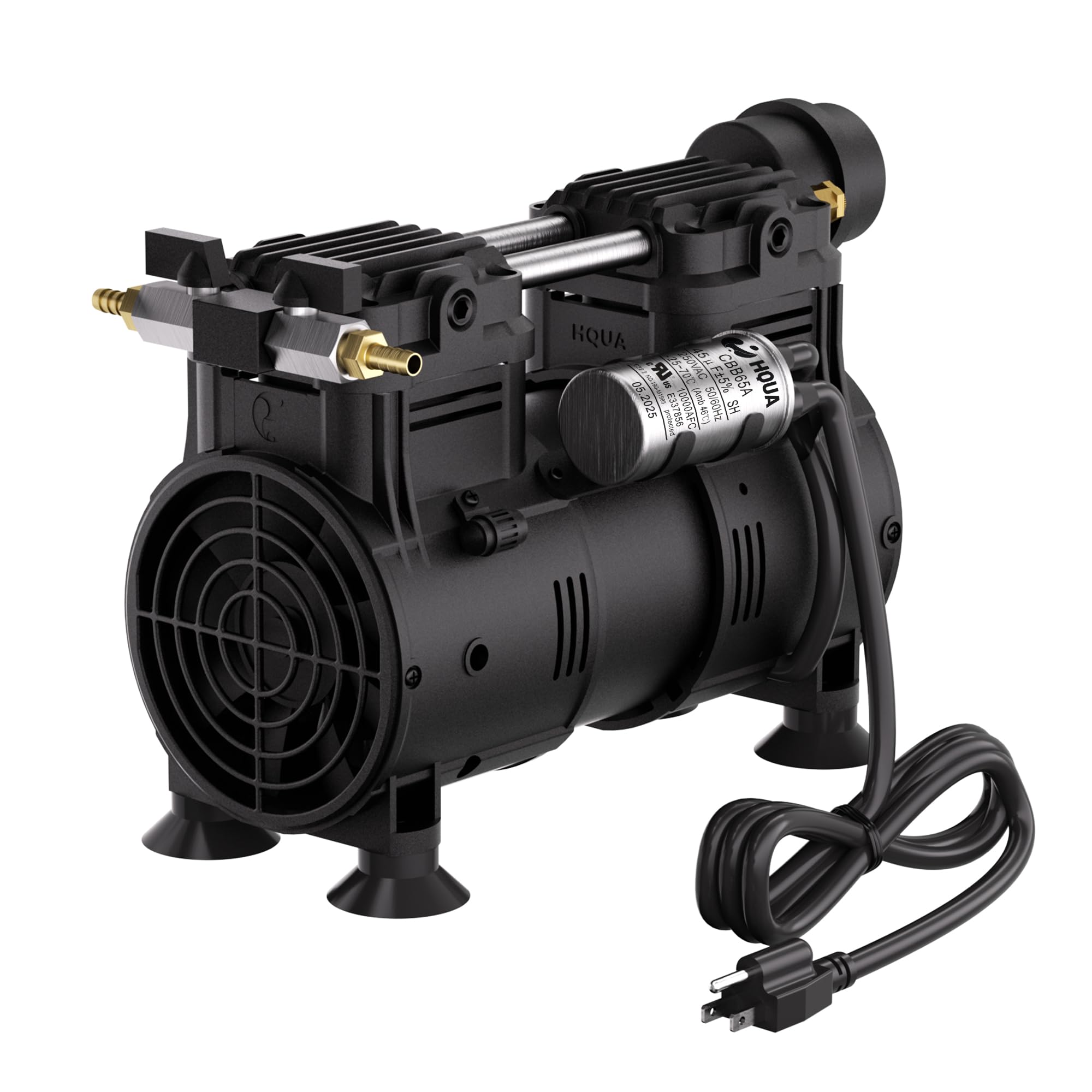

HQUA pond aeration compressor PAS20RPC — 3/4 HP oil-less rocking-piston, 4.7 CFM, quiet durable replacement

The HQUA PAS20RPC is a quiet, oil-less 3/4 HP rocking-piston air pump designed to power HQUA PAS10 and PAS20 pond aeration systems with 4.7 CFM and reliable performance.

This replacement compressor delivers steady airflow for ponds and lakes, featuring an oil-free design that reduces maintenance and environmental risk. Built with a SCHAEFFLER bearing and a UL-listed capacitor, the unit balances durability with lower operating noise. It’s engineered to oxygenate water bodies up to 3 acres and to push air to diffuser depths as deep as 65 feet while drawing just 6.2 amps.

How much pond area and depth can this compressor support?

The PAS20RPC is rated to aerate ponds up to about 3 acres and can deliver air to diffusers at depths up to 65 feet, depending on diffuser type and tubing. Actual coverage depends on pond shape, layout, and number of diffusers used.

• Rated coverage: up to 3 acres under typical conditions
• Maximum delivery depth: up to 65 feet to the diffuser
• Air volume: 4.7 CFM to service multiple diffusers
• Electrical draw: 6.2 amps, 3/4 HP motor

What makes this pump quiet and low-maintenance?

The compressor uses an oil-less rocking-piston design that eliminates oil changes and reduces contamination risk. SCHAEFFLER bearings and a UL-listed capacitor help the motor run smoothly and quietly for extended periods.

• Oil-less piston prevents oil leaks and simplifies upkeep

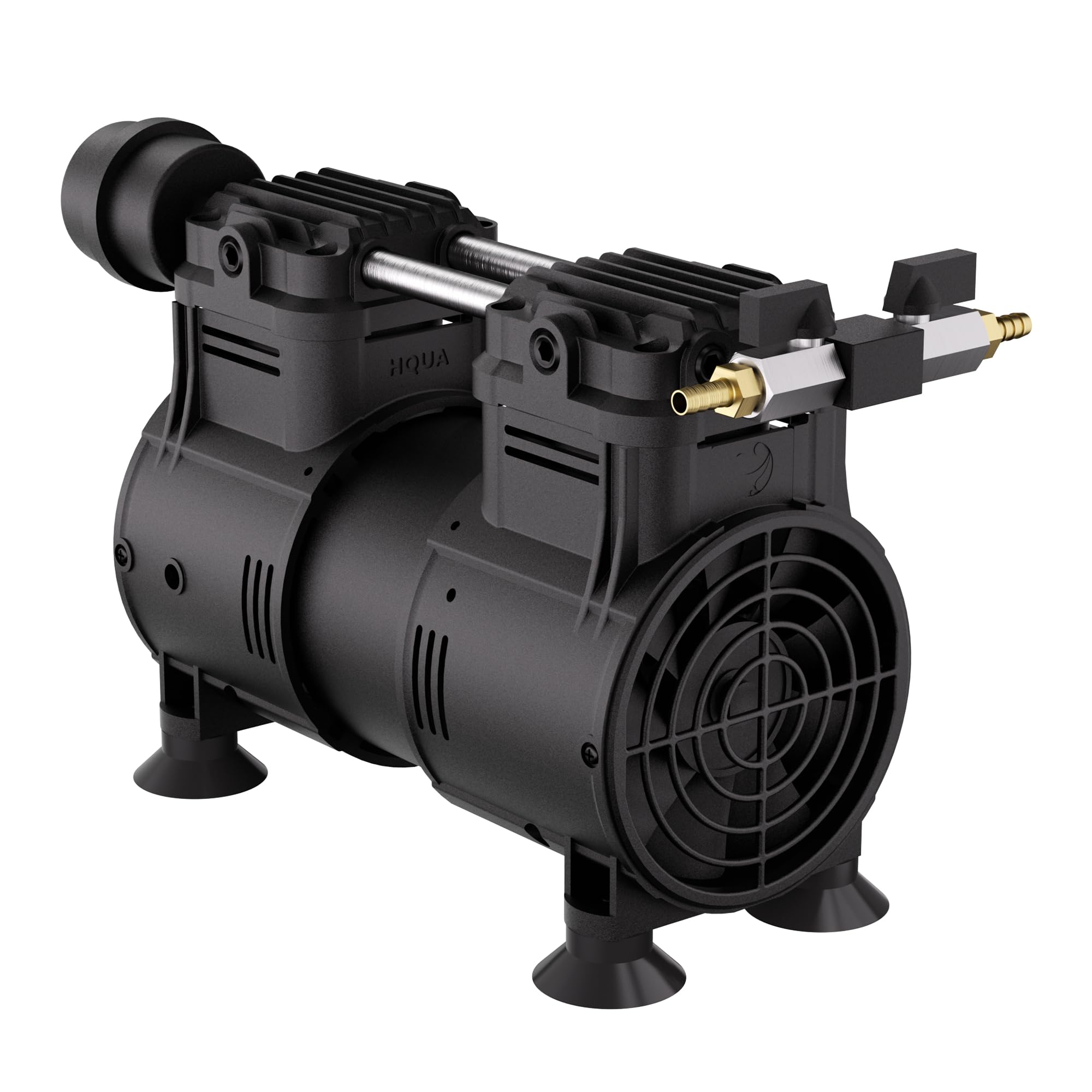

• High-quality SCHAEFFLER bearing for stable operation
• UL-listed capacitor enhances start-up reliability
• Noise-reducing construction for residential or rural installation

How do I keep the PAS20RPC performing well over time?

Follow simple periodic maintenance to retain airflow and efficiency. Check and service the air filter every 1–3 months, and replace the compressor rebuild kit every 12–18 months or sooner if bubbles shrink.

• Air filter: inspect/clean/replace every 1–3 months (part HQUA-PAS20AF)
• Rebuild kit: replace every 12–18 months if performance drops (part HQUA-PAS20RB)
• Monitor bubble size and motor noise as early indicators of wear
• Ensure dry, ventilated housing to extend motor and internal part life

Will this compressor work with my existing HQUA PAS system?

Yes — the PAS20RPC is designed to be compatible with HQUA PAS10 and PAS20 aeration systems as a direct replacement compressor. Confirm mounting dimensions and power requirements before swapping units to ensure a smooth installation.

• Compatible models: HQUA PAS10 and PAS20
• Plug-and-play fit for most original compressor housings
• Match electrical supply: verify voltage and amperage availability
• Use genuine HQUA replacement parts for optimal longevity

Who is this for? The HQUA PAS20RPC suits pond owners, property managers, and small-scale aquaculture operators seeking a robust, low-maintenance air compressor to improve water circulation and aeration. It’s particularly helpful for those replacing an older PAS-series pump or upgrading to a quieter, oil-free alternative that can serve multiple diffusers across ponds up to roughly 3 acres.
