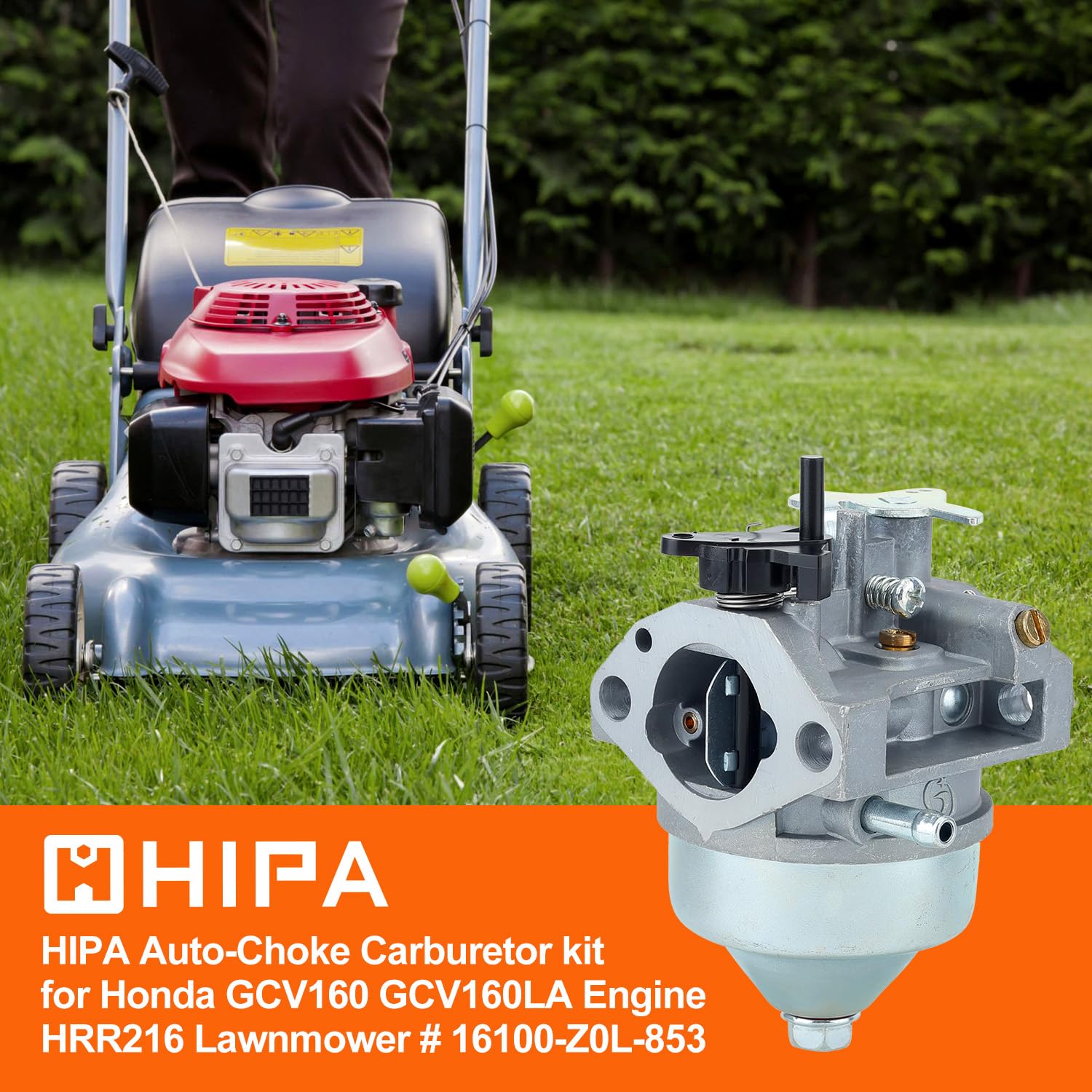

Hipa Carburetor Kit for Honda GCV160 Engines — 16100-Z0L-853 Fit with Filters & Gaskets

Hipa's replacement carburetor kit delivers a ready-to-install Honda GCV160 carburetor plus filters, gaskets, and tune-up parts to restore reliable mower and small-engine performance.

If your Honda GCV160-powered mower, pressure washer, or walk-behind unit is running rough, hard to start, or leaking fuel, replacing the carburetor and worn service parts often solves the problem fast. This Hipa kit is built to fit Honda OE numbers 16100-Z0L-853, 16100-Z0L-852, 16100Z0L851 and 16100Z0L802 and includes the common air filter part numbers for the GCV160 family. The kit groups the carburetor with essential components so you get a complete tune-up in a single purchase.

Will this carburetor physically fit my GCV160 engine model?

Yes — the Hipa carburetor is designed to match the mounting and port dimensions used across many GCV160 variants. The listing includes the specific Honda replacement numbers and a range of compatible model codes so you can verify fitment against your engine model before ordering.

• Compatible with Honda GCV160A/GCV160LA and related suffixes (S1A, S3A, R3A, etc.).
• Fits many add-on machines: Troy-Bilt TB130 series, Ryobi 2800 PSI washers, select Husqvarna and Cub Cadet units.
• Mounting hole center-to-center: 44mm; throttle bore: 18mm; choke bore: 24.5mm.
• Check your old carburetor part number (16100-Z0L-853/852/851/802) for direct match confirmation.

What comes in the kit and how does it save me time?

The Hipa package delivers a carburetor plus a set of service parts so you don’t have to source individual items. Everything needed for a basic carburetor swap and tune-up is included, reducing downtime and troubleshooting.

• One replacement carburetor pre-tuned at the factory for immediate use.

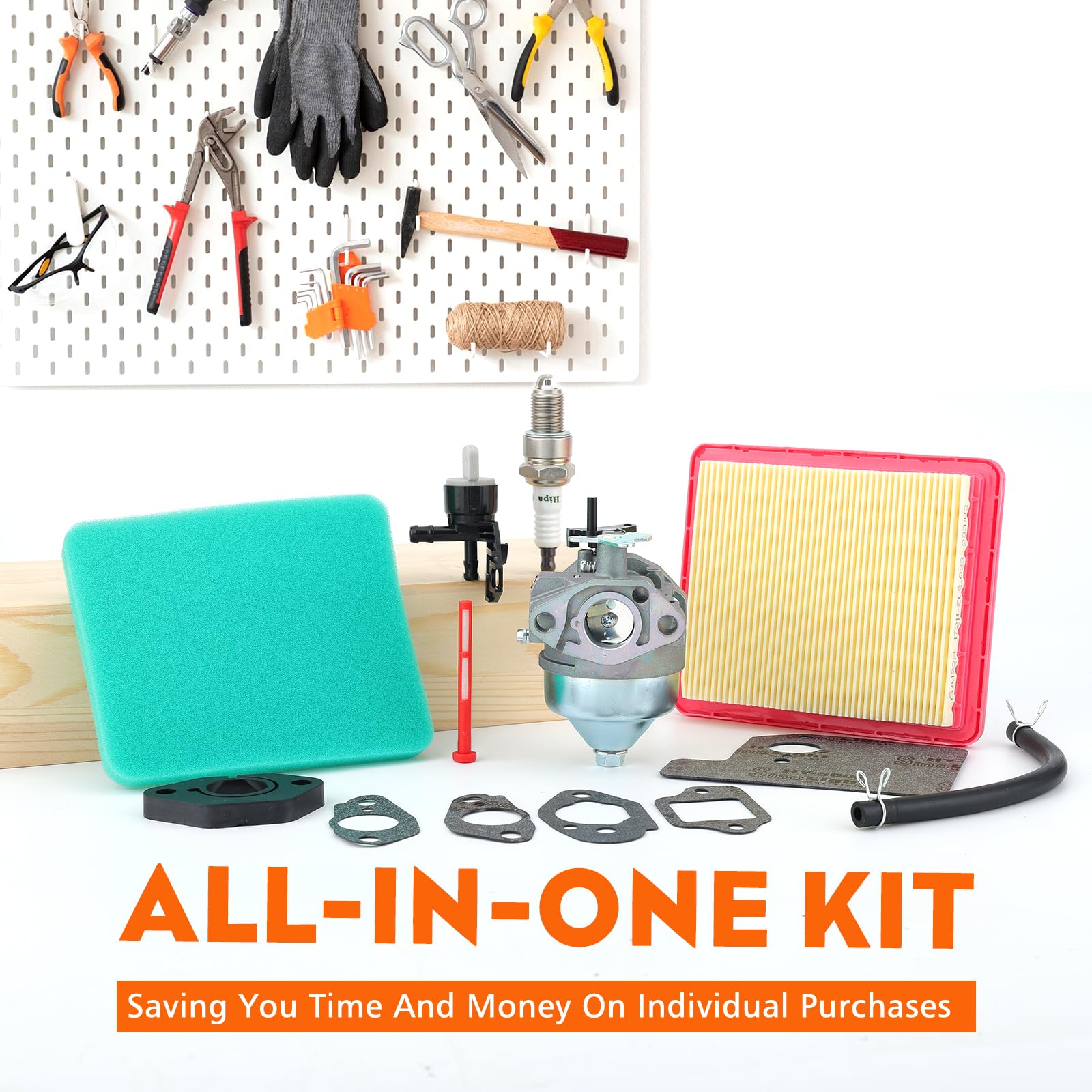

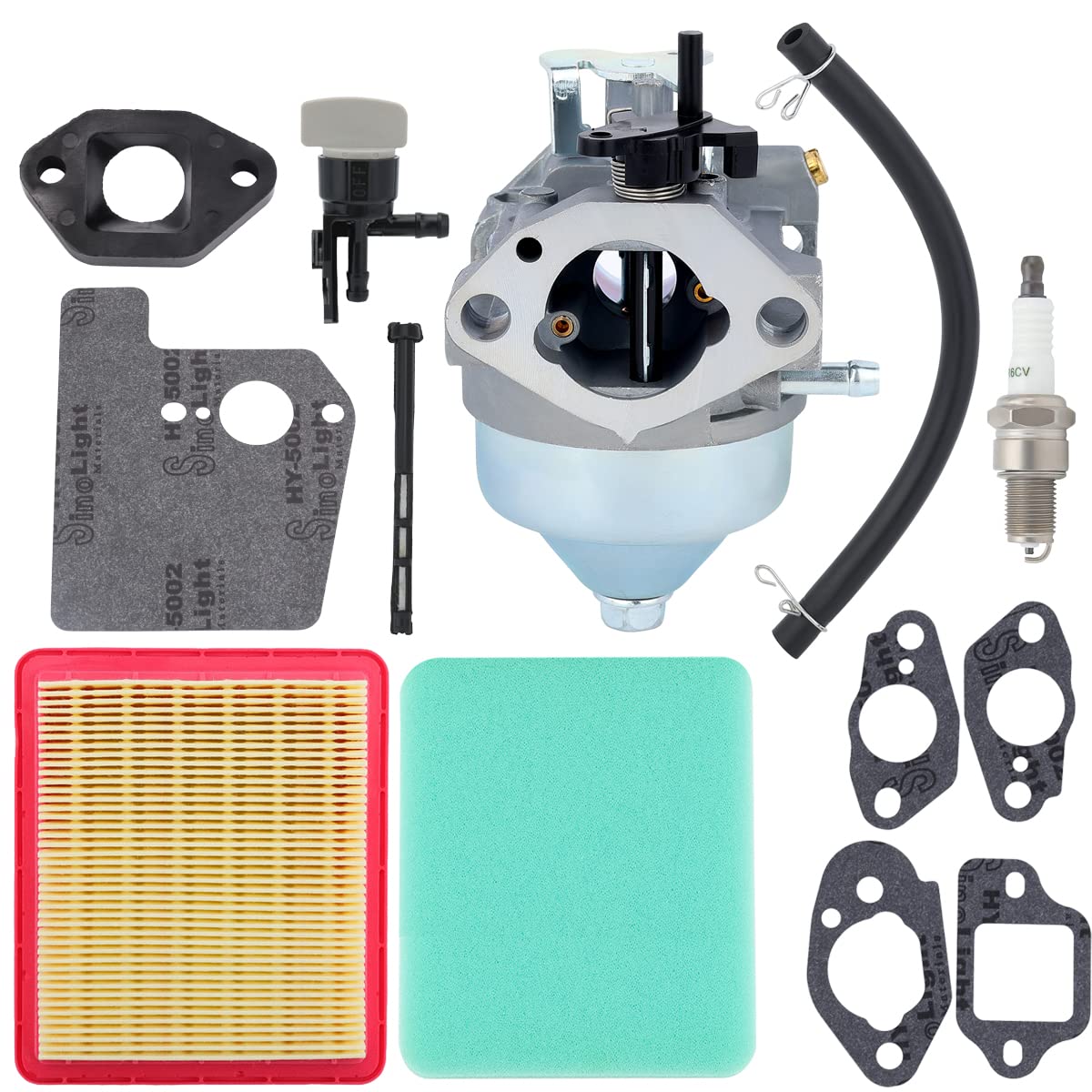

• Air filter, pre-filter, fuel filter, spark plug, six gaskets, and a fuel shut-off valve.
• Carburetor insulator and a zinc-plated float bowl for durability.

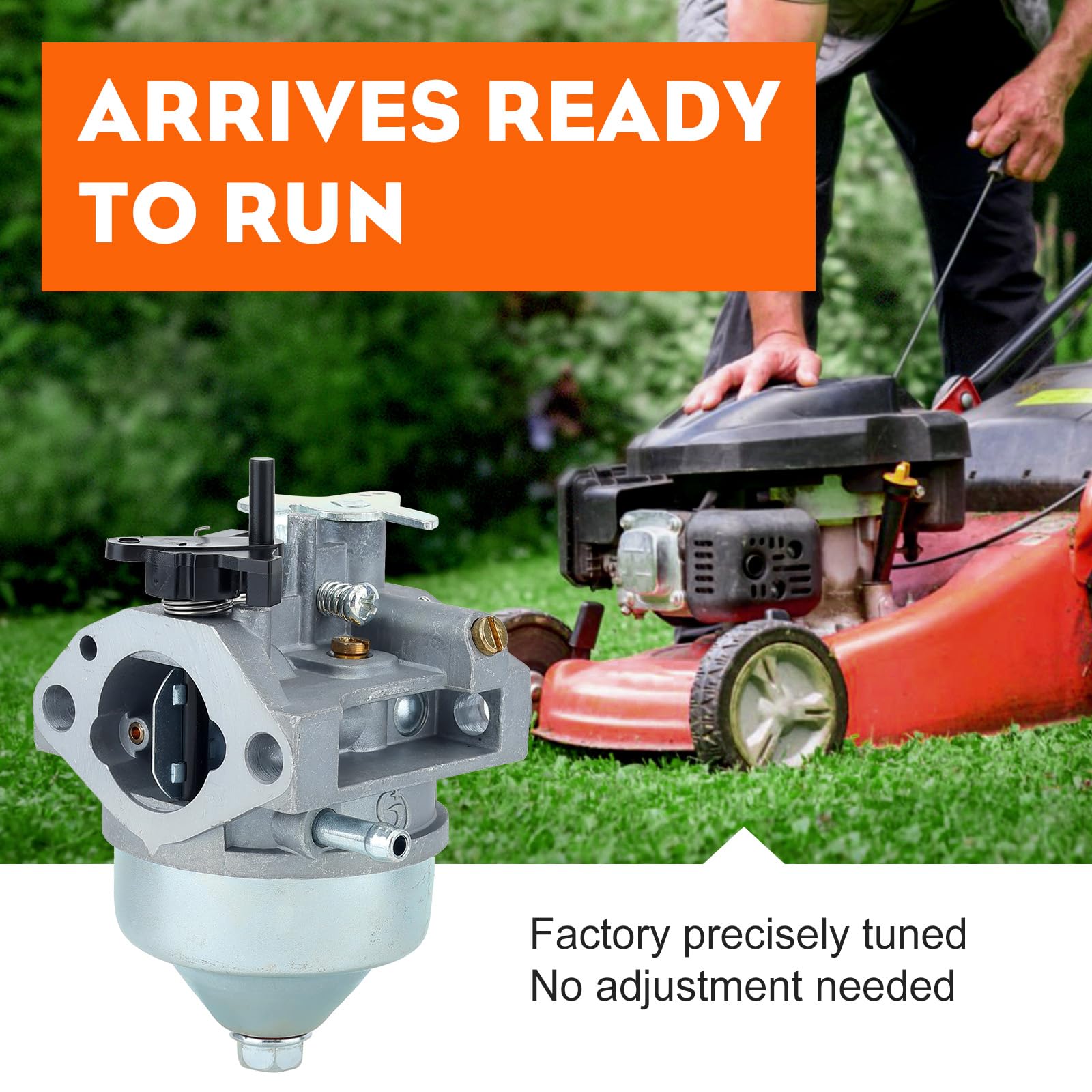

• Comes ready to install — minimal or no initial adjustment required in most cases.

How reliable and durable is this aftermarket carburetor?

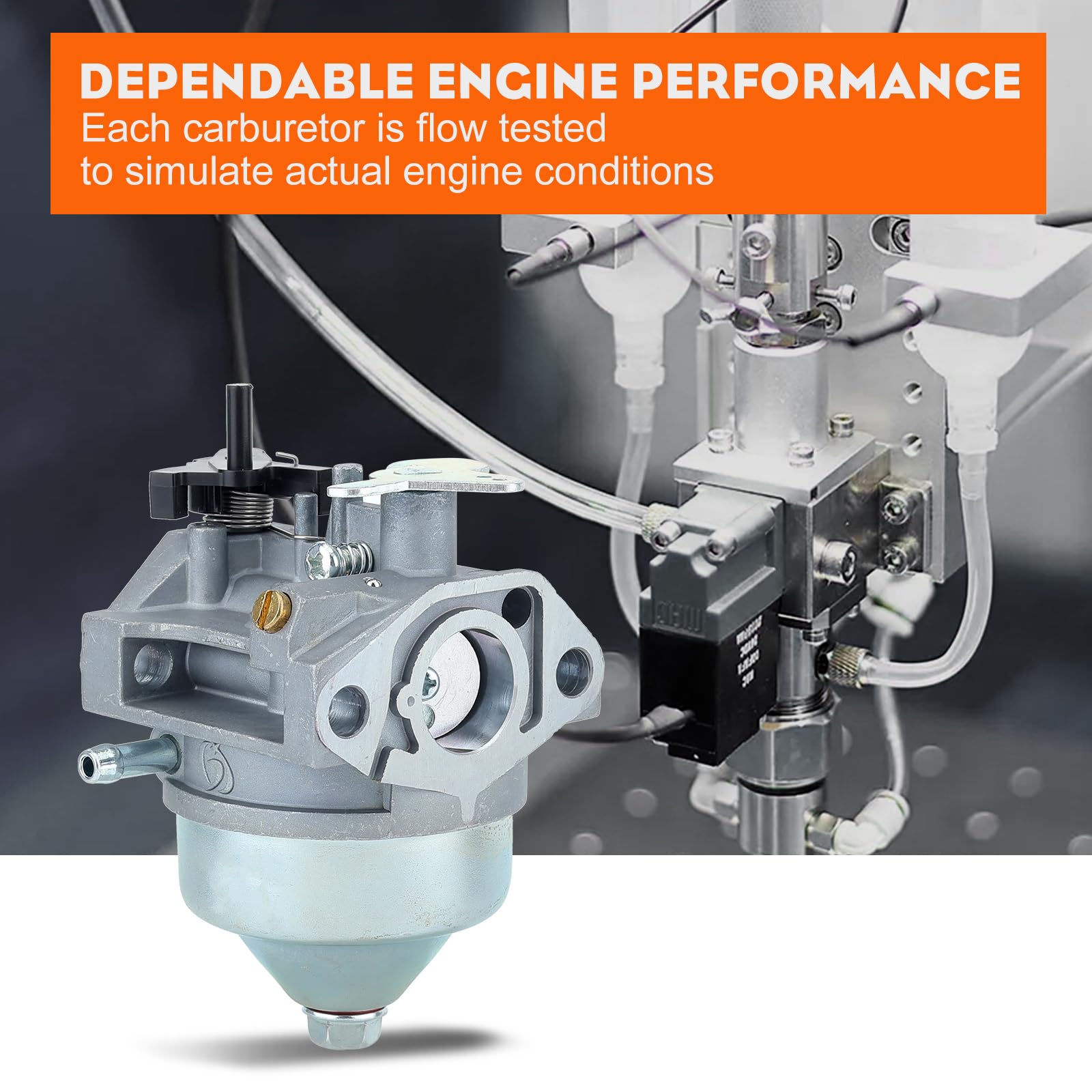

Hipa constructs the carburetor from corrosion-resistant materials and tests flow to simulate real engine conditions. Those choices help the unit resist wear and maintain consistent fuel metering during operation.

• Brass fittings, zinc-plated float bowl, and anodized aluminum body increase corrosion resistance.
• High-density plastic float to reduce degradation from fuel exposure.
• Wet flow tested at the factory to verify fuel delivery under load.
• Designed to tolerate typical small-engine heat and vibration for longer service life.

What installation details and specs should I know before I begin?

Having basic tools and a service manual for your machine model makes installation straightforward. Confirm mounting dimensions and fuel/cable routing before removing the old carburetor.

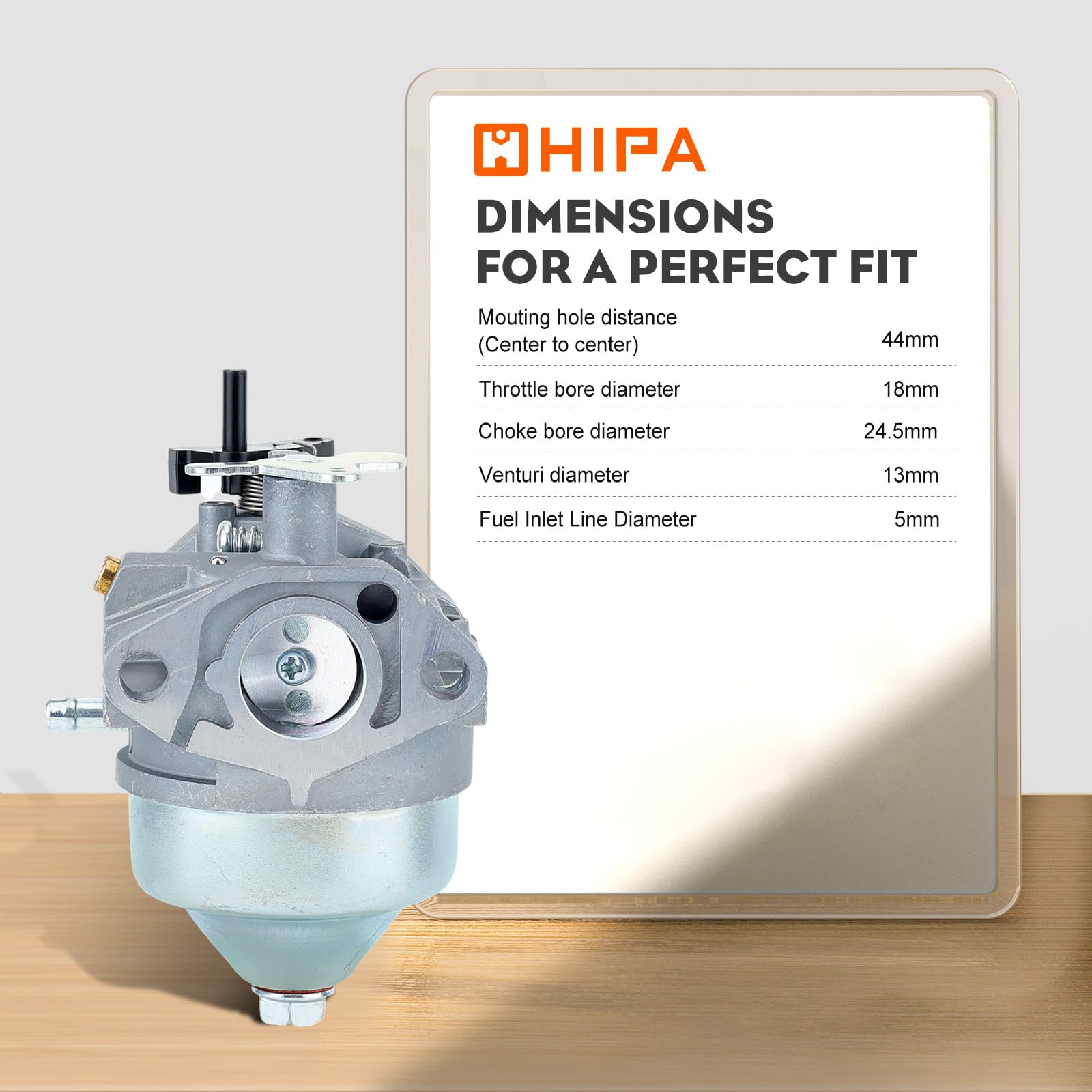

• Mounting hole spacing: 44mm (center to center).
• Fuel inlet line: 5mm diameter; venturi: 13mm.
• Throttle bore: 18mm, choke bore: 24.5mm — useful for cross-reference.
• Includes gaskets and insulator to ensure a proper seal during replacement.

Who is this for? This Hipa carburetor kit is ideal for home mechanics, lawn care professionals, and DIYers with Honda GCV160-powered equipment who need a complete, cost-effective tune-up kit. It appeals to anyone wanting a single-package swap that supplies the carburetor plus common wear items — especially owners of mowers, pressure washers, and walk-behind units that list the GCV160 engine or the provided OE part numbers in their service documentation.
