Himore Vertical Pressure Washer Pump compatible with Excell VR2500/VR2522/VR2530 — 2,800 PSI, 2.3 GPM

Himore vertical pressure-washer pump compatible with Excell VR2500, VR2522, VR2530 and select Troy-Bilt models delivers up to 2,800 PSI and 2.3 GPM for residential and light-commercial cleaning tasks.

This replacement pump is built to fit a range of popular pressure-washer engines and is supplied complete with a chemical injector, unloader valve, thermal relief valve, outlet tube, filtered hose and keyway. Before ordering, compare your unit’s mounting pattern, shaft size and performance needs to confirm compatibility — exact fitment varies by model and some engines require longer bolts or spacers for correct installation.

Will this pump fit my pressure washer model?

It fits many units that accept the Excell VR2500/VR2522/VR2530 pattern and some Troy-Bilt models like part 020486, but you must confirm the physical and performance specifications on your machine. Check the shaft diameter, three-bolt mounting pattern, inlet/outlet orientation and required horsepower before purchase.

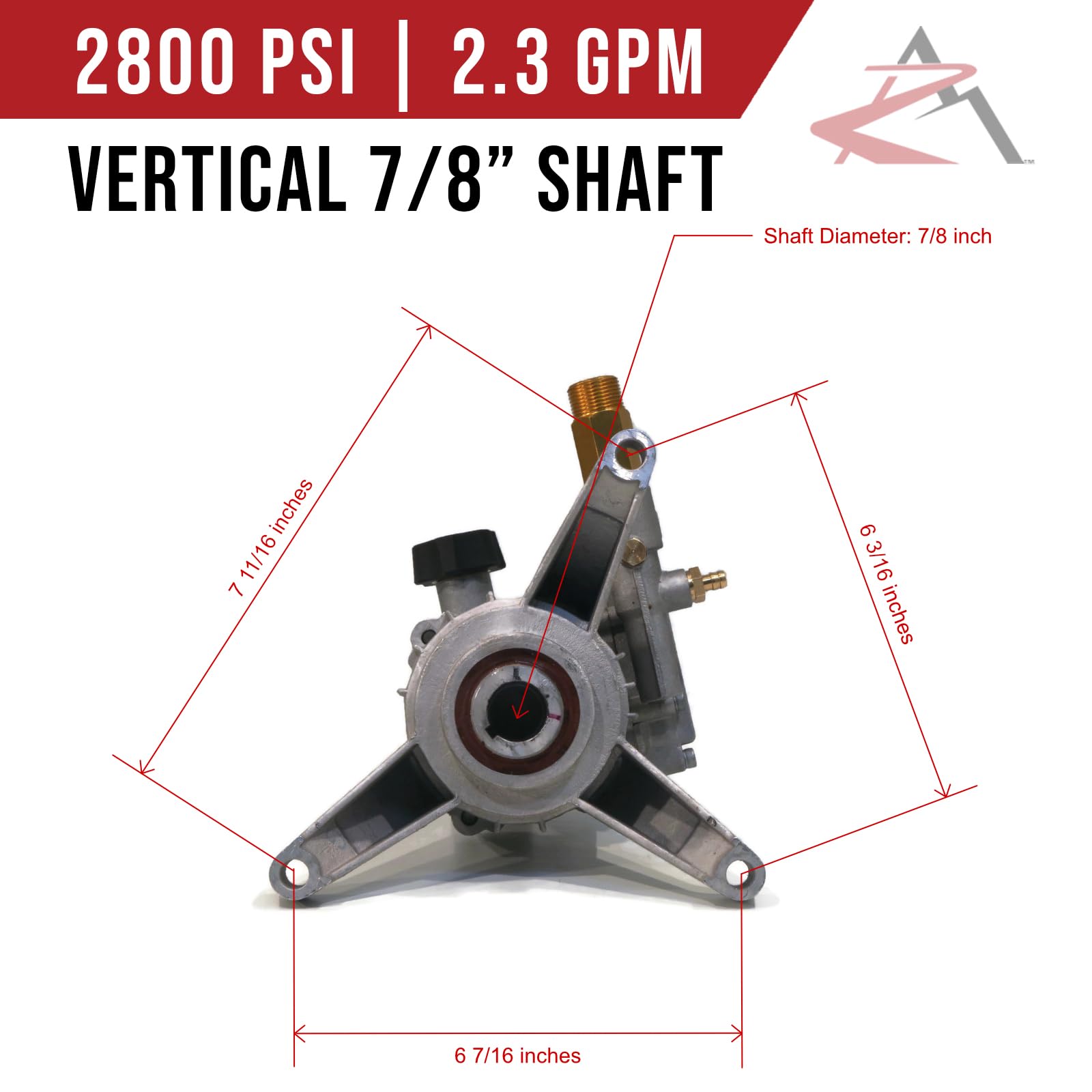

• Shaft size: 7/8"

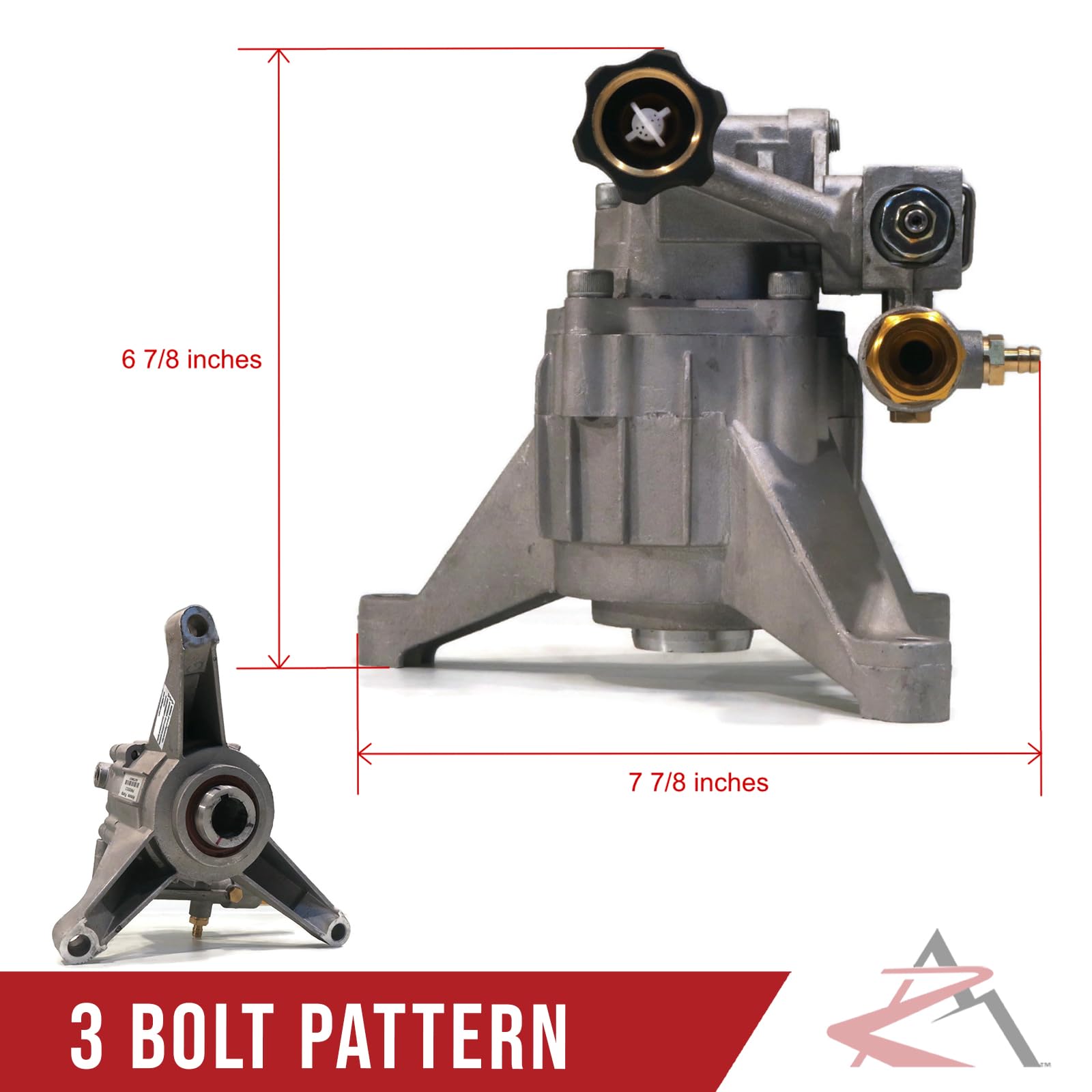

• 3-bolt pattern: 7 11/16" x 6 3/16" x 6 7/16" (4" center to each outer hole)

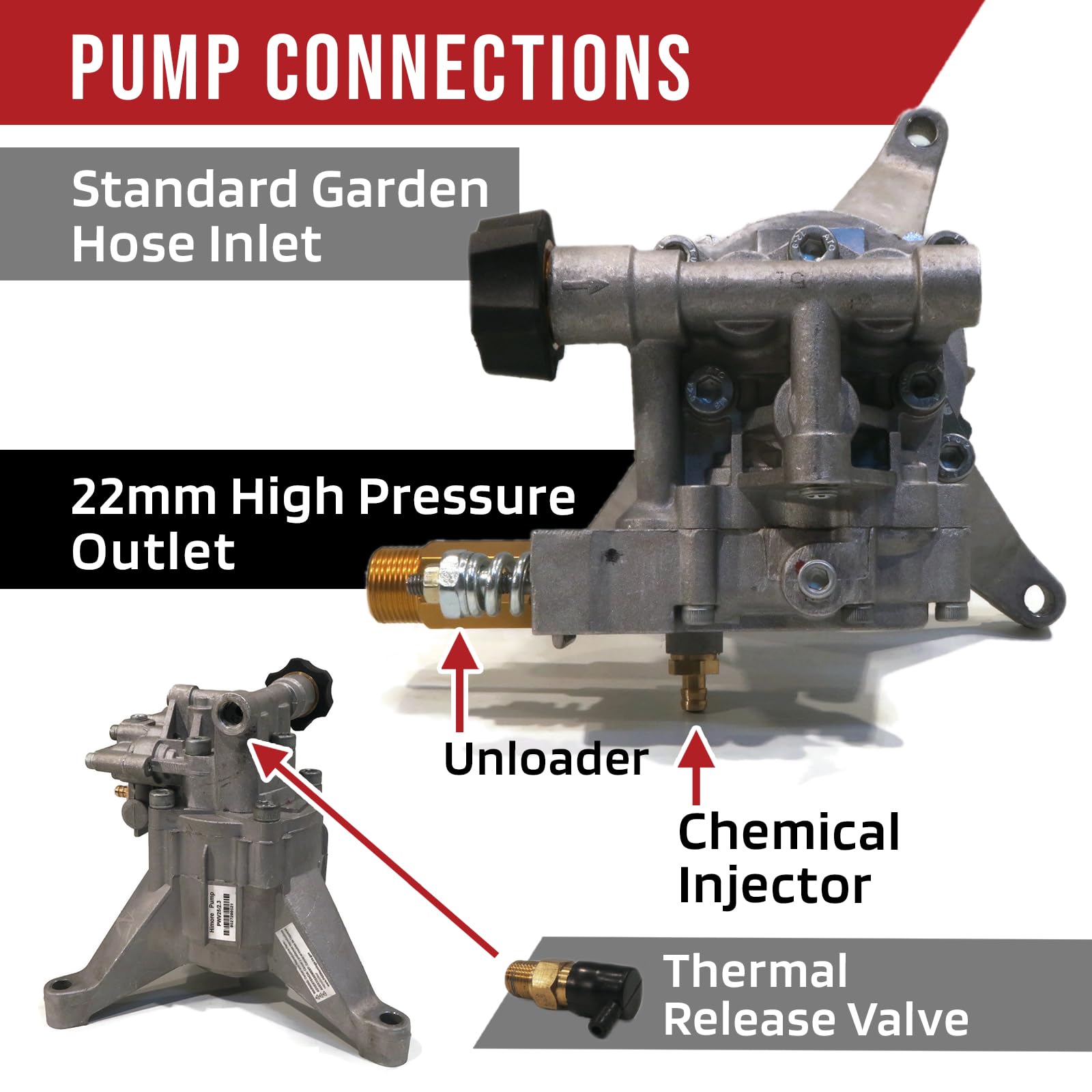

• Inlet: standard garden hose; outlet: 22mm male
• Minimum recommended engine: 5.5 HP

How does the pump perform and what are the limits?

This vertical head pump is rated for a maximum pressure of 2,800 PSI and a maximum flow of 2.3 gallons per minute, operating up to 3,400 RPM with water temperatures up to 140°F. Do not exceed the listed PSI or operate the pump outside its temperature or speed ratings to avoid damage.

• Max pressure: 2,800 PSI
• Max flow: 2.3 GPM
• Max pump speed: 3,400 RPM
• Max water temp: 140°F

What comes in the box and what additional parts might I need?

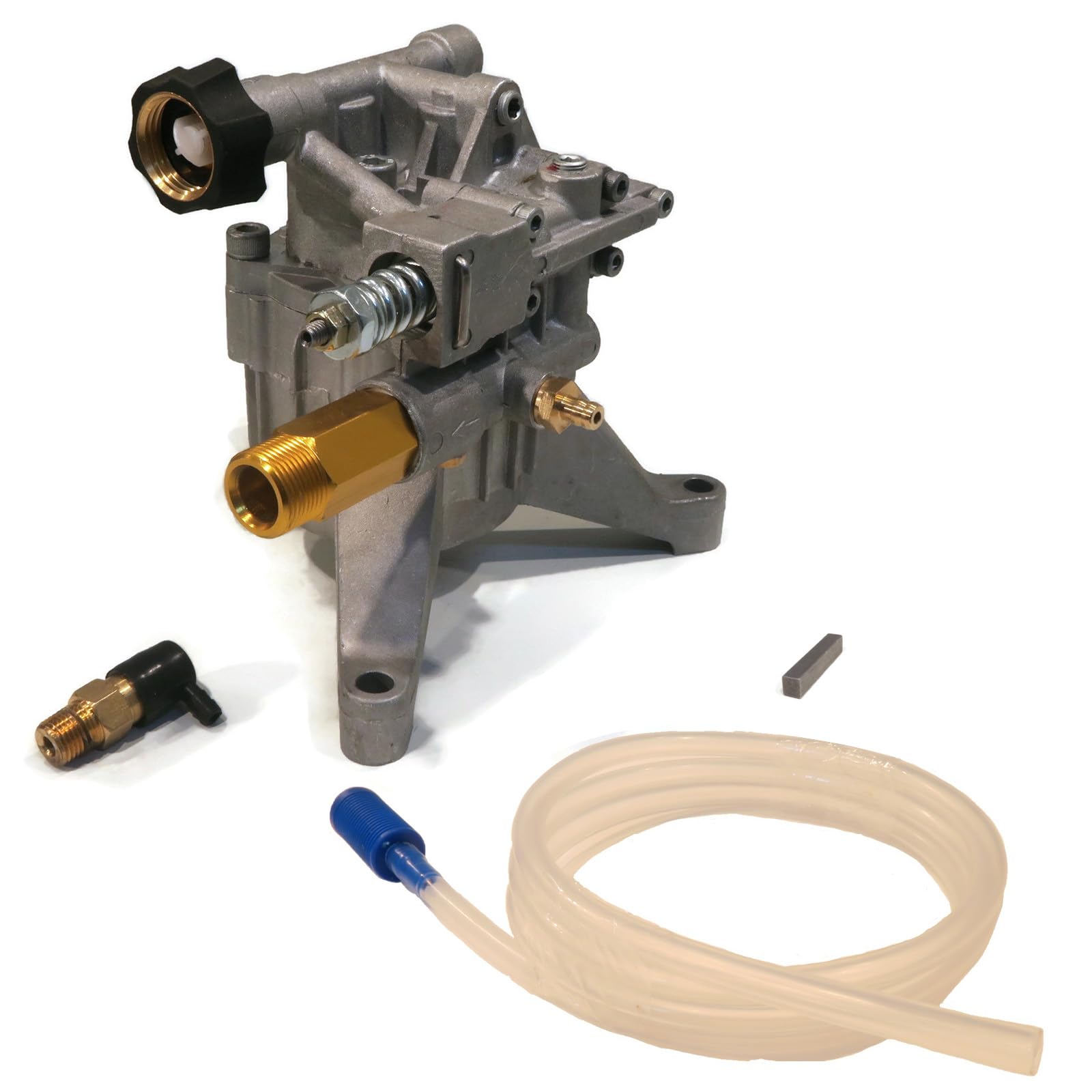

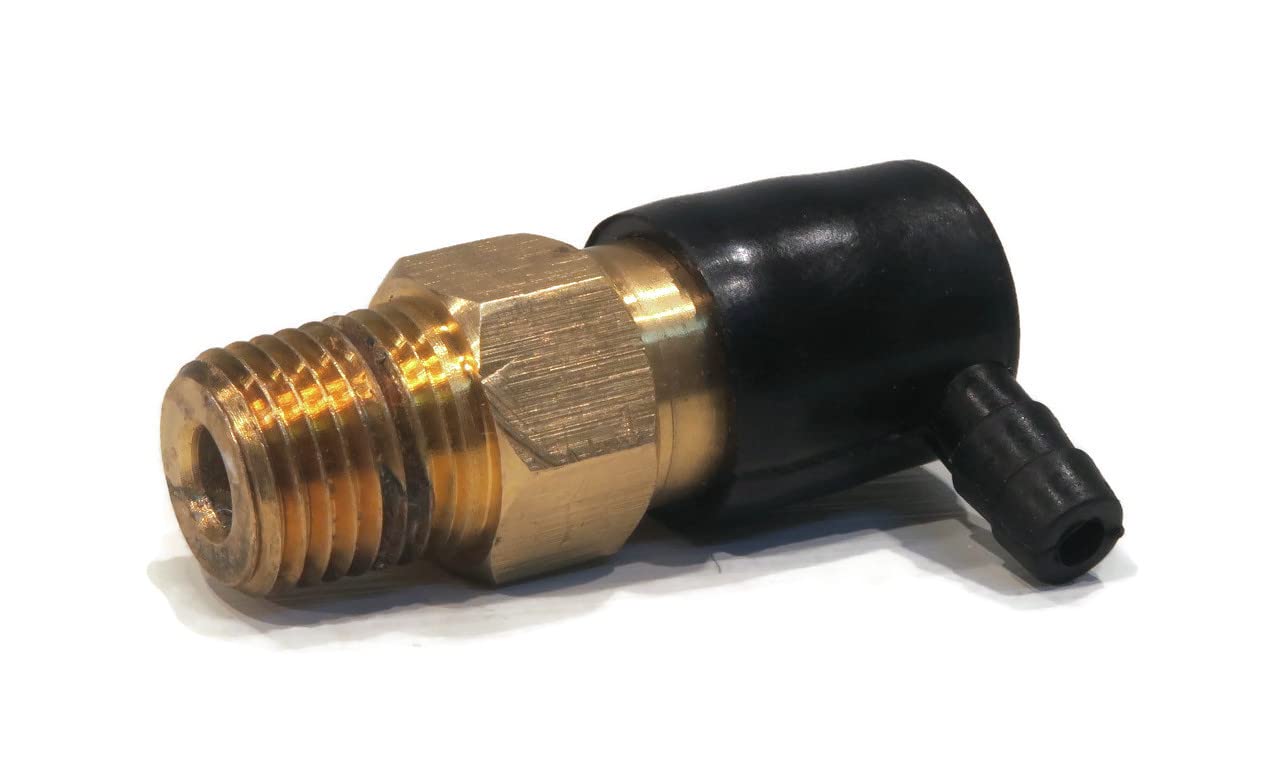

The pump ships with the main vertical pump assembly, chemical injector, unloader valve, thermal relief valve, outlet tube, a filtered hose and a keyway — shown in the first product image. Depending on your engine layout you may need longer bolts or spacers (not included) to clear the frame or to match a longer crankshaft.

• Included: pump, chemical injector, unloader, thermal valve, outlet tube, hose with filter, keyway
• Possible extras: longer bolts, spacers/washers for clearance
• Common bolt sizes: two 5/16"-18 x 2-1/2" and one 5/16"-18 x 3-1/2" (verify before purchase)

Are there installation notes or safety considerations I should know?

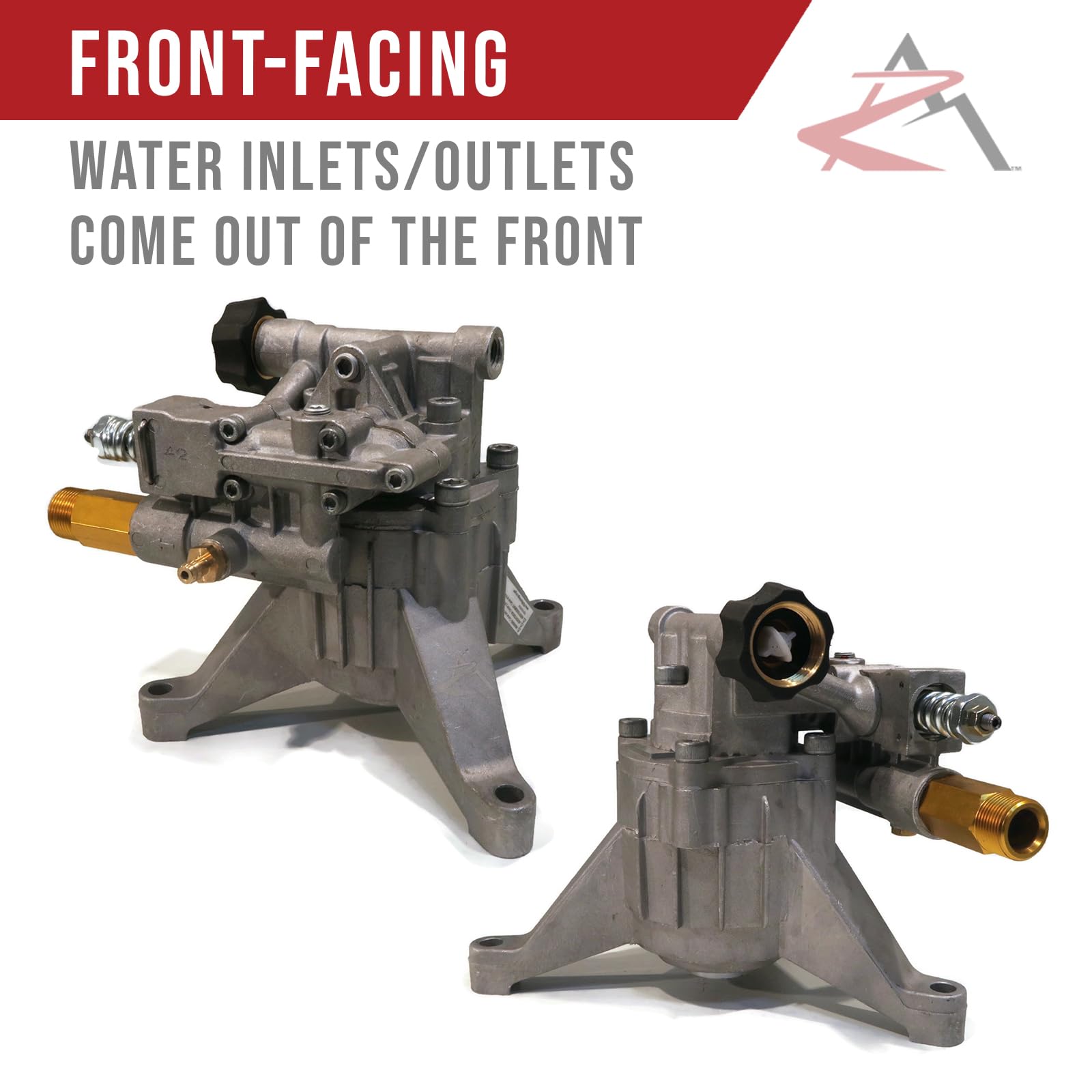

The pump mounts vertically and faces forward (inlets/outlets toward the front). Some configurations require removing the pump to access engine oil; also the pump head can be flipped for different plumbing orientations. Always match pump ratings to your system, and never run the pump above its maximum PSI rating.

• Mounts vertical, front-facing plumbing
• Pump head reversible for alternate outlet/inlet direction
• May require engine/pump removal for oil access on some setups
• Do not exceed max PSI or operate beyond temperature ratings

Who is this for: This replacement pump is designed for homeowners, rental shops and light-commercial users who need a direct-fit option for Excell VR2500-series pumps or compatible Troy-Bilt machines. It's ideal for those comfortable verifying mechanical specs and performing a straightforward swap, or for anyone working with pressure-washer engines of at least 5.5 HP seeking a cost-effective, fully equipped pump assembly.
