Hayward TriStar/EcoStar Pump Repair Kit SPXHKIT100 – O‑rings, Shaft Seal & Jack’s Lube for SP3200EE/SP3400VSP

Hayward SPXHKIT100 is a compact repair kit that replaces the critical O-rings, seal and lubrication parts needed to restore TriStar and EcoStar pump sealing and performance.

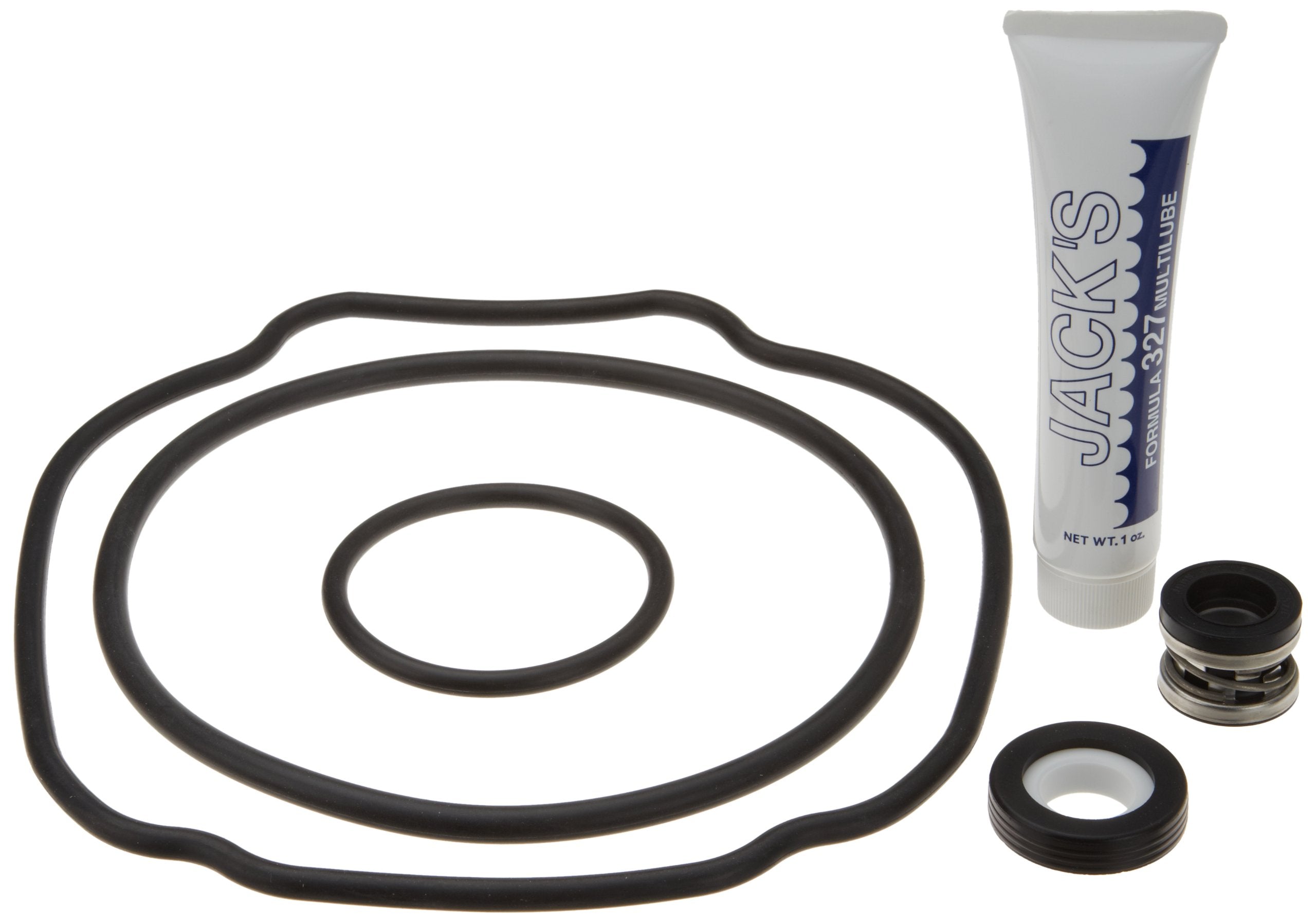

This quick pump repair replacement kit was engineered to fit Hayward TriStar SP3200EE series and EcoStar SP3400VSP series pumps, giving pool and spa owners the common wear parts needed to stop leaks and reduce downtime. The set contains the strainer cover O-ring, diffuser O-ring, shaft seal assembly, housing O-ring and Jack’s Lube — the components most likely to fail through normal use. It’s offered as a preventive or corrective service pack so techs and DIYers can complete tasks faster with parts that match factory specifications.

What exactly is included and why are these parts important?

The kit bundles the primary sealing components that ensure the pump stays watertight and the shaft remains protected. Replacing these items addresses the majority of small leaks and wear-related failures without swapping the entire pump.

• Strainer cover O-ring — seals the lid to prevent bypass leaks.
• Diffuser O-ring — maintains the hydraulic seal between housing parts.
• Shaft seal assembly — protects the motor shaft from water intrusion.
• Housing O-ring — seals the pump volute and housing junction.
• Jack’s Lube — compatible lubricant for O-rings and seals to extend life.

Which Hayward pump models will this SPXHKIT100 kit fit?

This replacement kit is compatible with a broad range of TriStar and EcoStar pumps, covering both energy-efficient and variable-speed variants. Always verify your pump model number before ordering to confirm fitment.

• TriStar SP3200EE series: SP3205EE, SP3207EE, SP3210(2)EE, SP3215(2)EE, SP3220(2)EE, SP322063EEV, SP3230EE, SP3250EE, SP323063EE
• EcoStar SP3400VSP series: SP3400VSP and SP3400VSPVR
• Designed to match Hayward factory seal dimensions and materials for direct replacement.

How will installing this kit affect maintenance and pump lifespan?

Swapping worn O-rings and the shaft seal can eliminate common leak sources and reduce the chance of motor damage from water ingress. Routine replacement of these parts during scheduled maintenance keeps the pump operating efficiently and avoids emergency repairs.

• Stops minor leaks before they escalate into mechanical issues.
• Reduces friction and wear with proper lubrication applied during installation.
• Quick on-site replacement minimizes pool downtime and service costs.

Can a homeowner install this kit, or is professional service recommended?

Many competent DIYers can replace these seals and O-rings with basic tools, following the pump’s service manual. However, if you’re uncomfortable disassembling the pump or your unit has additional damage, a trained Hayward technician ensures correct installation and alignment.

• Simple tools and a clean workspace are usually sufficient for a DIY job.
• Follow torque specs and lubrication instructions to avoid O-ring damage.
• Seek pro help when motor or impeller damage is suspected.

Who is this kit for?

This Hayward SPXHKIT100 quick pump repair kit is intended for pool professionals, service technicians and do-it-yourself pool owners who operate TriStar or EcoStar pumps and want a factory-compatible set of replacement seals and lube. It’s ideal for routine preventative maintenance, leak repairs and field technicians keeping repair calls short and effective.
