Hayward replacement seal assembly SPX1600TRA for SuperPump & MaxFlo pumps — mechanical seal kit, direct-fit

Hayward SPX1600TRA is a direct-fit seal assembly replacement kit engineered to restore reliable sealing and performance in compatible Hayward SuperPump and MaxFlo pool pumps.

When a leaking or noisy pump threatens circulation, the SPX1600TRA seal assembly provides the specific mechanical seal and associated components required to bring Hayward SuperPump and MaxFlo models back to dependable operation. This kit replaces the wear-prone parts that most commonly fail inside the wet end of these pumps, saving you the time and expense of buying a whole new pump. It’s compact, weighs approximately 1.6 pounds, and is intended for DIY installation or professional service technicians familiar with pump maintenance.

Which Hayward pumps will this seal assembly work with?

The SPX1600TRA is manufactured to fit a range of SuperPump and MaxFlo models from Hayward. It covers several SuperPump variants and an equivalent set of MaxFlo models, ensuring broad compatibility across common residential pump sizes. Confirm your pump’s model number before ordering to ensure a correct match.

• Fits SuperPump models: SP1600X5, SP1605X7, SP1607X10, SP1608X10, SP1610X15, SP1611X15, SP1615X20, SP1616X20, SP1621X25
• Fits MaxFlo models: SP2800X5, SP2805X7, SP2807X10, SP2810X15, SP2815X20
• Designed as a direct replacement for the wet-end mechanical seal components

How simple is installation and what tools are required?

Installation is straightforward for anyone comfortable disassembling a pump wet end and replacing seals. You’ll need basic hand tools and clean workspace to prevent contamination of the new seal faces. If you’re unsure, a pool service technician can complete the swap quickly and ensure correct alignment.

• Common tools: screwdriver set, pliers, wrench, clean rags
• Recommended: pump lubricant for O-rings and a dry, dust-free area
• Typical time: 20–60 minutes depending on experience

What does the kit replace and how does it improve pump performance?

This seal assembly replaces the mechanical seal and associated O-rings that prevent water from leaking around the pump shaft. Restoring a tight seal reduces water loss, stops shaft corrosion, and eliminates seal-related noises. Replacing worn parts helps the pump maintain proper pressure and prolongs the life of the motor and bearings.

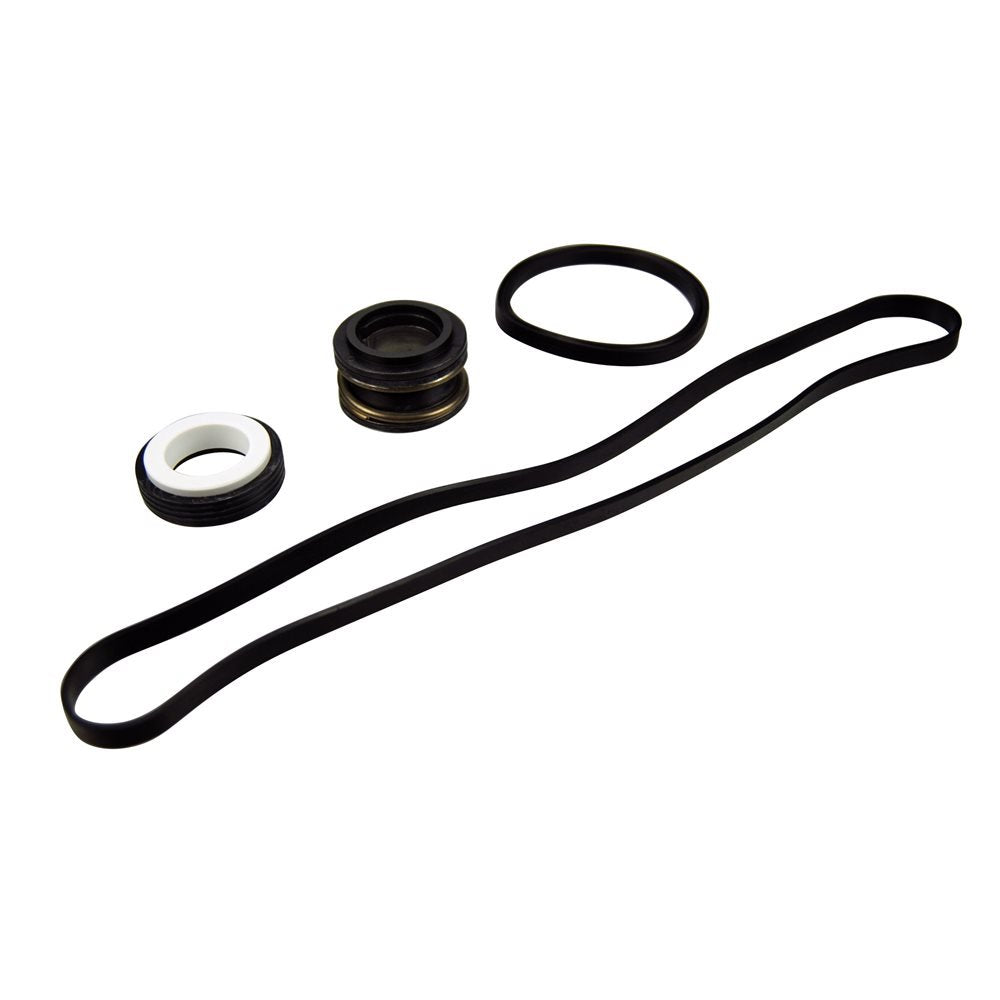

• Includes the mechanical seal components and necessary sealing rings
• Stops leaks that cause cavitation and lowered flow
• Reduces vibration and shaft wear from seepage

Are there any limitations or maintenance tips I should know?

The SPX1600TRA is intended specifically for the listed SuperPump and MaxFlo models and may not fit other Hayward pumps. Keep the sealing surfaces clean and avoid lubricants on the seal faces—only use recommended pump lube on O-rings. Inspect the pump housing and shaft for scoring before installing the new seal to ensure long service life.

• Not universal—verify model compatibility first
• Do not contaminate seal faces with dirt or oil
• Inspect shaft for damage; replace if excessively worn

Who is this for: Pool owners, maintenance professionals, and DIY technicians who operate Hayward SuperPump or MaxFlo models listed above and need a reliable, OEM-style replacement for a leaking or failed pump seal. If you want to avoid higher repair costs and extend your pump’s service life, this compact, model-specific seal assembly kit provides the key parts needed to restore proper operation.
