Hayward Multiport Valve Key, Cover & Handle Assembly SPX0714BA — Fits SP0714T, Restores Control and Stops Leaks

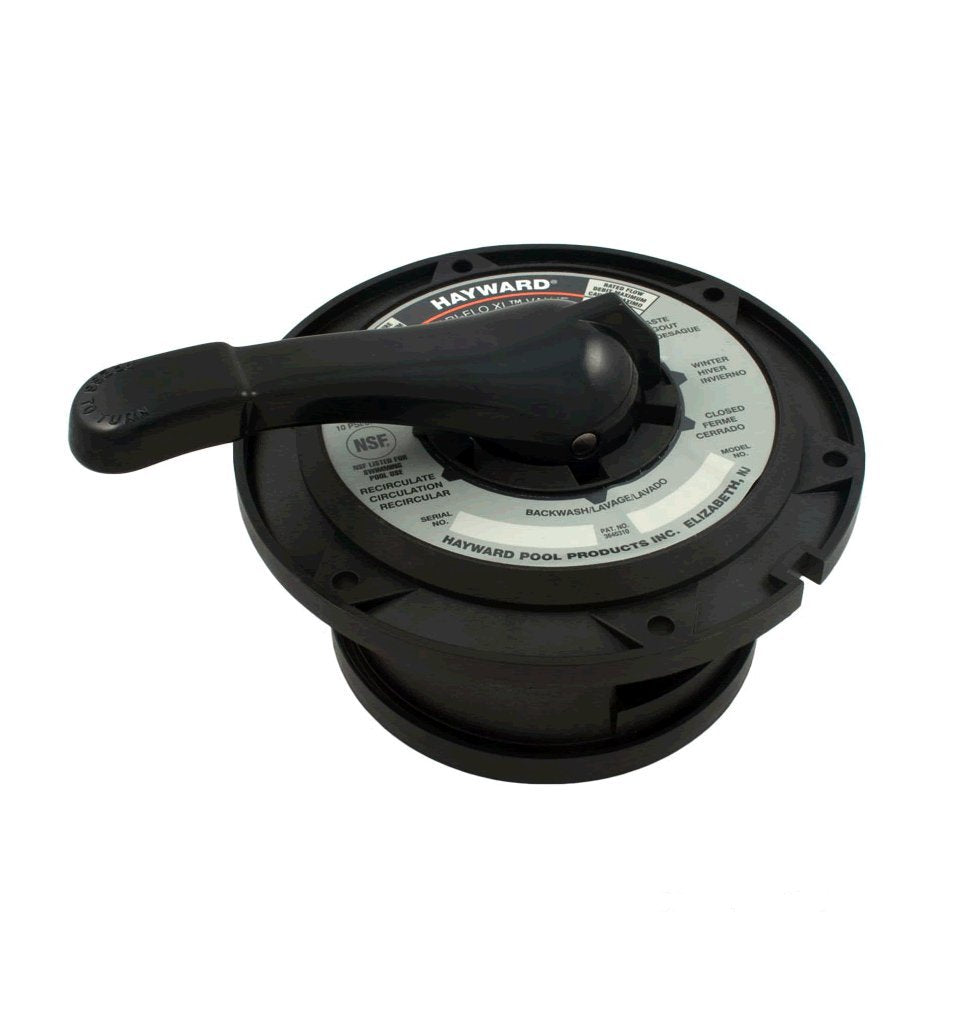

This Hayward SPX0714BA assembly is a direct replacement key, cover and handle set engineered for Hayward SP0714T multiport valves and several Hayward sand filter series.

When a worn or broken multiport valve handle or cover makes pool filtration adjustments difficult or leaks start at the valve, replacing the external assembly restores control and looks. The SPX0714BA kit fits original-equipment Hayward SP0714T multiport valves and is also compatible with multiple Hayward Pro, VL, HCF, S200 and select Pro Series side and top mount sand filter models. It weighs approximately 8.4 pounds and is supplied without the cover o‑ring, so plan for an o‑ring purchase if yours is missing or damaged.

Which Hayward filters and valves will this replacement assembly work with?

The SPX0714BA is designed to mate with Hayward SP0714T multiport valves and cross-fits a range of Hayward sand filter series from factory configurations. Confirm model compatibility before ordering by checking your valve tag or filter documentation.

• Direct fit for SP0714T multiport valves.
• Compatible with Hayward Pro, VL and HCF sand filter series (examples: S210T93SFT, HCV20715).
• Also fits Hayward Pro Series side and top mount sand filters such as S210S and S220T2.
• Does not include the cover o‑ring; replace separately if needed.

How do I install the Hayward SPX0714BA assembly?

Installation is a straightforward field service task for most pool owners or technicians familiar with multiport valves. Remove the old handle and cover assembly, inspect the multiport spider gasket and valve fit, then secure the new key, cover and handle in place following Hayward orientation.

• Shut off pump and release pressure before servicing the valve.
• Remove fasteners and lift off the existing cover and handle assembly.
• Position the replacement key and cover, align the handle, then tighten hardware evenly.
• Test valve positions for smooth rotation and check for leaks; replace cover o‑ring if necessary.

What should I know about parts and maintenance before buying?

This kit contains the external key, cover and handle assembly only and omits the cover o‑ring, so plan to have the correct o‑ring or gasket on hand. Regular inspection of the valve internals, spider gasket and clamp will extend service life and prevent functional issues.

• Hayward part number: SPX0714BA (catalog 4703-20).
• Weight approximately 8.4 pounds — verify shipping and handling if needed.
• Cover o‑ring not included; purchase separately if the existing o‑ring is brittle or missing.
• Inspect the spider gasket and valve body for wear during replacement.

Who is this for: Pool owners, maintenance professionals, and service technicians who need a reliable, OEM-compatible replacement for worn or damaged multiport valve handles and covers. If your Hayward SP0714T or compatible Pro/VL/HCF/S200-series sand filter shows stiff operation, cosmetic damage, or a loose handle, this SPX0714BA assembly restores proper valve control and appearance. Ensure compatibility with your filter model and include a cover o‑ring if required for a complete seal.
